  1. Problem Solving Part 2 Resonance

  2. Parallel and series circuits do not behave the same way at and around resonance. However, the method for determining their resonant frequency is the same. Resonant Frequency We calculate the resonant frequency of the circuit in Fig. 1-A.

  3. A parallel circuit at resonance has the following characteristics: • A phase shift of 00 • An impedance equal to resistance • A resistor current that equals the total current • Equal and opposite currents through the inductive and capacitive branches • Maximum impedance and minimum current

  4. Effects of Resonance The best way to consider the effects of resonance on a parallel circuit is to calculate all values and construct a current graph. We first calculate the reactance.

  5. The calculations show that one characteristic of resonance exists: Inductive reactance equals capacitive reactance. We now calculate current. Since both reactances are equal, both currents will be equal. However, the phase angles will be in opposition.

  6. As shown in Fig. 1-3, the currents of the two reactors are equal and opposite, so their vector sum is zero. The net total current in the circuit is that in the resistor. Current flows through one inductor in one direction while flowing through the other inductor in the opposite direction. At resonance, energy transfers back and forth between the two inductors, with any energy loss replaced by the voltage source. In a parallel resonance, the total current equals the resistor current.

  7. IC= 0.00462 A IXT= 0 A IR = IT = 0.00364 A IL = 0.00462 A Fig. 1-3. Circuit Currents at Resonance

  8. The current through the inductor lags the applied voltage by 900, while the capacitor current leads it by 900. The inductor and capacitor branch currents are 1800 out of phase with each other. When one has a great supply of electrons, the other has a demand, and vice versa. The net result is that once resonance occurs, these two reactors transfer electrons back and forth. Refer to Fig. 1-4.

  9. IX IR !X Fig. 1-4. Current Paths at Resonance

  10. Conditions that need to exist before resonance can occur: • The reactances must be equal for the timing of their fields to be the same. • The frequency of the applied source must be the same as the resonant frequency for oscillation to occur.

  11. We now calculate impedance. Since little energy is taken from the source at resonance, we expect impedance to be high. The impedance of a parallel RLC circuit is at its highest level during resonance. The phase angle at resonance is 00.

  12. The frequency characteristics of the circuit (Fig. 1-A) which we have evaluated at frequencies above, below and at resonance are summarized in the graph in Fig. 1-5.

  13. 38.3 0 -55.3 2198 1724 1252 0.00639 0,00464 0.00364 Fig. 1-5. Relationships in a Parallel RLC Circuit

  14. Quality Factor and Bandwidth As with series circuits, the quality factor Q is an indication of the relationship between reactance and resistance in an RLC parallel circuit. Q for a parallel circuit is determined by the reactance of the inductor and its internal resistance.

  15. Refer to Fig. 1-6 where RL represents the 100-ohm internal resistance of the inductor, while XL is its 2400-ohm reactance. XL and XC are equal since the circuit is resonant. Q is calculated as:

  16. 2400  2400  18V 1200 Hz 100  Fig. 1-6. Coil Resistance

  17. Bandwidth (BW) is inversely related to Q and gives an indication of the frequency response of a circuit. High-Q circuits have a narrow bandwidth, while low-Q circuits have a wide bandwidth. The bandwidth for the circuit is:

  18. The half-power points of a circuit are the two frequencies where the voltage drops to 0.707 times the peak, or resonant frequency, value. Since voltage causes current in a circuit, the current also drops to 0.707 of its peak value. Since power equals voltage times current, then the power is now 0.5 of what it was at resonance. The phase shift is normally 450 at the half-power points.

  19. The half-power points for this circuit are: (1200 Hz) – (50/2 Hz) = 1175 Hz (1200 Hz) + (50/2 Hz) = 1225 Hz

  20. If a 100-ohm resistor RS was placed in series with the 100 ohms of internal resistance that this inductor has, Q and BW would change, as follows:

  21. The effects of this change can be seen in Fig. 1-7. A lower Q results in a broader bandwidth. Values of Q can range from 20 to 100 in a typical RLC circuit.

  22. 1200 Hz Q = 24 Q = 12 1175 1 250 1175 1 225 Fig. 1-7. Circuit Q and BW

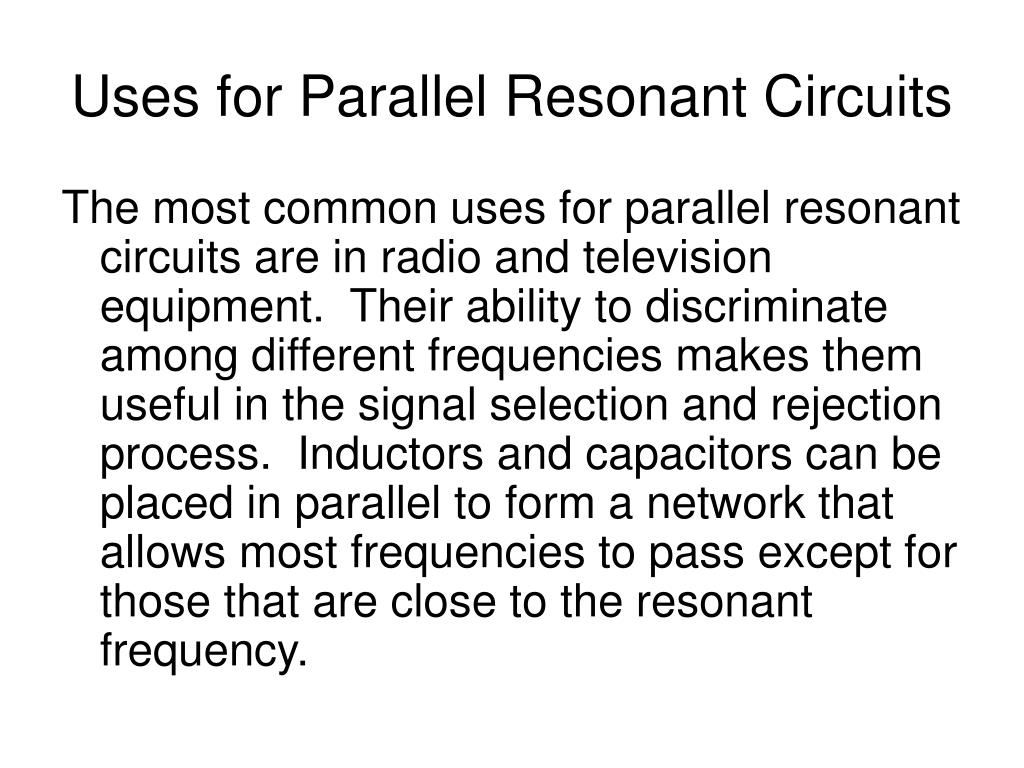

  23. Uses for Parallel Resonant Circuits The most common uses for parallel resonant circuits are in radio and television equipment. Their ability to discriminate among different frequencies makes them useful in the signal selection and rejection process. Inductors and capacitors can be placed in parallel to form a network that allows most frequencies to pass except for those that are close to the resonant frequency.

  24. Signal In Signal Out Refer to Fig. 1-8, which shows a transformer that is tuned to resonate at a particular frequency. Fig. 1-8. Adjustable Transformer in Radio Circuit

  25. A complex signal of many frequencies is applied to the transformer primary. The LC circuit on the primary side resonates only at the desired frequency, with an amplitude proportional to the size of the desired portion of the incoming signal. Transformer action causes this signal to be reproduced at the secondary side of the transformer.

  26. The desired signal is then developed across the high impedance of the secondary parallel resonant circuit. Undesired signals at frequencies beyond the half-power points of the bandwidth are further suppressed. This selection-discrimination process allows a radio or television circuit to select the desired station and block all others.

  27. Evaluating RLC Circuits Three parameters are of interest in testing RLC circuits: • Resonant frequency • Impedance • bandwidth

  28. Series Connection Real inductors have internal series resistance because of their windings. Real capacitors have internal parallel resistance because of their leakage. Capacitor leads have inductance. Inductor leads have capacitance. The three components in an actual series RLC circuit do not each have only on form of opposition but each component has complex oppositions.

  29. The circuit we will evaluate is shown in Fig. 1-9. The objective is to determine the resonant frequency, impedance, and bandwidth. Fig. 1-9. Series RLC Circuit for Evaluation

  30. The following results will be obtained if exact values were used and if the components were ideal.

  31. The half-power points indicating the bandwidth limits are: (14,283 Hz) - (2944/2 Hz) = 12,771 Hz (14,243 Hz) + (2944/2 Hz) = 15,715 Hz

  32. Bandwidth and impedance are affected by resistance, and the resistor is not the only source of resistance. Inductor winding resistance will be a significant factor. Do not exceed the current capacity of the inductor because excess current will saturate an inductor and cause incorrect results.

  33. Impedance can be determined by dividing the measured value of total voltage by the measured value of total current. If you know the actual value of the resistor you can use resistor voltage to calculate circuit current. The best way to determine resonance is by measuring the resistor voltage which is equal to its maximum at the resonant frequency.

  34. Bandwidth can also be determined by measuring the resistor voltage. BW limits at ER = (0.707)ERmax

  35. Parallel Connection In evaluating an RLC circuit for the parallel connection, the resistance branch should be larger, and a series resistance should be added to limit inductor current. Fig. 1-10. Parallel RLC Circuit for Evaluation

  36. The resonant frequency of the circuit should be the same as the resonant frequency of the series circuit. The impedance of the parallel section of this circuit (if ideal) would be equal to the resistive branch of 1000 ohms. One way to determine resonance is to measure the parallel circuit voltage, the voltage across the parallel network. The network voltage is 0.707 times the resonant value at the upper and lower half-power points.
