  1. Topology Matching For Fully Automatic Similarity Matching of 3D Shapes Masaki Hilaga Yoshihisa Shinagawa Taku Kohmura Tosiyasu L. Kunii

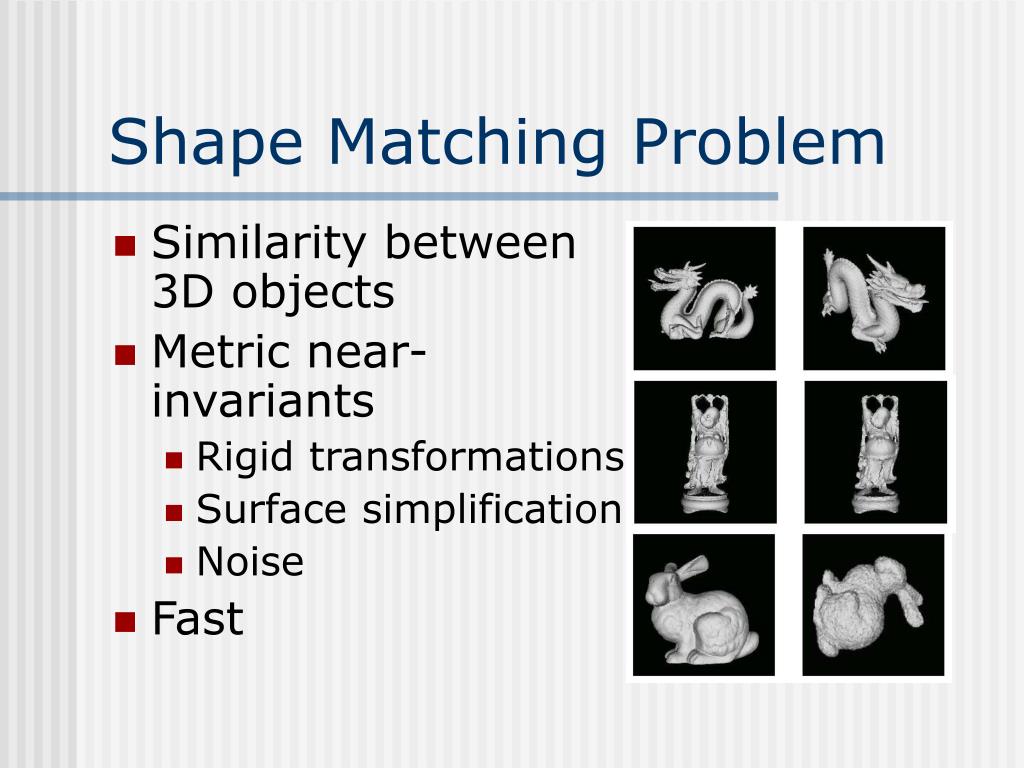

  2. Shape Matching Problem • Similarity between 3D objects • Metric near-invariants • Rigid transformations • Surface simplification • Noise • Fast

  3. Technique (1) • Construct Multiresolution Reeb Graph (MRG) • normalized geodesic distance Geodesic distance function Multiresolution Reeb Graph

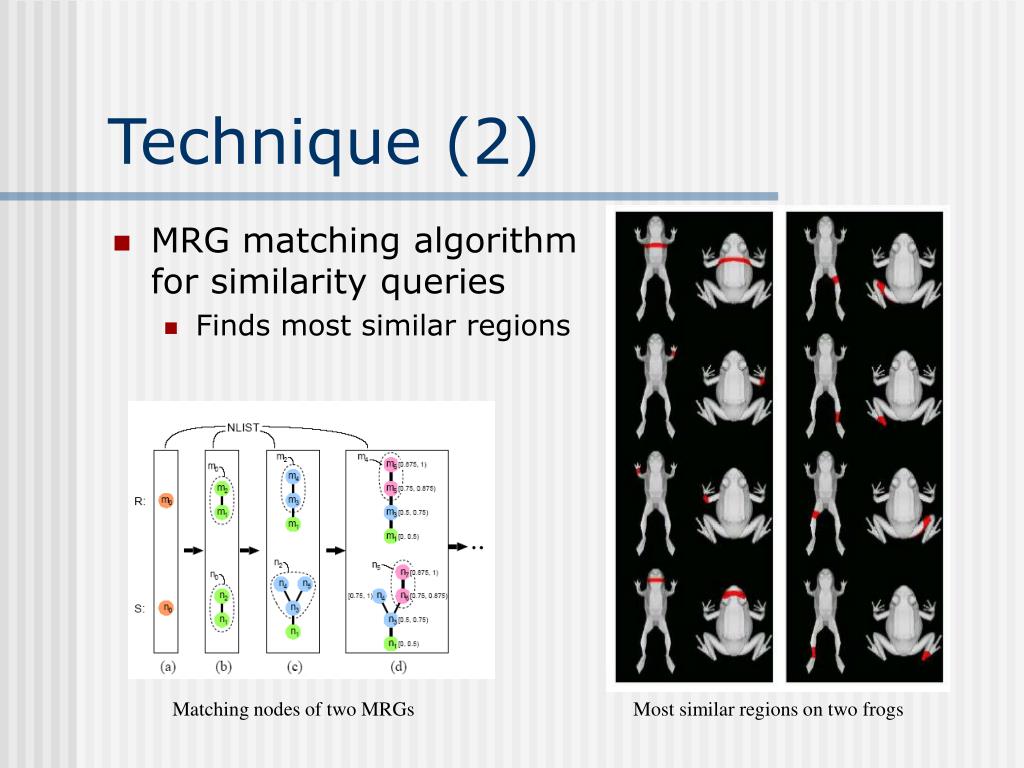

  4. Technique (2) • MRG matching algorithm for similarity queries • Finds most similar regions Matching nodes of two MRGs Most similar regions on two frogs

  5. Reeb Graph • Same as in Chand’s presentation • Can use any function 

  6. Geodesic distance function • Integral of geodesic distances • (v) = p g(v,p) dS • Normalize • n(v) = ((v) – min()) / min()

  7. Geodesic Approximation • Approximate integral • Sample • Simplify distance • Use Dijkstra’s

  8. Multiresolution Reeb Graph • Binary discretization • Preserve parent-child relationships • Exploit them for matching

  9. Matching process • Calculate similarity • Match nodes • Find pairs with maximal similarity • Preserve multires hierarchy topology • Sum up similarity

  10. Matching Process R S Match if:

  11. Matching Process R S Match if: Same height range

  12. Matching Process R S Match if: Same height range Parents match

  13. Matching Process R S Match if: Same height range Parents match

  14. Matching Process R S Match if: Same height range Parents match Match on graph path

  15. Results • Invariants satisfied fairly well • Between pairs, similarity  0.94 • Across pairs, similarity  0.76

  16. Results • Database, 7 levels of MRG • Similarity calculated in tens of milliseconds • Database searched in average ~10 seconds

  17. Critique • Subjectively good matching • Meet invariance criteria • Approximation of geodesic distance • Reeb graph discretization • All models in DB must have same parameters • Similarity metric
