  1. SkyWay Excel Product Line IntroductionVersion 1.1 – 12/01/08

  2. SkyWay Excel … • ..Is a high speed, unlicensed 5.8 GHz PTP radio product • ..Uses MIMO technology to deliver up to 100 Mbit/s of usable throughput • ..Offers a complete PTP solution with a industry-leading price structure Solectek Confidential

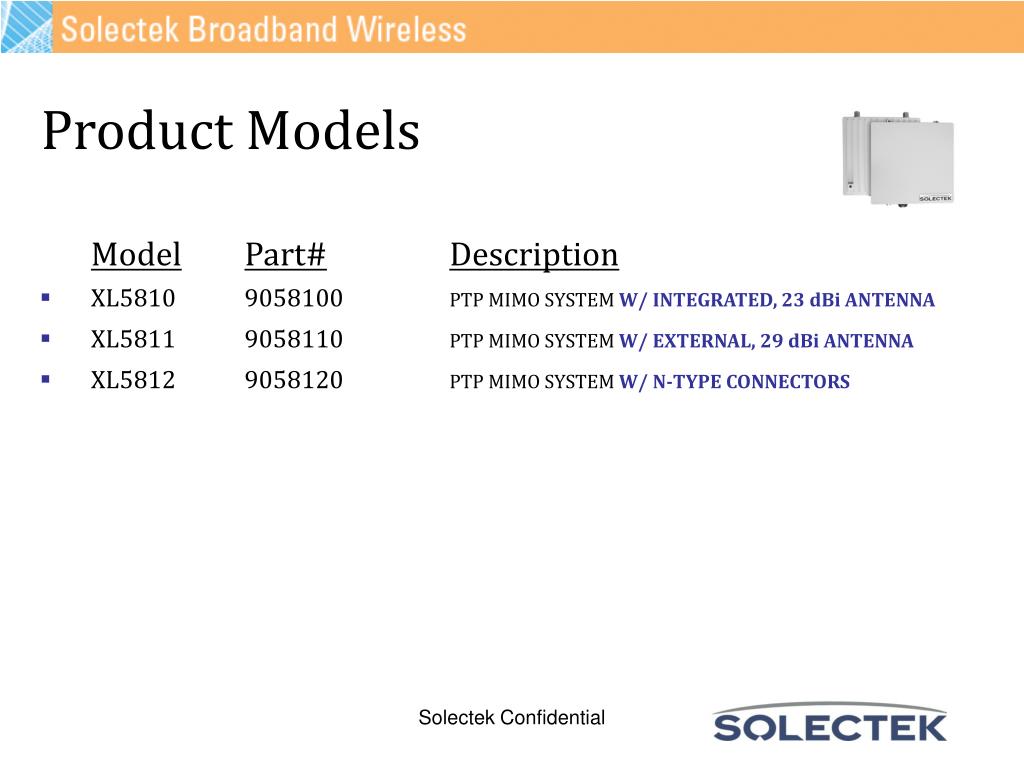

  3. Product Models ModelPart#Description • XL5810 9058100PTP MIMO SYSTEM W/ INTEGRATED, 23 dBi ANTENNA • XL5811 9058110PTP MIMO SYSTEM W/ EXTERNAL, 29 dBi ANTENNA • XL5812 9058120PTP MIMO SYSTEM W/ N-TYPE CONNECTORS Solectek Confidential

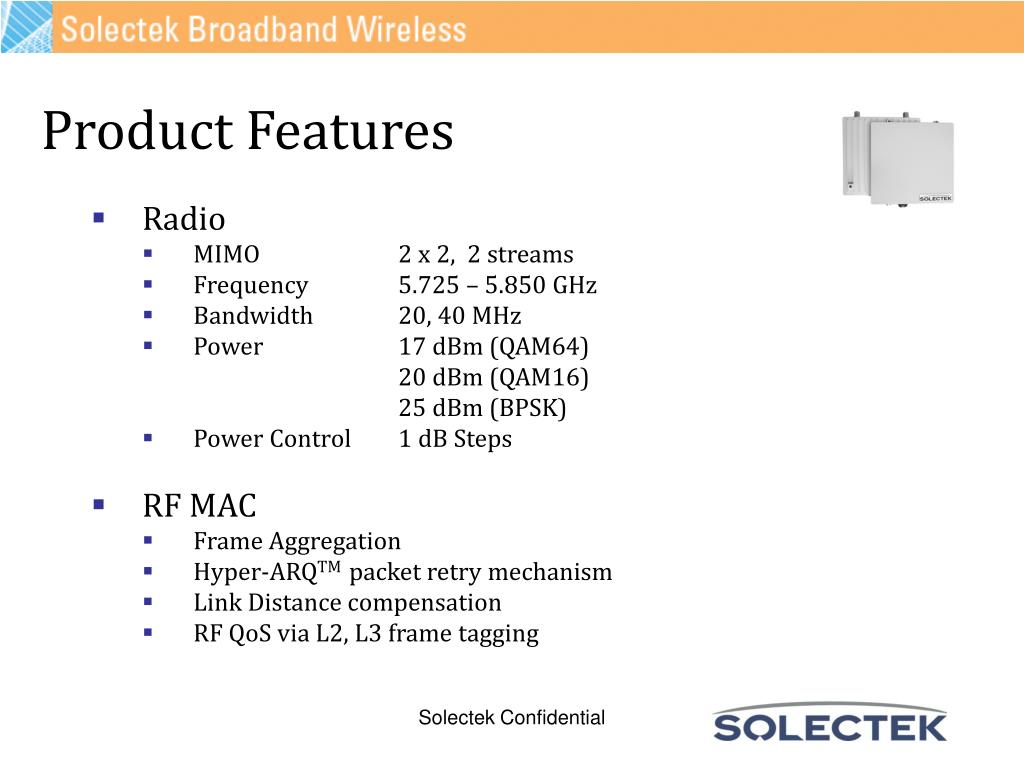

  4. Product Features • Radio • MIMO 2 x 2, 2 streams • Frequency 5.725 – 5.850 GHz • Bandwidth 20, 40 MHz • Power 17 dBm (QAM64) 20 dBm (QAM16) 25 dBm (BPSK) • Power Control 1 dB Steps • RF MAC • Frame Aggregation • Hyper-ARQTM packet retry mechanism • Link Distance compensation • RF QoS via L2, L3 frame tagging Solectek Confidential

  5. Product Features (cont) • Networking • Transparent, Layer2 bridging • VLAN Pass-through • Line-speed priority queuing • Security • 128 bit AES • MAC address authentication • 802.1x / Radius • Management • HTTP GUI • Telnet • SNMP v1, v2 w/ Private MIB • Antenna alignment • Audio tone guidance Solectek Confidential

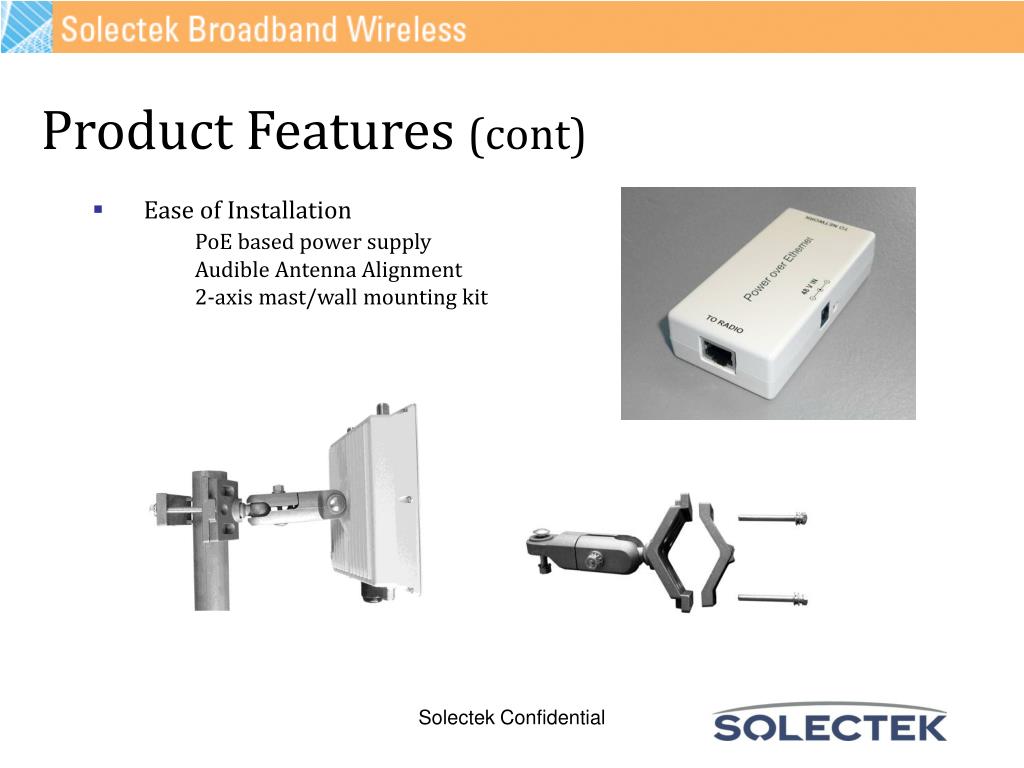

  6. Product Features (cont) • Ease of Installation • PoE based power supply • Audible Antenna Alignment • 2-axis mast/wall mounting kit Solectek Confidential

  7. Product Performance • Throughput • Latency <10 mS @ 90% network load • XL5810XL5811 • 5 miles 100 Mbps 100 Mbps • 10 miles 60 Mbps 100 Mbps • 15 miles 40 Mbps 60 Mbps • 20 miles 20 Mbps 45 Mbps Solectek Confidential
