  1. P. J. Huggins, New York University Signatures of Magnetic Field Structure in Planetary Nebulae PNe as MHD systems

  2. Can we see MHD in PNe ? • ample evidence for mag fields in PNe: • jet origin – binary disks/single stars • fields in AGB envelopes and proto/young-PNe • surface fields CS PNe (Jordan et al. 05) • can we identify direct effects of MHD in PN images • is the complex structure in PNe caused by MFs ? • can structure be used to probe MF ? • we divide the question into 3 parts: • what to look for ? • is there morphological evidence in PN images ? • are the fields strong enough ?

  3. Morphology of magnetic fields 171 Angstrom TRACE 1.4 GHz Lang et al. 99 strong field cases: longitudinal coherence

  4. Molecular Clouds gravity thermal pressureturbulencemagnetic field • right:filaments in Orion850 memission polarized Johnstone & Bally 99 • left:elephant trunks in Rosette NebulaHaCarlqvist et al. 03

  5. Looking for MHD in PNe • morphological signature: connectedness – filaments • PNe are different from the molecular cloud case: • turbulence weak, radial velocity helps preserve geometry • source of magnetic fields: central star • 10” at 500 pc ~ 1017 cm, B~rn, n= 1,2,3 – uncertain • strategy • search for connected structures • examine what fields are needed to provide coherence we present 3 examples

  6. NGC 3132 87” x 61”

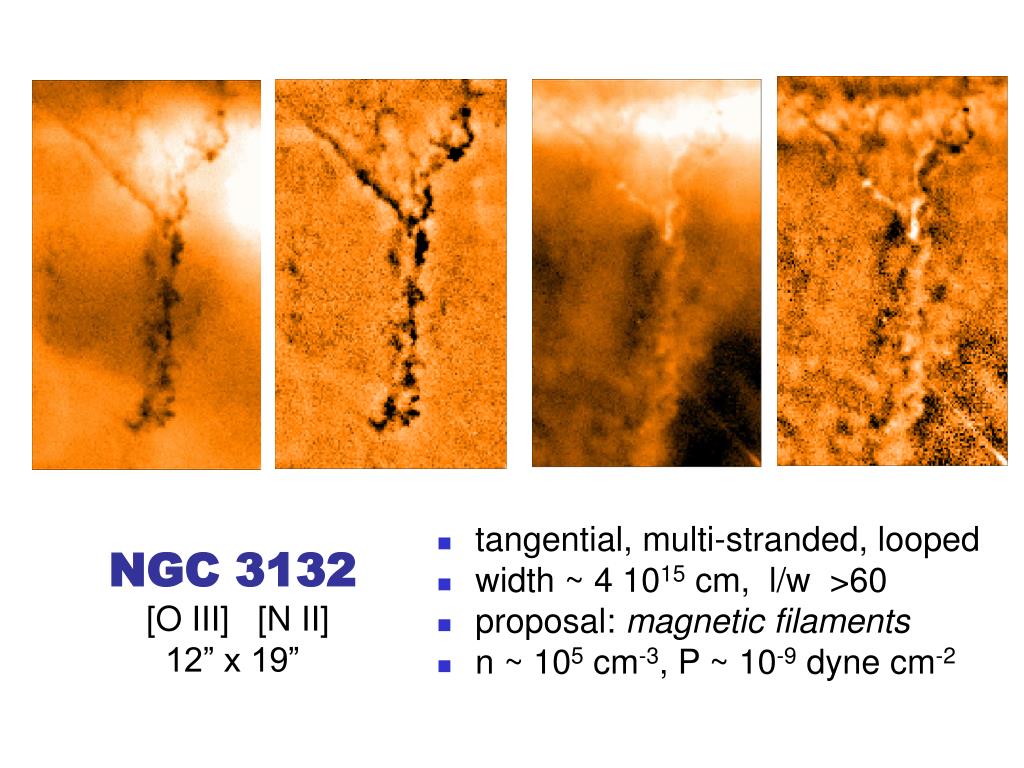

  7. tangential, multi-stranded, looped • width ~ 4 1015 cm, l/w >60 • proposal: magnetic filaments • n ~ 105 cm-3, P ~ 10-9 dyne cm-2 NGC 3132 [O III] [N II] 12” x 19”

  8. tangential, l/w>40, like spaghetti • proposal: magnetic filaments • n~4 104 cm-3, P~10-7 dyne cm-2 IC 418 Ha un-sharp mask 18” x 18”

  9. tangential, l/w>40, like spaghetti • proposal: magnetic filaments • n~4 104 cm-3, P~10-7 dyne cm-2 IC 418 [N II], Ha un-sharp mask 18” x 18”

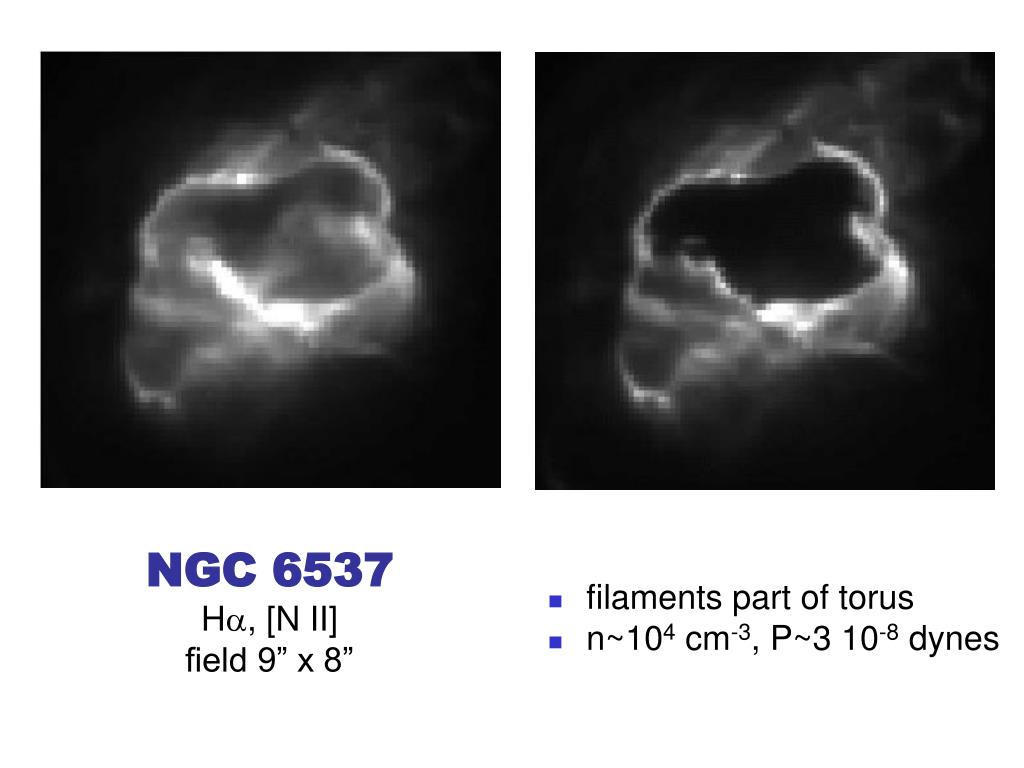

  10. NGC 6537 Ha, [N II] field 9” x 8” • filaments part of torus • n~104 cm-3, P~3 10-8 dynes

  11. If filaments are magnetic are the fields strong enough ? • rough field estimates: • b = 8p P/B2 ~ 1, pressure • s = B2/4prv2 ~ 1, n vexp • compare with AGB fields • our estimates are upper limits • s ~ 1/10 still robust • likely compressionAGB – PN transition • “magnetic filament” concept consistent with AGB fields ~ mG at 1017 cm

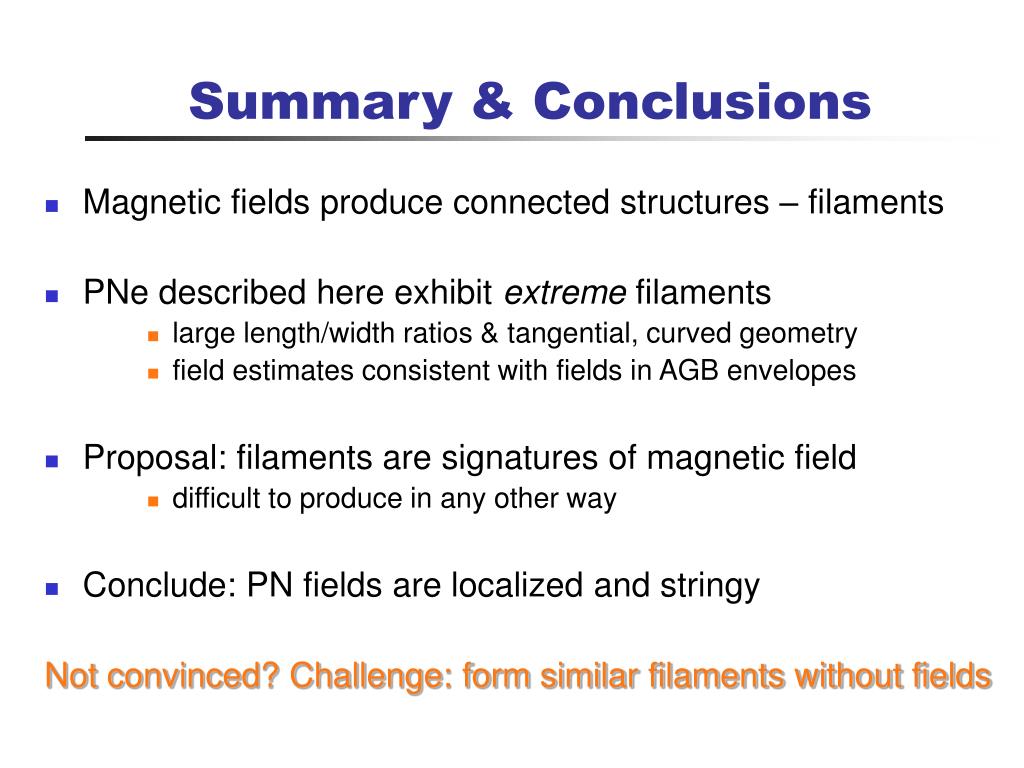

  12. Summary & Conclusions • Magnetic fields produce connected structures – filaments • PNe described here exhibit extreme filaments • large length/width ratios & tangential, curved geometry • field estimates consistent with fields in AGB envelopes • Proposal: filaments are signatures of magnetic field • difficult to produce in any other way • Conclude: PN fields are localized and stringy Not convinced? Challenge: form similar filaments without fields
