real world traction with green buildings
Real-World Traction With Green Buildings

George MacBeth

Professional Services Manager

ARCHIBUS® Solution Center - Environment + Sustainability Services

main topics

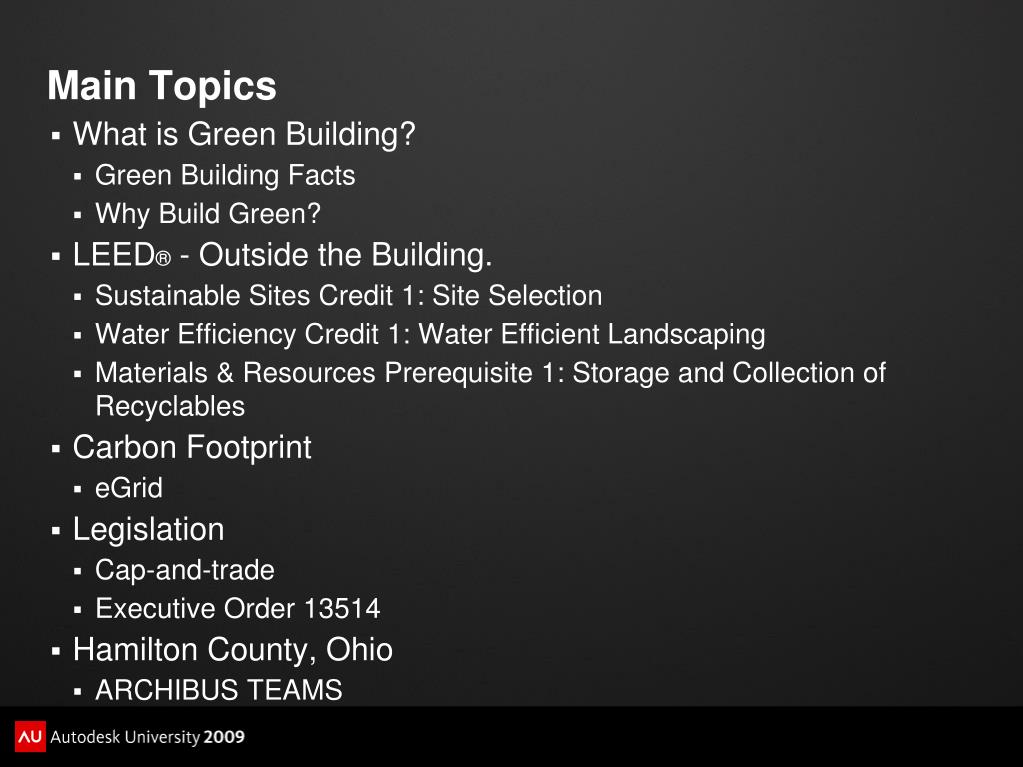

Main Topics
  • What is Green Building?
    • Green Building Facts
    • Why Build Green?
  • LEED® - Outside the Building.
    • Sustainable Sites Credit 1: Site Selection
    • Water Efficiency Credit 1: Water Efficient Landscaping
    • Materials & Resources Prerequisite 1: Storage and Collection of Recyclables
  • Carbon Footprint
    • eGrid
  • Legislation
    • Cap-and-trade
    • Executive Order 13514
  • Hamilton County, Ohio
    • ARCHIBUS TEAMS
what is green building

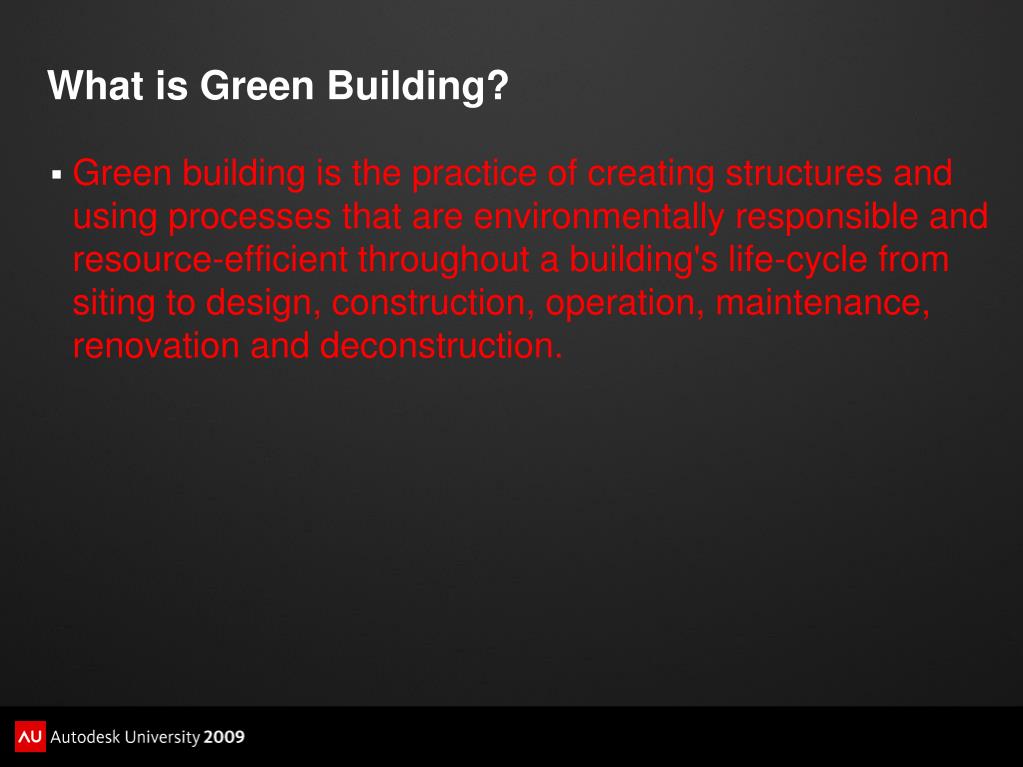

What is Green Building?
  • Green building is the practice of creating structures and using processes that are environmentally responsible and resource-efficient throughout a building's life-cycle from siting to design, construction, operation, maintenance, renovation and deconstruction.
green building facts
Green Building Facts
  • Energy
    • 38.9% of U.S. primary energy use (Environmental Information Administration (2008). EIA Annual Energy Outlook.)
    • 38% of all CO2 emissions (Energy Information Administration (2008). Assumptions to the Annual Energy Outlook.)
    • 72% of U.S electricity consumption (Environmental Information Administration (2008). EIA Annual Energy Outlook.)
  • Water
    • 13.6% of all potable water (U.S. Geological Survey (2000). 2000 data.)
green building facts1

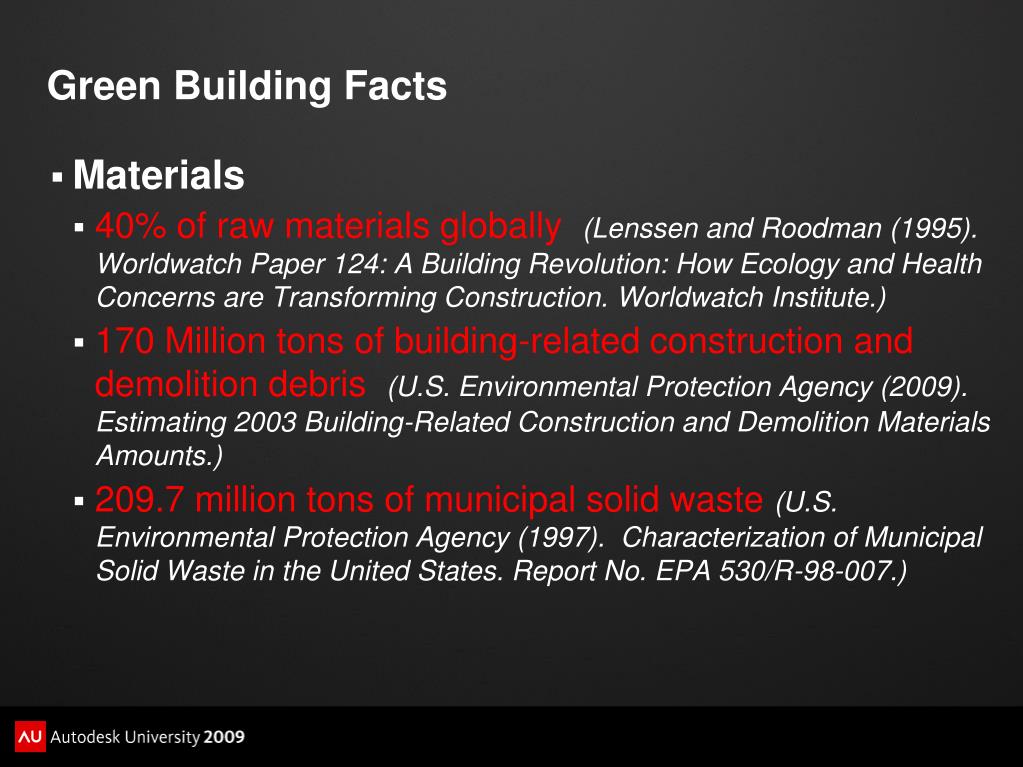

Green Building Facts
  • Materials
    • 40% of raw materials globally (Lenssen and Roodman (1995). Worldwatch Paper 124: A Building Revolution: How Ecology and Health Concerns are Transforming Construction. Worldwatch Institute.)
    • 170 Million tons of building-related construction and demolition debris (U.S. Environmental Protection Agency (2009). Estimating 2003 Building-Related Construction and Demolition Materials Amounts.)
    • 209.7 million tons of municipal solid waste (U.S. Environmental Protection Agency (1997). Characterization of Municipal Solid Waste in the United States. Report No. EPA 530/R-98-007.)
why build green
Why Build Green?
  • The cost per square foot for buildings seeking LEED Certification falls into the existing range of costs for buildings not seeking LEED Certification. (Davis Langdon (2007). Cost of Green Revisited: Reexamining the Feasibility and Cost Impact of Sustainable Design in the Light of Increased Market Adoption.)
  • A 2% investment in green building design results in life cycle savings of 20% of the construction costs (Kats, G. (2003). The Costs and Financial Benefits of Green Buildings: A Report to California's Sustainable Building Task Force.)
  • Sale prices for green buildings are 10% higher per square foot than non-green buildings (Miller, N., Spivey, J. & Florance, A. (2007). Does Green Pay Off?)
why build green1

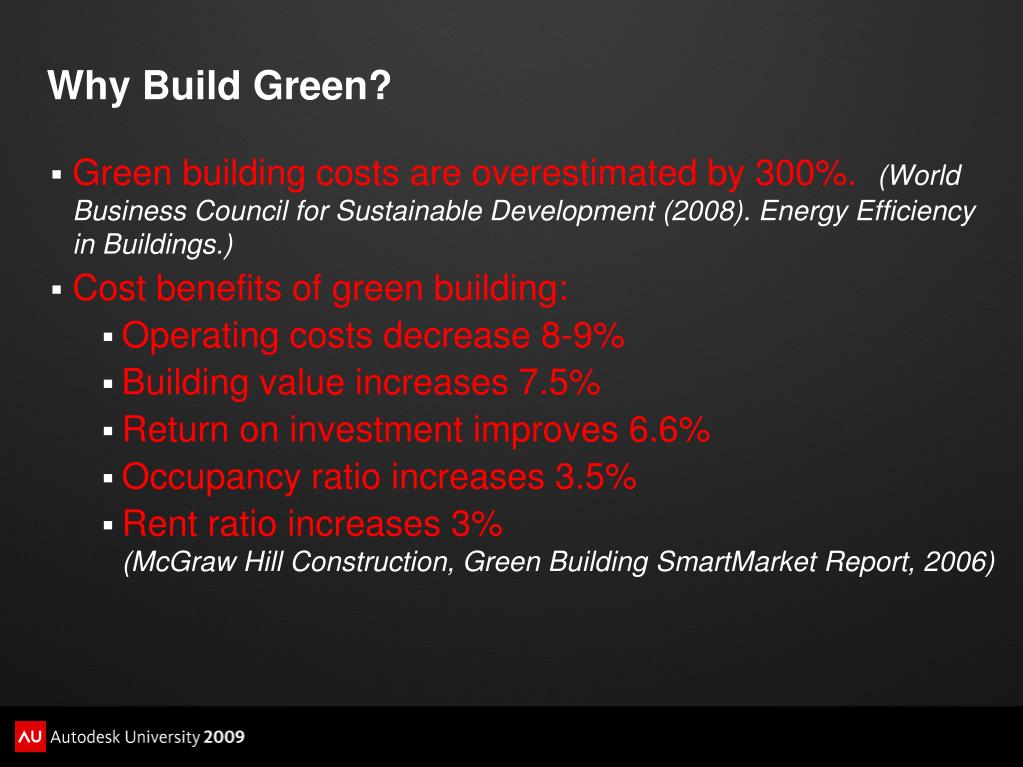

Why Build Green?
  • Green building costs are overestimated by 300%. (World Business Council for Sustainable Development (2008). Energy Efficiency in Buildings.)
  • Cost benefits of green building:
      • Operating costs decrease 8-9%
      • Building value increases 7.5%
      • Return on investment improves 6.6%
      • Occupancy ratio increases 3.5%
      • Rent ratio increases 3%(McGraw Hill Construction, Green Building SmartMarket Report, 2006)
why build green2
Why Build Green?
  • Compared to the average building:
      • Green buildings consume 26% less energy
      • Green buildings have 13% lower maintenance costs
      • Green buildings have 27% higher occupant satisfaction
      • Green buildings have 33% less greenhouse gas emissions(GSA Public Buildings Service (2008). Assessing Green Building Performance: A Post Occupancy Evaluation of 12 GSA Buildings. )

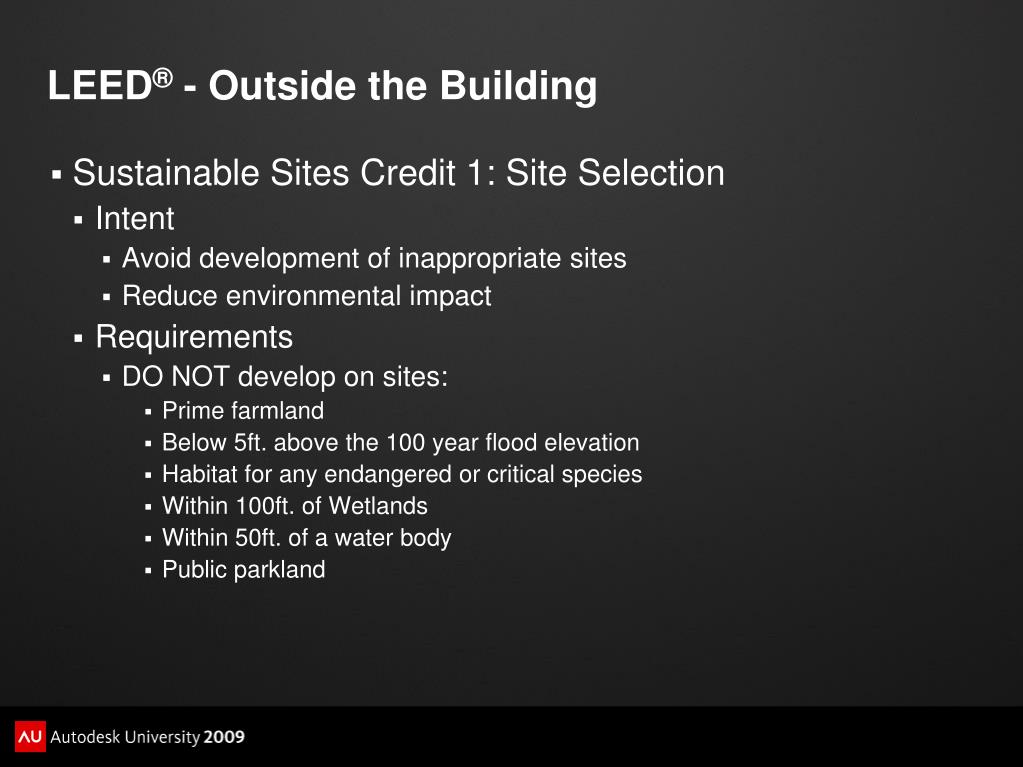

leed outside the building
LEED® - Outside the Building
  • Sustainable Sites Credit 1: Site Selection
    • Intent
      • Avoid development of inappropriate sites
      • Reduce environmental impact
    • Requirements
      • DO NOT develop on sites:
        • Prime farmland
        • Below 5ft. above the 100 year flood elevation
        • Habitat for any endangered or critical species
        • Within 100ft. of Wetlands
        • Within 50ft. of a water body
        • Public parkland
leed outside the building2
LEED® - Outside the Building
  • Sustainable Sites Credit 1: Site Selection Information is stored in the ARCHIBUS TEAMS Green Building Module
leed outside the building3

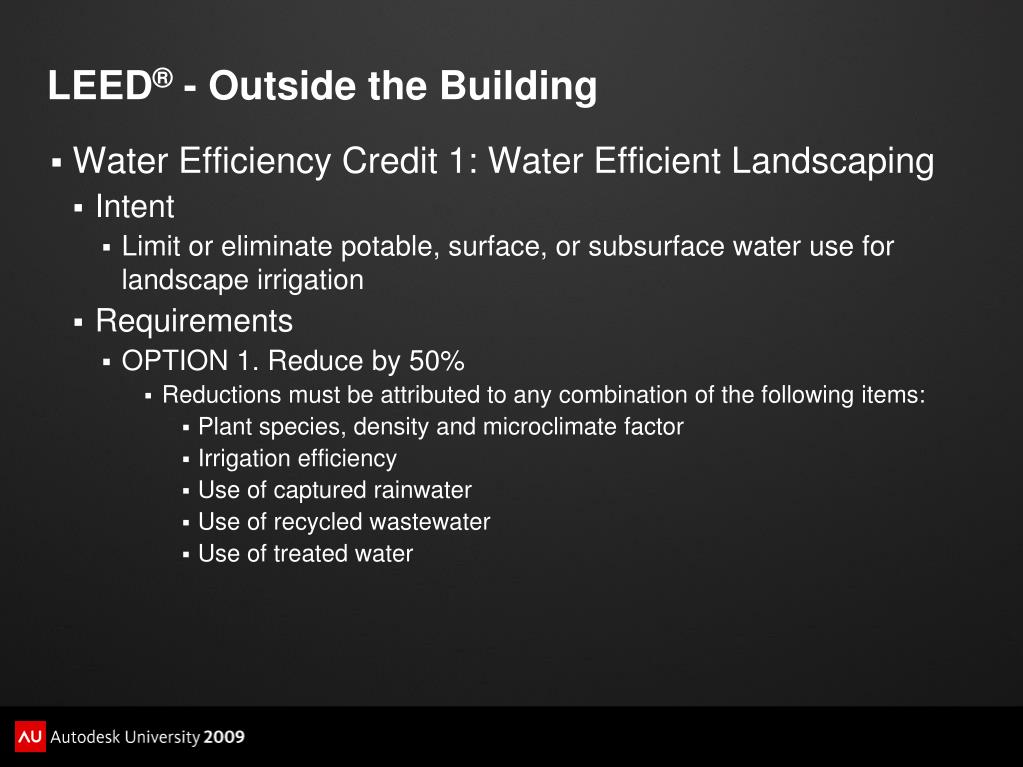

LEED® - Outside the Building
  • Water Efficiency Credit 1: Water Efficient Landscaping
    • Intent
      • Limit or eliminate potable, surface, or subsurface water use for landscape irrigation
    • Requirements
      • OPTION 1. Reduce by 50%
        • Reductions must be attributed to any combination of the following items:
          • Plant species, density and microclimate factor
          • Irrigation efficiency
          • Use of captured rainwater
          • Use of recycled wastewater
          • Use of treated water

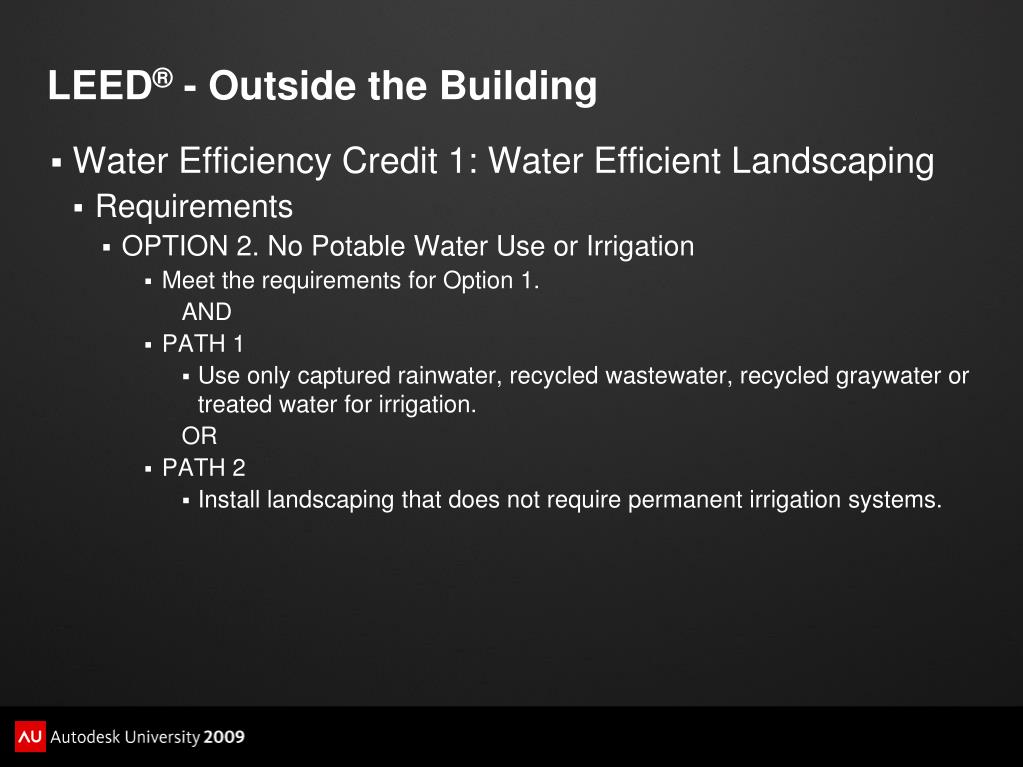

leed outside the building4
LEED® - Outside the Building
  • Water Efficiency Credit 1: Water Efficient Landscaping
    • Requirements
      • OPTION 2. No Potable Water Use or Irrigation
        • Meet the requirements for Option 1.

AND

        • PATH 1
          • Use only captured rainwater, recycled wastewater, recycled graywater or treated water for irrigation.

OR

        • PATH 2
          • Install landscaping that does not require permanent irrigation systems.
leed outside the building6

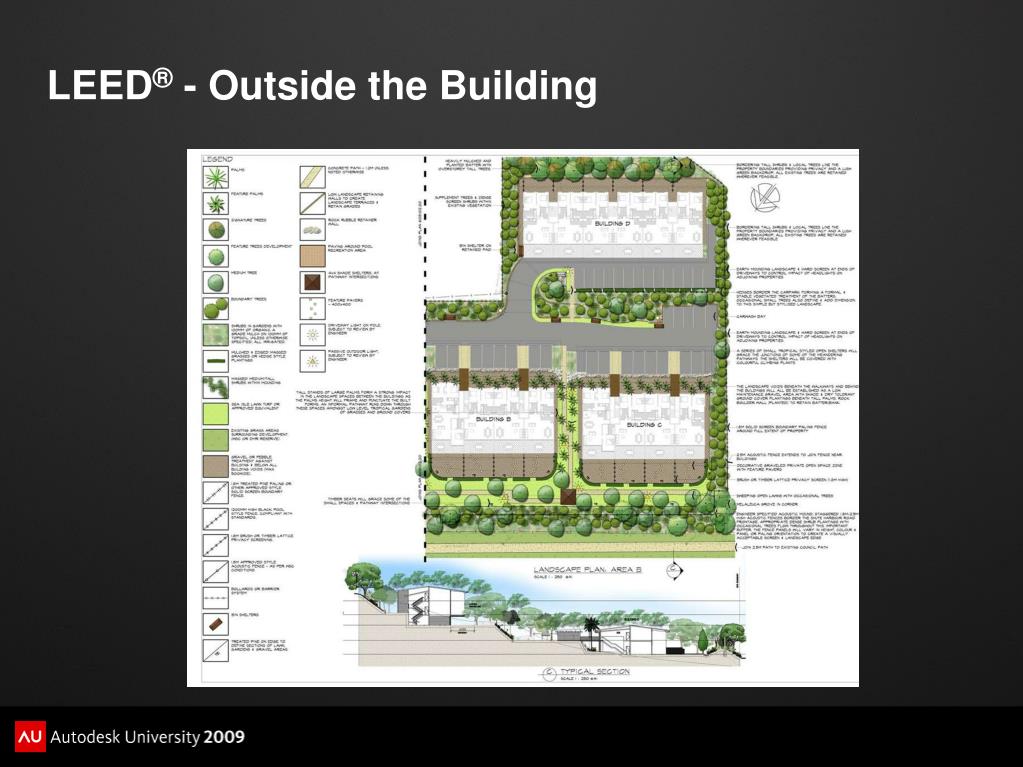

LEED® - Outside the Building
  • Water Efficiency Credit 1: Water Efficient Landscaping
leed outside the building7

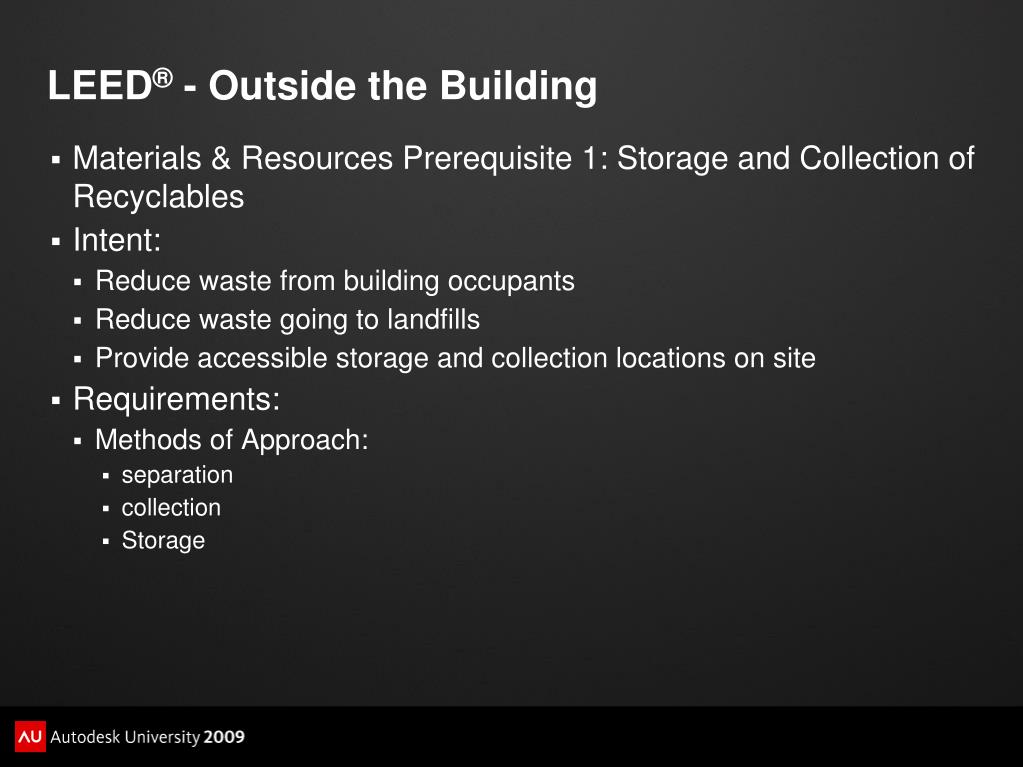

LEED® - Outside the Building
  • Materials & Resources Prerequisite 1: Storage and Collection of Recyclables
  • Intent:
    • Reduce waste from building occupants
    • Reduce waste going to landfills
    • Provide accessible storage and collection locations on site
  • Requirements:
    • Methods of Approach:
      • separation
      • collection
      • Storage
leed outside the building8

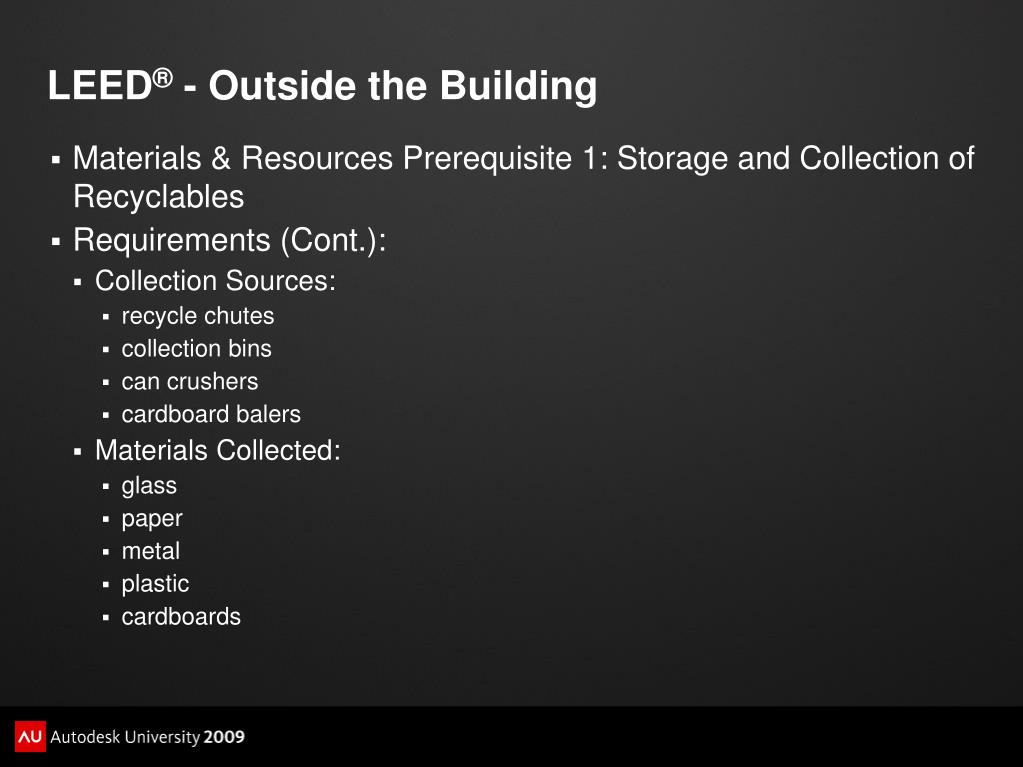

LEED® - Outside the Building
  • Materials & Resources Prerequisite 1: Storage and Collection of Recyclables
  • Requirements (Cont.):
    • Collection Sources:
      • recycle chutes
      • collection bins
      • can crushers
      • cardboard balers
    • Materials Collected:
      • glass
      • paper
      • metal
      • plastic
      • cardboards
leed outside the building9
LEED® - Outside the Building
  • Materials & Resources Prerequisite 1: Storage and Collection of Recyclables
  • Requirements (Cont.):
    • provide instruction to occupants
    • encourage activities to encourage recycling and less use of solid waste
    • provide for minimum recycling area (rough guidelines just for your information):
leed outside the building10
LEED® - Outside the Building
  • Materials & Resources Prerequisite 1: Storage and Collection of Recyclables
leed outside the building11

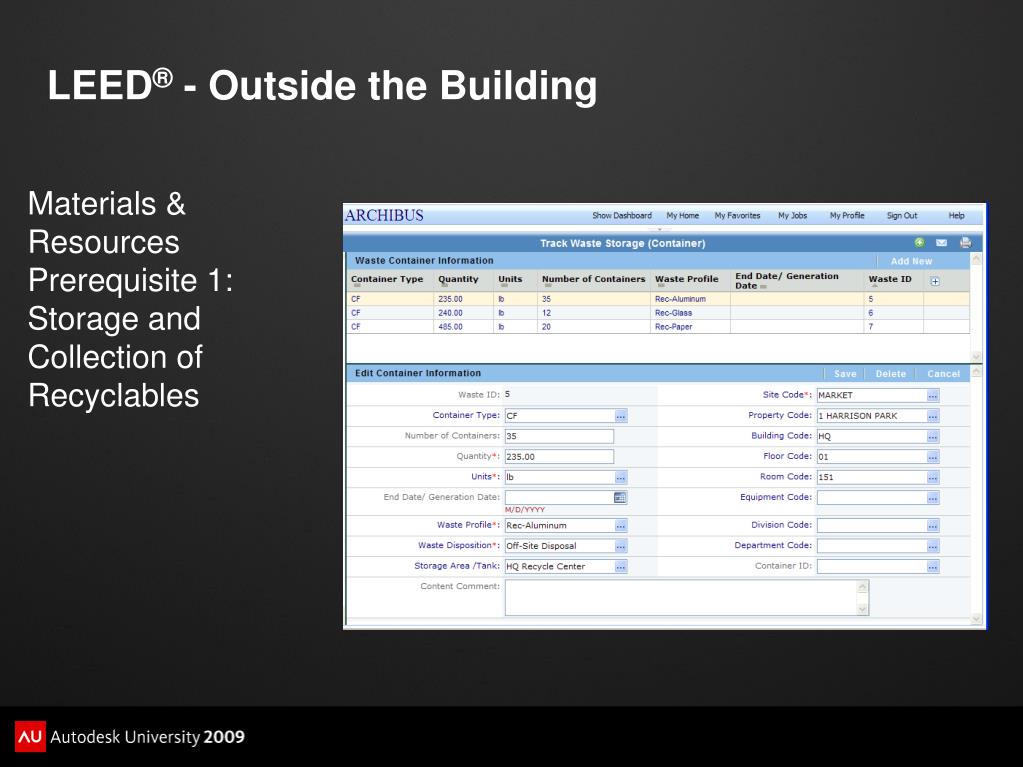

LEED® - Outside the Building
  • Materials & Resources Prerequisite 1: Storage and Collection of Recyclables

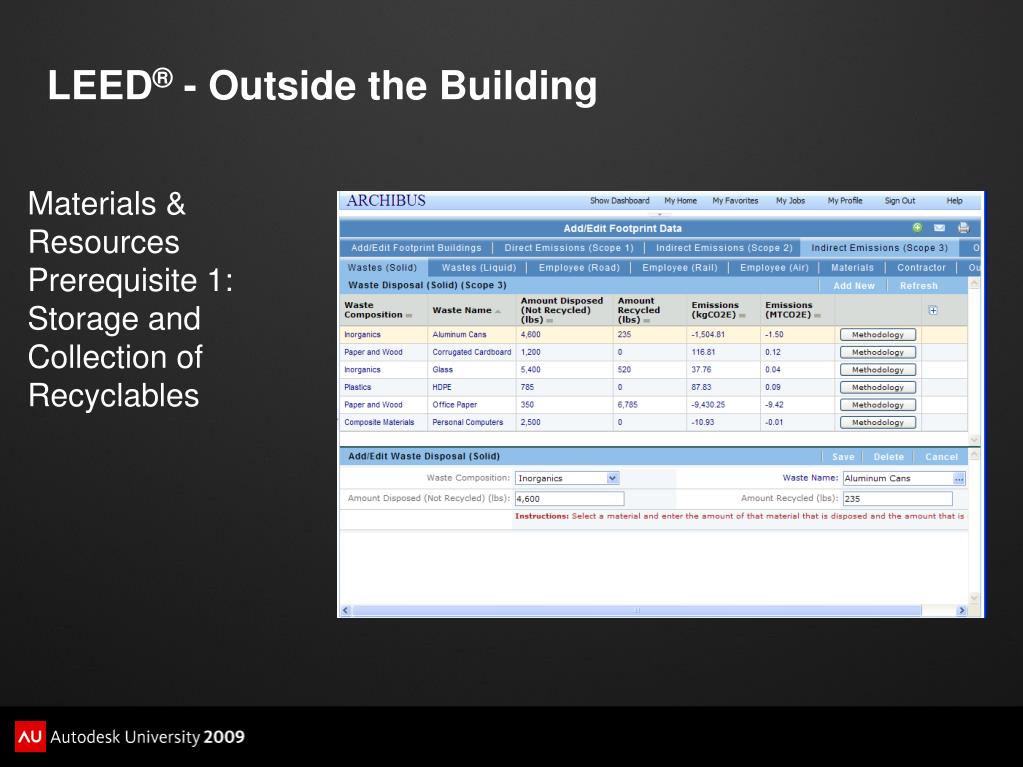

leed outside the building12
LEED® - Outside the Building
  • Materials & Resources Prerequisite 1: Storage and Collection of Recyclables
what is egrid
What is eGRID?
  • The Emissions & Generation Resource Integrated Database (eGRID) is a comprehensive source of data on the environmental characteristics of all electric power generated in the United States.
  • eGRID is issued by the U.S. Environmental Protection Agency (EPA).
location location location
Location, location, location….
  • If you run a 100 watt bulb for 10 hours you would use 1000 watts of electricity or 1 kilowatt hour (kWh).
  • The amount of carbon dioxide produced can vary considerably by location.

PittsburgheGRID - RFCW

Las Vegas eGRID - AZNM

0.702 kg CO2

0.598 kg CO2

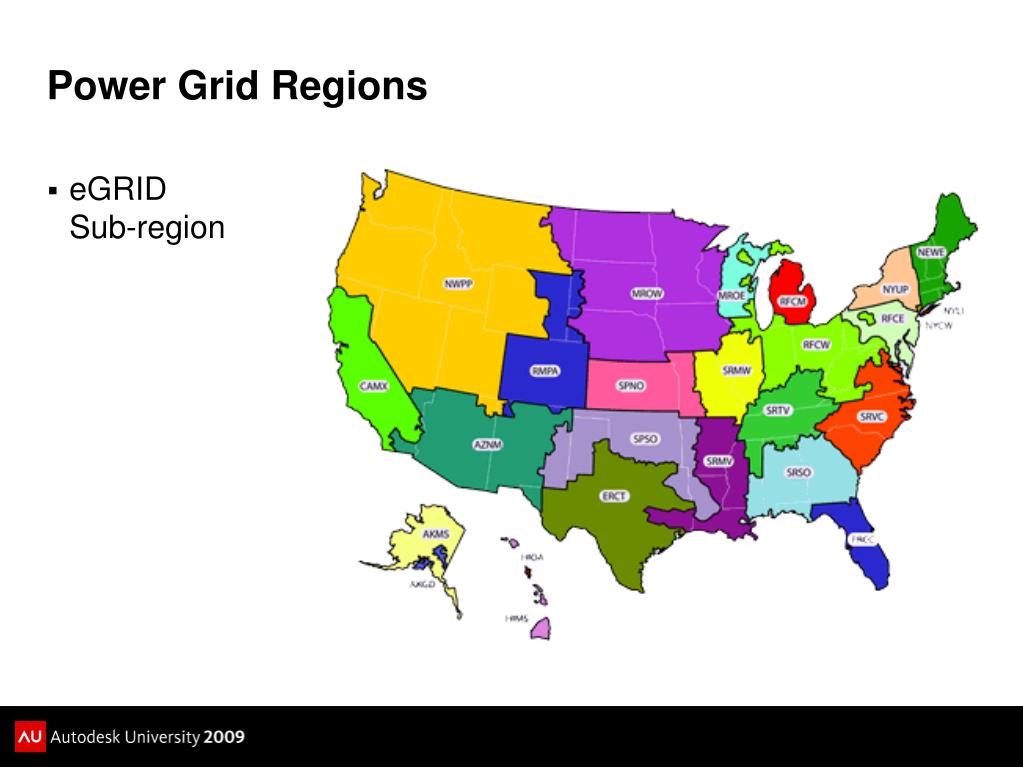

power grid regions1
Power Grid Regions
  • eGRID Sub-region
information contained in egrid
Information Contained in eGRID
  • For every US power plant and electric generating company, eGRID provides:
    • A detailed emissions profile including:
      • nitrogen oxides (NOX)
      • sulfur dioxide (SO2)
      • carbon dioxide (CO2)
      • mercury (Hg)
      • methane (CH4)
      • nitrous oxide (N2O).
egrid background information

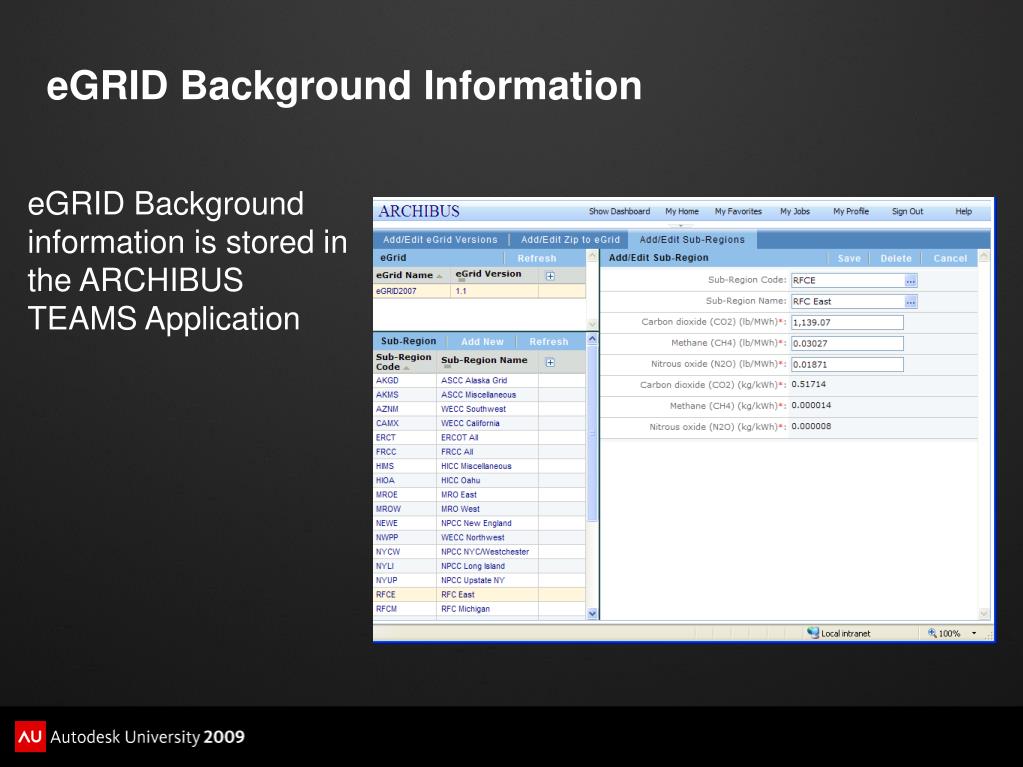

eGRID Background Information
  • eGRID Background information is stored in the ARCHIBUS TEAMS Application

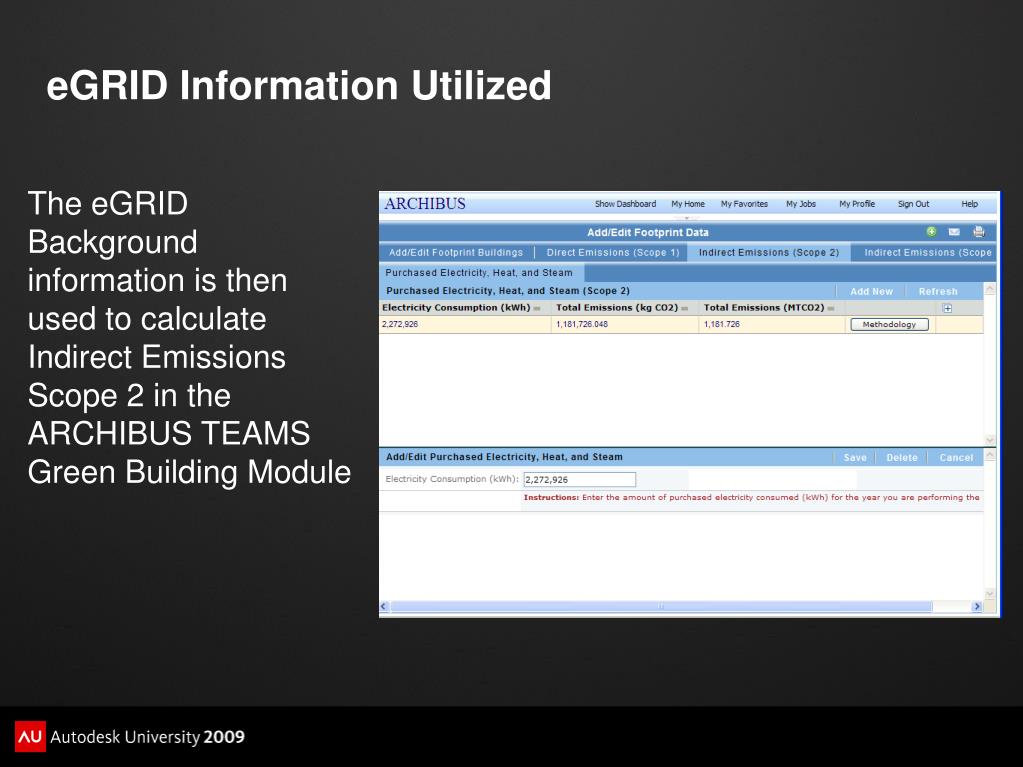

egrid information utilized
eGRID Information Utilized
  • The eGRID Background information is then used to calculate Indirect Emissions Scope 2 in the ARCHIBUS TEAMS Green Building Module

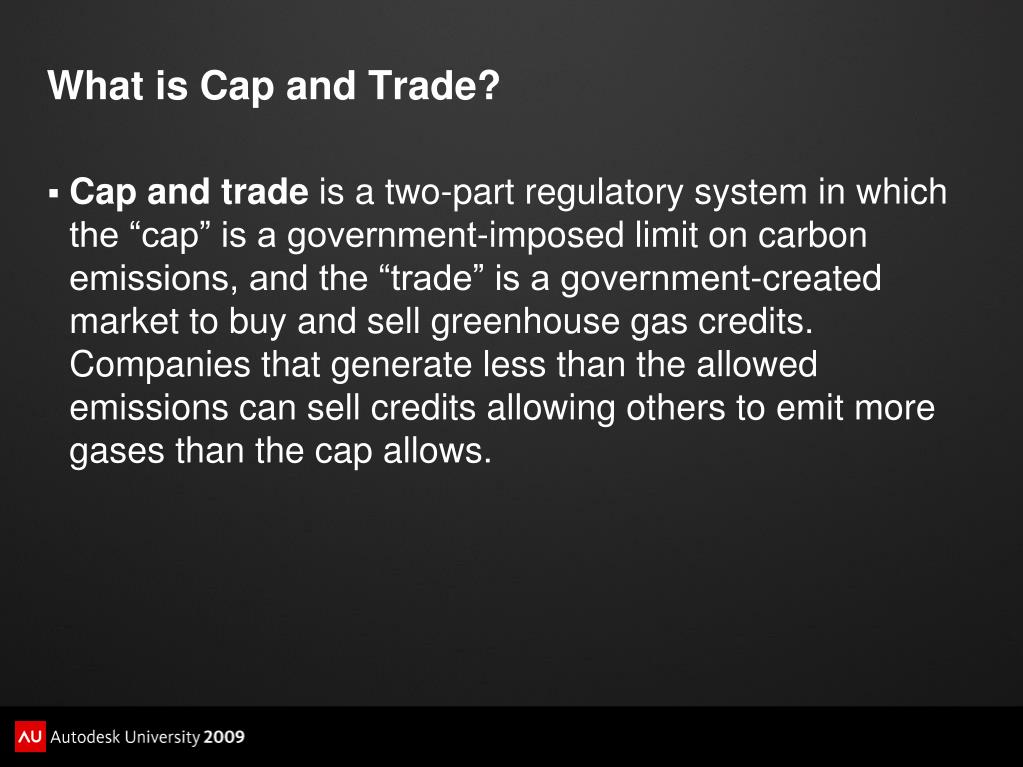

what is cap and trade
What is Cap and Trade?
  • Cap and trade is a two-part regulatory system in which the “cap” is a government-imposed limit on carbon emissions, and the “trade” is a government-created market to buy and sell greenhouse gas credits. Companies that generate less than the allowed emissions can sell credits allowing others to emit more gases than the cap allows.

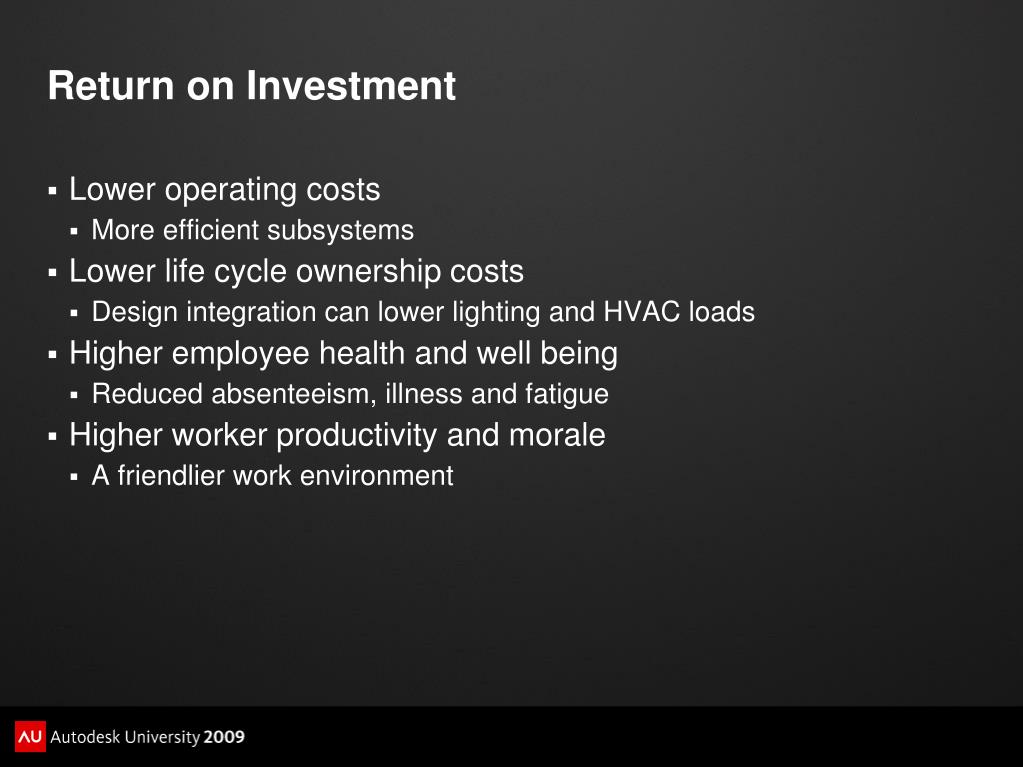

return on investment
Return on Investment
  • Lower operating costs
    • More efficient subsystems
  • Lower life cycle ownership costs
    • Design integration can lower lighting and HVAC loads
  • Higher employee health and well being
    • Reduced absenteeism, illness and fatigue
  • Higher worker productivity and morale
    • A friendlier work environment
thank you
Thank You
  • Questions?
