VGA Text Mode

An introduction to font selection and to reprogramming of the Character Generator ram

alphanumeric information
alphanumeric information
  • Most early PC programs weren’t graphical
  • Screen was similar to a typewriter’s output
  • Used only a limited set of character-images:
    • letters, numerals, and punctuation symbols
  • Hardware can efficiently render such glyphs
  • VGA can emulate the MDA/EGA text modes:
    • mode 1: emulates EGA 40x25 text (320x200 pixels)
    • mode 3: emulates EGA 80x25 text (640x400 pixels)
    • mode 7: emulates MDA 80x25 text (720x350 pixels)
font images in rom
Font images in ROM
  • VGA has built-in firmware (ROM-BIOS)
  • Both code and data are provided in ROM
  • VGA’s ROM is normally at 0x000C0000
  • Can be addressed by CPU in ‘real-mode’
  • VGA ROM includes character glyph tables
    • 8x8 character-set is used with mode 1
    • 8x16 character-set is used with mode 3
    • 8x14 character-set is used with mode 7
a character glyph example
A character-glyph example
  • Here’s a sample 8x8 character glyph (‘A’):

This glyph can be represented as an array of 8 bytes:

0x00, 0x38, 0x6C, 0xC6, 0xFE, 0xC6, 0x00, 0x00

vga timer sequencer
VGA Timer-Sequencer
  • A ‘character table’ is copied into VRAM
  • Glyphs organized as an array of bitmaps
  • Array holds 256 images (32 bytes/image)
    • Table-size: 256x32 = 8K bytes (= 0x2000)
  • The ascii-codes serve as array-indexes:
    • Example: ‘A’ has ascii-code 0x41 (=65)
  • Sequencer hardware accesses these images
  • Dedicated area of VRAM is used (plane 2)
  • Planes 0 and 1 are used as a text frame-buffer
arrangement of vram planes
Arrangement of VRAM planes

plane 3

plane 2

plane 1

plane 0

Not used (masked)

Holds the character glyph table(s)

Stores color attribute-bytes for displayed text

Stores ASCII- codes for the currently displayed text

CPU can read/write only to planes 0 and 1 (using odd/even addressing mode)

multiple fonts supported
multiple fonts supported
  • Plane 2 is the Character Generator’s ram
  • Enough room for eight separate tables:
    • 8 x 8K = 64K
  • Two tables can be in use simultaneously
  • Tables must start at prescribed offsets:
    • Table 0: 0x0000 Table 4: 0x2000
    • Table 1: 0x4000 Table 5: 0x6000
    • Table 2: 0x8000 Table 6: 0xA000
    • Table 3: 0xC000 Table 7: 0xE000
text color attributes
Text color ‘attributes’
  • In text mode, the picture-elements consist of character images, shown in two colors:
    • Foreground color, and Background color
  • Character colors individually programmed
  • A byte-pair in VRAM selects the bit-image (ascii code) and color-pair (attribute byte)
  • All colors come from a palette of 16
  • But the color palette is ‘programmable’
layout for an attribute byte
Layout for an ‘attribute’ byte

Background Color

Foreground Color

R

G

B

R

B

G

Bit function is programmable

Default is “EnableIntensity”

Bit function is Programmable:

Default is “EnableBlinking”

vga sequencer registers
VGA Sequencer Registers
  • Five registers comprise VGA Sequencer:
    • index 0: Reset register
    • index 1: Clocking Mode register
    • index 2: Map Mask register
    • index 3: Character Map Select register
    • index 4: Memory Mode register
  • All accessed via i/o ports 0x3C4-0x3C5 using “multiplexing” scheme (index/data)
access to character ram
Access to character ram
  • In text modes, CPU can’t access Plane 2
  • Plane 2 gets accessed by the Sequencer
  • Sequencer performs a ‘glyph-lookup’ for each ascii code stored by CPU in Plane 0
  • Both Sequencer and Graphics Controller must be suitably reprogrammed in order for the CPU to a read or write to Plane 2
  • Six VGA registers are involved in that step
reset index 0
Reset (index 0)

7 6 5 4 3 2 1 0

Synchronous Reset bit (bit 1)

1 = normal sequencer operation

0 = initiate a synchronous reset

A synchronous reset is used in

advance of reprogramming the

Clocking Mode register (or the

Clock Select field in the VGA’s

Miscellaneous Output register)

Asynchronous Reset bit (bit 0)

1 = normal sequencer operation

0 = initiate an asynchronous reset

Halts VRAM refresh cycles

and clears VRAM contents

map mask index 2
Map Mask (index 2)

7 6 5 4 3 2 1 0

Plane 3

Plane 2

Plane 1

Plane 0

Enables or disables CPU’s ability

to access specific memory planes

1 = write enable, 0 = write disable

memory mode index 4

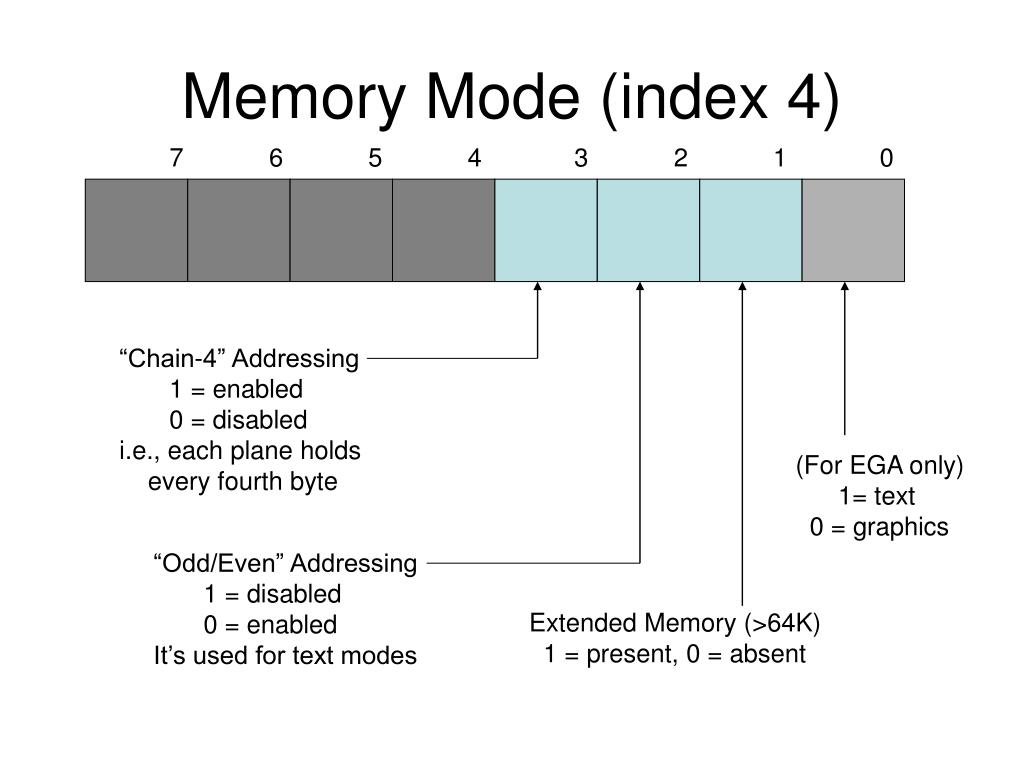

Memory Mode (index 4)

7 6 5 4 3 2 1 0

“Chain-4” Addressing

1 = enabled

0 = disabled

i.e., each plane holds

every fourth byte

(For EGA only)

1= text

0 = graphics

“Odd/Even” Addressing

1 = disabled

0 = enabled

It’s used for text modes

Extended Memory (>64K)

1 = present, 0 = absent

gc miscellaneous index 6
GC: Miscellaneous (index 6)

7 6 5 4 3 2 1 0

Memory Map

Odd/

Even

enable

G/A

Memory Map options:

00 = 0xA0000 (128K)

01 = 0xA0000 (64K)

10 = 0xB0000 (64K)

11 = 0xB8000 (32K)

1 = use Odd/Even Addressing

0 = use Sequential Addressing

1 = Disable the character generator( graphics mode)

0 = Enable the character generator (use “text mode”)

Graphics Controller registers are accessed via i/o ports 0x3CE/0x3CF

gc mode index 5
GC: Mode (index 5)

7 6 5 4 3 2 1 0

256

colors

SHIFT

ODD/

EVEN

Read

Mode

Write Mode

(0, 1, 2, 3)

Should be 0 for text mode

1 = cpu data at odd addresses is

mapped to odd-numbered planes,

cpu data at even addresses gets

mapped to even-numbered planes

0 = cpu addressing is sequential

NOT: This affects only the Graphics

Controller. The Sequencer needs to

be programmed separately to match

This affects the VGA

Attribute Controller’s

operation (text color:

foreground color and

background color)

Should be 1 for text

how to modify character ram
How to modify character ram
  • Algorithm:
    • Reset the VGA for accessing Plane 2
    • Then CPU reads or modifies Plane 2
    • Reset the VGA for accessing Planes 0, 1
  • Acknowledgement:
    • Author Richard Wilton described this process in his classic book “Programmer’s Guide to PC Video Systems (2nd Edition)”
details for this prolog
Details for this ‘prolog’

outw( 0x0100, 0x3C4 ); // do a synch. reset

outw( 0x0402, 0x3C4); // write Plane 2 only

outw( 0x0704, 0x3C4 ); // sequential access

outw( 0x0300, 0x3C4 ); // end the reset

outw( 0x0204, 0x3CE ); // read Plane 2 only

outw( 0x0005, 0x3CE ); // disable odd/even

outw( 0x0006, 0x3CE ); // VRAM at 0xA0000

details for the epilog
Details for the ‘epilog’

outw( 0x0100, 0x3C4 ); // do a synch. reset

outw( 0x0302, 0x3C4); // write Planes 0 & 1

outw( 0x0304, 0x3C4 ); // odd/even access

outw( 0x0300, 0x3C4 ); // end the reset

outw( 0x0004, 0x3CE ); // restore to ‘default’

outw( 0x1005, 0x3CE ); // resume odd/even

outw( 0x0E06, 0x3CE );// VRAM at 0xB8000

some class demos
Some Class Demos
  • ‘newzero.cpp’: installs new glyph for ‘0’
  • ‘romfonts.cpp’: finds ROM glyph-tables
  • ‘backward.cpp’: flips character images!
  • ‘vm86blue.cpp’: changes text’s attribute
algorithm for backward cpp
Algorithm for ‘backward.cpp’

for (int i = 0; i < 8192; i++)

{

unsigned char orig, revs = 0;

orig = vram[ i ];

for (int j = 0; j < 8; j++)

if ( orig & (1<<j) ) revs |= (1 << (7-j) );

vram[ i ] = revs;

}

attribute controller 0x3c0 color plane enable index 18
Attribute Controller (0x3C0) Color Plane Enable (index 18)

7 6 5 4 3 2 1 0

Plane 3

Plane 2

Enables or disables color-palette

address-bit from specific planes

1 = plane enable, 0 = place disable

Plane 1

Plane 0

NOTE: Writing to Attribute Controller’s registers requires sending two bytes

in succession to same port-address (0x3C0); reset internal flip-flop first by

Inputting from port 0x3DA; output 0x20 to port 0x3C0 as a concluding step.

in class exercises
In-Class Exercises
  • Exercise #1: Design a new image for ‘A’
  • Exercise #2: Draw all text upside-down
  • Exercise #3: Draw ‘yellow-on-green’ text
  • Exercise #4: Draw fonts vertically aligned
