  1. Chapter 5 TCP Client/Server Example

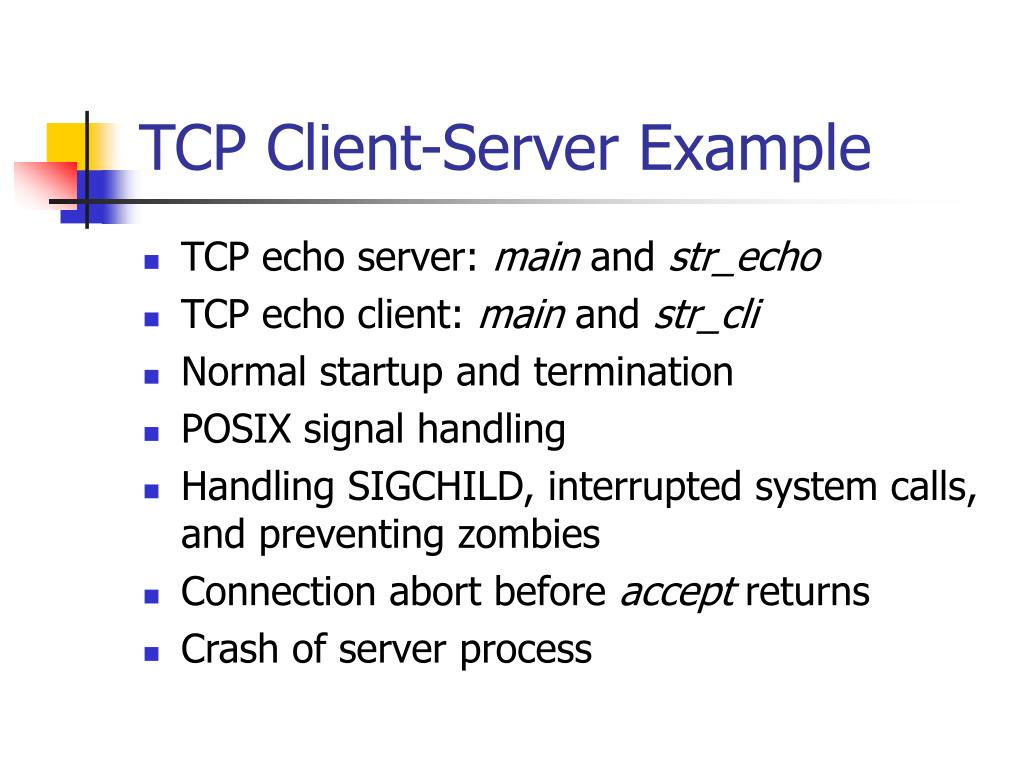

  2. TCP Client-Server Example • TCP echo server: main and str_echo • TCP echo client: main and str_cli • Normal startup and termination • POSIX signal handling • Handling SIGCHILD, interrupted system calls, and preventing zombies • Connection abort before accept returns • Crash of server process

  3. SIGPIPE signal • Crash, reboot, shutdown of server host • Summary of TCP example • Data format: passing string or binary

  4. TCP Echo Server and Client To expand this example to other applications, just change what the server does with the client input. Many boundary conditions to handle: signal, interrupted system call, server crash, etc. The first version does not handle them.

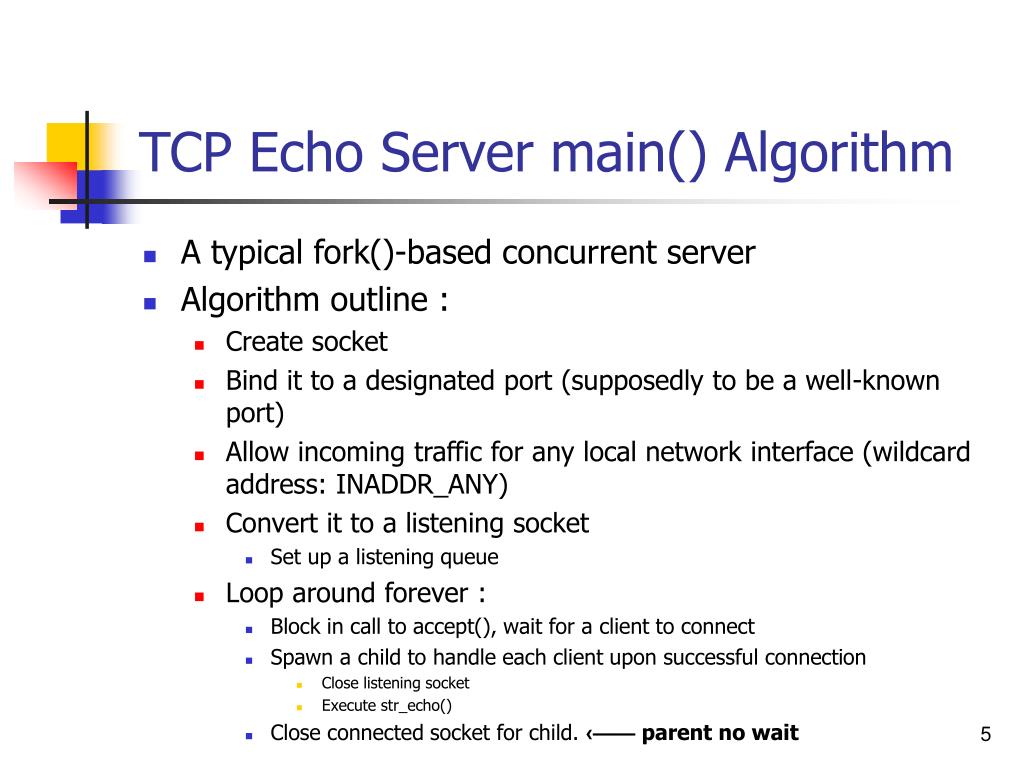

  5. TCP Echo Server main() Algorithm • A typical fork()-based concurrent server • Algorithm outline : • Create socket • Bind it to a designated port (supposedly to be a well-known port) • Allow incoming traffic for any local network interface (wildcard address: INADDR_ANY) • Convert it to a listening socket • Set up a listening queue • Loop around forever : • Block in call to accept(), wait for a client to connect • Spawn a child to handle each client upon successful connection • Close listening socket • Execute str_echo() • Close connected socket for child. ‹—— parent no wait 5

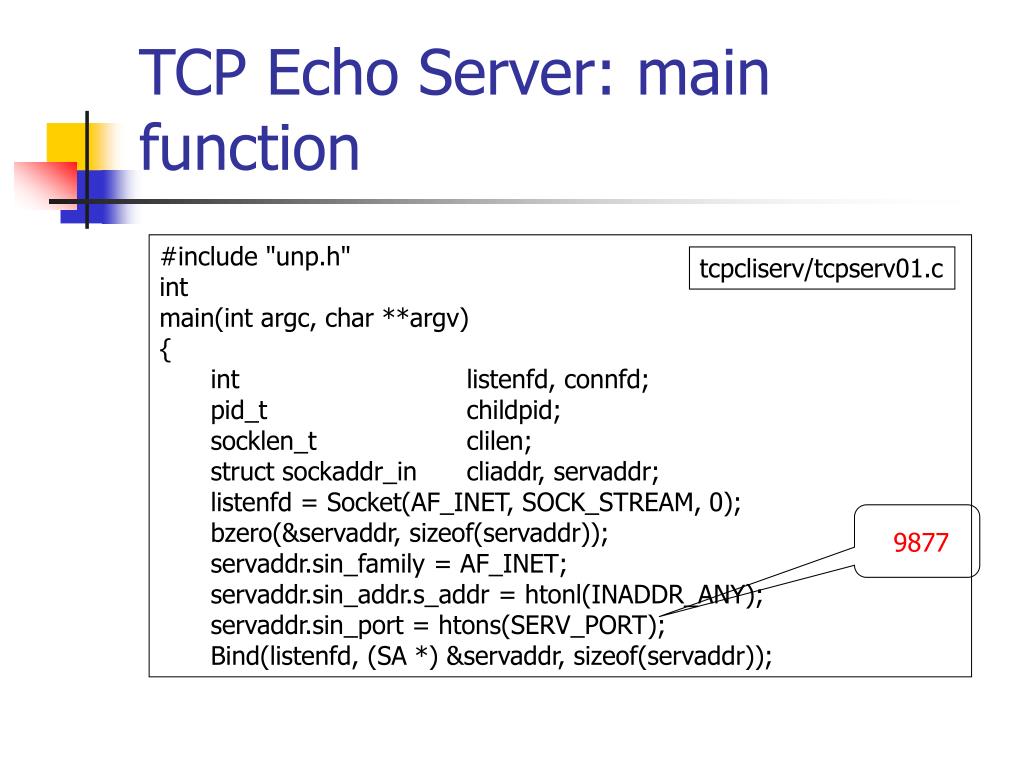

  6. TCP Echo Server: main function • #include "unp.h" • int • main(int argc, char **argv) • { • int listenfd, connfd; • pid_t childpid; • socklen_t clilen; • struct sockaddr_in cliaddr, servaddr; • listenfd = Socket(AF_INET, SOCK_STREAM, 0); • bzero(&servaddr, sizeof(servaddr)); • servaddr.sin_family = AF_INET; • servaddr.sin_addr.s_addr = htonl(INADDR_ANY); • servaddr.sin_port = htons(SERV_PORT); • Bind(listenfd, (SA *) &servaddr, sizeof(servaddr)); tcpcliserv/tcpserv01.c 9877

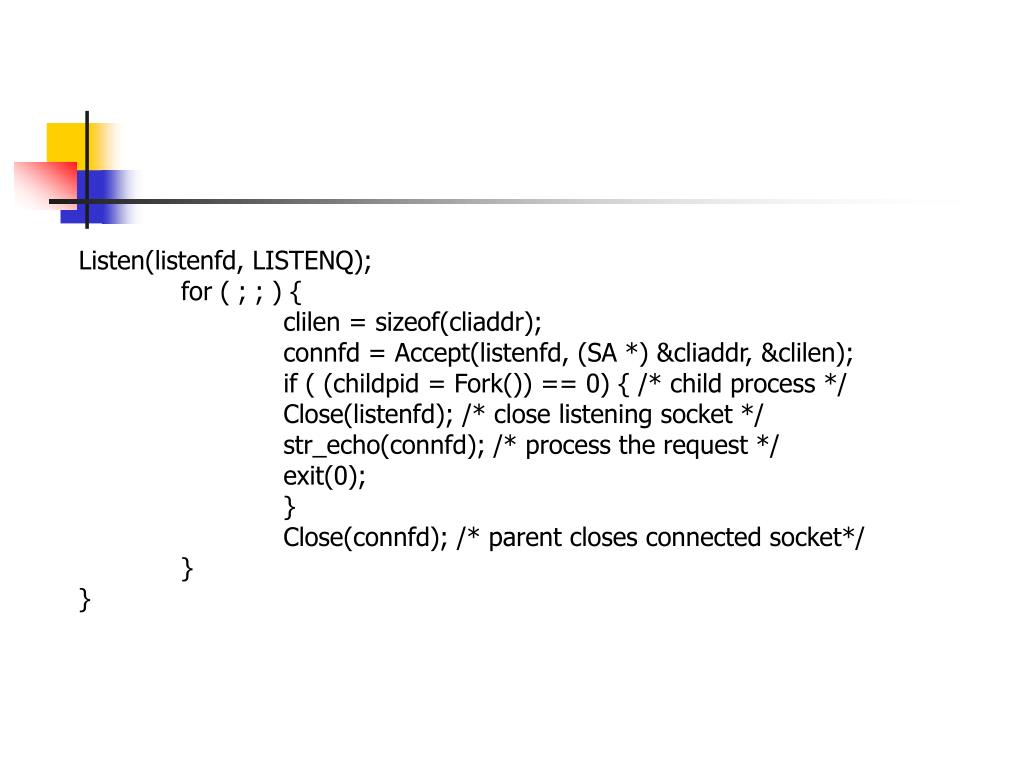

  7. Listen(listenfd, LISTENQ); for ( ; ; ) { clilen = sizeof(cliaddr); connfd = Accept(listenfd, (SA *) &cliaddr, &clilen); if ( (childpid = Fork()) == 0) { /* child process */ Close(listenfd); /* close listening socket */ str_echo(connfd); /* process the request */ exit(0); } Close(connfd); /* parent closes connected socket*/ } }

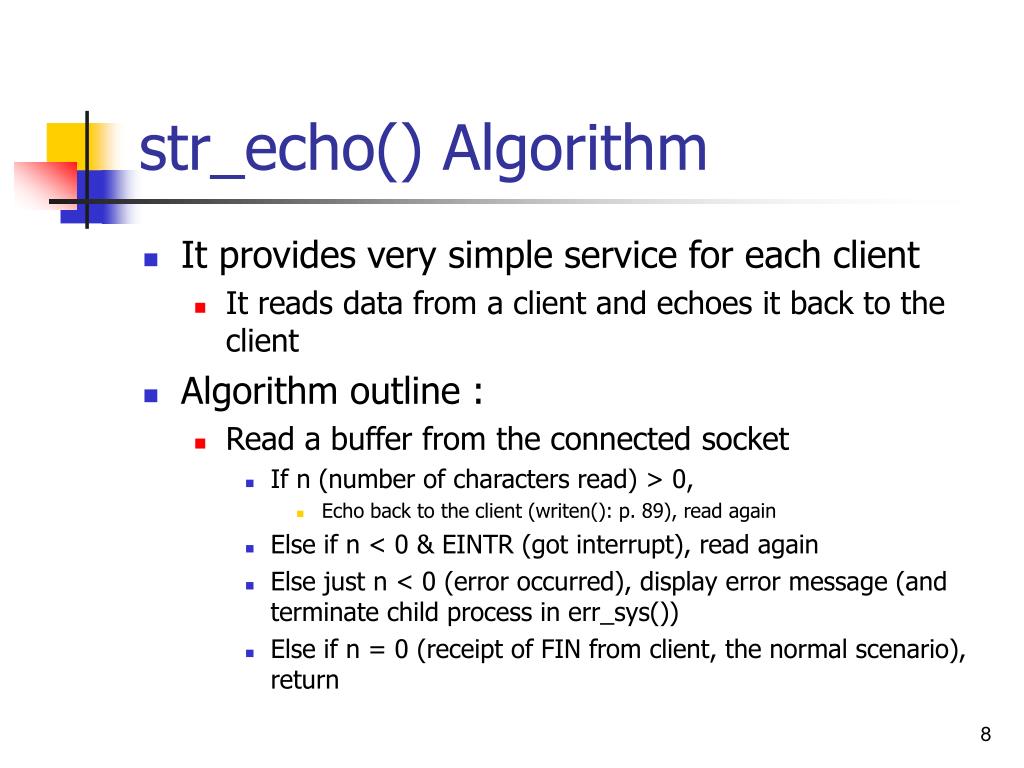

  8. str_echo() Algorithm • It provides very simple service for each client • It reads data from a client and echoes it back to the client • Algorithm outline : • Read a buffer from the connected socket • If n (number of characters read) > 0, • Echo back to the client (writen(): p. 89), read again • Else if n < 0 & EINTR (got interrupt), read again • Else just n < 0 (error occurred), display error message (and terminate child process in err_sys()) • Else if n = 0 (receipt of FIN from client, the normal scenario), return 8

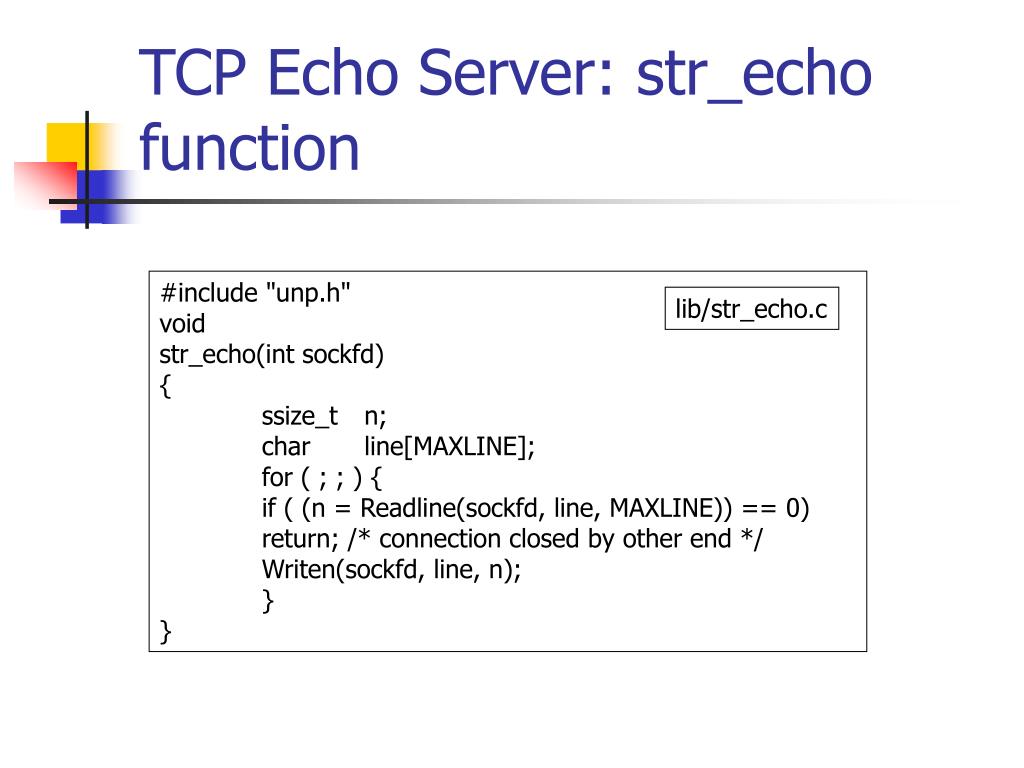

  9. TCP Echo Server: str_echo function #include "unp.h" void str_echo(int sockfd) { ssize_t n; char line[MAXLINE]; for ( ; ; ) { if ( (n = Readline(sockfd, line, MAXLINE)) == 0) return; /* connection closed by other end */ Writen(sockfd, line, n); } } lib/str_echo.c

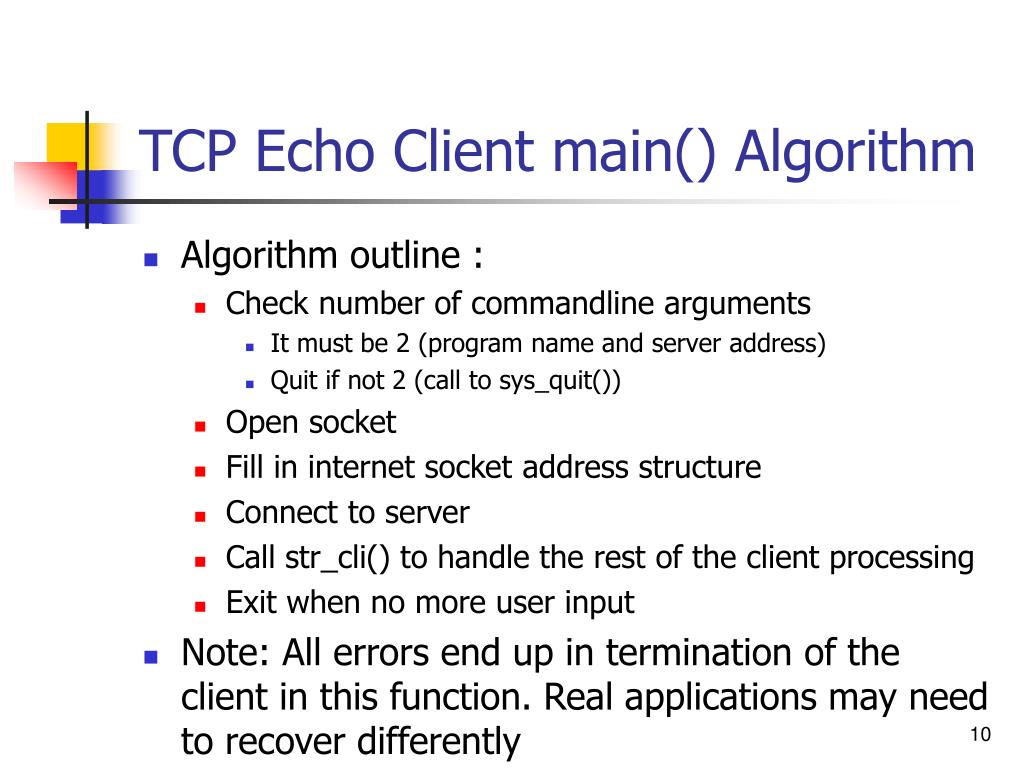

  10. TCP Echo Client main() Algorithm • Algorithm outline : • Check number of commandline arguments • It must be 2 (program name and server address) • Quit if not 2 (call to sys_quit()) • Open socket • Fill in internet socket address structure • Connect to server • Call str_cli() to handle the rest of the client processing • Exit when no more user input • Note: All errors end up in termination of the client in this function. Real applications may need to recover differently 10

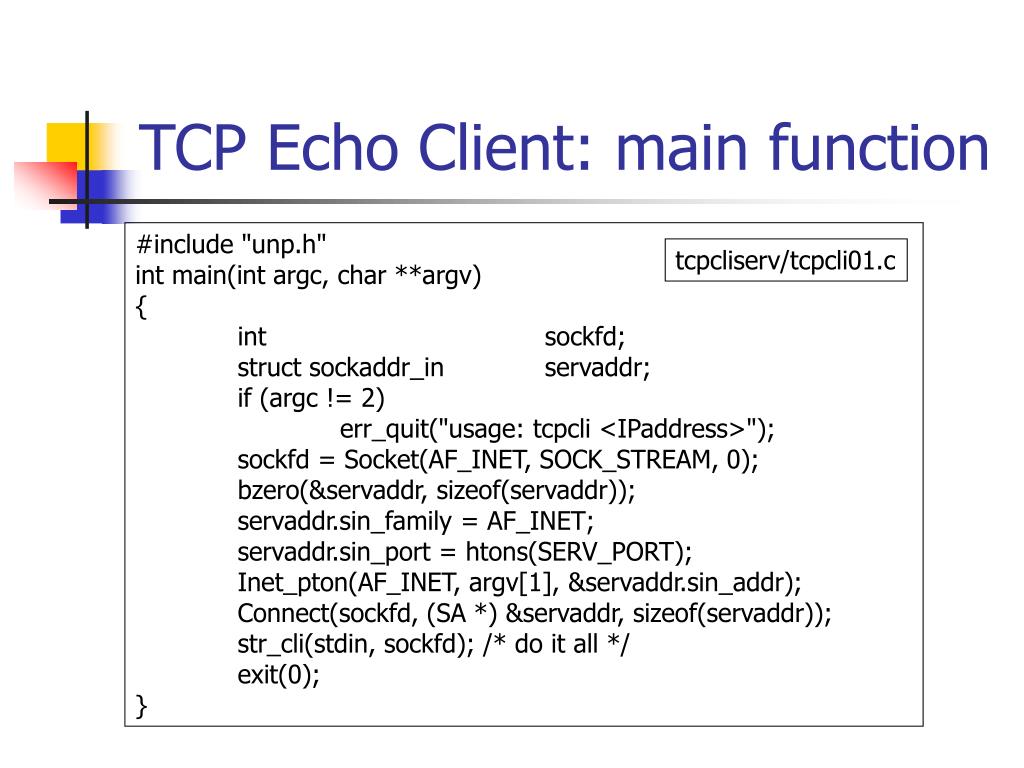

  11. TCP Echo Client: main function #include "unp.h" int main(int argc, char **argv) { int sockfd; struct sockaddr_in servaddr; if (argc != 2) err_quit("usage: tcpcli <IPaddress>"); sockfd = Socket(AF_INET, SOCK_STREAM, 0); bzero(&servaddr, sizeof(servaddr)); servaddr.sin_family = AF_INET; servaddr.sin_port = htons(SERV_PORT); Inet_pton(AF_INET, argv[1], &servaddr.sin_addr); Connect(sockfd, (SA *) &servaddr, sizeof(servaddr)); str_cli(stdin, sockfd); /* do it all */ exit(0); } tcpcliserv/tcpcli01.c

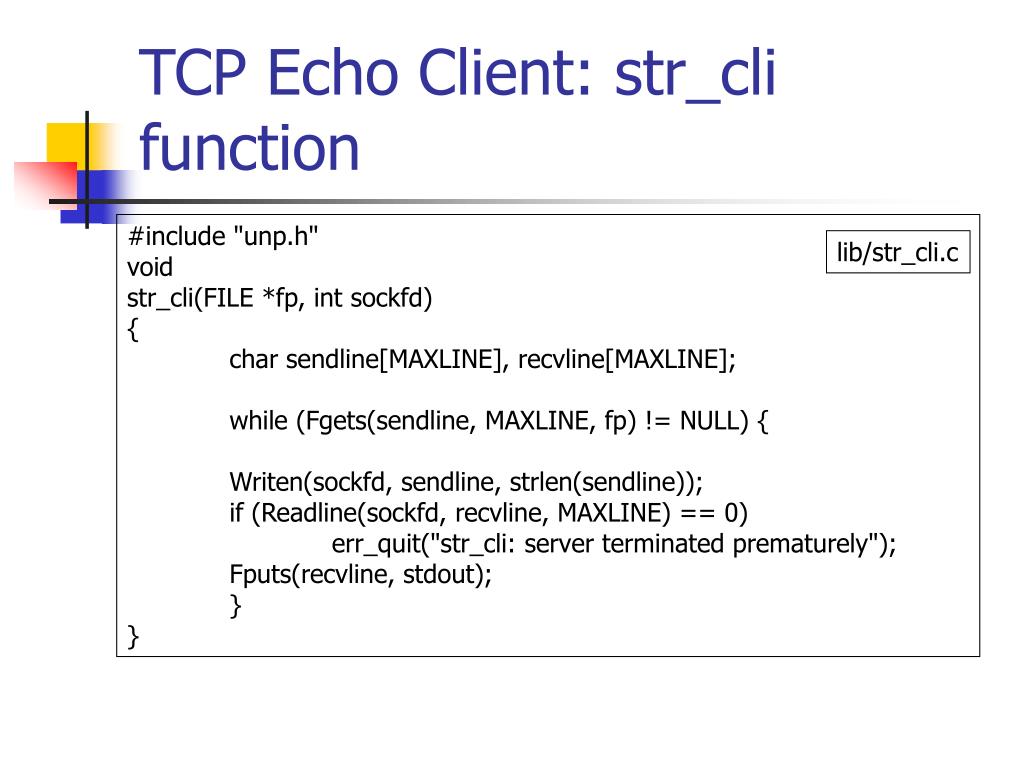

  12. TCP Echo Client: str_cli function #include "unp.h" void str_cli(FILE *fp, int sockfd) { char sendline[MAXLINE], recvline[MAXLINE]; while (Fgets(sendline, MAXLINE, fp) != NULL) { Writen(sockfd, sendline, strlen(sendline)); if (Readline(sockfd, recvline, MAXLINE) == 0) err_quit("str_cli: server terminated prematurely"); Fputs(recvline, stdout); } } lib/str_cli.c

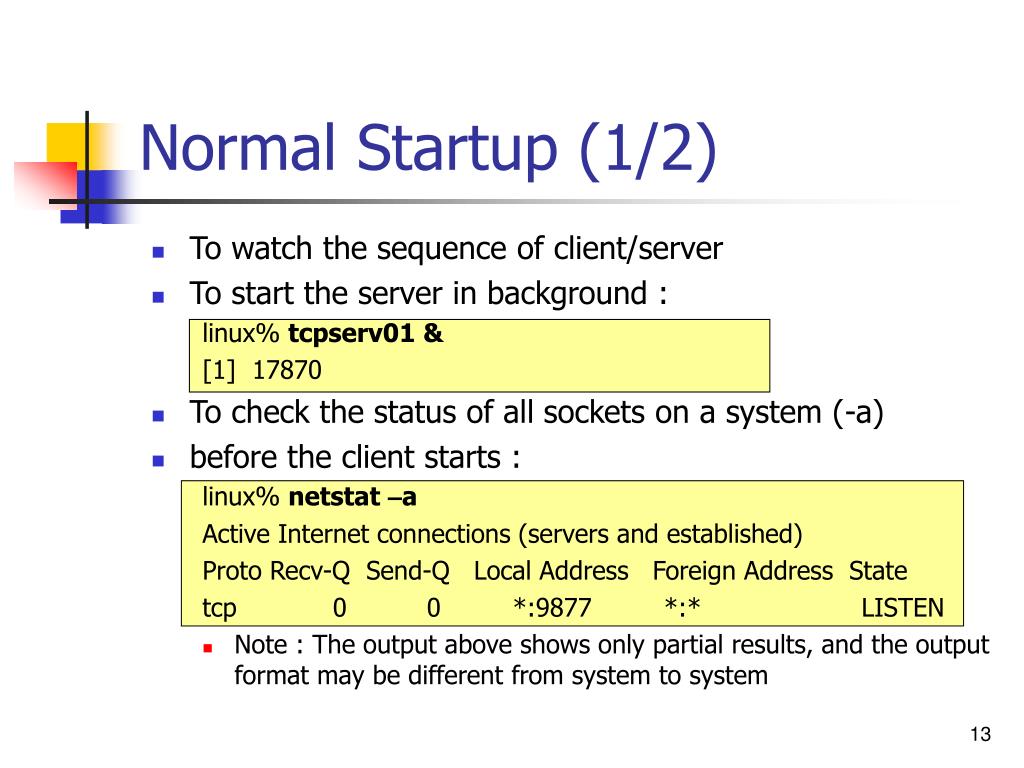

  13. Normal Startup (1/2) • To watch the sequence of client/server • To start the server in background : linux% tcpserv01 & [1] 17870 • To check the status of all sockets on a system (-a) • before the client starts : linux% netstat –a Active Internet connections (servers and established) Proto Recv-Q Send-Q Local Address Foreign Address State tcp 0 0 *:9877 *:* LISTEN • Note : The output above shows only partial results, and the output format may be different from system to system 13

  14. Normal Startup (2/2) • To start the client on the same machine (using the loopback address) : linux% tcpcli01 127.0.0.1 • Then, check the status of all sockets again : linux% netstat –a Active Internet connections (servers and established) Proto Recv-Q Send-Q Local Address Foreign Address State tcp 0 0 localhost:9877 localhost:42758 ESTABLISHED tcp 0 0 localhost:42758 localhost:9877 ESTABLISHED tcp 0 0 *:9877 *:* LISTEN • Note : The first tcp connection is for the server child, and the second is for the client, and the third is the server parent 14

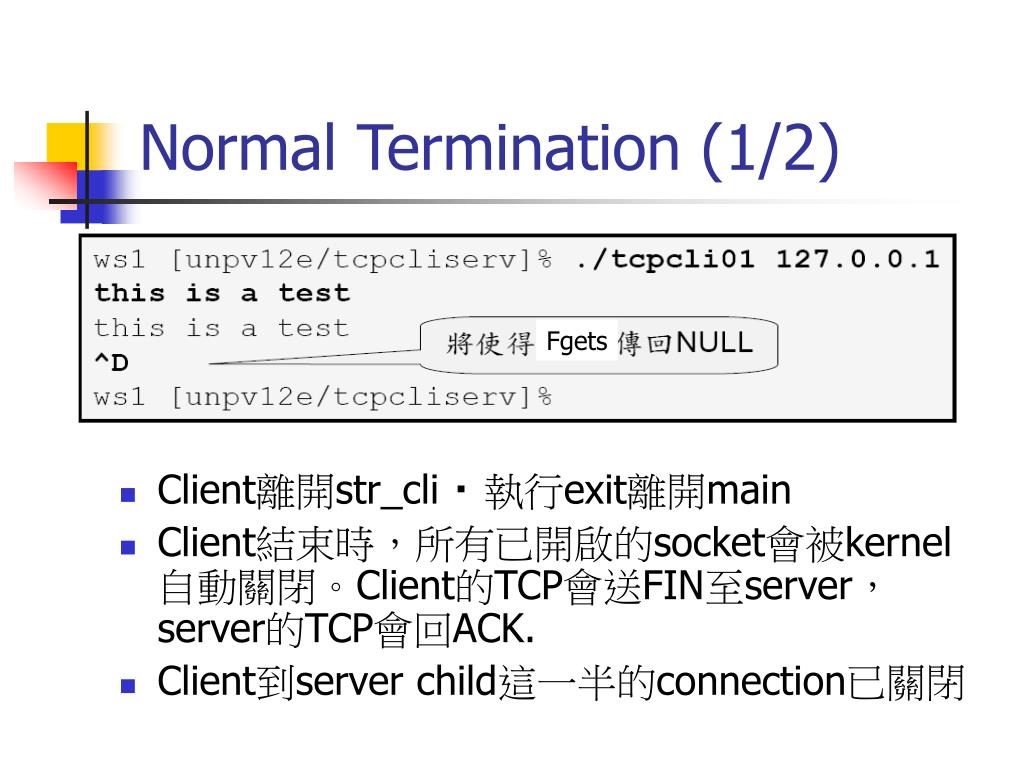

  15. Normal Termination (1/2) • Client離開str_cli  執行exit離開main • Client結束時，所有已開啟的socket會被kernel 自動關閉。Client的TCP會送FIN至server，server的TCP會回ACK. • Client到server child這一半的connection已關閉 Fgets

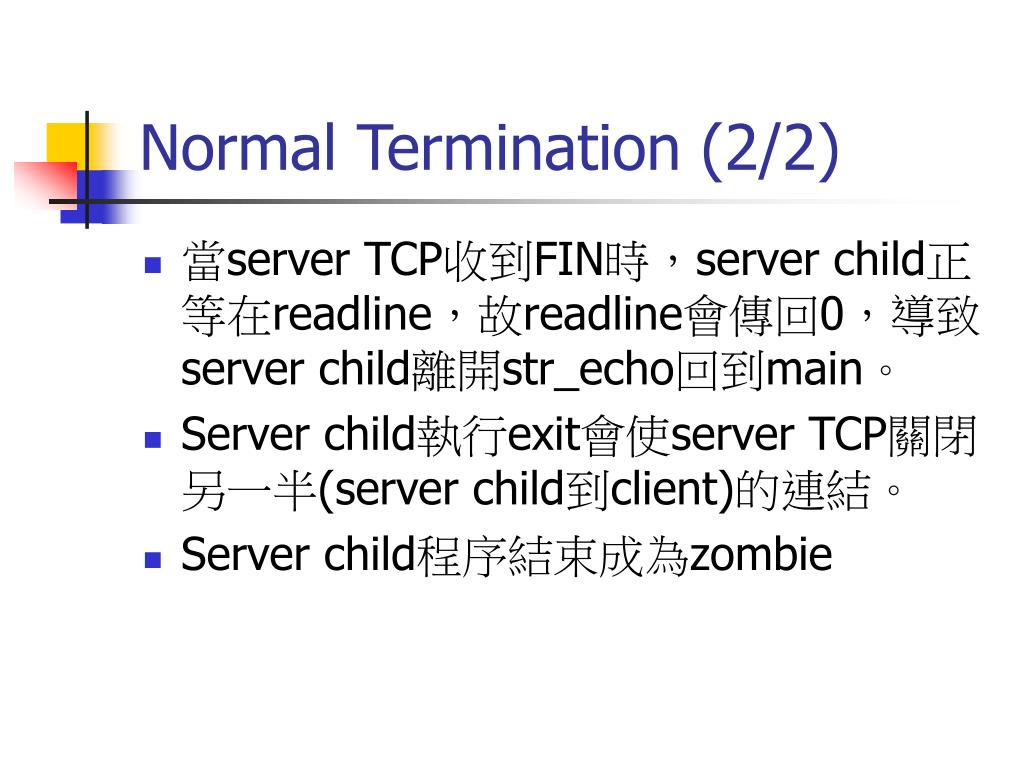

  16. Normal Termination (2/2) • 當server TCP收到FIN時，server child正等在readline，故readline會傳回0，導致server child離開str_echo回到main。 • Server child執行exit會使server TCP關閉另一半(server child到client)的連結。 • Server child程序結束成為zombie

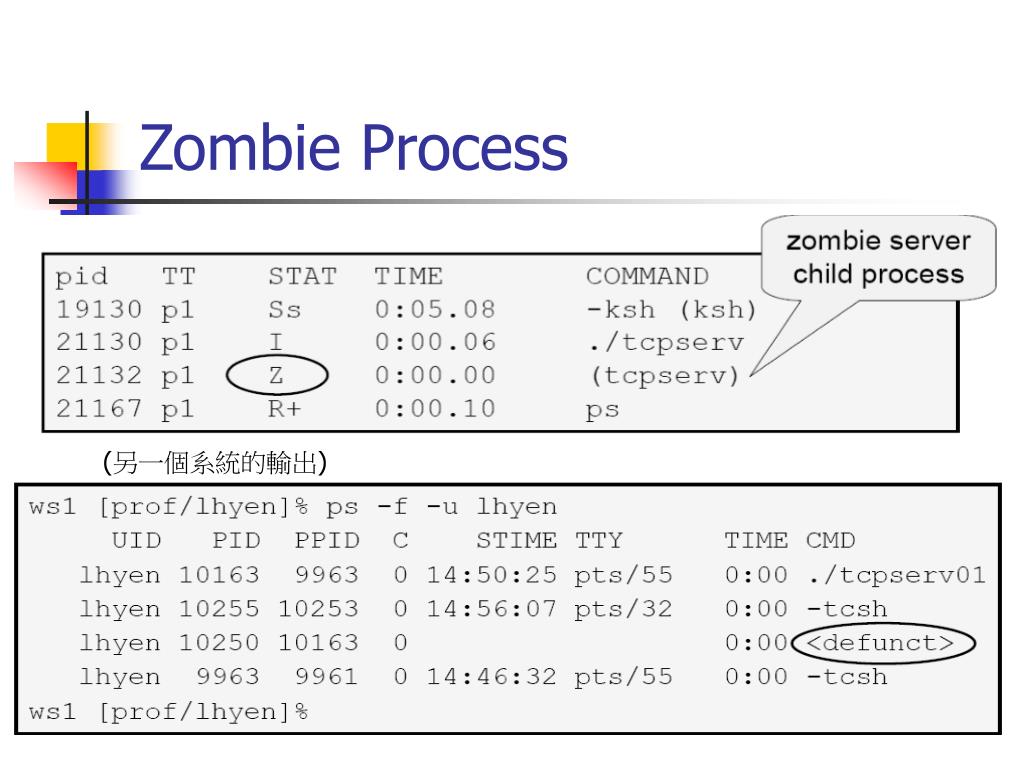

  17. Zombie Process (另一個系統的輸出)

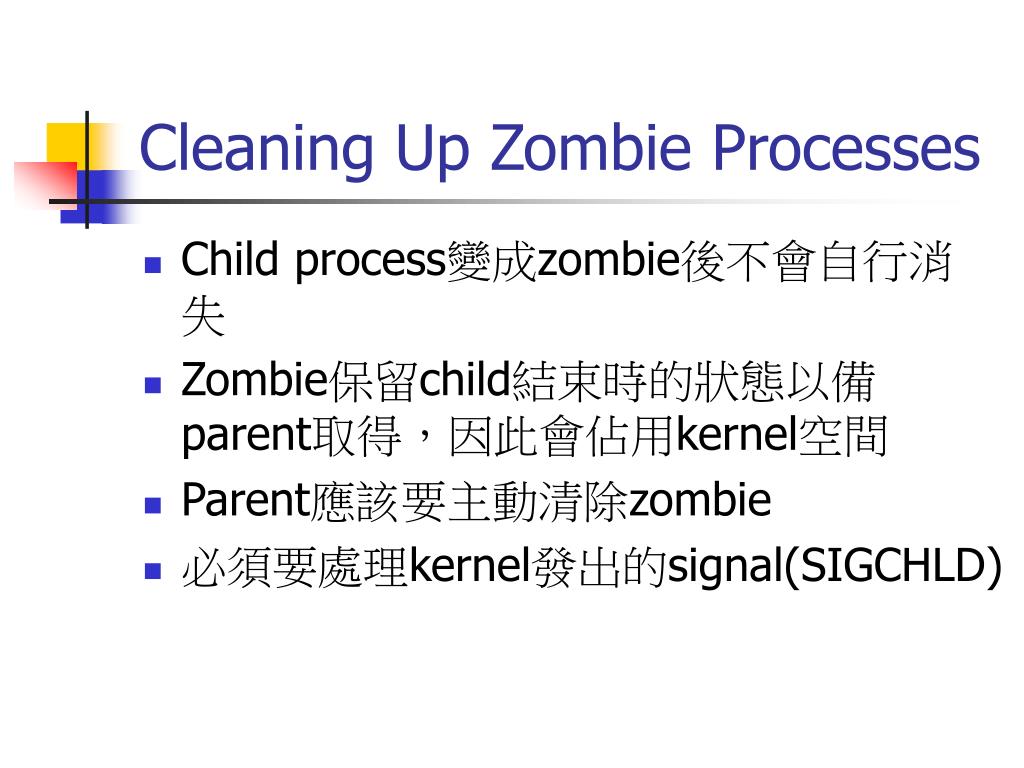

  18. Cleaning Up Zombie Processes • Child process變成zombie後不會自行消失 • Zombie保留child結束時的狀態以備parent取得，因此會佔用kernel空間 • Parent應該要主動清除zombie • 必須要處理kernel發出的signal(SIGCHLD)

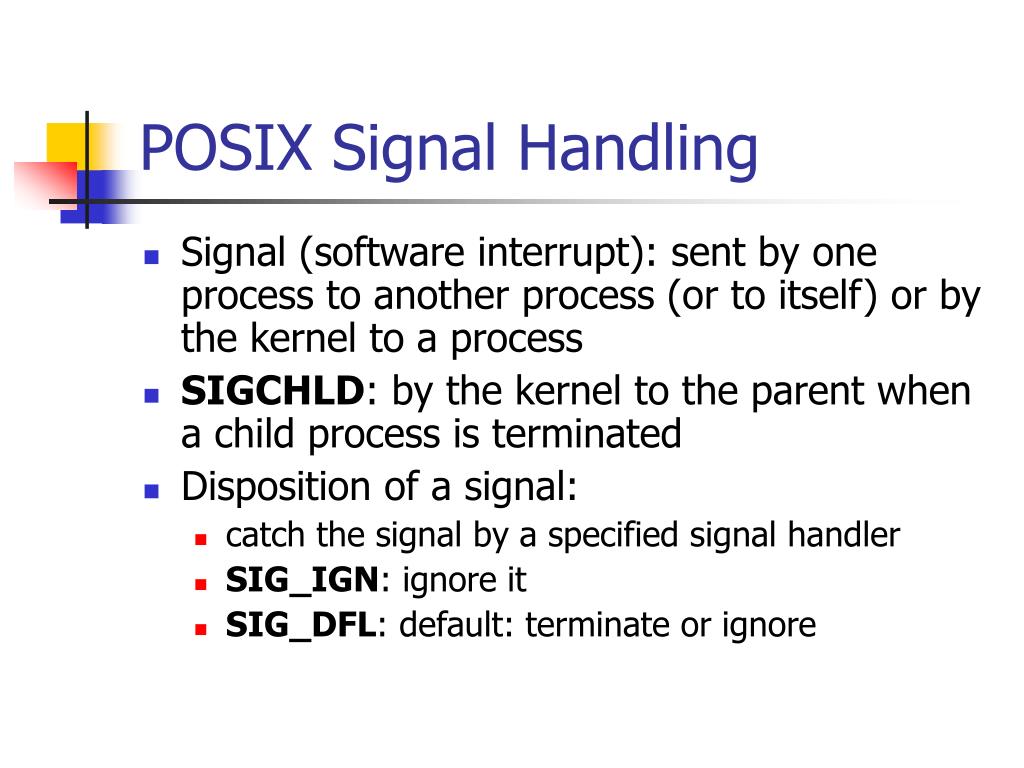

  19. POSIX Signal Handling • Signal (software interrupt): sent by one process to another process (or to itself) or by the kernel to a process • SIGCHLD: by the kernel to the parent when a child process is terminated • Disposition of a signal: • catch the signal by a specified signal handler • SIG_IGN: ignore it • SIG_DFL: default: terminate or ignore

  20. signal Function That Enables System Call Restart #include "unp.h" Sigfunc *signal(int signo, Sigfunc *func) { struct sigaction act, oact; act.sa_handler = func; sigemptyset(&act.sa_mask); act.sa_flags = 0; if (signo == SIGALRM) { #ifdef SA_INTERRUPT act.sa_flags |= SA_INTERRUPT; /* SunOS 4.x */ #endif } else { #ifdef SA_RESTART act.sa_flags |= SA_RESTART; /* SVR4, 44BSD */ #endif } if (sigaction(signo, &act, &oact) < 0) return(SIG_ERR); return(oact.sa_handler); } lib/signal.c Posix標準signal disposition 函數sigaction使用上較為 複雜，故作者用此signal 函數來包裝sigaction 讓被某些singal中斷的 system call能夠restart

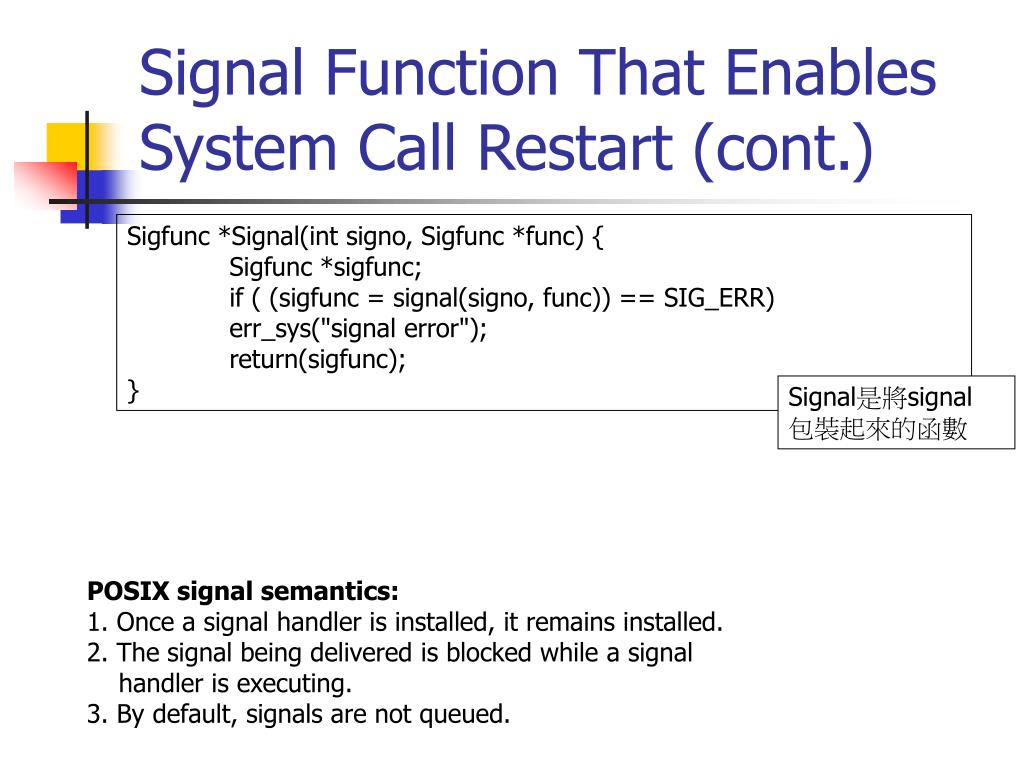

  21. Signal Function That Enables System Call Restart (cont.) Sigfunc *Signal(int signo, Sigfunc *func) { Sigfunc *sigfunc; if ( (sigfunc = signal(signo, func)) == SIG_ERR) err_sys("signal error"); return(sigfunc); } Signal是將signal 包裝起來的函數 POSIX signal semantics: 1. Once a signal handler is installed, it remains installed. 2. The signal being delivered is blocked while a signal handler is executing. 3. By default, signals are not queued.

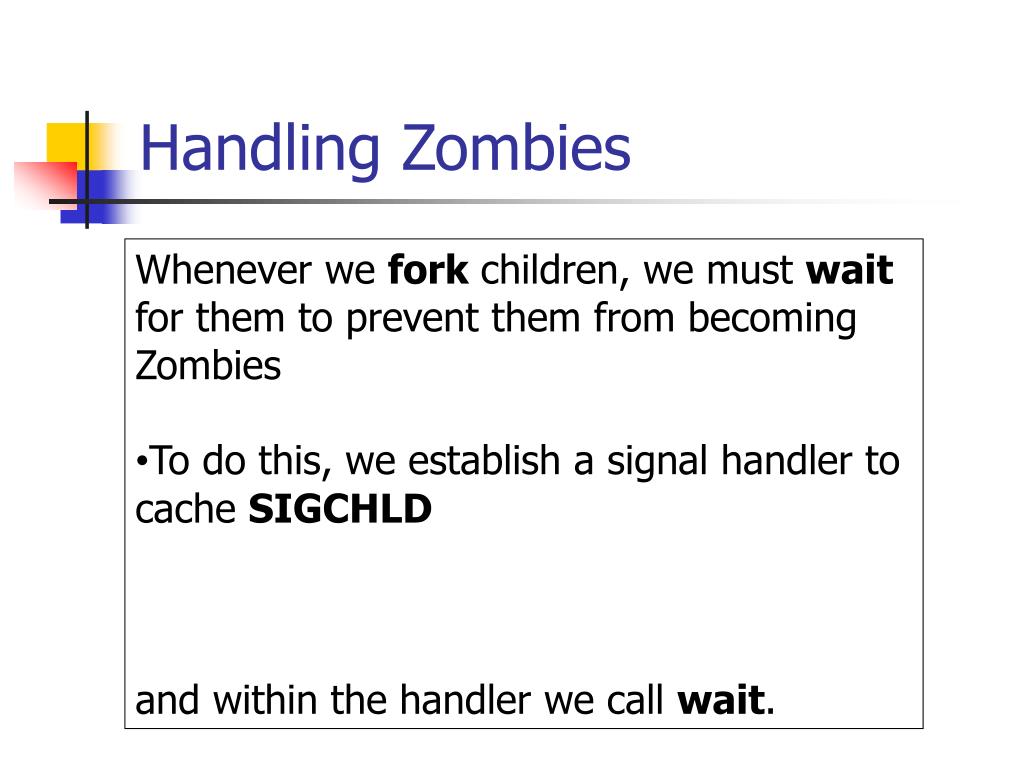

  22. Handling Zombies Whenever we fork children, we must wait for them to prevent them from becoming Zombies •To do this, we establish a signal handler to cache SIGCHLD and within the handler we call wait.

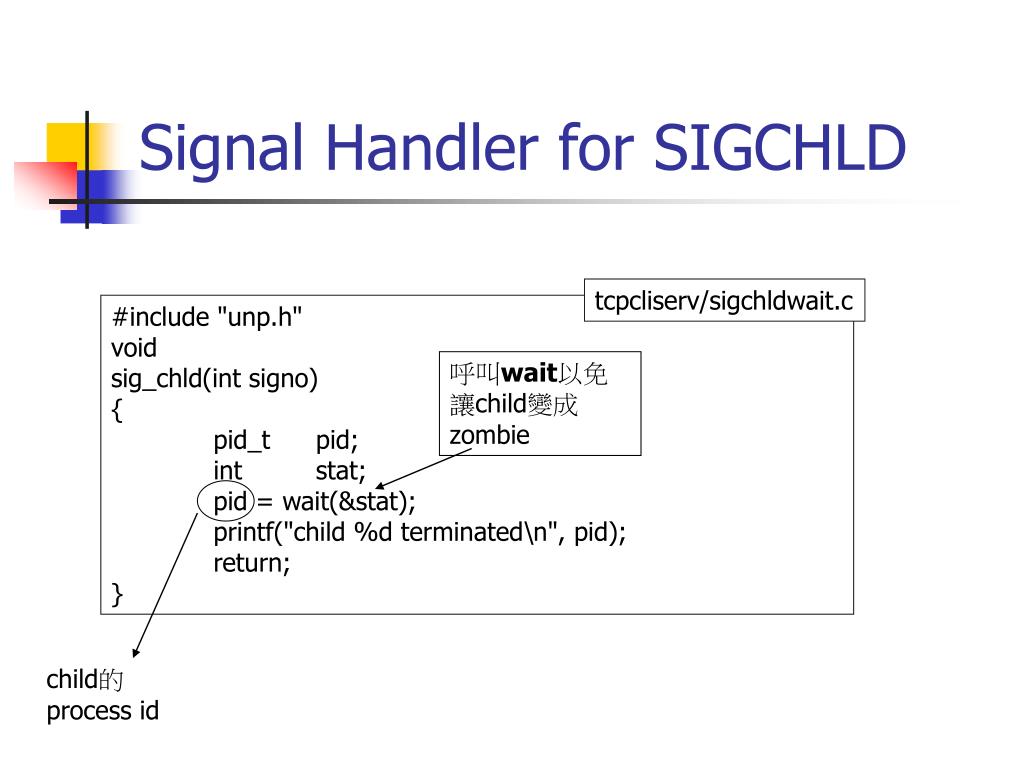

  23. Signal Handler for SIGCHLD tcpcliserv/sigchldwait.c #include "unp.h" void sig_chld(int signo) { pid_t pid; int stat; pid = wait(&stat); printf("child %d terminated\n", pid); return; } 呼叫wait以免 讓child變成 zombie child的 process id

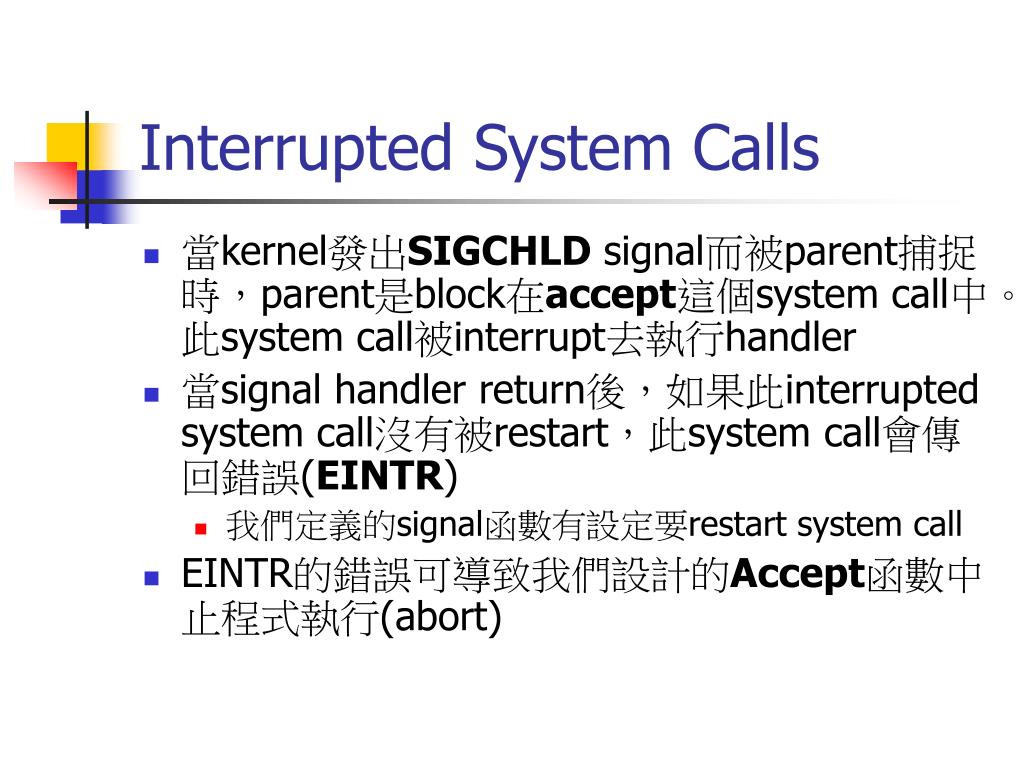

  24. Interrupted System Calls • 當kernel發出SIGCHLD signal而被parent捕捉時，parent是block在accept這個system call中。此system call被interrupt去執行handler • 當signal handler return後，如果此interrupted system call沒有被restart，此system call會傳回錯誤(EINTR) • 我們定義的signal函數有設定要restart system call • EINTR的錯誤可導致我們設計的Accept函數中止程式執行(abort)

  25. Handling Interrupted SystemCalls • Definition: Slow system call “system call that can block forever” • Some kernels automatically restart some interrupted system calls, while some don’t • We must prepare for slow system calls to return EINTR for ( ; ; ){ clilen = sizeof (cliaddr); if ( (connfd = accept (listenfd, (SA) &cliaddr, &clilen)) < 0) { if (errno == EINTR) continue; /* back to for ( ) */ else err_sys (“accept error”); } 我們自行restart accept 這個system call

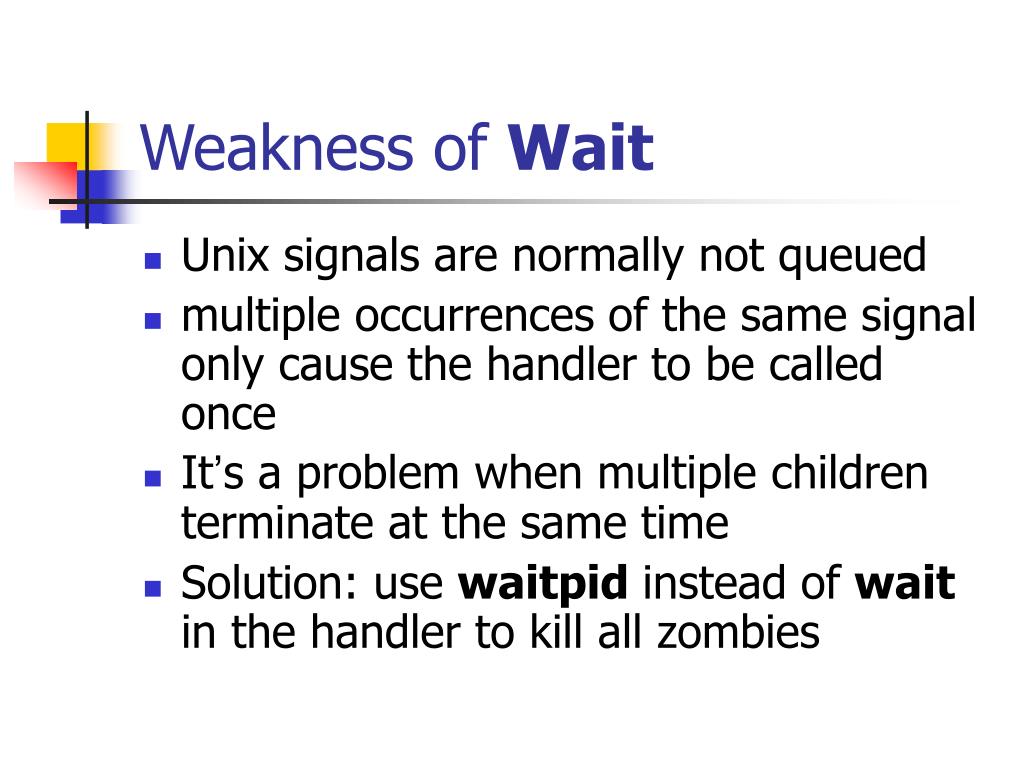

  26. Weakness of Wait • Unix signals are normally not queued • multiple occurrences of the same signal only cause the handler to be called once • It’s a problem when multiple children terminate at the same time • Solution: use waitpid instead of wait in the handler to kill all zombies

  27. Client terminates all five connections catching all SIGCHLD signals in server parent

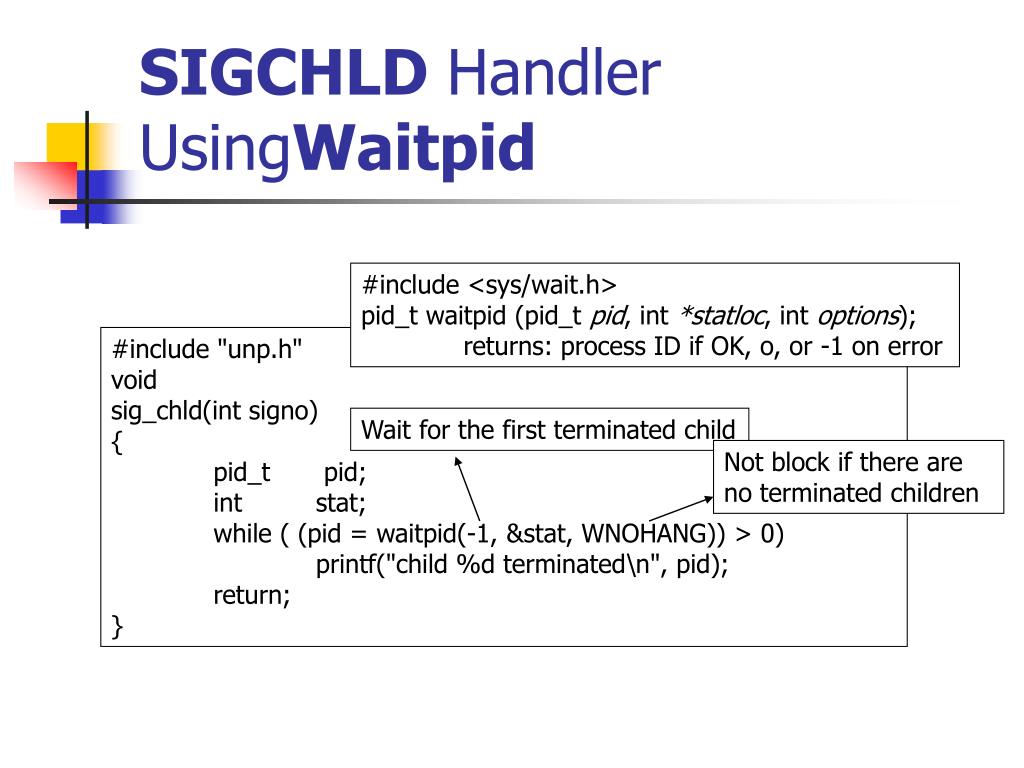

  28. SIGCHLD Handler UsingWaitpid #include <sys/wait.h> pid_t waitpid (pid_t pid, int *statloc, int options); returns: process ID if OK, o, or -1 on error #include "unp.h" void sig_chld(int signo) { pid_t pid; int stat; while ( (pid = waitpid(-1, &stat, WNOHANG)) > 0) printf("child %d terminated\n", pid); return; } Wait for the first terminated child Not block if there are no terminated children

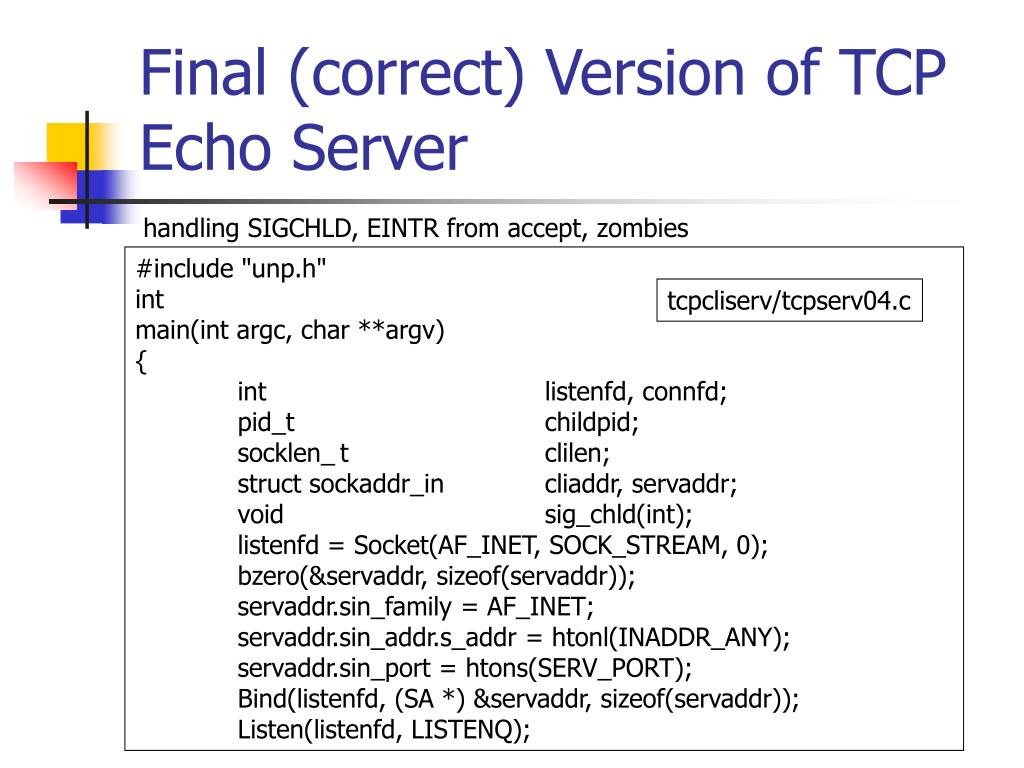

  29. Final (correct) Version of TCP Echo Server handling SIGCHLD, EINTR from accept, zombies #include "unp.h" int main(int argc, char **argv) { int listenfd, connfd; pid_t childpid; socklen_ t clilen; struct sockaddr_in cliaddr, servaddr; void sig_chld(int); listenfd = Socket(AF_INET, SOCK_STREAM, 0); bzero(&servaddr, sizeof(servaddr)); servaddr.sin_family = AF_INET; servaddr.sin_addr.s_addr = htonl(INADDR_ANY); servaddr.sin_port = htons(SERV_PORT); Bind(listenfd, (SA *) &servaddr, sizeof(servaddr)); Listen(listenfd, LISTENQ); tcpcliserv/tcpserv04.c

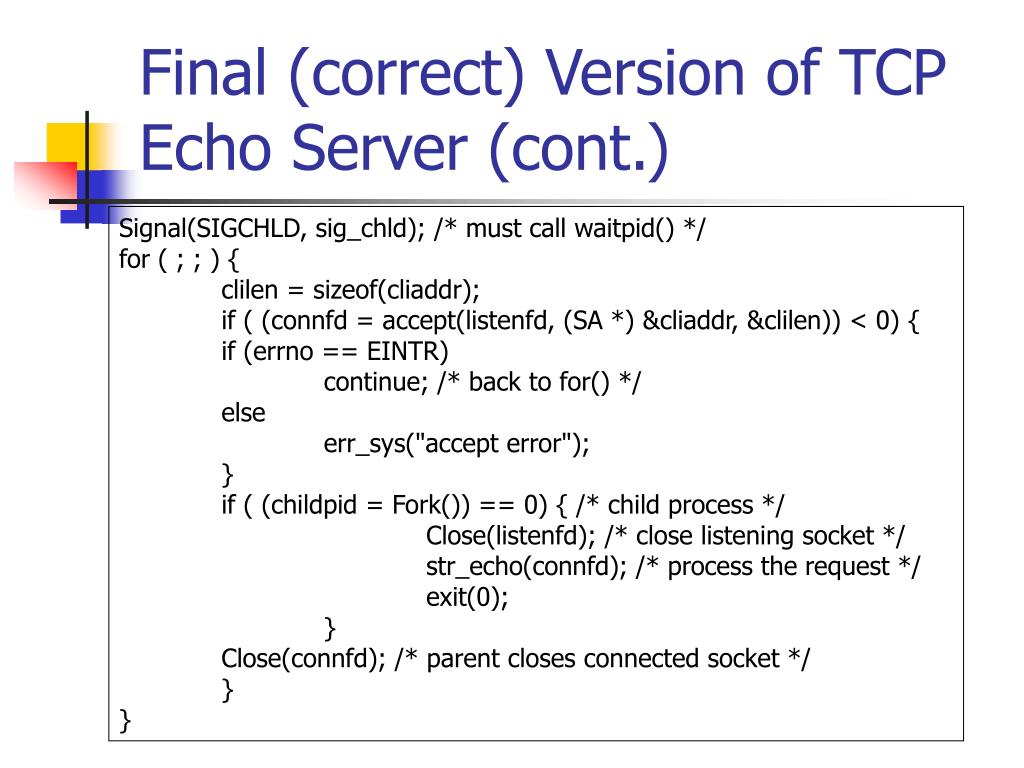

  30. Final (correct) Version of TCP Echo Server (cont.) Signal(SIGCHLD, sig_chld); /* must call waitpid() */ for ( ; ; ) { clilen = sizeof(cliaddr); if ( (connfd = accept(listenfd, (SA *) &cliaddr, &clilen)) < 0) { if (errno == EINTR) continue; /* back to for() */ else err_sys("accept error"); } if ( (childpid = Fork()) == 0) { /* child process */ Close(listenfd); /* close listening socket */ str_echo(connfd); /* process the request */ exit(0); } Close(connfd); /* parent closes connected socket */ } }

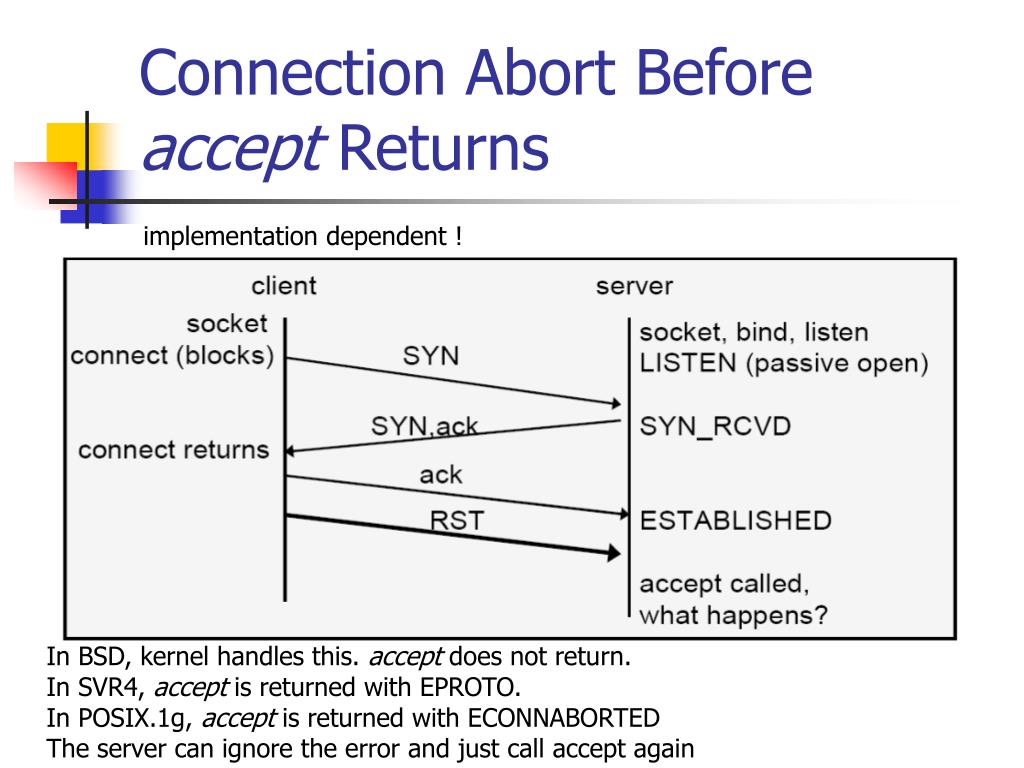

  31. Connection Abort Before accept Returns implementation dependent ! In BSD, kernel handles this. accept does not return. In SVR4, accept is returned with EPROTO. In POSIX.1g, accept is returned with ECONNABORTED The server can ignore the error and just call accept again

  32. Crashing of Server ChildProcess Procedure: 1. Kill the child. Server TCP sends FIN to client TCP, which responds with an ACK. (TCP half-close) (The client process is blocked in fgets when client TCP receives FIN.) 2. SIGCHLD signal is sent to the server parent. 3. User inputs. The client process calls writen to send data to server. 4. The server TCP responds with an RST. 5. The client process returns from readline, 0, when client TCP receives RST. 6. The client process terminates. The client is blocked on the call to fgets when FIN is received. (it should block on input from either source) Solution: Use select or poll to block on either socket or stdio Client沒辦法同時 等待兩個input

  33. SIGPIPE Signal when writing to a socket that has received an RST Procedure: 1. The client writes to a crashed server process. An RST is received at the client TCP and readline returns 0 (EOF). 2. If the client ignores the error returned from readline and write more, SIGPIPE is sent to the client process. 3. If SIGPIPE is not caught, the client terminates with no output Problem: Nothing is output even by the shell to indicate what has happened. (Have to use “echo $?”to examine the shell’s return value of last command.) • Solution: • Setting the signal disposition to SIG_IGN • Catch the SIGPIPE signal for further processing. (handle EPIPE error returned from write).

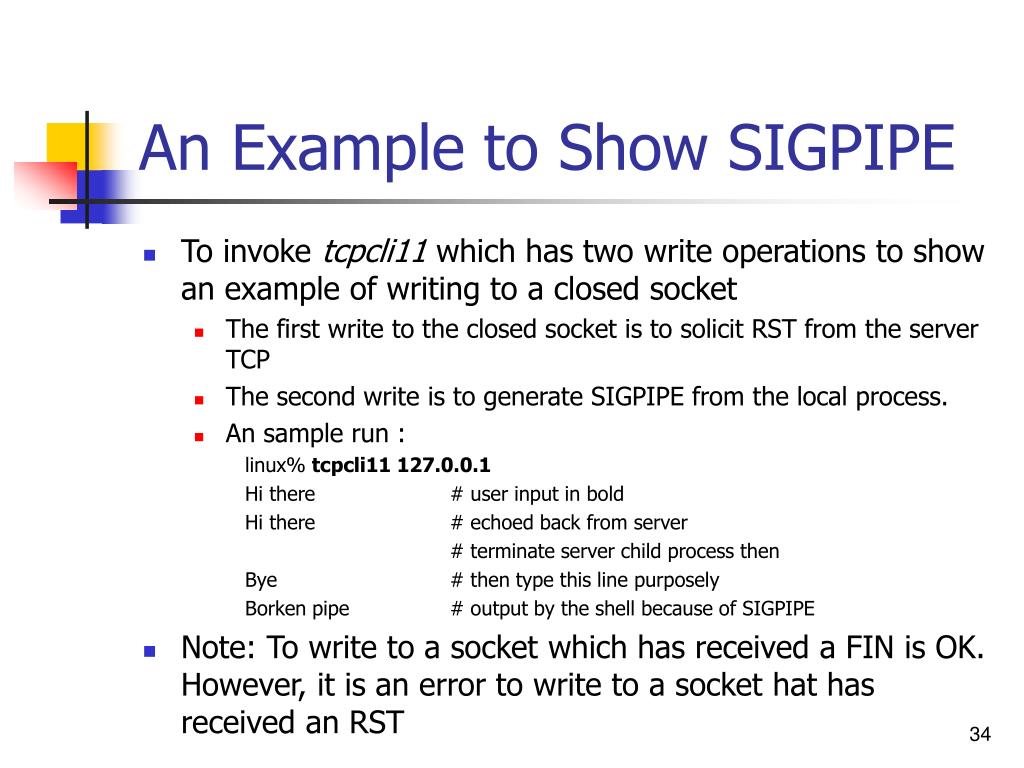

  34. An Example to Show SIGPIPE • To invoke tcpcli11 which has two write operations to show an example of writing to a closed socket • The first write to the closed socket is to solicit RST from the server TCP • The second write is to generate SIGPIPE from the local process. • An sample run : linux% tcpcli11 127.0.0.1 Hi there # user input in bold Hi there # echoed back from server # terminate server child process then Bye # then type this line purposely Borken pipe # output by the shell because of SIGPIPE • Note: To write to a socket which has received a FIN is OK. However, it is an error to write to a socket hat has received an RST 34

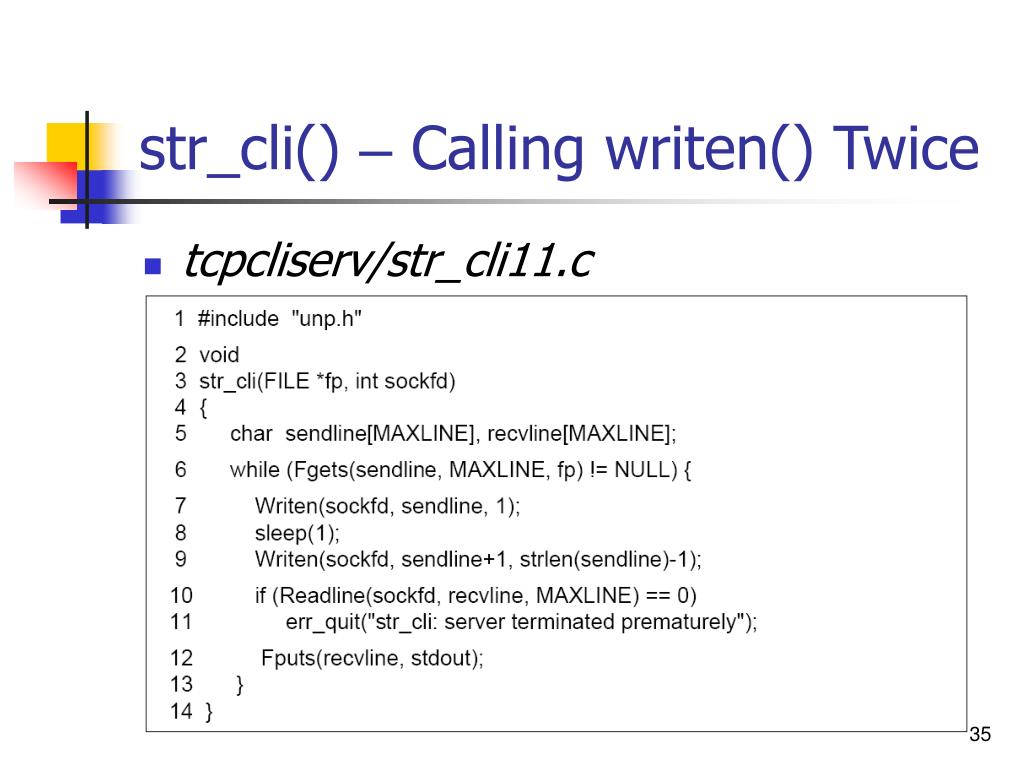

  35. str_cli() – Calling writen() Twice • tcpcliserv/str_cli11.c 35

  36. Crash of Server Host • Scenario • 1. client and server run on different hosts • 2. make a connection between client and server • 3. client types something to transmit data to the server • 4. disconnect the server host from the network (destination unreachable) • 5. client types something again. • client TCP continuously retx data and timeout around 9 min • The client process will then return with the error ETIMEDOUT. • If some intermediate router determined that the server host was down and responded with an ICMP “destination unreachable” message, the error returned will then be either EHOSTUNREACH or ENETUNREACH • To quickly detect: timeout on readline, SO_KEEPALIVE socket option, heartbeat functions

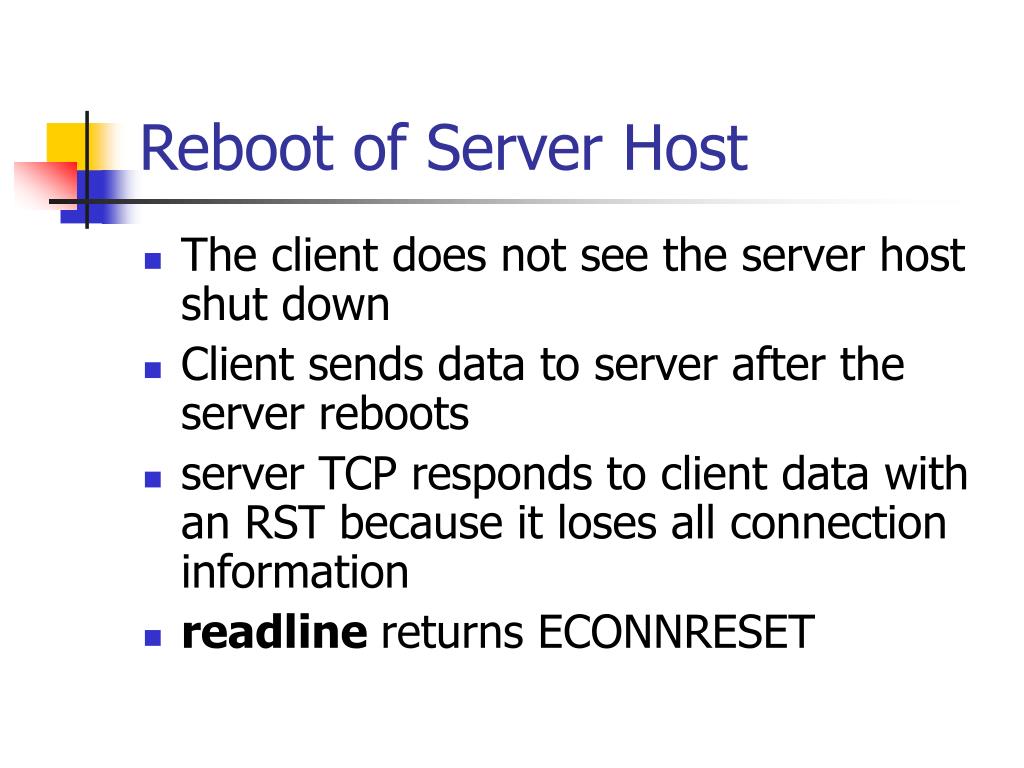

  37. Reboot of Server Host • The client does not see the server host shut down • Client sends data to server after the server reboots • server TCP responds to client data with an RST because it loses all connection information • readline returns ECONNRESET

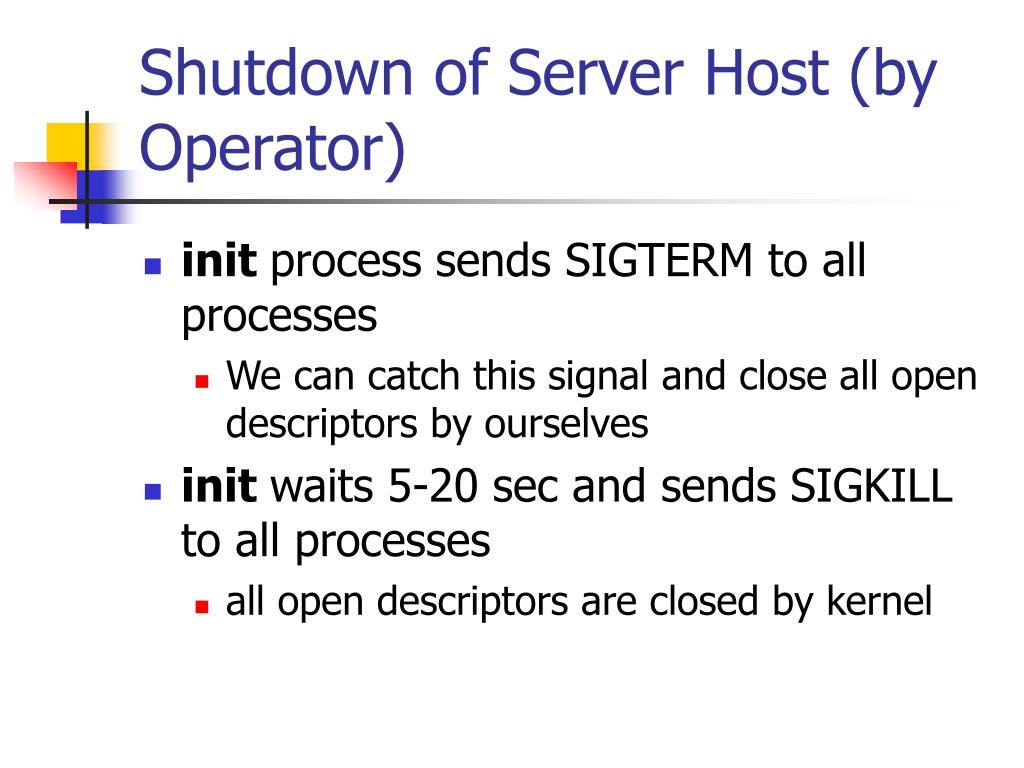

  38. Shutdown of Server Host (byOperator) • init process sends SIGTERM to all processes • We can catch this signal and close all open descriptors by ourselves • init waits 5-20 sec and sends SIGKILL to all processes • all open descriptors are closed by kernel

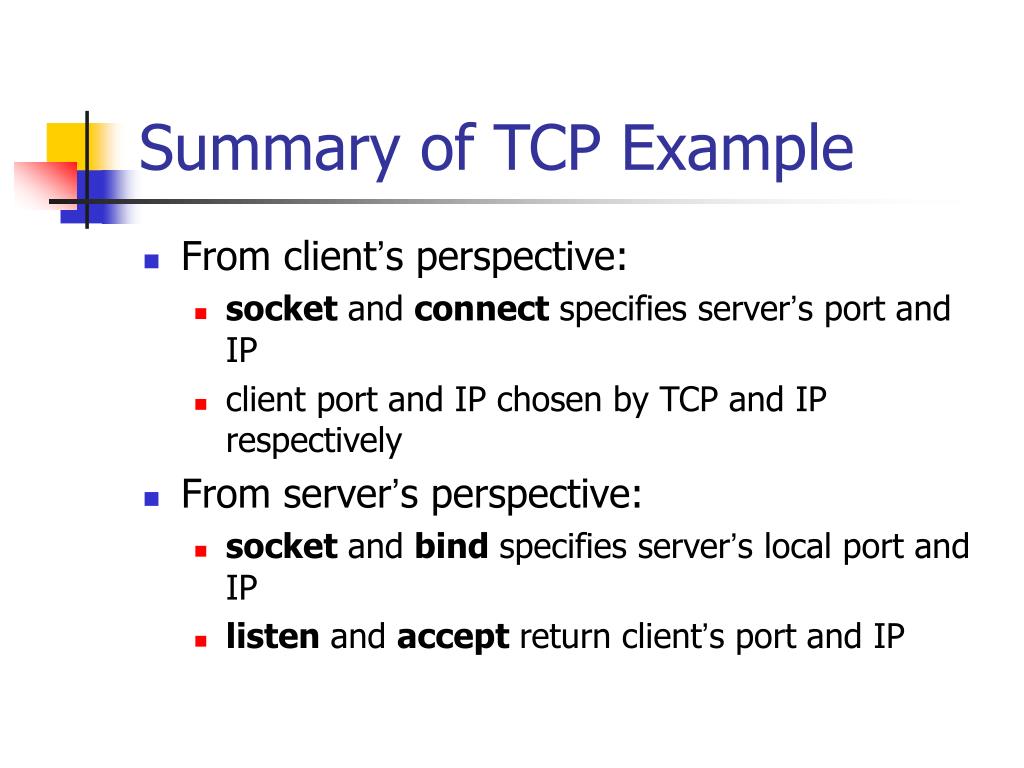

  39. Summary of TCP Example • From client’s perspective: • socket and connect specifies server’s port and IP • client port and IP chosen by TCP and IP respectively • From server’s perspective: • socket and bind specifies server’s local port and IP • listen and accept return client’s port and IP

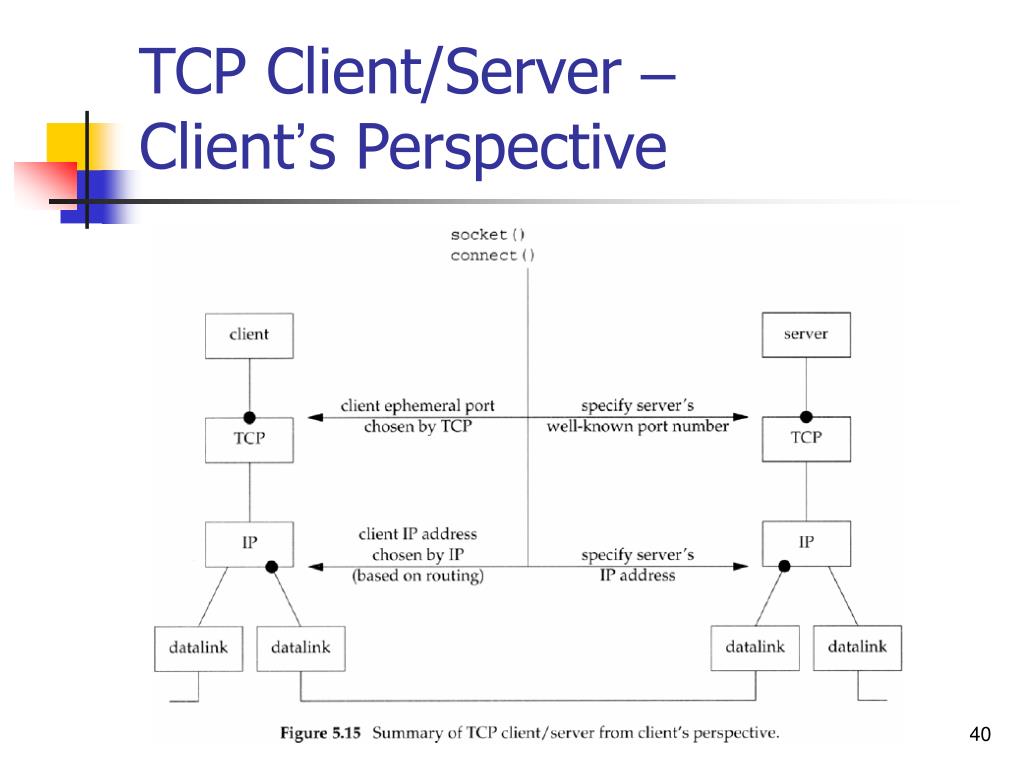

  40. TCP Client/Server –Client’s Perspective 40

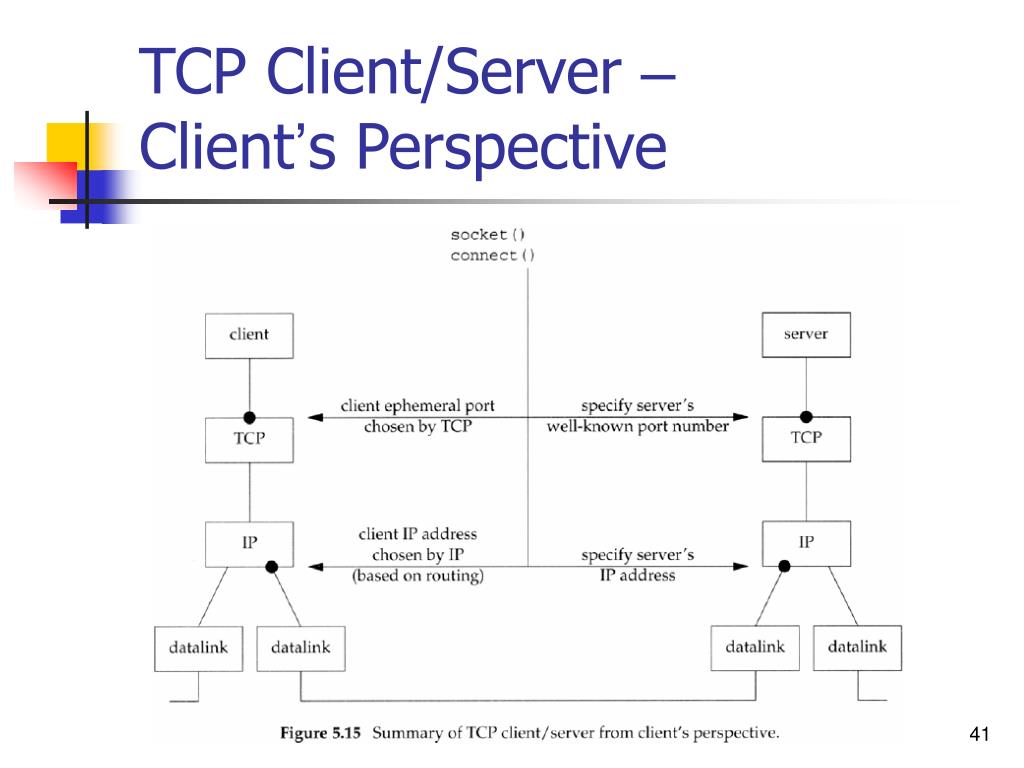

  41. TCP Client/Server –Client’s Perspective 41

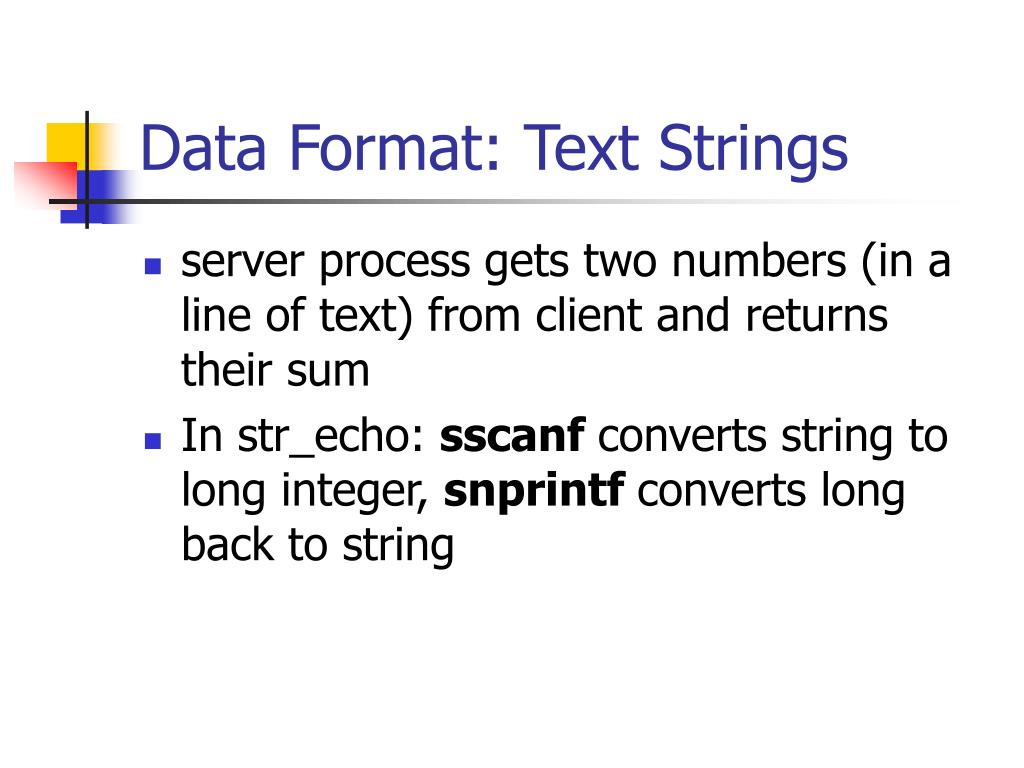

  42. Data Format: Text Strings • server process gets two numbers (in a line of text) from client and returns their sum • In str_echo: sscanf converts string to long integer, snprintf converts long back to string

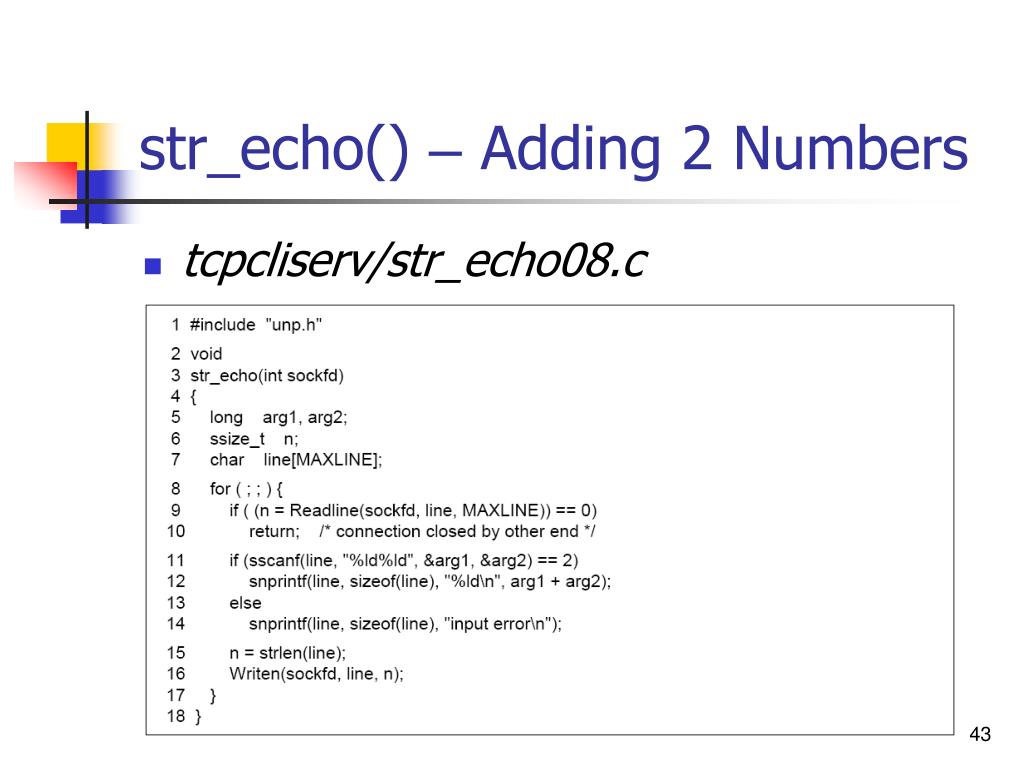

  43. str_echo() – Adding 2 Numbers • tcpcliserv/str_echo08.c 43

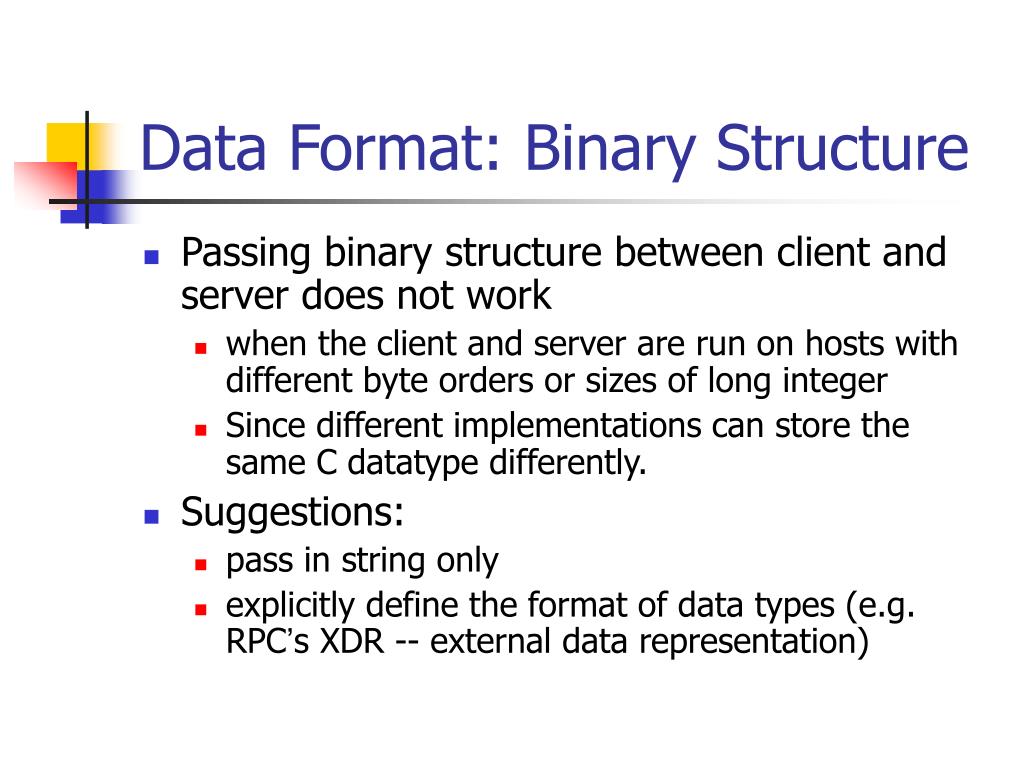

  44. Data Format: Binary Structure • Passing binary structure between client and server does not work • when the client and server are run on hosts with different byte orders or sizes of long integer • Since different implementations can store the same C datatype differently. • Suggestions: • pass in string only • explicitly define the format of data types (e.g. RPC’s XDR -- external data representation)

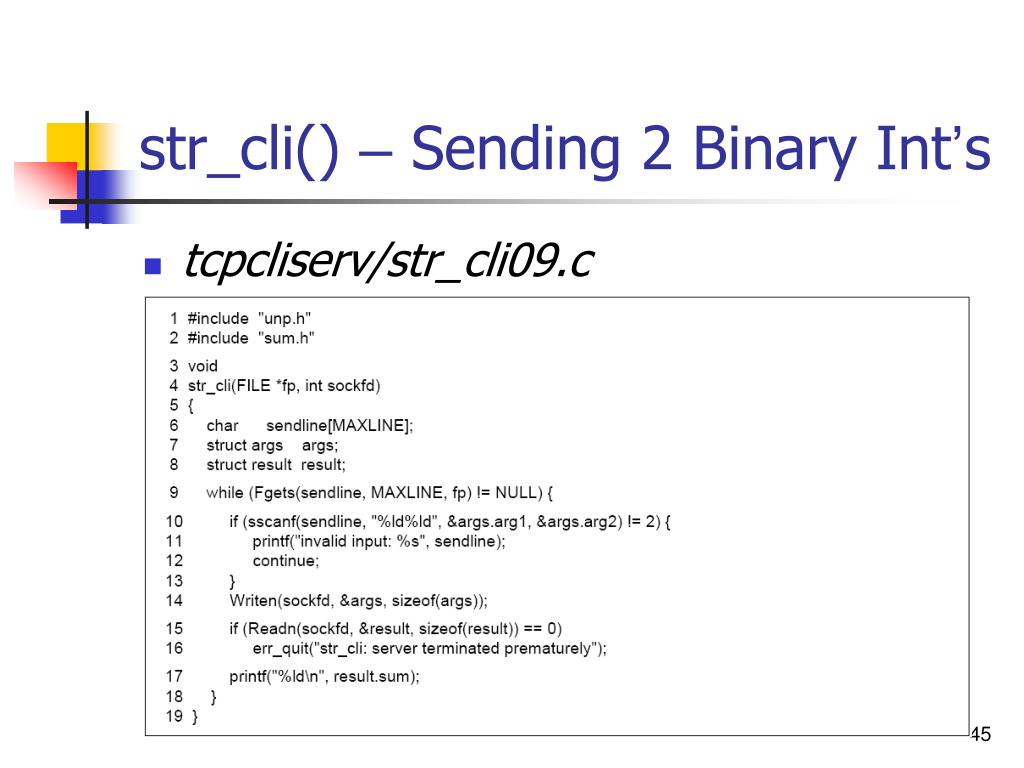

  45. str_cli() – Sending 2 Binary Int’s • tcpcliserv/str_cli09.c 45

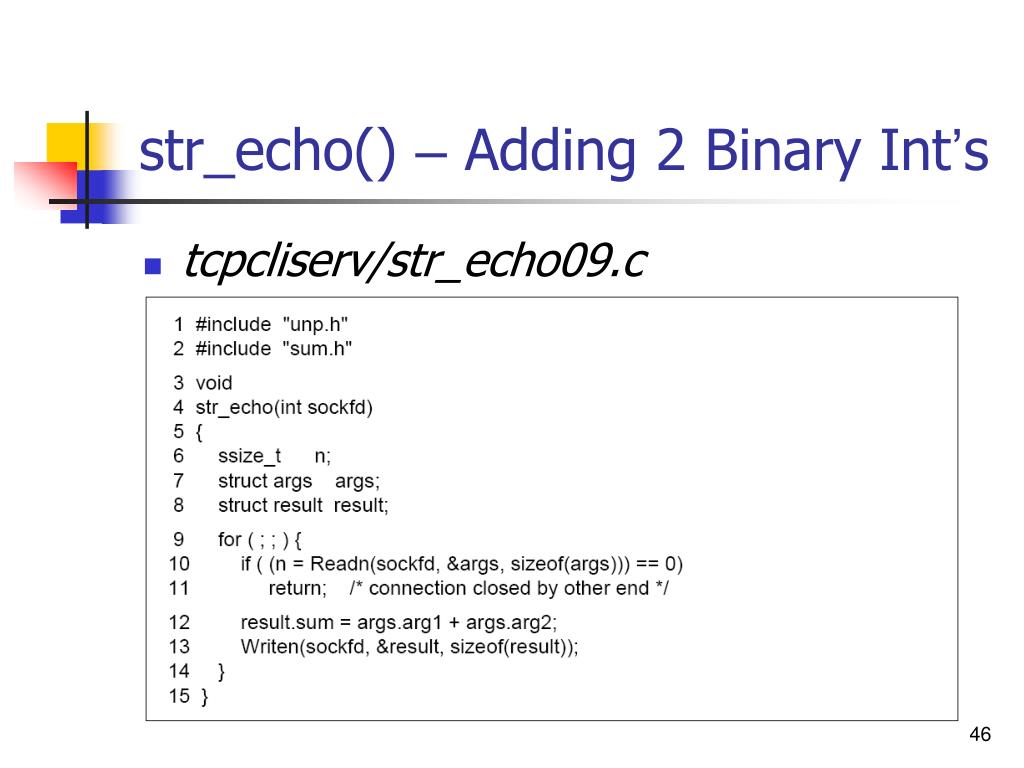

  46. str_echo() – Adding 2 Binary Int’s • tcpcliserv/str_echo09.c 46

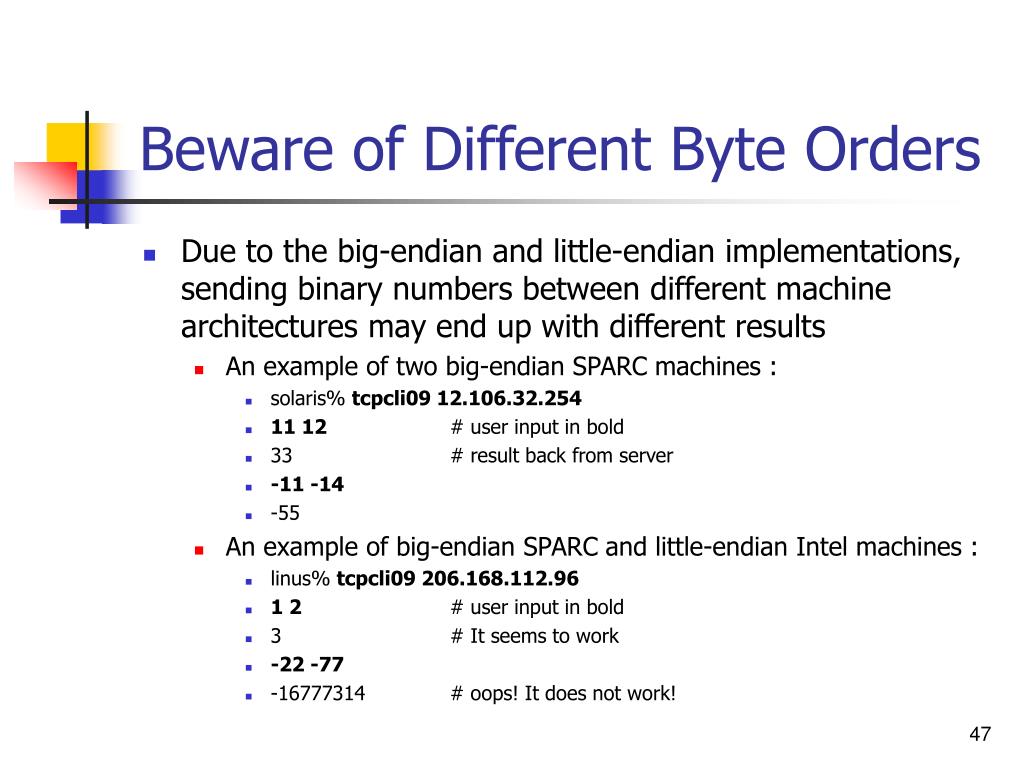

  47. Beware of Different Byte Orders • Due to the big-endian and little-endian implementations, sending binary numbers between different machine architectures may end up with different results • An example of two big-endian SPARC machines : • solaris% tcpcli09 12.106.32.254 • 11 12 # user input in bold • 33 # result back from server • -11 -14 • -55 • An example of big-endian SPARC and little-endian Intel machines : • linus% tcpcli09 206.168.112.96 • 1 2 # user input in bold • 3 # It seems to work • -22 -77 • -16777314 # oops! It does not work! 47
