  1. SECTION 3PLACARDS AND LABELS

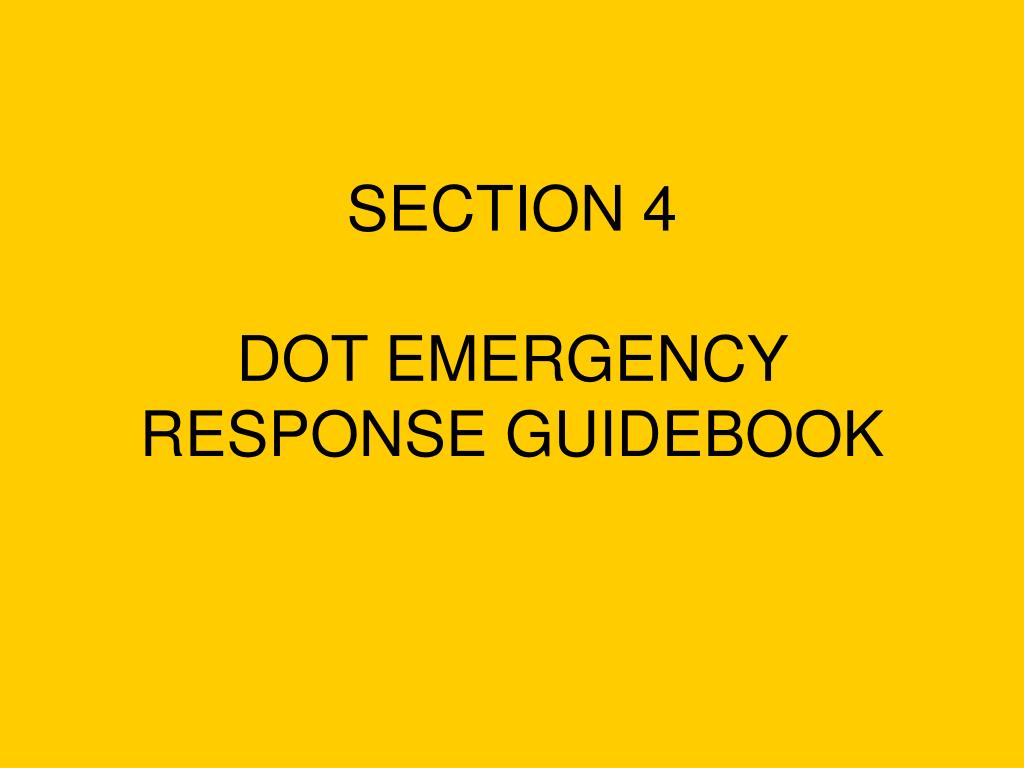

  2. SECTION 4DOT EMERGENCY RESPONSE GUIDEBOOK

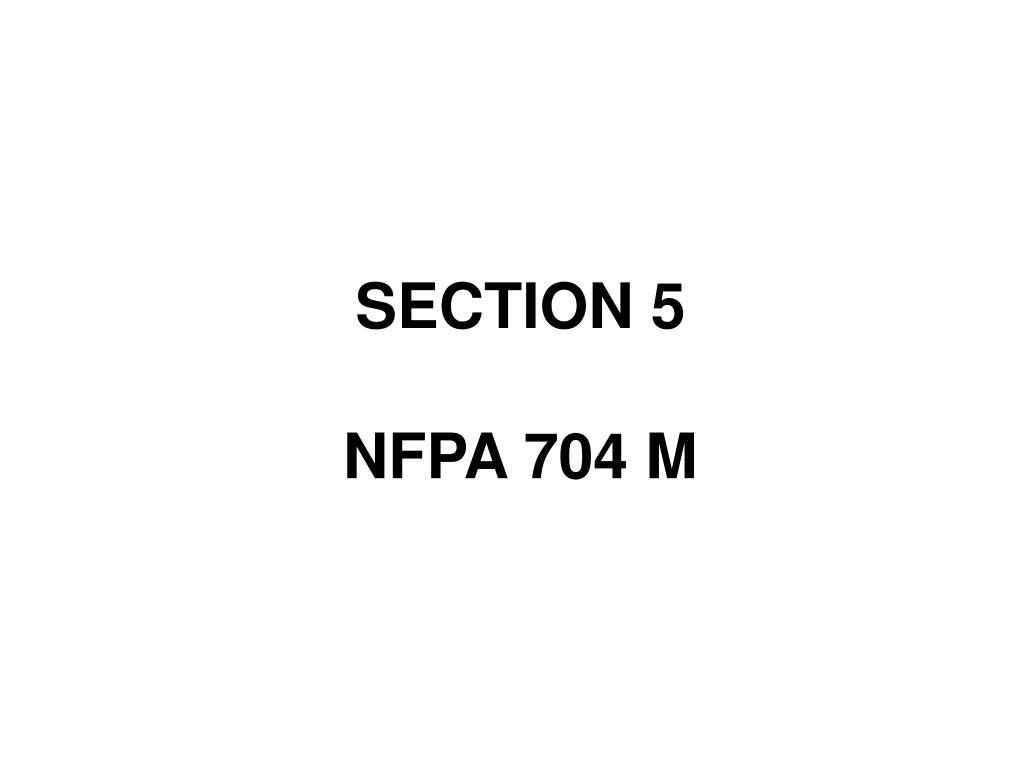

  3. SECTION 5NFPA 704 M

  4. NFPA 704M SYSTEM • Fixed facilities only • Sometimes found on individual containers in transportation • Usually adopted as city ordinance but rarely enforced

  5. RELATIVE HAZARD 5 DEGREES OF HAZARD 0 NONE 1 SLIGHT 2 MODERATE 3 EXTREME 4 SEVERE

  6. HEALTH • The blue section corresponds to the relative health hazard • 2 or greater calls for an SCBA 2

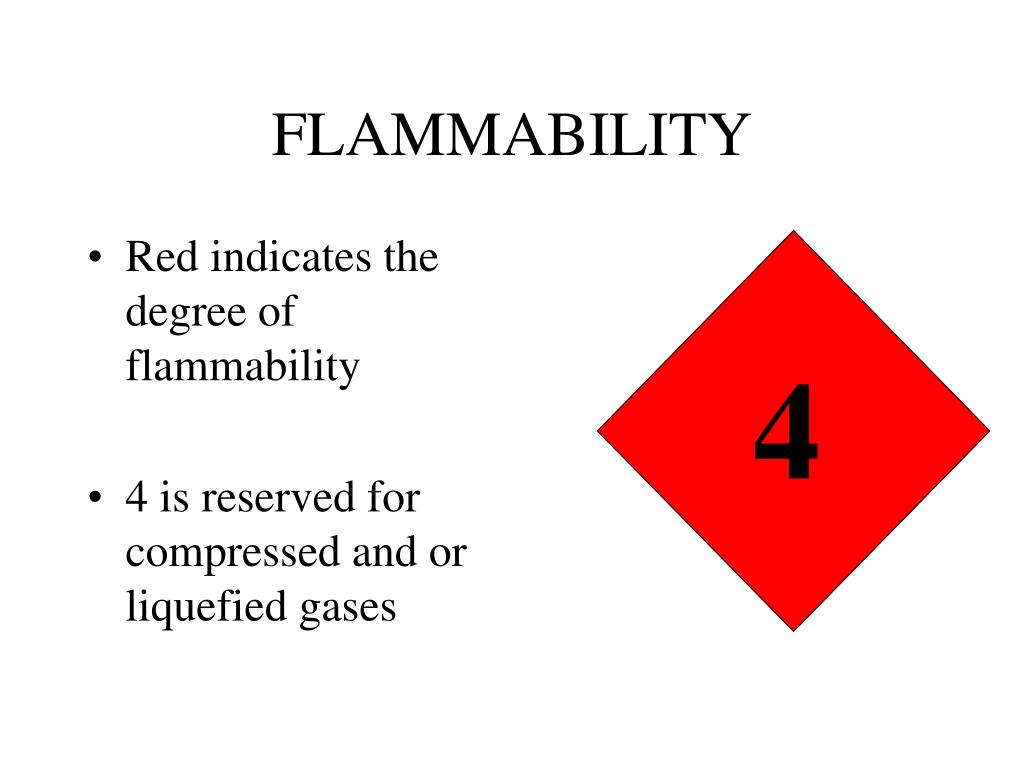

  7. FLAMMABILITY • Red indicates the degree of flammability • 4 is reserved for compressed and or liquefied gases 4

  8. REACTIVITY • More accurately describes stability • Also has relation to water reactivity 4

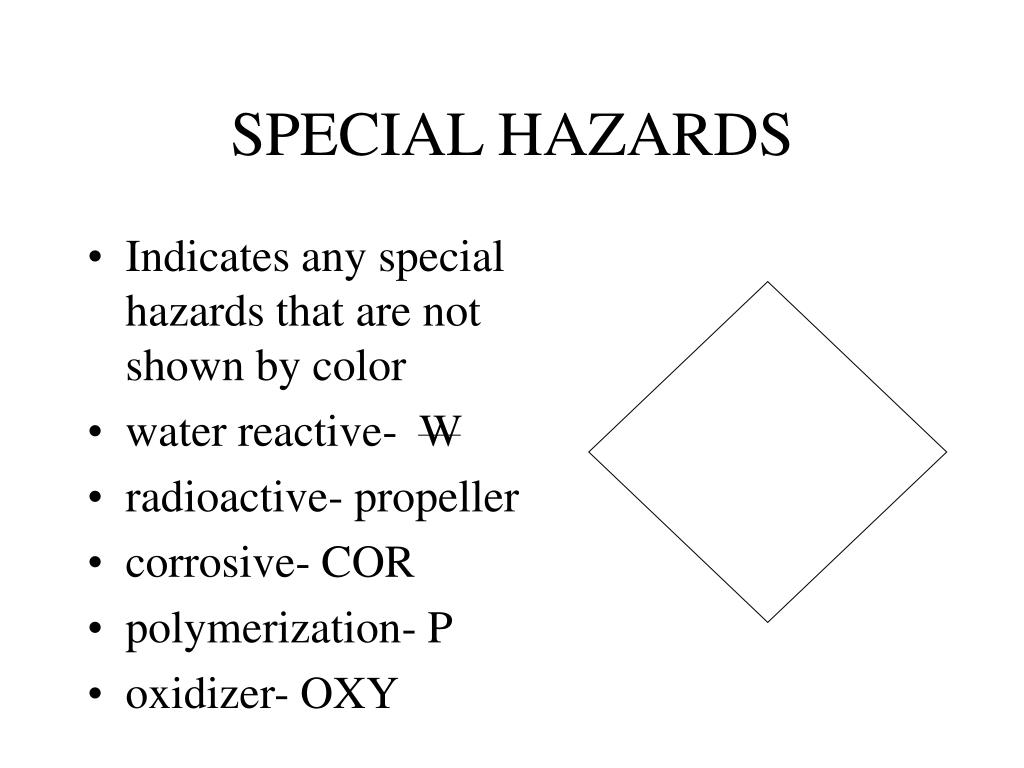

  9. SPECIAL HAZARDS • Indicates any special hazards that are not shown by color • water reactive- W • radioactive- propeller • corrosive- COR • polymerization- P • oxidizer- OXY
