Presentation Transcript
compatibility with 16 bit code
Compatibility with 16-bit code
  • Advantages
    • Allows execution of an older code
  • Disadvantages
    • Supports programmer laziness/persistence
  • IA-32 compatibility modes
    • Real mode
    • Virtual-8086 mode
compatibility mode comparison
Compatibility mode comparison
  • Common characteristic
    • Binary code compatibility with predecessors of IA-32 (8086, 80186, 80286)
    • Possibility to use some 32-bit features
  • Real mode
    • Nearly compatible with 8086
    • Starting CPU mode after the RESET
    • Minimal support from OS
    • No protection mechanisms
    • Some important IA-32 features are not available (paging)
  • Virtual-8086 mode
    • More differences against 8086
    • Part of the protected mode, cannot run without it
    • Complicated emulation software
    • Keeps protection
    • Uses all features of IA-32 (including paging)
    • Virtualization – more VM86 machines at the same moment
    • Cannot be entered from the long mode

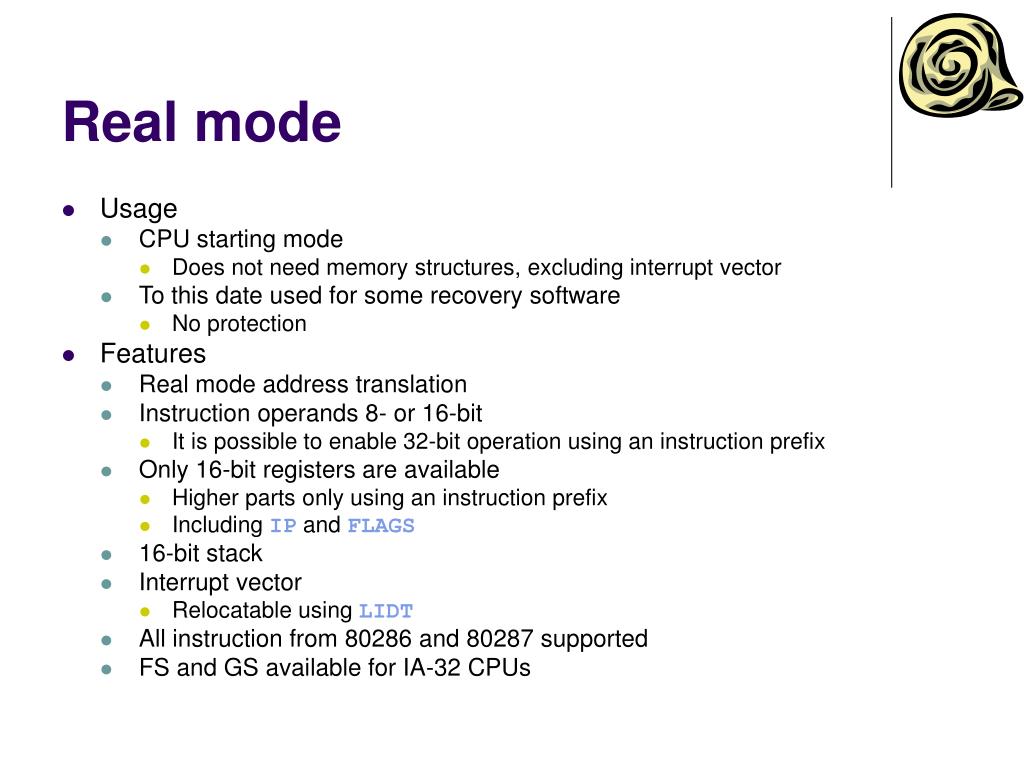

real mode
Real mode
  • Usage
    • CPU starting mode
      • Does not need memory structures, excluding interrupt vector
    • To this date used for some recovery software
      • No protection
  • Features
    • Real mode address translation
    • Instruction operands 8- or 16-bit
      • It is possible to enable 32-bit operation using an instruction prefix
    • Only 16-bit registers are available
      • Higher parts only using an instruction prefix
      • IncludingIPandFLAGS
    • 16-bit stack
    • Interrupt vector
      • Relocatable usingLIDT
    • All instruction from 80286 and 80287 supported
    • FS and GS available for IA-32 CPUs
real mode address translation
Real mode address translation
  • Paging
    • Not supported
  • Segmentation
    • Simulates 8086 behavior
    • No descriptor tables
    • Segment attributes set to simulate real mode
      • Based address derive from the visible part
        • Base = selector * 16
      • Segment limit: 216-1
      • Segment type: code-writable
  • Inaccurate 8086 memory model
    • Address computed in 32 bits
    • HMA – available memory in the range 100000h-10FFFFh
16 bit address modes
16-bit address modes
  • 16-bit instructions use 16-bit address mode
    • Offset = [Base] + [Index] + [Displacement]
      • Base = BX, BP
      • Index = SI, DI
  • Use 32-bit address mode with an instruction prefix

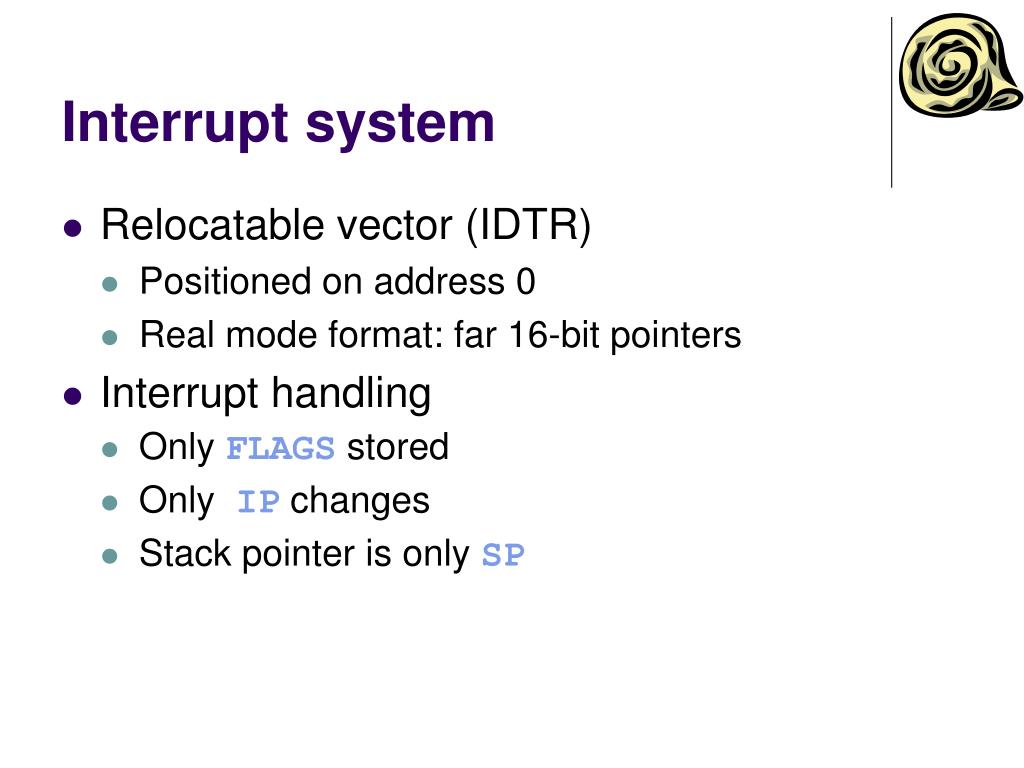

interrupt system
Interrupt system
  • Relocatable vector (IDTR)
    • Positioned on address 0
    • Real mode format: far 16-bit pointers
  • Interrupt handling
    • OnlyFLAGS stored
    • Only IP changes
    • Stack pointer is onlySP

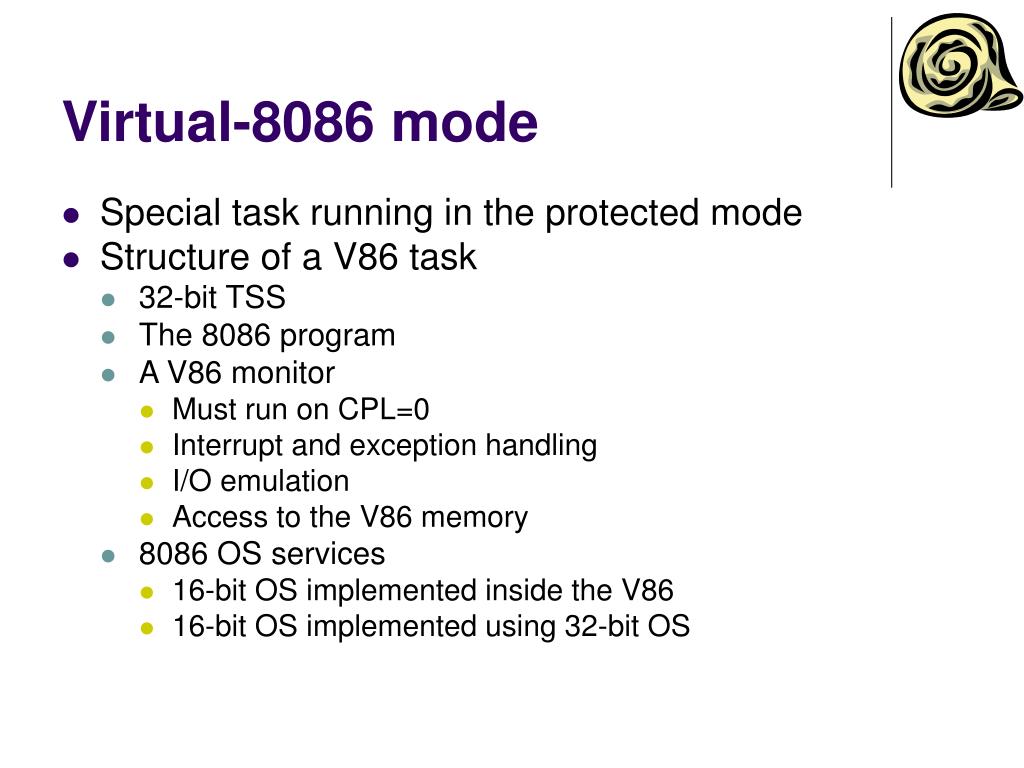

virtual 8086 mode
Virtual-8086 mode
  • Special task running in the protected mode
  • Structure of a V86 task
    • 32-bit TSS
    • The 8086 program
    • A V86 monitor
      • Must run on CPL=0
      • Interrupt and exception handling
      • I/O emulation
      • Access to the V86 memory
    • 8086 OS services
      • 16-bit OS implemented inside the V86
      • 16-bit OS implemented using 32-bit OS

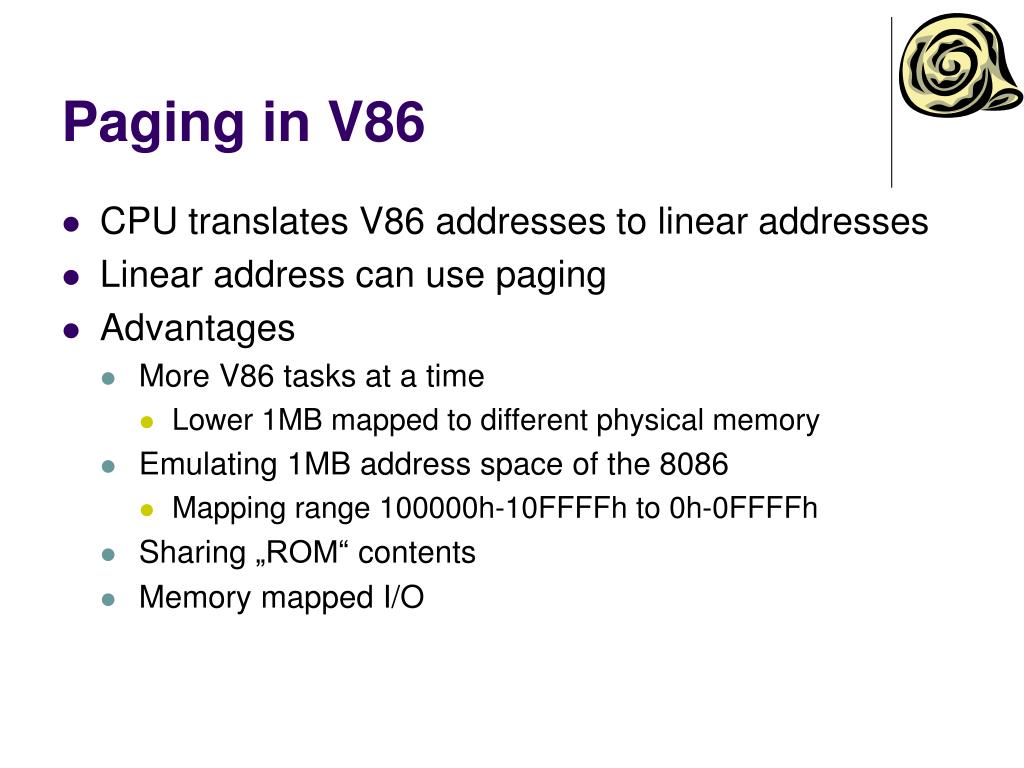

paging in v86
Paging in V86
  • CPU translates V86 addresses to linear addresses
  • Linear address can use paging
  • Advantages
    • More V86 tasks at a time
      • Lower 1MB mapped to different physical memory
    • Emulating 1MB address spaceof the 8086
      • Mapping range 100000h-10FFFFh to 0h-0FFFFh
    • Sharing „ROM“ contents
    • Memory mapped I/O

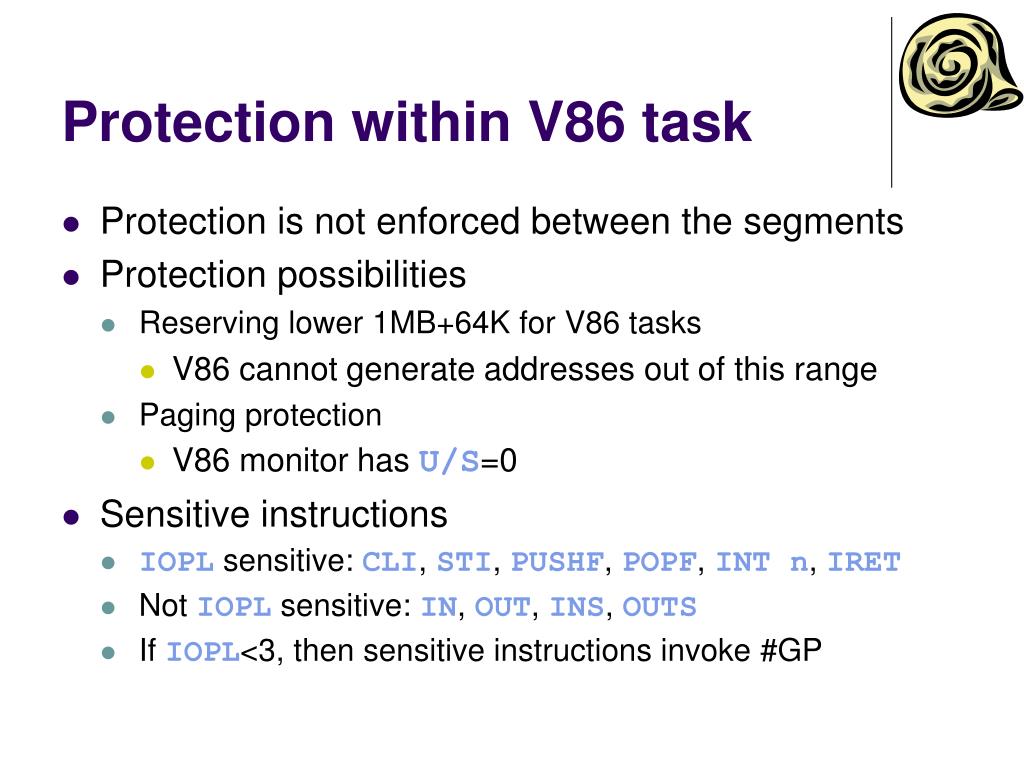

protection within v86 task
Protection within V86 task
  • Protection is not enforced between the segments
  • Protection possibilities
    • Reserving lower 1MB+64K for V86 tasks
      • V86 cannot generate addresses out of this range
    • Paging protection
      • V86 monitor has U/S=0
  • Sensitive instructions
    • IOPL sensitive: CLI, STI, PUSHF, POPF, INT n, IRET
    • NotIOPL sensitive: IN, OUT, INS, OUTS
    • IfIOPL<3, then sensitive instructions invoke#GP

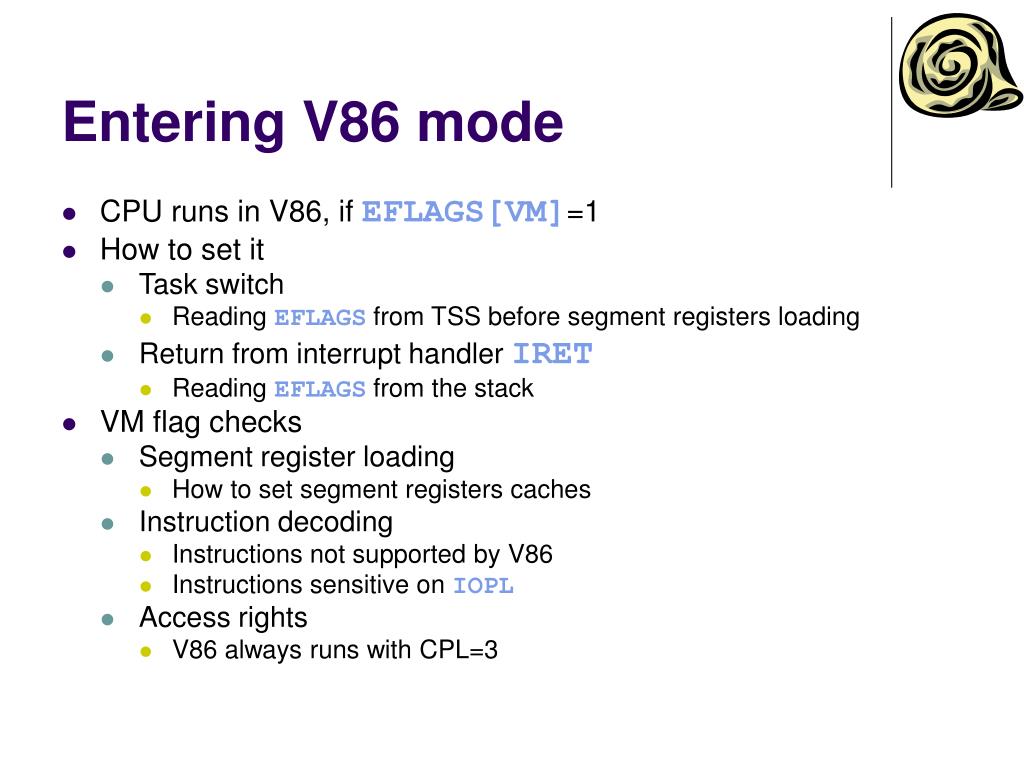

entering v86 mode
Entering V86 mode
  • CPU runs in V86, ifEFLAGS[VM]=1
  • How to set it
    • Task switch
      • ReadingEFLAGSfrom TSS before segment registers loading
    • Return from interrupt handlerIRET
      • ReadingEFLAGSfrom the stack
  • VM flag checks
    • Segment register loading
      • How to set segment registers caches
    • Instruction decoding
      • Instructions not supported by V86
      • Instructions sensitive onIOPL
    • Access rights
      • V86 always runs with CPL=3

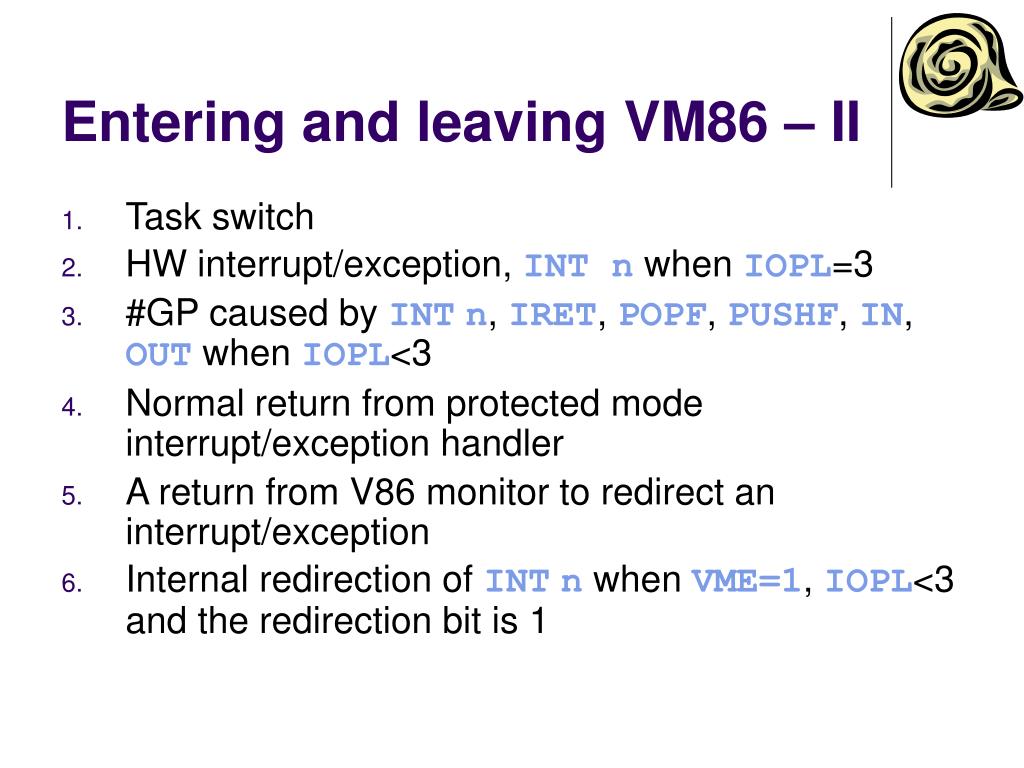

entering and leaving vm86 i i
Entering and leaving VM86 – II
  • Task switch
  • HW interrupt/exception, INT nwhenIOPL=3
  • #GPcaused byINTn, IRET, POPF, PUSHF, IN, OUTwhenIOPL<3
  • Normal return from protected mode interrupt/exception handler
  • A return from V86 monitor to redirect an interrupt/exception
  • Internal redirection ofINTnwhenVME=1, IOPL<3 and the redirection bit is 1
leaving v86

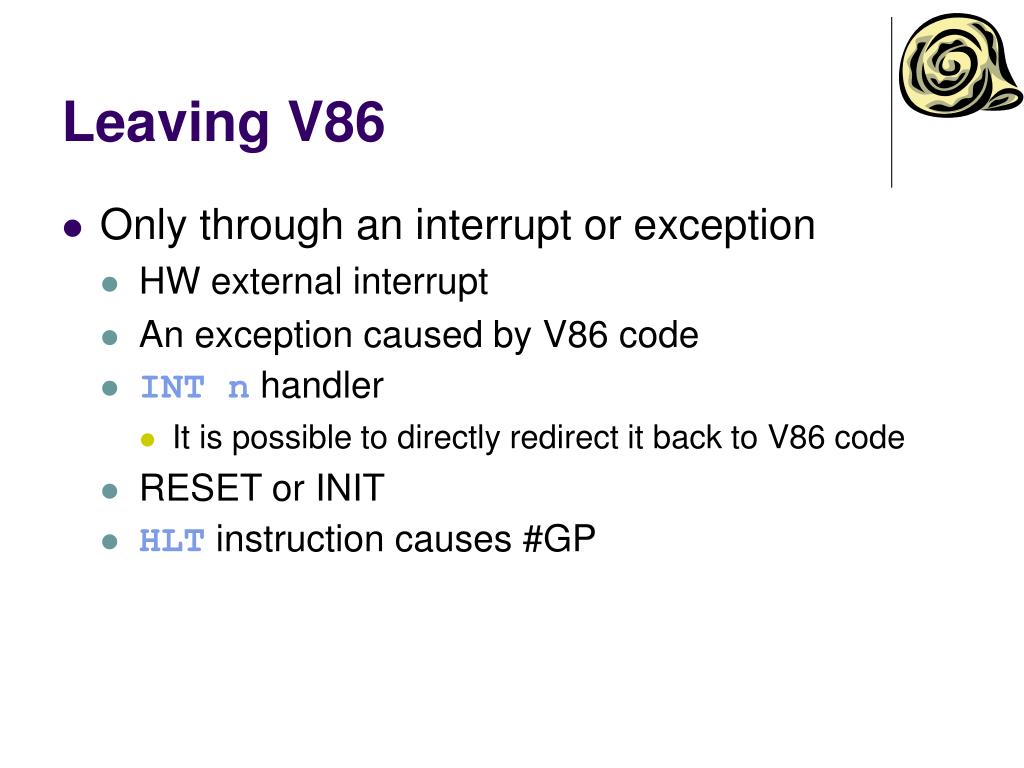

Leaving V86
  • Only through an interrupt or exception
    • HW external interrupt
    • An exceptioncaused by V86 code
    • INT n handler
      • It is possible to directly redirect it back to V86 code
    • RESET or INIT
    • HLTinstruction causes#GP
v 86 i o
V86 I/O
  • Protection
    • Protection of all ports
    • V86 performs I/O directly (no protection)
    • Access specific I/O ports
      • I/O map in the TSS
    • Access specific I/O memory mapped ports
      • Paging
interrupt and exception handling in v86
Interrupt and exception handling in V86
  • All interrupts divided into classes
    • Class 1
      • All exceptions
      • All HW interrupts including NMI
    • Class 2
      • Maskable HW interrupts whenCR4[VME] =1
    • Class 3
      • AllINT n
  • Moreover, handling of classes 2 and 3 depends
    • IOPL setting
      • Working withEFLAGS[IF], EFLAGS[VIF], EFLAGS[VIP]
    • CR4[VME] setting
    • INT nredirection map in TSS
    • Virtual interrupt supportEFLAGS[VIF], EFLAGS[VIP]

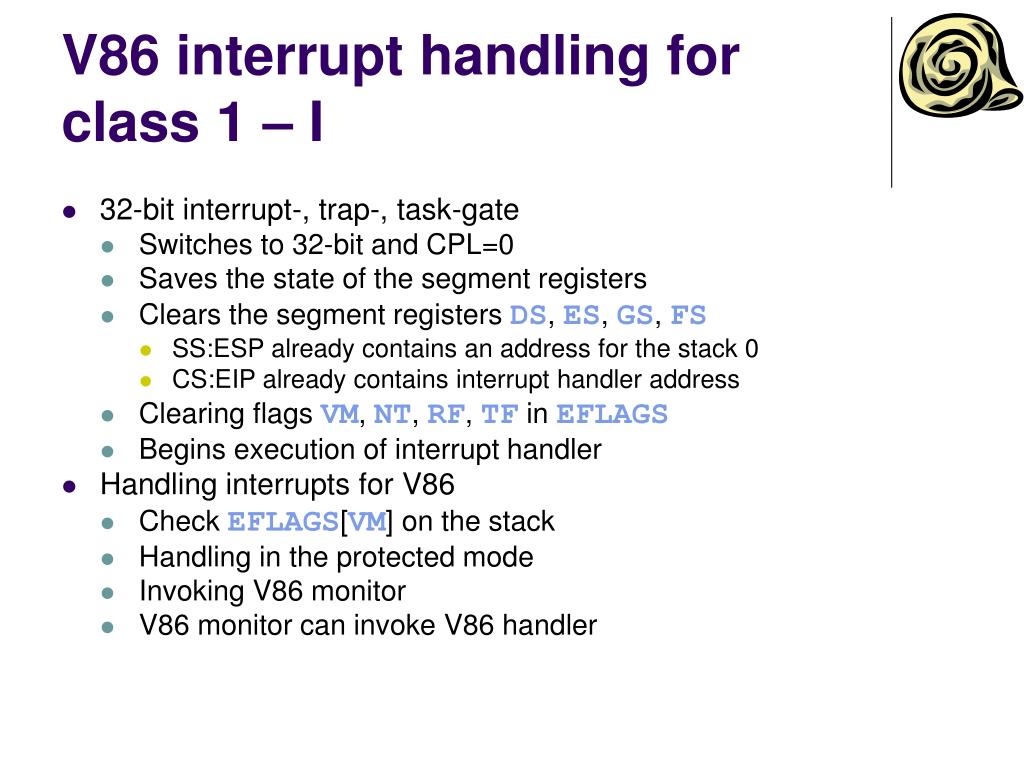

v86 interrupt handling for class 1 i
V86 interrupt handling for class 1 – I
  • 32-bit interrupt-, trap-, task-gate
    • Switches to 32-bit and CPL=0
    • Saves the state of the segment registers
    • Clears the segment registersDS, ES, GS, FS
      • SS:ESP already contains an address for the stack 0
      • CS:EIP already contains interrupt handler address
    • Clearing flagsVM, NT, RF, TFinEFLAGS
    • Begins execution of interrupt handler
  • Handling interrupts for V86
    • CheckEFLAGS[VM]on the stack
    • Handling in the protected mode
    • Invoking V86 monitor
    • V86 monitor can invoke V86 handler
v86 interrupt handling for class 1 iii
V86 interrupt handling for class 1 – III
  • Invoking V86 handler from V86 monitor
    • Use the 8086 interrupt vector to locate V86 handler address
    • CopyFLAGSandCS:IPfrom the stack 0 to the V86 stack (CPL 3)
    • Change return address on the stack 0 to the V86 handler
    • Return using IRETto the V86
    • IRETin V86 causes #GPand invokes V86 monitor
    • CopyFLAGSfrom stack 3 to stack 0
    • SetCS:IPon stack 0 to original address of V86 interrupt
    • Return usingIRETto the V86
v86 interrupt handling for class 2 i
V86 interrupt handling for class 2 – I
  • Maskable V86 interrupt handling using virtual interrupts
    • Activated byCR4[VME]=1 andIOPL<3
    • FlagsVIFandVIPinEFLAGS
    • Reduces V86 monitor calls when working withIF (PUSHF, POPF, STI, CLI)
  • Virtualization
    • CLIandSTIwork withVIF
    • PUSHFsaves VIF instead ofIF
    • POPFloads VIFfromIF,IFremains intact
    • VIPrecords existence of deferred (pending) maskable HW interrupt
    • VIPchecked by CPU, never set; set by SW
v86 interrupt handling for class 2 ii
V86 interrupt handling for class 2 – II
  • Handling maskable HW interrupt
    • Invoke 32-bit handler
      • Switch to 32-bit andCPL=0
      • Save the V86 state on the stack 0
      • Clear the segment registers
      • Clear theVMflag in EFLAGS
      • Begin executionof a 32-bit interrupt handler
    • CheckEFLAGS[VM]on the stack 0
      • If the flag is set, call V86 monitor
    • V86 monitor checksVIFinEFLAGS
      • IfVIF=0, set theVIPand return to the 32-bit interrupt handler
      • IfVIF=1, can be handled as class 1
    • Return back to V86
v86 interrupt handling for class 2 iii
V86 interrupt handling for class 2 – III
  • Deferring interrupt using the flagVIP
    • Before theVIF is set (POPF, STI),CPU in V86 checks
      • IfVIP=0, VIFis set and continue
      • IfVIP=1, #GP exception is invoked
    • The#GPexception calls V86 monitor
      • Handle the deferred interrupt
      • ClearVIPand setVIFinEFLAGSon the stack
      • Return to V86
v86 interrupt handling for class 3 i

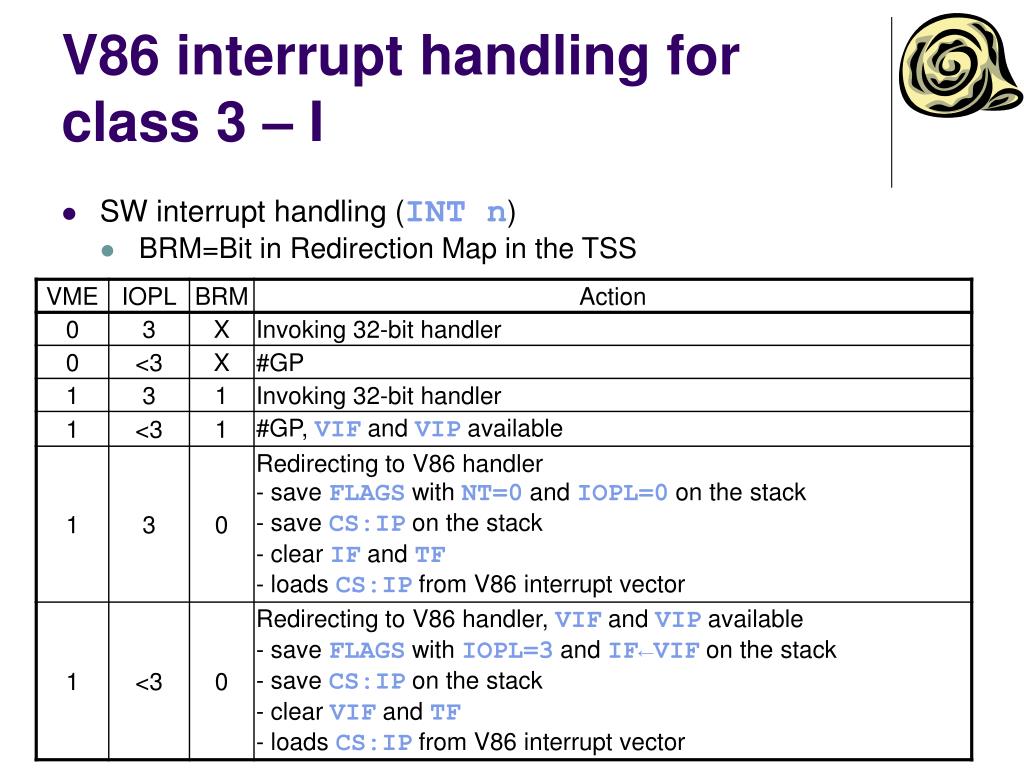

V86 interrupt handling for class 3 – I
  • SW interrupt handling (INT n)
    • BRM=Bit in Redirection Map in the TSS
v86 interrupt handling for class 3 ii
V86 interrupt handling for class 3 – II
  • Redirection map in the TSS
    • Easier system calls for 16-bit OS
      • UsingINT nas system calls
        • INT 21in the MS-DOS
