chapter 8

CHAPTER 8

Hadoop設定與配置

outline
Outline
  • 前置作業
  • Hadoop安裝設定
  • HBase叢集安裝
  • Hadoop基本操作
  • HBase基本操作
  • 網頁介面

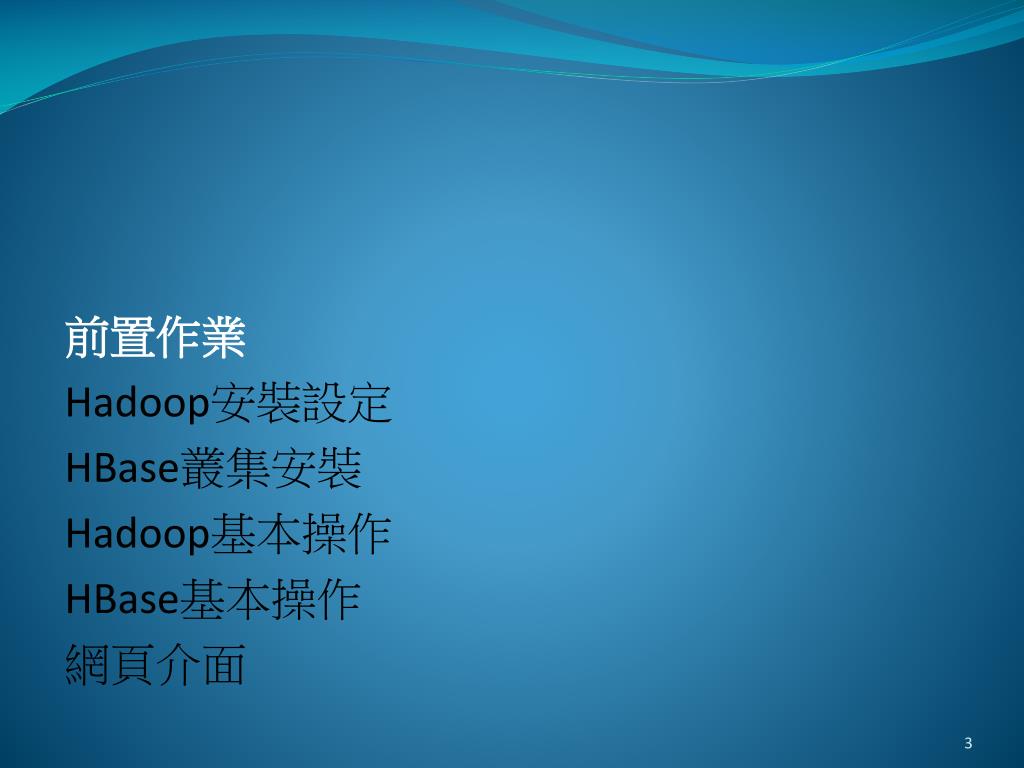

slide3
前置作業

Hadoop安裝設定

HBase叢集安裝

Hadoop基本操作

HBase基本操作

網頁介面

slide4

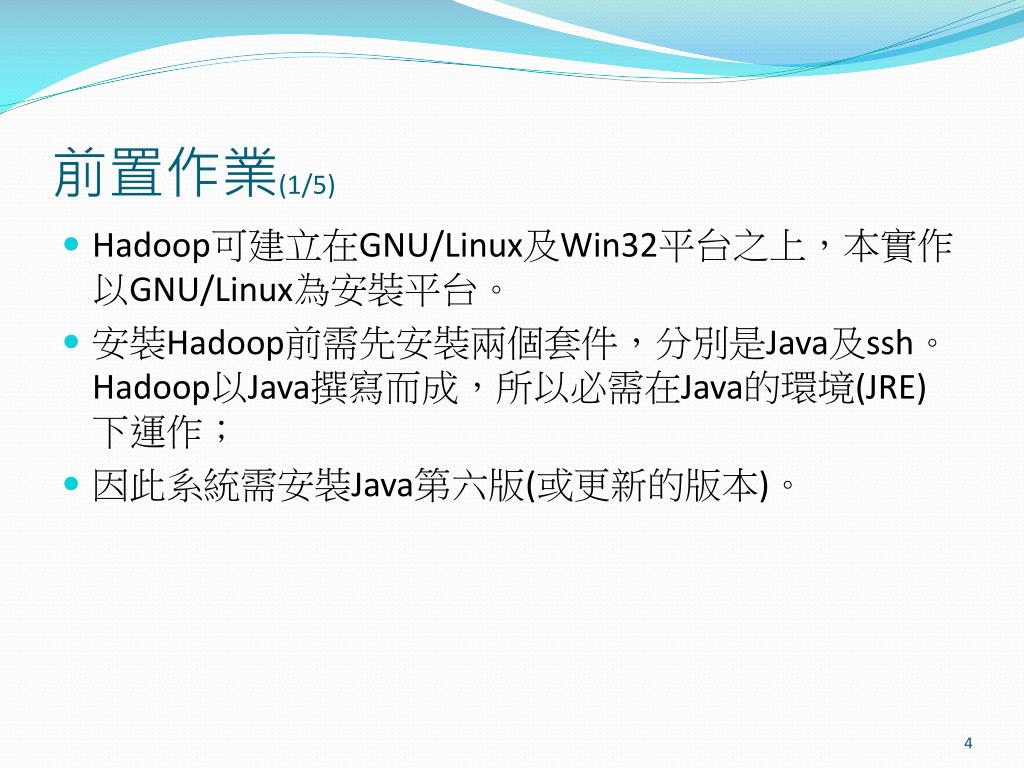

前置作業(1/5)
  • Hadoop可建立在GNU/Linux及Win32平台之上,本實作以GNU/Linux為安裝平台。
  • 安裝Hadoop前需先安裝兩個套件,分別是Java及ssh。Hadoop以Java撰寫而成,所以必需在Java的環境(JRE)下運作;
  • 因此系統需安裝Java第六版(或更新的版本)。
slide5
前置作業(2/5)
  • 本範例所使用的作業系統為CentOS 5.5,而在安裝作業系統過程中,預設會安裝OpenJDK的Java套件,安裝成功與否可由指令java -version進行查詢:

~# java -version

java version "1.6.0_17"

OpenJDK Runtime Environment (IcedTea6 1.7.5) (rhel-1.16.b17.el5-i386)

OpenJDK Client VM (build 14.0-b16, mixed mode)

  • 如看到上述畫面,可確認系統已安裝OpenJDK套件。若尚未安裝,亦可透過yum進行安裝:

~# yum -y install java-1.6.0-openjdk

slide6
前置作業(3/5)
  • 雖然Hadoop可在OpenJDK上運作,但OpenJDK對某些應用並不支援,且為了後續程式開發,本範例的Java環境以Oracle (Sun) Java JDK為主,Oracle (Sun) Java JDK可從Oracle官網(http://www.oracle.com)下載
slide7
前置作業(4/5)
  • 本範例將jdk-6u25-linux-i586.bin下載至/usr後,將檔案改為可執行模式:

~# chmod +x jdk-6u25-linux-i586.bin

  • 接著執行安裝檔:

~# ./jdk-6u25-linux-i586.bin

  • 開始執行指令便可自動安裝,並在/usr(放置安裝檔的目錄)中創建名為jdk1.6.0_25的目錄。接下來使用指令alternatives讓Oracle (Sun) Java JDK代替OpenJDK:

~# alternatives --install /usr/bin/java java /usr/jdk1.6.0_25/bin/java 20000

~# alternatives --install /usr/bin/javac javac /usr/jdk1.6.0_25/bin/javac 20000

slide8
前置作業(5/5)
  • 最後再度確認Java環境是否安裝成功:

~# java –version

java version "1.6.0_25"

Java(TM) SE Runtime Environment (build 1.6.0_25-b06)

Java HotSpot(TM) Client VM (build 20.0-b11, mixed mode, sharing)

~#javac -version

Javac 1.6.0_25

  • 接者安裝ssh與rsync,並啟動服務如下:

~# yum -y install openssh rsync

~# /etc/init.d/sshd restart

  • 請注意!為了方便Hadoop的安裝,安裝示範將直接使用root權限操作。
slide9
前置作業

Hadoop安裝設定

HBase叢集安裝

Hadoop基本操作

HBase基本操作

網頁介面

hadoop

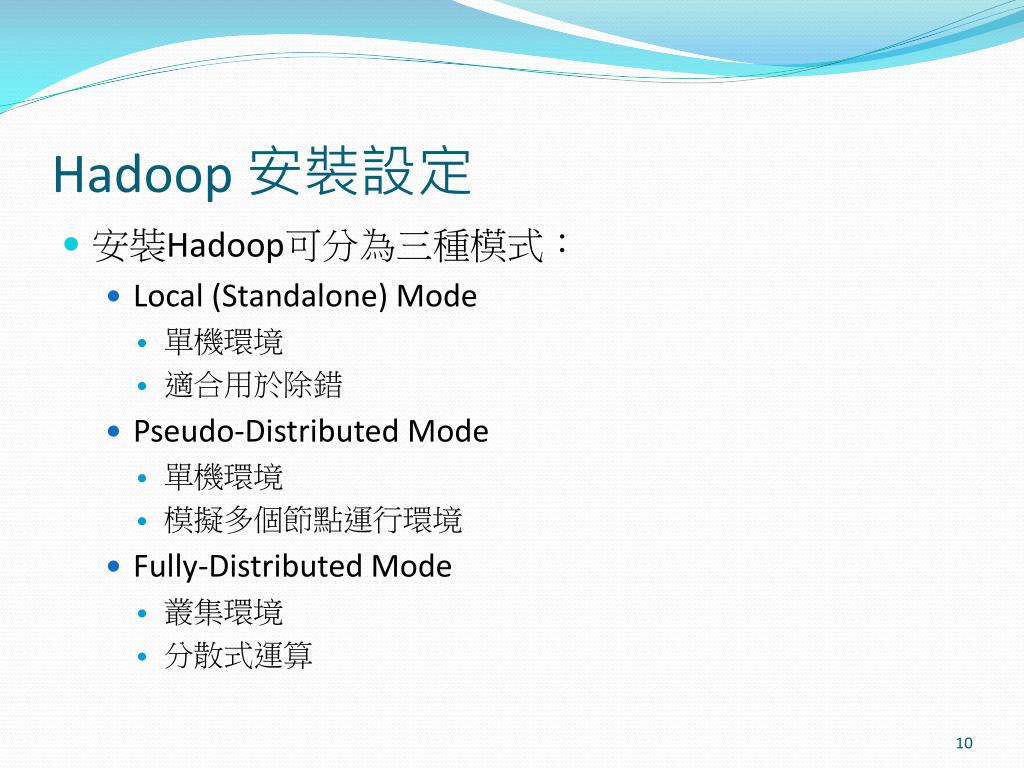

Hadoop安裝設定
  • 安裝Hadoop可分為三種模式:
    • Local (Standalone) Mode
      • 單機環境
      • 適合用於除錯
    • Pseudo-Distributed Mode
      • 單機環境
      • 模擬多個節點運行環境
    • Fully-Distributed Mode
      • 叢集環境
      • 分散式運算
local standalone mode 1 7

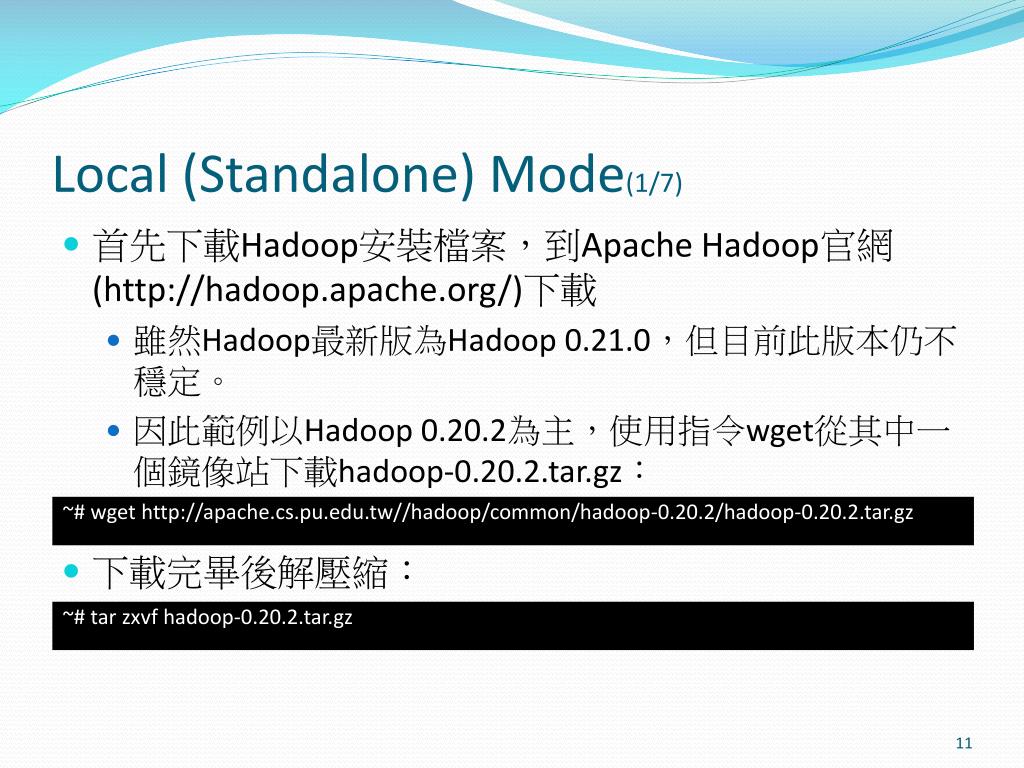

Local (Standalone) Mode(1/7)
  • 首先下載Hadoop安裝檔案,到Apache Hadoop官網(http://hadoop.apache.org/)下載
    • 雖然Hadoop最新版為Hadoop 0.21.0,但目前此版本仍不穩定。
    • 因此範例以Hadoop 0.20.2為主,使用指令wget從其中一個鏡像站下載hadoop-0.20.2.tar.gz:
  • 下載完畢後解壓縮:

~# wget http://apache.cs.pu.edu.tw//hadoop/common/hadoop-0.20.2/hadoop-0.20.2.tar.gz

~# tar zxvf hadoop-0.20.2.tar.gz

local standalone mode 2 7
Local (Standalone) Mode(2/7)
  • 接著把解壓縮出來的目錄hadoop-0.20.2移至目錄/opt下,並將目錄更名為hadoop:

~# mv hadoop-0.20.2 /opt/hadoop

  • 接著將Java加到Hadoop的環境變數。首先進入hadoop目錄,使用vi編輯conf/hadoop-env.sh:

~# cd /opt/hadoop/

/hadoop# vi conf/hadoop-env.sh

local standalone mode 3 7
Local (Standalone) Mode(3/7)
  • 開啟hadoop-env.sh後加入JAVA_HOME路徑(export JAVA_HOME=/usr/jdk1.6.0_25) 到下列位置。
  • 此外,為避免因為IPv6協定所造成的錯誤,可先關閉IPv6,或在hadoop-env.sh加入export HADOOP_OPTS=-Djava.net.preferIPv4Stack=true,優先使用IPv4解決此問題:

# Command specific options appended to HADOOP_OPTS when specified

...

...

...

export HADOOP_JOBTRACKER_OPTS="-Dcom.sun.management.jmxremote $HADOOP_JOBTRACKER_OPTS"

export JAVA_HOME=/usr/jdk1.6.0_25 ←在此加入JAVA_HOME路徑

export HADOOP_OPTS=-Djava.net.preferIPv4Stack=true ←優先使用IPv4

local standalone mode 4 7
Local (Standalone) Mode(4/7)
  • 到這邊已完成Hadoop Local (Standalone) Mode的安裝,可用下列指令測試Hadoop功能是否正常:
  • 若出現上面訊息,則表示安裝成功;若出現錯誤訊息,請檢查conf/hadoop-env.sh中JAVA_HOME路徑是否正確。

/hadoop# bin/hadoop

Usage: hadoop [--config confdir] COMMAND

where COMMAND is one of:

namenode -format format the DFS filesystem

...

...

...

or

CLASSNAME run the class named CLASSNAME

Most commands print help when invoked w/o parameters.

local standalone mode 5 7
Local (Standalone) Mode(5/7)
  • 於此可以先執行Hadoop壓縮檔內所附的範例程式hadoop-0.20.2-examples.jar,使用grep功能計算輸入文件中包含指定字串的每個字出現的次數。
  • 可透過下列指令先創建一個名為input的目錄,並把conf/中所有xml檔都複製到新創的目錄input中:

/hadoop# mkdir input

/hadoop# cp conf/*.xml input

local standalone mode 6 7
Local (Standalone) Mode(6/7)
  • 接著執行範例hadoop-0.20.2-examples.jar,這邊使用其grep功能,過濾出所有輸入檔案中以“config”為字首的單字:

/hadoop# bin/hadoop jar hadoop-0.20.2-examples.jar grep input output 'config[a-z.]+'

  • 這個範例應該很快可以執行完畢,便可利用下列指令查看結果:

/hadoop# cat output/*

13 configuration

4 configuration.xsl

1 configure

local standalone mode 7 7
Local (Standalone) Mode(7/7)
  • 在執行過hadoop-0.20.2-examples.jar grep這個範例後,需把輸出目錄output清除掉,否則再次執行此範例時會出現目錄已存在的錯誤,因此需將目錄output刪除:

/hadoop# rm -rf output

pseudo distributed mode 1 9
Pseudo-Distributed Mode(1/9)
  • 因為Pseudo-Distributed Mode跟Local (Standalone) Mode一樣是單機環境
  • 因此,延續上面的步驟,修改目錄conf內的core-site.xml、hdfs-site.xml及mapred-site.xml。
  • 首先修改core-site.xml:

/hadoop# vi conf/core-site.xml

pseudo distributed mode 2 9
Pseudo-Distributed Mode(2/9)
  • 在core-site.xml內容的<configuration>與</configuration>之間插入

<?xml version="1.0"?>

<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>fs.default.name</name>

<value>hdfs://localhost:9000</value>

</property>

</configuration>

pseudo distributed mode 3 9
Pseudo-Distributed Mode(3/9)
  • 接著修改hdfs-site.xml:

/hadoop# vi conf/hdfs-site.xml

  • 在hdfs-site.xml內容的<configuration>與</configuration>之間插入

<?xml version="1.0"?>

<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>dfs.replication</name>

<value>1</value>

</property>

</configuration>

pseudo distributed mode 4 9
Pseudo-Distributed Mode(4/9)
  • 最後修改mapred-site.xml:

/hadoop# vi conf/mapred-site.xml

  • 在mapred-site.xml內容的<configuration>與</configuration>之間插入

<?xml version="1.0"?>

<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>mapred.job.tracker</name>

<value>localhost:9001</value>

</property>

</configuration>

pseudo distributed mode 5 9
Pseudo-Distributed Mode(5/9)
  • 設定SSH登入免密碼步驟:
    • 由於Hadoop系統中的主機都是透過ssh互相溝通,因此需設定ssh登入時免輸入密碼。
    • 首先確認登入本地機器是否需要密碼(第一次登入會出現是詢問是否連結的訊息,輸入yes並按下Enter後便可繼續登入):

~# ssh localhost

The authenticity of host 'localhost (127.0.0.1)' can't be established.

RSA key fingerprint is <your RSA key fingerprint>

Are you sure you want to continue connecting (yes/no)? yes ←輸入yes

Warning: Permanently added 'localhost' (RSA) to the list of known hosts.

root@localhost's password: ←要求輸入密碼

pseudo distributed mode 6 9

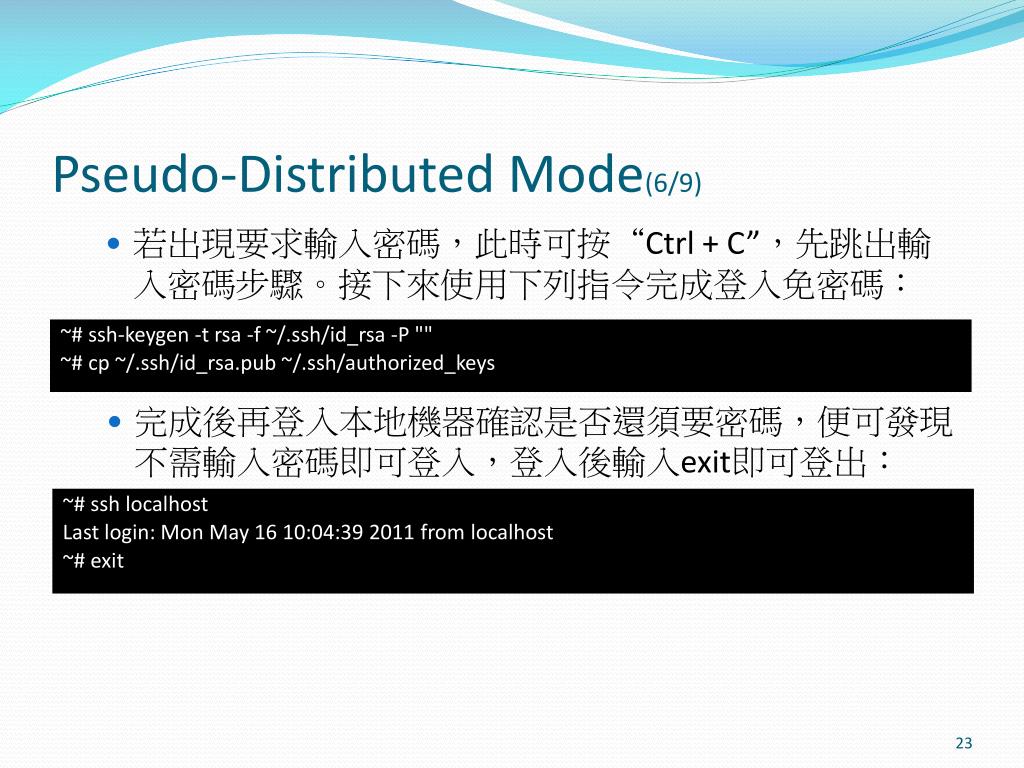

Pseudo-Distributed Mode(6/9)
  • 若出現要求輸入密碼,此時可按“Ctrl + C”,先跳出輸入密碼步驟。接下來使用下列指令完成登入免密碼:

~# ssh-keygen -t rsa -f ~/.ssh/id_rsa -P ""

~# cp ~/.ssh/id_rsa.pub ~/.ssh/authorized_keys

  • 完成後再登入本地機器確認是否還須要密碼,便可發現不需輸入密碼即可登入,登入後輸入exit即可登出:

~# sshlocalhost

Last login: Mon May 16 10:04:39 2011 from localhost

~# exit

pseudo distributed mode 7 9

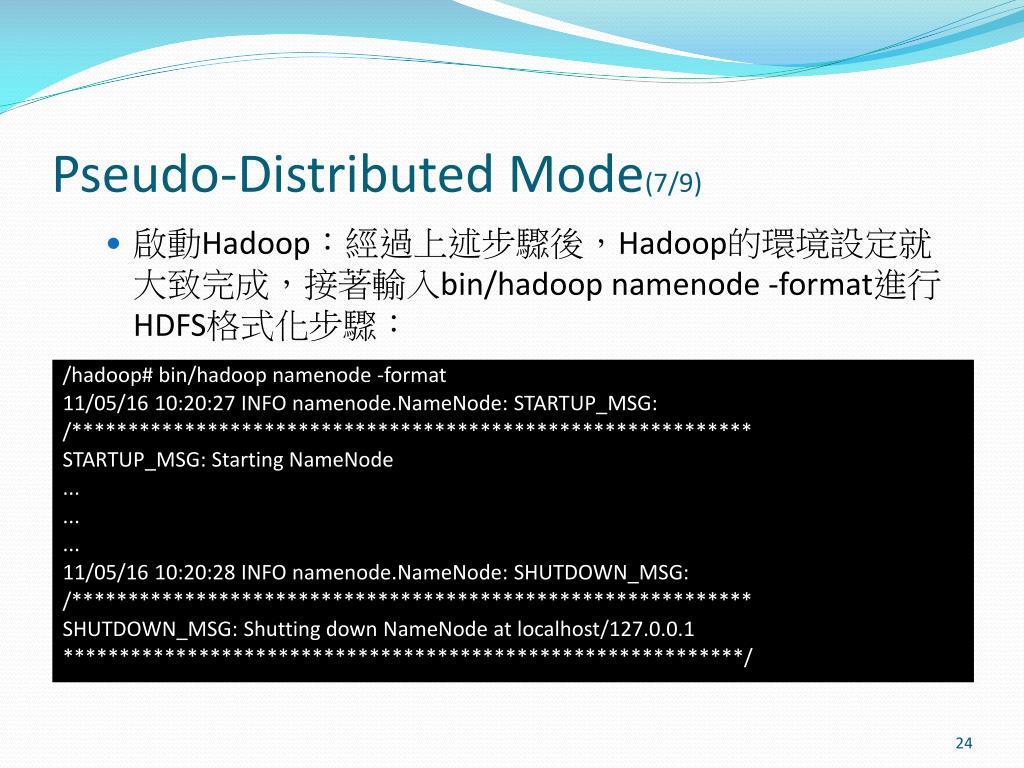

Pseudo-Distributed Mode(7/9)
  • 啟動Hadoop:經過上述步驟後,Hadoop的環境設定就大致完成,接著輸入bin/hadoopnamenode -format進行HDFS格式化步驟:

/hadoop# bin/hadoopnamenode -format

11/05/16 10:20:27 INFO namenode.NameNode: STARTUP_MSG:

/************************************************************

STARTUP_MSG: Starting NameNode

...

...

...

11/05/16 10:20:28 INFO namenode.NameNode: SHUTDOWN_MSG:

/************************************************************

SHUTDOWN_MSG: Shutting down NameNode at localhost/127.0.0.1

************************************************************/

pseudo distributed mode 8 9

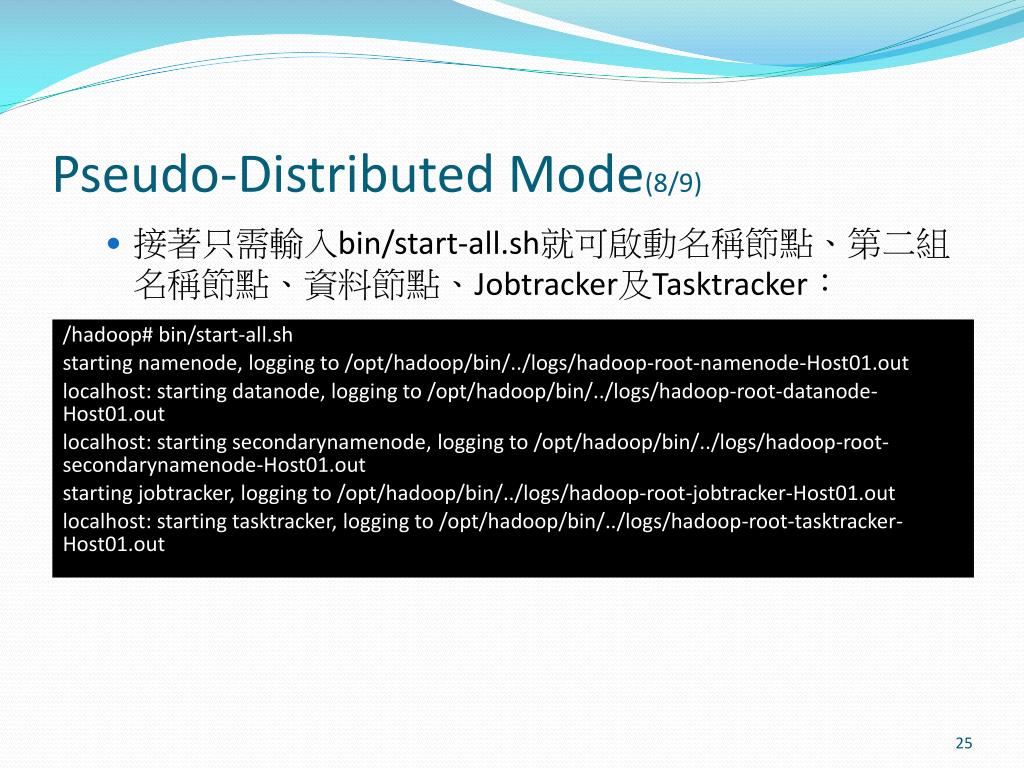

Pseudo-Distributed Mode(8/9)
  • 接著只需輸入bin/start-all.sh就可啟動名稱節點、第二組名稱節點、資料節點、Jobtracker及Tasktracker:

/hadoop# bin/start-all.sh

starting namenode, logging to /opt/hadoop/bin/../logs/hadoop-root-namenode-Host01.out

localhost: starting datanode, logging to /opt/hadoop/bin/../logs/hadoop-root-datanode-Host01.out

localhost: starting secondarynamenode, logging to /opt/hadoop/bin/../logs/hadoop-root-secondarynamenode-Host01.out

starting jobtracker, logging to /opt/hadoop/bin/../logs/hadoop-root-jobtracker-Host01.out

localhost: starting tasktracker, logging to /opt/hadoop/bin/../logs/hadoop-root-tasktracker-Host01.out

pseudo distributed mode 9 9

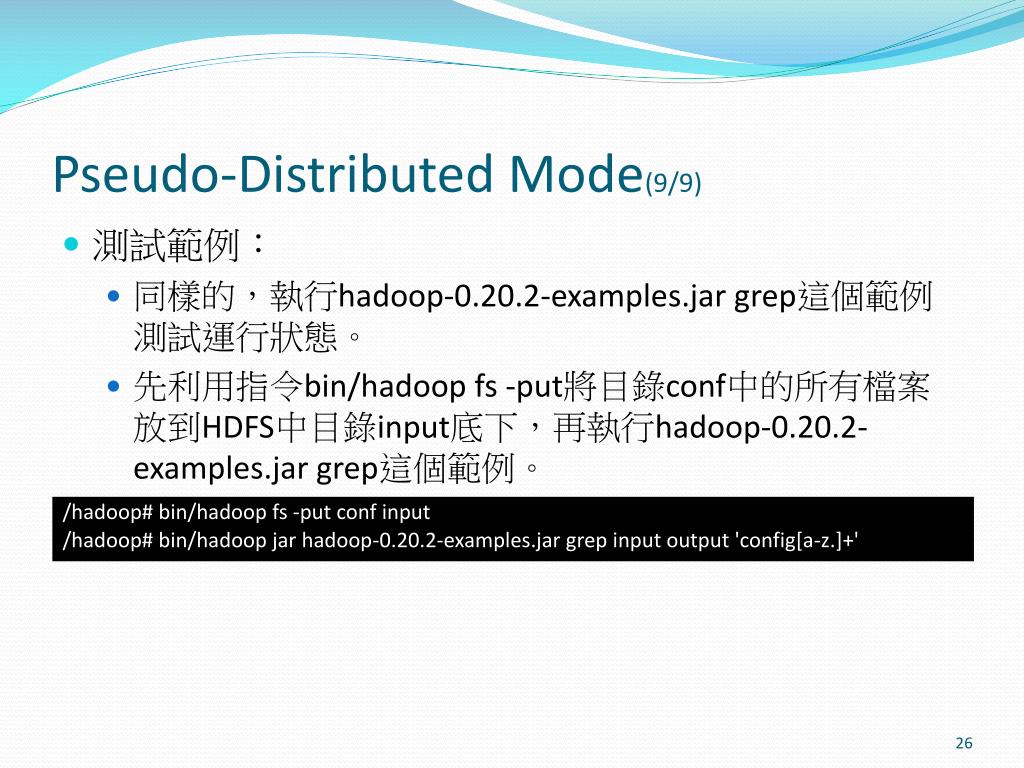

Pseudo-Distributed Mode(9/9)
  • 測試範例:
    • 同樣的,執行hadoop-0.20.2-examples.jar grep這個範例測試運行狀態。
    • 先利用指令bin/hadoopfs -put將目錄conf中的所有檔案放到HDFS中目錄input底下,再執行hadoop-0.20.2-examples.jar grep這個範例。

/hadoop# bin/hadoopfs -put conf input

/hadoop# bin/hadoop jar hadoop-0.20.2-examples.jar grep input output 'config[a-z.]+'

fully distributed mode 1 14

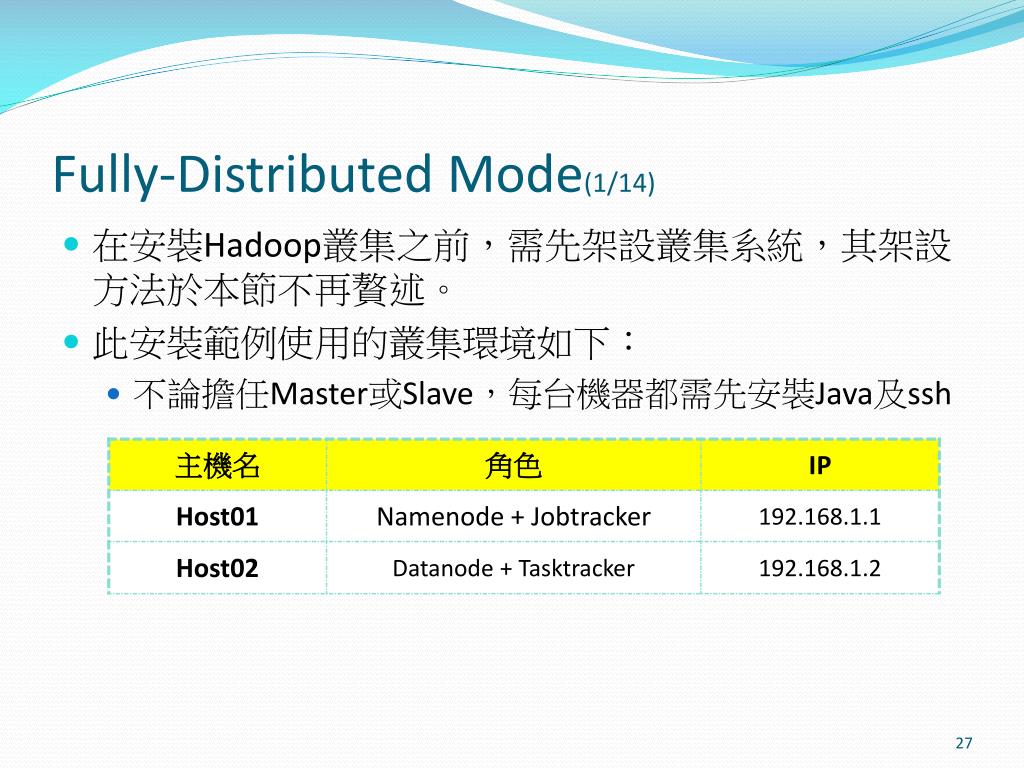

Fully-Distributed Mode(1/14)
  • 在安裝Hadoop叢集之前,需先架設叢集系統,其架設方法於本節不再贅述。
  • 此安裝範例使用的叢集環境如下:
    • 不論擔任Master或Slave,每台機器都需先安裝Java及ssh
fully distributed mode 2 14

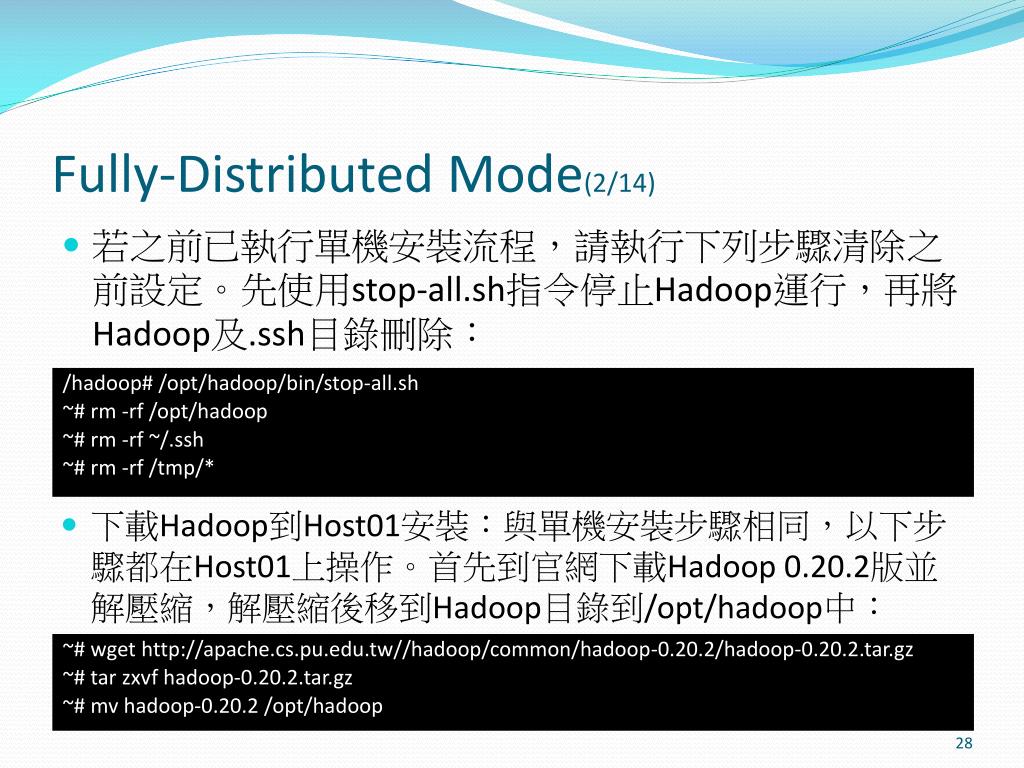

Fully-Distributed Mode(2/14)
  • 若之前已執行單機安裝流程,請執行下列步驟清除之前設定。先使用stop-all.sh指令停止Hadoop運行,再將Hadoop及.ssh目錄刪除:

/hadoop# /opt/hadoop/bin/stop-all.sh

~# rm -rf /opt/hadoop

~# rm -rf ~/.ssh

~# rm -rf /tmp/*

  • 下載Hadoop到Host01安裝:與單機安裝步驟相同,以下步驟都在Host01上操作。首先到官網下載Hadoop 0.20.2版並解壓縮,解壓縮後移到Hadoop目錄到/opt/hadoop中:

~# wget http://apache.cs.pu.edu.tw//hadoop/common/hadoop-0.20.2/hadoop-0.20.2.tar.gz

~# tar zxvf hadoop-0.20.2.tar.gz

~# mv hadoop-0.20.2 /opt/hadoop

fully distributed mode 3 14

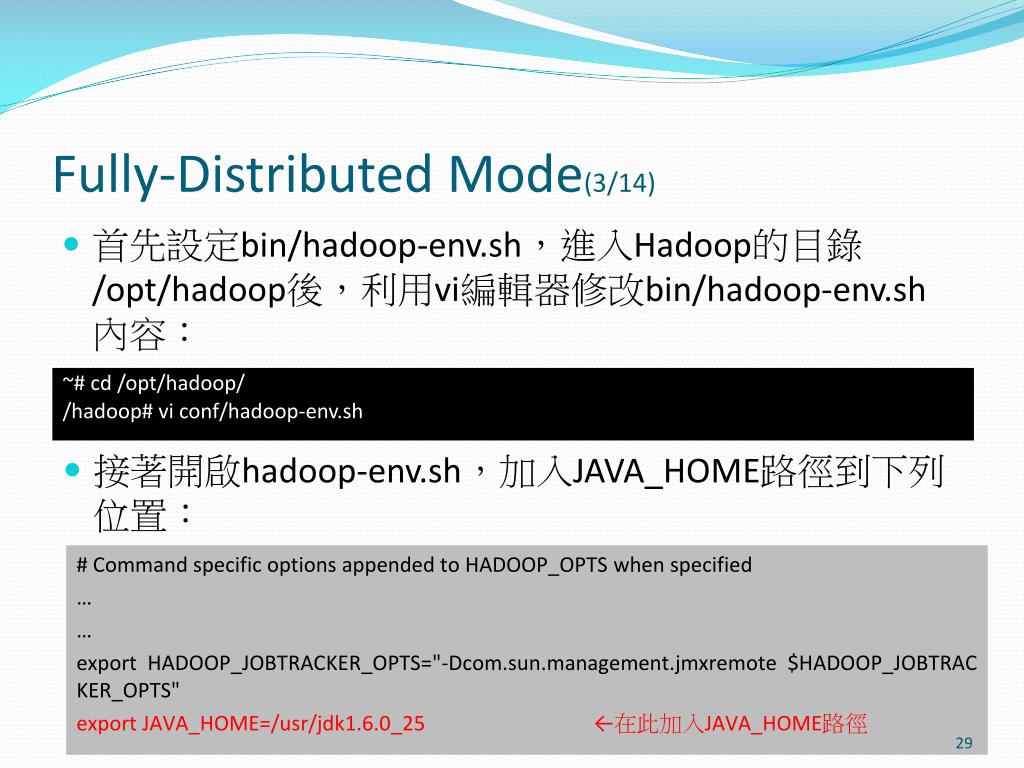

Fully-Distributed Mode(3/14)
  • 首先設定bin/hadoop-env.sh,進入Hadoop的目錄/opt/hadoop後,利用vi編輯器修改bin/hadoop-env.sh內容:

~# cd /opt/hadoop/

/hadoop# vi conf/hadoop-env.sh

  • 接著開啟hadoop-env.sh,加入JAVA_HOME路徑到下列位置:

# Command specific options appended to HADOOP_OPTS when specified

export HADOOP_JOBTRACKER_OPTS="-Dcom.sun.management.jmxremote $HADOOP_JOBTRACKER_OPTS"

export JAVA_HOME=/usr/jdk1.6.0_25 ←在此加入JAVA_HOME路徑

fully distributed mode 4 14
Fully-Distributed Mode(4/14)
  • 再來設定conf/core-site.xml,利用vi開啟:

/hadoop# vi conf/core-site.xml

  • 在conf/core-site.xml裏的<configuration>及</configuration>之間加入
fully distributed mode 5 14
Fully-Distributed Mode(5/14)

<?xml version="1.0"?>

<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>fs.default.name</name>

<value>hdfs://Host01:9000</value>

</property>

<property>

<name>hadoop.tmp.dir</name>

<value>/var/hadoop/hadoop-${user.name}</value>

</property>

</configuration>

fully distributed mode 6 14
Fully-Distributed Mode(6/14)
  • 接著設定conf/hdfs-site.xml,利用vi開啟conf/hdfs-site.xml:

/hadoop# vi conf/hdfs-site.xml

  • 在conf/hdfs-site.xml裏的<configuration>及</configuration>之間加入

<?xml version="1.0"?>

<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>dfs.replication</name>

<value>2</value>

</property>

</configuration>

fully distributed mode 7 14
Fully-Distributed Mode(7/14)
  • 接下來設定conf/mapred-site.xml,利用vi開啟conf/mapred-site.xml:

/hadoop# vi conf/mapred-site.xml

  • 在conf/mapred-site.xml裏的<configuration>及</configuration>之間加入

<?xml version="1.0"?>

<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>mapred.job.tracker</name>

<value>Host01:9001</value>

</property>

</configuration>

fully distributed mode 8 14
Fully-Distributed Mode(8/14)
  • 接著設定conf/masters,利用vi開啟conf/masters:
    • 把這個檔案的內容清空即可

/hadoop# vi conf/mapred-site.xml

  • 再來設定conf/slaves,利用vi開啟conf/slaves:
    • 把conf/slaves中的localhost刪除,改為Host02即可

/hadoop# vi conf/mapred-site.xml

fully distributed mode 9 14
Fully-Distributed Mode(9/14)
  • 設定兩台主機登入免密碼:
    • 與單機安裝時相同,只需多一步驟,利用指令scp把公鑰傳給其它主機:

~# ssh-keygen -t rsa -f ~/.ssh/id_rsa -P ""

~# cp ~/.ssh/id_rsa.pub ~/.ssh/authorized_keys

~# scp -r ~/.ssh Host02:~/

  • 接著測試是否登入免密碼:

~# ssh Host02 ←從Host01登入Host02

~# ssh Host01 ←從Host02登入Host01

~# exit ←離開Host01

~# exit ←離開Host02 (即又回到原來的Host01)

fully distributed mode 10 14
Fully-Distributed Mode(10/14)
  • 將Hadoop目錄複製到其它主機上:
    • 設定完畢的Hadoop目錄需複製到每台Slave上,也可透過共享式檔案系統(如NFS)共用同一個目錄。
    • 複製Host01的Hadoop目錄到Host02之步驟如下:

~# scp -r /opt/hadoop Host02:/opt/

  • 啟動Hadoop:與單機安裝相同,先進行HDFS格式化步驟:

/hadoop# bin/hadoop namenode -format

fully distributed mode 11 14
Fully-Distributed Mode(11/14)
  • 接著可看到下列訊息:

11/05/16 21:52:13 INFO namenode.NameNode: STARTUP_MSG:

/************************************************************

STARTUP_MSG: Starting NameNode

STARTUP_MSG: host = Host01/127.0.0.1

STARTUP_MSG: args = [-format]

STARTUP_MSG: version = 0.20.2

STARTUP_MSG: build = https://svn.apache.org/repos/asf/hadoop/common/branches/branch-0.20 -r 911707; compiled by 'chrisdo' on Fri Feb 19 08:07:34 UTC 2010

************************************************************/

11/05/16 21:52:13 INFO namenode.FSNamesystem: fsOwner=root,root,bin,daemon,sys,adm,disk,wheel

...

...

11/05/16 21:52:13 INFO namenode.NameNode: SHUTDOWN_MSG:

/************************************************************

SHUTDOWN_MSG: Shutting down NameNode at Host01/127.0.0.1

************************************************************/

fully distributed mode 12 14
Fully-Distributed Mode(12/14)
  • 接著啟動Hadoop:

/hadoop# bin/start-all.sh

starting namenode, logging to /opt/hadoop/bin/../logs/hadoop-root-namenode-Host01.out

Host02: starting datanode, logging to /opt/hadoop/bin/../logs/hadoop-root-datanode-Host02.out

starting jobtracker, logging to /opt/hadoop/bin/../logs/hadoop-root-jobtracker-Host01.out

Host02: starting tasktracker, logging to /opt/hadoop/bin/../logs/hadoop-root-tasktracker-Host02.out

fully distributed mode 13 14
Fully-Distributed Mode(13/14)
  • 於此已完成Fully-Distributed Mode 架設,接下來可用指令bin/hadoopdfsadmin -report來查看HDFS的狀態。
    • 最上面顯示整個HDFS的資訊,接著為每個資料節點的個別資訊:

/hadoop# bin/hadoopdfsadmin -report

Configured Capacity: 9231007744 (8.6 GB)

...

...

Blocks with corrupt replicas: 0

Missing blocks: 0

-------------------------------------------------

Datanodes available: 1 (1 total, 0 dead)

...

...

DFS Remaining%: 41.88%

Last contact: Mon May 16 22:15:03 CST 2011

fully distributed mode 14 14

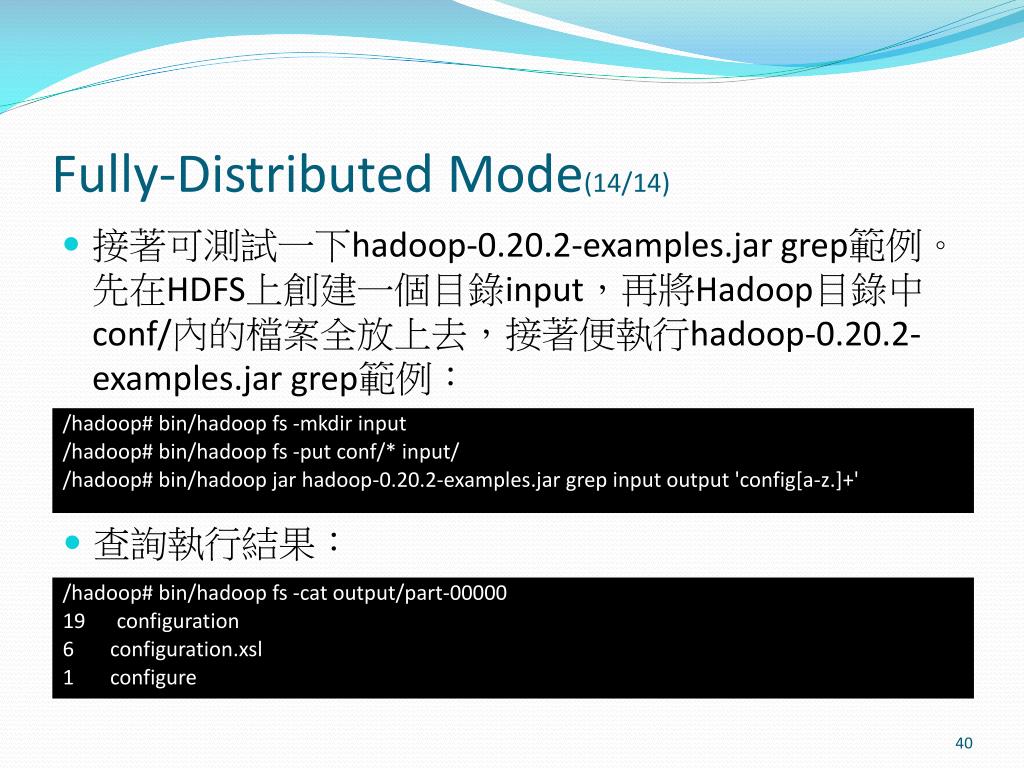

Fully-Distributed Mode(14/14)
  • 接著可測試一下hadoop-0.20.2-examples.jar grep範例。先在HDFS上創建一個目錄input,再將Hadoop目錄中conf/內的檔案全放上去,接著便執行hadoop-0.20.2-examples.jar grep範例:

/hadoop# bin/hadoopfs -mkdir input

/hadoop# bin/hadoopfs -put conf/* input/

/hadoop# bin/hadoop jar hadoop-0.20.2-examples.jar grep input output 'config[a-z.]+'

  • 查詢執行結果:

/hadoop# bin/hadoopfs -cat output/part-00000

19 configuration

6 configuration.xsl

1 configure

slide41
前置作業

Hadoop安裝設定

HBase叢集安裝

Hadoop基本操作

HBase基本操作

網頁介面

hbase 1 9
HBase叢集安裝(1/9)
  • 安裝HBase有下列三項需求:
    • 必需先安裝Hadoop叢集系統並啟動
    • HBase0.20版以後的叢集安裝需搭配ZooKeeper
    • 使用NTP校對叢集系統內所有主機時間:
hbase 2 9
HBase叢集安裝(2/9)
  • 下載HBase:
    • 首先到HBase的官網(http://hbase.apache.org/)下載HBase壓縮檔
    • 目前可下載最新版hbase-0.90.2.tar.gz,解壓縮後放到目錄/opt/內並更名為hbase,最後進入HBase的目錄中:

~# wget http://apache.cs.pu.edu.tw//hbase/hbase-0.90.2/hbase-0.90.2.tar.gz/hadoop~# tar zxvf hbase-0.90.2.tar.gz

~# mv hbase-0.90.2 /opt/hbase

~# cd /opt/hbase/

  • 利用vi編輯conf/hbase-env.sh:

/hbase# vi conf/hbase-env.sh

hbase 3 9
HBase叢集安裝(3/9)
  • 並將下列內容加入到conf/hbase-env.sh裡:

export JAVA_HOME=/usr/jdk1.6.0_25/

export HBASE_MANAGES_ZK=true

export HBASE_LOG_DIR=/tmp/hadoop/hbase-logs

export HBASE_PID_DIR=/tmp/hadoop/hbase-pids

  • 編輯conf/hbase-site.xml內容,並設定HBase的一些相關參數

/hbase# vi conf/hbase-site.xml

hbase 4 9
HBase叢集安裝(4/9)
  • 並將下列內容加入到conf/hbase-site.xml裡:

<?xml version="1.0"?>

<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>

<!--

-->

<configuration>

<property>

<name>hbase.rootdir</name>

<value>hdfs://Host01:9000/hbase</value>

</property>

<property>

<name>hbase.cluster.distributed</name>

<value>true</value>

</property>

<property>

<name>hbase.zookeeper.property.clientPort</name>

<value>2222</value>

</property>

<property>

<name>hbase.zookeeper.quorum</name>

<value>Host01,Host02</value>

</property>

<property>

<name>hbase.zookeeper.property.dataDir</name>

<value>/tmp/hadoop/hbase-data</value>

</property>

hbase 5 9
HBase叢集安裝(5/9)

<property>

<name>hbase.tmp.dir</name>

<value>/var/hadoop/hbase-${user.name}</value>

</property>

<property>

<name>hbase.master </name>

<value>Host01:60000</value>

</property>

</configuration>

hbase 6 9
HBase叢集安裝(6/9)
  • 接著利用vi編輯conf/regionservers

/hbase# vi conf/regionservers

  • 此範例只有一台Slave,所以在slaves檔中只有一行該Slave的主機名稱:

Host02

  • 接著複製Hadoop的設定檔至HBase的目錄conf/中:

/hbase# cp /opt/hadoop/conf/core-site.xml conf/

/hbase# cp /opt/hadoop/conf/mapred-site.xml conf/

/hbase# cp /opt/hadoop/conf/hdfs-site.xml conf/

hbase 7 9

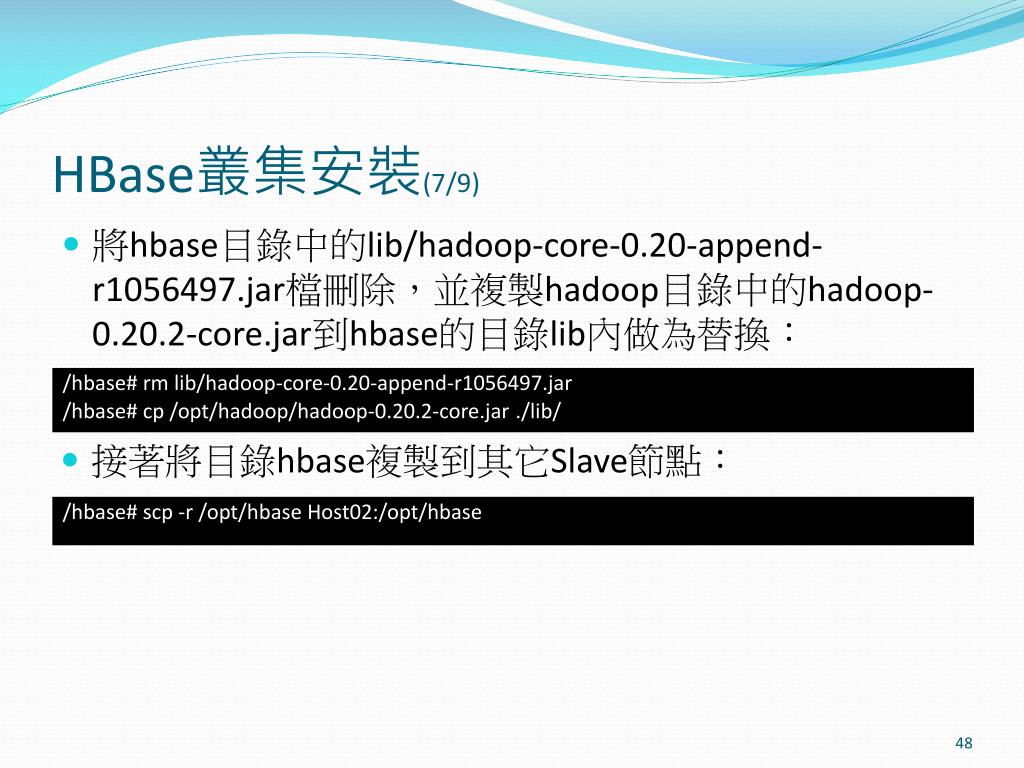

HBase叢集安裝(7/9)
  • 將hbase目錄中的lib/hadoop-core-0.20-append-r1056497.jar檔刪除,並複製hadoop目錄中的hadoop-0.20.2-core.jar到hbase的目錄lib內做為替換:

/hbase# rm lib/hadoop-core-0.20-append-r1056497.jar

/hbase# cp /opt/hadoop/hadoop-0.20.2-core.jar ./lib/

  • 接著將目錄hbase複製到其它Slave節點:

/hbase# scp -r /opt/hbase Host02:/opt/hbase

hbase 8 9
HBase叢集安裝(8/9)
  • 啟動HBase:

/hbase# bin/start-hbase.sh

Host02: starting zookeeper, logging to /tmp/hadoop/hbase-logs/hbase-root-zookeeper-Host02.out

Host01: starting zookeeper, logging to /tmp/hadoop/hbase-logs/hbase-root-zookeeper-Host01.out

starting master, logging to /tmp/hadoop/hbase-logs/hbase-root-master-Host01.out

Host02: starting regionserver, logging to /tmp/hadoop/hbase-logs/hbase-root-regionserver-Host02.out

hbase 9 9
HBase叢集安裝(9/9)
  • 透過執行hbase shell指令,進入HBase控制台後輸入list。若可正常執行,則表示HBsae安裝完成:

/hbase# bin/hbase shell

HBase Shell; enter 'help<RETURN>' for list of supported commands.

Type "exit<RETURN>" to leave the HBase Shell

Version 0.90.2, r1085860, Sun Mar 27 13:52:43 PDT 2011

hbase(main):001:0> list ←輸入list並按下Enter

TABLE

0 row(s) in 0.3950 seconds

hbase(main):002:0>

slide51
前置作業

Hadoop安裝設定

HBase叢集安裝

Hadoop基本操作

HBase基本操作

網頁介面

hadoop 2 7
Hadoop基本操作(2/7)
  • 其它HDFS指令可透過bin/hadoopfs指令查詢:

/hadoop# bin/hadoopfs

Usage: java FsShell

[-ls <path>]

[-lsr <path>]

[-du <path>]

...

...

...

-files <comma separated list of files> specify comma separated files to be copied to the map reduce cluster

-libjars <comma separated list of jars> specify comma separated jar files to include in the classpath.

-archives <comma separated list of archives> specify comma separated archives to be unarchived on the compute machines.

The general command line syntax is

bin/hadoop command [genericOptions] [commandOptions]

hadoop 3 7
Hadoop基本操作(3/7)
  • MapReduce Job操作指令:
    • 一般而言,在Hadoop中的MapReduce Job必需被包裝成jar檔,才可在Hadoop環境執行。
    • bin/hadoop jar [MapReduce Job jar檔路徑] [Job主類別] [Job參數]
    • Hadoop內建的hadoop-0.20.2-examples.jar範例除了前文使用過的grep功能外,還有許多其它功能如wordcount、pi等等可測試,可用下列指令查詢:

/hadoop# bin/hadoop jar hadoop-0.20.2-examples.jar

hadoop 4 7
Hadoop基本操作(4/7)
  • Hadoop目錄內的其它jar檔分別有其它功能。
    • hadoop-0.20.2-core.jar內包含了hadoop common、hdfs及mapreduce的類別
    • hadoop-0.20.2-test.jar是一些測試 Hadoop的工具
    • hadoop-0.20.2-ant.jar內包含了給Ant使用的類別
hadoop 5 7
Hadoop基本操作(5/7)
  • 透過bin/hadoop job可執行一些與Job相關的操作:
    • 列出所有程序之指令如下:

/hadoop# bin/hadoop job -list all

5 jobs submitted

States are:

Running : 1 Succeded : 2 Failed : 3 Prep : 4

JobId State StartTimeUserName Priority SchedulingInfo

job_201105162211_0001 2 1305555169692 root NORMAL NA

job_201105162211_0002 2 1305555869142 root NORMAL NA

job_201105162211_0003 2 1305555912626 root NORMAL NA

job_201105162211_0004 2 1305633307809 root NORMAL NA

job_201105162211_0005 2 1305633347357 root NORMAL NA

hadoop 6 7
Hadoop基本操作(6/7)
  • 查看某個Job狀態之指令如下:
    • bin/hadoop job -status [JobID]

/hadoop# bin/hadoop job -status job_201105162211_0001

  • 查看Job歷史記錄之指令如下:
    • bin/hadoop job -history [輸出目錄]

bin/hadoop job -history /user/root/output

Hadoop job: job_201105162211_0007

=====================================

Job tracker host name: Host01

job tracker start time: Mon May 16 22:11:01 CST 2011

User: root

JobName: grep-sort

…以下省略

hadoop 7 7
Hadoop基本操作(7/7)
  • 其它Job指令可透過bin/hadoop job查詢:

/hadoop# bin/hadoop job

Usage: JobClient <command> <args>

[-submit <job-file>]

[-status <job-id>]

[-counter <job-id> <group-name> <counter-name>]

[-kill <job-id>]

[-set-priority <job-id> <priority>]. Valid values for priorities are: VERY_HIGH HIGH NORMAL LOW VERY_LOW

...

...

...

The general command line syntax is

bin/hadoop command [genericOptions] [commandOptions]

slide59
前置作業

Hadoop安裝設定

HBase叢集安裝

Hadoop基本操作

HBase基本操作

網頁介面

hbase 1 10
HBase基本操作(1/10)
  • 以下透過創建學生成績表格的範例,介紹幾個常用的HBase基本指令。
  • 首先執行bin/hbasehsell進入HBase控制台:

/hbase# bin/hbase shell

HBase Shell; enter 'help<RETURN>' for list of supported commands.

Type "exit<RETURN>" to leave the HBase Shell

Version 0.90.2, r1085860, Sun Mar 27 13:52:43 PDT 2011

hbase(main):001:0>

hbase 2 10
HBase基本操作(2/10)
  • 建立一張表格scores包含studentid及course這兩個column:
    • > create ‘[表格名稱]’, ‘[column名稱1]’, ‘[column名稱2]’,…

hbase(main):001:0> create 'scores', 'studentid', 'course'

0 row(s) in 1.8970 seconds

  • 透過指令list列出目前HBase中所有的表格:

hbase(main):002:0> list

TABLE

scores

1 row(s) in 0.0170 seconds

hbase 3 10
HBase基本操作(3/10)
  • 查看表格的結構:
    • > describe ‘[表格名稱]’

hbase(main):003:0> describe 'scores'

DESCRIPTION ENABLED

BLOCKCACHE => 'true'}]}

1 row(s) in 0.0260 seconds

  • 在表格scores中加入一列名為John的資料,其studentid之column的值為1:
    • > put ‘[表格名稱]’, ‘[row名稱]’, ‘[column名稱]’, ‘[值]’

hbase(main):004:0> put 'scores', 'John', 'studentid:', '1'

0 row(s) in 0.0600 seconds

hbase 4 10
HBase基本操作(4/10)
  • 在John這一列中加入course:math這一個column,值為80:

hbase(main):005:0> put 'scores', 'John', 'course:math', '80'

0 row(s) in 0.0100 seconds

  • 在John這一列中加入course:history這一個column,值為85:

hbase(main):006:0> put 'scores', 'John', 'course:history', '85'

0 row(s) in 0.0080 seconds

hbase 5 10
HBase基本操作(5/10)
  • 同樣的加入另一列Adam的資料,studentid值為2、course:math值為75、course:history值為90

hbase(main):007:0> put 'scores', 'Adam', 'studentid:', '2'

0 row(s) in 0.0130 seconds

hbase(main):008:0> put 'scores', 'Adam', 'course:math', '75'

0 row(s) in 0.0100 seconds

hbase(main):009:0> put 'scores', 'Adam', 'course:history', '90'

0 row(s) in 0.0080 seconds

hbase 6 10
HBase基本操作(6/10)
  • 查詢scores表中所有的資料:
    • > scan ‘[表格名稱]’

hbase(main):011:0> scan 'scores'

ROW COLUMN+CELL

Adam column=course:history, timestamp=1305704304053, value=90

Adam column=course:math, timestamp=1305704282591, value=75

Adam column=studentid:, timestamp=1305704186916, value=2

John column=course:history, timestamp=1305704046378, value=85

John column=course:math, timestamp=1305703949662, value=80

John column=studentid:, timestamp=1305703742527, value=1

2 row(s) in 0.0420 seconds

hbase 7 10
HBase基本操作(7/10)
  • 查詢scores表格中John的資料:
    • > get ‘[表格名稱]’, ‘[row名稱]’

hbase(main):010:0> get 'scores', 'John'

COLUMN CELL

course:history timestamp=1305704046378, value=85

course:math timestamp=1305703949662, value=80

studentid: timestamp=1305703742527, value=1

3 row(s) in 0.0440 seconds

hbase 8 10
HBase基本操作(8/10)
  • 查詢表格scores中courses之column family的所有數據:
    • > scan ‘[表格名稱]’, {COLUMNS => ‘[column family名稱]’}

hbase(main):011:0> scan 'scores', {COLUMNS => 'course:'}

ROW COLUMN+CELL

Adam column=course:history, timestamp=1305704304053, value=90

Adam column=course:math, timestamp=1305704282591, value=75

John column=course:history, timestamp=1305704046378, value=85

John column=course:math, timestamp=1305703949662, value=80

2 row(s) in 0.0250 seconds

hbase 9 10
HBase基本操作(9/10)
  • 同時查詢表格scores中某幾column的所有資料:
    • > scan ‘[表格名稱]’, {COLUMNS => [‘[column名稱1]’, ‘[column名稱2]’,…]}

hbase(main):012:0> scan 'scores', {COLUMNS => ['studentid','course:']}

ROW COLUMN+CELL

Adam column=course:history, timestamp=1305704304053, value=90

Adam column=course:math, timestamp=1305704282591, value=75

Adam column=studentid:, timestamp=1305704186916, value=2

John column=course:history, timestamp=1305704046378, value=85

John column=course:math, timestamp=1305703949662, value=80

John column=studentid:, timestamp=1305703742527, value=1

2 row(s) in 0.0290 seconds

hbase 10 10
HBase基本操作(10/10)
  • 刪除一張表格:
    • 在刪除一張表格之前,必需給把該表格disable,再透過drop的指令刪除:

hbase(main):003:0> disable 'scores'

0 row(s) in 2.1510 seconds

hbase(main):004:0> drop 'scores'

0 row(s) in 1.7780 seconds

slide70
前置作業

Hadoop安裝設定

HBase叢集安裝

Hadoop基本操作

HBase基本操作

網頁介面

slide71
網頁介面(1/2)
  • 除了可利用指令查看Hadoop狀態外,Hadoop也提供網頁監控介面讓使用者查詢HDFS的名稱節點及MapReduce的Jobtracker狀態
    • 若使用者使用本機端的圖形化介面,即可打開瀏覽器(Mozilla Firefox)並在網址列輸入http://localhost:50070,即可看到名稱節點的狀態
    • 另外,輸入http://localhost:50030即可看到Jobtracker的狀態
slide72
網頁介面(2/2)
  • HBase也提供了網頁介面供管理者監控,
    • 查看Master狀態:
      • 在Master節點上的瀏覽器網址輸入http://localhost:60010/
    • 查看Region Server狀態:
      • 在Slave節點上的瀏覽器網址輸入http://localhost:60030/
    • 查看ZooKeeper:
      • 在Master節點上的瀏覽器網址輸入http://localhost:60010/zk.jsp
