GCSE Biology unit 3. Mycoprotein. Which pairs of pictures go together and why? What is the connection between all 4 pictures?. Fusarium venenatum is a type of fungus with a high protein content. It is used to produce a food source – mycoprotein – also known as Quorn.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'GCSE Biology unit 3' - chantale-fernandez


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide3

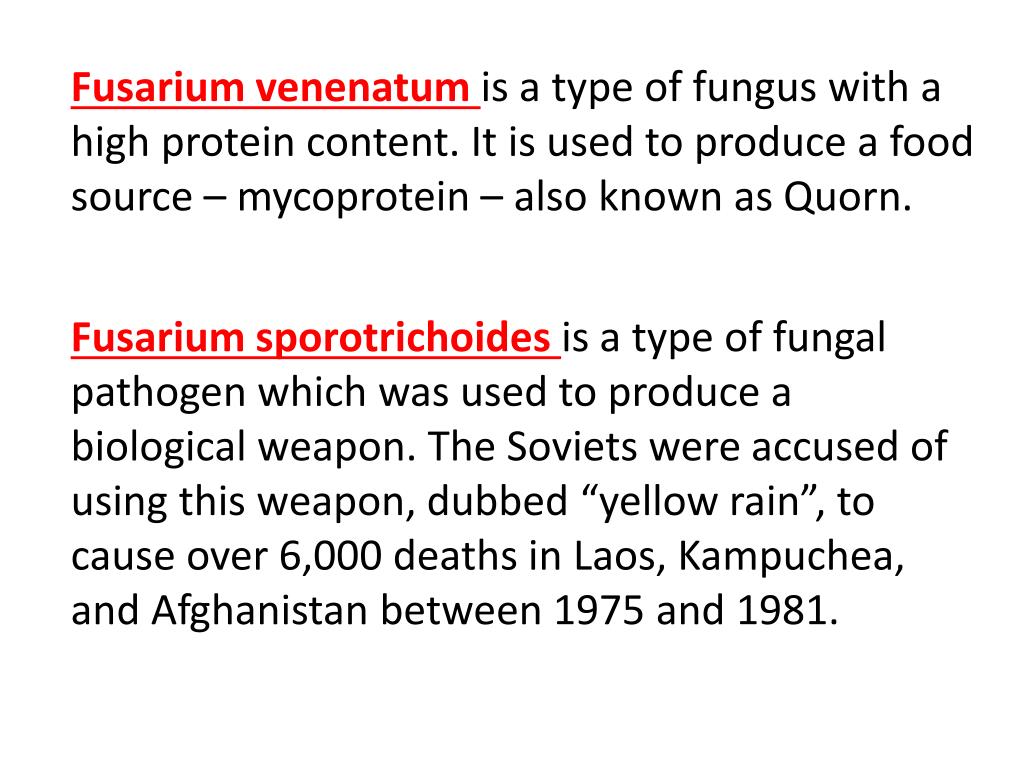

Fusarium venenatum is a type of fungus with a high protein content. It is used to produce a food source – mycoprotein – also known as Quorn.

Fusarium sporotrichoides is a type of fungal pathogen which was used to produce a biological weapon. The Soviets were accused of using this weapon, dubbed “yellow rain”, to cause over 6,000 deaths in Laos, Kampuchea, and Afghanistan between 1975 and 1981.

slide4

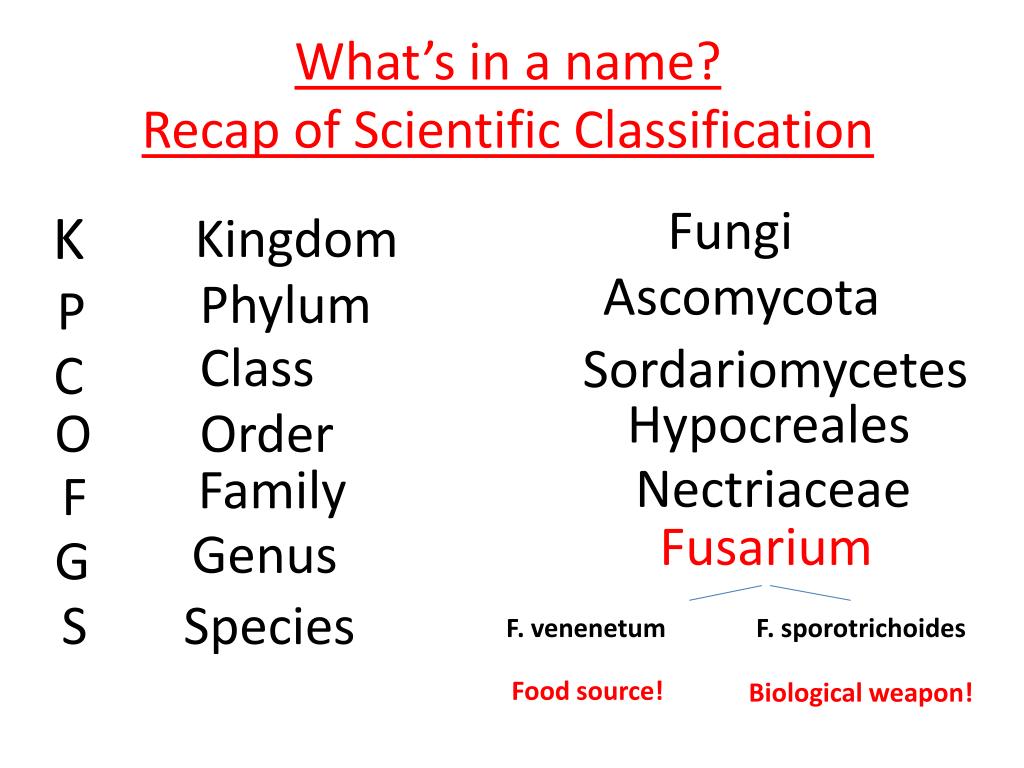

What’s in a name?

Recap of Scientific Classification

Fungi

K

Kingdom

Ascomycota

Phylum

P

Class

Sordariomycetes

C

Hypocreales

O

Order

Nectriaceae

Family

F

Fusarium

Genus

G

S

Species

F. venenetum

F. sporotrichoides

Food source!

Biological weapon!

slide5

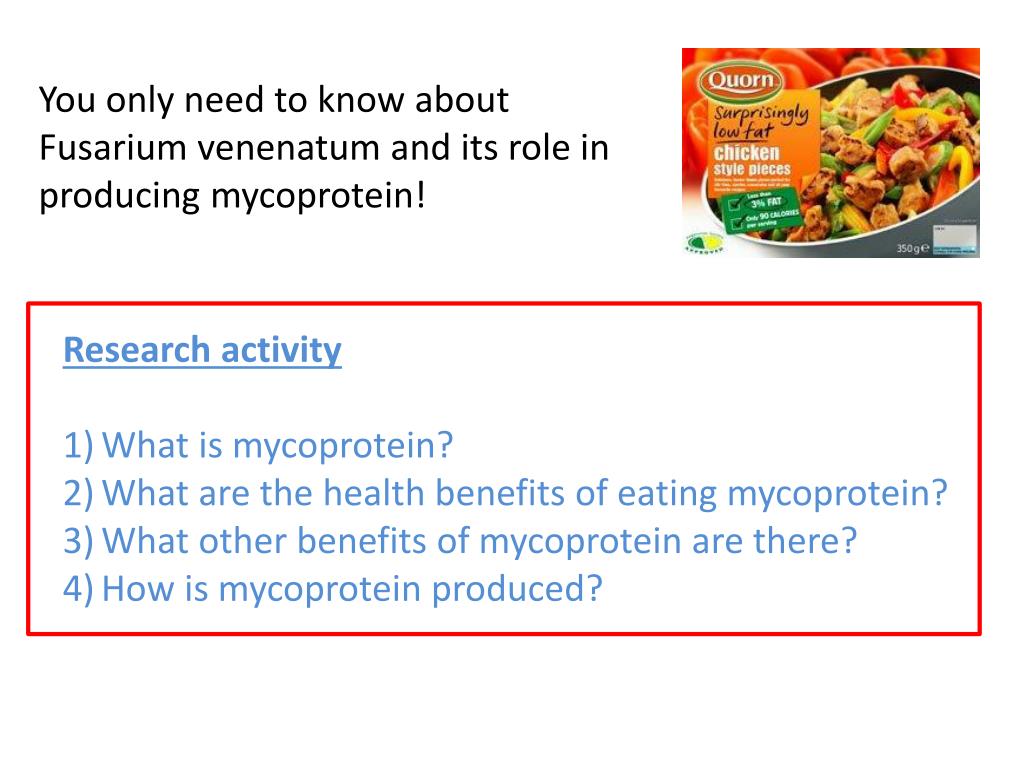

You only need to know about Fusarium venenatum and its role in producing mycoprotein!

Research activity

What is mycoprotein?

What are the health benefits of eating mycoprotein?

What other benefits of mycoprotein are there?

How is mycoprotein produced?

slide6

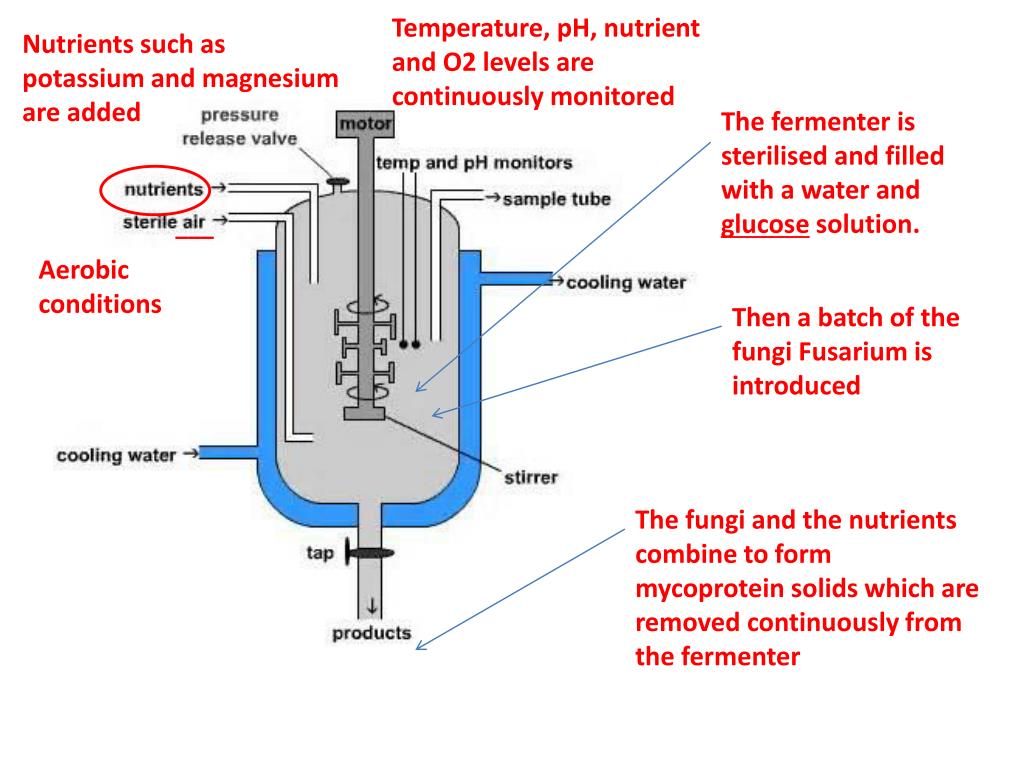

Temperature, pH, nutrient and O2 levels are continuously monitored

Nutrients such as potassium and magnesium are added

The fermenter is sterilised and filled with a water and glucose solution.

___

Aerobic conditions

Then a batch of the fungi Fusarium is introduced

The fungi and the nutrients combine to form mycoprotein solids which are removed continuously from the fermenter

slide7

Watch the 1st three minutes of this One Show clip

http://www.youtube.com/watch?v=bYGrymywG5c
