  1. A Simplified Approach to Web Service Development Peter Kelly Paul Coddington Andrew Wendelborn

  2. Development of Web Services Most popular languages used today really aren’t suited to network programming Why? • Designed originally for standalone machines • Remote method invocation treated as a “special case” and not built in to the language implementation • Data structures don’t translate well to pass-by-value semantics used by web services • Programmers have to deal with network errors themselves • Little in the way of abstraction

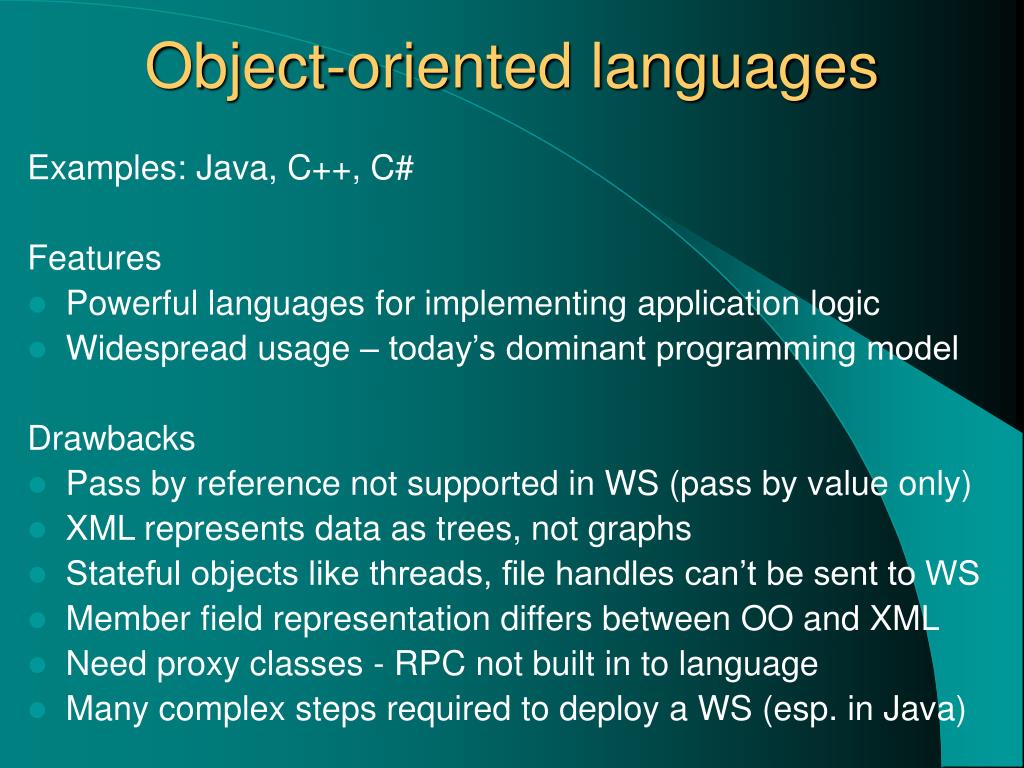

  3. Object-oriented languages Examples: Java, C++, C# Features • Powerful languages for implementing application logic • Widespread usage – today’s dominant programming model Drawbacks • Pass by reference not supported in WS (pass by value only) • XML represents data as trees, not graphs • Stateful objects like threads, file handles can’t be sent to WS • Member field representation differs between OO and XML • Need proxy classes - RPC not built in to language • Many complex steps required to deploy a WS (esp. in Java)

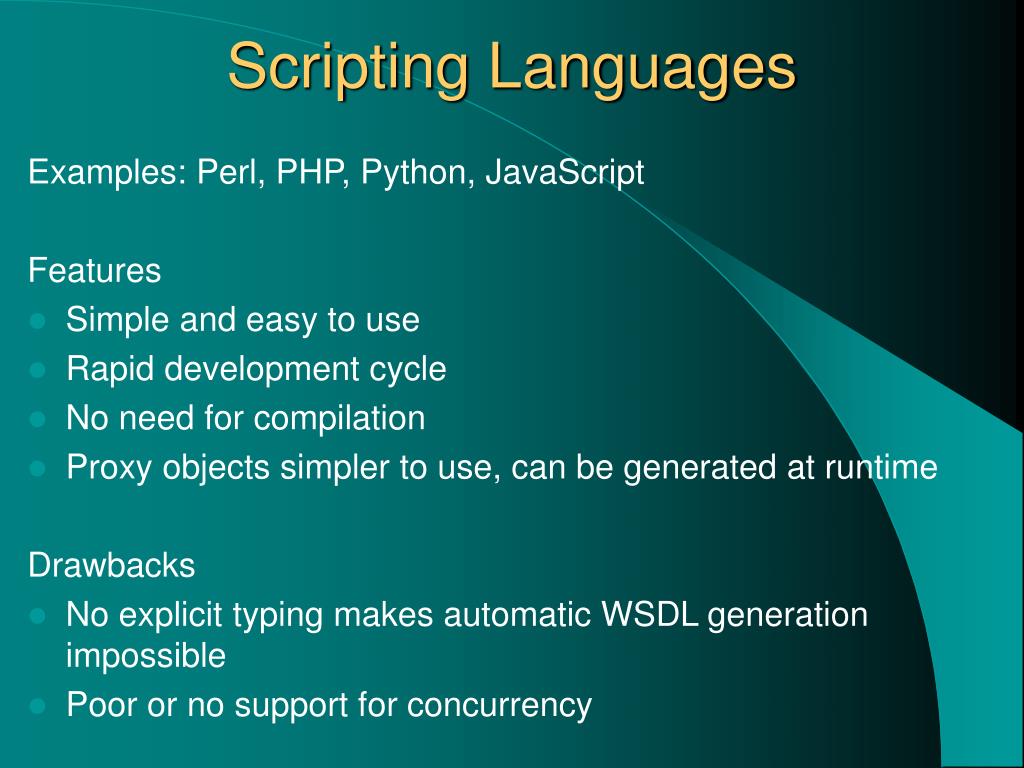

  4. Scripting Languages Examples: Perl, PHP, Python, JavaScript Features • Simple and easy to use • Rapid development cycle • No need for compilation • Proxy objects simpler to use, can be generated at runtime Drawbacks • No explicit typing makes automatic WSDL generation impossible • Poor or no support for concurrency

  5. Web service composition languages Examples: BPEL Features • Designed specifically for WS development • Type system (XML) matches that of WS interfaces • Many easy to use graphical tools available Drawbacks • Very limited programming model, can only write simple programs • XML-based syntax verbose and awkward to code in directly

  6. WS Composition – desirable features • Static typing • All data serializable as XML • Rapid development cycle (like Perl/PHP) • WSDL files auto-generated - w/o programmer intervention • Same semantics for local & remote function calls • Fault tolerance & load balancing And most importantly… • Network transparency • It’s there but you can’t see it • Programmer should not have to deal with low-level details such as WSDL syntax

  7. Our proposed approach XSLT as a web service composition language • Specifically designed for dealing with XML data • Which all web services use for exchanging data • Type system is XML Schema – no mismatch between service interfaces and implementation language • Functional language • side-effect free functions allow for automatic parallelisation and transparent fault tolerance • Mature language – around 6 years old, now in V2 (almost) • W3C standard, sizeable existing developer community Currently being implemented in our project, “GridXSLT”

  8. Accessing other web services • All user-defined and extension functions in XSLT are associated with a namespace • Our implementation recognizes namespaces corresponding to WSDL service definitions • Function calls in these namespaces are mapped to web service calls • These are handled internally by the language implementation – proxy classes are unnecessary <xsl:transform xmlns:foo=“wsdl:http://store.com/api”> ... <xsl:value-of select=“store:getPrice(‘shoes’)”/>

  9. Exposing XSLT programs as web services • The GridXSLT engine acts as a web server • Simply place an XSLT program within the document root, just like a Perl script or PHP file • Clients can access the WSDL definition as follows: http://your.server/example.xsl?WSDL • WSDL file is auto-generated from the function signatures • No type system conversion necessary; XML Schema used in XSLT is simply copied to WSDL definition • No compilation, manual WSDL generation, jar packaging, XML configuration files, or deployment scripts necessary • just copy the file to the server!

  10. Automatic parallelisation f(a(1), b(2), c(3)) Host 1 Host 2 Host 3 a(1) b(2) c(3) f Host 4

  11. Fault tolerance • Host 3 fails after executing c(3) but before transmitting result • Function is re-executed on Host 2 • As c(3) causes no side-effects, this is safe to do a(1) b(2) c(3) c(3) Host 3 f Host 4

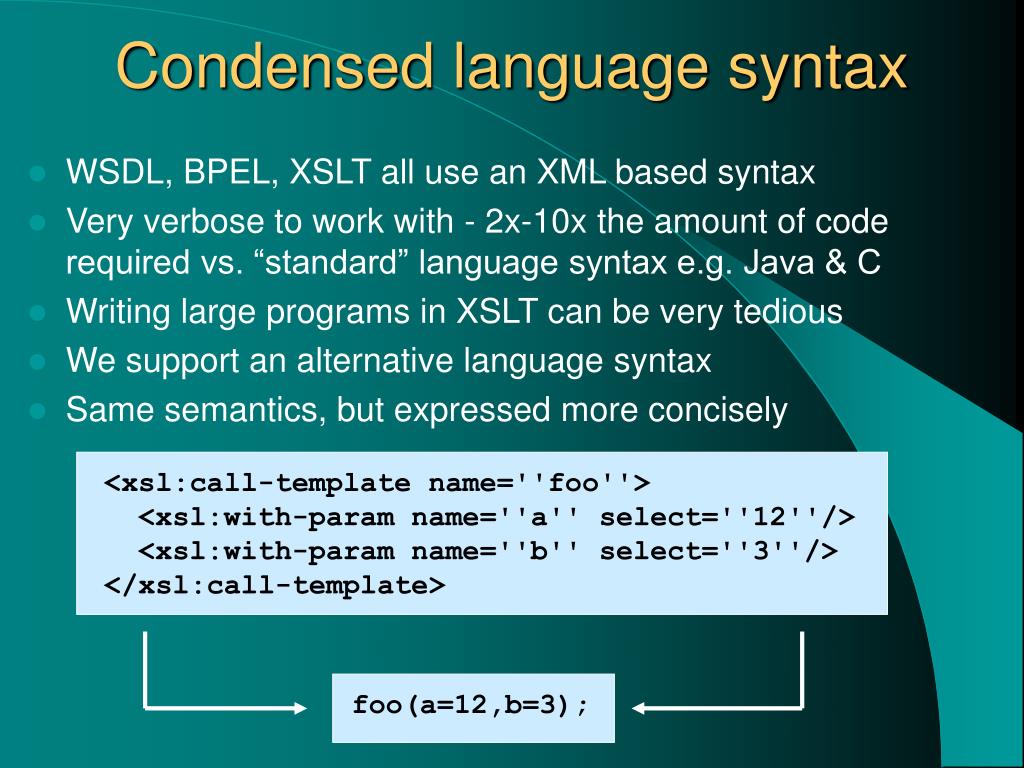

  12. Condensed language syntax • WSDL, BPEL, XSLT all use an XML based syntax • Very verbose to work with - 2x-10x the amount of code required vs. “standard” language syntax e.g. Java & C • Writing large programs in XSLT can be very tedious • We support an alternative language syntax • Same semantics, but expressed more concisely <xsl:call-template name=''foo''> <xsl:with-param name=''a'' select=''12''/> <xsl:with-param name=''b'' select=''3''/> </xsl:call-template> foo(a=12,b=3);

  13. Compare: hand-written WSDL <?xml version="1.0"?> <definitions xmlns="http://schemas.xmlsoap.org/wsdl/" xmlns:tns="urn:matrix" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" targetNamespace="urn:matrix"> <types> <schema xmlns="http://www.w3.org/2001/XMLSchema" targetNamespace="urn:matrix"> <complexType name="matrix"> <sequence> <element name="row" minOccurs="3" maxOccurs="3"> <complexType> <sequence> <element name="col" minOccurs="3" maxOccurs="3" type="xsd:int"/> </sequence> </complexType> </element> </sequence> </complexType> </schema> </types> <message name="mmulResponse"> <part name="mmulReturn" type="tns:matrix"/> </message> <message name="mmulRequest">

  14. Compare: hand-written WSDL <part name="a" type="tns:matrix"/> <part name="b" type="tns:matrix"/> </message> <portType name="MatrixPortType"> <operation name="mmul" parameterOrder="a b"> <input message="tns:mmulRequest" name="mmulRequest"/> <output message="tns:mmulResponse" name="mmulResponse"/> </operation> </portType> <binding name="MatrixBinding" type="tns:MatrixPortType"> <soap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http"/> <operation name="mmul"> <soap:operation soapAction=""/> <input name="mmulRequest"> <soap:body use="literal"/> </input> <output name="mmulResponse"> <soap:body use="literal"/> </output> </operation> </binding> <service name="MatrixService"> <port binding="tns:MatrixBinding" name="MatrixPort"> <soap:address location="http://localhost:8080/matrix"/> </port> </service> </definitions>

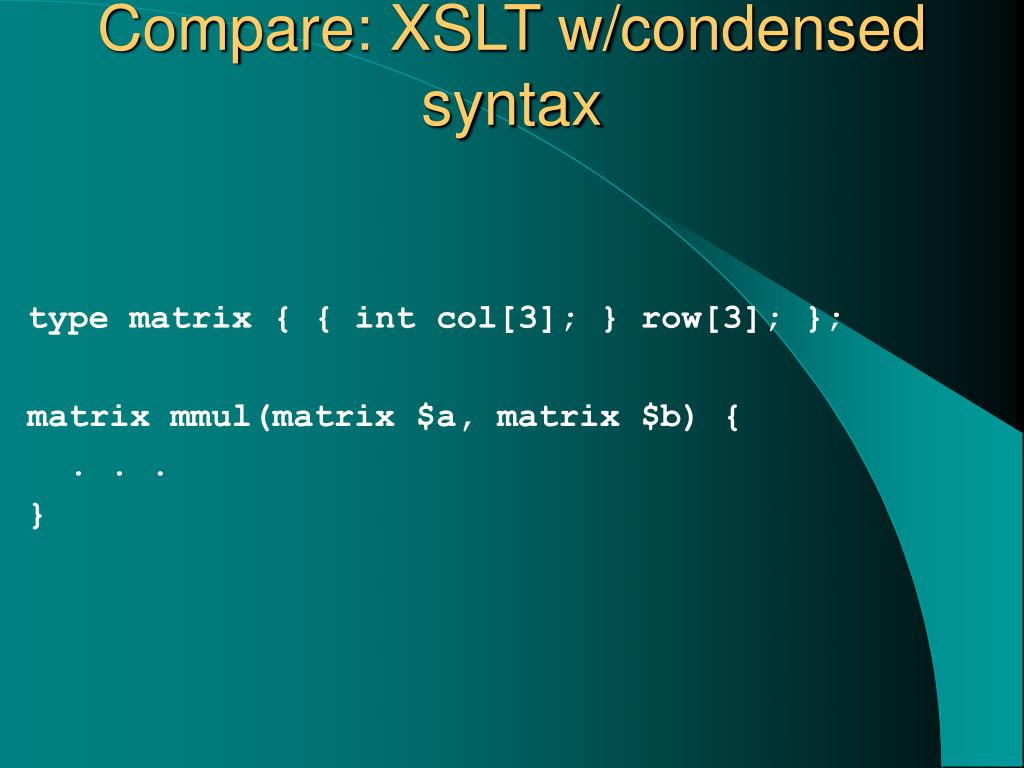

  15. Compare: XSLT w/condensed syntax type matrix { { int col[3]; } row[3]; }; matrix mmul(matrix $a, matrix $b) { . . . }

  16. Conclusion Advantages over other WS development languages • Type system match • Automatic & transparent WSDL generation • without semantic inconsistencies • Rapid service deployment – just copy a file (or edit in-place) • No need to generate proxy classes • Support for complex application logic • Transparent fault tolerance & load balancing Advantages over other XSLT implementations • Automatic parallelisation • Support for web services (both client and server) • Condensed language syntax

  17. Questions/comments? pmk@cs.adelaide.edu.au http://gridxslt.sourceforge.net
