Presentation Transcript
system requirements
System Requirements
  • Hardware(For 1.3 , 1.25, 1.2)
    • Intel™ Pentium™ II processor (or higher) or AMD™ Athlon™ processor
    • • 128MB RAM or more
    • • 25MB of available disk space for the /opt directory
    • • 8MB of available disk space for the /tmp directory
  • Supported distributions and kernels
    • Red Hat Enterprise Linux (AS, ES, WS) 2.1 1.25
      • Note: ServerProtect in kernel-independent mode is the mode supported for these

distributions. Therefore, only manual and scheduled scanning is available.

    • Red Hat Enterprise Linux (AS, ES, WS) 3.0 1.3
      • 2.4.21-4.EL smp
      • 2.4.21-4.EL up
      • 2.4.21-9.0.1.EL smp
      • 2.4.21-9.0.1.EL up
      • Note :For other kernels and distributions, refer to the following Web site for additional

information: www.trendmicro.com/en/products/file-server/sp-linux/use/kernel.htm

slide3
SUSE LINUX Enterprise Server1.2
    • SUSE LINUX Enterprise Server 8 for z/Linux - 2.4.19-3suse
    • IBM S/390
      • IBM S/390 Multiprise 3000 Enterprise Server (MP3000) 7060
      • IBM Parallel Enterprise Server G5 (G5) 9672
      • IBM Parallel Enterprise Server G6 (G6) 9672 –
    • IBM zSeries
      • - IBM eServer zSeries 800 (z800) 2066
      • - IBM eServer zSeries 900 (z900) 2064
  • Turbolinux 10 Server
    • 2.6.8-1 up
    • 2.6.8-1 smp
  • Asianux 1.0
    • 2.4.21-9.30AX up
    • 2.4.21-9.30AX smp
  • Miracle Linux 2.1
    • 2.4.9-31.22ml up
    • 2.4.9-31.22ml smp
slide4
Supported Web browsers for ServerProtect Web console
    • Microsoft™ Internet Explorer 5.5 with Service Pack 2 or higher
    • • Mozilla 1.4 or higher
    • Note: Install Sun Micro™ Java™ 2 Runtime Environment 1.4.2_01 when using

Mozilla to access ServerProtect Web console. Otherwise, product registration

and access to the ServerProtect online help will not work.

– Note : The libgcc-3.2.2-5.i586.rpm (or above) package should be installed.

Otherwise, accessing the ServerProtect Web console via a Mozilla browser

will not work.

  • Supported XWindow graphical desktop environments for simple GUI console
    • KDE 2.2.2-2 or higher
install
Install

解開splx-redhat-v13.gz

tar –zxvf splx-redhat-v13.gz

slide6

解開splx-redhat-v13.gz

可以看到下列檔案

SPLX_1.3_GSG_RedHat.pdf

SPLX_1.3_README_Redhat.txt

SProtectLinux-1.3.RedHat.i686.bin

MD5SUM

slide7

執行安裝程式

./Sprotectlinux1.3.RedHat.i686.bin

active product
Active Product

可以用Ctrl + D 放棄啟動

可以繼續安裝

slide13

將下載的Kernel Hook

解壓,複製到

/opt/TrendMicro/SProtectLinux/SPLX.module/

slide14

將splx的服務重新啟動

#Service splx restart

install complete
Install Complete

http://FQDN:14942

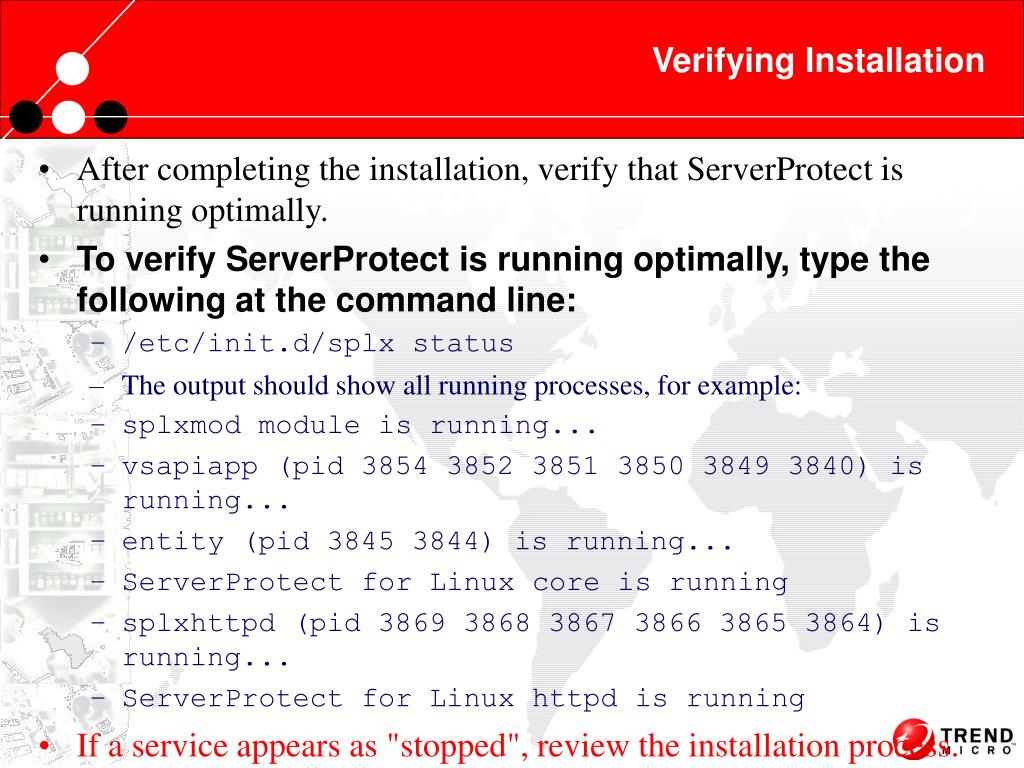

verifying installation
Verifying Installation
  • After completing the installation, verify that ServerProtect is running optimally.
  • To verify ServerProtect is running optimally, type the following at the command line:
    • /etc/init.d/splx status
    • The output should show all running processes, for example:
    • splxmod module is running...
    • vsapiapp (pid 3854 3852 3851 3850 3849 3840) is running...
    • entity (pid 3845 3844) is running...
    • ServerProtect for Linux core is running
    • splxhttpd (pid 3869 3868 3867 3866 3865 3864) is running...
    • ServerProtect for Linux httpd is running
  • If a service appears as "stopped", review the installation process.

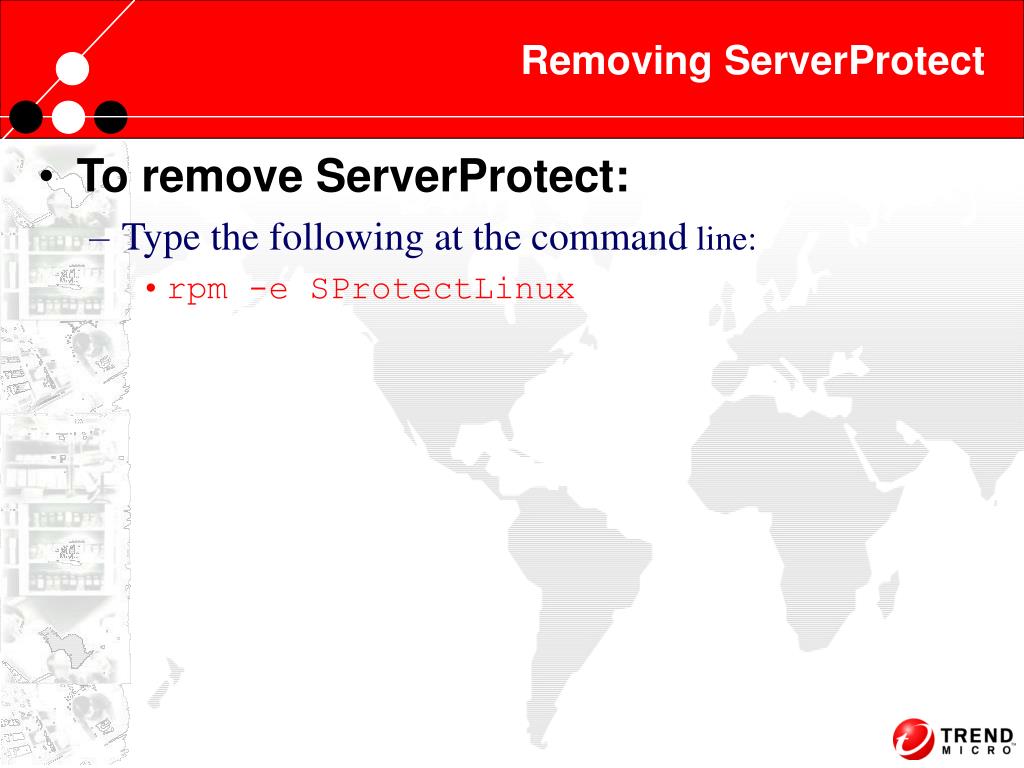

removing serverprotect
Removing ServerProtect
  • To remove ServerProtect:
    • Type the following at the command line:
      • rpm -e SProtectLinux
configuration
Configuration

不需密碼可直接登入
