Presentation Transcript
slide1

Fundamentals of

ETC Networking:

Net3

where we came from
Where we came from…
  • Remember the days of Micro II, AMX, D192, K96, Avab, ECMux…

DMX512 was the result

  • Then as Networking grew in the business industry, we created ETCNet…
evolution of etcnet
Evolution of ETCNet

ETCNet2 (1996)

  • Still more or less proprietary
    • TCP/IP Standard
  • Twisted Pair/Fiber
  • Wired and Wireless Remote Focus Unit, Keyboard and Printer
  • 2 to 4 DMX Outputs or Inputs
  • 32,767 addresses or 64 universes
  • NCE Software
  • Video generated by the console
  • Remote Macros
  • 10/100Mbps – mostly 10Mbps

ETCNet1 (1992)

  • Network was proprietary

– No Standard existed

  • Thinnet/Thicknet/Fiber
  • Remotes the functionality of the console only
  • Remote Focus Unit, DWS, Keyboard and Printer
  • 3 DMX Outputs
  • 1536 addresses or 3 universes
  • Video generated by the console
  • 10Mbps (speed)
where we are going
Where we are going…
  • So we had ETCNet, ColorNet, ShowNet …and does anyone listen to one another?

Now we have ACN

what is acn
What is ACN?

ACN is the highway on which devices will drive/communicate

  • ESTA standards driven (like DMX)
  • Open-ended structure
    • Like XML in that it defines the structure, not the actual data (or vehicles on the highway)
    • Accommodates products not even dreamed of yet…
what is acn1
What is ACN?

ESTA Interoperability Profiles (EIP)

  • Provide the standards by which different manufacturer’s devices will work together
  • Examples of defined EIP standards:
    • IP address allocation (DHCP, local-link…)
    • Device discovery
    • Data streaming
what is net3
What is Net3?

ETC network communication built on ACN standards

  • Net3 is ETC’s guarantee of
    • End-to-end functionality
    • Tested level of performance
    • “Better together” features
      • HTP and priorities in a similar manner to ETCNet2
      • Super-set of ACN interoperability profiles and “better together” features required for ETC equipment
evolution of etcnet1
Evolution of ETCNet

Net3 (2007)

  • Open architecture based on ACN
    • TCP/IP and UDP Standards
  • Twisted Pair/Fiber
  • Wireless RFU and Radio RFU
  • 1 to 4 DMX/RDM Outputs or Inputs
  • 32,767 addresses or 64 universes
  • Net3 Configuration Software
  • Video generated by network device = unlimited video
  • Remote Contacts In and Out
  • MIDI / SMPTE
  • Power over Ethernet
  • 10/100/1000Mbps – mostly 100Mbps

ETCNet2 (1996)

  • Still more or less proprietary
    • TCP/IP Standard
  • Twisted Pair/Fiber
  • Wired and Wireless Remote Focus Unit, Keyboard and Printer
  • 2 to 4 DMX Outputs/Inputs
  • 32,767 addresses or 64 universes
  • NCE Software
  • Video generated by the console
  • Remote Macros
  • 10/100Mbps – mostly 10Mbps

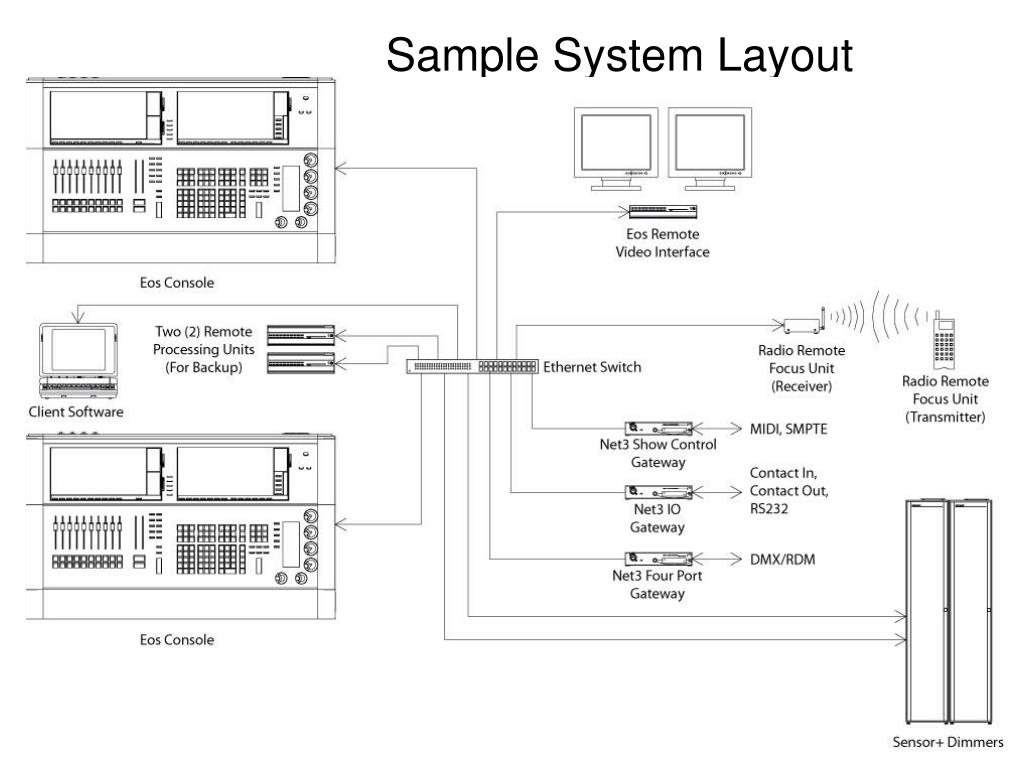

a basic network
A Basic Network

Moving Lights

Node

Remote Video

Printer

Dimmer Rack

Switch

Consoles

Node

Node

Remote Focus Units

DMX Devices

etcnet2 nodes
ETCNet2 Nodes

ETCNet2 DMX Nodes

ETCNet2 Video Nodes

new net3 gateways
New Net3 Gateways

Basically a node or interface…

  • Modular – DMX port connections
  • Power over Ethernet or external DC power supply
  • LCD screen for status and configuration
more net3 gateways
More Net3 Gateways

Net3 One-port Gateways

Net3 Two-port Gateways

Net3 I/O Gateways

slide13

ETCNet2 Nodes

ETC Network Equipment

Congo

Eos

Unison CMEi

CEM+

Net3 Gateways

basic network theory flexible network components innovative and reliable networked systems
Basic Network Theory+ Flexible Network Components= Innovative and Reliable Networked Systems
