1. Introduction to VHDL Spring 09

2. What is VHDL? • VHDL can be uses to model and synthesise digital systems. • VHDL = VHSIC Hardware Description Language • VHSIC = Very High Speed Integrated Circuit • Developed in early 1980’s by DOD. • Veralog is an older hardware description language. • Some (for example ASIC designers) prefer Veralog. • ANSI/IEEE Std 1076-1993 is the version we will use. • ANSI/IEEE Std 1076-2002 is the newest version. • VHDL is a very complex language. • VHDL descriptions can be synthesized and implemented in programmable logic. • Synthesis tools can accept a only subset of VHDL.

3. VHDL • Primarily for modeling digital systems. • Lesser extent analog • Reasons for modeling • Specify requirements • Simulation, testing, verification • Synthesis • Advantage • Increase reliability • Minimize cost and design time • Increase flexibility and ease with which a system can be modified. • Avoid design errors through use of simulation. • Problem • We model our conception of the system. • May not accurately reflect reality.

4. Types • The concept of type is important and fundamental when describing data in VHDL. • The type of a data object defines the set of values that an object can assume, as well as the set of operations that can be performed on those values. • For example data object of type bit can assume a value of either ‘0’ or ‘1’, and can support operators such as “and”, “or”, “xor”, “nand”, etc. • VHDL is a strongly typed language. • Scalar data types consists of single, indivisible values. • Besides the usual types such as integer and real, VHDL also provides other types such as time and bit. • User defined types are frequently employed. • We will make extensive use of standard libraries that define special types such as stdlogic. • We will use stdlogic in place of bit. Stdlogic can assume more values that 0 and 1. For example high impedance and don’t care values.

5. VHDL type classification See DG p 47. 10 ns 125 “101110001110001” FALSE ‘1’ ‘A’

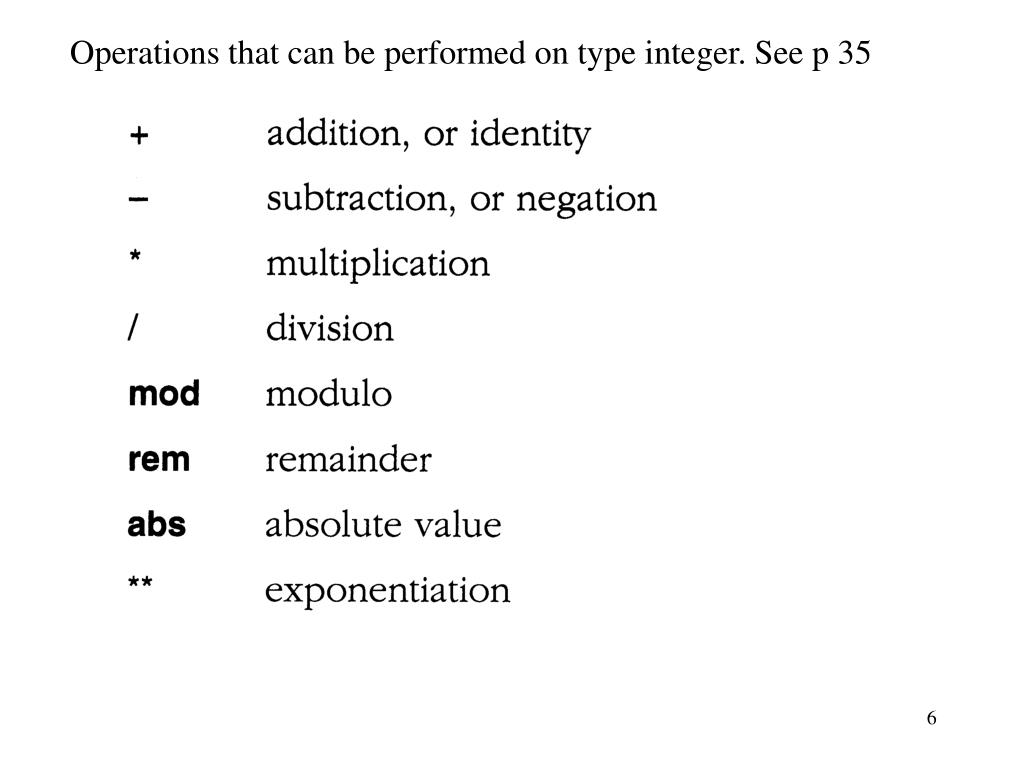

6. Operations that can be performed on type integer. See p 35

7. Operations on type Boolean and type Bit. See p44

8. Constants, variables, and signals • An object is a named item in a VHDL model that has a value of a specific type. There are four classes of objects: constants, variables, signals, and files. • The use of constants and variables in VHDL is similar to what you are already familiar with from other programming languages. • The idea of a signal is a new concept required because in VHDL we are modeling electrical (digital) systems. • Signals usually represent voltages on wires. • But you can also use a signal in place of a variable. • Sometimes it may not matter if you use a signal or a variable. • Other times there may be subtle reasons for using one over the other. • Initially you may tend to be confused by the distinction between signals and variables, but this will be made clear later. • We will discuss of files if needed. • Objects must be declared prior to use.

9. Constants constant CONST_NAME: <type_spec> := <value>; -- Examples of Declaration of Constants: constant GO: BOOLEAN := TRUE; constant Max: INTEGER := 31; constant HexMax: INTEGER := 16#FF#; -- hex (base 16) integer constant ONE: BIT := '1'; constant S0: BIT_VECTOR (3 downto 0) := "0000"; constant S1: bit_vector(15 downto 0) := X"AB3F“; -- hex string constant HiZ: STD_LOGIC := 'Z'; -- Here Z is high impedance. constant Ready: STD_LOGIC_VECTOR (3 downto 0) := "0-0-"; -- 0’s & don’t cares Note: VHDL is not case sensitive. • BOOLEAN, INTEGER, BIT, etc are examples of predefined VHDL types. • VHDL is a strongly typed language. • Cannot for example directly assign a bit or std_logic value to an integer type.

10. Variables VAR_NAME := <expression>; -- example Count := 10; Vbit := '0'; • Declaration variable VAR_NAME: <type_spec>; -- example: variable Test: BOOLEAN; variable Count: INTEGER range 0 to 31 := 15; -- Set initial value to 15. variable vBIT: BIT; variable VAR: BIT_VECTOR (3 downto 0); variable VAR_X: STD_LOGIC := ‘0’; -- Set initial value to ‘0’. variable VAR_Y: STD_LOGIC_VECTOR (0 to 3);

11. Signals SIG_NAME <= <expression>; -- Examples BitX <= ‘1’; • Declaration signal SIG_NAME: <type_spec>; -- example: signal Flag: BOOLEAN := TRUE; -- TRUE is the initial vlaue signal intX: INTEGER range 0 to 31; signal BitX: BIT := ‘1’; signal Control_Bus: BIT_VECTOR (3 downto 0); signal X: STD_LOGIC; signal Y: STD_LOGIC_VECTOR (0 to 3) := “0000”;

12. SignalsEvents, Propagation Delay, and Concurrency • Signals • Signals of type bit take on values of 0 and 1. • Digital components (gates, flip-flops, etc.) respond to input signals to produce output signals. • A signal change is called an event. • The effect of an event is delayed by the propagation delay through the component. VHDL allows for associating a delay with a signal. • Z <= X and Y after 2 ns; • Signals may propagate through several components concurrently. Z <= X and Y after 2 ns; V <= (Z xor not W) nand X after 3 ns; W <= X or Y after 1 ns; • VHDL is an event driven concurrent programming language. • Statements may not execute sequentially. • This makes VHDL “hard.”

13. VHDL example EX 1 -- EX1 - Signal example entity ex1 is end entity ex1; architecture ex1_arc of ex1 is signal X: BIT; begin -- concurrent signals assignments X <= not X after 10 ns; end architecture ex1_arc;

14. -- EX2 -- Signal example -- File: ex2.vhd -- created: 09/19/01 entity ex2 is end entity ex2; architecture ex_arc of ex2 is signal X: BIT; signal Y: BIT; begin -- concurrent signals assignments X <= not X after 10 ns; Y <= '1' after 15 ns, '0' after 25 ns; end architecture ex_arc;

15. std_logic_1164 multi-value logic system TYPE std_ulogic IS ( 'U', -- Uninitialized 'X', -- Forcing Unknown '0', -- Forcing 0 '1', -- Forcing 1 'Z', -- High Impedance 'W', -- Weak Unknown 'L', -- Weak 0 'H', -- Weak 1 '-' -- Don't care );

16. ‘X’ indicates an unknown value. This can be caused by the resolution function as shown below. resolution function – resolves two drives for a single signal. Std_logic has a built in resolution function. CONSTANT resolution_table : stdlogic_table := ( -- --------------------------------------------------------- -- | U X 0 1 Z W L H - | | -- --------------------------------------------------------- ( 'U', 'U', 'U', 'U', 'U', 'U', 'U', 'U', 'U' ), -- | U | ( 'U', 'X', 'X', 'X', 'X', 'X', 'X', 'X', 'X' ), -- | X | ( 'U', 'X', '0', 'X', '0', '0', '0', '0', 'X' ), -- | 0 | ( 'U', 'X', 'X', '1', '1', '1', '1', '1', 'X' ), -- | 1 | ( 'U', 'X', '0', '1', 'Z', 'W', 'L', 'H', 'X' ), -- | Z | ( 'U', 'X', '0', '1', 'W', 'W', 'W', 'W', 'X' ), -- | W | ( 'U', 'X', '0', '1', 'L', 'W', 'L', 'W', 'X' ), -- | L | ( 'U', 'X', '0', '1', 'H', 'W', 'W', 'H', 'X' ), -- | H | ( 'U', 'X', 'X', 'X', 'X', 'X', 'X', 'X', 'X' ) -- | - | ); S <= ‘1’; S <= ‘0’; Don’t drive signal from multiple sources!

17. Why have ‘U’ in std_logic types? • Any uninitialized type assumes the left most value of that type. • TYPE std_ulogic IS ( 'U', 'X', '0', '1', 'Z', 'W', 'L', 'H', '-' ); • TYPE BIT is (‘0’, ‘1’); • What is the initial value? variable vBIT: BIT; variable VAR_X: STD_LOGIC := ‘0’; signal BitX: BIT := ‘1’; signal X: STD_LOGIC; Signal N: integer;

18. Recall EX2: Lets use std_logic in place of bit. -- EX2 -- Signal example -- File: ex2.vhd -- created: 09/19/01 entity ex2 is end entity ex2; architecture ex_arc of ex2 is signal X: BIT; signal Y: BIT; begin -- concurrent signals assignments X <= not X after 10 ns; Y <= '1' after 15 ns, '0' after 25 ns; end architecture ex_arc;

19. -- EX3 - Signal example -- File: ex3.vhd -- created: 09/19/01 library IEEE; use IEEE.std_logic_1164.all; entity ex3 is end entity ex3; architecture ex_arc of ex3 is signal X: STD_LOGIC; signal Y: STD_LOGIC; begin X <= not X after 10 ns; Y <= '1' after 15 ns, '0' after 25 ns; end architecture ex_arc;

20. What happened? • In VHDL uninitialized signals and variables assume the left most value of the type. • STD_LOGIC initializes to “U”. X <= not X after 10 ns; Y <= '1' after 15 ns, '0' after 25 ns; -- truth table for "not" function CONSTANT not_table: stdlogic_1d := -- ------------------------------------------------- -- | U X 0 1 Z W L H - | -- ------------------------------------------------- ( 'U', 'X', '1', '0', 'X', 'X', '1', '0', 'X' );

21. -- EX3 - Signal example -- File: ex2.vhd -- created: 09/19/01 library IEEE; use IEEE.std_logic_1164.all; entity ex3b is end entity ex3b; architecture ex_arc of ex3b is signal X: STD_LOGIC := '1'; -- init X signal Y: STD_LOGIC := '0'; -- init Y begin -- concurrent signals assignments X <= not X after 10 ns; Y <= '1' after 15 ns, '0' after 25 ns; end architecture ex_arc;

22. LIBRARY IEEE;USE work.ALL; USE IEEE.std_logic_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; ENTITY tb is END tb; ARCHITECTURE test OF tb IS constant ALL_ONES: std_logic_vector(3 downto 0) := X"F"; constant Some_Ones: std_logic_vector(3 downto 0) := X"A"; SIGNAL Q : std_logic_vector(3 downto 0) := (others => '0'); --"0000"; signal X : std_logic_vector(3 downto 0); BEGIN Q <= Q(2 downto 0) & not Q(3) after 5 ns; X <= ALL_ONES after 10 ns, Some_Ones after 15 ns, "0000" after 20 ns; END test; Another Example

23. And Or gate example library IEEE;use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; entity ABorC is port (A : in std_logic; B : in std_logic; C : in std_logic; F : out std_logic); end ABorC; architecture arch of ABorC is signal X : std_logic; begin X <= A and B after 1 ns; F <= X or C after 1 ns; end;

24. LIBRARY IEEE;USE work.all; USE IEEE.Std_Logic_1164.all; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; ENTITY tb IS END ENTITY tb; Architecture TEST of tb is SIGNAL X: std_logic_vector (2 downto 0) := "000"; SIGNAL Y: std_logic;begin U1: ENTITY work.ABorC(arch) PORT MAP(A => X(2), B => X(1), C => X(0), F => Y); X <= X + 1 after 10 ns; end test; Test bench for and or example

25. U1: entity work.or3 port map (A => AB, B => ACin , C => BCin , F => Cout); U2: entity work.and2 port map (A => A, B => B, F => AB); U3: entity work.and2 port map (A => B, B => Cin, F => BCin); U4: entity work.and2 port map (A => A, B => Cin, F => ACin); U5: entity work.xor2 port map (A, B, AxorB); U6: entity work.xor2 port map (Cin, AxorB, S);

26. VHDL design units See DG chapter 5 • Configuration • Package • Package Body • Entity • Describes Interface • Describes how the circuit appears form the outside. • Similar to a schematic symbol. • Architecture • Specifies function • Describes how the circuit does what it does. • Data Flow or RTL • Behavioral – Defines in terms of its operation over time. • Structural – A collection of components. • Initially we will focus on the Entity and Architecture. • Both are always necessary the others are optional.

27. library IEEE; use IEEE.std_logic_1164.all; ENTITY and2 is GENERIC(trise : time := 10 ns; tfall : time := 5 ns); PORT(a : IN std_logic; b : IN std_logic; c : OUT std_logic); END and2;

28. ARCHITECTURE behav OF and2 IS BEGIN one : PROCESS (a,b) BEGIN IF (a = '1' AND b = '1') THEN c <= '1' AFTER trise; ELSIF (a = '0' OR b = '0') THEN c <= '0' AFTER tfall; ELSE c<= 'X' AFTER (trise+tfall)/2; END IF; END PROCESS one; END behav;

29. library IEEE; use IEEE.std_logic_1164.all; ENTITY tb IS END tb; ARCHITECTURE test OF tb IS SIGNAL a, b, y, z: std_logic; BEGIN and_y: entity work.and2(behav) GENERIC MAP(tfall => 15 ns) PORT MAP(a, b, y); and_z: entity work.and2(behav) PORT MAP(a, b, z); PROCESS CONSTANT period: time := 40 ns; BEGIN a <= '1'; b <= '0'; WAIT FOR period; a <= '1'; b <= '1'; WAIT FOR period; a <= '0'; b <= '1'; WAIT FOR period; a <= '0'; b <= '0'; WAIT; END PROCESS; END TEST;

31. Typical programming language Compilation Link and Load Execute VHDL Analysis Check design unit for errors Elaboration Check design hierarchy Simulation Synthesis Development steps

32. Modeling Interfaces • Entity declaration (see Fig 1-7 p 9) • describes the input/output ports of a module entity name port names port mode (direction) entity reg4 isport ( d0, d1, d2, d3, en, clk : in bit; q0, q1, q2, q3 : out bit );end entity reg4; punctuation reserved words port type

33. Modeling Behavior • Architecture body • describes an implementation of an entity • may be several per entity • Behavioral architecture • describes the algorithm performed by the module • contains • process statements, each containing • sequential statements, including • signal assignment statements and • wait statements

34. Behavior Example architecture behav of reg4 isbegin storage : process isvariable stored_d0, stored_d1, stored_d2, stored_d3 : bit;beginif en = '1' and clk = '1' then stored_d0 := d0; stored_d1 := d1; stored_d2 := d2; stored_d3 := d3;end if; q0 <= stored_d0 after 5 ns; q1 <= stored_d1 after 5 ns; q2 <= stored_d2 after 5 ns; q3 <= stored_d3 after 5 ns;wait on d0, d1, d2, d3, en, clk;end process storage; end architecture behav;

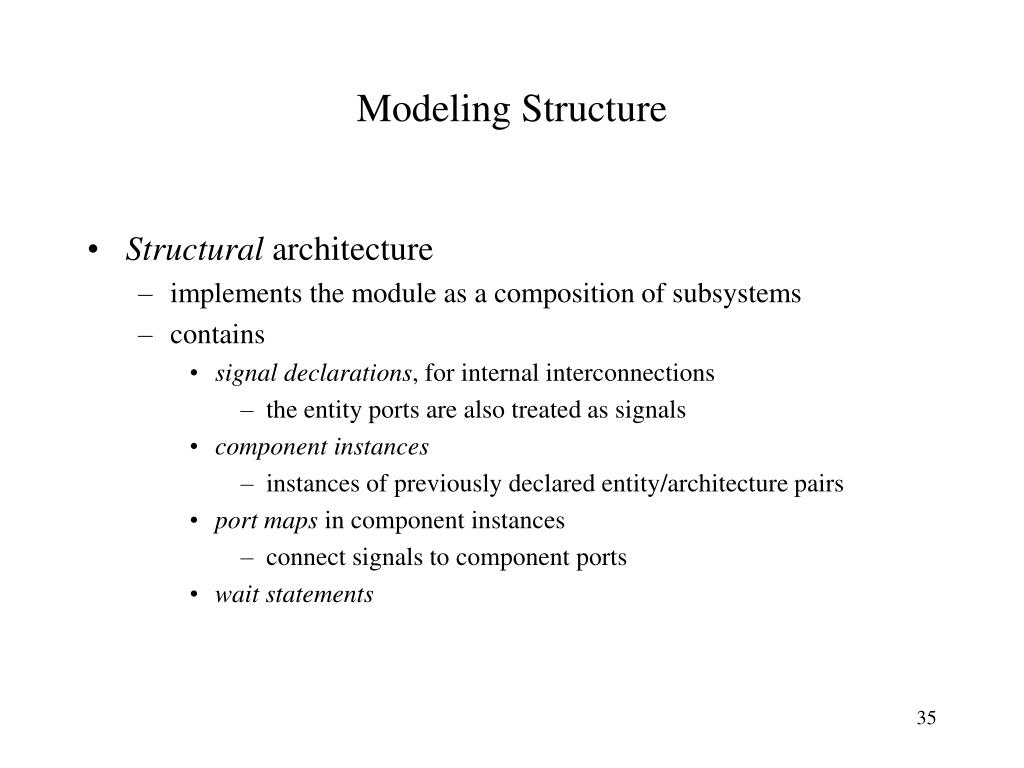

35. Modeling Structure • Structural architecture • implements the module as a composition of subsystems • contains • signal declarations, for internal interconnections • the entity ports are also treated as signals • component instances • instances of previously declared entity/architecture pairs • port maps in component instances • connect signals to component ports • wait statements

36. Structure Example

37. Structure Example • First declare D-latch and and-gate entities and architectures entity d_latch isport ( d, clk : in bit; q : out bit );end entity d_latch; architecture basic of d_latch isbegin latch_behavior : process isbeginif clk = ‘1’ then q <= d after 2 ns;end if;wait on clk, d;end process latch_behavior; end architecture basic; entity and2 isport ( a, b : in bit; y : out bit );end entity and2; architecture basic of and2 isbegin and2_behavior : process isbegin y <= a and b after 2 ns;wait on a, b;end process and2_behavior; end architecture basic;

38. Structure Example architecture struct of reg4 is signal int_clk : bit; begin bit0 : entity work.d_latch(basic)port map ( d0, int_clk, q0 ); bit1 : entity work.d_latch(basic)port map ( d1, int_clk, q1 ); bit2 : entity work.d_latch(basic)port map ( d2, int_clk, q2 ); bit3 : entity work.d_latch(basic)port map ( d3, int_clk, q3 ); gate : entity work.and2(basic)port map ( en, clk, int_clk ); end architecture struct; • Now use them to implement a register

39. VHDL Reserved Words
