WTT Wall Thickness Tester

The Bottle Wall Thickness Tester measures the thickness of bottle walls to ensure product quality and safety. Widely used in the packaging industry, particularly for beverages and pharmaceuticals, it evaluates the uniformity and integrity of plastic, glass, and metal bottles. The test process involves inserting the bottle into the tester, which uses precise sensors to gauge wall thickness at various points, ensuring compliance with industry standards and preventing manufacturing defects.

cell6
Download Presentation

WTT Wall Thickness Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

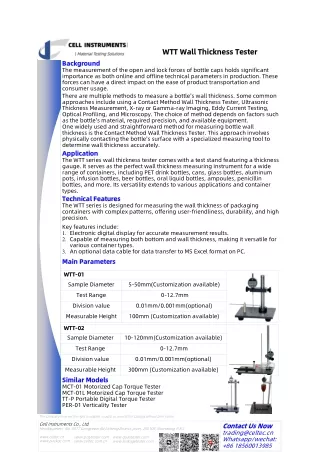

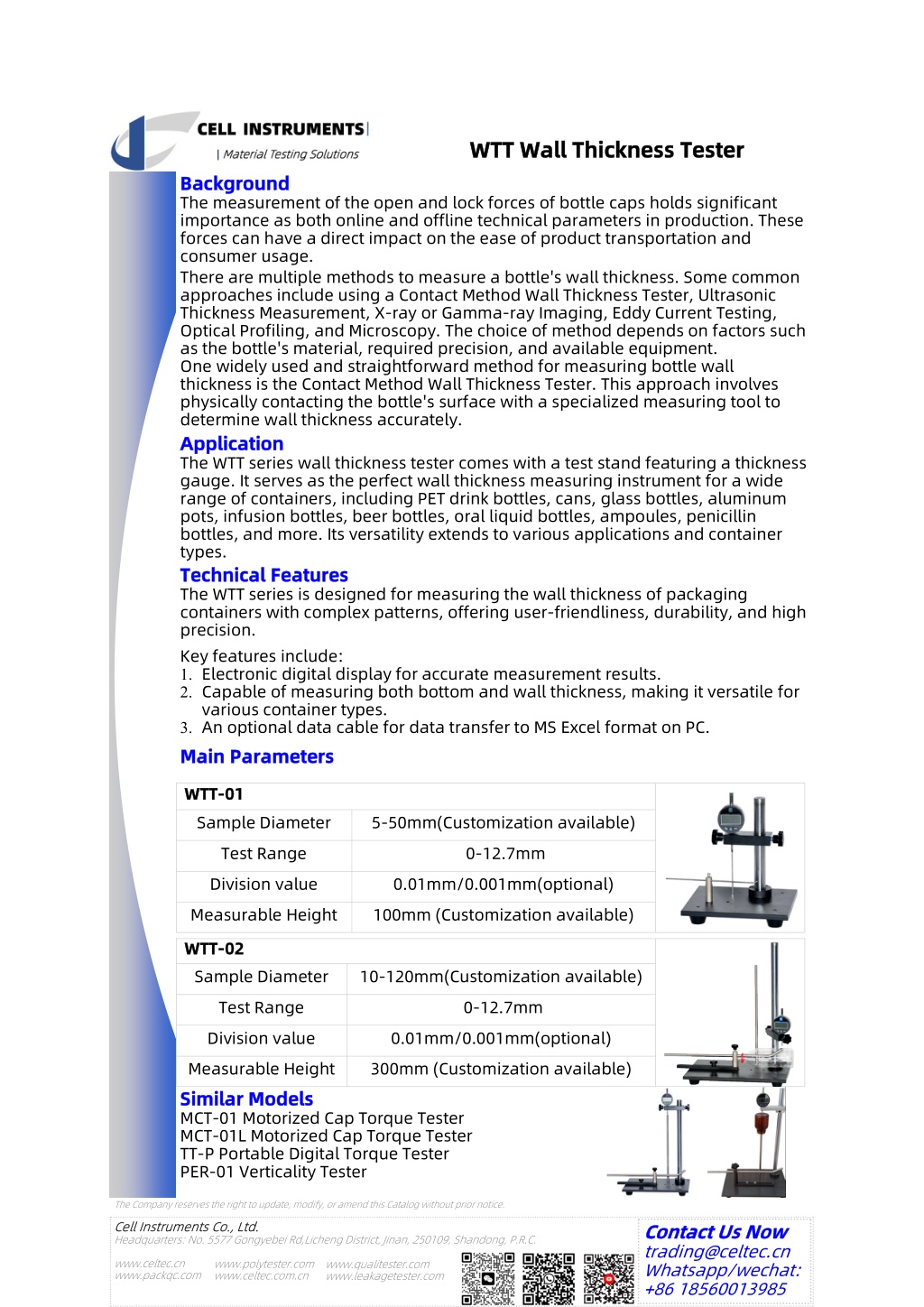

  1. WTT Wall Thickness Tester WTT Wall Thickness Tester Background Background The measurement of the open and lock forces of bottle caps holds significant importance as both online and offline technical parameters in production. These forces can have a direct impact on the ease of product transportation and consumer usage. There are multiple methods to measure a bottle's wall thickness. Some common approaches include using a Contact Method Wall Thickness Tester, Ultrasonic Thickness Measurement, X-ray or Gamma-ray Imaging, Eddy Current Testing, Optical Profiling, and Microscopy. The choice of method depends on factors such as the bottle's material, required precision, and available equipment. One widely used and straightforward method for measuring bottle wall thickness is the Contact Method Wall Thickness Tester. This approach involves physically contacting the bottle's surface with a specialized measuring tool to determine wall thickness accurately. Application Application The WTT series wall thickness tester comes with a test stand featuring a thickness gauge. It serves as the perfect wall thickness measuring instrument for a wide range of containers, including PET drink bottles, cans, glass bottles, aluminum pots, infusion bottles, beer bottles, oral liquid bottles, ampoules, penicillin bottles, and more. Its versatility extends to various applications and container types. Technical Features Technical Features The WTT series is designed for measuring the wall thickness of packaging containers with complex patterns, offering user-friendliness, durability, and high precision. Key features include:  Electronic digital display for accurate measurement results.  Capable of measuring both bottom and wall thickness, making it versatile for various container types.  An optional data cable for data transfer to MS Excel format on PC. Main Parameters Main Parameters WTT WTT- -01 Sample Diameter Test Range Division value Measurable Height 01 5-50mm(Customization available) 0-12.7mm 0.01mm/0.001mm(optional) 100mm (Customization available) WTT WTT- -02 Sample Diameter Test Range Division value Measurable Height 02 10-120mm(Customization available) 0-12.7mm 0.01mm/0.001mm(optional) 300mm (Customization available) Similar Models Similar Models MCT-01 Motorized Cap Torque Tester MCT-01L Motorized Cap Torque Tester TT-P Portable Digital Torque Tester PER-01 Verticality Tester The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
