PCT-01 Package Compression Tester

A Package Compression Tester is designed to evaluate the compressive strength and durability of packaging materials under simulated warehousing and logistics. This instrument is widely used across industries such as packaging, pharmaceuticals, and food and beverage to ensure that packages can withstand the stresses they encounter during transportation and storage. The test involves applying a controlled compressive force to a packaged product to measure its resistance to deformation or failure.

cell6
Download Presentation

PCT-01 Package Compression Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

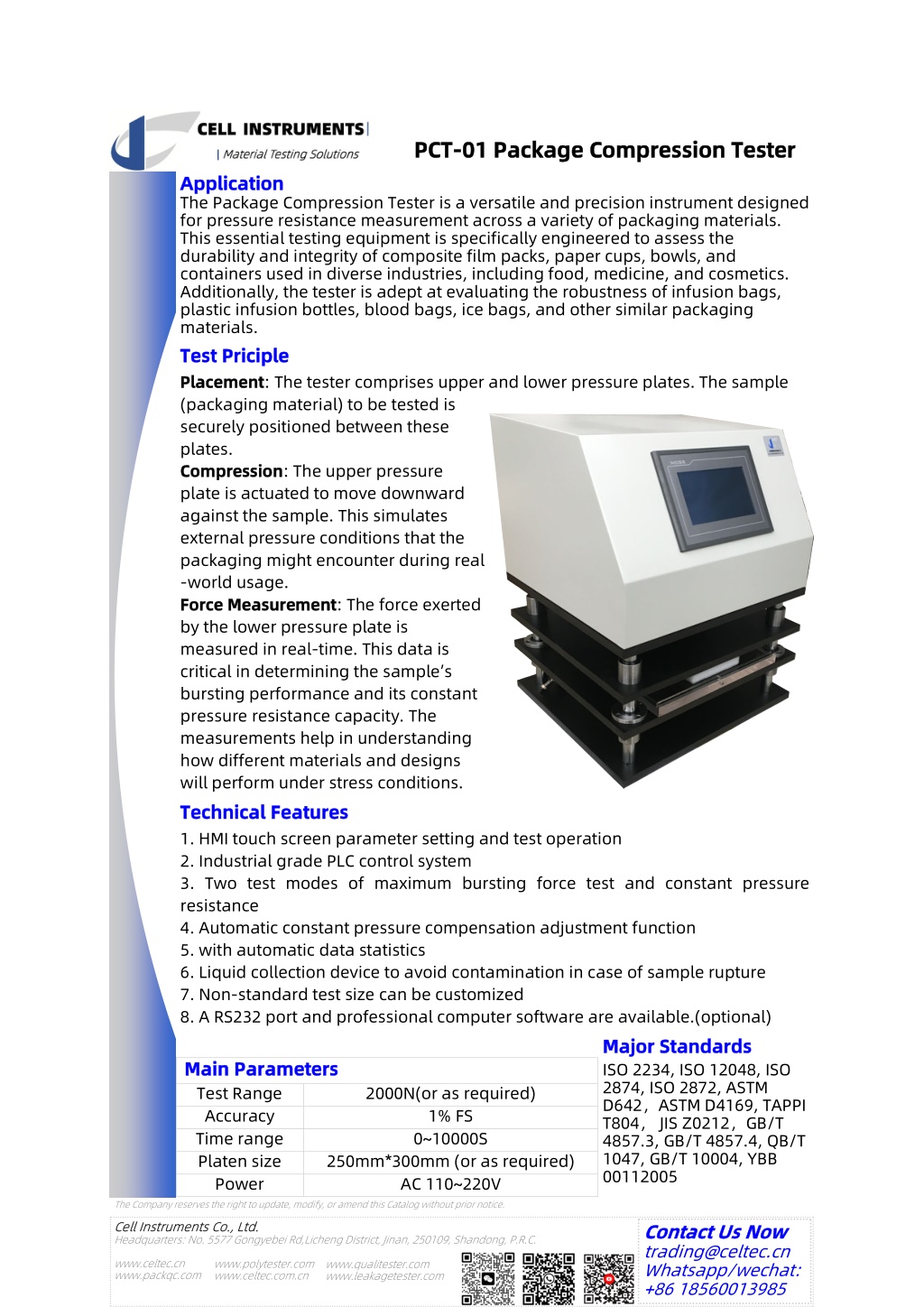

  1. PCT PCT- -01 Package Compression Tester 01 Package Compression Tester Application Application The Package Compression Tester is a versatile and precision instrument designed for pressure resistance measurement across a variety of packaging materials. This essential testing equipment is specifically engineered to assess the durability and integrity of composite film packs, paper cups, bowls, and containers used in diverse industries, including food, medicine, and cosmetics. Additionally, the tester is adept at evaluating the robustness of infusion bags, plastic infusion bottles, blood bags, ice bags, and other similar packaging materials. Test Priciple Test Priciple Placement Placement: The tester comprises upper and lower pressure plates. The sample (packaging material) to be tested is securely positioned between these plates. Compression Compression: The upper pressure plate is actuated to move downward against the sample. This simulates external pressure conditions that the packaging might encounter during real -world usage. Force Measurement Force Measurement: The force exerted by the lower pressure plate is measured in real-time. This data is critical in determining the sample’s bursting performance and its constant pressure resistance capacity. The measurements help in understanding how different materials and designs will perform under stress conditions. Technical Features Technical Features 1. HMI touch screen parameter setting and test operation 2. Industrial grade PLC control system 3. Two test modes of maximum bursting force test and constant pressure resistance 4. Automatic constant pressure compensation adjustment function 5. with automatic data statistics 6. Liquid collection device to avoid contamination in case of sample rupture 7. Non-standard test size can be customized 8. A RS232 port and professional computer software are available.(optional) Major Standards Major Standards ISO 2234, ISO 12048, ISO 2874, ISO 2872, ASTM D642，ASTM D4169, TAPPI T804， JIS Z0212，GB/T 4857.3, GB/T 4857.4, QB/T 1047, GB/T 10004, YBB 00112005 Main Parameters Main Parameters Test Range Accuracy Time range Platen size Power 2000N(or as required) 1% FS 0~10000S 250mm*300mm (or as required) AC 110~220V The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
