NPT-01 Needle Puncture Tester

Syringe Needle Penetration Tester is designed to evaluate the penetration force and performance of needle tips. This instrument is primarily used in the medical and pharmaceutical to test syringes and other injection devices. It assesses the ease with which a needle can penetrate various materials, including rubber stoppers and other seals. The test process is positioning the needle against the test material and applying a controlled force to measure the penetration depth and resistance.

cell6
Download Presentation

NPT-01 Needle Puncture Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

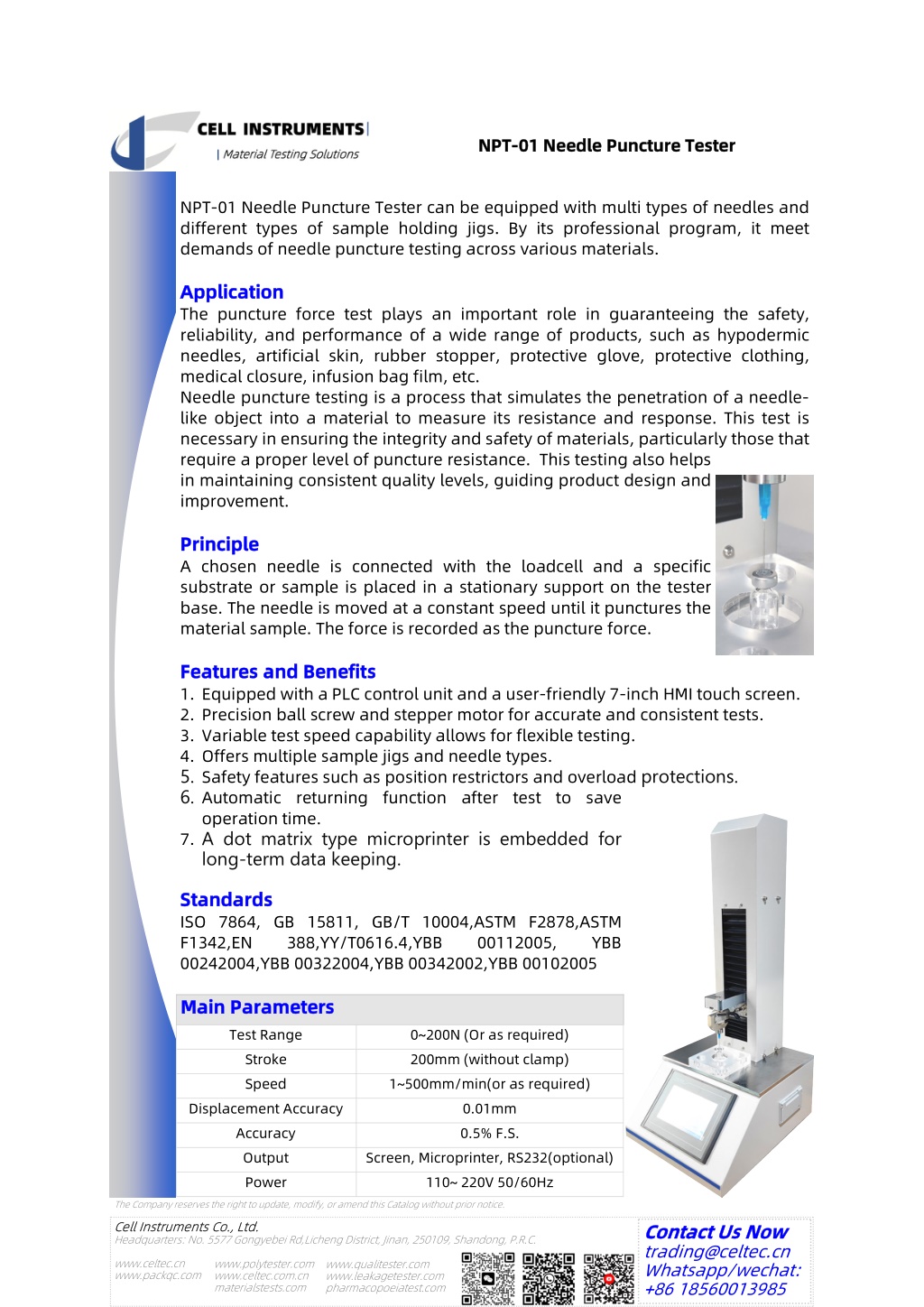

  1. NPT NPT- -01 Needle Puncture Tester 01 Needle Puncture Tester NPT-01 Needle Puncture Tester can be equipped with multi types of needles and different types of sample holding jigs. By its professional program, it meet demands of needle puncture testing across various materials. Application Application The puncture force test plays an important role in guaranteeing the safety, reliability, and performance of a wide range of products, such as hypodermic needles, artificial skin, rubber stopper, protective glove, protective clothing, medical closure, infusion bag film, etc. Needle puncture testing is a process that simulates the penetration of a needle- like object into a material to measure its resistance and response. This test is necessary in ensuring the integrity and safety of materials, particularly those that require a proper level of puncture resistance. This testing also helps in maintaining consistent quality levels, guiding product design and improvement. Principle Principle A chosen needle is connected with the loadcell and a specific substrate or sample is placed in a stationary support on the tester base. The needle is moved at a constant speed until it punctures the material sample. The force is recorded as the puncture force. Features and Benefits Features and Benefits 1. Equipped with a PLC control unit and a user-friendly 7-inch HMI touch screen. 2. Precision ball screw and stepper motor for accurate and consistent tests. 3. Variable test speed capability allows for flexible testing. 4. Offers multiple sample jigs and needle types. 5. Safety features such as position restrictors and overload protections. 6. Automatic returning function after test to save operation time. 7. A dot matrix type microprinter is embedded for long-term data keeping. Standards Standards ISO 7864, GB 15811, GB/T 10004,ASTM F2878,ASTM F1342,EN 388,YY/T0616.4,YBB 00112005, 00242004,YBB 00322004,YBB 00342002,YBB 00102005 YBB Main Parameters Main Parameters Test Range Stroke Speed Displacement Accuracy 0~200N (Or as required) 200mm (without clamp) 1~500mm/min(or as required) 0.01mm Accuracy Output 0.5% F.S. Screen, Microprinter, RS232(optional) Power 110~ 220V 50/60Hz The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn materialstests.com www.qualitester.com www.leakagetester.com pharmacopoeiatest.com
