FTT-01 Thickness Tester

A Thickness Tester for plastic film is a precision instrument used to measure the thickness of various plastic films and sheets in industries such as packaging, electronics, and textiles. It is essential for ensuring uniformity and quality control in products like food packaging, protective films, and other plastic-based materials. The test process typically involves placing the film sample between the tester's measuring head and a flat reference surface, then applying a consistent pressure to obtain an accurate thickness reading. The significance of this test lies in its ability to detect var

cell6
Download Presentation

FTT-01 Thickness Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

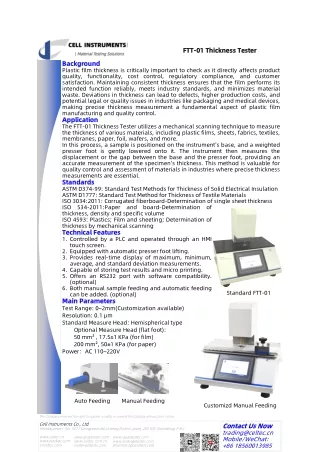

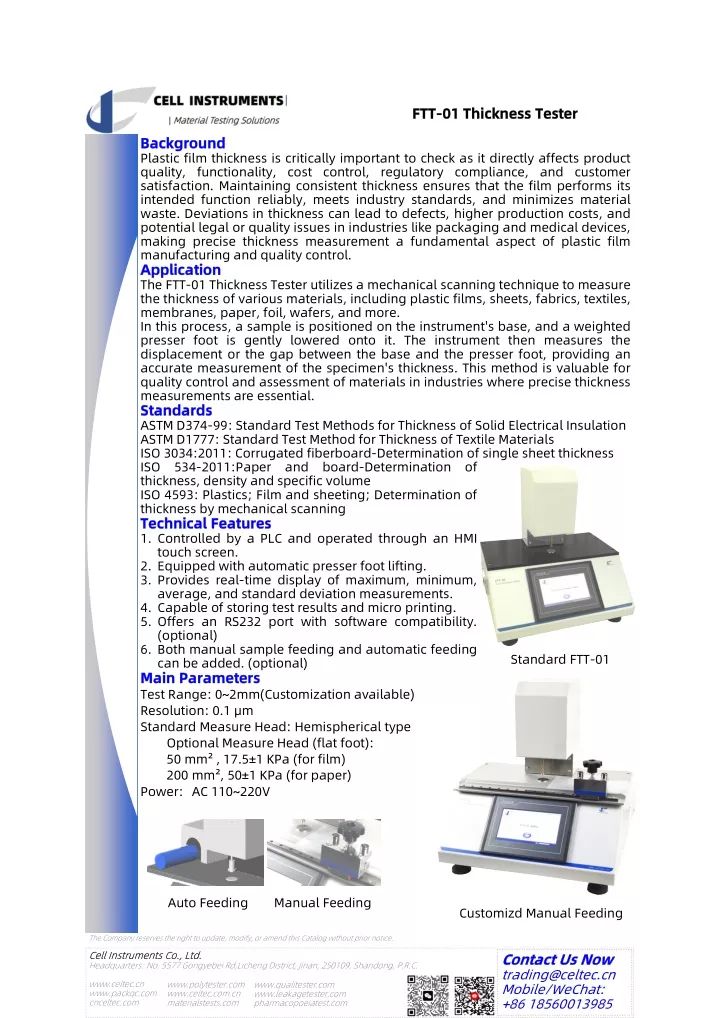

  1. FTT FTT- -01 Thickness Tester 01 Thickness Tester Background Background Plastic film thickness is critically important to check as it directly affects product quality, functionality, cost control, regulatory compliance, and customer satisfaction. Maintaining consistent thickness ensures that the film performs its intended function reliably, meets industry standards, and minimizes material waste. Deviations in thickness can lead to defects, higher production costs, and potential legal or quality issues in industries like packaging and medical devices, making precise thickness measurement a fundamental aspect of plastic film manufacturing and quality control. Application Application The FTT-01 Thickness Tester utilizes a mechanical scanning technique to measure the thickness of various materials, including plastic films, sheets, fabrics, textiles, membranes, paper, foil, wafers, and more. In this process, a sample is positioned on the instrument's base, and a weighted presser foot is gently lowered onto it. The instrument then measures the displacement or the gap between the base and the presser foot, providing an accurate measurement of the specimen's thickness. This method is valuable for quality control and assessment of materials in industries where precise thickness measurements are essential. Standards Standards ASTM D374-99: Standard Test Methods for Thickness of Solid Electrical Insulation ASTM D1777: Standard Test Method for Thickness of Textile Materials ISO 3034:2011: Corrugated fiberboard-Determination of single sheet thickness ISO 534-2011:Paper and board-Determination of thickness, density and specific volume ISO 4593: Plastics; Film and sheeting; Determination of thickness by mechanical scanning Technical Features Technical Features 1. Controlled by a PLC and operated through an HMI touch screen. 2. Equipped with automatic presser foot lifting. 3. Provides real-time display of maximum, minimum, average, and standard deviation measurements. 4. Capable of storing test results and micro printing. 5. Offers an RS232 port with software compatibility. (optional) 6. Both manual sample feeding and automatic feeding can be added. (optional) Main Parameters Main Parameters Test Range: 0~2mm(Customization available) Resolution: 0.1 μm Standard Measure Head: Hemispherical type Optional Measure Head (flat foot): 50 mm² , 17.5±1 KPa (for film) 200 mm², 50±1 KPa (for paper) Power: AC 110~220V Standard FTT-01 Auto Feeding Manual Feeding Customizd Manual Feeding The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Mobile/WeChat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com cnceltec.com www.polytester.com www.celtec.com.cn materialstests.com www.qualitester.com www.leakagetester.com pharmacopoeiatest.com
