FPT-01 Friction and Peel Tester

The Friction and Peel Tester is a laboratory device used to evaluate the frictional properties and peel strength of materials, particularly in the packaging industries. This tester measures how easily two surfaces slide past each other (friction) and assesses the adhesive strength between layers or surfaces (peel strength). During testing, the material samples, such as films, coatings, or adhesive tapes, are subjected to controlled conditions where forces are applied to determine their resistance to sliding or peeling. This testing is crucial for ensuring product durability, safety, and perfor

cell6
Download Presentation

FPT-01 Friction and Peel Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

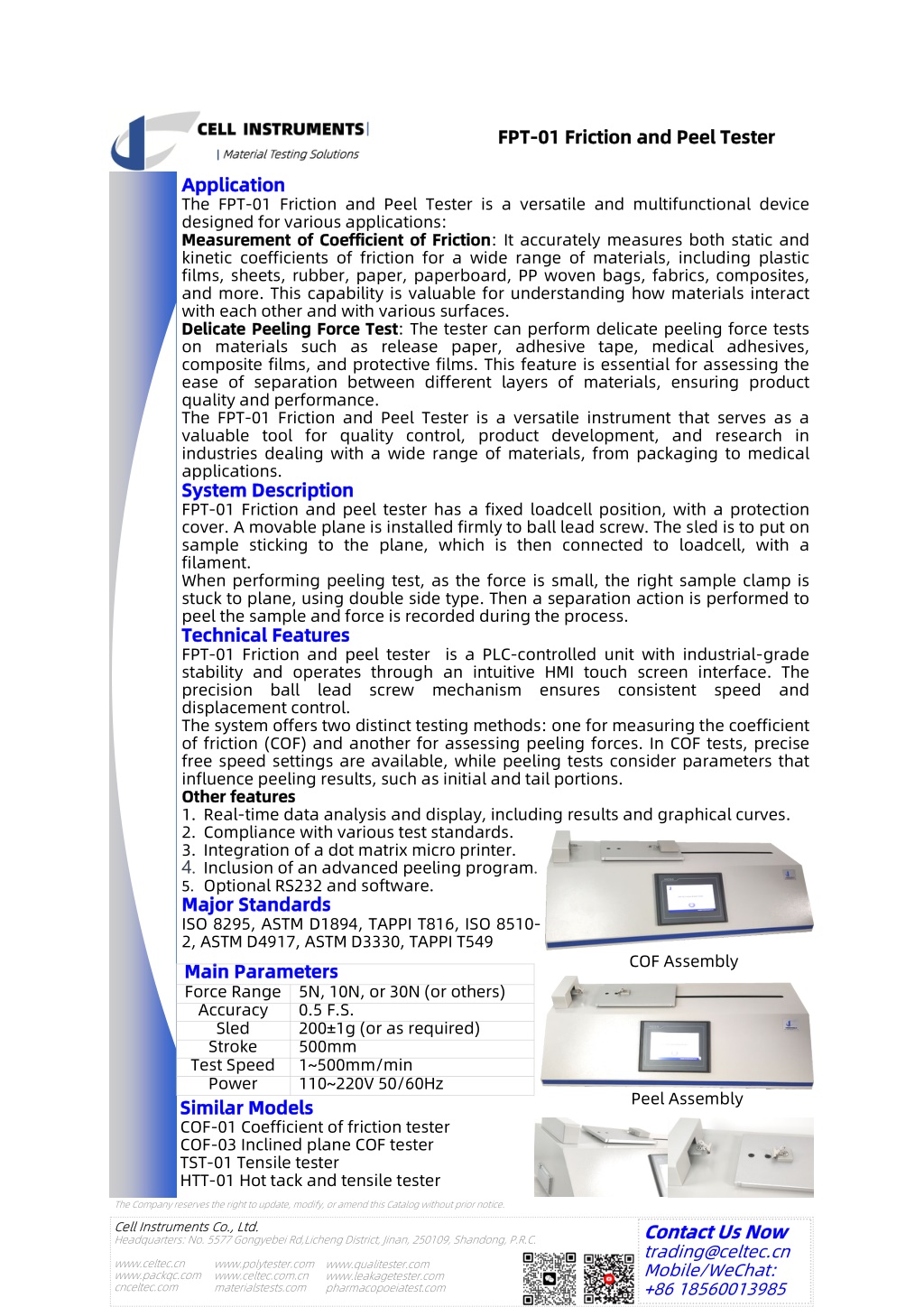

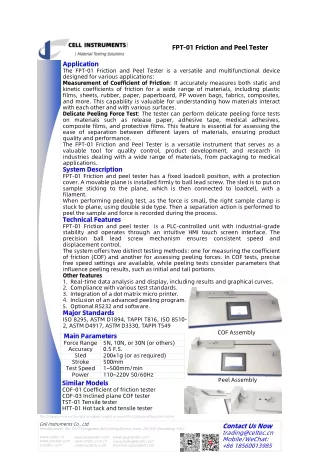

  1. FPT FPT- -01 Friction and Peel Tester 01 Friction and Peel Tester Application Application The FPT-01 Friction and Peel Tester is a versatile and multifunctional device designed for various applications: Measurement of Coefficient of Friction Measurement of Coefficient of Friction: It accurately measures both static and kinetic coefficients of friction for a wide range of materials, including plastic films, sheets, rubber, paper, paperboard, PP woven bags, fabrics, composites, and more. This capability is valuable for understanding how materials interact with each other and with various surfaces. Delicate Peeling Force Test Delicate Peeling Force Test: The tester can perform delicate peeling force tests on materials such as release paper, adhesive tape, medical adhesives, composite films, and protective films. This feature is essential for assessing the ease of separation between different layers of materials, ensuring product quality and performance. The FPT-01 Friction and Peel Tester is a versatile instrument that serves as a valuable tool for quality control, product development, and research in industries dealing with a wide range of materials, from packaging to medical applications. System Description System Description FPT-01 Friction and peel tester has a fixed loadcell position, with a protection cover. A movable plane is installed firmly to ball lead screw. The sled is to put on sample sticking to the plane, which is then connected to loadcell, with a filament. When performing peeling test, as the force is small, the right sample clamp is stuck to plane, using double side type. Then a separation action is performed to peel the sample and force is recorded during the process. Technical Features Technical Features FPT-01 Friction and peel tester is a PLC-controlled unit with industrial-grade stability and operates through an intuitive HMI touch screen interface. The precision ball lead screw mechanism ensures consistent speed and displacement control. The system offers two distinct testing methods: one for measuring the coefficient of friction (COF) and another for assessing peeling forces. In COF tests, precise free speed settings are available, while peeling tests consider parameters that influence peeling results, such as initial and tail portions. Other features Other features 1. Real-time data analysis and display, including results and graphical curves. 2. Compliance with various test standards. 3. Integration of a dot matrix micro printer. 4. Inclusion of an advanced peeling program. 5. Optional RS232 and software. Major Standards Major Standards ISO 8295, ASTM D1894, TAPPI T816, ISO 8510- 2, ASTM D4917, ASTM D3330, TAPPI T549 Main Parameters Main Parameters Force Range 5N, 10N, or 30N (or others) Accuracy 0.5 F.S. Sled 200±1g (or as required) Stroke 500mm Test Speed 1~500mm/min Power 110~220V 50/60Hz COF Assembly Peel Assembly Similar Models Similar Models COF-01 Coefficient of friction tester COF-03 Inclined plane COF tester TST-01 Tensile tester HTT-01 Hot tack and tensile tester The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Mobile/WeChat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com cnceltec.com www.polytester.com www.celtec.com.cn materialstests.com www.qualitester.com www.leakagetester.com pharmacopoeiatest.com
