Presentation Transcript
Erdas imagine l.jpg

ERDAS IMAGINE

An overview of the Mosaic and Resolution Merge Function.

Michael Ryan

2003.03.18

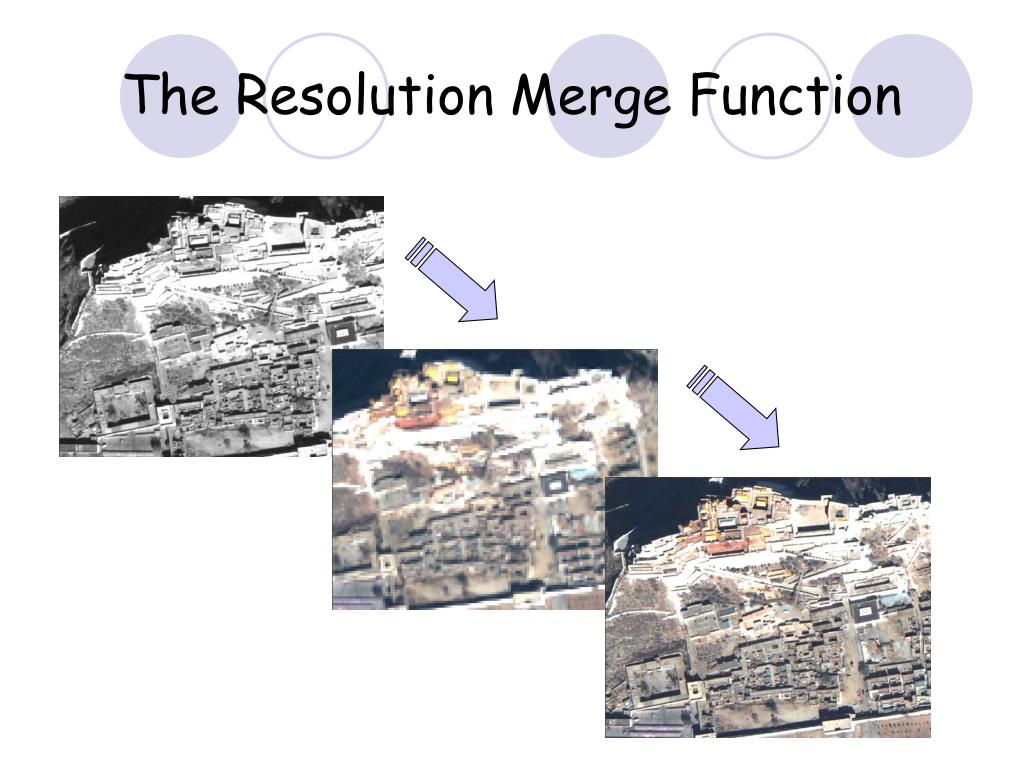

The resolution merge function l.jpg
The Resolution Merge Function

  • Multiplicative is based on simple arithmetic integration of the two raster sets.

  • The Principal Components merge operates on PC-1 rather than the input raster image.

  •  In the BroveyTransform option, all bands are used according to the following formula:

    [DNB1 / DNB1 + DNB2 + DNBn] x [DNhigh res. image] = DNB1_new

    [DNB2 / DNB1 + DNB2 + DNBn] x [DNhigh res. image] = DNB2_new

    etc.

    where B = band

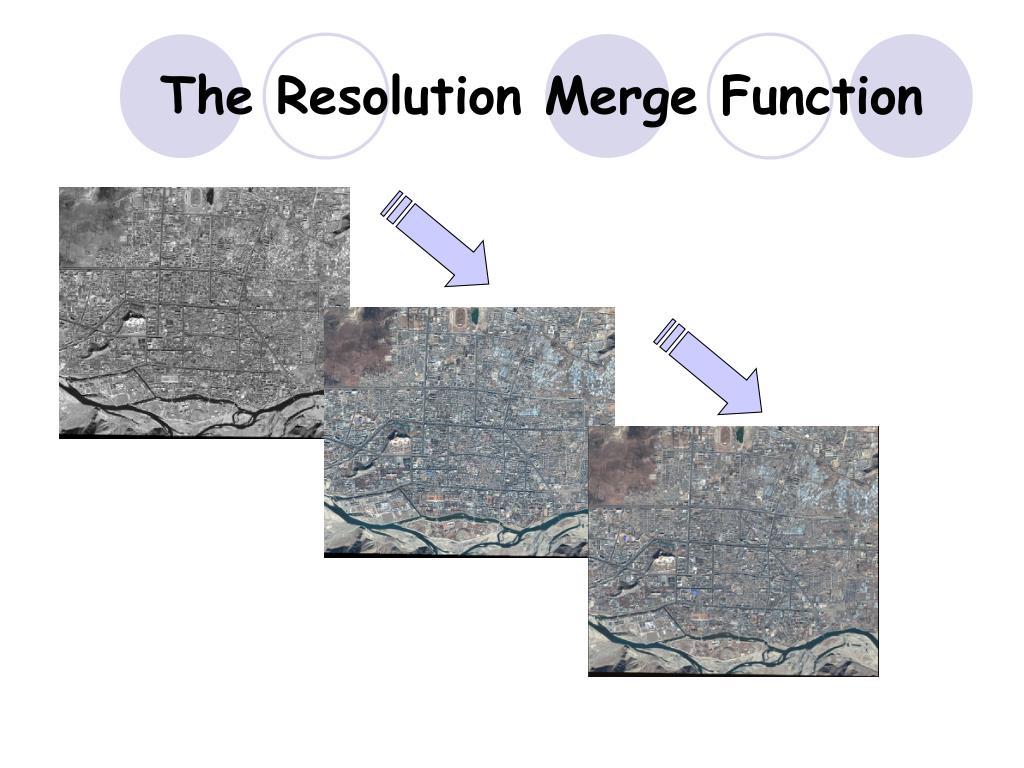

The resolution merge function6 l.jpg
The Resolution Merge Function

  • Image Interpreter

  • Spatial Enhancement

  • Resolution Merge
