  1. Color Theory • What is color? • How do we describe and match colors? • Color spaces

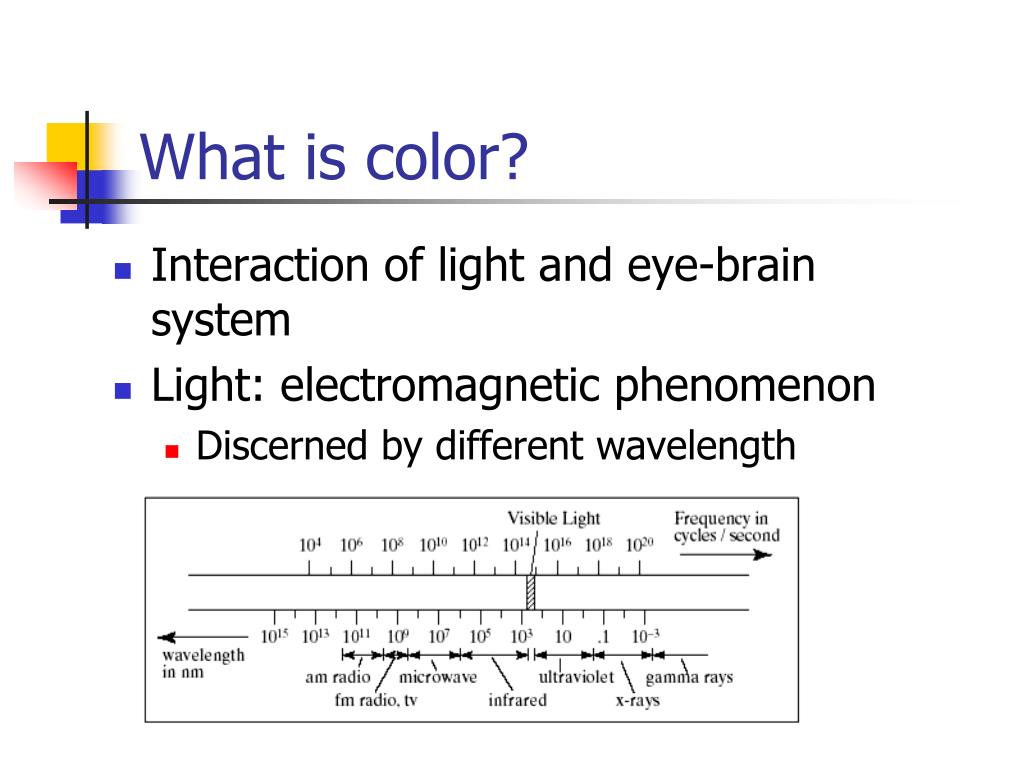

  2. What is color? • Interaction of light and eye-brain system • Light: electromagnetic phenomenon • Discerned by different wavelength

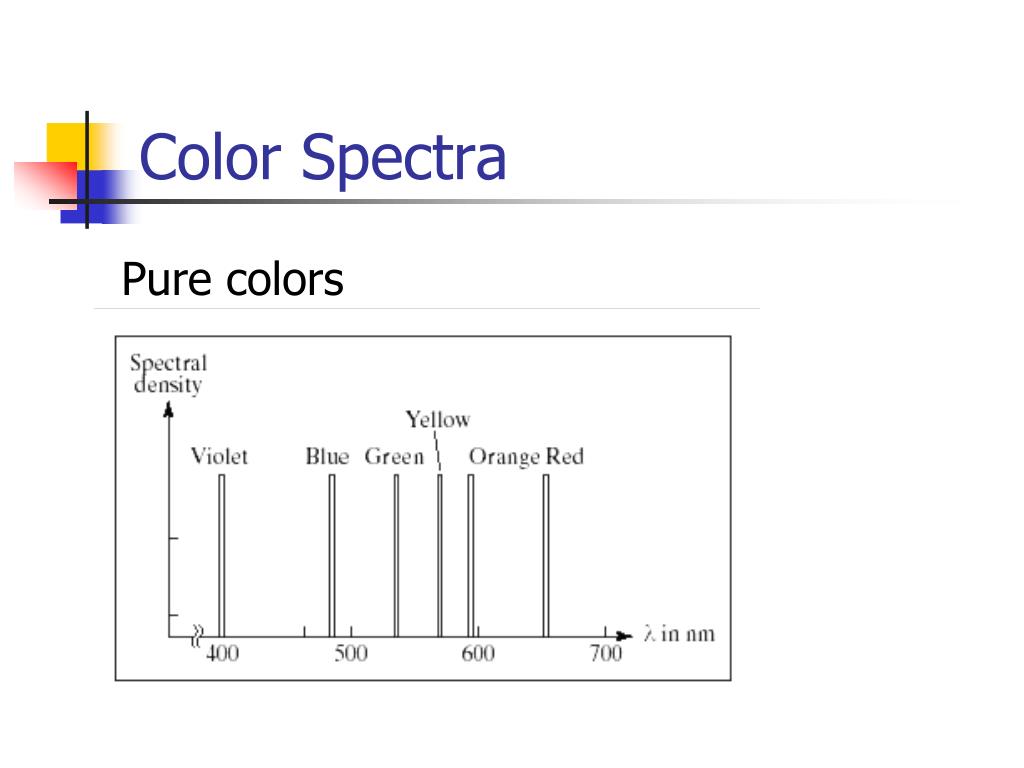

  3. Color Spectra Pure colors

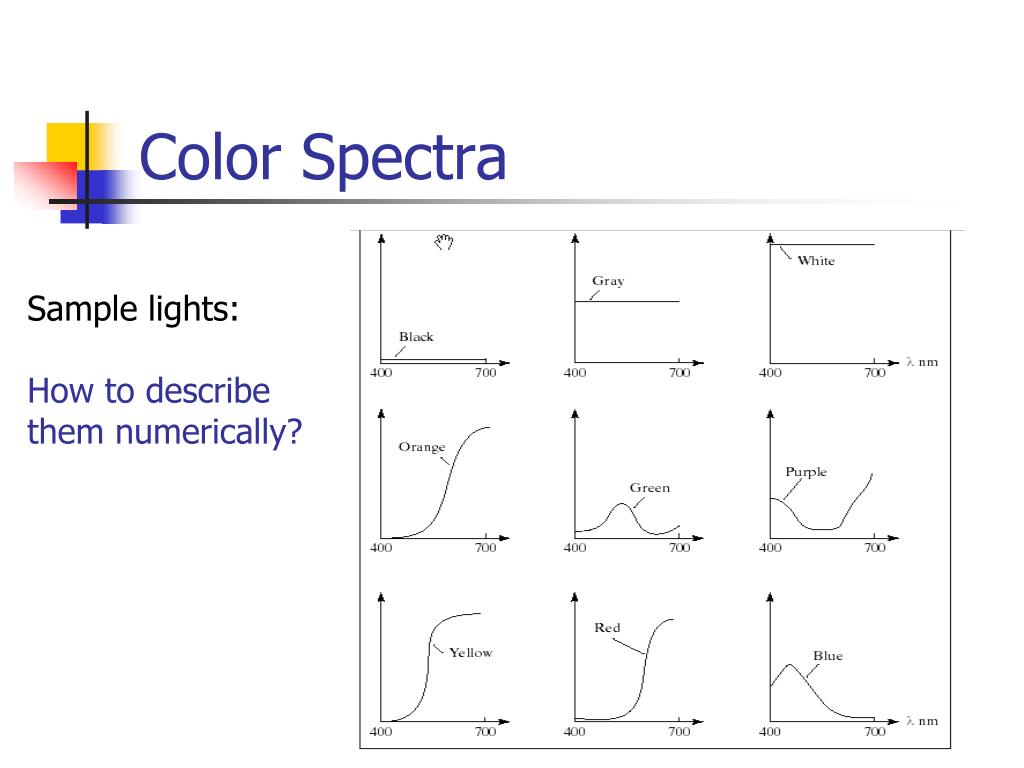

  4. Color Spectra Sample lights: How to describe them numerically?

  5. Human Perception System Trichromacy – 3 primary colors

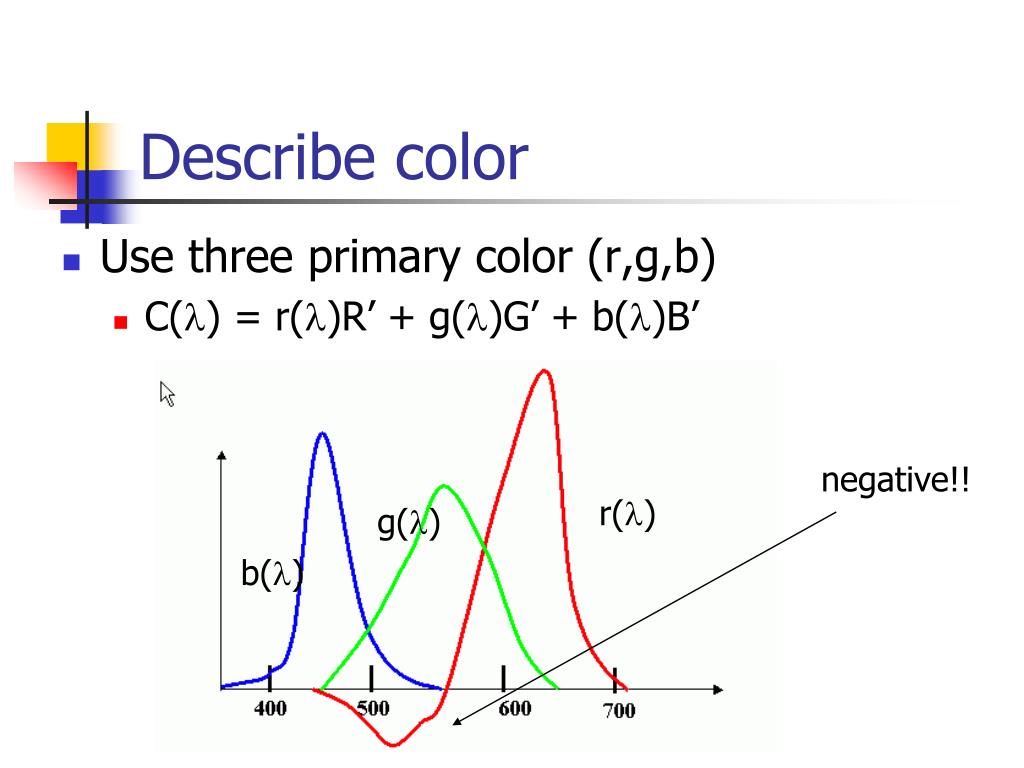

  6. negative!! Describe color • Use three primary color (r,g,b) • C(l) = r(l)R’ + g(l)G’ + b(l)B’ r(l) g(l) b(l)

  7. CIE Primary “Colors” • (X’,Y’,Z’) - Not real colors • The combination coefficients are positive C(l) = x(l)X’ + y(l)Y’ + z(l)Z’

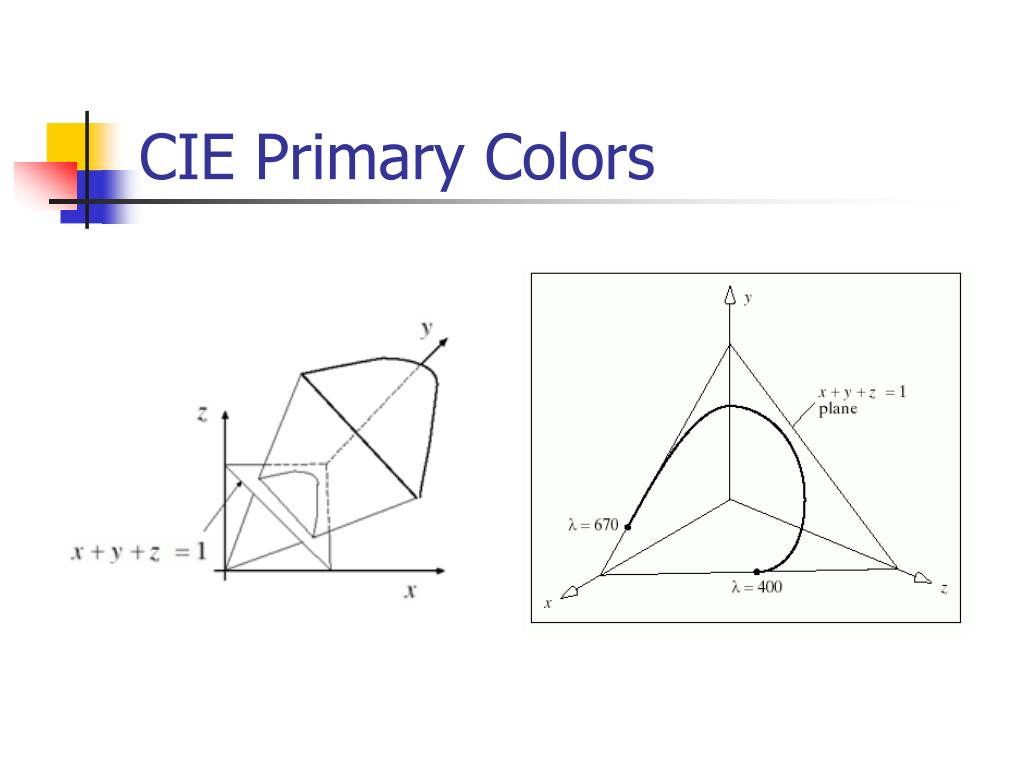

  8. CIE Primary Colors

  9. CIE Chromaticity Chart Project to xy plane

  10. Dominant Wavelength

  11. CIE Gamuts - The range of colors that can be produced on a device Green CRT Gamut Red Blue

  12. Gamut of Various Devices

  13. Color Spaces • CIE model is not necessarily the most natural one • Many other color spaces are used • RGB • HLS • CMY • HSV • ….

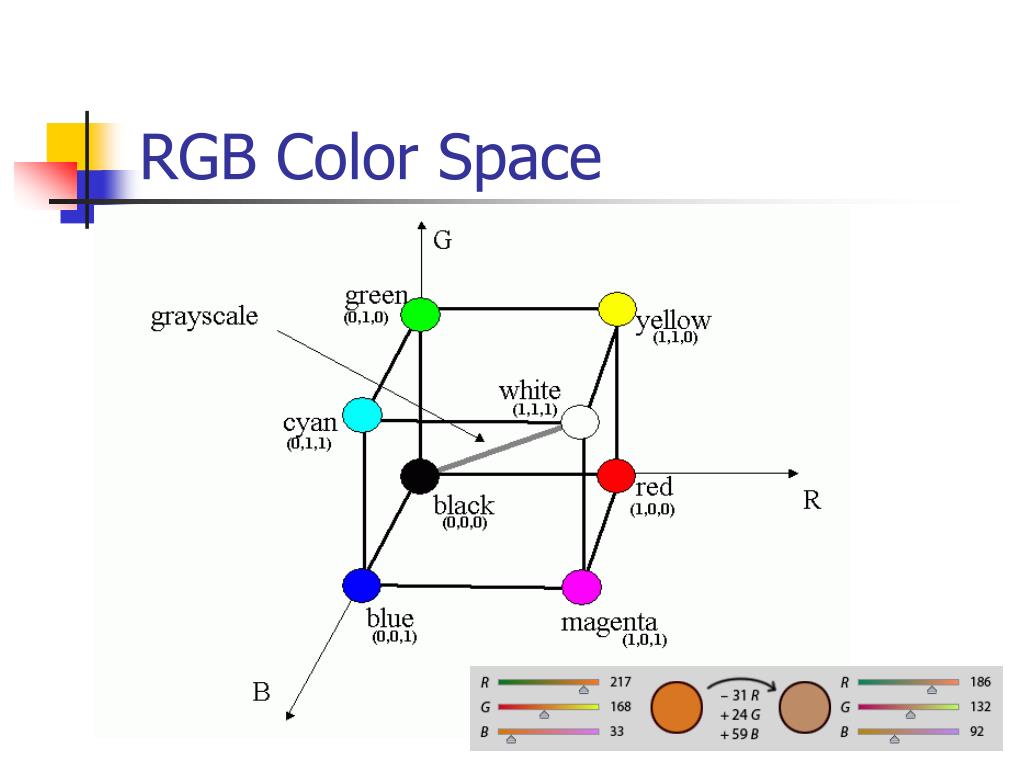

  14. RGB Color Space

  15. HLS Color Space

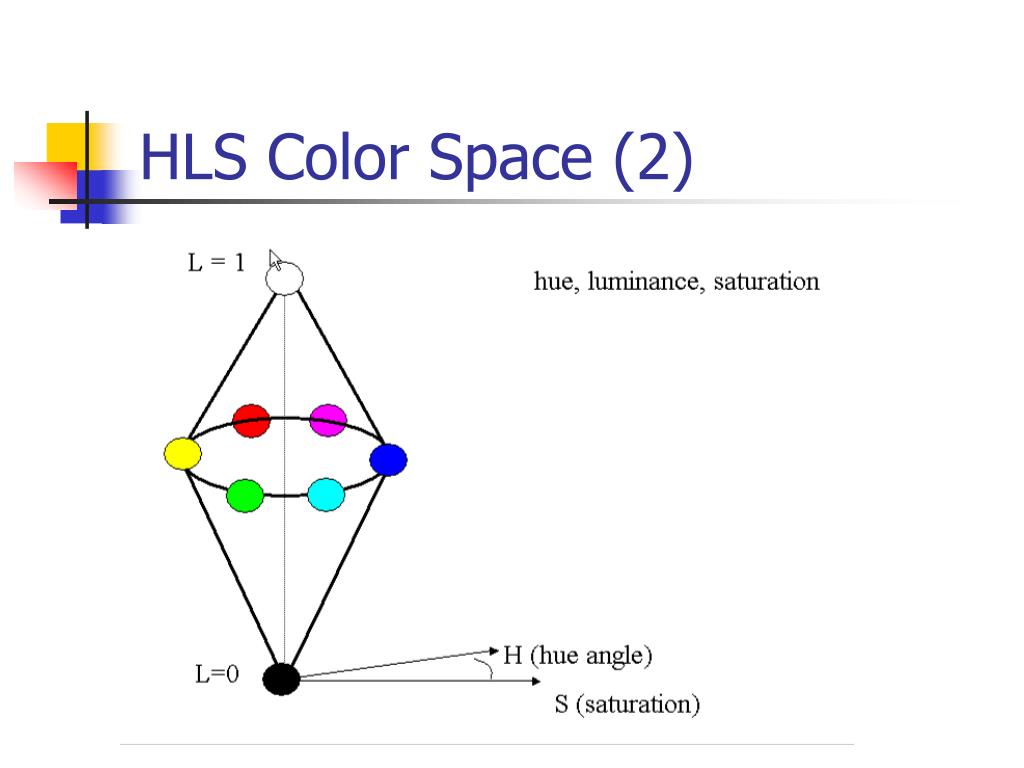

  16. HLS Color Space (2)

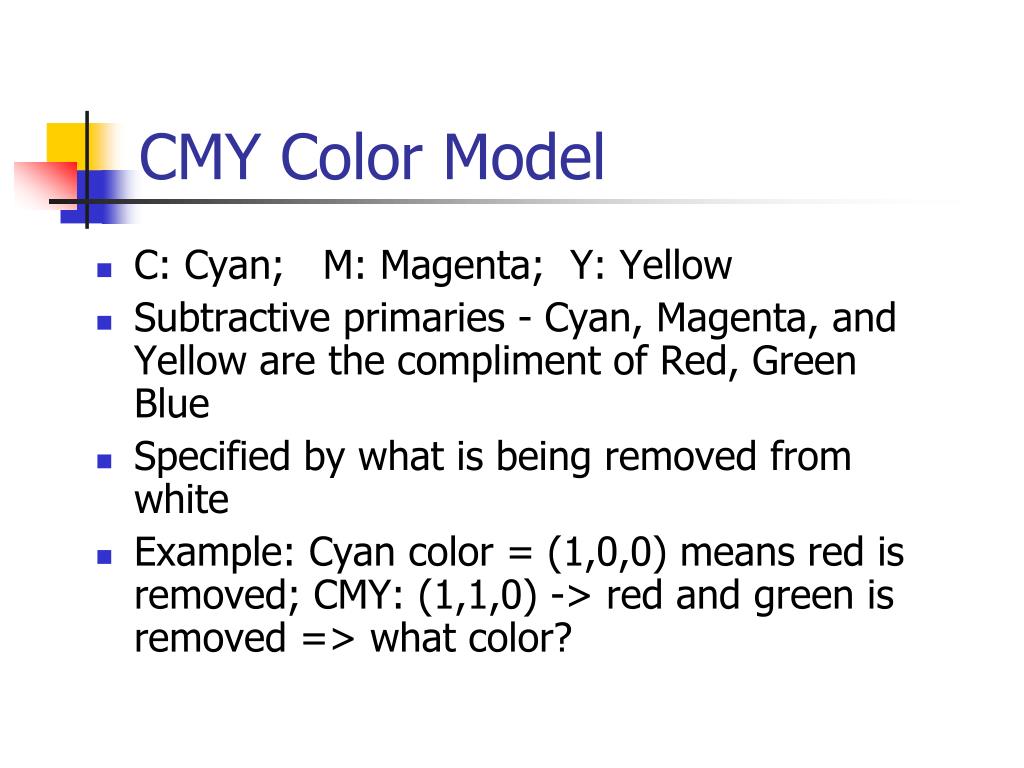

  17. CMY Color Model • C: Cyan; M: Magenta; Y: Yellow • Subtractive primaries - Cyan, Magenta, and Yellow are the compliment of Red, Green Blue • Specified by what is being removed from white • Example: Cyan color = (1,0,0) means red is removed; CMY: (1,1,0) -> red and green is removed => what color?

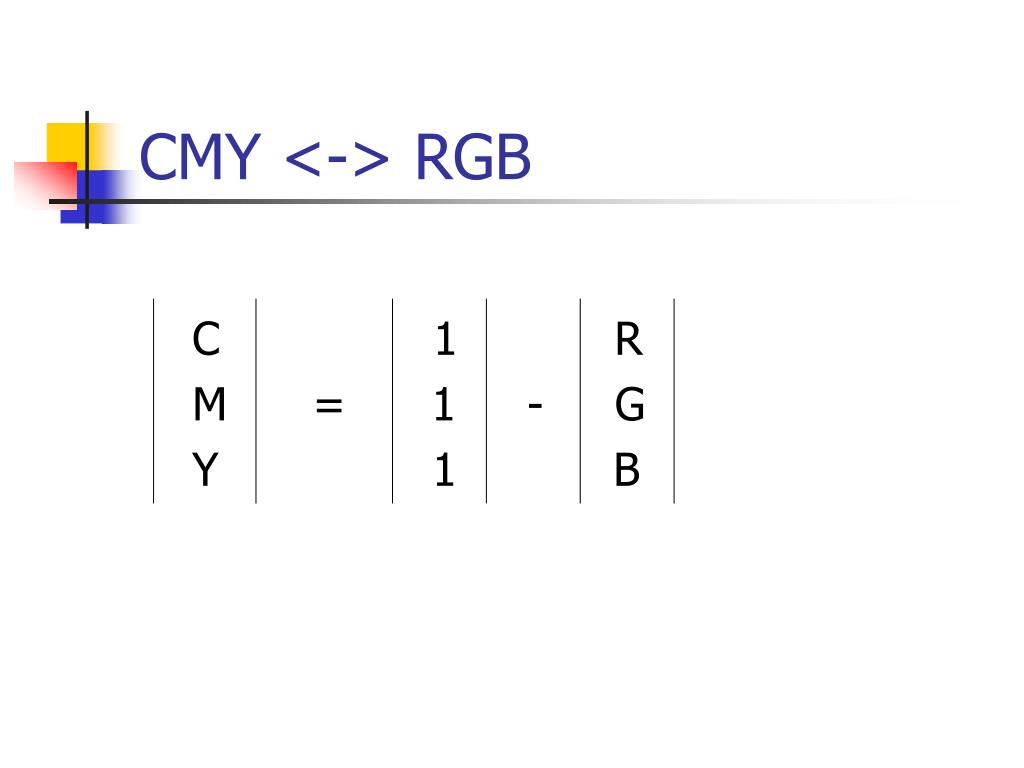

  18. CMY <-> RGB C 1 R M = 1 - G Y 1 B
