Presentation Transcript
fwd axles
FWD axles
  • Drive axles for FWD commonly called half shafts
  • Half shafts allow wheels to turn and have suspension movements
    • Half shafts consist of inner CV joint, axle shaft and outer CV joint
    • Most half shafts are unequal length causing torque steer
  • Most use a sealed front wheel bearing
constant velocity joints
Constant velocity joints
  • CV joints deliver uniform torque through wide range of angles
  • Inner joints must be plunge type
  • Outer joints usually have wide range of angles and do not plunge (Rzeppa)
  • Joints must operate in a sealed and clean environment
cv boots
CV boots
  • Boots must seal joint and grease
  • Common failure point on outer joint
  • Axle and joints must be removed to replace boot and grease
  • Only solid boots should be used
  • May need special tools for clamps
cv service
CV service
  • Normally a failed joint will cause noise
    • Clicking joint on turns is usually outer CV
    • Vibration during accel/decel and /or clunk usually inner CV
  • Running wheels off of ground can damage joints
  • Moisture / dirt in joint from ruptured boot is death to the joint
rwd drive shafts
RWD drive shafts
  • Drive shaft connects transmission to rear axle
  • May be called propeller shaft
  • May be one piece or two piece if needed due to angles
  • Will have at least two u-joints
  • Will have critical balance weights
u joints
U-joints
  • Similar to CV joints in purpose but not as flexible
  • U-joint angles must be similar to cancel each other
  • U-joints must be phased to eliminate vibration
  • Front yoke of driveline must be able to plunge in and out on transmission output shaft

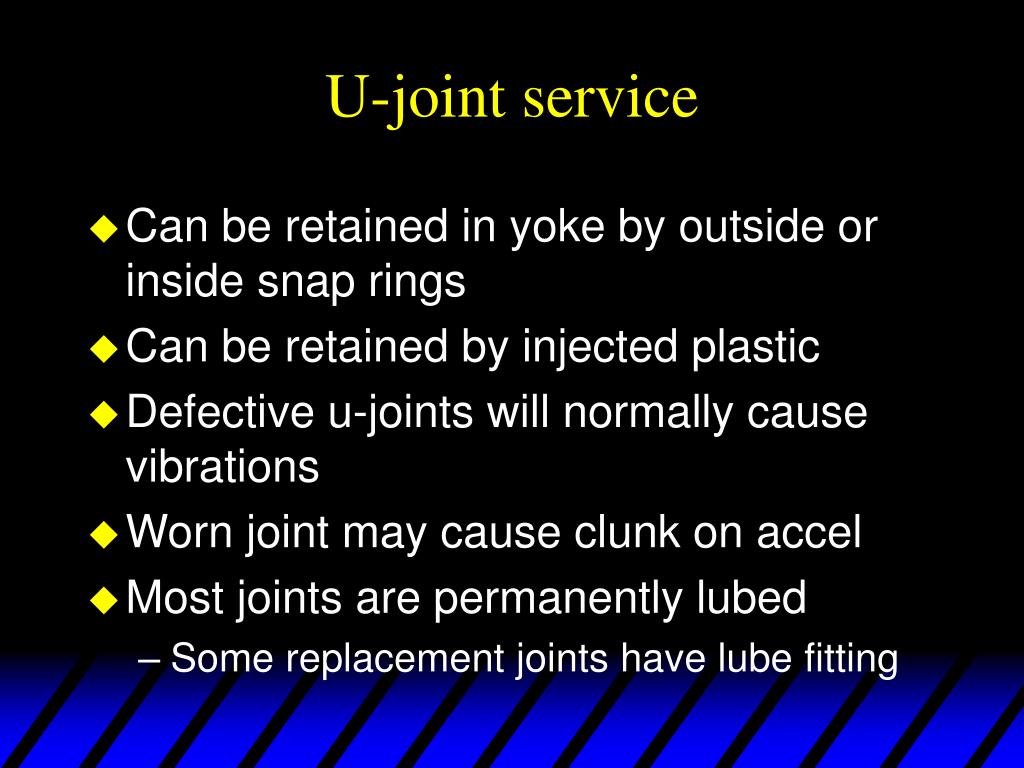

u joint service
U-joint service
  • Can be retained in yoke by outside or inside snap rings
  • Can be retained by injected plastic
  • Defective u-joints will normally cause vibrations
  • Worn joint may cause clunk on accel
  • Most joints are permanently lubed
    • Some replacement joints have lube fitting
