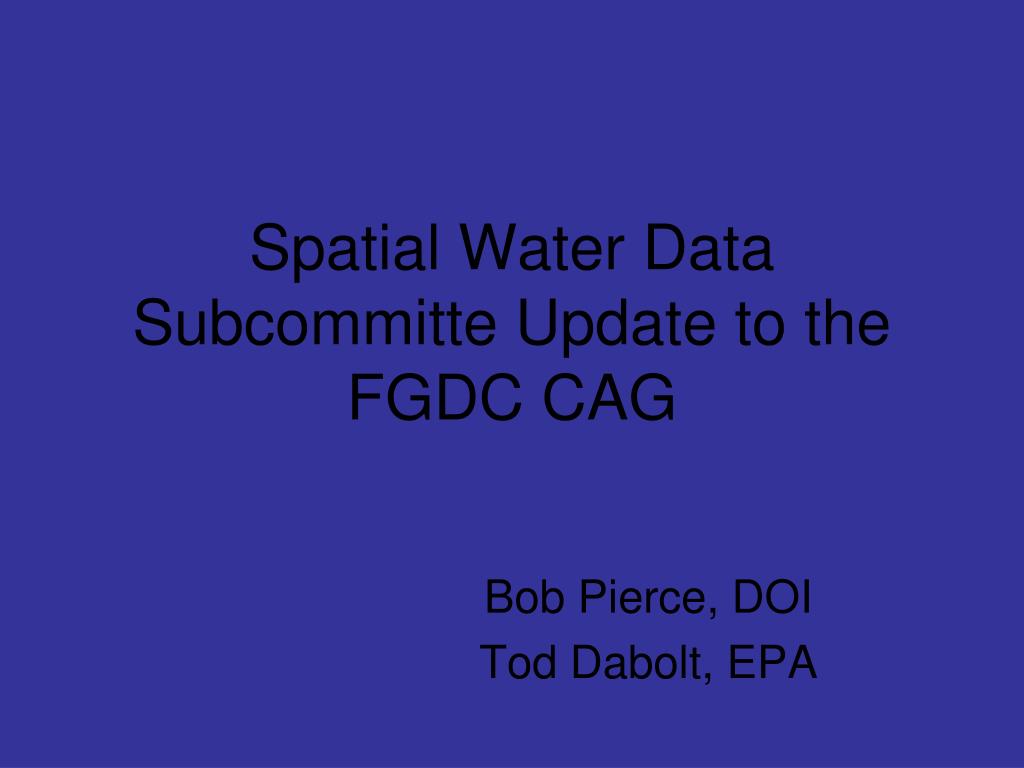

  1. Spatial Water Data Subcommitte Update to the FGDC CAG Bob Pierce, DOI Tod Dabolt, EPA

  2. Vision for aNational Geospatial Surfacewater Framework - Mission Accomplished? NHD NED WBD

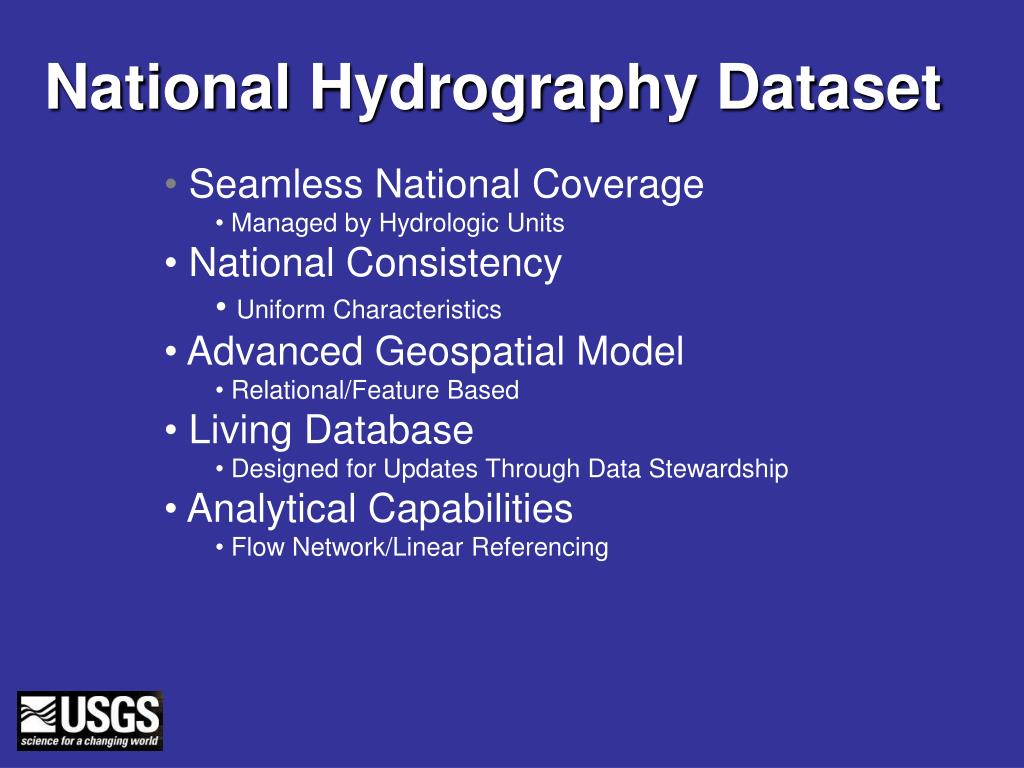

  3. National Hydrography Dataset • Seamless National Coverage • Managed by Hydrologic Units • National Consistency • Uniform Characteristics • Advanced Geospatial Model • Relational/Feature Based • Living Database • Designed for Updates Through Data Stewardship • Analytical Capabilities • Flow Network/Linear Referencing

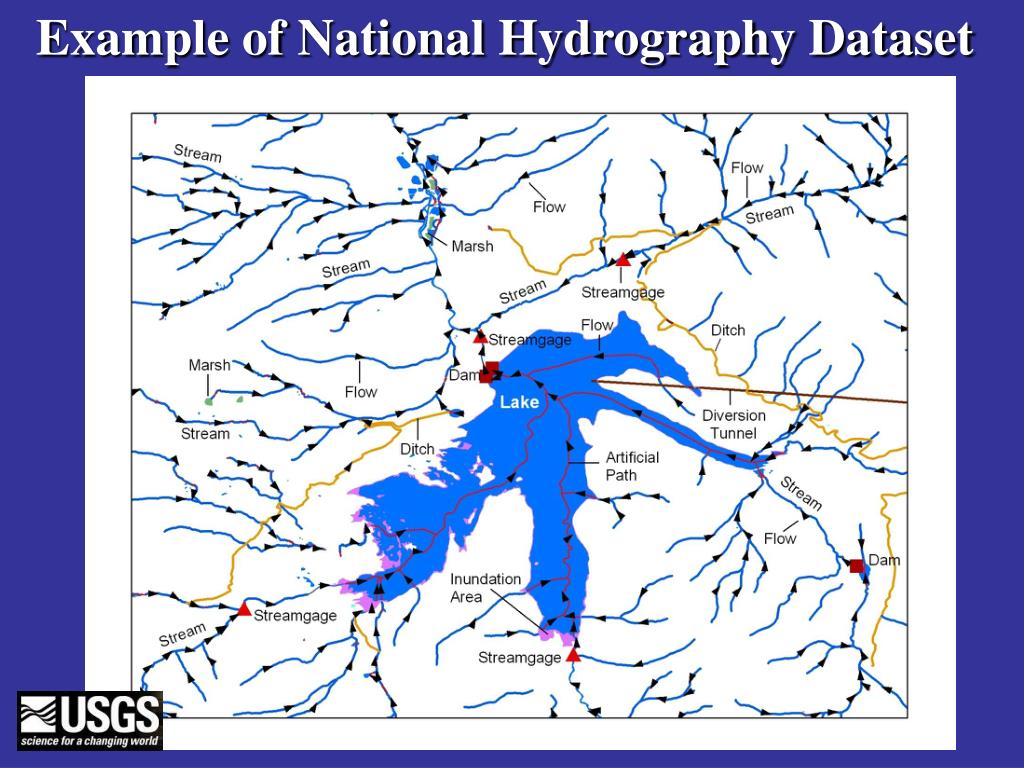

  4. Example of National Hydrography Dataset

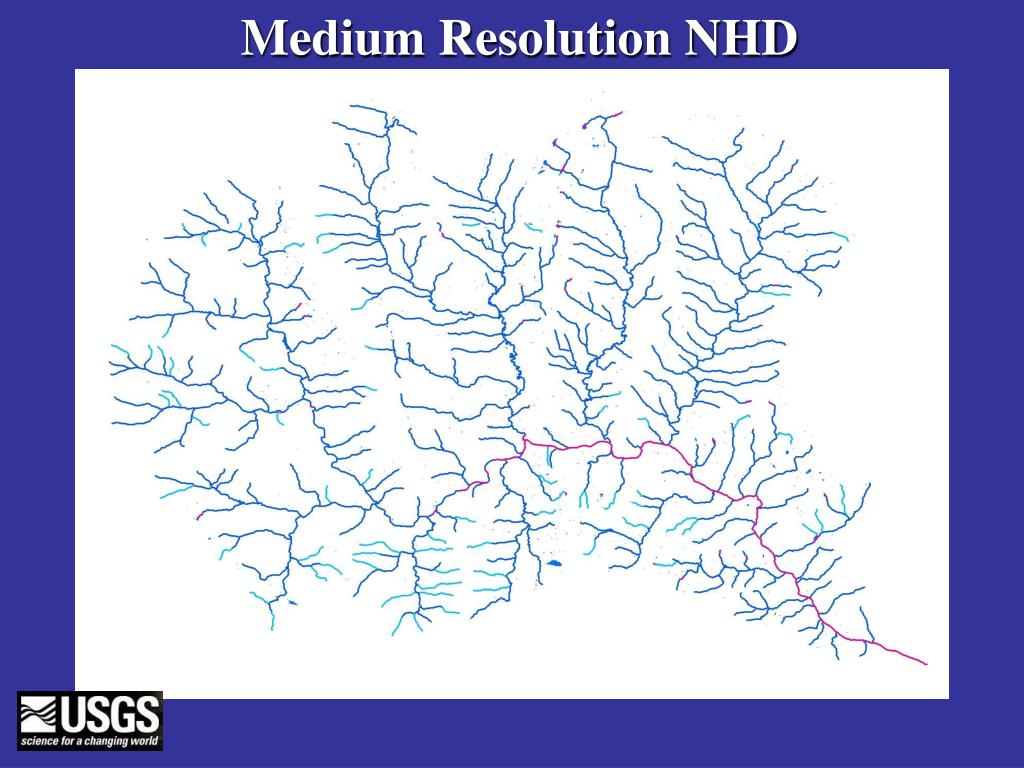

  5. Medium Resolution NHD

  6. High Resolution NHD

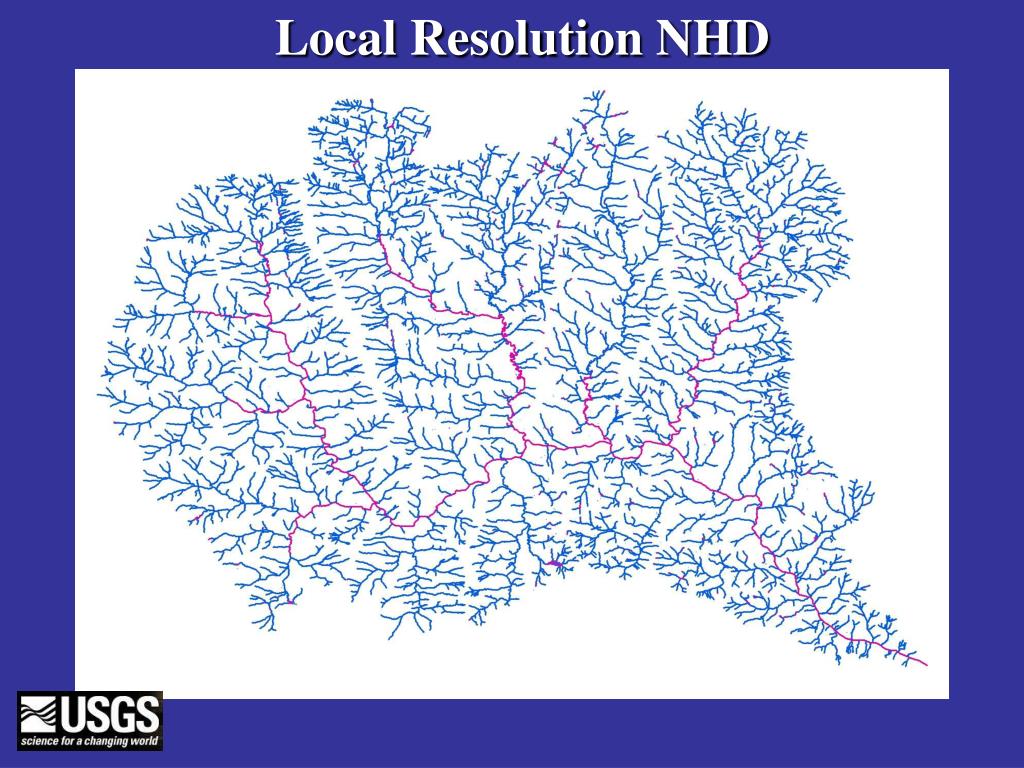

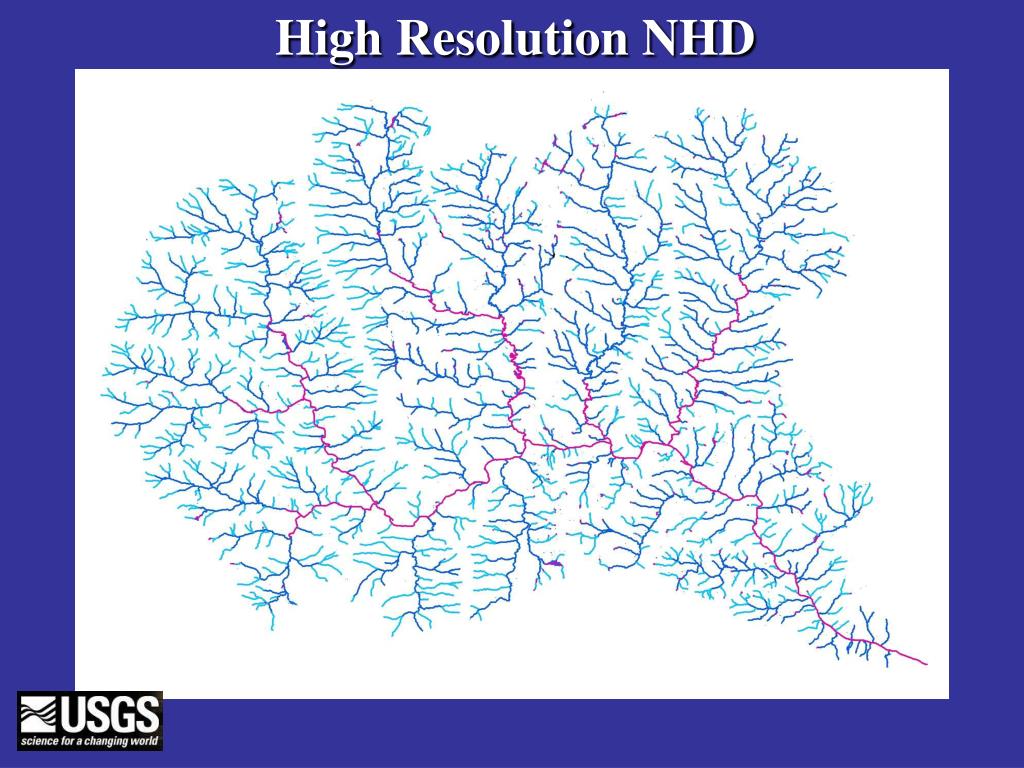

  7. Local Resolution NHD

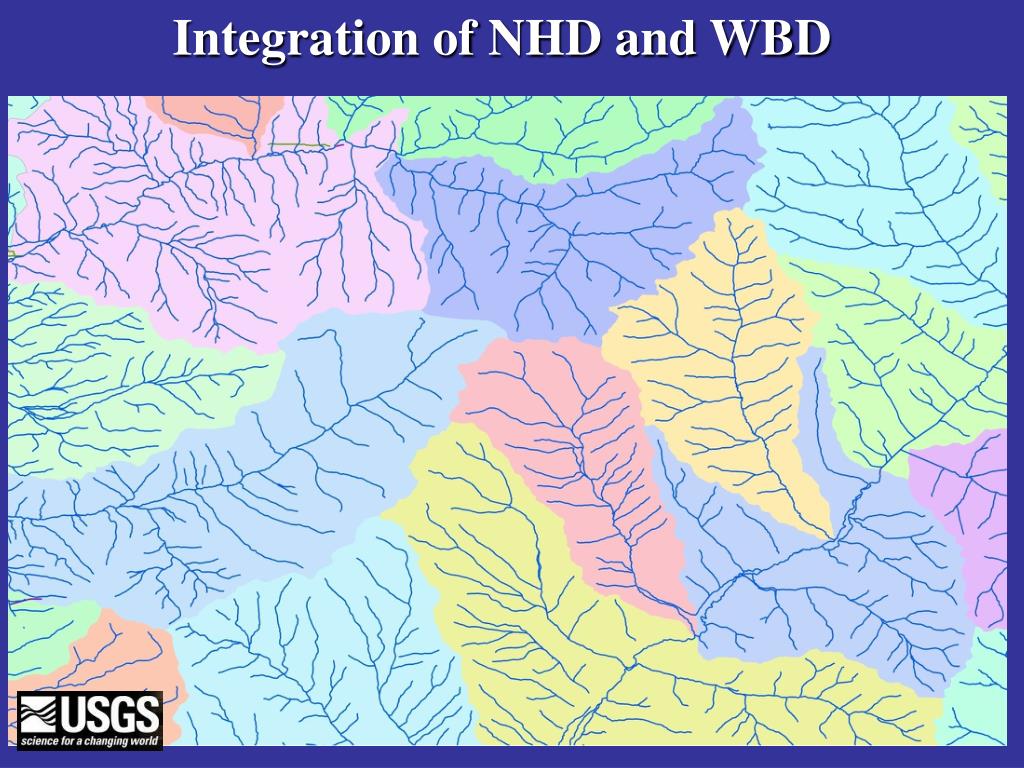

  8. Integration of NHD and WBD

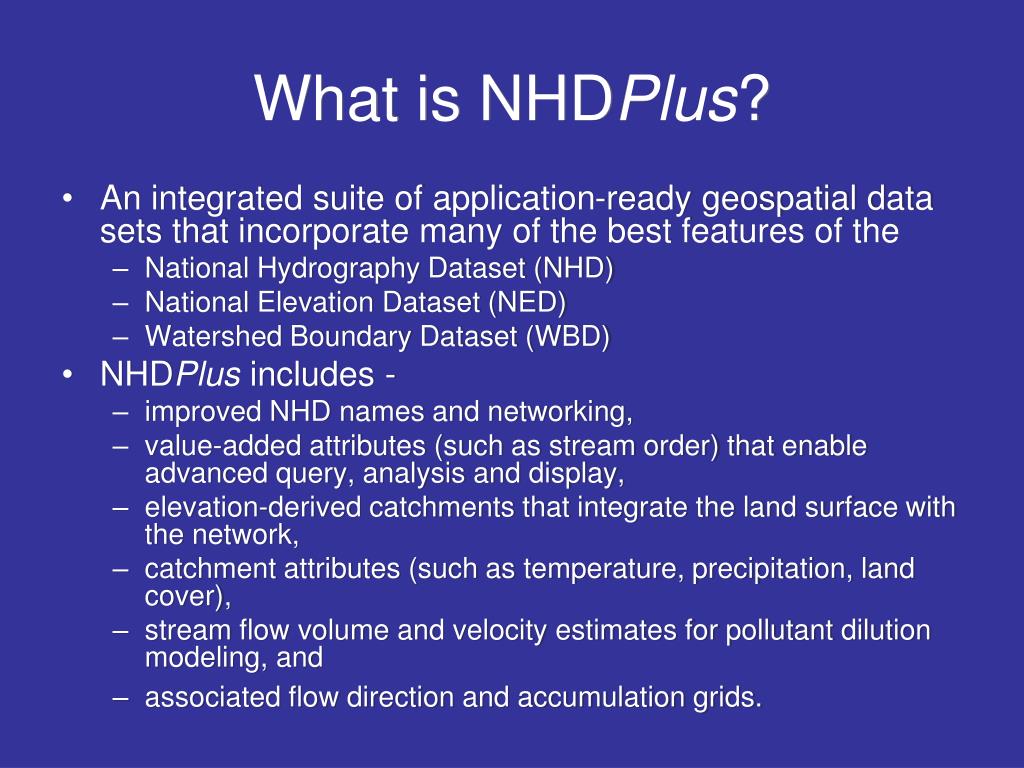

  9. What is NHDPlus? • An integrated suite of application-ready geospatial data sets that incorporate many of the best features of the • National Hydrography Dataset (NHD) • National Elevation Dataset (NED) • Watershed Boundary Dataset (WBD) • NHDPlus includes - • improved NHD names and networking, • value-added attributes (such as stream order) that enable advanced query, analysis and display, • elevation-derived catchments that integrate the land surface with the network, • catchment attributes (such as temperature, precipitation, land cover), • stream flow volume and velocity estimates for pollutant dilution modeling, and • associated flow direction and accumulation grids.

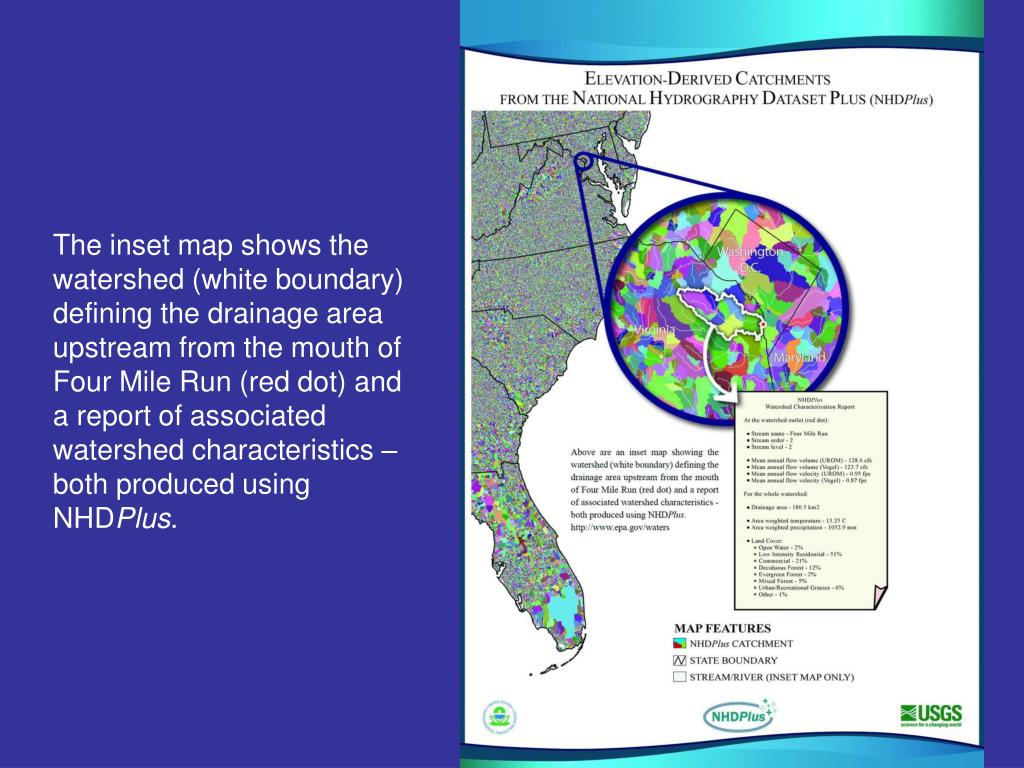

  10. The inset map shows the watershed (white boundary) defining the drainage area upstream from the mouth of Four Mile Run (red dot) and a report of associated watershed characteristics – both produced using NHDPlus.

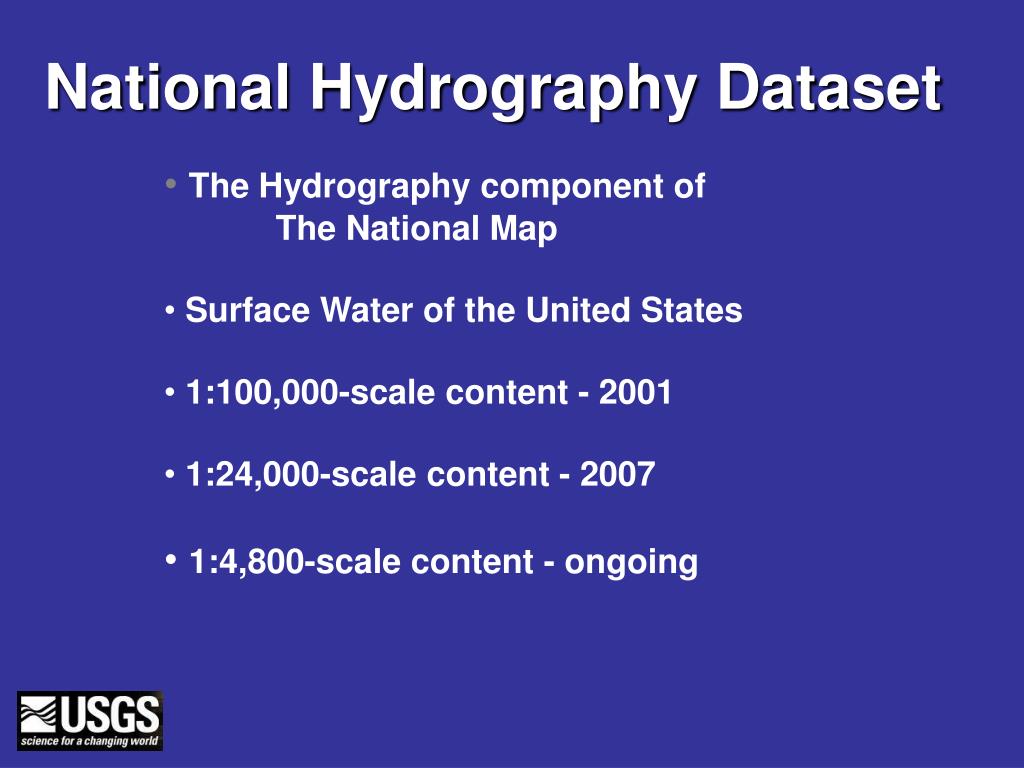

  11. National Hydrography Dataset • The Hydrography component of • The National Map • Surface Water of the United States • 1:100,000-scale content - 2001 • 1:24,000-scale content - 2007 • 1:4,800-scale content - ongoing

  12. National Hydrography Dataset • The Hydrography component of • The National Map • Surface Water of the United States • 1:100,000-scale content - 2001 • 1:24,000-scale content - 2007 • 1:4,800-scale content - ongoing

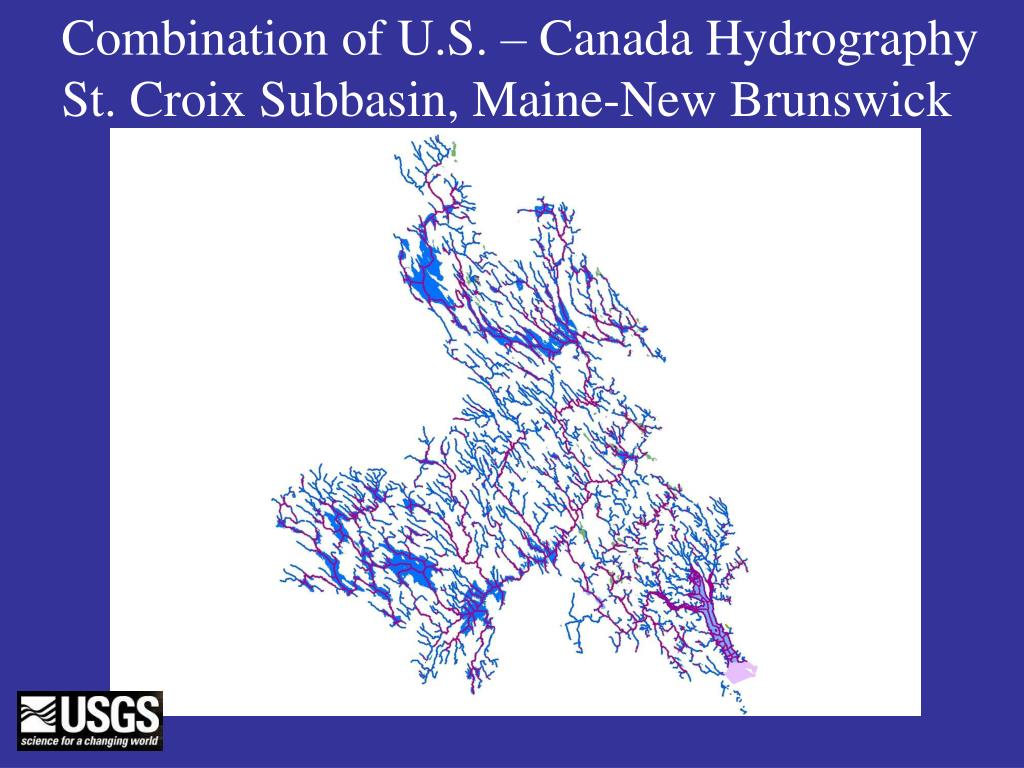

  13. Combination of U.S. – Canada Hydrography St. Croix Subbasin, Maine-New Brunswick

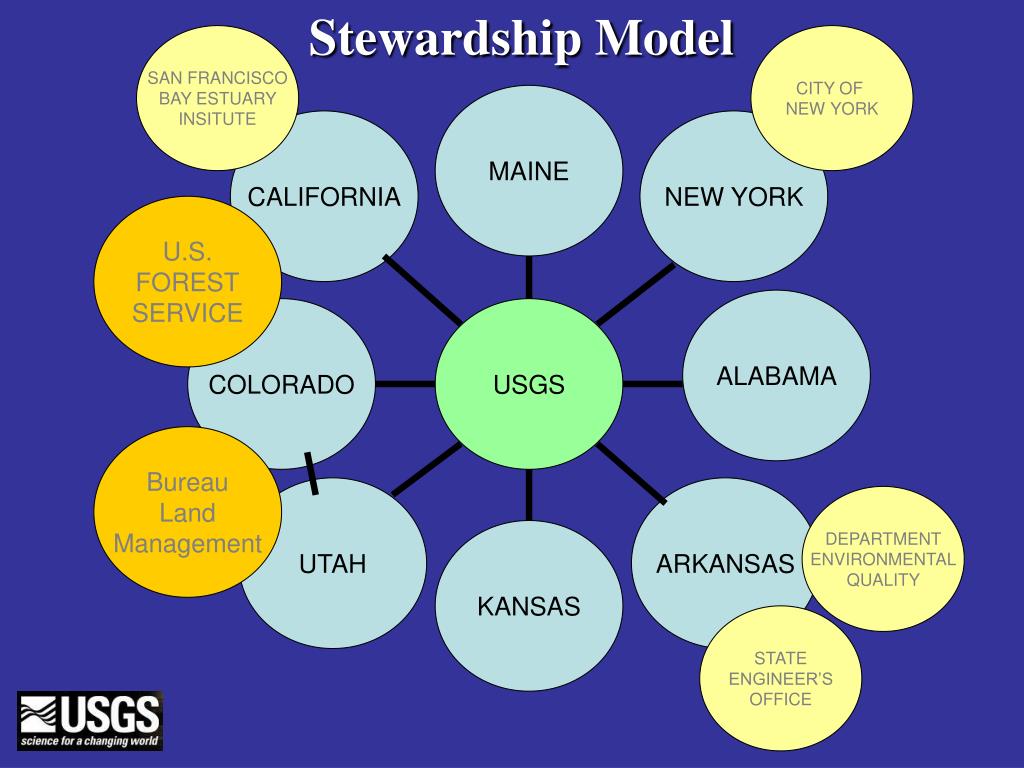

  14. Stewardship Model SAN FRANCISCO BAY ESTUARY INSITUTE CITY OF NEW YORK MAINE CALIFORNIA NEW YORK U.S. FOREST SERVICE ALABAMA COLORADO USGS Bureau Land Management UTAH ARKANSAS DEPARTMENT ENVIRONMENTAL QUALITY KANSAS STATE ENGINEER’S OFFICE

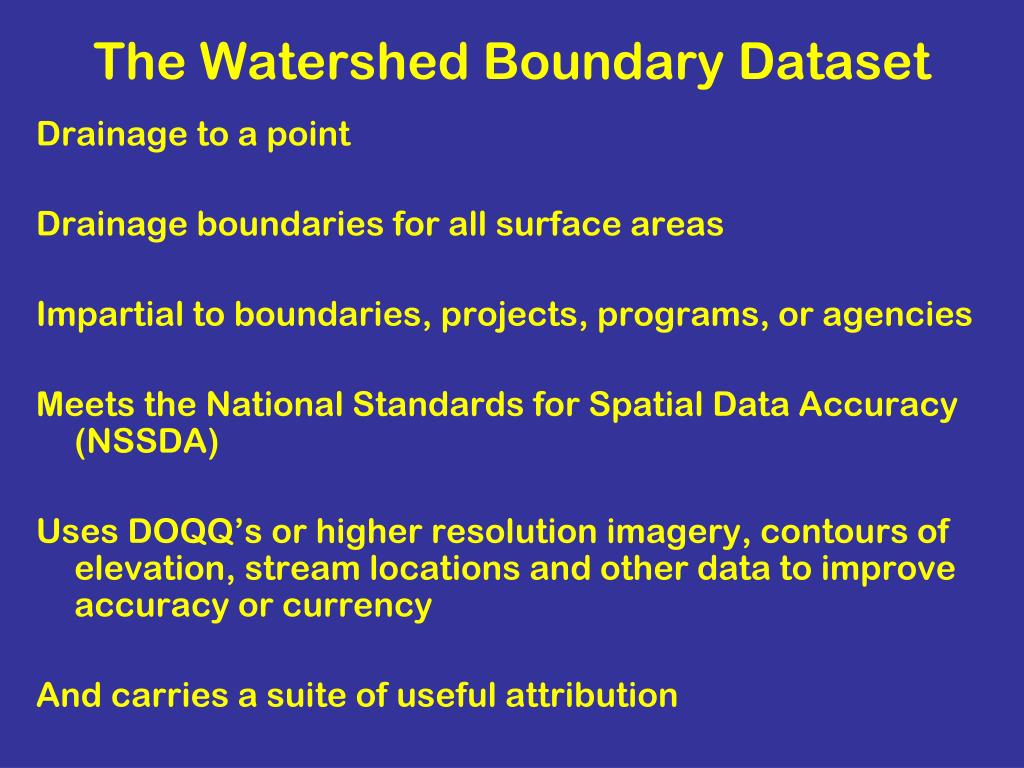

  15. The Watershed Boundary Dataset Drainage to a point Drainage boundaries for all surface areas Impartial to boundaries, projects, programs, or agencies Meets the National Standards for Spatial Data Accuracy (NSSDA) Uses DOQQ’s or higher resolution imagery, contours of elevation, stream locations and other data to improve accuracy or currency And carries a suite of useful attribution

  16. Next year we will have a combined WBD and NHD A new way of thinking about Hydrography

  17. Watershed Boundary Dataset integration with the National Hydrography Dataset

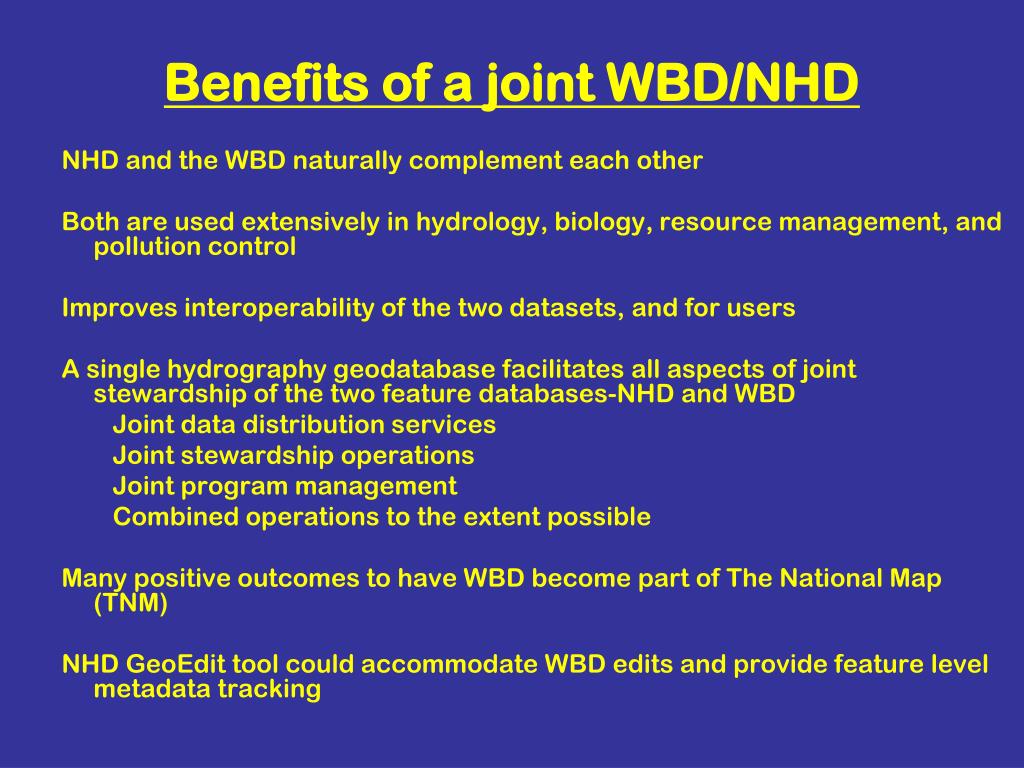

  18. Benefits of a joint WBD/NHD NHD and the WBD naturally complement each other Both are used extensively in hydrology, biology, resource management, and pollution control Improves interoperability of the two datasets, and for users A single hydrography geodatabase facilitates all aspects of joint stewardship of the two feature databases-NHD and WBD Joint data distribution services Joint stewardship operations Joint program management Combined operations to the extent possible Many positive outcomes to have WBD become part of The National Map (TNM) NHD GeoEdit tool could accommodate WBD edits and provide feature level metadata tracking

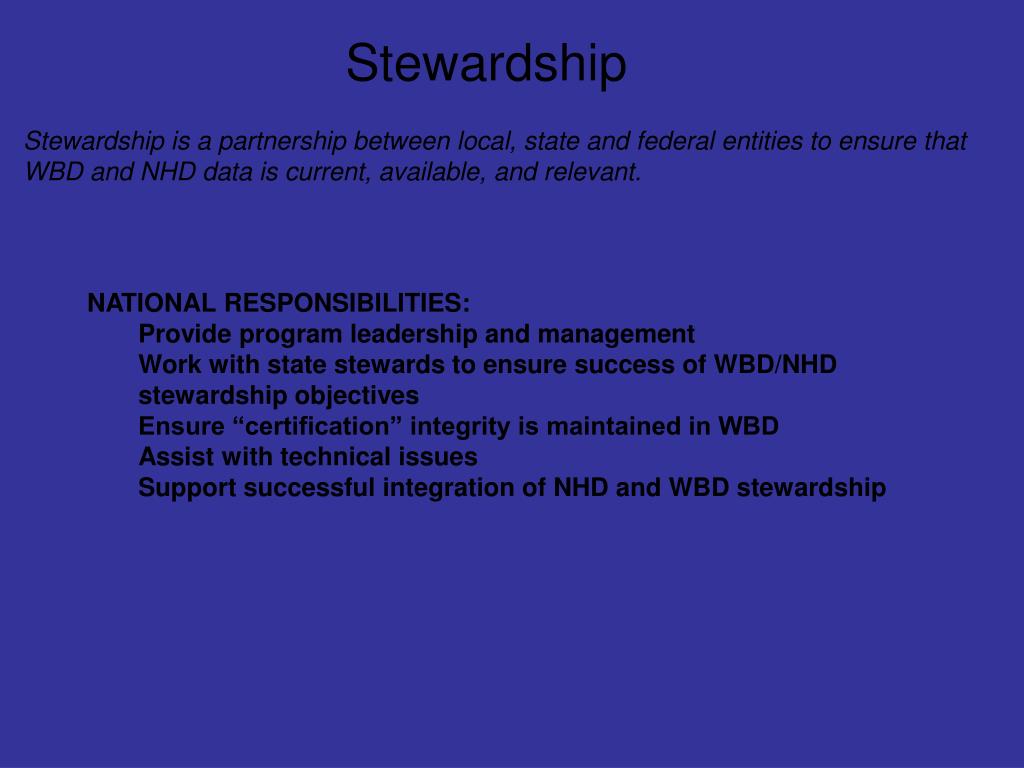

  19. Stewardship Stewardship is a partnership between local, state and federal entities to ensure that WBD and NHD data is current, available, and relevant. • NATIONAL RESPONSIBILITIES: • Provide program leadership and management • Work with state stewards to ensure success of WBD/NHD stewardship objectives • Ensure “certification” integrity is maintained in WBD • Assist with technical issues • Support successful integration of NHD and WBD stewardship

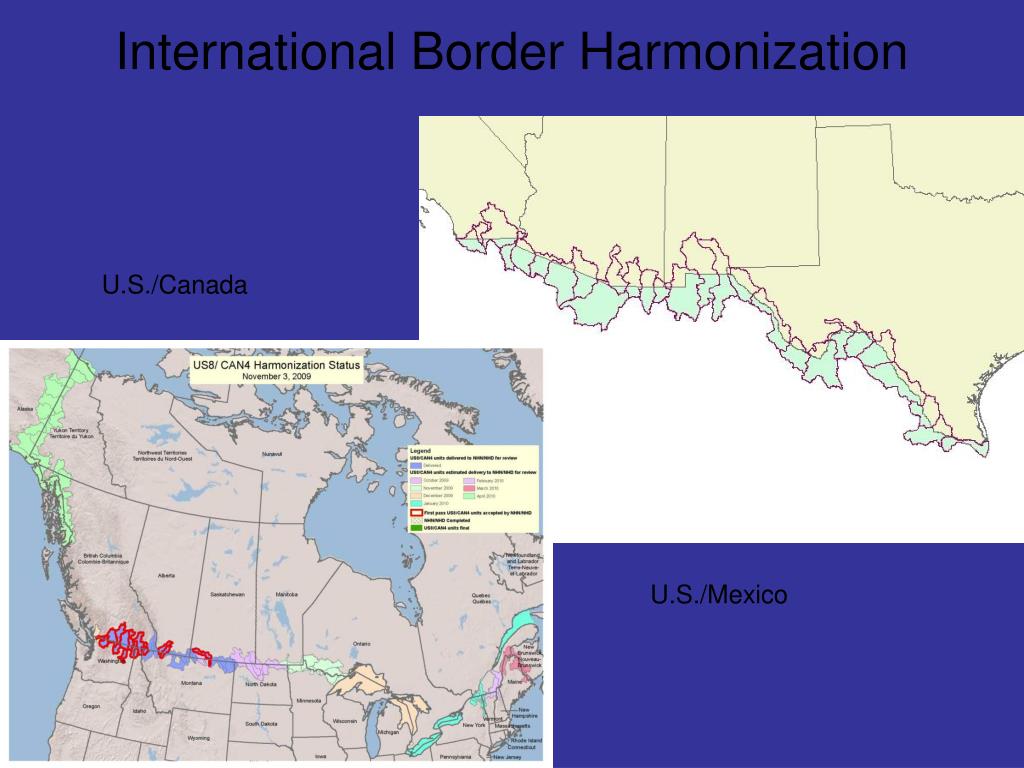

  20. International Border Harmonization U.S./Canada U.S./Mexico

  21. WBD Coastal Modifications Washington coast after the 3-nm NOAA marine boundary was applied for the outer limit of the HU. No nearshore limit was applied

  22. Integration with Geographic Names Information System (GNIS) Integration
