Presentation Transcript
slide1

Using Machine Learning to Model Standard Practice: Retrospective Analysis of Group C-Section Rate via Bagged Decision Trees

Rich Caruana Cornell CS

Stefan Niculescu CMU CS

Bharat Rao Siemens Medical

Cynthia Simms Magee Hospital

c section in the u s
C-Section in the U.S.
  • C-section rate in U.S. too high
    • Western Europe has lower rates, but comparable outcomes
    • C-section is major surgery => tough on mother
    • C-section is expensive
  • Why is U.S. rate so high?
    • Convenience (rate highest Fridays, before sporting events, …)
    • Litigation
    • Social and Demographic issues
  • Current controls
    • Financial: pay-per-patient instead of pay-per-procedure
    • Physician reviews: monthly/quarterly evaluation of rates
risk adjustment
Risk Adjustment
  • Some practices specialize in high risk patients
  • Some practices have low-risk demographics
  • Must correct for patient population seen by each practice
risk adjustment1
Risk Adjustment
  • Some practices specialize in high risk patients
  • Some practices have low-risk demographics
  • Must correct for patient population seen by each practice

Need an accurate, objective, evidence-based method for assessing c-section rate of different physician practices

modeling standard practice with machine learning
Modeling "Standard Practice" with Machine Learning
  • Not trying to improve outcomes
  • Maintain quality of outcomes while reducing c-sec rate
  • Compare physicians/practices to other physicians/practices
  • Warn physicians if rate higher than other practitioners
slide6
Data
  • 3 years of data: 1995-1997 from South-Western PA
  • 22,175 expectant mothers
  • 16.8% c-section
  • 144 attributes per patient (82 used for learning)
  • 17 physician practices
  • C-section rate varies from 13% to 23% in practices
learning methods
Learning Methods
  • Logistic Regression
  • Artificial Neural Nets
  • MML Decision Trees
    • Buntine's IND decision tree package
    • Maximum size trees (1000's of nodes)
    • Probabilities generated by smoothing counts along path to leaf
  • Bagged MML Decision Trees
    • Better accuracy
    • Better ROC Area
    • Excellent calibration
bagged decision trees

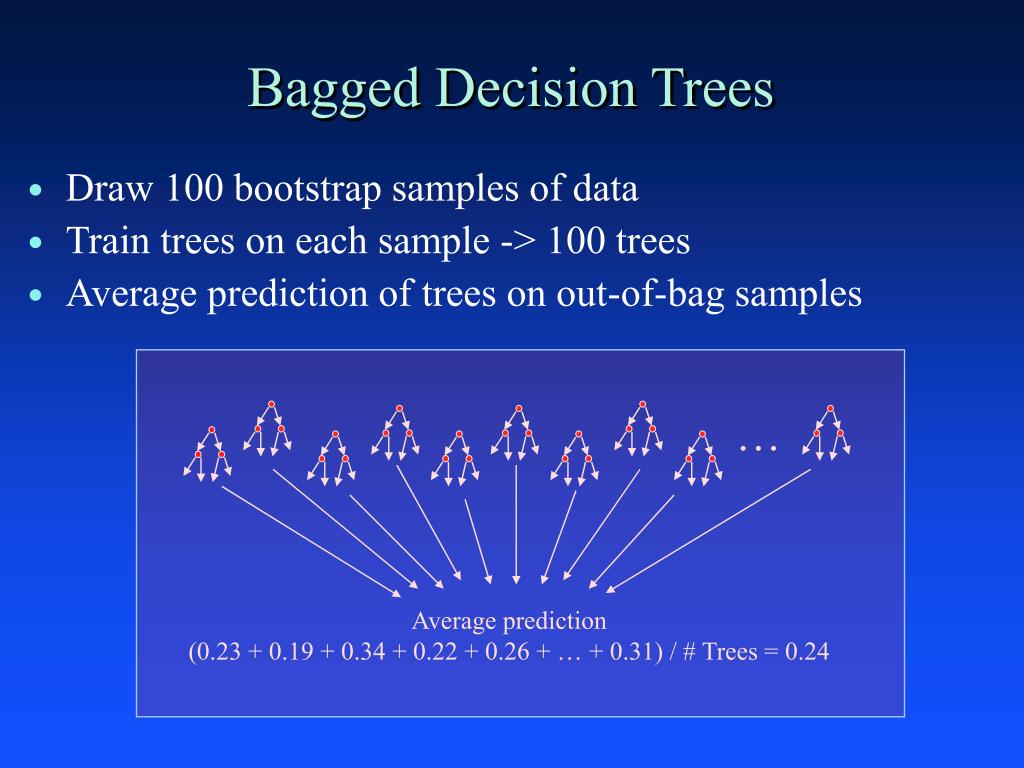

Bagged Decision Trees
  • Draw 100 bootstrap samples of data
  • Train trees on each sample -> 100 trees
  • Average prediction of trees on out-of-bag samples

Average prediction

(0.23 + 0.19 + 0.34 + 0.22 + 0.26 + … + 0.31) / # Trees = 0.24

calibration
Calibration
  • Good calibration:
  • If 1000 patients have pred(x) = 0.1, ~100 should get csec
calibration1
Calibration
  • Model can be accurate but poorly calibrated
    • good threshold with uncalibrated probabilities
  • Model can have good ROC but be poorly calibrated
    • ROC insensitive to scaling/stretching
    • only ordering has to be correct, not probabilities themselves
  • Model can have very high variance, but be well calibrated
    • if expected value <pred(patient)> is correct -> good calibration
    • not worried about prediction for any one patient:
      • aggregate prediction over groups of patients reduces variance
      • high variance of per patient prediction is OK
      • bias/variance tradeoff: favor reducing bias at loss of variance
measuring calibration
Measuring Calibration
  • Bucket method
  • In each bucket:
    • measure observed c-sec rate
    • predicted c-sec rate (average of probabilities)
    • if observed csec rate similar to predicted csec rate => good calibration in that bucket

0.05 0.15 0.25 0.35 0.45 0.55 0.65 0.75 0.85 0.95

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

overall bagged mml dt performance
Overall Bagged MML DT Performance
  • Out-of-bag test points (cross validation for bagging)
  • Accuracy: 90.1% (baseline 83.2%)
  • ROC Area: 0.9233
  • Mean absolute calibration error = 0.013
  • Calibration as good in tails as center of distribution
aggregate risk
Aggregate Risk
  • Aggregate risk of c-section for a group is just the average probability of c-section for each patient in that group
  • If a group's aggregate risk matches the observed c-sec rate, then the group is performing c-secs in accordance with standard practice (as modeled by learned model)
sanity check
Sanity Check
  • Could models have good calibration in tails, but still be inaccurate on some groups of patients?
  • Suppose two kinds of patients, A and B, both with elevated risk: p(A) = p(B) = 0.8
  • Patients A and B differ, model might be more accurate or better calibrated on A than B, so a practice seeing patients A might over/under estimate relative to practice seeing B
  • Are models good on each physician group?
assumptions
Assumptions
  • Intrinsic factors: variables given to learning as inputs
  • Extrinsic factors: variables not given to learning
    • Provider (HMO vs. pay-per-procedure vs. no insurance vs. …)
    • patient/physician preference (e.g. socio-economic class)
  • Learning compensates for intrinsics, not extrinsics
    • assumes extrinsic not correlated to intrinsic
    • correlations may weaken sensitivity
  • Difference between observed and predicted rates due to extrinsic factors, model bias, noise
  • If models are good, differences due mainly to extrinsic factors such as provider and physician/patient preferences
summary conclusions
Summary & Conclusions
  • Bagged probabilistic decision trees are excellent
    • Accuracy: 86.9% -> 90.1%
    • ROC Area: 0.891 -> 0.923
    • Calibration: 0.169 -> 0.013!
  • Learned models of standard practice are good
  • 3 of 17 groups have high c-section rate
    • one has high-risk population
    • one has normal risk population
    • one has low-risk population!!!
  • One group has csec rate 4% below predicted rate
    • how do they do it?
    • are their outcomes good?
future work
Future Work
  • 3 more years of unused data: 1992-1994
  • Do discrepancies to standard practice correlate with:
    • practice characteristics?
    • patient characteristics?
    • payor characteristics?
    • outcomes?
  • Compare with data/models for patients in Europe
  • Confidence intervals
  • Research on machine learning to improve calibration
  • Apply this methodology to other problems in medicine
sub population assessment
Sub Population Assessment
  • Accurately predict c-section rate for groups of patients
    • aggregate prediction
    • not worried about prediction for individual patients
  • Retrospective analysis
    • not prediction for future patients (i.e. pregnant women)
    • prediction for pregnancies that already have gone full term
    • risk assumed by physician, not machine learning
  • Tell physician/practice if their rate does not match rate predicted by the standard practice model
calibration2
Calibration
  • Good calibration:
  • Given 1000 patients with identical features, observed rate should equal average predicted rate on those patients
  • Often have:

but that's not good enough
