  1. The Confrontation between General Relativity and Experiment Clifford Will Washington University, St. Louis John Archibald Wheeler International School on Astrophysical Relativity

  2. The Confrontation between General Relativity and Experiment • Introduction • The Einstein Equivalence Principle • Solar-System Tests of GR • Binary Pulsar and Strong-Field Tests of GR • Gravitational Waves -- A New Testing Ground J. A. Wheeler School

  3. The Einstein Equivalence Principle • Test bodies fall with the same acceleration • Weak Equivalence Principle (WEP) • In a local freely falling frame, physics (non-gravitational) is independent of frame’s velocity • Local Lorentz Invariance (LLI) • In a local freely falling frame, physics (non-gravitational) is independent of frame’s location • Local Position Invariance (LPI)

  4. Tests of the Weak Equivalence Principle APOLLO (LLR) 10-13 Microscope 10-15(2008) STEP 10-18 (?)

  5. 5th Force, Strings, Extra Dimensions and EEP • exchange of scalaror vector bosons ofmass m • ultra-small massfor long range effects • gravitational strengthcoupling • Gravity “leaks” into extradimensions of macroscopic scale (1/r2 --> 1/rn) No evidenceto 1/100 ofgravity at 1 mm & to 1 X gravity At 10 mm Violation of EEP or Inverse Square Law could signal new physics

  6. Tests of Local Lorentz Invariance Extended frameworks by Kostelecky, Jacobson et al. • Clock comparisons • Clocks vs cavities • Time of flight of high energy photons • Birefringence in vacuum • Neutrino oscillations • Threshold effects in particle physics

  7. The Confrontation between General Relativity and Experiment • Introduction • The Einstein Equivalence Principle • Solar-System Tests of GR • Binary Pulsar and Strong-Field Tests of GR • Gravitational Waves -- A New Testing Ground J. A. Wheeler School

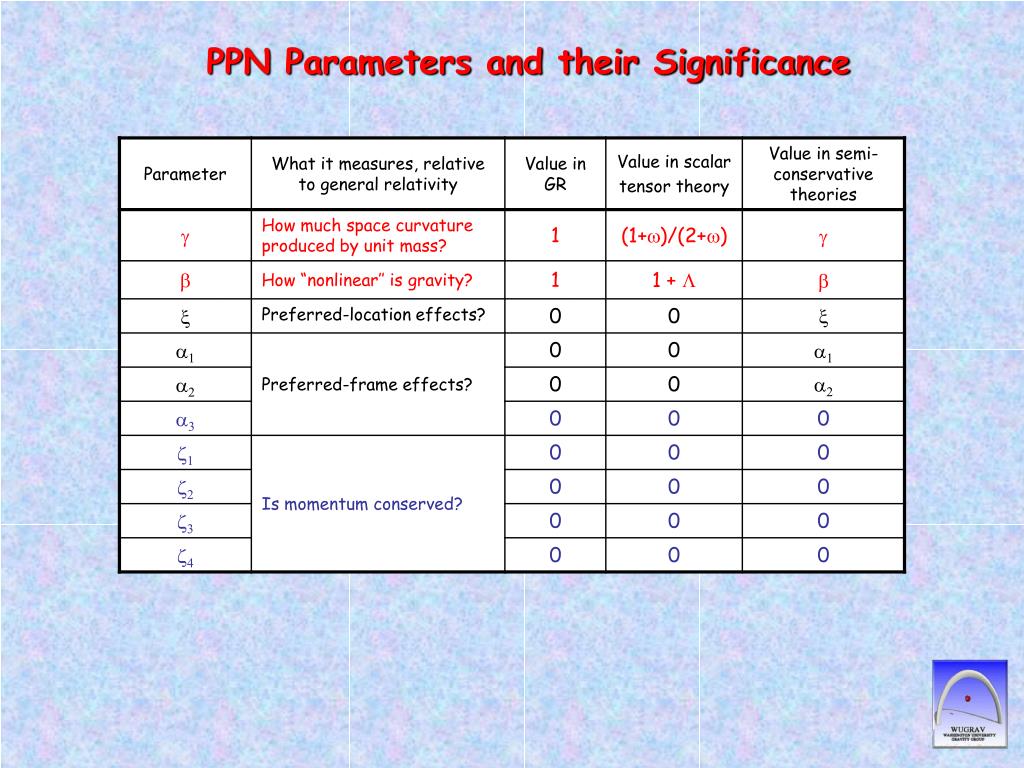

  8. PPN Parameters and their Significance

  9. Light Bending and Alternative Gravitation Theories Deflection = a b’ c’ b c • Cavendish 1784 • von Soldner 1803 • Einstein 1911 GR g=1 Space Curvature

  10. The parameter (1+g)/2

  11. Bounds on the PPN Parameters h=4b-y-3-10x/3-a1+2a2/3-2z1/3-z2/3

  12. Bounds on the PPN Parameters GAIA (2011) 10-6 LATOR 10-8 BepiColombo (2012) J2 ~ 10-8 APOLLO 3 X 10-5 h=4b-y-3-10x/3-a1+2a2/3-2z1/3-z2/3

  13. GRAVITY PROBE B Goal 0.4 mas/yr Launch April 20, 2004 Mission ended Sept 2005

  14. Gravity Probe B: The Experiment -- Payload

  15. Gravity Probe B: The Experiment -- Gyroscopes

  16. The Confrontation between General Relativity and Experiment • Introduction • The Einstein Equivalence Principle • Solar-System Tests of GR • Binary Pulsar and Strong-Field Tests of GR • Gravitational Waves -- A New Testing Ground J. A. Wheeler School

  17. The Binary Pulsar: Gravitational Waves Exist! Discovery: 1974 Pulse period: 59 ms (16cps) Orbit period: 8 hours 1993 Nobel Prize to Joe Taylor & Russell Hulse

  18. Decay of the orbit of PSR 1913+16 From Weisberg & Taylor (astro-ph/0407149)

  19. The Binary Pulsar Zoo • PSR 2127+11C • a clone of 1913+16 • PSR 1534+12 • distance poorly known • J 1141-6545 • 0.19 day orbit • 1 M0 WD companion • dPb/dt to 25% • J 0737-3039 • 0.10 day orbit • two pulsars seen! • dw/dt = 17o/yr • sin i = 0.9995 • dPb/dt to 6% • J 1756-2251 • 0.32 day orbit • dw/dt = 2.6 o/yr • m2 < 1.25 Msun

  20. Probing BH spacetime using stars A 3.6 million Msun black hole in the Milky Way Next generation adaptive optics telescopes (eg GRAVITY - VLTI) • 10 mas precision • faint stars • periods ~ 1 year • periholion 100 Rs • measure periholion shift, frame dragging orbit precession Genzel et al, Max Planck Institute Ghez et al, UCLA

  21. Imaging and Spectroscopy of Accretion Disks • High resolution imaging of hot spot in accretion onto BH at Galactic Center • 45º inclination • a=0 and 0.998 C. Reynolds, U. Md • Evolution of Fe fluorescence lines during X-ray flare • sensitive to M and J of BH • Constellation-X mission Broderick & Loeb, CFA

  22. The Confrontation between General Relativity and Experiment • Introduction • The Einstein Equivalence Principle • Solar-System Tests of GR • Binary Pulsar and Strong-Field Tests of GR • Gravitational Waves -- A New Testing Ground J. A. Wheeler School

  23. Interferometers Around The World LIGO Hanford 4&2 km GEO Hannover 600 m TAMA Tokyo 300 m Virgo Cascina 3 km LIGO Livingston 4 km

  24. LISA: a space interferometer for 2013

  25. Inspiralling Compact Binaries - Strong-gravity GR tests? • Fate of the binary pulsar in 100 My • GW energy loss drives pair toward merger LIGO-VIRGO • Last few minutes (10K cycles) for NS-NS • 40 - 700 per year by 2010 • BH inspirals could be more numerous LISA • MBH pairs(105 - 107 Ms) in galaxies • Waves from the early universe A chirp waveform Last 7 orbits Compare measured shape with detailed predictions from GR (parts per 106) [Scharre,Yunes,Berti,Buonanno & CW]

  26. Inspiralling Compact Binaries - Strong-gravity GR tests? • Fate of the binary pulsar in 100 My • GW energy loss drives pair toward merger LIGO-VIRGO • Last few minutes (10K cycles) for NS-NS • 40 - 700 per year by 2010 • BH inspirals could be more numerous LISA • MBH pairs(105 - 107 Ms) in galaxies • Waves from the early universe A chirp waveform Last 7 orbits Merging horizons, twisting spacetime -computer solutions of GR critical

  27. Inspiralling Compact Binaries - Strong-gravity GR tests? • Fate of the binary pulsar in 100 My • GW energy loss drives pair toward merger LIGO-VIRGO • Last few minutes (10K cycles) for NS-NS • 40 - 700 per year by 2010 • BH inspirals could be more numerous LISA • MBH pairs(105 - 107 Ms) in galaxies • Waves from the early universe A chirp waveform Last 7 orbits Uniquely determined by M and S of hole - test of GR’s black holes? [Berti,Cardoso & CW]

  28. The Confrontation between General Relativity and Experiment • Introduction • The Einstein Equivalence Principle • Solar-System Tests of GR • Binary Pulsar and Strong-Field Tests of GR • Gravitational Waves -- A New Testing Ground J. A. Wheeler School
