Presentation Transcript
slide1

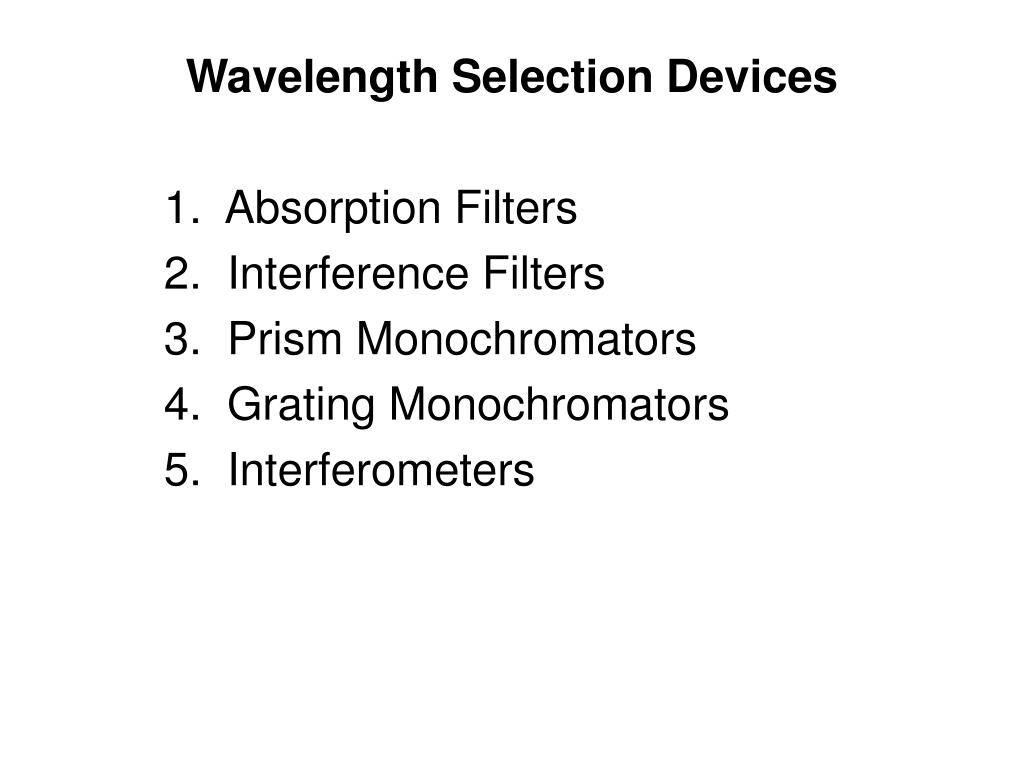

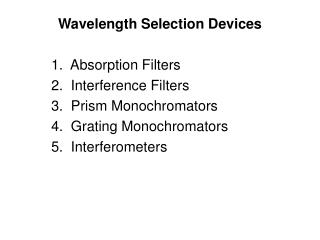

Wavelength Selection Devices

1. Absorption Filters

2. Interference Filters

3. Prism Monochromators

4. Grating Monochromators

5. Interferometers

slide2

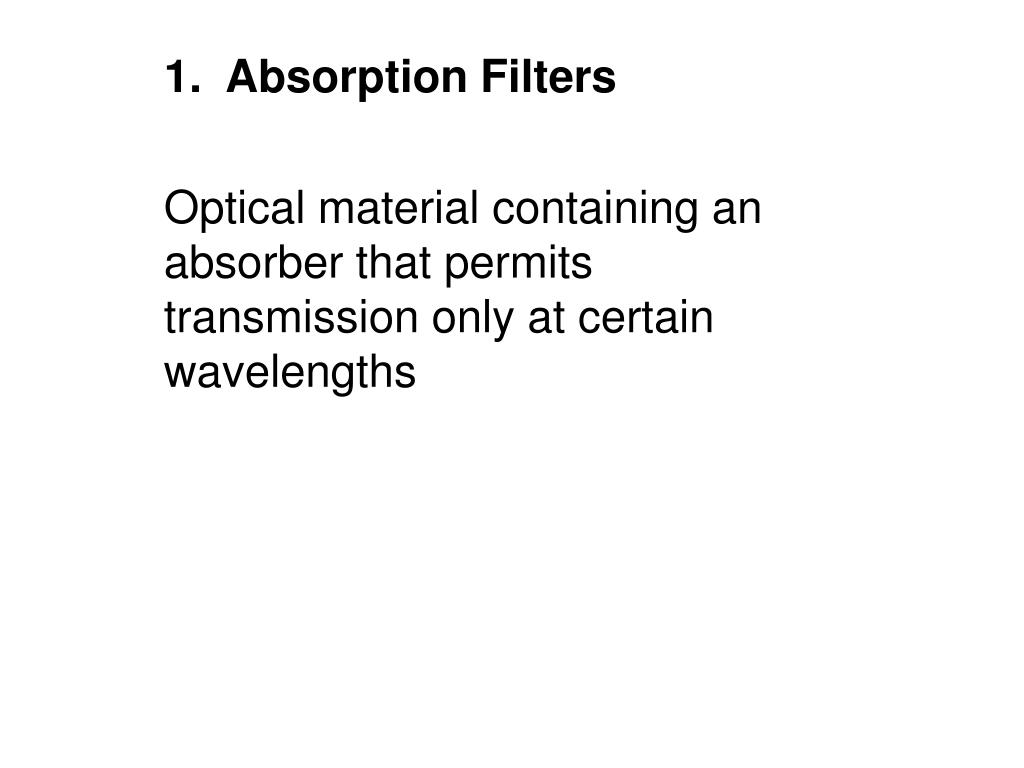

1. Absorption Filters

Optical material containing an absorber that permits transmission only at certain wavelengths

slide8
2. Interference Filter

A “sandwich” of at least two parallel optical flats that transmit only rays that undergo constructive interference.

3 prism monochromator wavelength selection device containing a movable prism
3. Prism Monochromator

Wavelength selection device containing a movable prism.

slide14

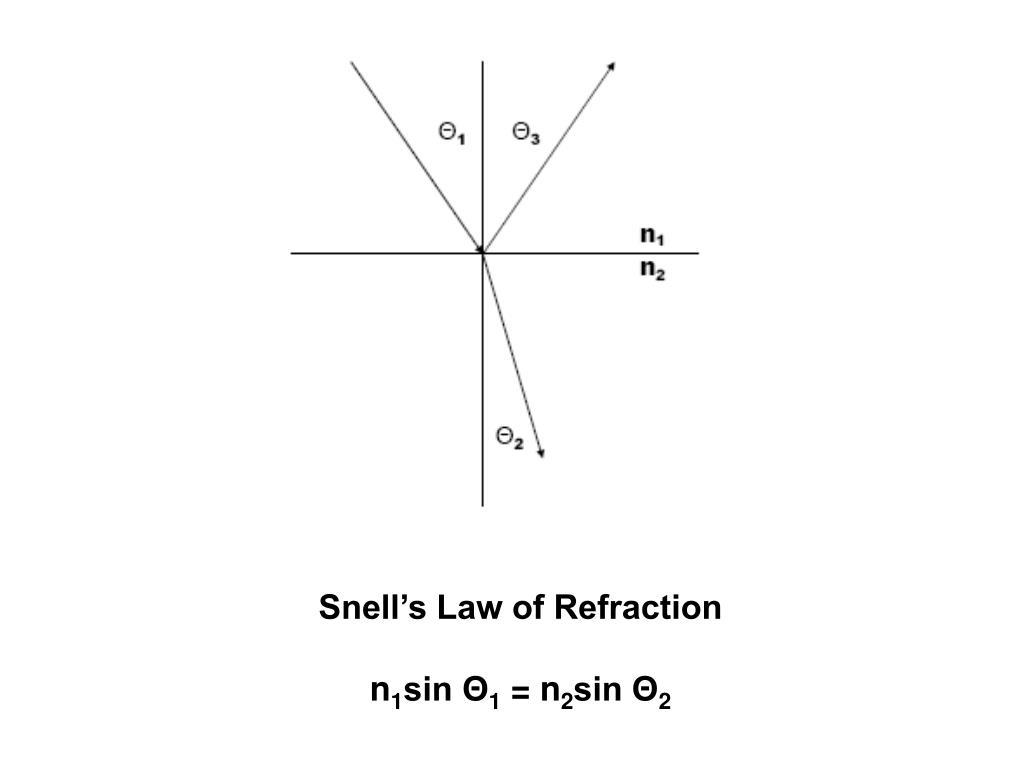

Snell’s Law of Refraction

n1sin Θ1 = n2sin Θ2

slide18

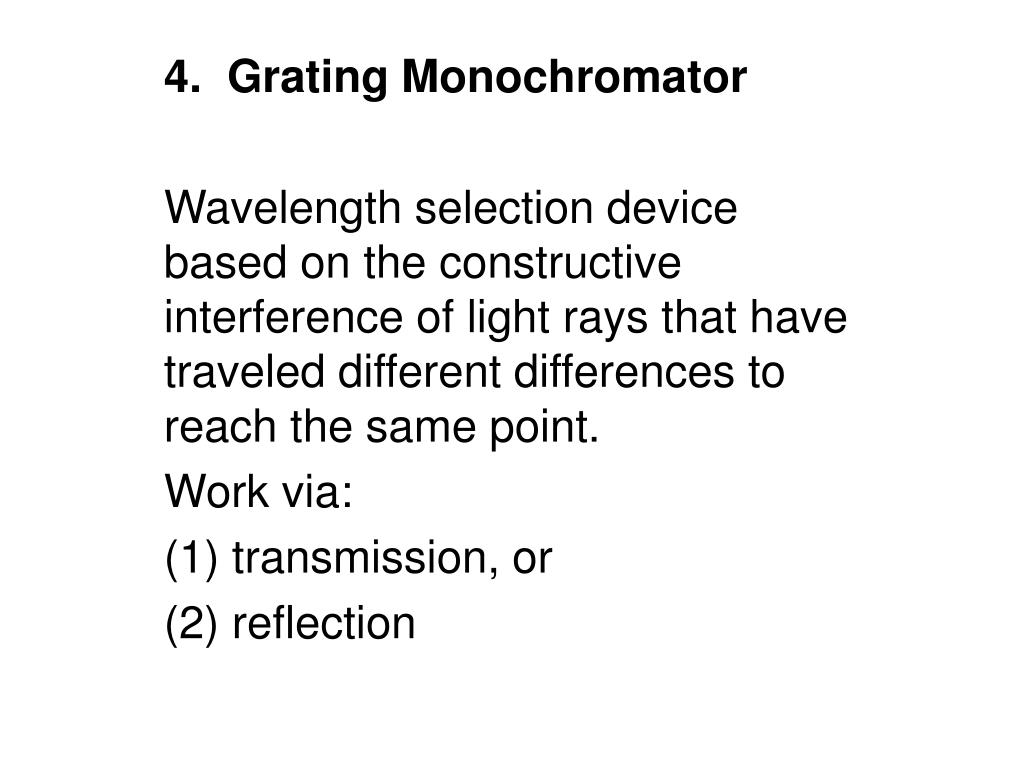

4. Grating Monochromator

Wavelength selection device based on the constructive interference of light rays that have traveled different differences to reach the same point.

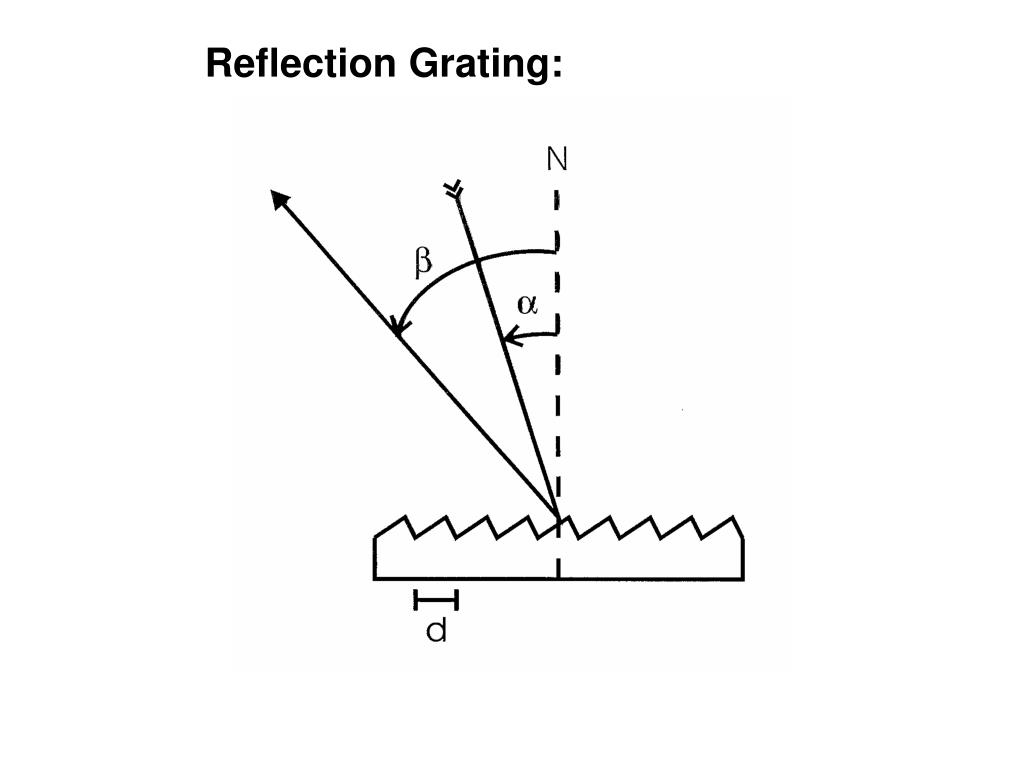

Work via:

(1) transmission, or

(2) reflection

slide25

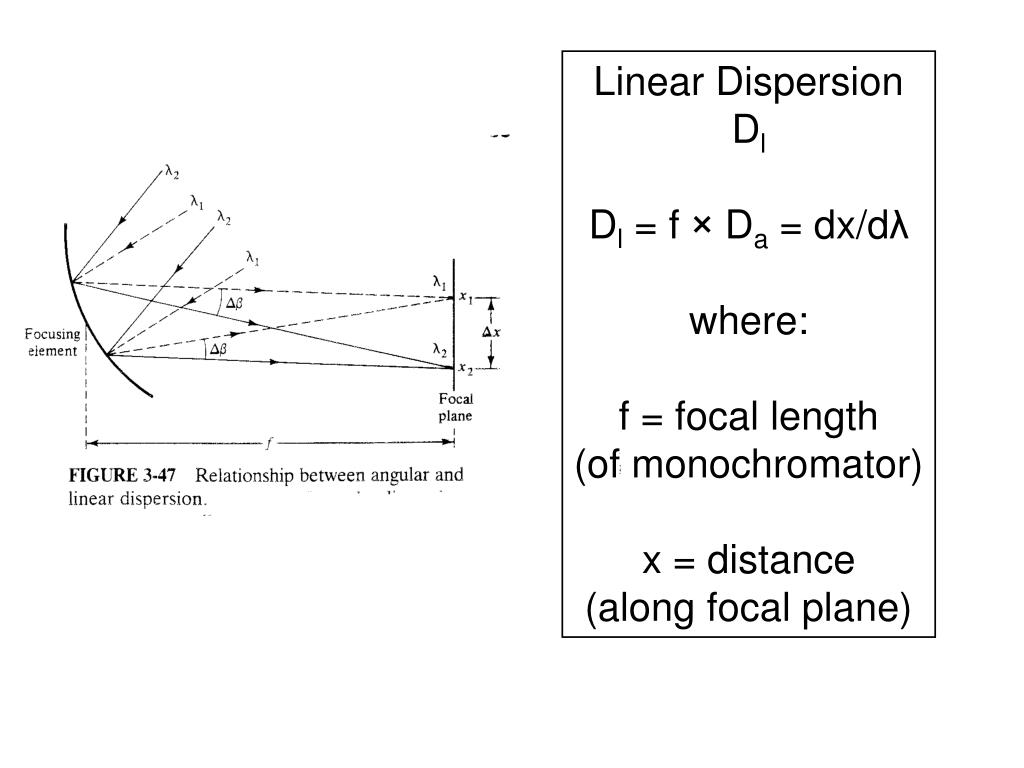

Linear Dispersion

Dl

Dl = f × Da = dx/dλ

where:

f = focal length

(of monochromator)

x = distance

(along focal plane)

slide26

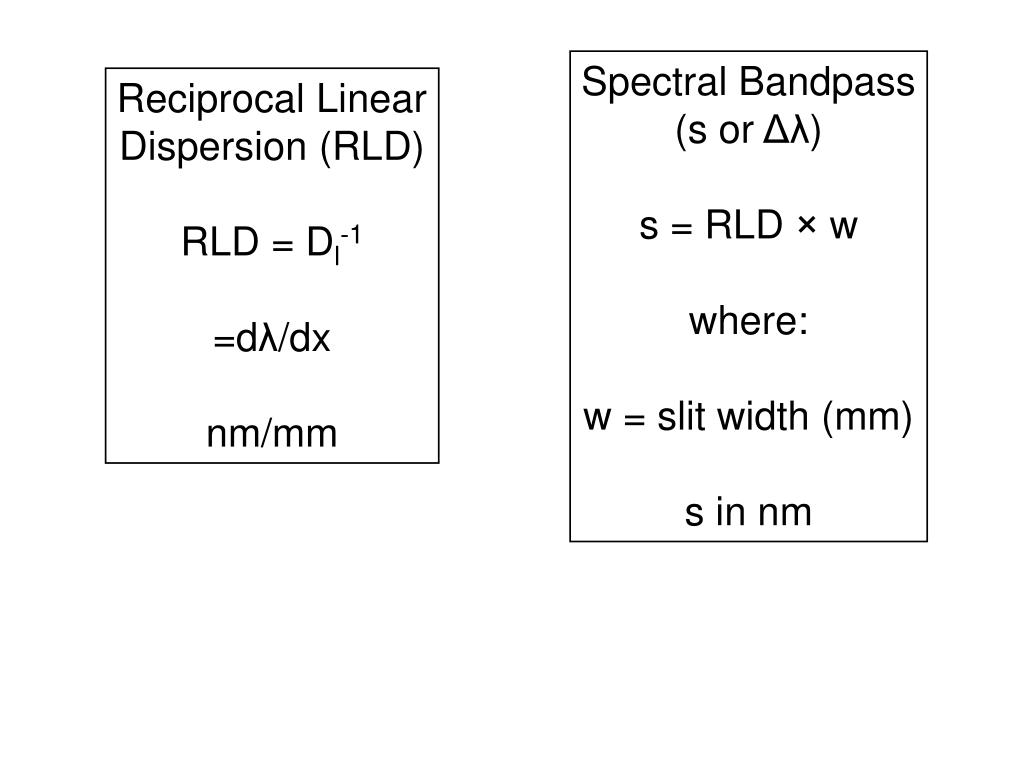

Spectral Bandpass

(s or Δλ)

s = RLD × w

where:

w = slit width (mm)

s in nm

Reciprocal Linear

Dispersion (RLD)

RLD = Dl-1

=dλ/dx

nm/mm

slide31

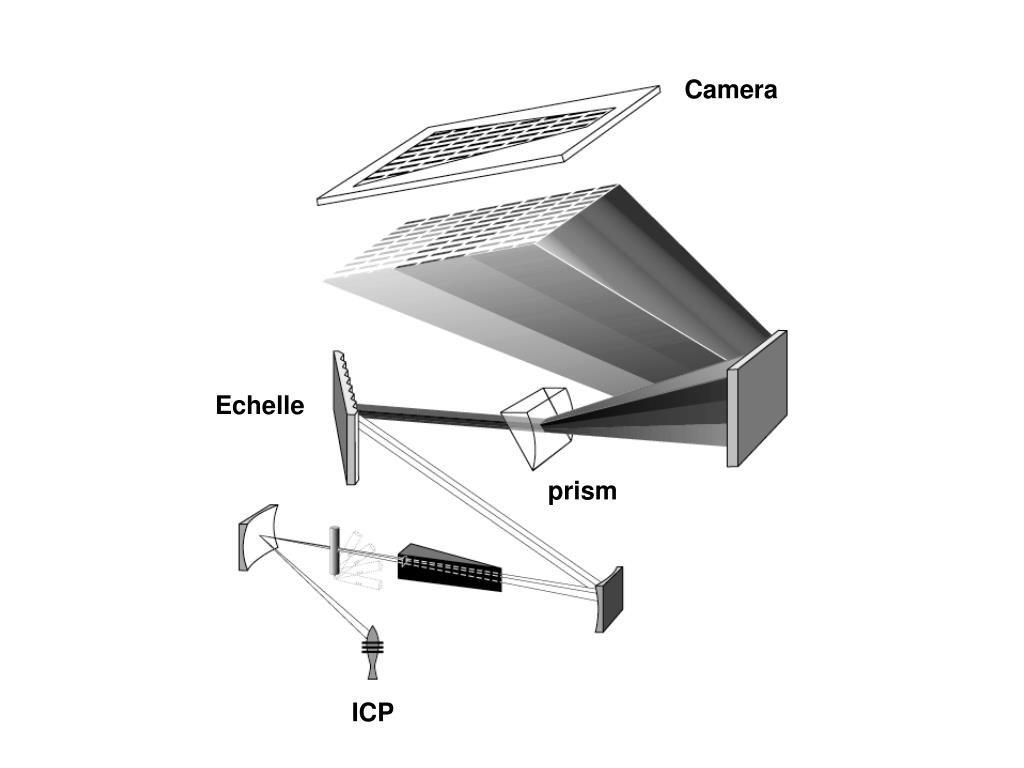

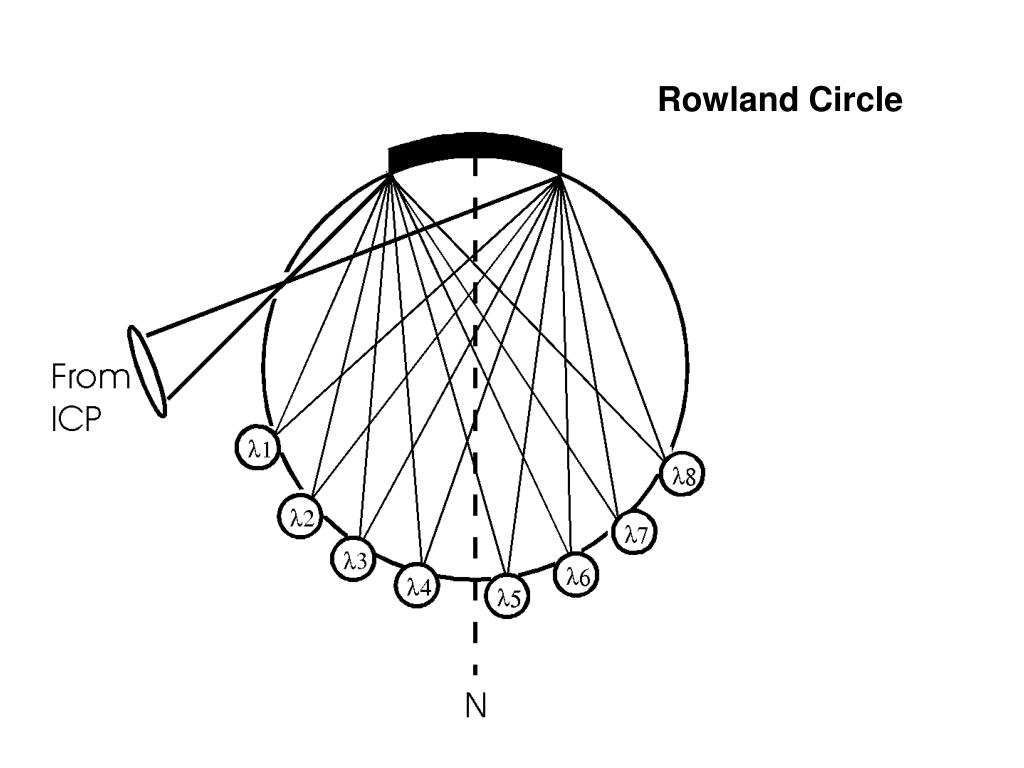

Camera

Echelle

prism

ICP

slide34

5. Interferometer

Allows multiple wavelengths to fall on the detector simultaneously.

Corrects for interference patterns to calculate the signal at different wavelengths.

slide39
Interferometer Advantages

1. Fellget’s Advantage (multiplex)

2. Jacquinot’s Advantage (throughput)

3. Wavelength Accuracy

slide40

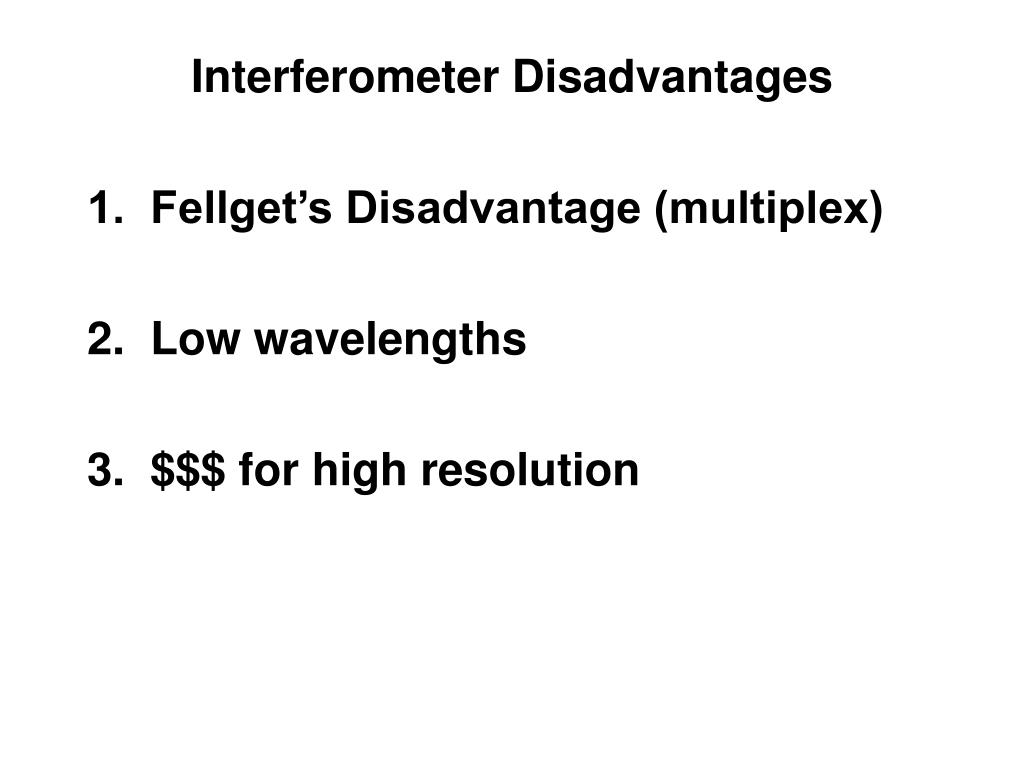

Interferometer Disadvantages

1. Fellget’s Disadvantage (multiplex)

2. Low wavelengths

3. $$$ for high resolution
