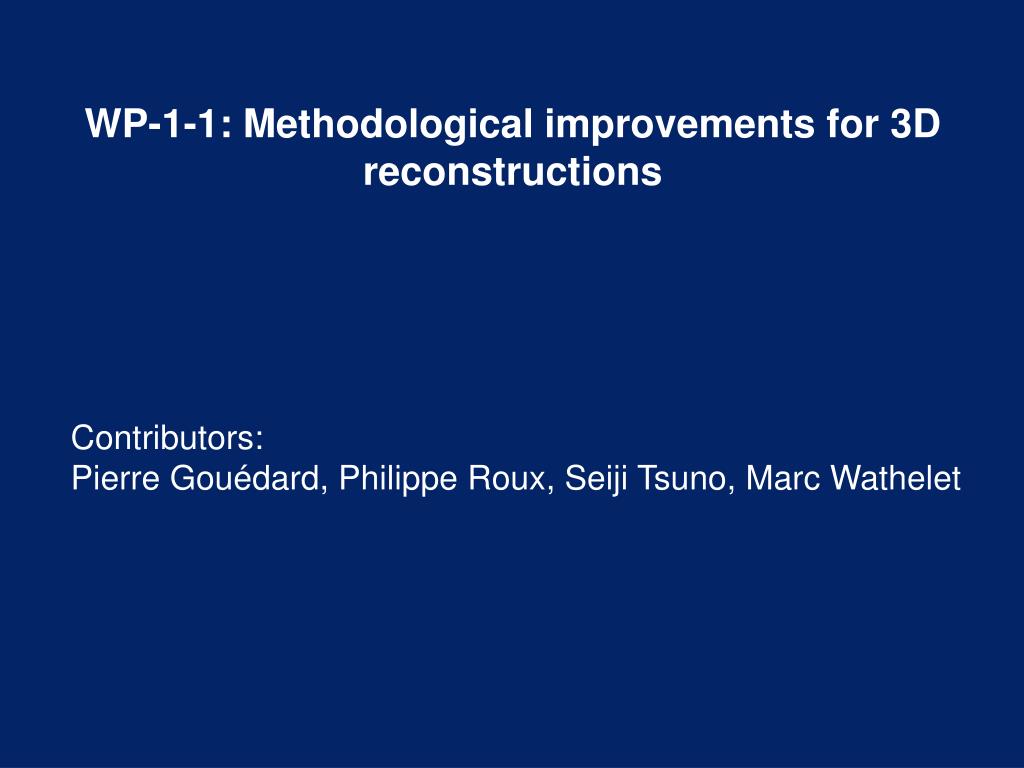

  1. WP-1-1: Methodological improvements for 3D reconstructions Contributors: Pierre Gouédard, Philippe Roux, Seiji Tsuno, Marc Wathelet

  2. What has been done/initiated ? • ESG2006 noise blind test • Estimation of dispersion curves is OK • Interpretation of mode branches and inversion of Vs profiles are critical issues • Comparison between SPAC/FK et noise correlation techniques • => performance and limits of these “competing” approaches • => what kind of “correlation technique and array layout” to use • for imaging subsurface shear-wave velocity • MASW measurements for getting information on the shallow layers (Vs, Qs) • high frequency technique (10-80 Hz) • complementary to noise array technique

  3. Comparison between SPAC/FK and noise correlation

  4. resolution limit D ~ max aliasing limit 2d ~ min

  5. reliable resolution limit D ~ max Mapping resolution and aliasing limits into f-c domain aliasing limit 2d ~ min

  6. Isotropic noise directional noise

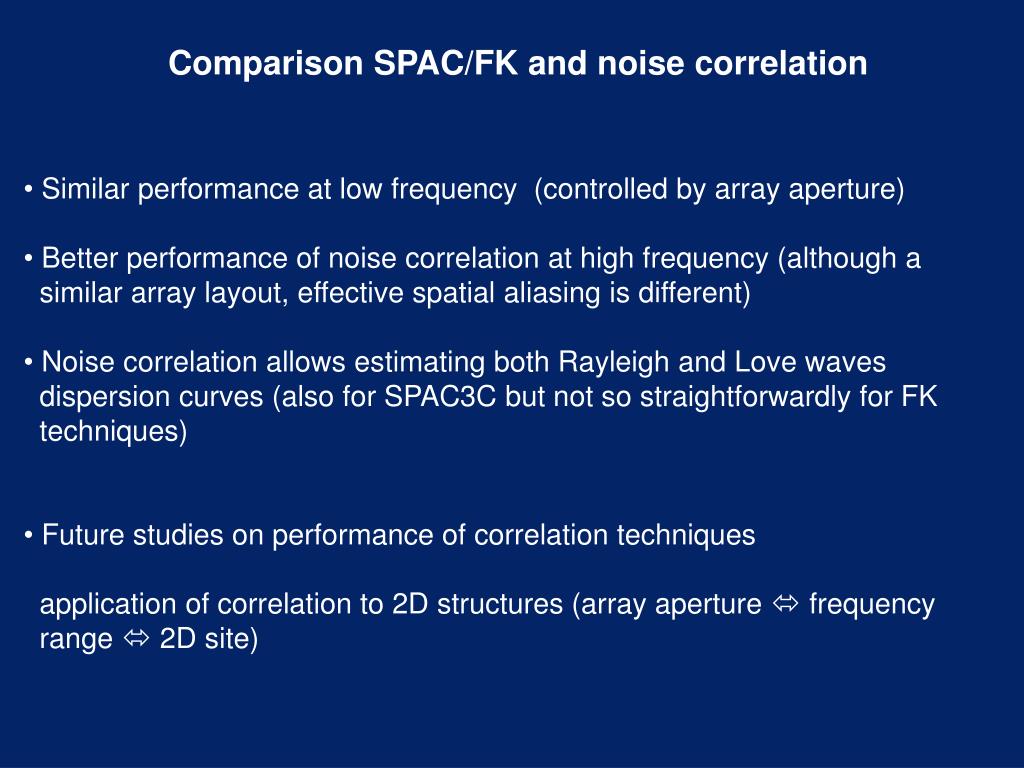

  7. HRFK CORR
