the ioctl driver function

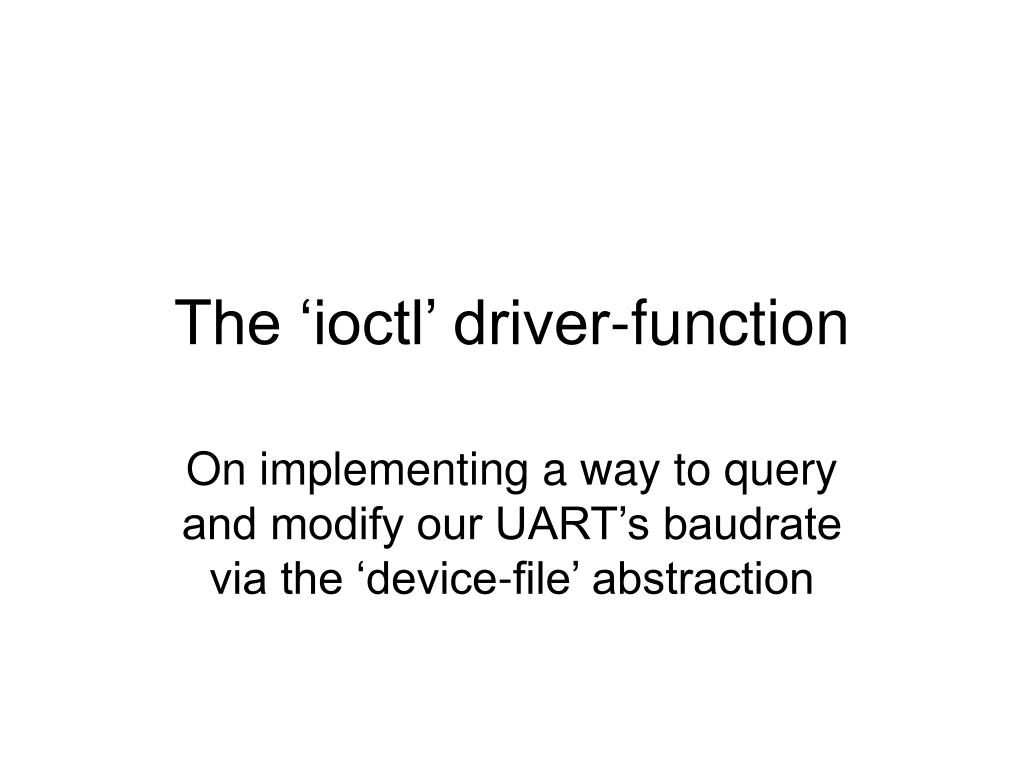

The ‘ioctl’ driver-function

On implementing a way to query and modify our UART’s baudrate via the ‘device-file’ abstraction

struct file operations
‘struct file_operations’
  • For a Linux device-driver’s ‘module_init()’ function, there are two main actions:
    • Initializing the driver’s global data-structures (this includes verifying the device’s presence)
    • Registering the driver’s service-functions with the kernel (i.e., the ‘file_operations’ structure)
  • The driver’s ‘module_exit()’ function then has the duty to ‘unregister’ those services
driver services

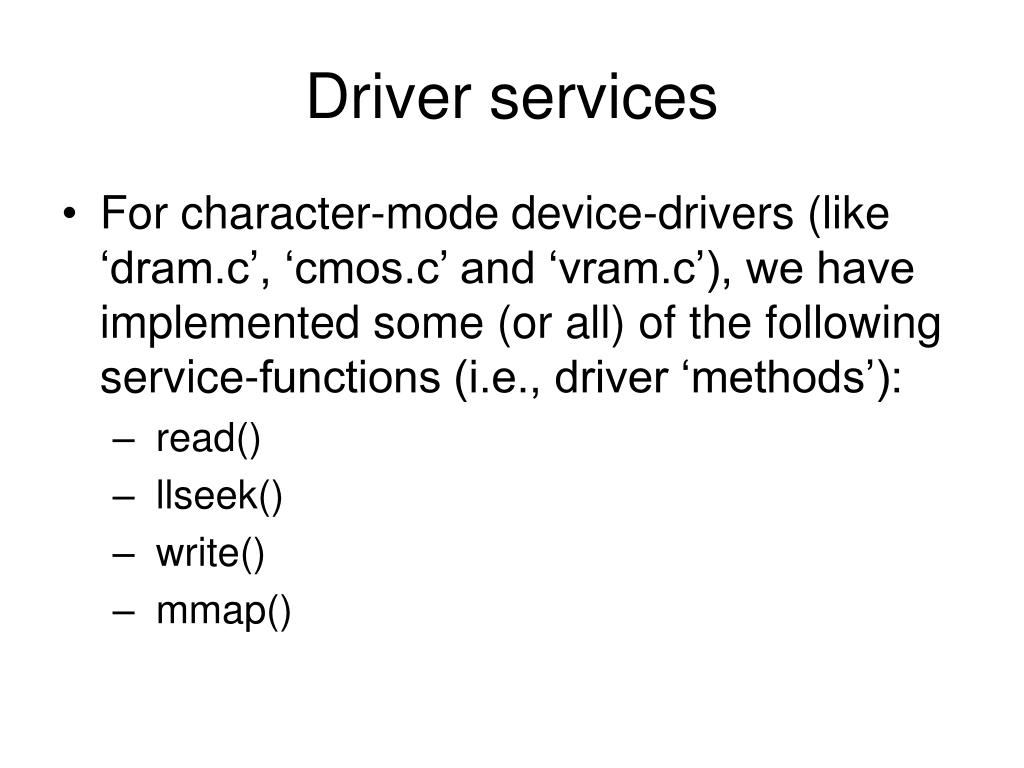

Driver services
  • For character-mode device-drivers (like ‘dram.c’, ‘cmos.c’ and ‘vram.c’), we have implemented some (or all) of the following service-functions (i.e., driver ‘methods’):
    • read()
    • llseek()
    • write()
    • mmap()
the file paradigm
The ‘file’ paradigm
  • The UNIX approach to device-control is to create objects that represent i/o-devices, but which behave like ‘files’ do, insofar as the application programmer is concerned
  • So ‘read()’, ‘lseek()’, ‘write()’ and ‘mmap() use the same function-call syntax – and in most respects the same semantics – for both ordinary ‘files’ and ‘device-files’
an imperfect paradigm

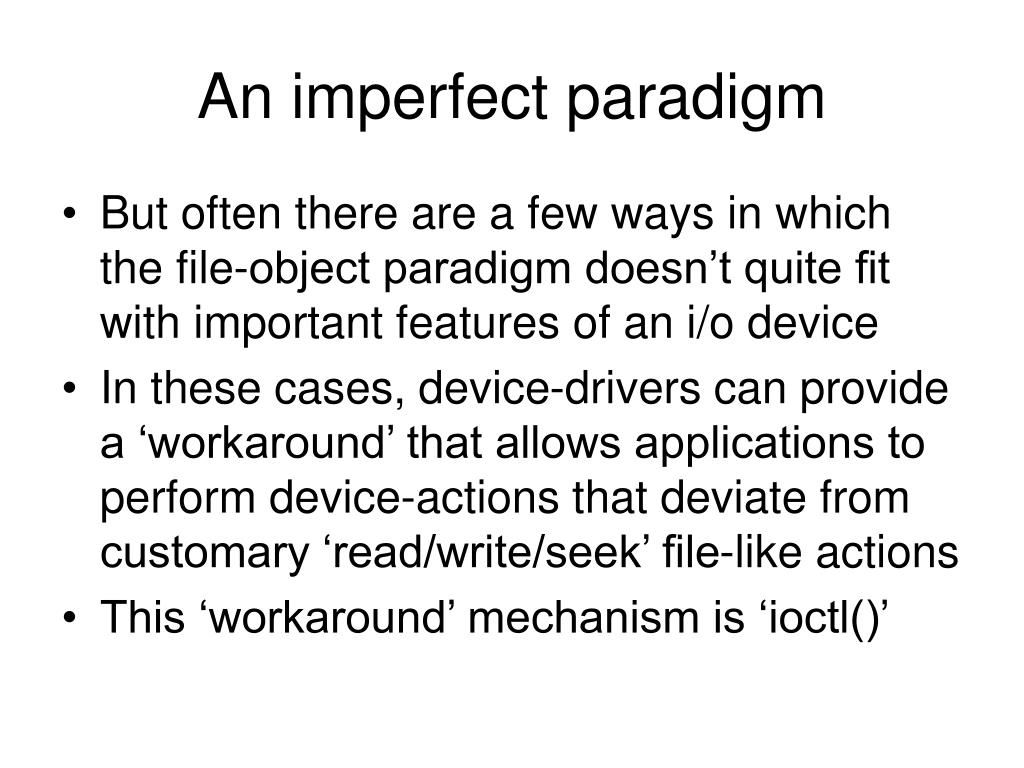

An imperfect paradigm
  • But often there are a few ways in which the file-object paradigm doesn’t quite fit with important features of an i/o device
  • In these cases, device-drivers can provide a ‘workaround’ that allows applications to perform device-actions that deviate from customary ‘read/write/seek’ file-like actions
  • This ‘workaround’ mechanism is ‘ioctl()’
the serial uart
The serial UART
  • Our PC’s serial UART device offers us an easy example of some desirable behavior that’s outside the traditional ‘file’ paradigm
  • In order to use our ‘dev/vram’ device-file for communications with computers that we can’t control, we may need to adjust our UART’s communication parameters
  • How can a program change ‘baudrate’?
our baudrate c module

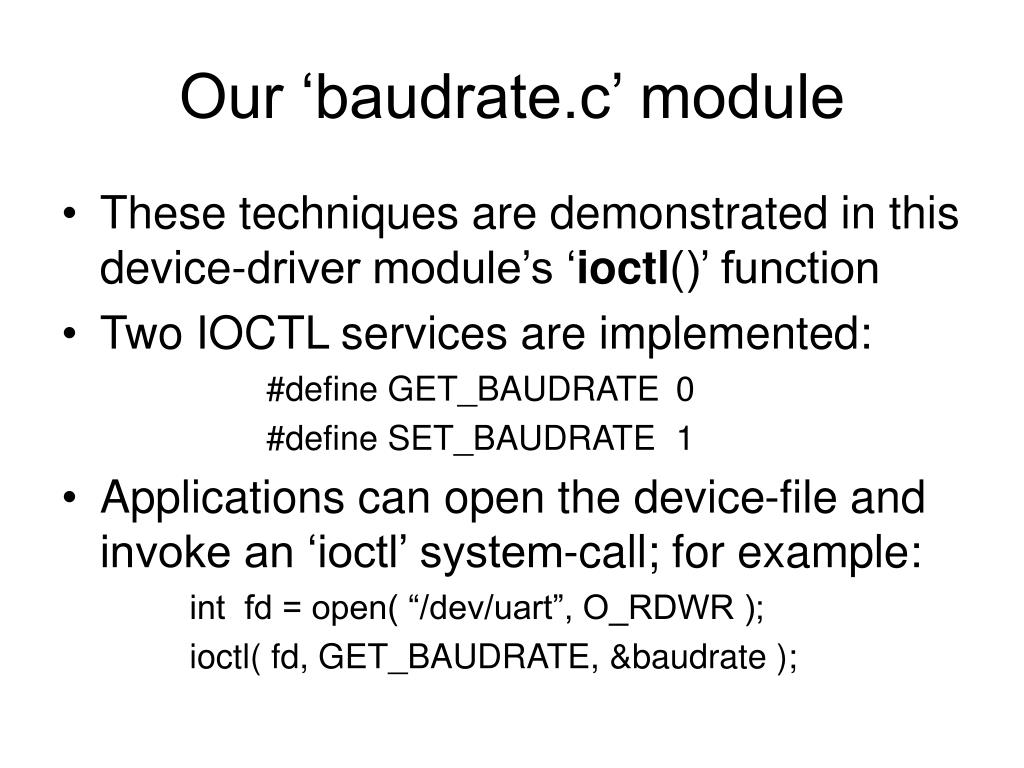

Our ‘baudrate.c’ module
  • These techniques are demonstrated in this device-driver module’s ‘ioctl()’ function
  • Two IOCTL services are implemented:

#define GET_BAUDRATE 0

#define SET_BAUDRATE 1

  • Applications can open the device-file and invoke an ‘ioctl’ system-call; for example:

int fd = open( “/dev/uart”, O_RDWR );

ioctl( fd, GET_BAUDRATE, &baudrate );

slide8

Recall role of a device-driver

A device-driver is a software module

that controls a hardware device

in response to OS kernel requests

relayed, often, from an application

hardware device

operating parameters

in

out

RAM

device-driver

module

user

application

ret

call

call

ret

Operating System

kernel

syscall

standard

“runtime”

libraries

sysret

user space

kernel space

uart s baudrate control
UART’s baudrate-control

LSB

DIVISOR LATCH

(bits 7..0)

i/o port 0x03F8

MSB

DIVISOR LATCH

(bits 15..8)

i/o port 0x03F9

7 6 5 4 3 2 1 0

D

L

A

B

B

R

E

A

K

parity

controls

stop

bits

data

bits

LINE CONTROL

REGISTER

i/o port 0x03FB

algorithm to get baudrate

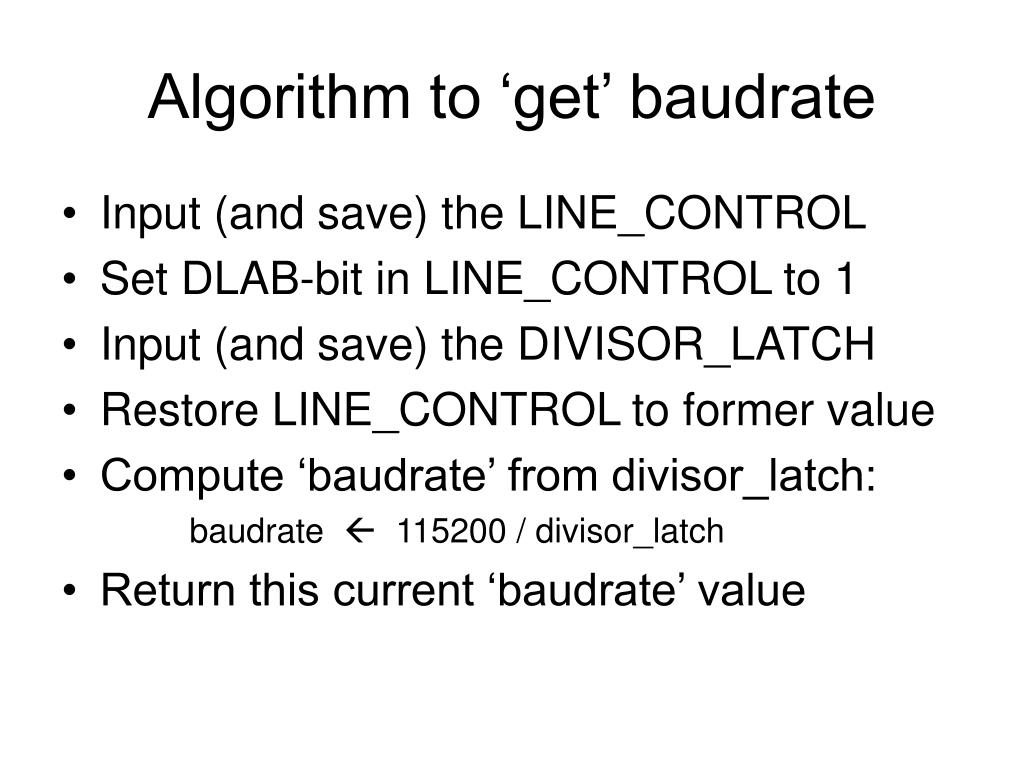

Algorithm to ‘get’ baudrate
  • Input (and save) the LINE_CONTROL
  • Set DLAB-bit in LINE_CONTROL to 1
  • Input (and save) the DIVISOR_LATCH
  • Restore LINE_CONTROL to former value
  • Compute ‘baudrate’ from divisor_latch:

baudrate  115200 / divisor_latch

  • Return this current ‘baudrate’ value
slide11

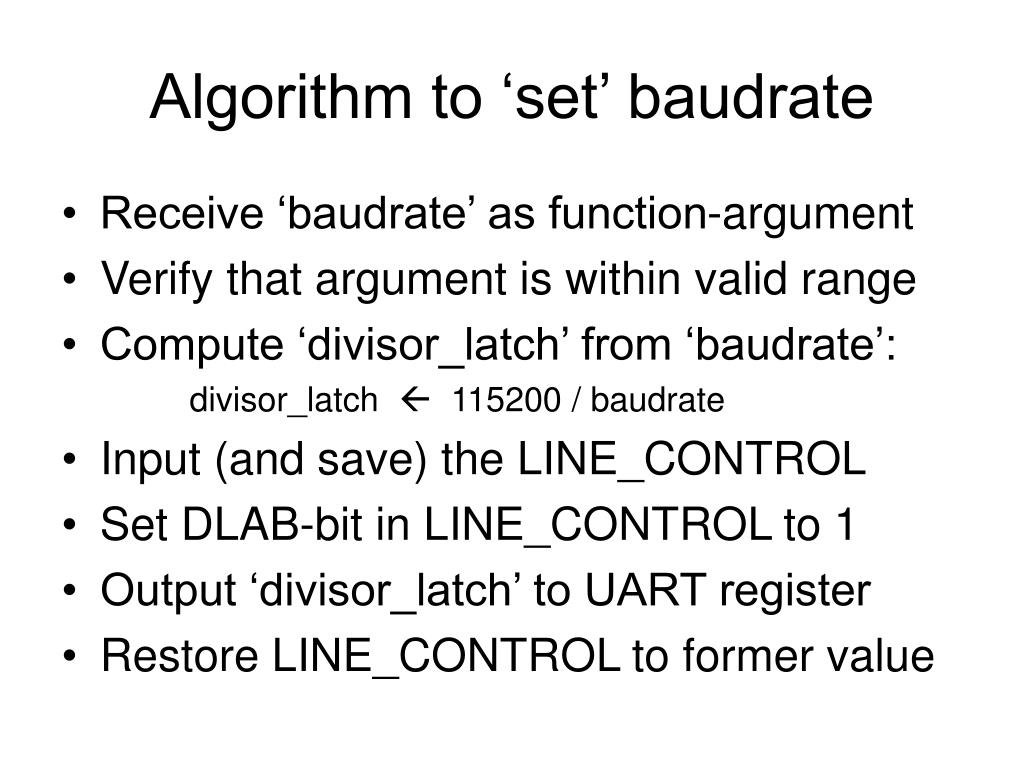

Algorithm to ‘set’ baudrate

  • Receive ‘baudrate’ as function-argument
  • Verify that argument is within valid range
  • Compute ‘divisor_latch’ from ‘baudrate’:

divisor_latch  115200 / baudrate

  • Input (and save) the LINE_CONTROL
  • Set DLAB-bit in LINE_CONTROL to 1
  • Output ‘divisor_latch’ to UART register
  • Restore LINE_CONTROL to former value
demo program setbaud cpp
Demo-program: ‘setbaud.cpp’
  • This application-program lets a user query or modify the UART’s current baudrate in a convenient manner – without requiring any ‘special’ privileges (don’t need ‘iopl3’)
  • To see the current baudrate:

$ ./setbaud

  • To change the current baudrate:

$ ./setbaud 2400

in class exercise
In-class exercise
  • Can you modify our ‘baudrate.c’ driver so it implements an additional ‘ioctl’ service:

# define GET_LINECTRL 2

  • Then add an extra ‘ioctl’ system-call in our ‘setbaud.cpp’ application so that it displays the UART’s current data-format (as well as baudrate) using format similar to 8-N-1
  • HINT: look at driver’s ‘get_info()’ function
