  1. Energy from WasteWhat about the leftovers? Opportunities for bottom ash recycling David York MD Ballast Phoenix Ltd

  2. BALLAST PHOENIX Ltd – major shareholder is Feniks Recycling, a Dutch IBA processor since the early 1980s • Commenced first commercial operations in 1998. • Six facilities currently operating. • Over 3 million tonnes of IBA processed and sold. • Over 35 plant years of experience. • All products are sold NOT land filled. • From early days BPL has continued to develop new markets for IBAA.

  3. Company culture Key elements are: • Safe working • Environment protection • Providing a full and professional service to our customers • A REAL BELIEF IN WHAT WE DO!

  4. A Sustainable Cycle? Residual C&I and MSW Energy Steam & Electricity Asphalt Concrete Unbound IBA 22% of MSW IBA Aggregates Metals Organics

  5. What do we do? Following the thermal treatment, the main residue is ‘bottom ash’ – a misleading term as much of it has not burnt, metals, glass, porcelain and the like are a large part of the material. We process this and: • Recover the ferrous metal • Recover the non ferrous metals • Create alternative aggregates for construction

  6. An Aggregates business • Whilst IBAA processing recovers all these resources, it is only successful if it produces GOOD QUALITY AGGREGATE. • This means particle sizes up to 40mm of hard durable inert material such as glass porcelain, brick, stone, with some slag, clinker and ash • There are many uses for well processed IBA

  7. IBA aggregates What can IBAA be used for? Many applications

  8. HIGHWAYS AGENCY - Specification for Highway Works 500 series: Pipe Bedding - Drainage Media 600 series: Numerous fill specifications including 6F2 Capping 800 series: A component in Clause 803 Type 1 sub-base and can be used as HBM & CBM aggregate 900 series: A component in bituminous mixes BS 3797: Lightweight aggregate for masonry

  9. Examples of usage • M25 Jct 28 - approx 10ktonnes • M6 Toll Road – approx 30ktonnes • Olympics Logistics Park -approx11ktonnes • Docklands Light Rail - approx 15ktonnes • Felixstowe Docks – approx 55000ktonnes • Heathrow T5 – approx 5ktonnes • The above include unbound, cement bound and asphalt uses

  10. IBAA used for a piling mat

  11. Backfill for a utility trench

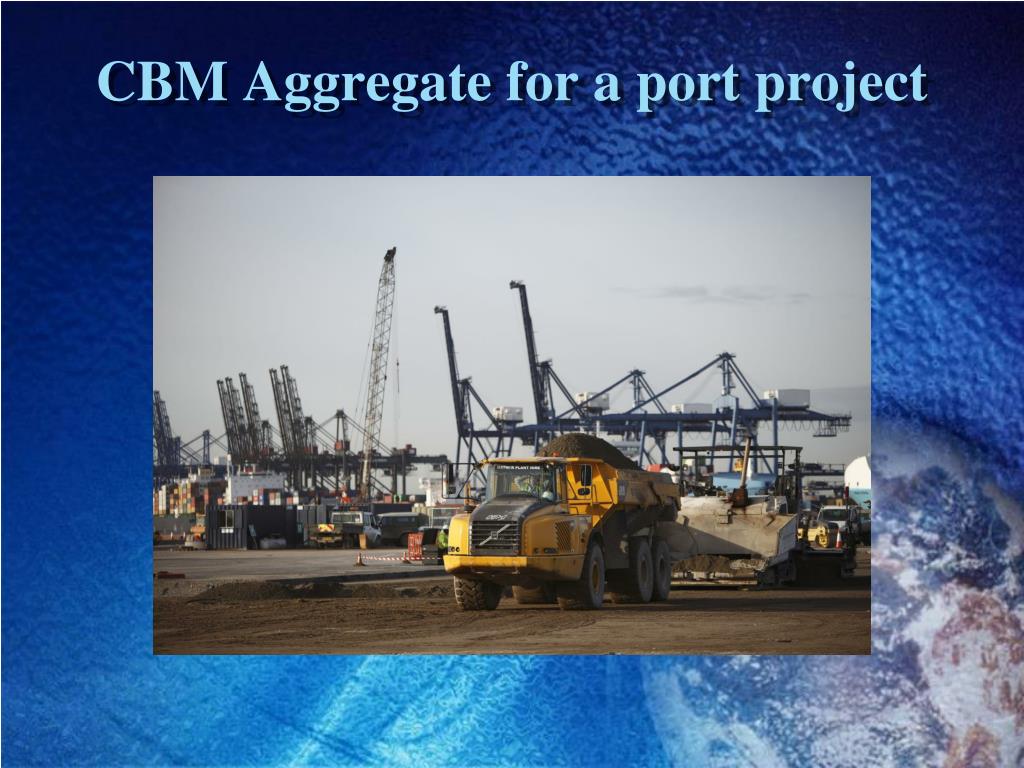

  12. CBM Aggregate for a port project

  13. Sub base to an industrial floor

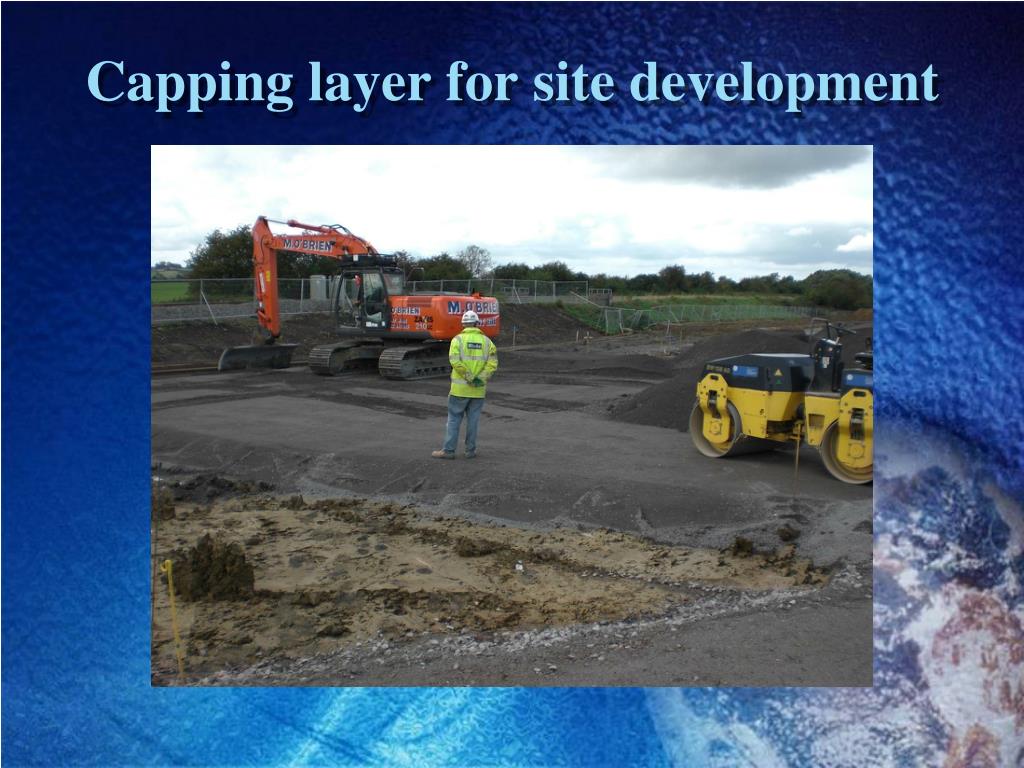

  14. Capping layer for site development

  15. Incinerator Bottom Ash AggregatesIBAA 1. Comply with UK and European Standards 2. Products manufactured to a robust Quality Protocol 3. Low embodied energy demand during production 4. Supporting a sustainable future

  16. IBA has pozzolanic properties and this property is beneficial. A stockpile about 18 months old being ripped to separate particles. The temperature inside the stockpile was 55°c.

  17. A Sustainable Aggregate IBA IBAA CARBON PRODUCTS Unbound mixtures, Type 1, pipe bedding Asphalt <30% Foamed conc/asphalt CBGM and HBMs Lightweight aggs. <1% non-ferrous <10% ferrous <0.5% organic ~90% IBAA Negative carbon footprint Low Density -fewer transport movements. -urban quarry

  18. Local Government SustainableProcurement Strategy Nov. 2007 • The residue from MSW and C&I waste, after energy recovery can now be processed for re-use (IBAA)– Sustainable • IBAA gives local authorities value for money without compromising quality • Compliant with ‘Procuring the Future’ 2006 • BREEAMsustainable construction (BRE) • SLAM requires 20% recycled for all new build (Single Living Accommodation Modernisation Programme) Government led initiative

  19. IBAA is part of a sustainable solution for MSW and C&I waste IBAA will reduce the carbon footprint of any construction project where it is employed We have plants operating in London, Birmingham, Teesside, Essex, Kent and Sheffield

  20. Carbon footprint IBAA has a very low carbon footprint. Carbon costs in production are low and the benefits high. BPL has consulted Carbon Trust and will seek accreditation.

  21. Energy and Carbon Savingson delivery of 2000 m3 of aggregate www.ballastphoenix.co.uk

  22. IBAA Carbon Sequestration • CO2 is absorbed from atmosphere • Similar to concrete – carbonation • >8% by weight of CO2 can be absorbed • IBA Aggregates have a negative footprint

  23. How do we make IBAA from IBA? Our ‘sister’ company in Holland first started this kind of business in the early 80s. BPL started in the UK in 1998, using the Dutch process technique, but with UK applications. Since then the process has been extended such that a target of ZERO LANDFILL can be a reality.

  24. The process - but Safety first!

  25. Fresh IBA

  26. Fresh IBA is matured for weeks

  27. Loading the feed hopper

  28. Indoor process

  29. Elevated control room

  30. Aggregate sizing

  31. Aggregate stream

  32. 0-10mm Aggregate

  33. 10-40mm Aggregate

  34. Recovered metals

  35. Handpicked oversize

  36. Stockpiled aggregate products

  37. Lagoon to store site drainage

  38. Environmental Management • The impending WRAP Quality Protocol is designed to give new users confidence in IBAA – BPL has had it’s own scheme for many years. Site Specific Environmental Assessments are available to BPL customers free of charge • BPL is accredited with BSI to BS EN 14001:2004 • The Environmental Liability Directive (ELD) came into force on 1st March 2009, outlining responsibilities! • The Water Framework Directive is designed to ensure that groundwater and water courses are not polluted.

  39. ‘DUTY OF CARE’ Environment Protection Act 1990 • Applies to companies and individuals • Primary and secondary aggregate producers • BPL assess every site prior to supply • IBAA leach test results normally around UK drinking water quality standard

  40. Example of EA’s Groundwater Protection Zones

  41. Contact: David York Tel: 01778 423345 or 07860 230006 Email: david.york@ballastphoenix.co.uk Address: Victoria Stables South Rd BOURNE PE10 9JX

  42. Exploding concrete???? An unfortunate incident took place in Aug 2009. I believe this is the subject of an ongoing HSE investigation. Gas was trapped beneath a footbridge, inside a building. Sparks created by work activity ignited the gas and two workers were unfortunately injured. Our H&S data sheet states that when IBAA is used in foamed concrete, it should be handled and used in open spaces.
