1 / 13

UNR, MATH/STAT 352, Spring 2007

Probability and Statistics. MATH/STAT 352. Spring 2007. Lecture 5: Probability, Bayes Theorem. (slides only contain intro). UNR, MATH/STAT 352, Spring 2007. Relevant problems. UNR, MATH/STAT 352, Spring 2007. Radar target detection. How reliable is the signal on the screen?

carrington
Download Presentation

UNR, MATH/STAT 352, Spring 2007

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

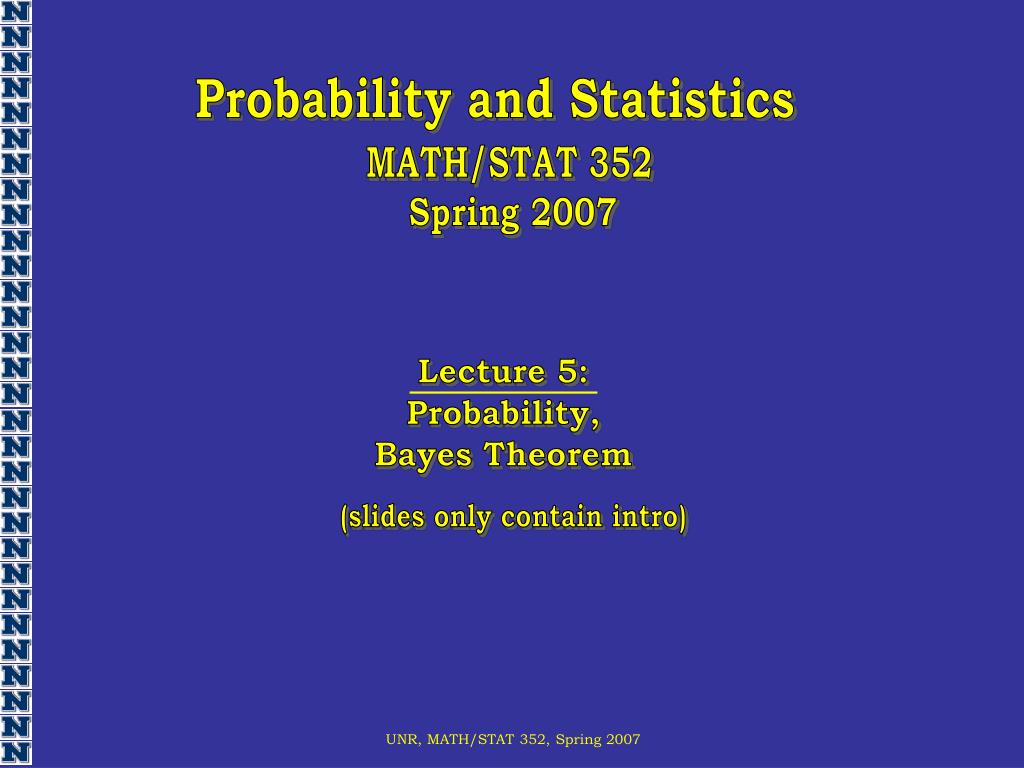

  1. Probability and Statistics MATH/STAT 352 Spring 2007 Lecture 5: Probability, Bayes Theorem (slides only contain intro) UNR, MATH/STAT 352, Spring 2007

  2. Relevant problems UNR, MATH/STAT 352, Spring 2007

  3. Radar target detection How reliable is the signal on the screen? (Is it a target of a false alarm?) UNR, MATH/STAT 352, Spring 2007

  4. Medical screening How reliable is the positive test? (Is it a disease or a false alarm?) UNR, MATH/STAT 352, Spring 2007

  5. How does probability help to answer such questions? UNR, MATH/STAT 352, Spring 2007

  6. Deck of playing cards (52 cards) Four suits Thirteen cards in each suit hearts spades 2,3,4,5,6,7,8,9,10,J,Q,K,A Faces: Jack, Queen, King clubs diamonds UNR, MATH/STAT 352, Spring 2007

  7. Deck of playing cards Sample space for “taking one card at random from a deck” UNR, MATH/STAT 352, Spring 2007

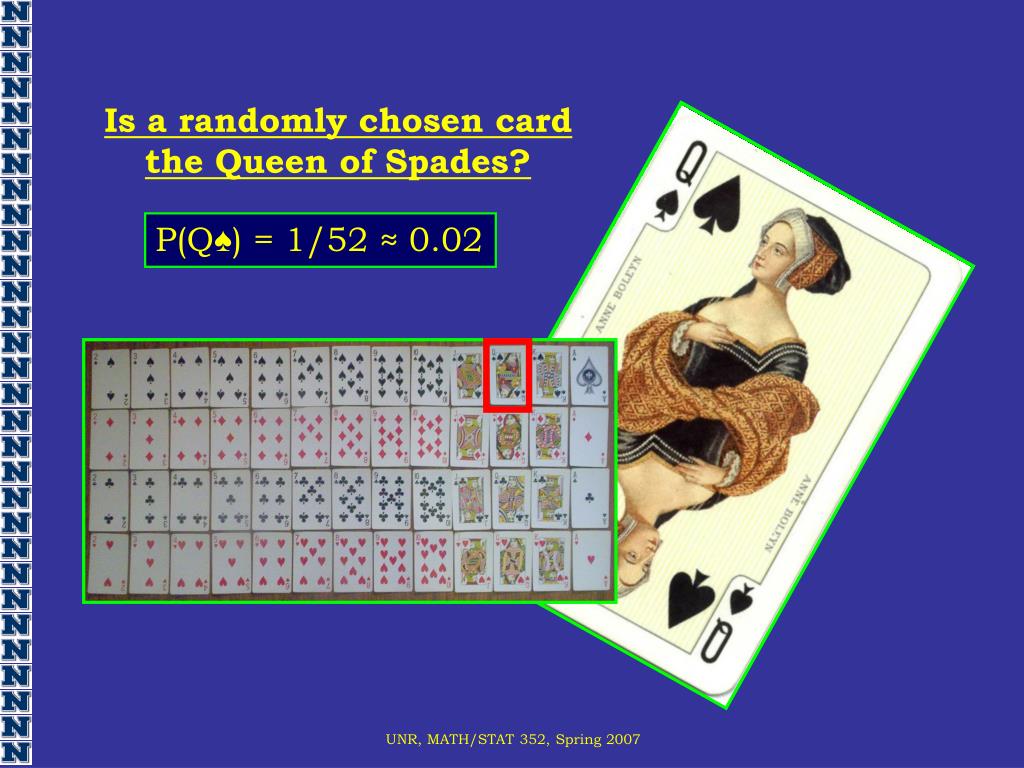

  8. Is a randomly chosen card the Queen of Spades? P(Q♠) = 1/52 ≈ 0.02 UNR, MATH/STAT 352, Spring 2007

  9. Is a randomly chosen card a Queen? P(Q) = 4/52 =1/13 ≈ 0.08 UNR, MATH/STAT 352, Spring 2007

  10. Is a randomly chosen RED card a Queen? P(Q|red) = 2/26 =1/13 ≈ 0.08 UNR, MATH/STAT 352, Spring 2007

  11. Is a randomly chosen FACE card a Queen? P(Q|face) = 4/12 =1/3 = 0.33 UNR, MATH/STAT 352, Spring 2007

  12. Is a randomly chosen SPADES card a Queen? P(Q|♠) = 1/13 = 0.08 UNR, MATH/STAT 352, Spring 2007

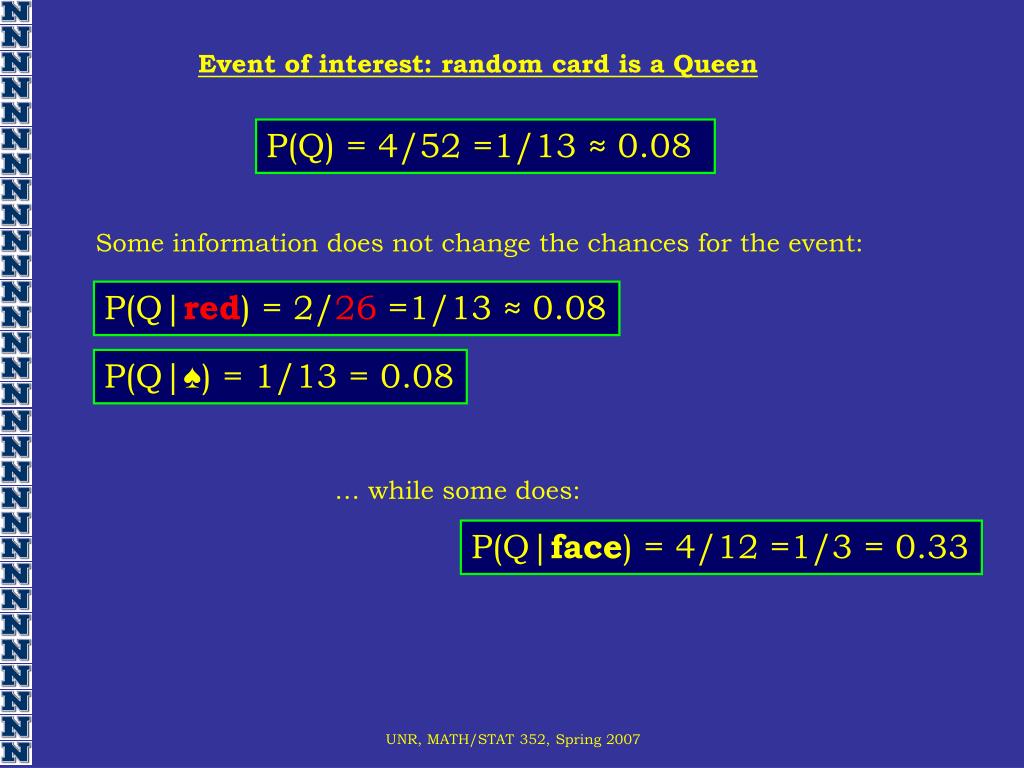

  13. Event of interest: random card is a Queen P(Q) = 4/52 =1/13 ≈ 0.08 Some information does not change the chances for the event: P(Q|red) = 2/26 =1/13 ≈ 0.08 P(Q|♠) = 1/13 = 0.08 … while some does: P(Q|face) = 4/12 =1/3 = 0.33 UNR, MATH/STAT 352, Spring 2007
