  1. IXP Lab 2012: Part 1 Network Processor Brief

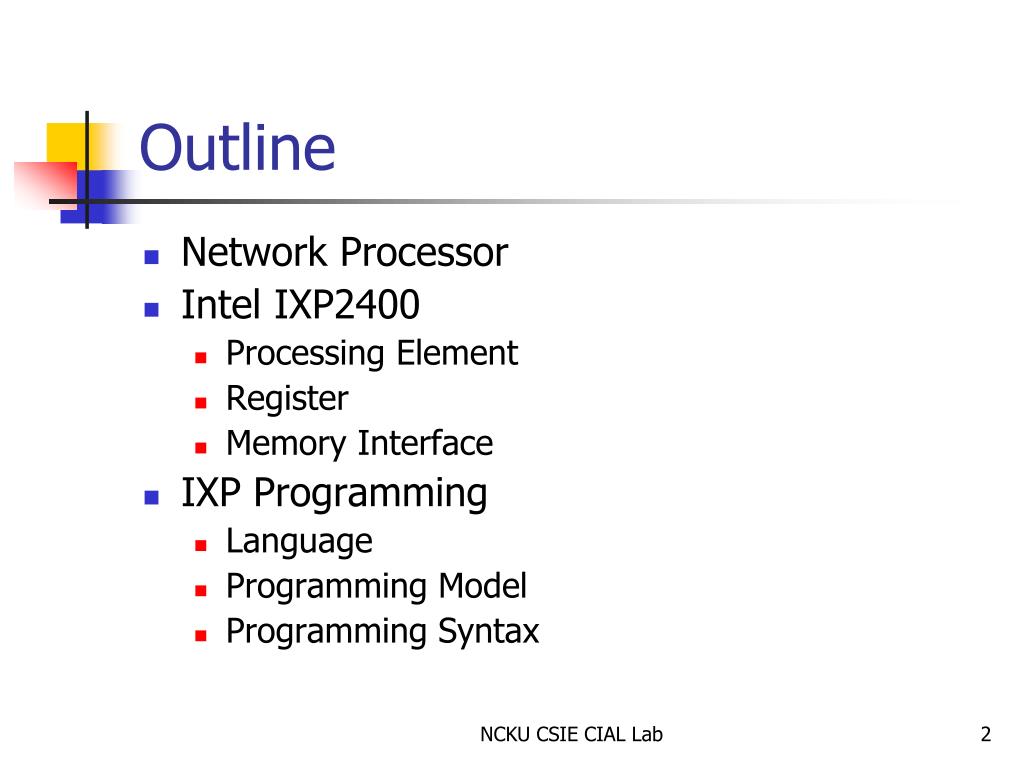

  2. Outline • Network Processor • Intel IXP2400 • Processing Element • Register • Memory Interface • IXP Programming • Language • Programming Model • Programming Syntax NCKU CSIE CIAL Lab

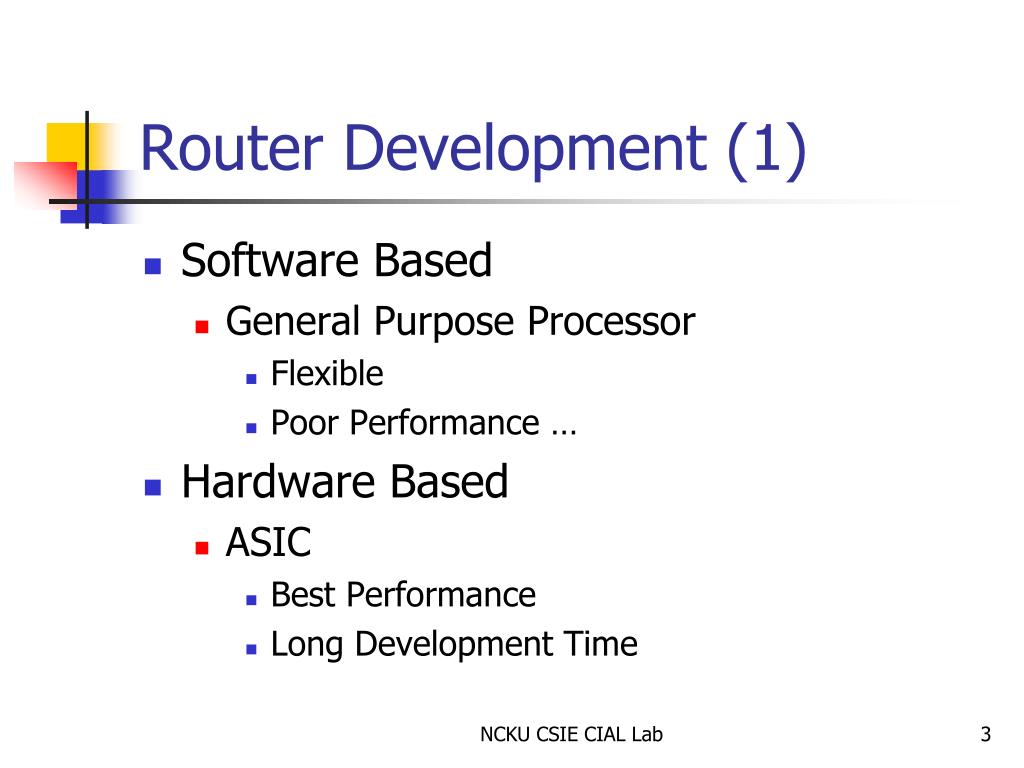

  3. Router Development (1) • Software Based • General Purpose Processor • Flexible • Poor Performance … • Hardware Based • ASIC • Best Performance • Long Development Time NCKU CSIE CIAL Lab

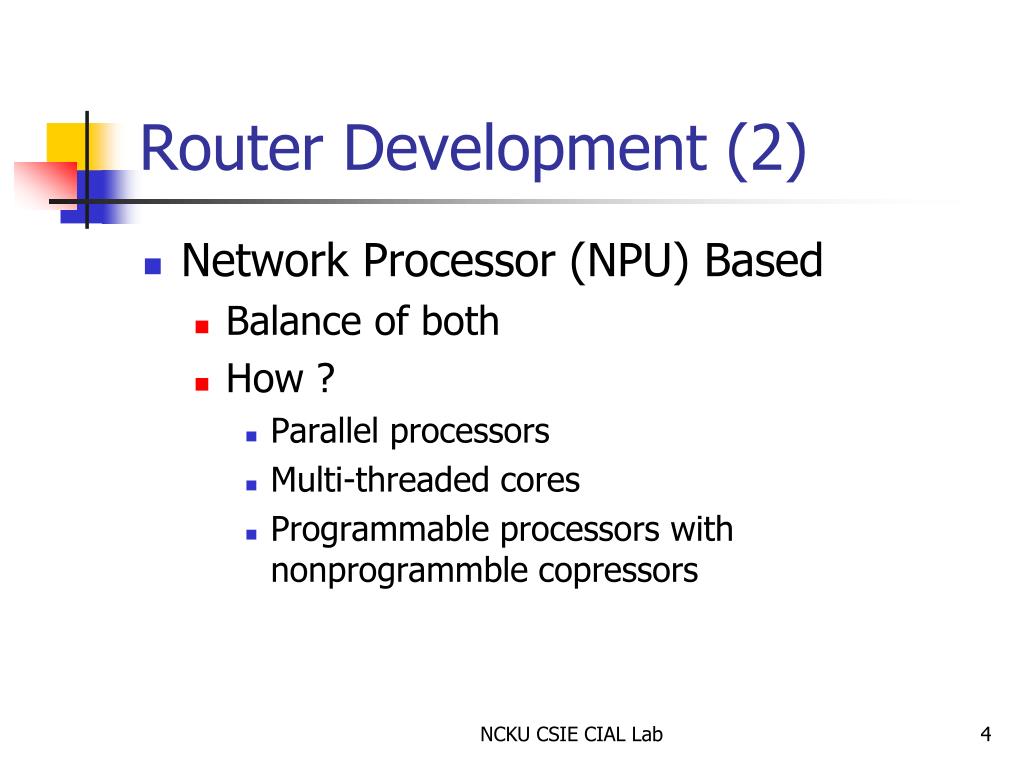

  4. Router Development (2) • Network Processor (NPU) Based • Balance of both • How ? • Parallel processors • Multi-threaded cores • Programmable processors with nonprogrammble copressors NCKU CSIE CIAL Lab

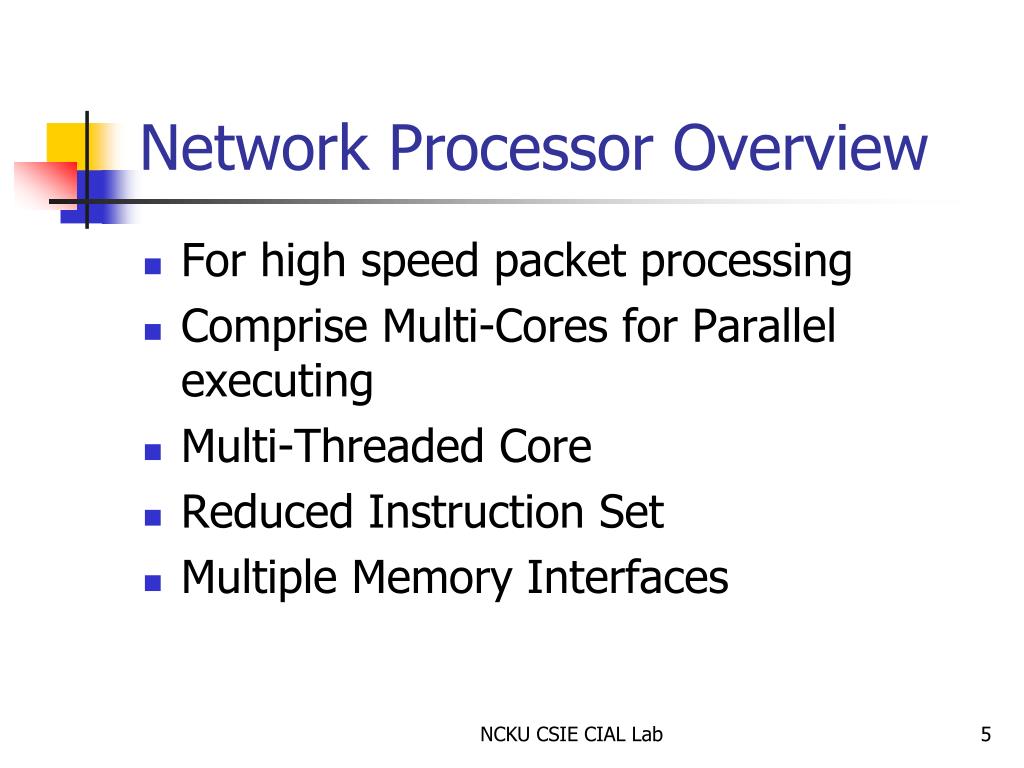

  5. Network Processor Overview • For high speed packet processing • Comprise Multi-Cores for Parallel executing • Multi-Threaded Core • Reduced Instruction Set • Multiple Memory Interfaces NCKU CSIE CIAL Lab

  6. Hierarchical Layer • Data-Plane • Fast-Path • Slow-Path • Control-Plane • Routing Protocol • Management-Plane • Monitor Applications • User Interface NCKU CSIE CIAL Lab

  7. Data-Plane • Fast-Path • General Packet Handling • As fast as possible • Slow-Path • Exception Packet Handling • Packet with options • Local TCP/IP Stack NCKU CSIE CIAL Lab

  8. Internet eXchange Processor • First Generation • IXP1200, IXP1240, IXP1250 • Second Generation • IXP2400, IXP2800, IXP2850 • IXP2805, IXP2855 • Others • IXP4XX NCKU CSIE CIAL Lab

  9. Network Flow Processor • By Netronome • From Intel IXP2XXX • NFP-3240, NFP-3216 NCKU CSIE CIAL Lab

  10. Intel IXP2400 Block Diagram NCKU CSIE CIAL Lab

  11. IXP2400 Overview • Functional Block • Processing Element • Memory Interfaces • Coprocessors • Other Interfaces • Hierarchical View NCKU CSIE CIAL Lab

  12. Processing Element • Programmability • Hierarchical Processing Elements • XScale • Microengine (ME) NCKU CSIE CIAL Lab

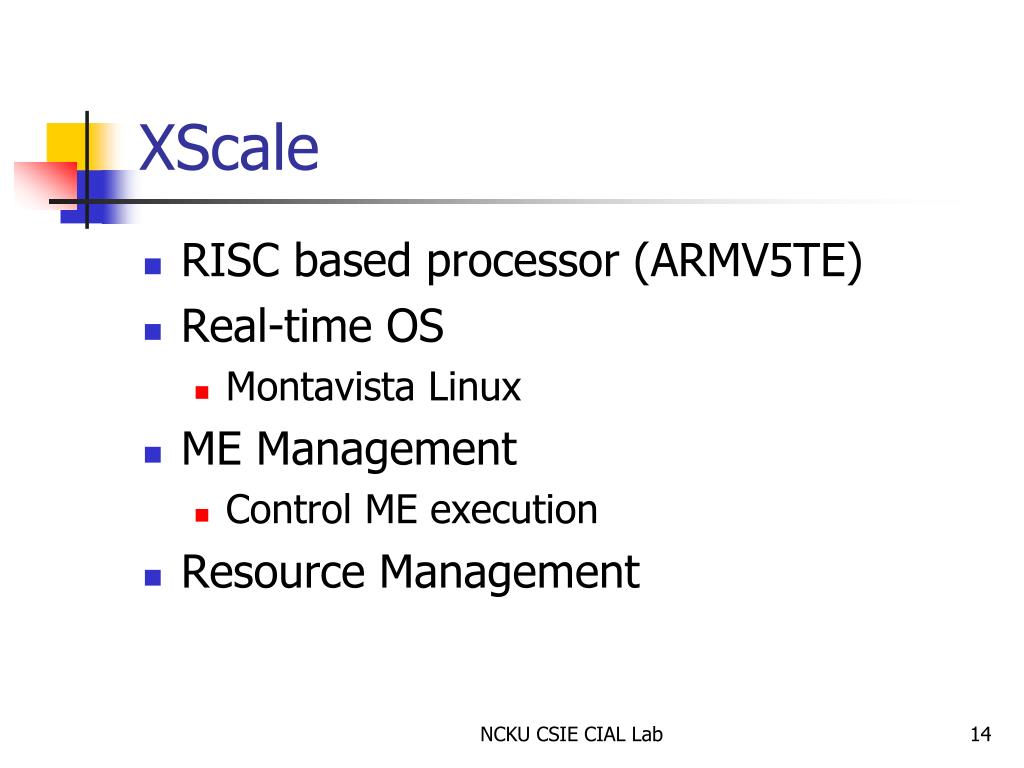

  13. XScale • RISC based processor (ARMV5TE) • Real-time OS • Montavista Linux • ME Management • Control ME execution • Resource Management NCKU CSIE CIAL Lab

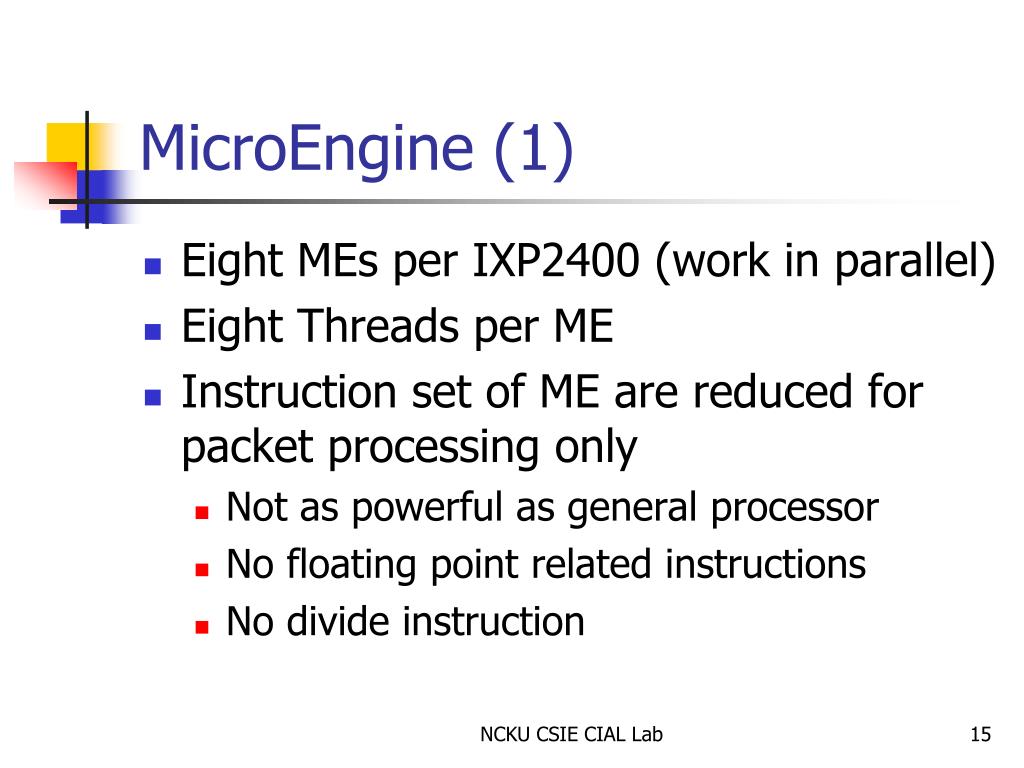

  14. MicroEngine (1) • Eight MEs per IXP2400 (work in parallel) • Eight Threads per ME • Instruction set of ME are reduced for packet processing only • Not as powerful as general processor • No floating point related instructions • No divide instruction NCKU CSIE CIAL Lab

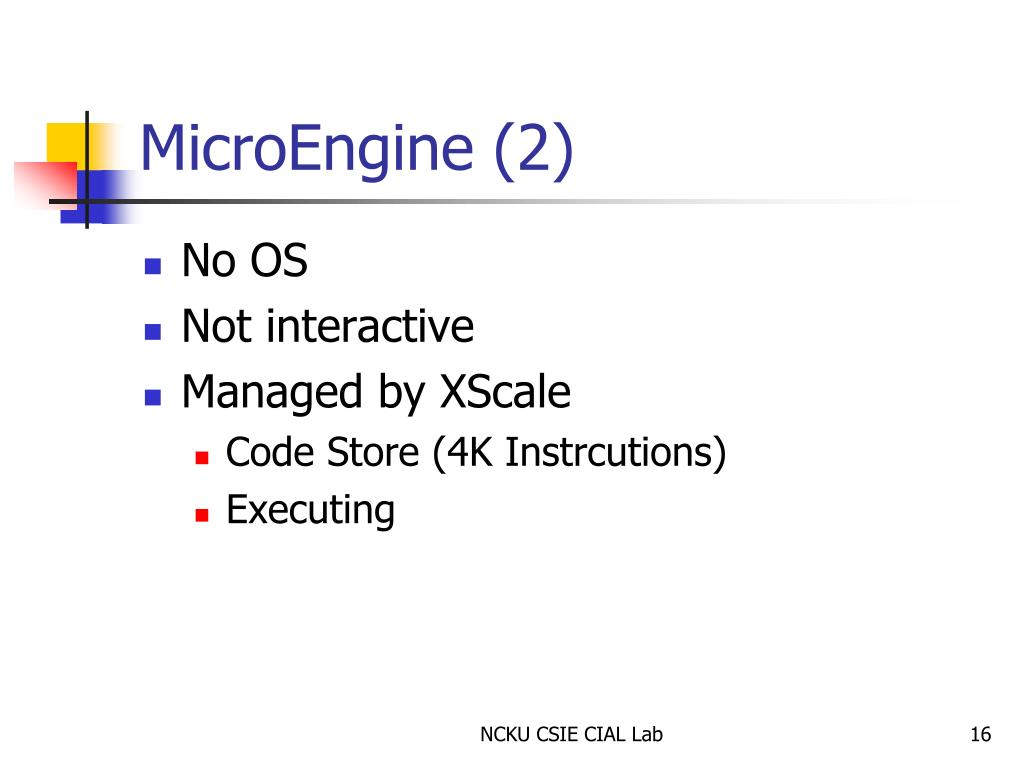

  15. MicroEngine (2) • No OS • Not interactive • Managed by XScale • Code Store (4K Instrcutions) • Executing NCKU CSIE CIAL Lab

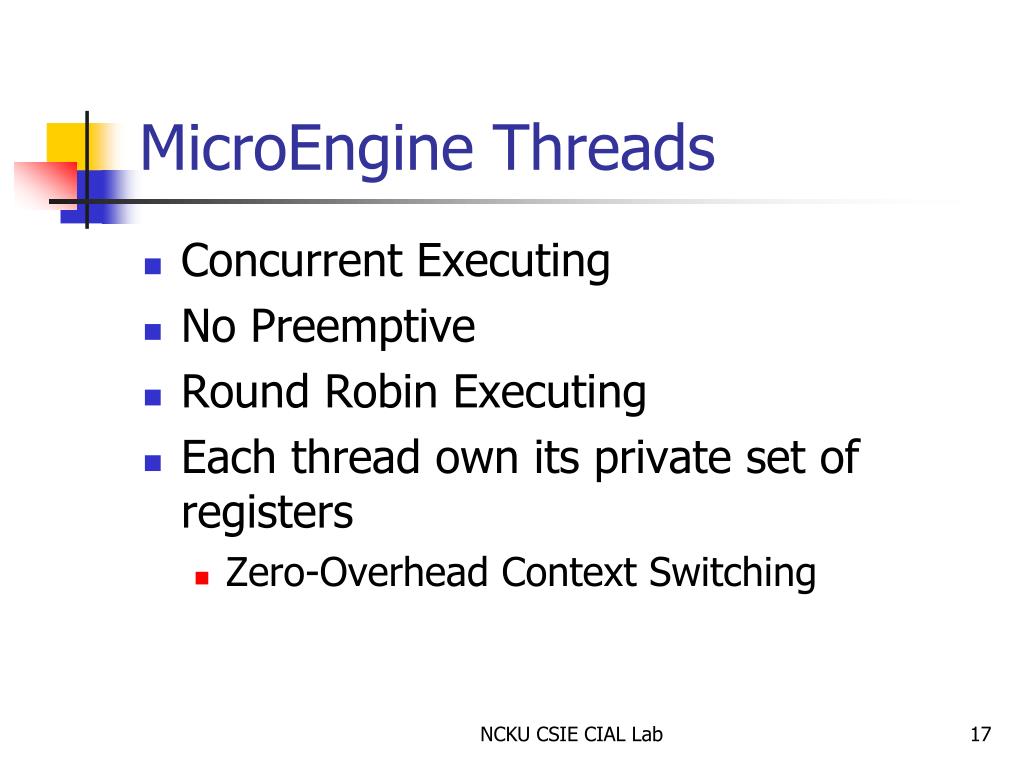

  16. MicroEngine Threads • Concurrent Executing • No Preemptive • Round Robin Executing • Each thread own its private set of registers • Zero-Overhead Context Switching NCKU CSIE CIAL Lab

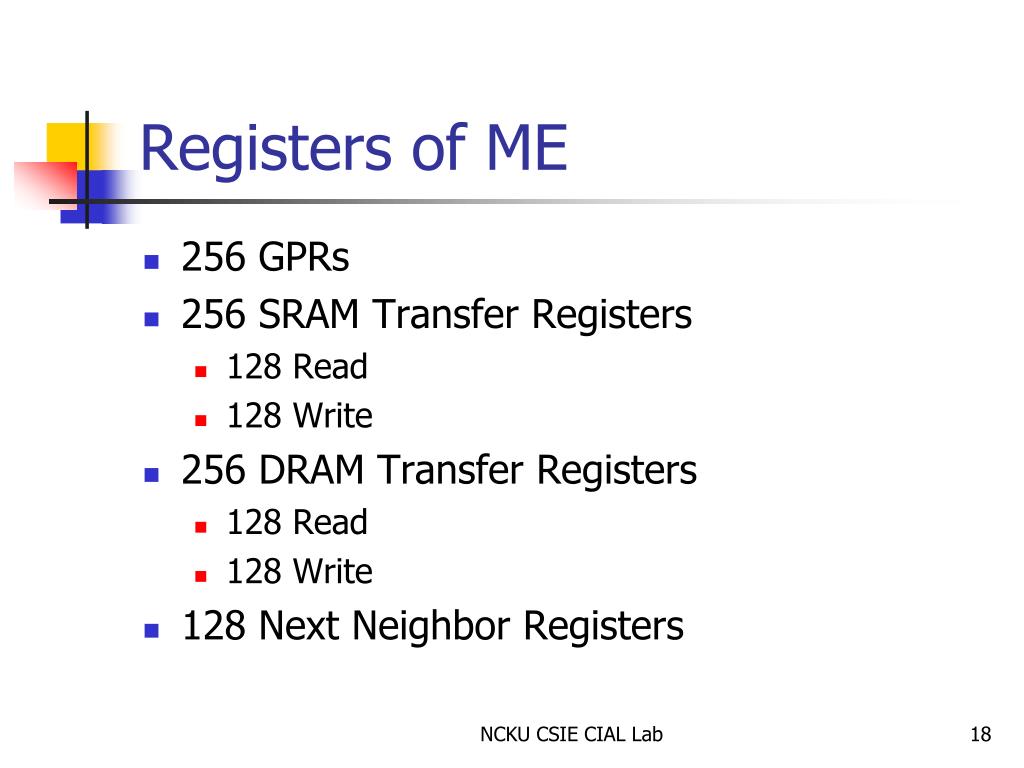

  17. 256 GPRs 256 SRAM Transfer Registers 128 Read 128 Write 256 DRAM Transfer Registers 128 Read 128 Write 128 Next Neighbor Registers Registers of ME NCKU CSIE CIAL Lab

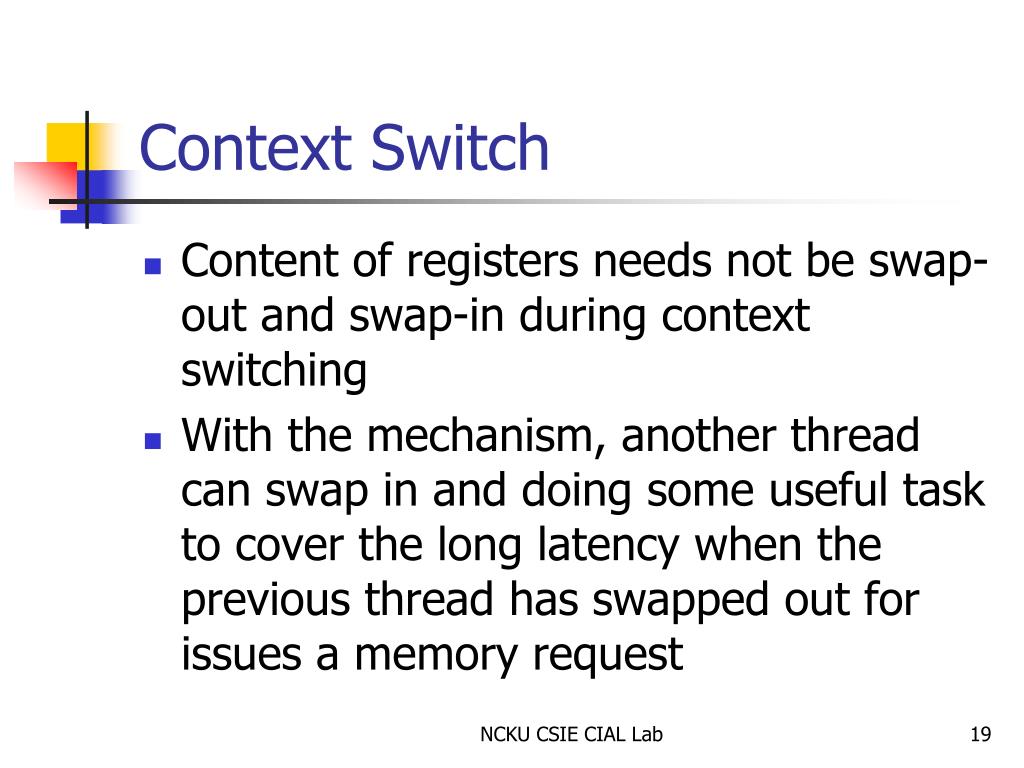

  18. Context Switch • Content of registers needs not be swap-out and swap-in during context switching • With the mechanism, another thread can swap in and doing some useful task to cover the long latency when the previous thread has swapped out for issues a memory request NCKU CSIE CIAL Lab

  19. Memory Interface of IXP2400 • Local Memory • Smallest and Fastest • Scratchpad • Passing handle of the packet • SRAM • Hold data structure for packet processing • DRAM • Largest and Slowest • Hold packet’s content NCKU CSIE CIAL Lab

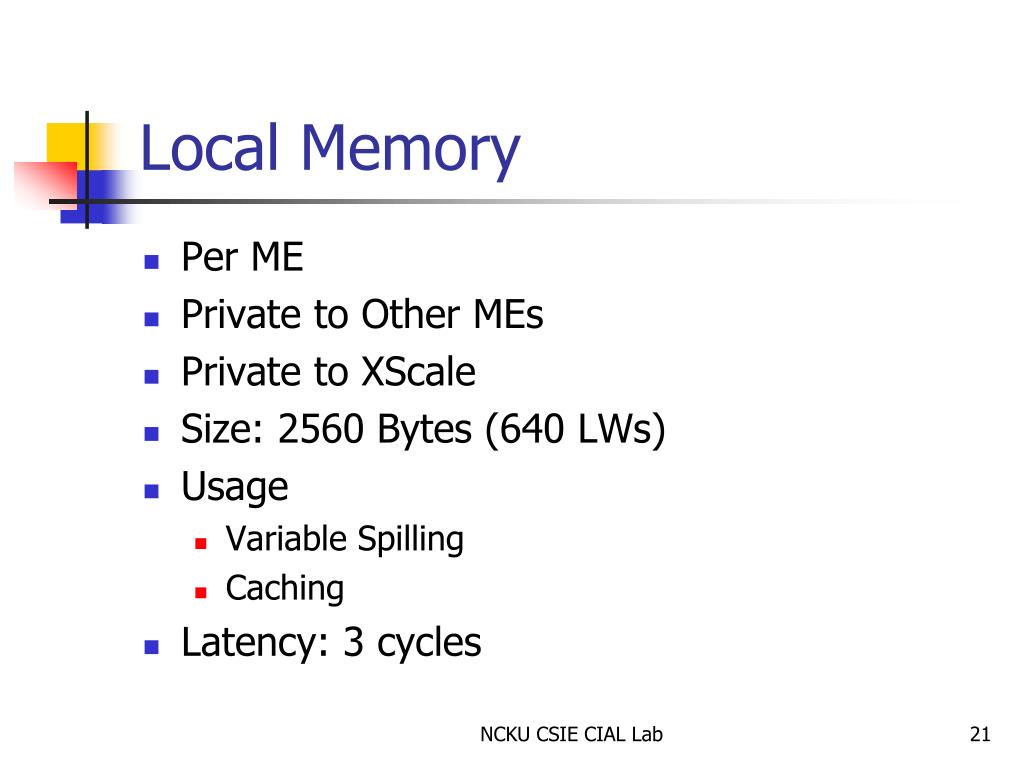

  20. Local Memory • Per ME • Private to Other MEs • Private to XScale • Size: 2560 Bytes (640 LWs) • Usage • Variable Spilling • Caching • Latency: 3 cycles NCKU CSIE CIAL Lab

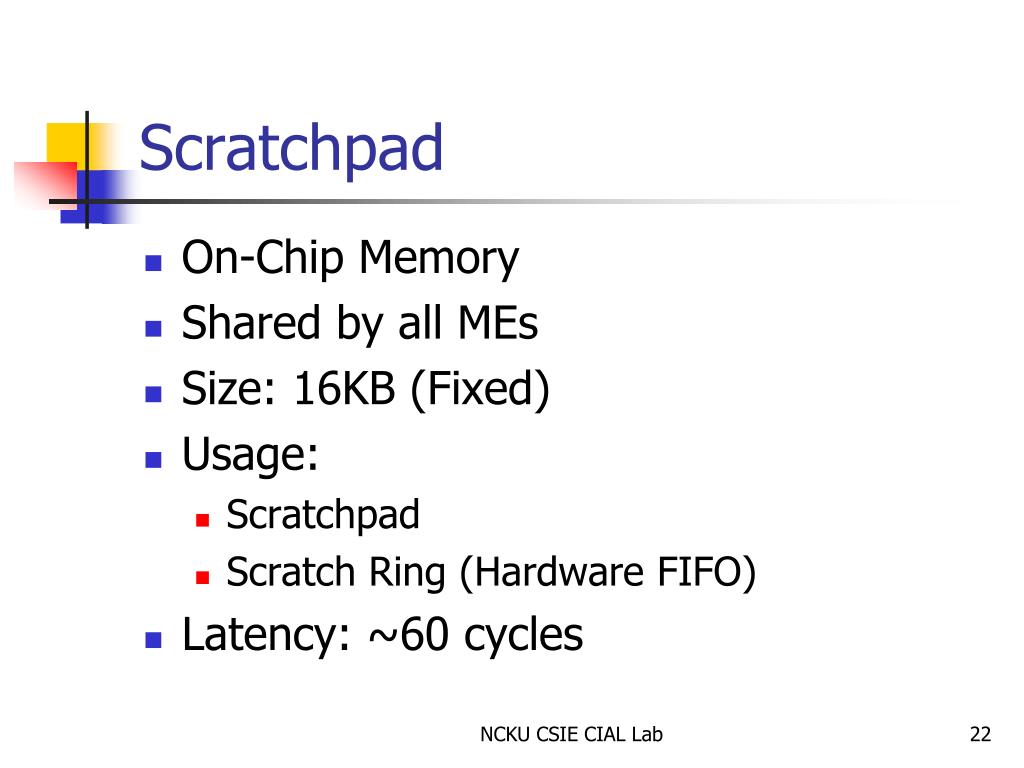

  21. Scratchpad • On-Chip Memory • Shared by all MEs • Size: 16KB (Fixed) • Usage: • Scratchpad • Scratch Ring (Hardware FIFO) • Latency: ~60 cycles NCKU CSIE CIAL Lab

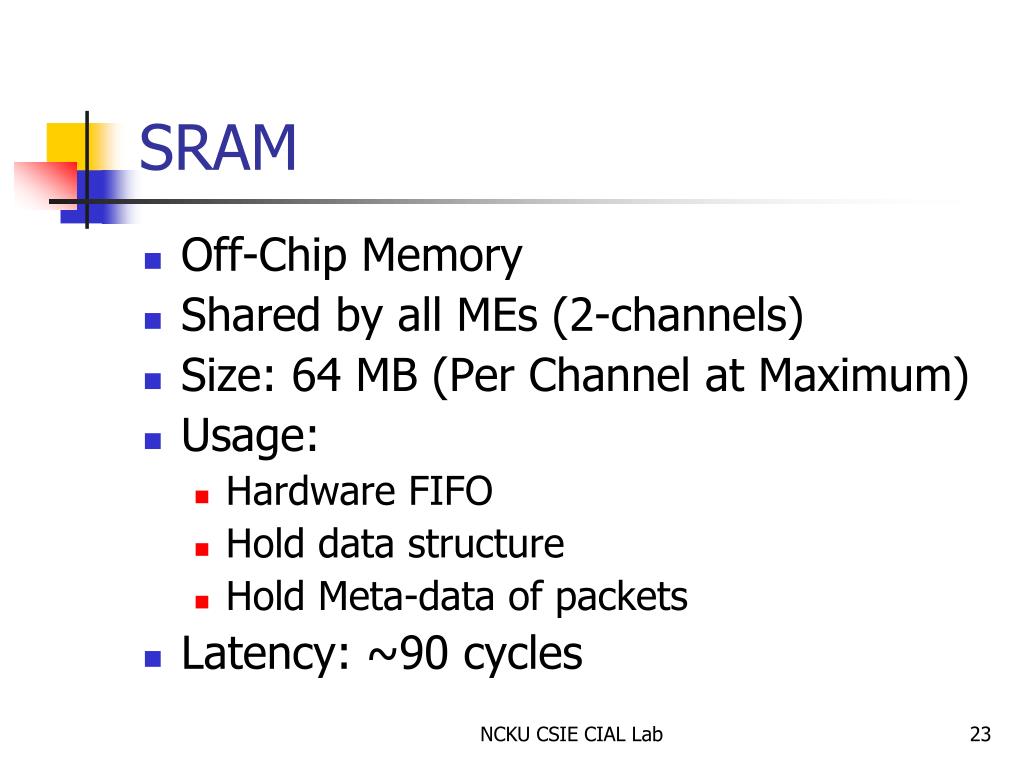

  22. SRAM • Off-Chip Memory • Shared by all MEs (2-channels) • Size: 64 MB (Per Channel at Maximum) • Usage: • Hardware FIFO • Hold data structure • Hold Meta-data of packets • Latency: ~90 cycles NCKU CSIE CIAL Lab

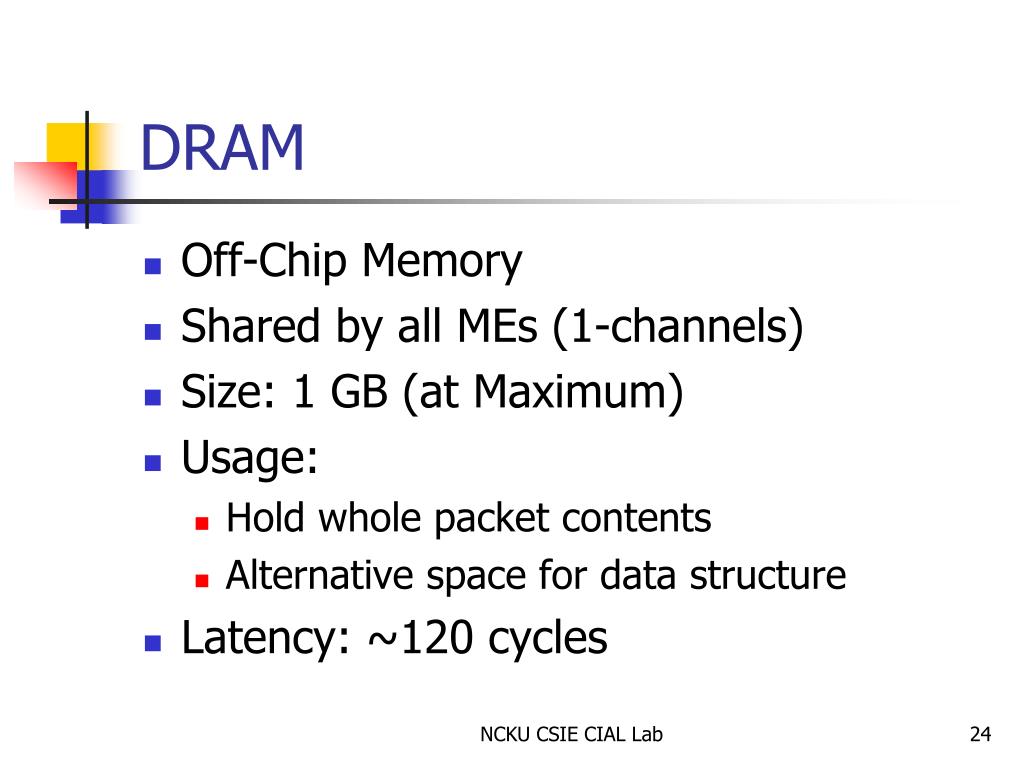

  23. DRAM • Off-Chip Memory • Shared by all MEs (1-channels) • Size: 1 GB (at Maximum) • Usage: • Hold whole packet contents • Alternative space for data structure • Latency: ~120 cycles NCKU CSIE CIAL Lab

  24. MSF (Media Switch Fabric) Receive Packet to DRAM Transmit Packet from DRAM SHaC Scratchpad Hash Unit CAP Coprocessor NCKU CSIE CIAL Lab

  25. Packet META-DATA (1) • Data for processing packets • How to identify packet? • Packet Handle • Packet Temporal Information • Non-related to packet content • Meta-data • Input Port, Output Port • Info for Packet Address in DRAM NCKU CSIE CIAL Lab

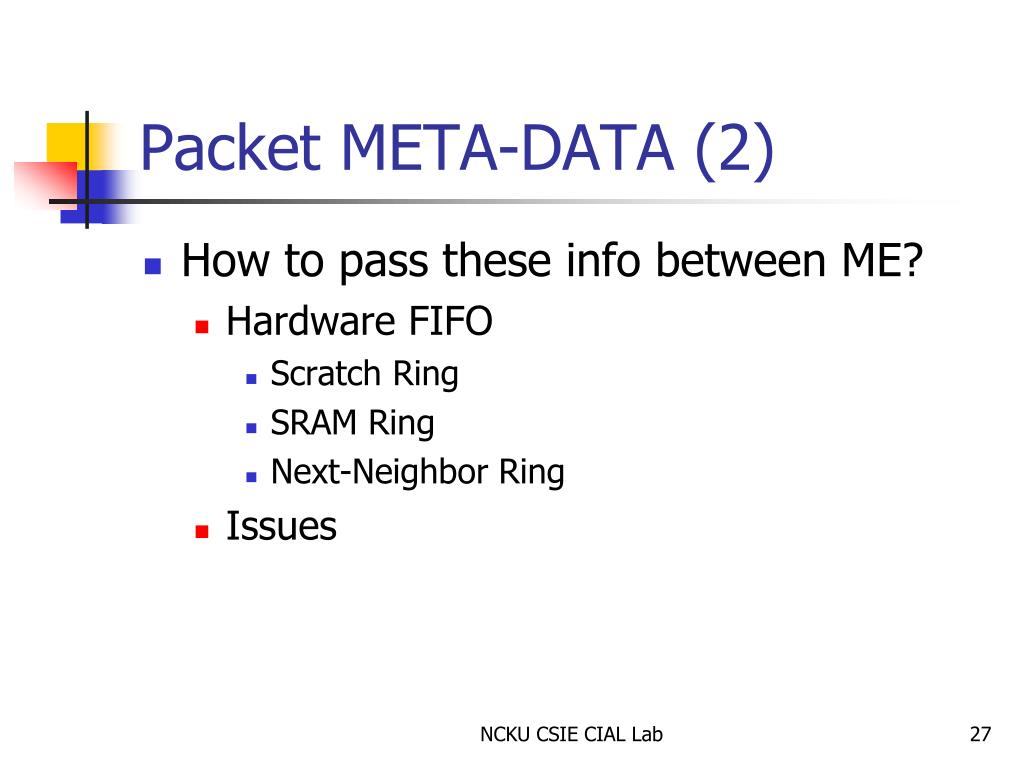

  26. Packet META-DATA (2) • How to pass these info between ME? • Hardware FIFO • Scratch Ring • SRAM Ring • Next-Neighbor Ring • Issues NCKU CSIE CIAL Lab

  27. Hierarchical View (Setting #1) • Only one IXP2400 based board • Data-Plane • Fast-Path: Microengine • Slow-Path: XScale • Control-Plane • XScale • Management-Plane • XScale NCKU CSIE CIAL Lab

  28. Hierarchical View (Setting #2) • Multiple IXP2400 based boards • Data-Plane • Fast-Path: Microengine • Slow-Path: XScale • Control-Plane • CPU • Management-Plane • CPU NCKU CSIE CIAL Lab

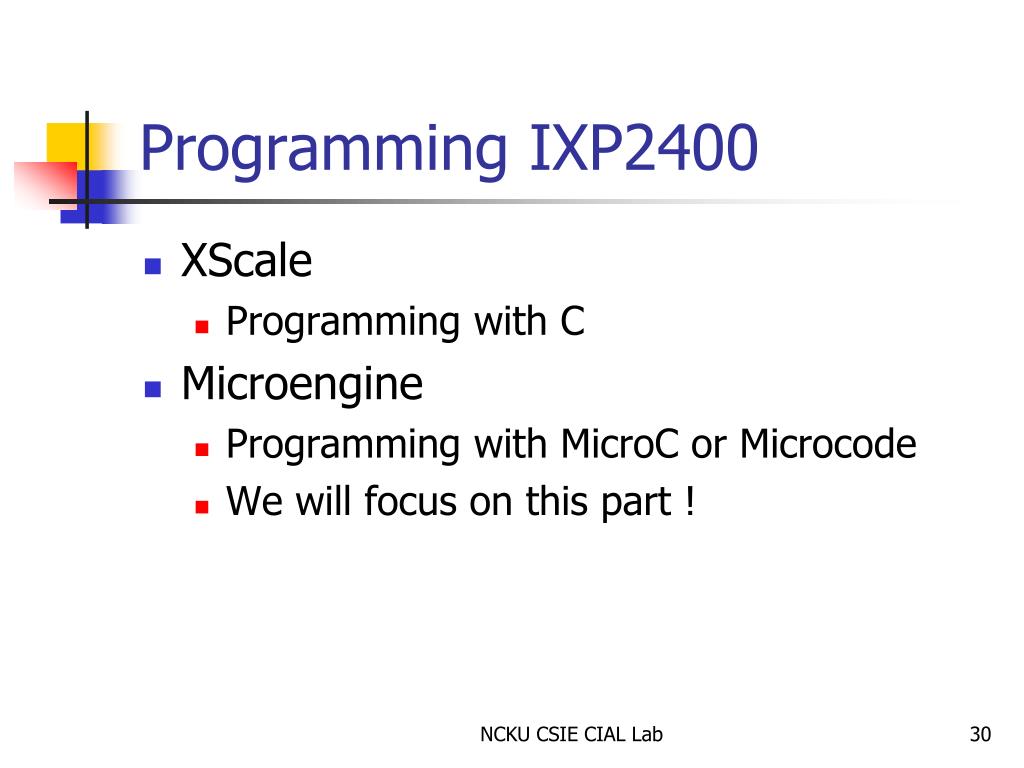

  29. Programming IXP2400 • XScale • Programming with C • Microengine • Programming with MicroC or Microcode • We will focus on this part ! NCKU CSIE CIAL Lab

  30. IDE Tool--IXA SDK Workbench NCKU CSIE CIAL Lab

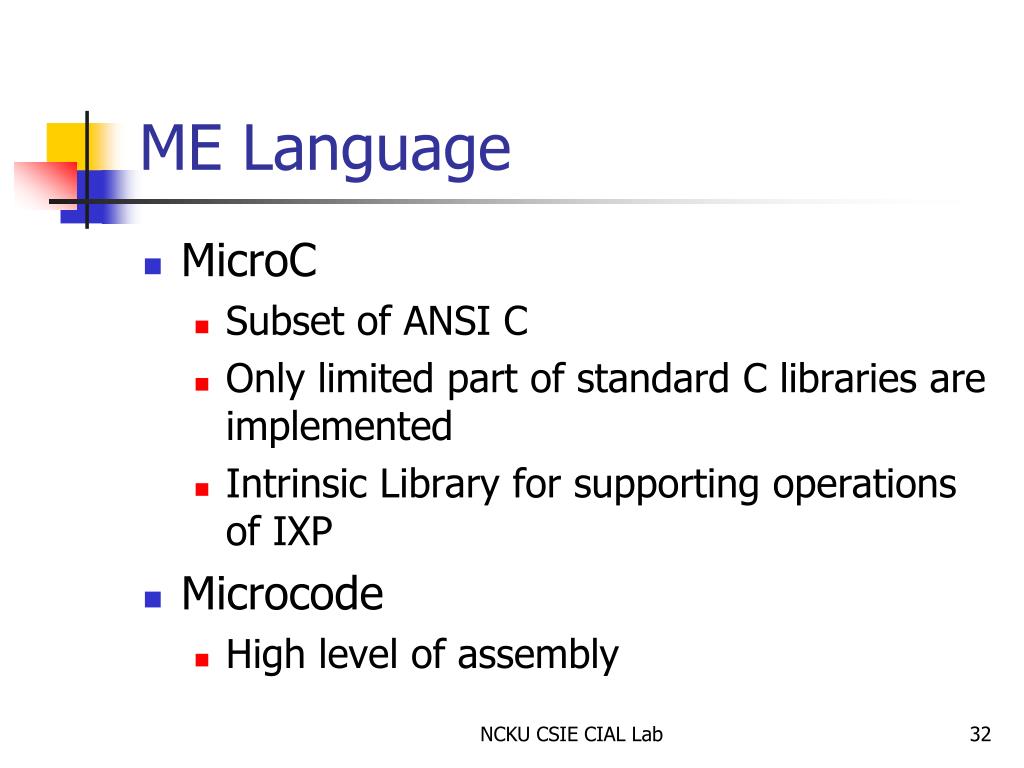

  31. ME Language • MicroC • Subset of ANSI C • Only limited part of standard C libraries are implemented • Intrinsic Library for supporting operations of IXP • Microcode • High level of assembly NCKU CSIE CIAL Lab

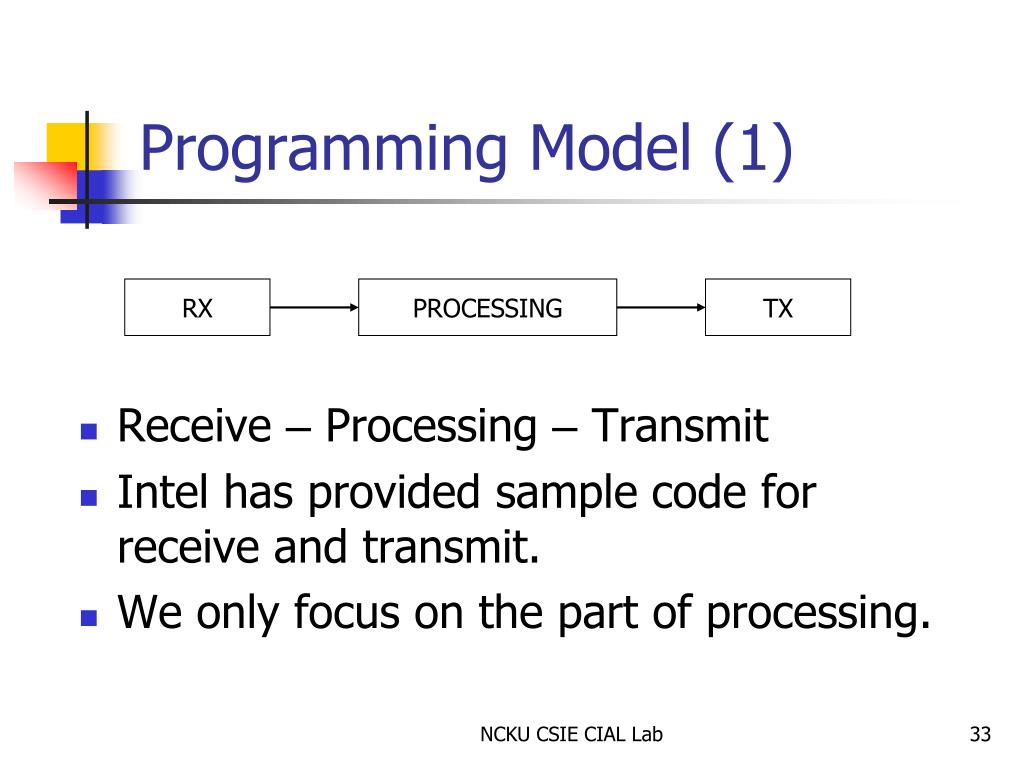

  32. Programming Model (1) • Receive – Processing – Transmit • Intel has provided sample code for receive and transmit. • We only focus on the part of processing. RX PROCESSING TX NCKU CSIE CIAL Lab

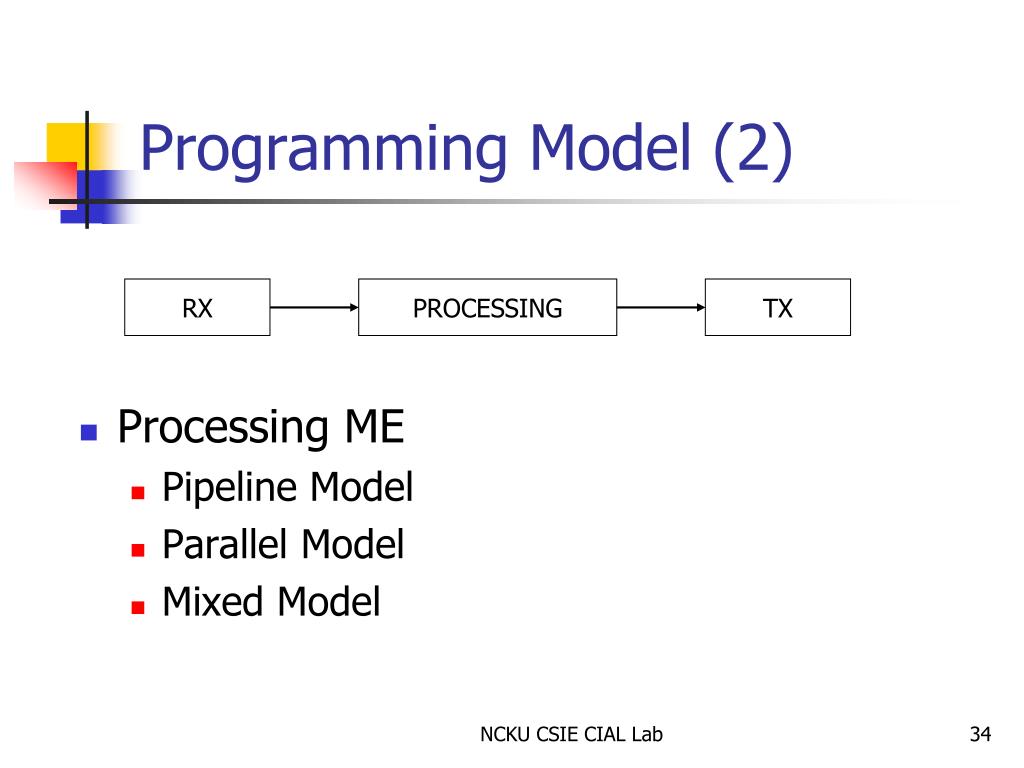

  33. Programming Model (2) • Processing ME • Pipeline Model • Parallel Model • Mixed Model RX PROCESSING TX NCKU CSIE CIAL Lab

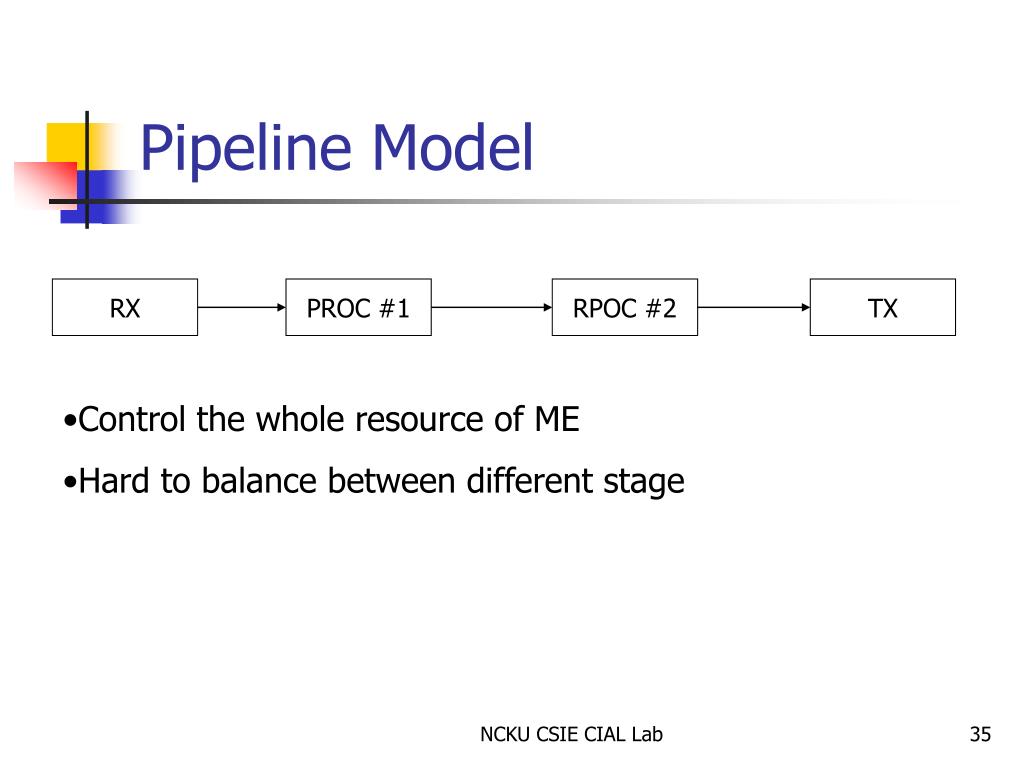

  34. Pipeline Model RX PROC #1 RPOC #2 TX • Control the whole resource of ME • Hard to balance between different stage NCKU CSIE CIAL Lab

  35. Parallel Model PROC #1 RX TX RPOC #2 • Balance is easy • Higher Performance • Resource is limited NCKU CSIE CIAL Lab

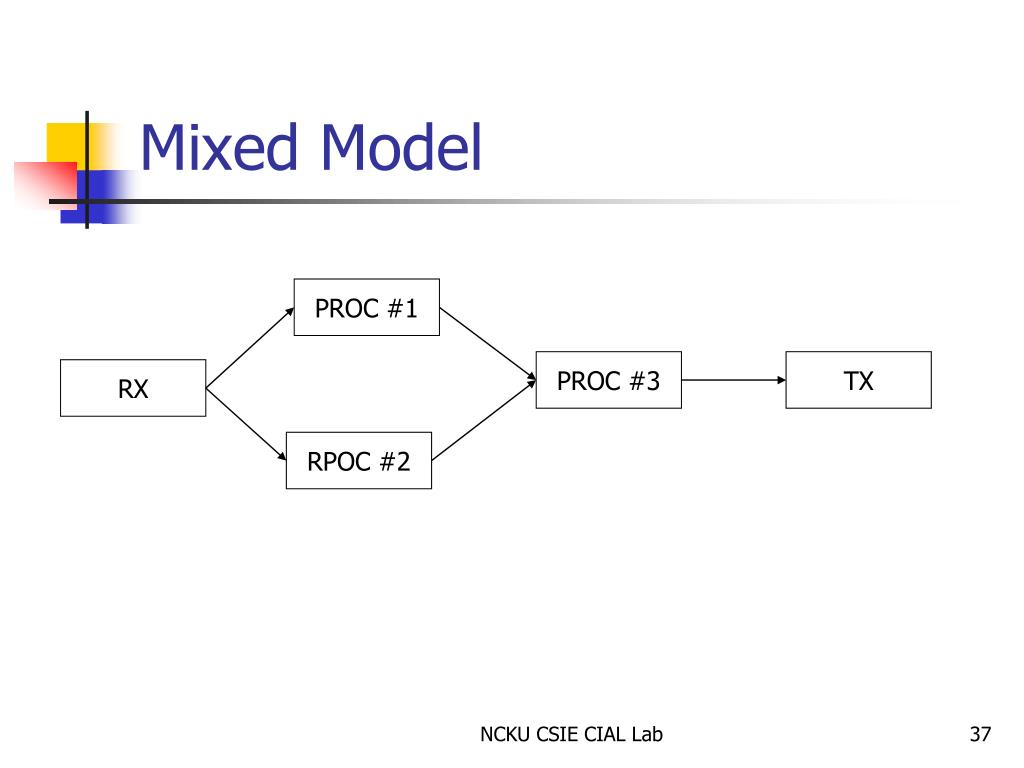

  36. Mixed Model PROC #1 PROC #3 TX RX RPOC #2 NCKU CSIE CIAL Lab

  37. MicroC Example 1 (1) void main () { _declspec(shared sram) int old_array[] = { 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 }; _declspec(shared sram) int new_array[sizeof(old_array)/sizeof(int)]; global_label("start_reverse"); reverse_array(old_array, new_array, sizeof(old_array)/sizeof(int)); global_label("end_reverse"); } NCKU CSIE CIAL Lab

  38. MicroC Example 1 (2) void reverse_array(volatile int* old, volatile int* new, int size) { int index = 0; for (index = 0; index < size; index++) { new[index] = old[size - index - 1]; } } NCKU CSIE CIAL Lab

  39. MicroC Example 2 sram_read(&sram_egt_dim1_2_node, (__declspec(sram) unsigned int *)(PACKET_CLASSIFICATION_SRAM_BASE1 + current*8), 2, sig_done, &sram_read_sig_dim1_2); __wait_for_all(&sram_read_sig_dim1_2); temp = sram_egt_dim1_2_node.next_dim; NCKU CSIE CIAL Lab

  40. 1. COPY IXA_SDK_3.51, ixp_book到 D:\ ; 再 reboot • 3.[Ctrl+Enter] 進還原卡總管模式 • 4.Password: davidchang • 5. 解壓縮 ixasdk351cd1windows.zip, ixasdk351cd3.zip, ixasdk351framework.zip, 再依序安裝 (cd1裝完後需reboot) • 6.把ixp_book 目錄 COPY到C:\ NCKU CSIE CIAL Lab
