2. An Introduction to GPGPU Programming Bob Torgerson Arctic Region Supercomputing Center March 14th, 2014

3. Introduction

4. Contents • What is GPU computing? • Brief History of GPGPU • Introduction to CUDA • CUDA API Basics • Advanced CUDA Concepts

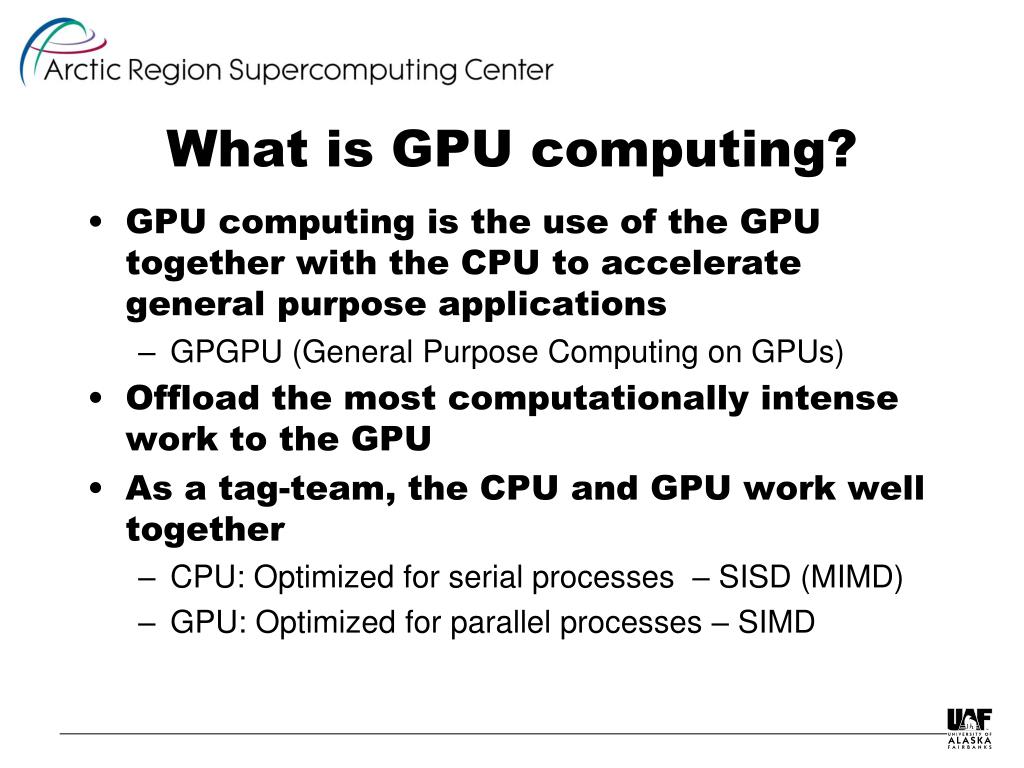

5. What is GPU computing? • GPU computing is the use of the GPU together with the CPU to accelerate general purpose applications • GPGPU (General Purpose Computing on GPUs) • Offload the most computationally intense work to the GPU • As a tag-team, the CPU and GPU work well together • CPU: Optimized for serial processes – SISD (MIMD) • GPU: Optimized for parallel processes – SIMD

6. Why GPU computing? CPU vs GPU

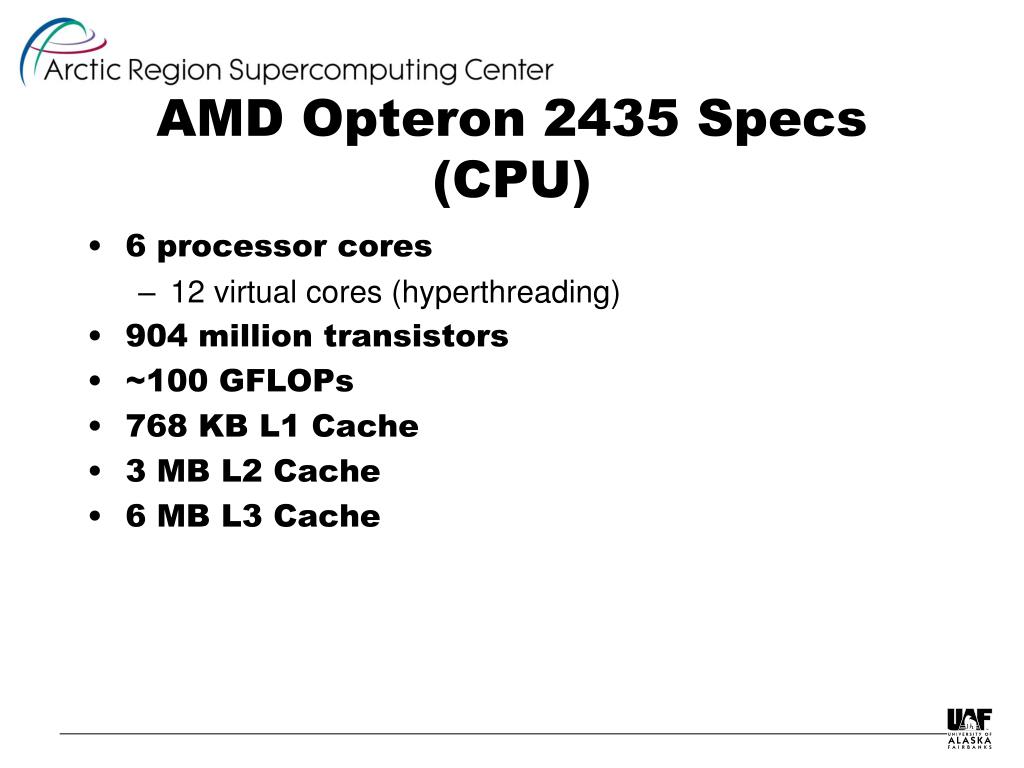

7. AMD Opteron 2435 Specs (CPU) • 6 processor cores • 12 virtual cores (hyperthreading) • 904 million transistors • ~100 GFLOPs • 768 KB L1 Cache • 3 MB L2 Cache • 6 MB L3 Cache

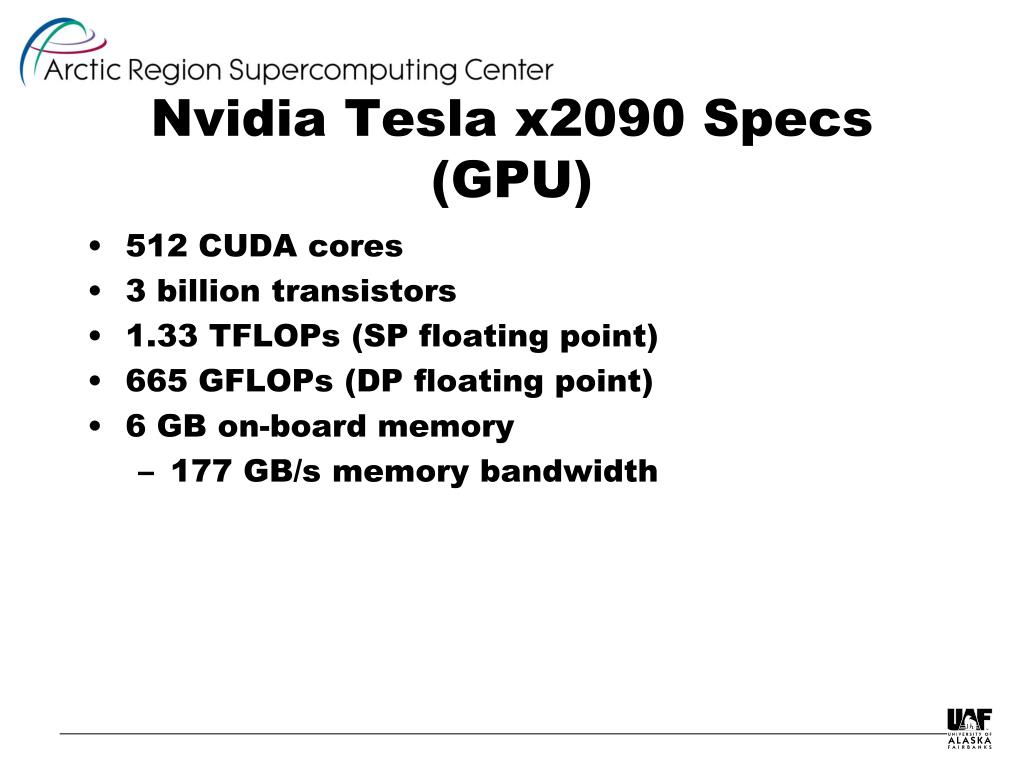

8. Nvidia Tesla x2090 Specs(GPU) • 512 CUDA cores • 3 billion transistors • 1.33 TFLOPs (SP floating point) • 665 GFLOPs (DP floating point) • 6 GB on-board memory • 177 GB/s memory bandwidth

12. Brief History of GPGPU • On October 11th, 1999, Nvidia creates the first ever GPU • Offloaded the task of transformation & lighting • In the early 2000’s, many started to notice the power of the GPU • Researchers started writing code in OpenGL and Cg • Limited accessibility to general programmers and industry • Seeing a need, Nvidia made their GPUs fully programmable • Offered the CUDA parallel programming model • Works in a variety of languages, most notably C, C++ and Fortran

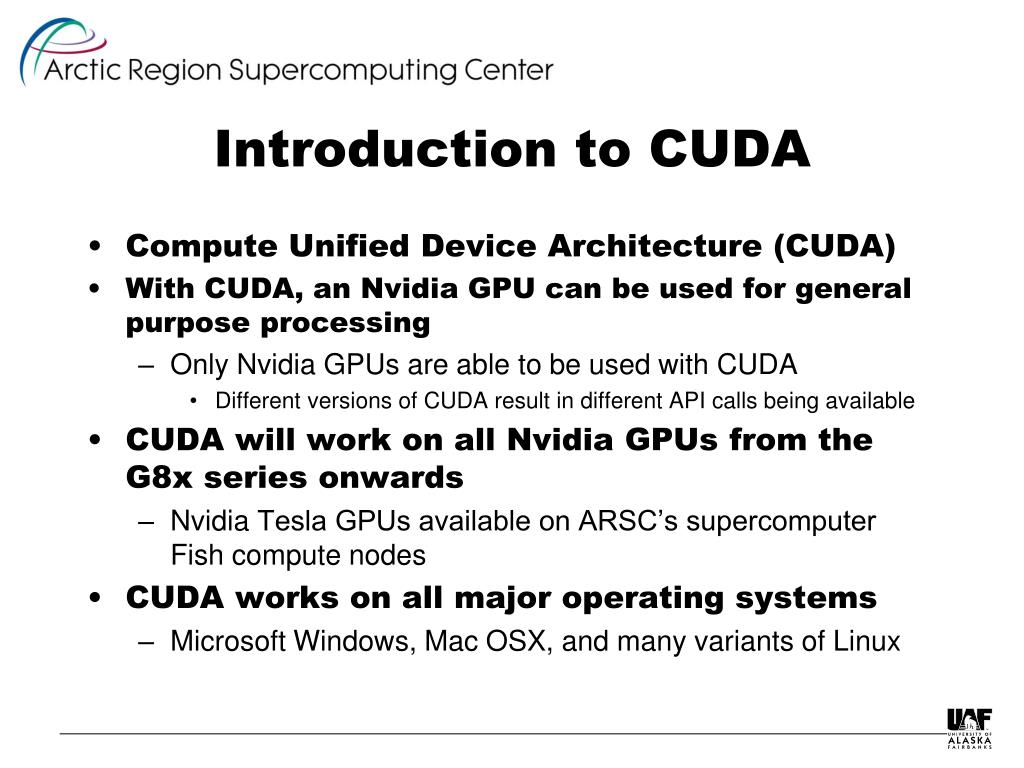

13. Introduction to CUDA • Compute Unified Device Architecture (CUDA) • With CUDA, an Nvidia GPU can be used for general purpose processing • Only Nvidia GPUs are able to be used with CUDA • Different versions of CUDA result in different API calls being available • CUDA will work on all Nvidia GPUs from the G8x series onwards • Nvidia Tesla GPUs available on ARSC’s supercomputer Fish compute nodes • CUDA works on all major operating systems • Microsoft Windows, Mac OSX, and many variants of Linux

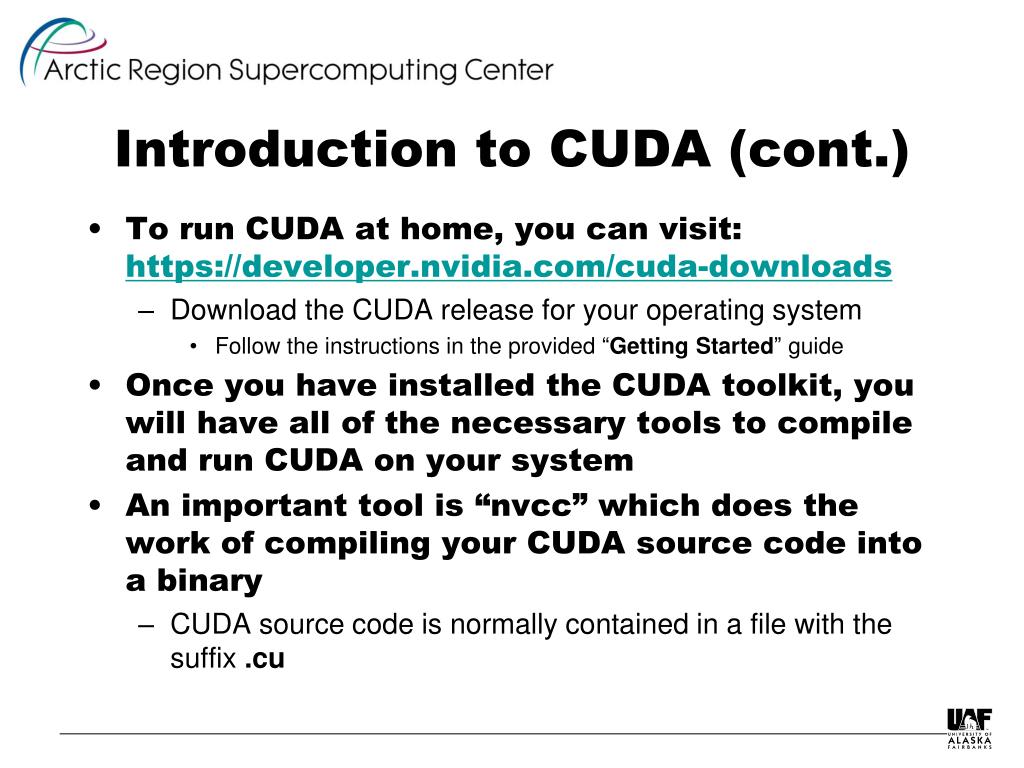

14. Introduction to CUDA (cont.) • To run CUDA at home, you can visit: https://developer.nvidia.com/cuda-downloads • Download the CUDA release for your operating system • Follow the instructions in the provided “Getting Started” guide • Once you have installed the CUDA toolkit, you will have all of the necessary tools to compile and run CUDA on your system • An important tool is “nvcc” which does the work of compiling your CUDA source code into a binary • CUDA source code is normally contained in a file with the suffix .cu

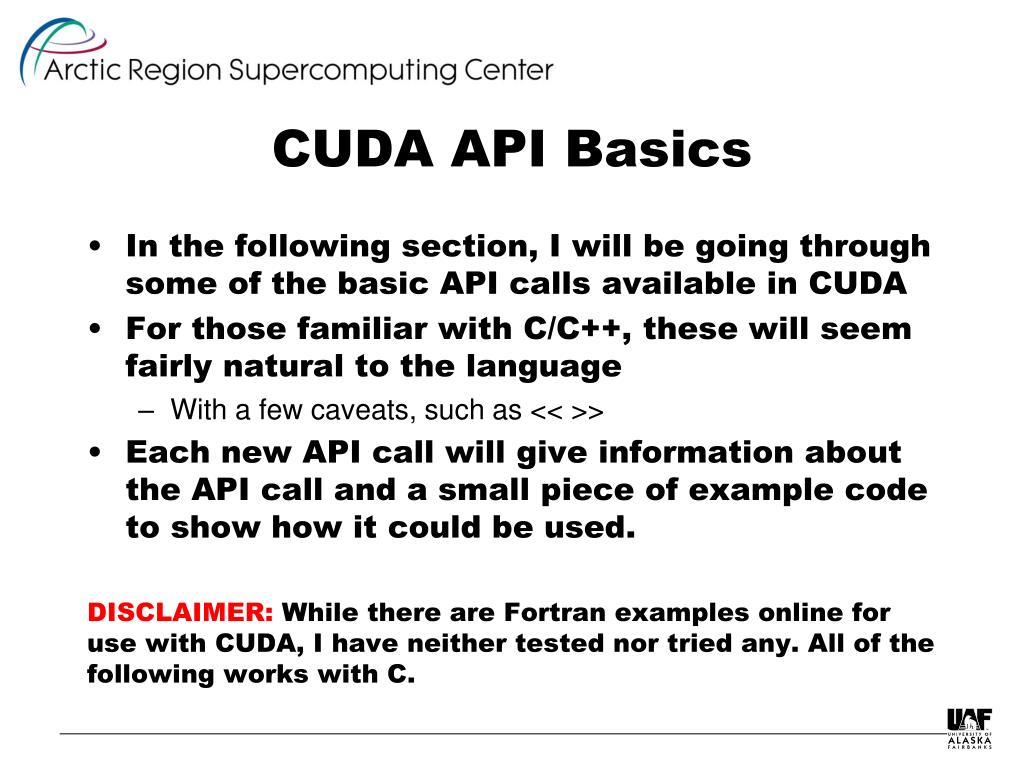

15. CUDA API Basics • In the following section, I will be going through some of the basic API calls available in CUDA • For those familiar with C/C++, these will seem fairly natural to the language • With a few caveats, such as << >> • Each new API call will give information about the API call and a small piece of example code to show how it could be used. DISCLAIMER: While there are Fortran examples online for use with CUDA, I have neither tested nor tried any. All of the following works with C.

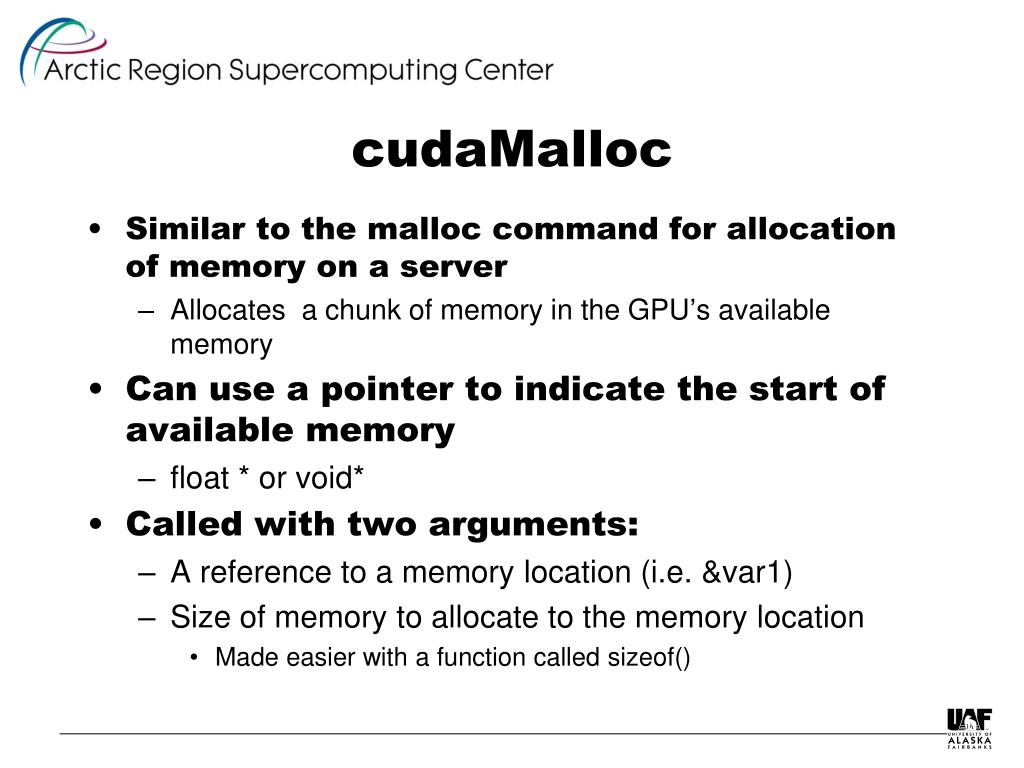

16. cudaMalloc • Similar to the malloc command for allocation of memory on a server • Allocates a chunk of memory in the GPU’s available memory • Can use a pointer to indicate the start of available memory • float * or void* • Called with two arguments: • A reference to a memory location (i.e. &var1) • Size of memory to allocate to the memory location • Made easier with a function called sizeof()

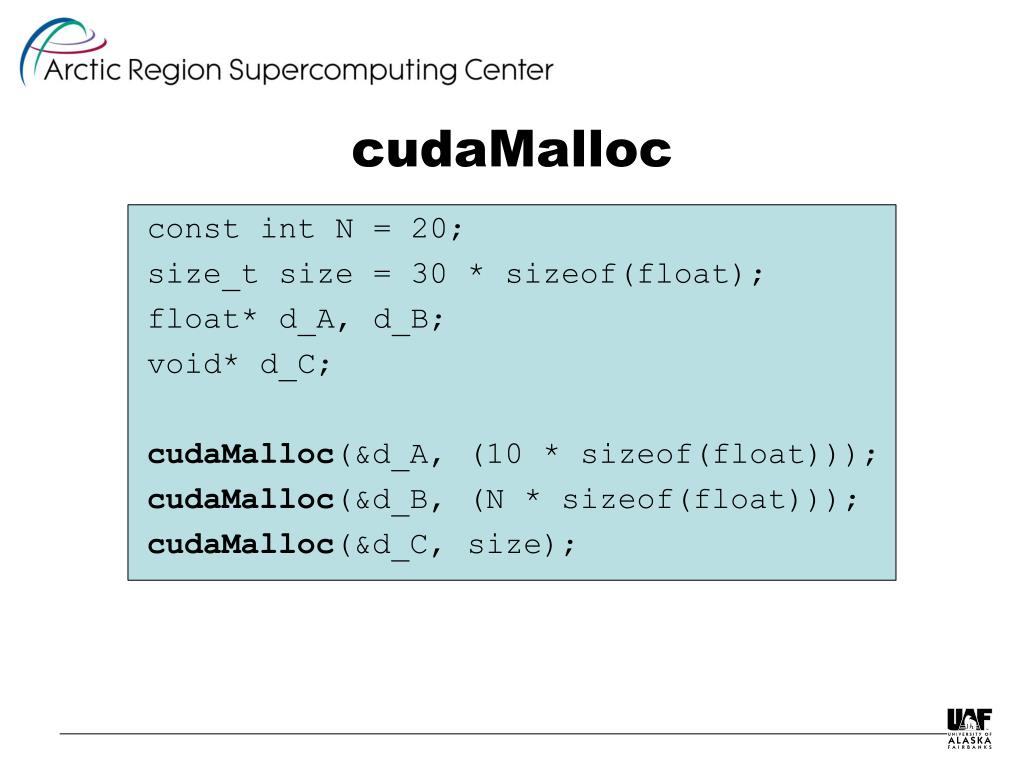

17. cudaMalloc constint N = 20; size_t size = 30 * sizeof(float); float* d_A, d_B; void* d_C; cudaMalloc(&d_A, (10 * sizeof(float))); cudaMalloc(&d_B, (N * sizeof(float))); cudaMalloc(&d_C, size);

18. cudaFree • cudaFree releases the memory that has been allocated on the device • Identical to free() for C/C++ malloc() • cudaFree and cudaMalloc behave differently depending on where they were executed • cudaFree run on the device cannot free device memory that was allocated by the host • cudaMalloc run on the device will only be able to allocate space up to the “cudaLimitMallocHeapSize” • Called with a single argument: • Pointer to memory location on device

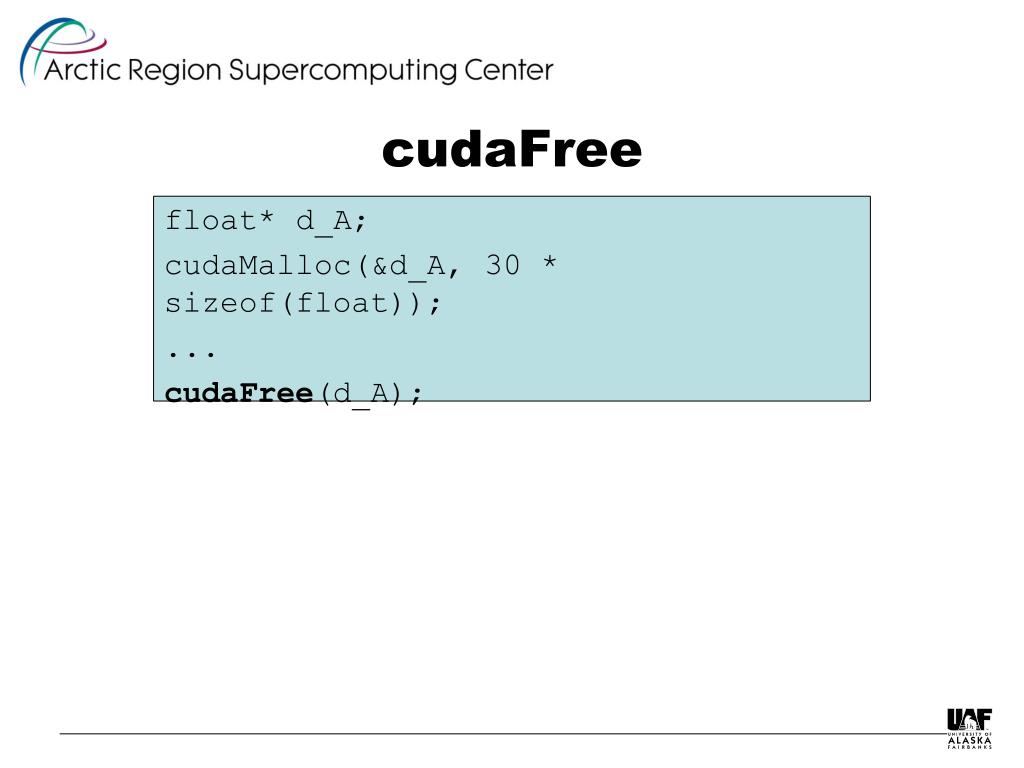

19. cudaFree float* d_A; cudaMalloc(&d_A, 30 * sizeof(float)); ... cudaFree(d_A);

20. cudaMemcpy • This function copies data between the host system and the GPU device • It is required that the memory copy has a pre-allocated amount of space available for the data to be copied • The function is used for copying data to and from the device and also to copy on the device • cudaMemcpyHostToDevice • cudaMemcpyDeviceToHost • cudaMemcpyDeviceToDevice • Called with 4 arguments: • A pointer to the memory that is being copied to • A pointer to the memory that is being copied from • The size of the data being transferred from the second arg. to the first arg. • The direction to copy the data (host to device, device to host)

21. cudaMemcpy cudaMemcpy(d_A, h_A, 30 * sizeof(float), cudaMemcpyHostToDevice); ... cudaMemcpy(h_A, d_A, 30 * sizeof(float), cudaMemcpyDeviceToHost); constint N = 50; size_t size = N * sizeof(float); cudaMemcpy(d_B, h_B, size, cudaMemcpyHostToDevice); ... cudaMemcpy(h_B, d_B, size, cudaMemcpyDeviceToHost);

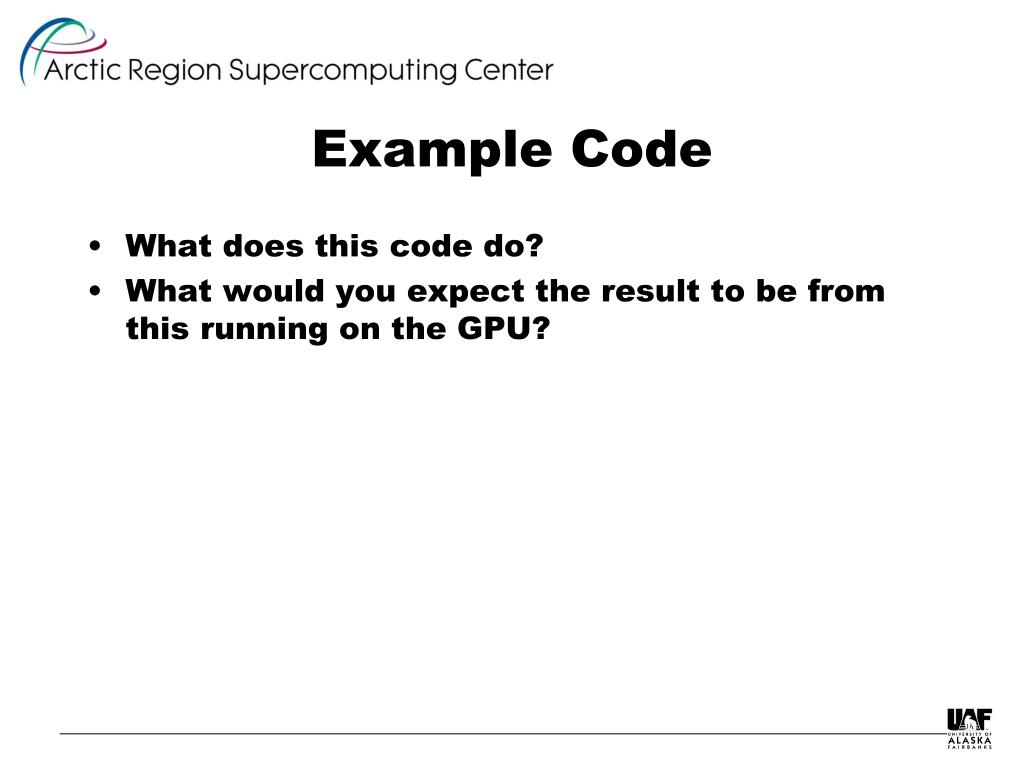

22. Example Code • What does this code do? • What would you expect the result to be from this running on the GPU?

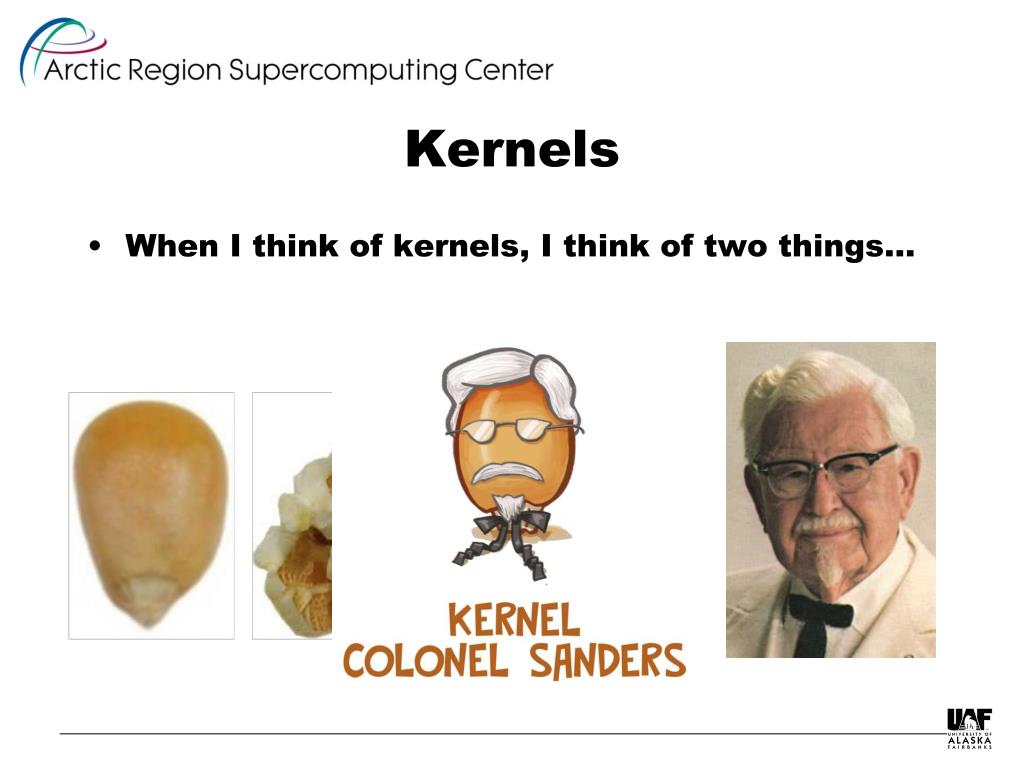

23. Kernels • When I think of kernels, I think of two things…

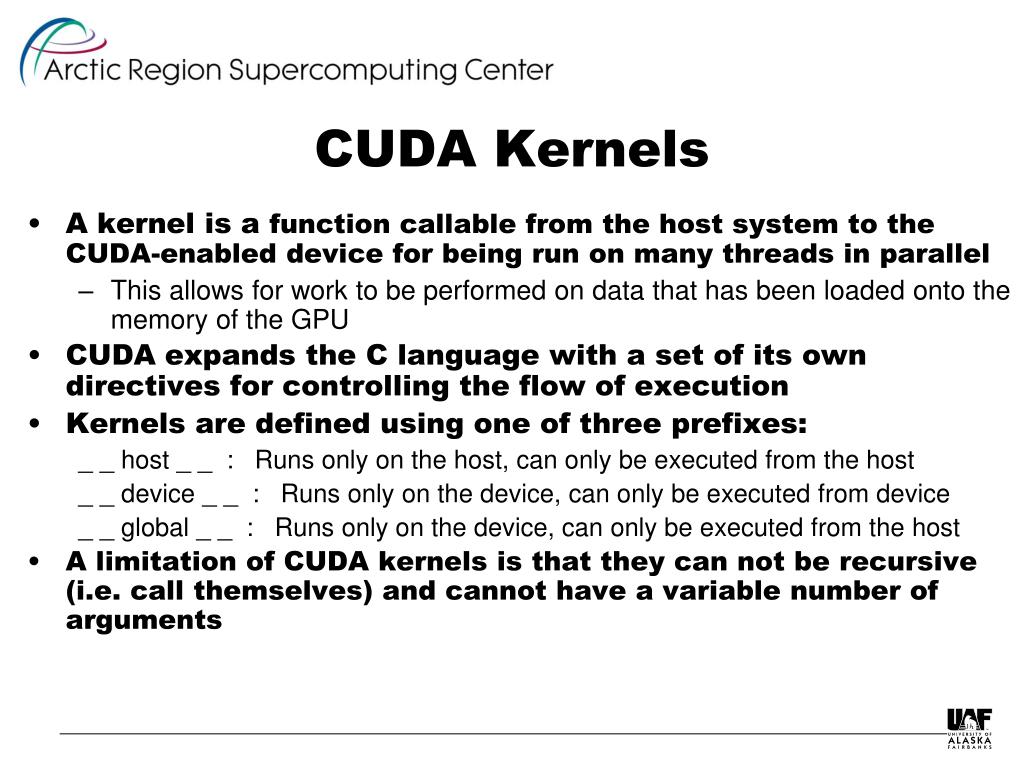

24. CUDA Kernels • A kernel is a function callable from the host system to the CUDA-enabled device for being run on many threads in parallel • This allows for work to be performed on data that has been loaded onto the memory of the GPU • CUDA expands the C language with a set of its own directives for controlling the flow of execution • Kernels are defined using one of three prefixes: _ _ host _ _ : Runs only on the host, can only be executed from the host _ _ device _ _ : Runs only on the device, can only be executed from device _ _ global _ _ : Runs only on the device, can only be executed from the host • Alimitation of CUDA kernels is that they can not be recursive (i.e. call themselves) and cannot have a variable number of arguments

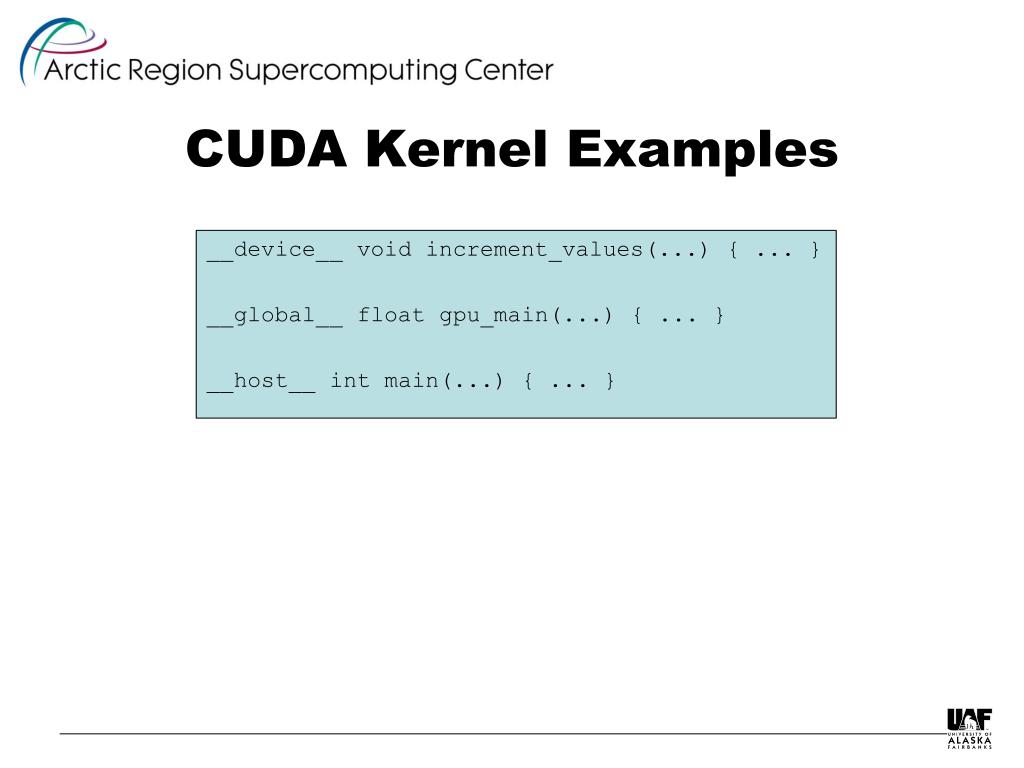

25. CUDA Kernel Examples __device__ void increment_values(...) { ... } __global__ float gpu_main(...) { ... } __host__ int main(...) { ... }

26. CUDA Kernel Examples __host__ void incrementOnHost(float *host_a, int N) { for (inti = 0; i < N; i++) { host_a[i] = host_a[i] + 1.f; } } __global__ void incrementOnDevice(float *device_a, int N) { intidx = blockIdx.x * blockDim.x + threadIdx.x; if (idx < N) { device_a[idx] = device_a[idx] + 1.f; } }

27. CUDA Thread Indexing • You may have noticed the undefined syntax in the previous example • i.e. threadIdx.x, blockDim.x, blockIdx.x • CUDA has these built-in variables for the blocks of threads that are run against a kernel • Rather than performing a loop, we use the parallel nature of the threads to perform the same work • For a better understanding of this concept, take a look at the picture in the following slide

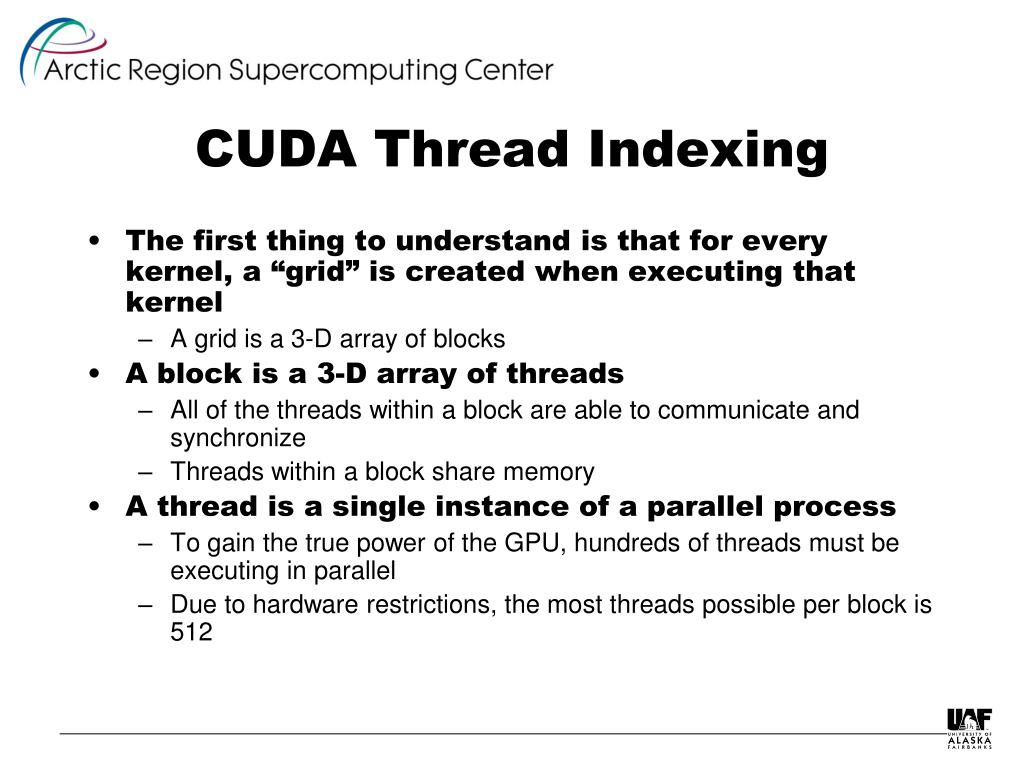

29. CUDA Thread Indexing • The first thing to understand is that for every kernel, a “grid” is created when executing that kernel • A grid is a 3-D array of blocks • A block is a 3-D array of threads • All of the threads within a block are able to communicate and synchronize • Threads within a block share memory • A thread is a single instance of a parallel process • To gain the true power of the GPU, hundreds of threads must be executing in parallel • Due to hardware restrictions, the most threads possible per block is 512

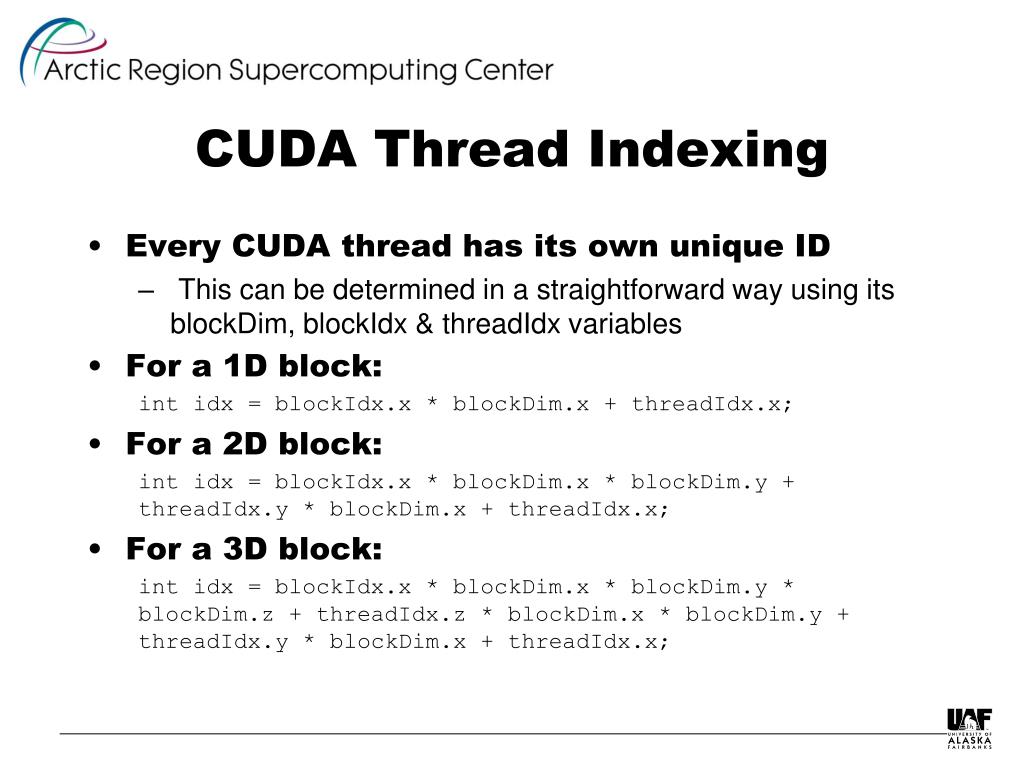

30. CUDA Thread Indexing • Every CUDA thread has its own unique ID • This can be determined in a straightforward way using its blockDim, blockIdx & threadIdx variables • For a 1D block: intidx = blockIdx.x * blockDim.x + threadIdx.x; • For a 2D block: intidx = blockIdx.x * blockDim.x * blockDim.y + threadIdx.y * blockDim.x + threadIdx.x; • For a 3D block: intidx = blockIdx.x * blockDim.x * blockDim.y * blockDim.z + threadIdx.z * blockDim.x * blockDim.y + threadIdx.y * blockDim.x + threadIdx.x;

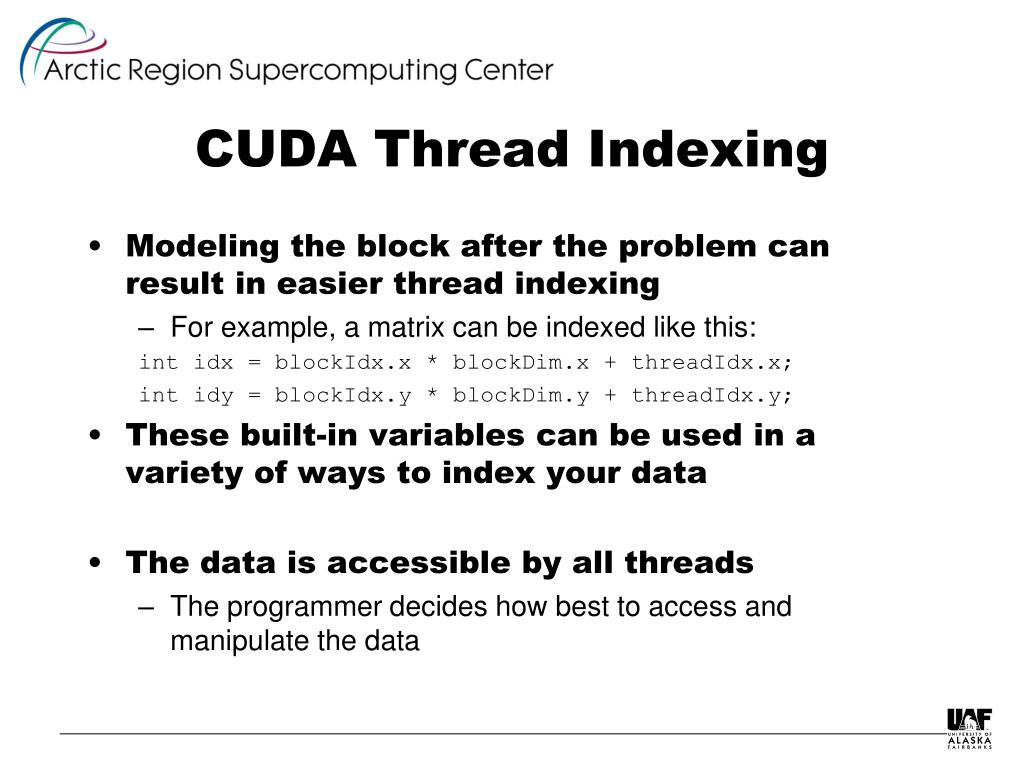

31. CUDA Thread Indexing • Modeling the block after the problem can result in easier thread indexing • For example, a matrix can be indexed like this: intidx = blockIdx.x * blockDim.x + threadIdx.x; intidy = blockIdx.y * blockDim.y + threadIdx.y; • These built-in variables can be used in a variety of ways to index your data • The data is accessible by all threads • The programmer decides how best to access and manipulate the data

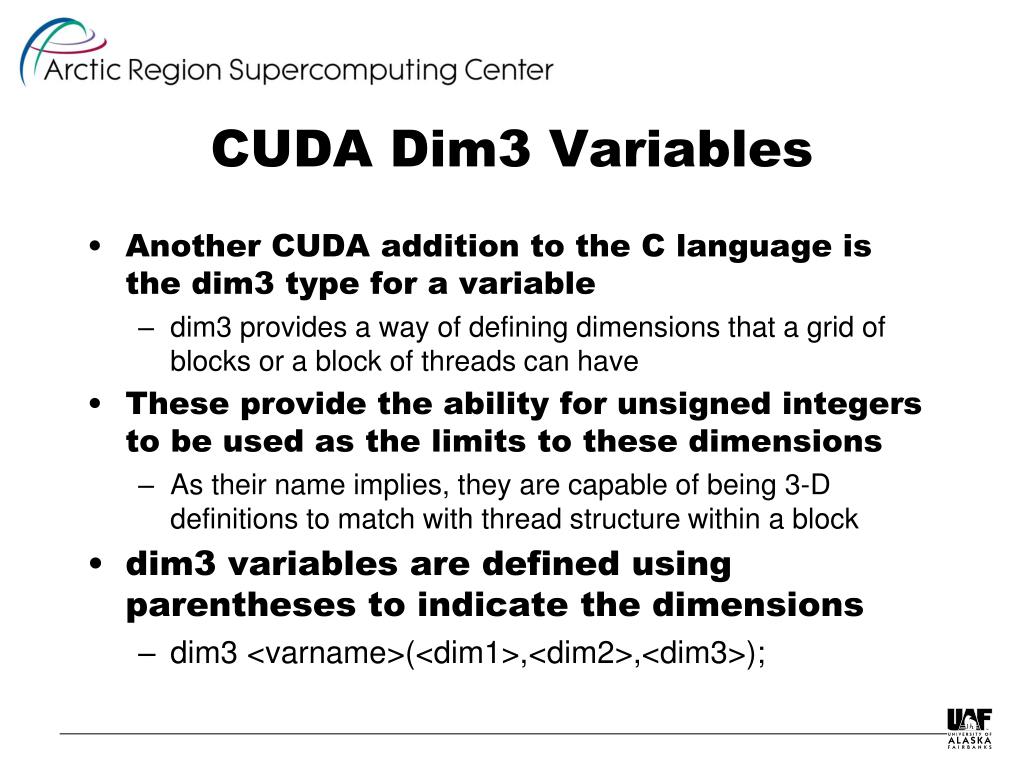

32. CUDA Dim3 Variables • Another CUDA addition to the C language is the dim3 type for a variable • dim3 provides a way of defining dimensions that a grid of blocks or a block of threads can have • These provide the ability for unsigned integers to be used as the limits to these dimensions • As their name implies, they are capable of being 3-D definitions to match with thread structure within a block • dim3 variables are defined using parentheses to indicate the dimensions • dim3 <varname>(<dim1>,<dim2>,<dim3>);

33. CUDA Dim3 Example int M = 4; intN = 8; dim3blocks_per_grid(M,M); dim3 threads_per_block(N,N);

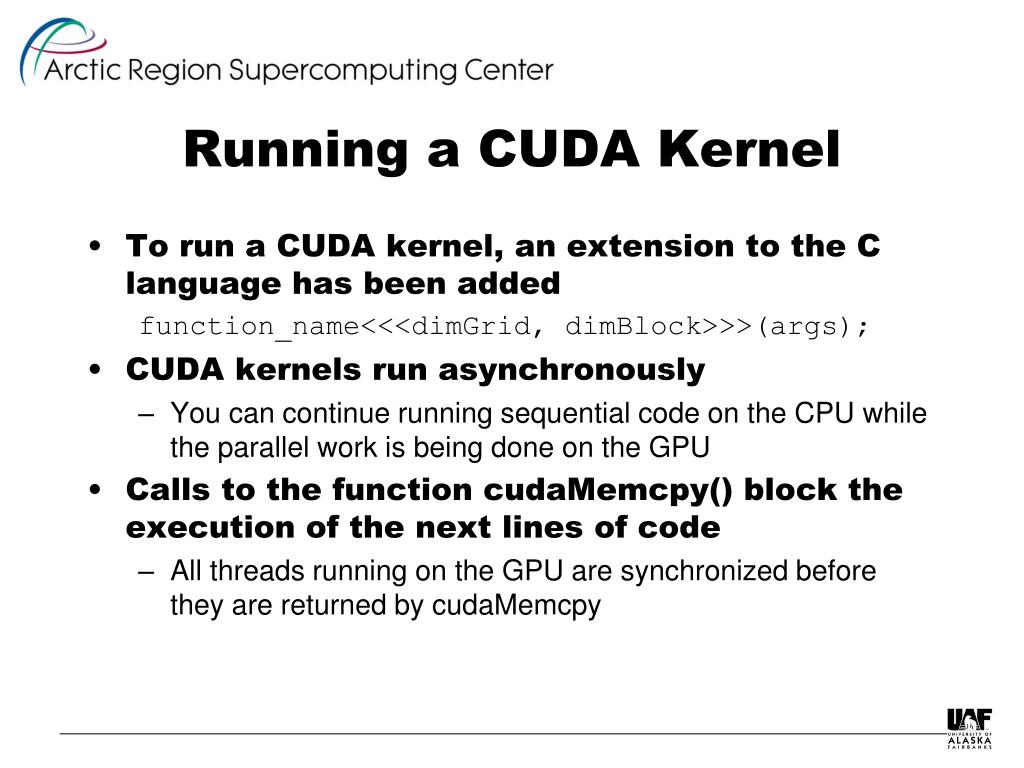

34. Running a CUDA Kernel • To run a CUDA kernel, an extension to the C language has been added function_name<<<dimGrid, dimBlock>>>(args); • CUDA kernels run asynchronously • You can continue running sequential code on the CPU while the parallel work is being done on the GPU • Calls to the function cudaMemcpy() block the execution of the next lines of code • All threads running on the GPU are synchronized before they are returned by cudaMemcpy

36. Example Code • What does this code do? • What would you expect the result to be from this running on the GPU?

37. The More You Know… • Now you know everything you need to make a working CUDA program • “Know enough to be dangerous…” • Basics are easy just like in every parallel programming extension • Doing things right takes practice • May not be obvious changes, requires optimization • Understanding when a code should be written for the GPU • Lots of data to compute over (same data is even better) • Using the same commands regardless of input • Limited branching (or branching in an expected way)

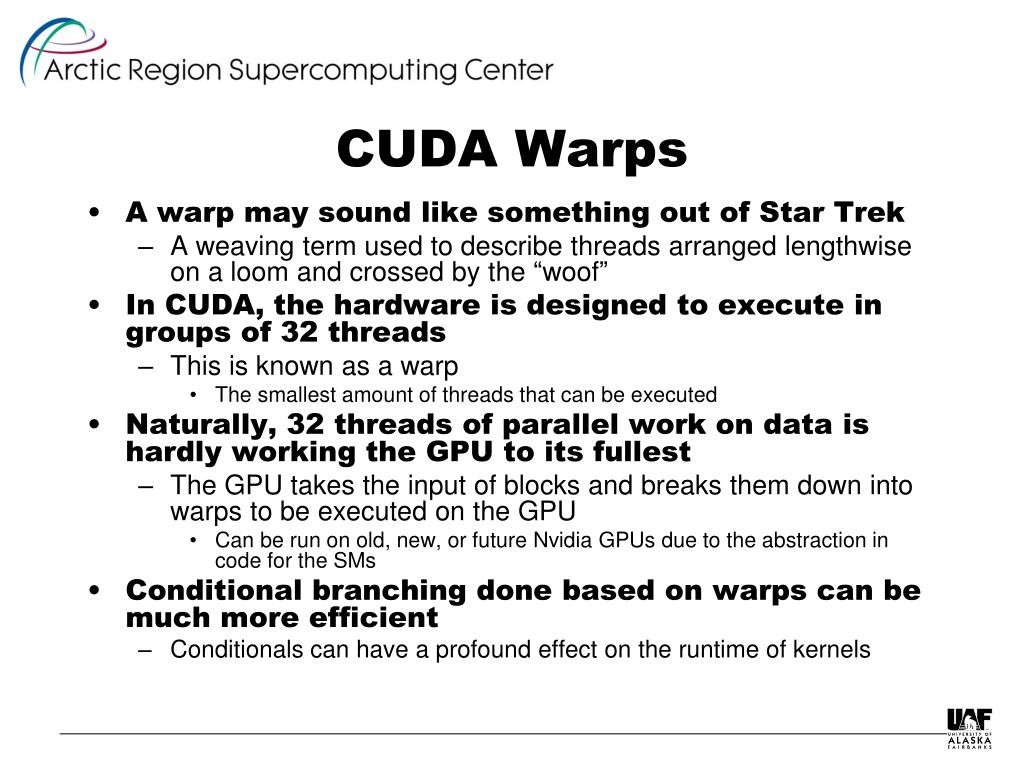

38. CUDA Warps • A warp may sound like something out of Star Trek • A weaving term used to describe threads arranged lengthwise on a loom and crossed by the “woof” • In CUDA, the hardware is designed to execute in groups of 32 threads • This is known as a warp • The smallest amount of threads that can be executed • Naturally, 32 threads of parallel work on data is hardly working the GPU to its fullest • The GPU takes the input of blocks and breaks them down into warps to be executed on the GPU • Can be run on old, new, or future Nvidia GPUs due to the abstraction in code for the SMs • Conditional branching done based on warps can be much more efficient • Conditionals can have a profound effect on the runtime of kernels

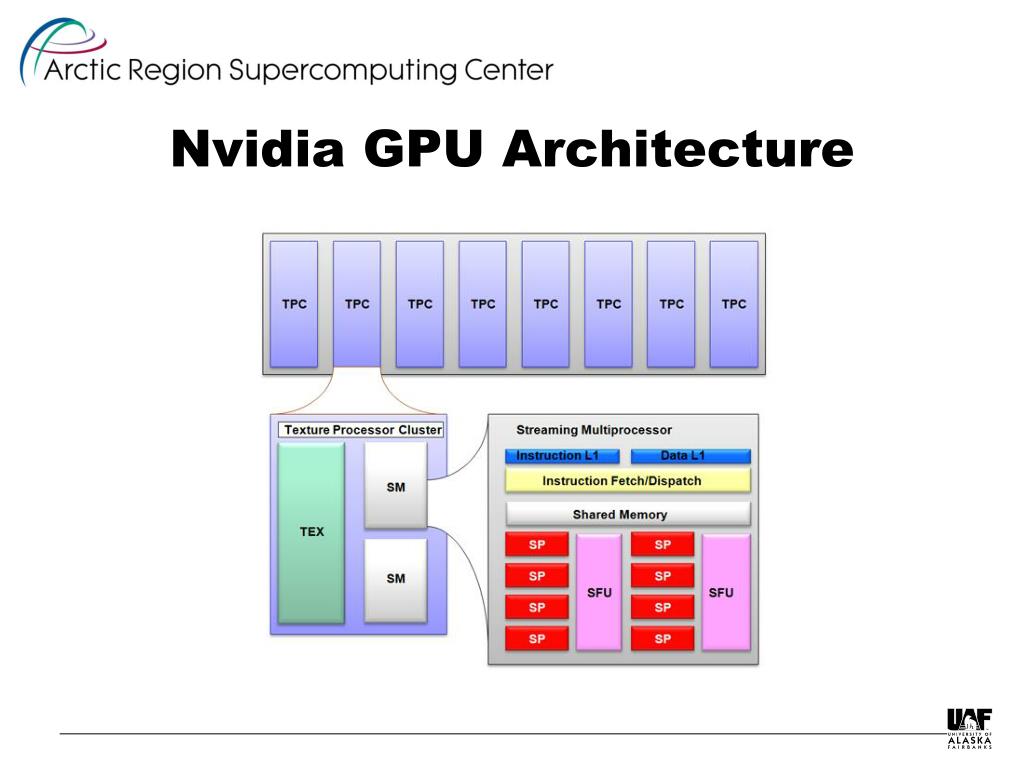

39. Nvidia GPU Architecture

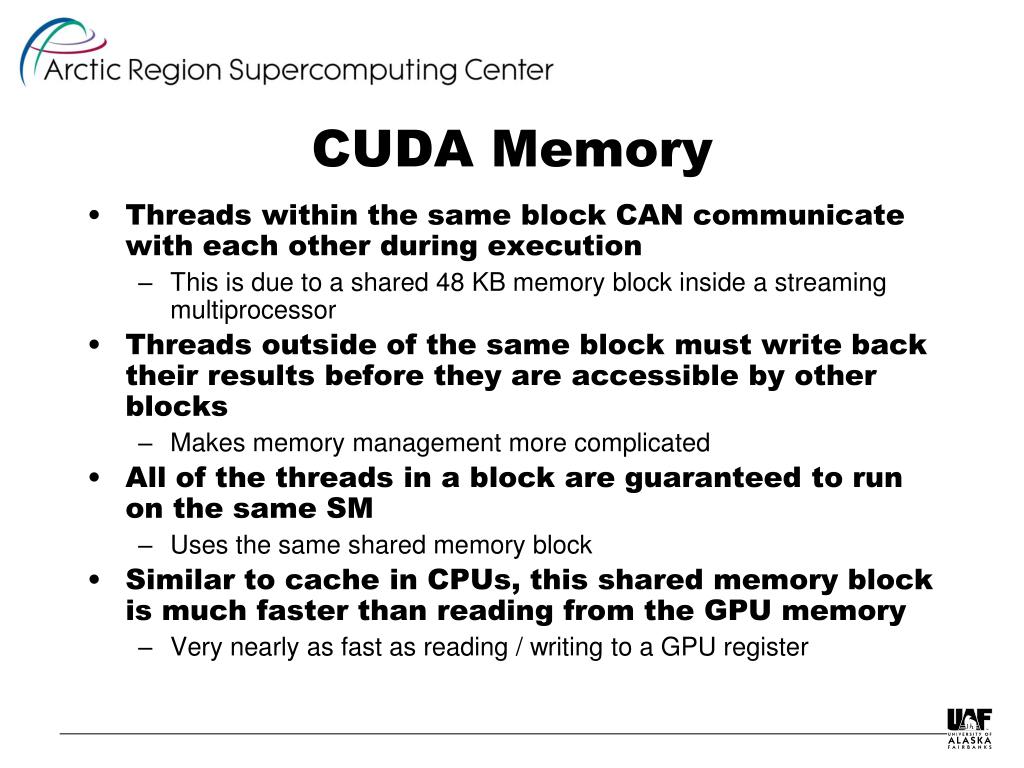

40. CUDA Memory • Threads within the same block CAN communicate with each other during execution • This is due to a shared 48KB memory block inside a streaming multiprocessor • Threads outside of the same block must write back their results before they are accessible by other blocks • Makes memory management more complicated • All of the threads in a block are guaranteed to run on the same SM • Uses the same shared memory block • Similar to cache in CPUs, this shared memory block is much faster than reading from the GPU memory • Very nearly as fast as reading / writing to a GPU register

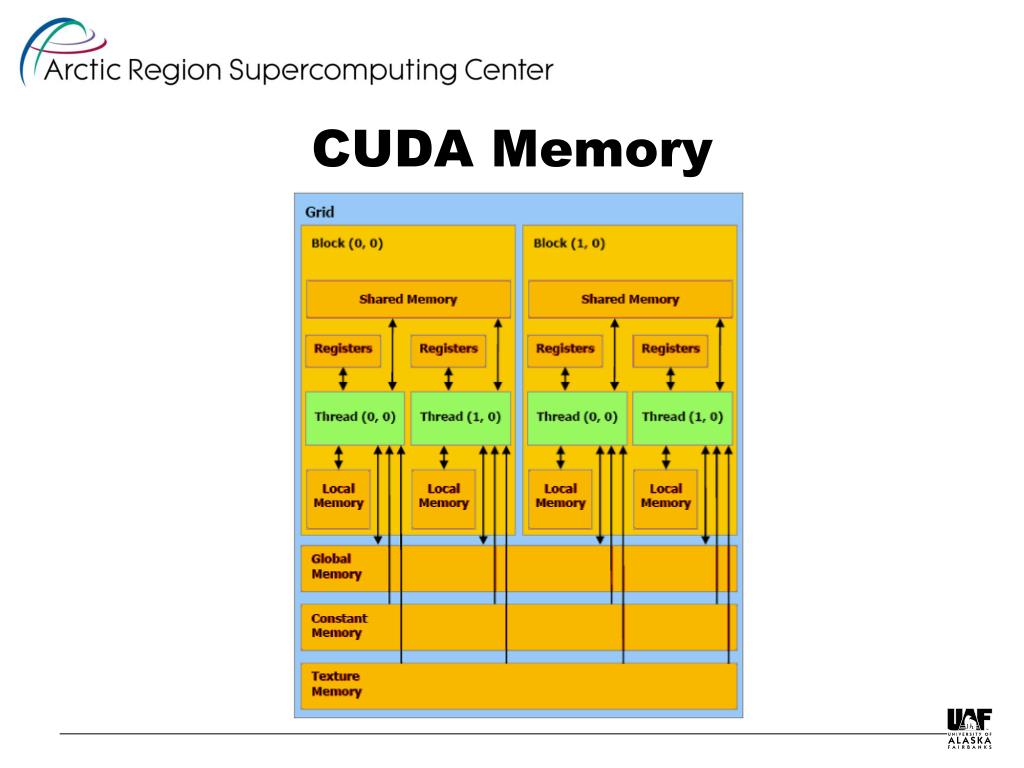

41. CUDA Memory

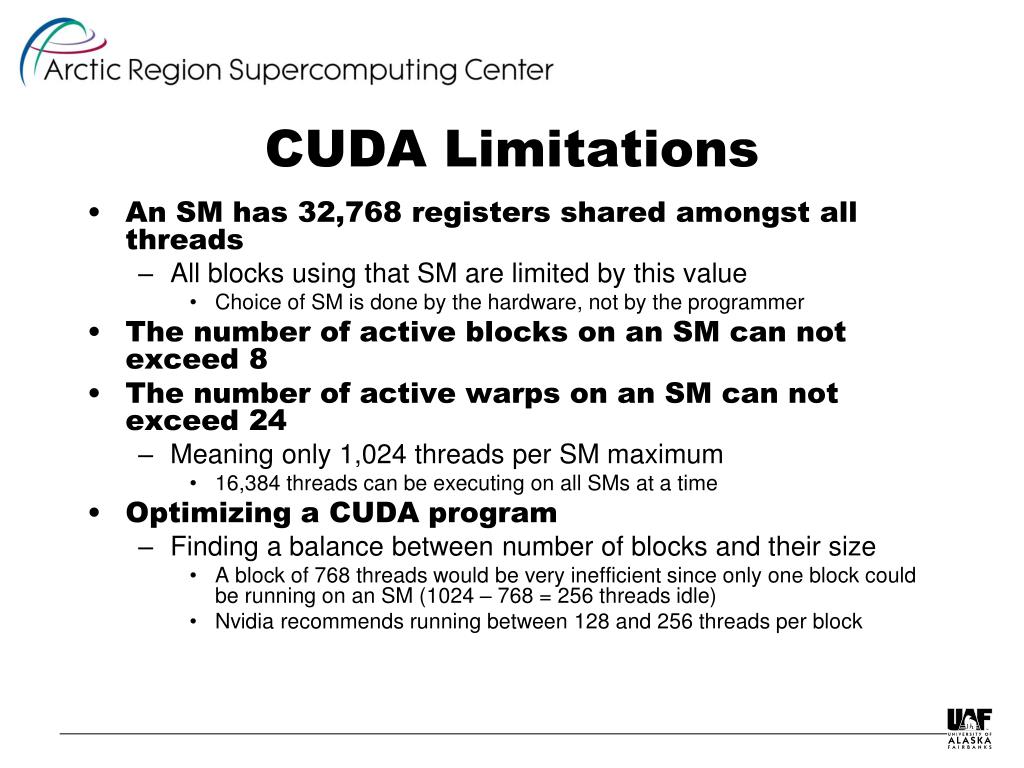

42. CUDA Limitations • An SM has 32,768registers shared amongst all threads • All blocks using that SM are limited by this value • Choice of SM is done by the hardware, not by the programmer • The number of active blocks on an SM can not exceed 8 • The number of active warps on an SM can not exceed 24 • Meaning only 1,024threads per SM maximum • 16,384 threads can be executing on all SMs at a time • Optimizing a CUDA program • Finding a balance between number of blocks and their size • A block of 768threads would be very inefficient since only one block could be running on an SM (1024 – 768= 256 threads idle) • Nvidia recommends running between 128 and 256 threads per block

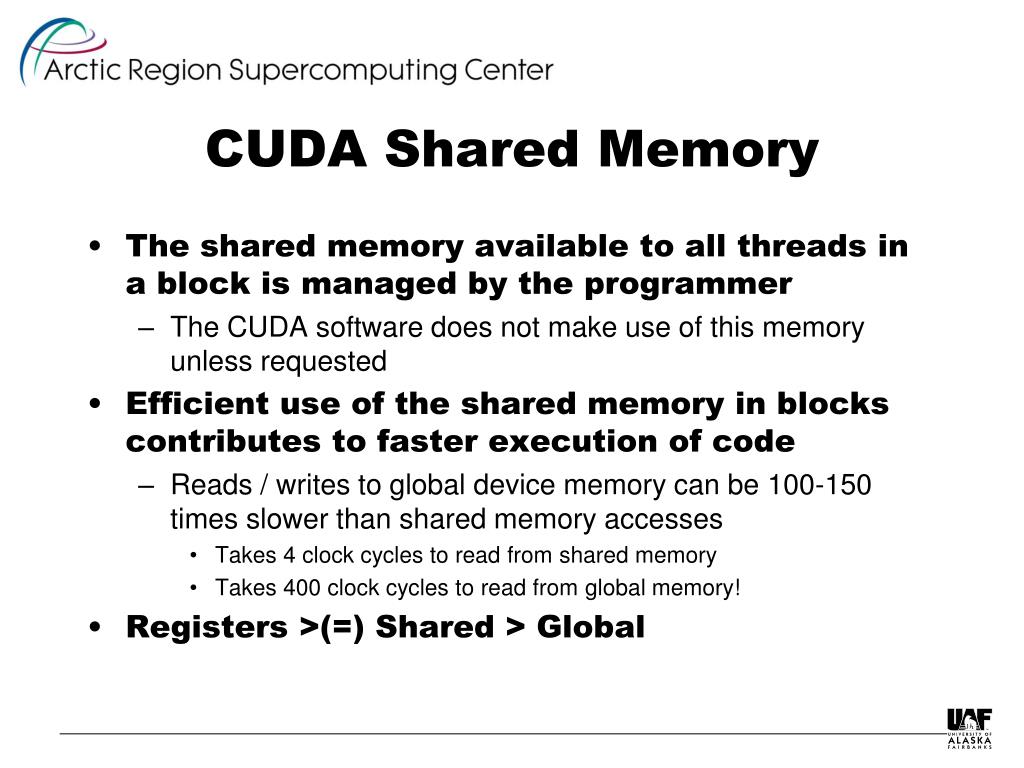

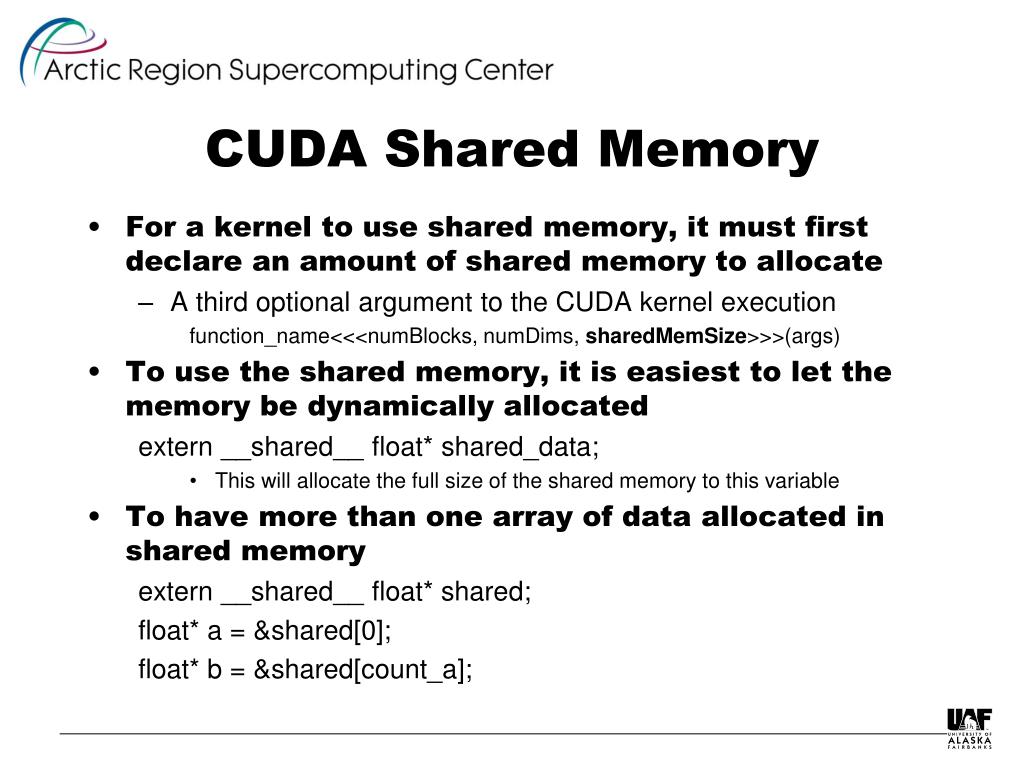

43. CUDA Shared Memory • The shared memory available to all threads in a block is managed by the programmer • The CUDA software does not make use of this memory unless requested • Efficient use of the shared memory in blocks contributes to faster execution of code • Reads / writes to global device memory can be 100-150 times slower than shared memory accesses • Takes 4 clock cycles to read from shared memory • Takes 400 clock cycles to read from global memory! • Registers >(=) Shared > Global

44. CUDA Shared Memory • For a kernel to use shared memory, it must first declare an amount of shared memory to allocate • A third optional argument to the CUDA kernel execution function_name<<<numBlocks, numDims, sharedMemSize>>>(args) • To use the shared memory, it is easiest to let the memory be dynamically allocated extern __shared__ float* shared_data; • This will allocate the full size of the shared memory to this variable • To have more than one array of data allocated in shared memory extern __shared__ float* shared; float* a = &shared[0]; float* b = &shared[count_a];

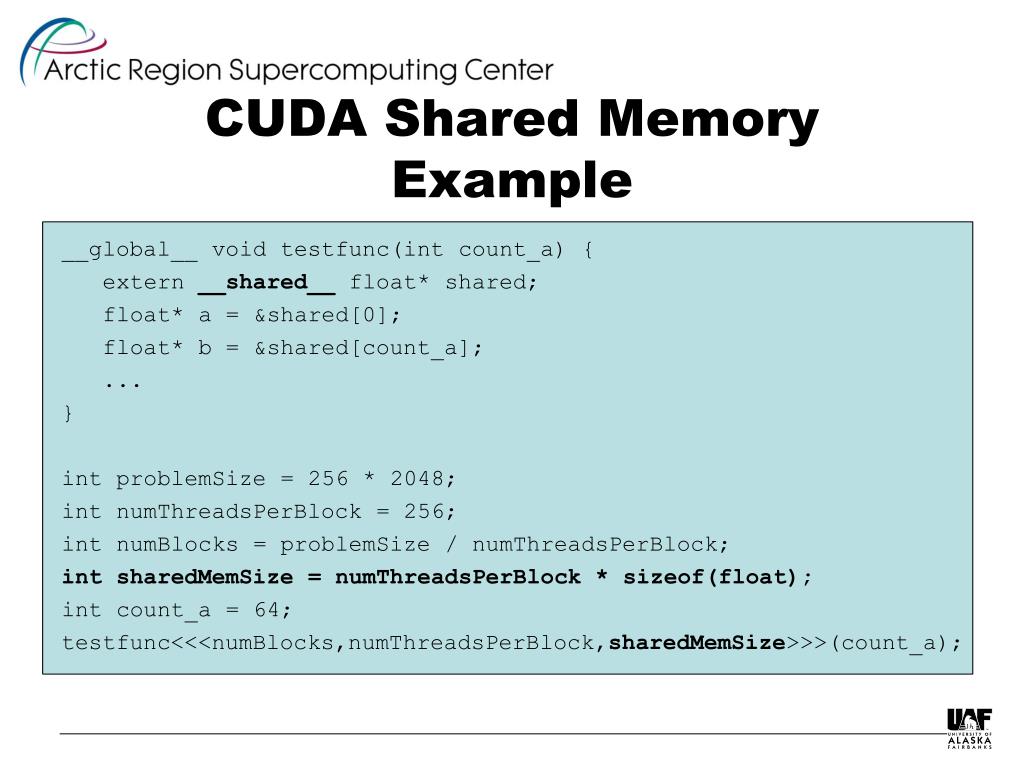

45. CUDA Shared Memory Example __global__ void testfunc(intcount_a) { extern __shared__ float* shared; float* a = &shared[0]; float* b = &shared[count_a]; ... } intproblemSize = 256 * 2048; intnumThreadsPerBlock = 256; intnumBlocks = problemSize / numThreadsPerBlock; intsharedMemSize = numThreadsPerBlock * sizeof(float); intcount_a = 64; testfunc<<<numBlocks,numThreadsPerBlock,sharedMemSize>>>(count_a);

46. Synchronize Threads • Before attempting to write out data to global memory, you must synchronize the threads • You run the risk of trying to pull from memory for data that has not been written yet • Race conditions… __syncthreads(); • This is run from inside a kernel to block until all threads in a block reach this point • For blocking until all of the threads in a grid have finished cudaThreadSynchronize(); • This must be run from the host

47. Example Code • What does this code do? • What would you expect the result to be from this running on the GPU?

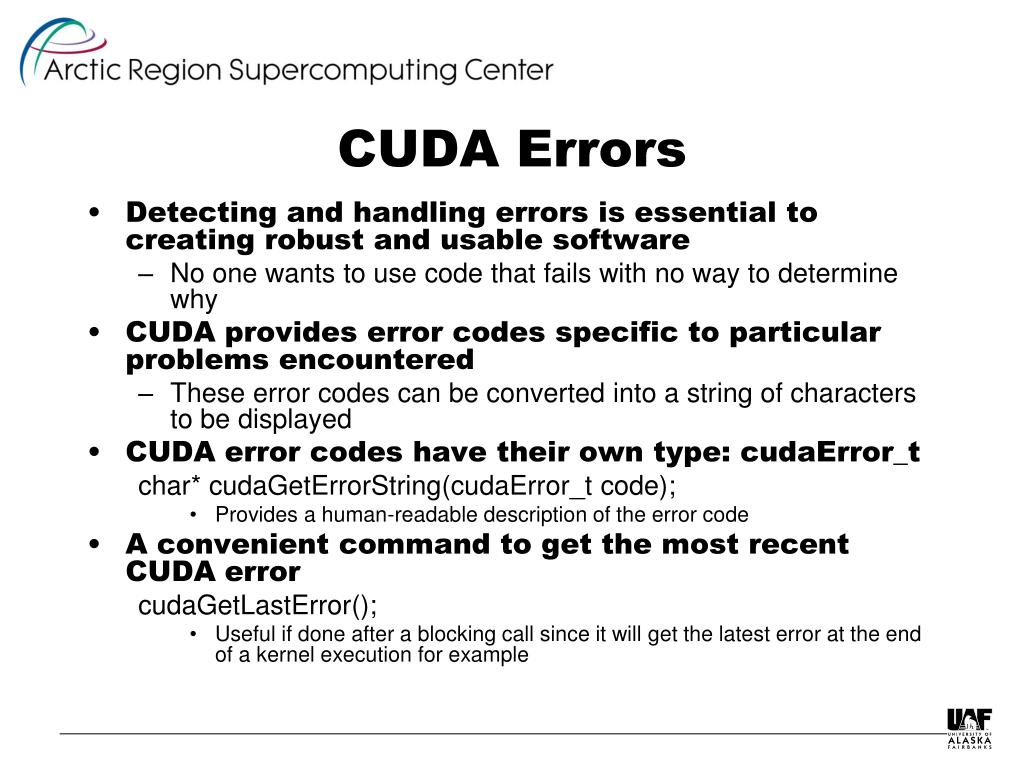

48. CUDA Errors • Detecting and handling errors is essential to creating robust and usable software • No one wants to use code that fails with no way to determine why • CUDA provides error codes specific to particular problems encountered • These error codes can be converted into a string of characters to be displayed • CUDA error codes have their own type: cudaError_t char* cudaGetErrorString(cudaError_t code); • Provides a human-readable description of the error code • A convenient command to get the most recent CUDA error cudaGetLastError(); • Useful if done after a blocking call since it will get the latest error at the end of a kernel execution for example

49. CUDA Error Example void checkCUDAError(const char *msg) { cudaError_t err = cudaGetLastError(); if ( cudaSuccess != err) { fprintf(stderr, “CUDA Error: %s: %s.\n”, msg, cudaGetErrorString(err)); exit(EXIT_FAILURE); } }
