  1. A Diagnostic Risk Assessment for Pattern Flips Kevin Lipton Gordon Strassberg April 29, 2003

  2. Overview of Discussion • Definition of Pattern Flip as used in this study. • Data collection and methodology. • Formulation of the diagnostic risk index. • March 2003 results. • Conclusions and future research.

  3. What is a “pattern flip?” • In this study, a significant change in the longwave pattern (500 mb Heights) over North America. • Each segment of the flip remained in place for more than 2 weeks, in order to reflect in monthly indices.

  4. Example of Pattern Flip • Oct 1989 VS Nov 1989: 500 mb Height Anomalies

  5. Data Collection and Methodology • Months/Years of pattern flips were determined by memory and then verified with NCEP Reanalysis Data. • Monthly values of several atmospheric indices/teleconnection patterns of known importance to N. American weather were used. • NAO, PNA, SOI, and EP were the relevant indices.

  6. Data Collection and Methodology • NAO, PNA, EP monthly values from the CPC website. • SOI data obtained from Long Paddock (Australian Gov’t Service). • Data examined for the month preceding the flip AND the month of the flip itself.

  7. Formulation of the Diagnostic Index • Most obvious elements to use were monthly sign changes in certain indices before/during the pattern flip. • SOI, NAO, and EP all changed signs in 50% or more of the cold season cases (Nov-Mar).

  8. Procedure Error • SOI sign changes were weighted most heavily since it appeared to be the most frequent change of sign. • However, after adding several more cases, this was no longer accurate. • Heavy weighting of SOI may be overdone.

  9. Formulation of the Diagnostic Index • Data review showed significance in the sum of the NAO+PNA+EP values for the month preceding the flip.

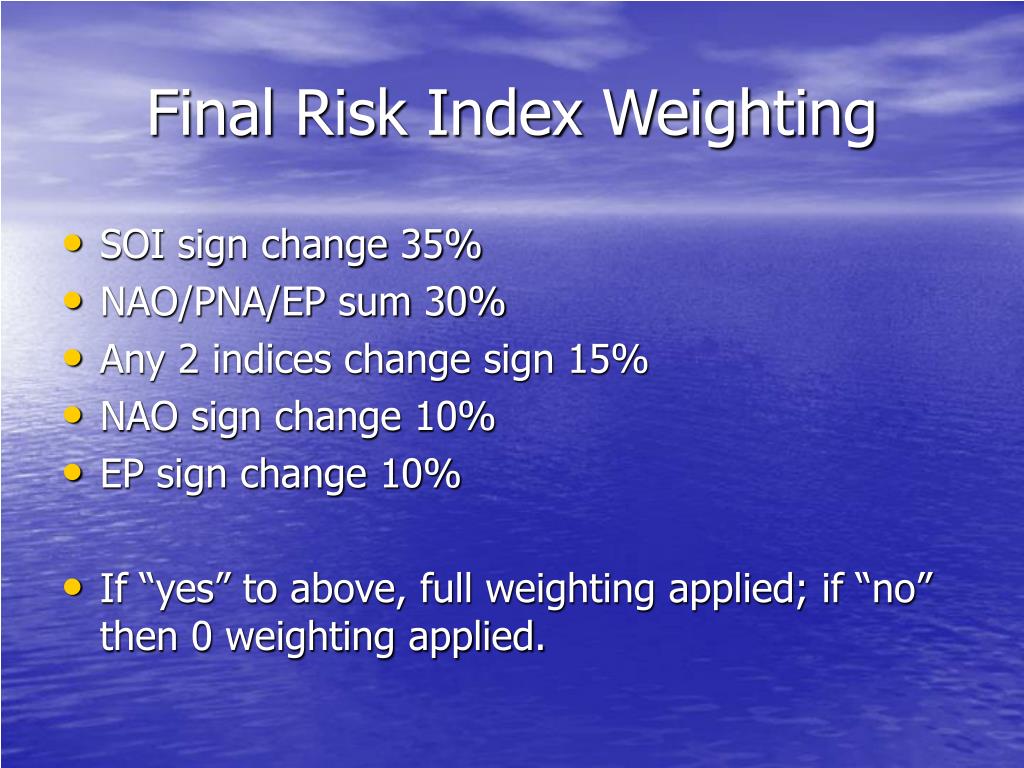

  10. Final Risk Index Weighting • SOI sign change 35% • NAO/PNA/EP sum 30% • Any 2 indices change sign 15% • NAO sign change 10% • EP sign change 10% • If “yes” to above, full weighting applied; if “no” then 0 weighting applied.

  11. Cold Season Results

  12. March 2003 Results • Average % Risk: 59% • Mar 2003 Risk: 65% (Above Average)

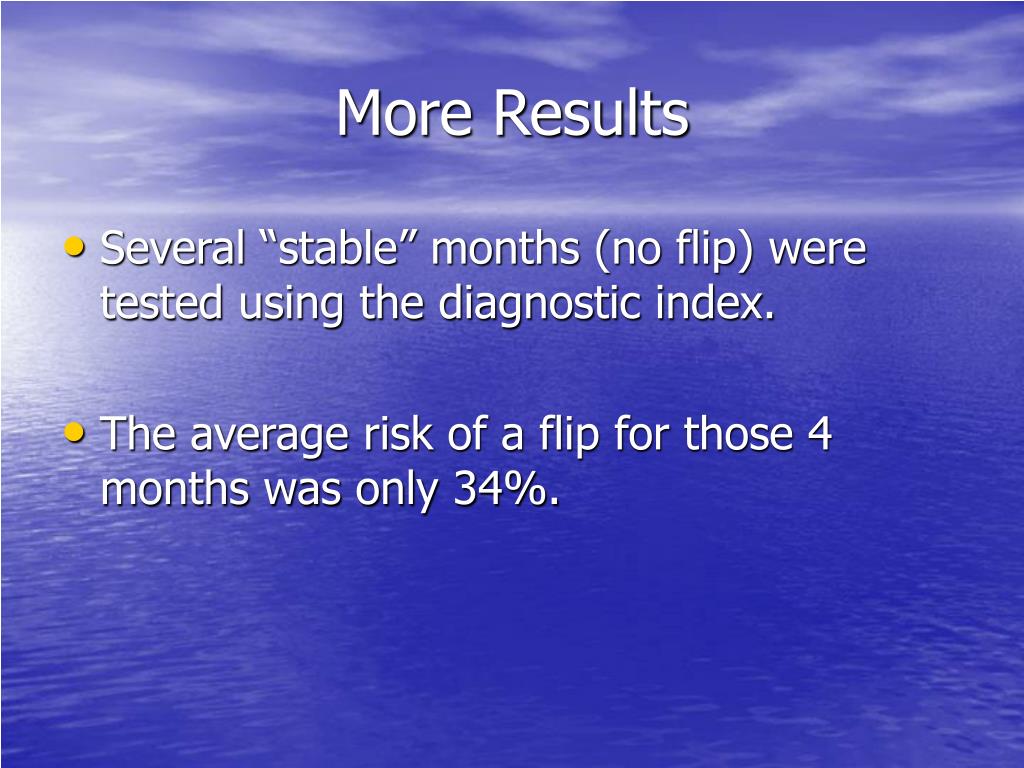

  13. More Results • Several “stable” months (no flip) were tested using the diagnostic index. • The average risk of a flip for those 4 months was only 34%.

  14. Conclusions • Atmospheric Indices can be used to diagnose the risk of a pattern flip in past months. • There is a clear difference in this index between months that had a pattern flip and months that did not.

  15. Future Research • Develop Prognostic Index for assessing the risk of pattern flips • Decrease the temporal scale and use weekly or bi-weekly data and apply a similar risk assessment study. • Include other known indices (SST Anomalies, QBO, MJO, PDO). • Develop technique for Different Types of Pattern Changes/Flips (I.E. Ridge E/Trough W/vice versa).

  16. References • <ftp://ftpprd.ncep.noaa.gov/pub/cpc/wd52dg/data/indices/tele_index.nh> • <http://www.longpaddock.qld.gov.au/SeasonalClimateOutlook/SouthernOscillationIndex/SOIDataFiles/>
