  1. The Patented Interlocking Protective System The world’s toughest portable & configurable protection against conventional attacks

  2. Interlocking Protective System Use in permanent, semi-permanent, and mobile installations to significantly increase security. Use for personnel, buildings, facilities and other assets against many modes of attack. These include shrapnel from rocket-propelled grenades, pipe bombs and fire from automatic weapons, shotguns and handguns. Future development efforts to develop a block that will minimize the mortality rate of car bombs and IED’s.

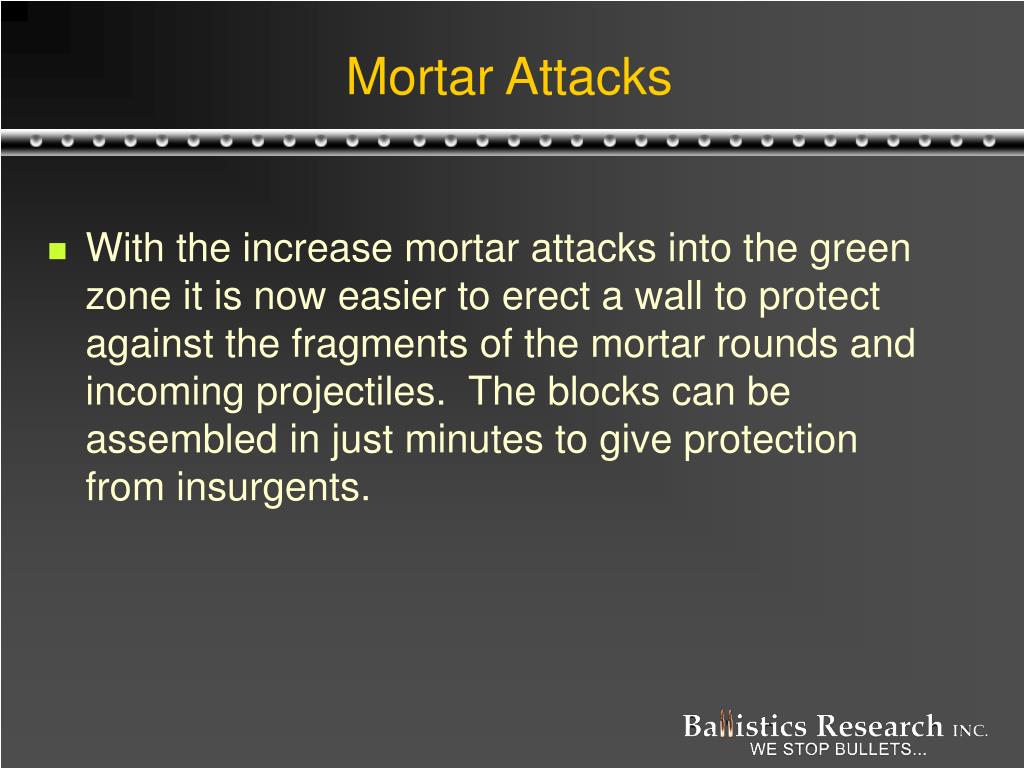

  3. Mortar Attacks • With the increase mortar attacks into the green zone it is now easier to erect a wall to protect against the fragments of the mortar rounds and incoming projectiles. The blocks can be assembled in just minutes to give protection from insurgents.

  4. Build your wall any size The interlocking system allows you to build walls that fits your needs.

  5. Room Designs The interlocking systems allows you to build rooms any size.

  6. LIFTING DEVICE This device can be used as a one or two person lift or with a machine. It also has a positive lock on the handle to ensure that the handle does not unlock accidentally

  7. Vulnerability of Global Energy Resources Petroleum production and distribution units and systems need protection. Oil field facilities, refineries, thousands of miles of petroleum pipelines, and thousands of pumping stations must be secured.

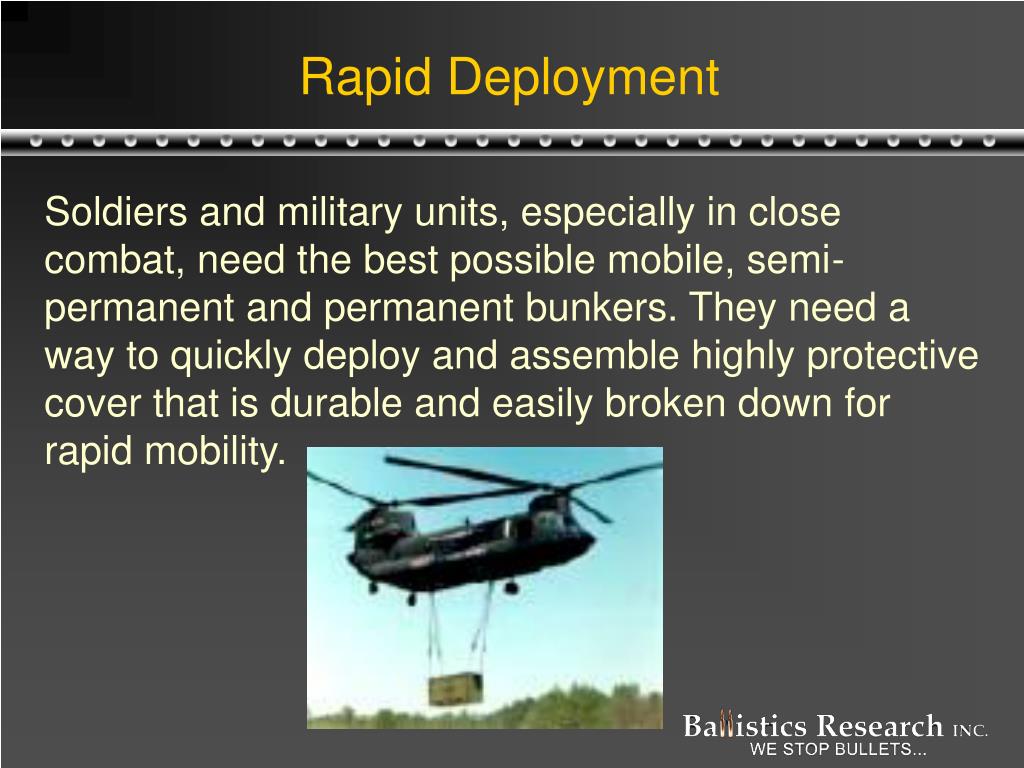

  8. Rapid Deployment Soldiers and military units, especially in close combat, need the best possible mobile, semi-permanent and permanent bunkers. They need a way to quickly deploy and assemble highly protective cover that is durable and easily broken down for rapid mobility.

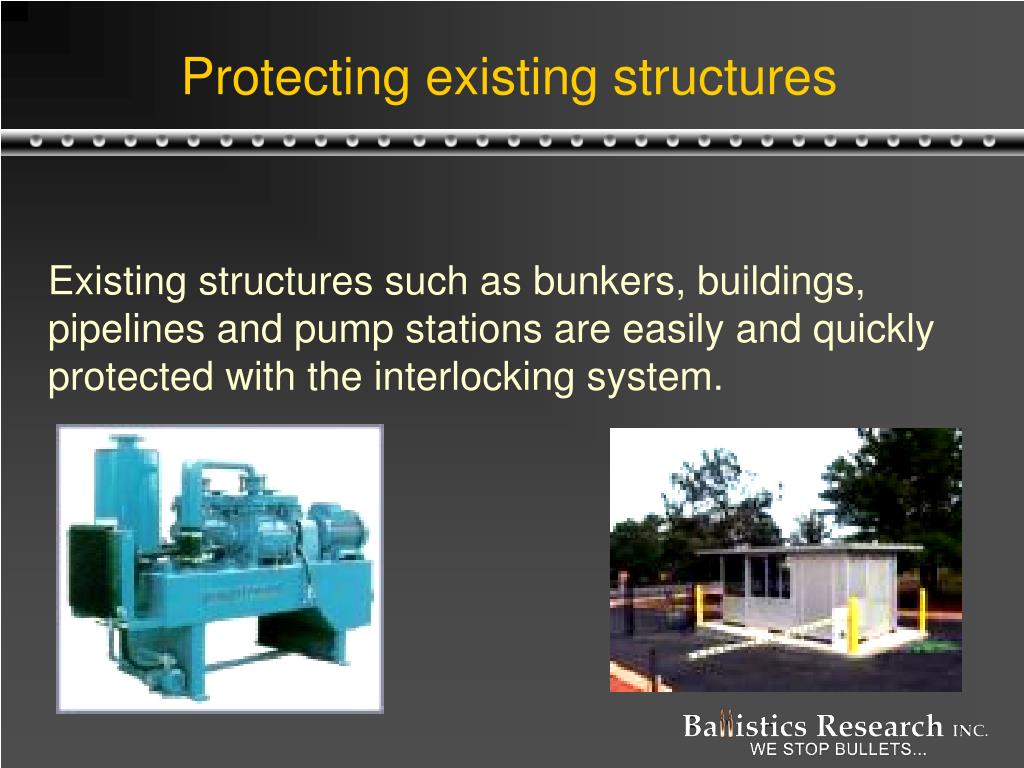

  9. Protecting existing structures Existing structures such as bunkers, buildings, pipelines and pump stations are easily and quickly protected with the interlocking system.

  10. Withstands Conventional Weapons • 5.56mm (M16) FMJ, HP, AP & Tracer • 7.62X39 (AK-47) FMJ, HP, AP & Tracer • .308 FMJ & AP • .30-06 FMJ & AP • .300 Win Mag SP & HP • 7mm Rem Mag SP & HP • .50 BMG FMJ,AP and Raufoss (high explosive) • All known shotgun rounds • All known handgun rounds • 23MM APIT (2 blocks deep) • 30MM (75g frag)

  11. Ballistics Data

  12. Available in many colors

  13. Other Properties The product is fire resistant. It does not support combustion. It is impervious to petrochemicals, salt water, and UV rays. Product does not degrade under incoming fire Product gains strength with incoming fire Environmentally friendly Can be recycled

  14. Handgun and Rifle Rounds

  15. M-16 Firing M-16 firing from 12 feet away no through penetration or ricochet

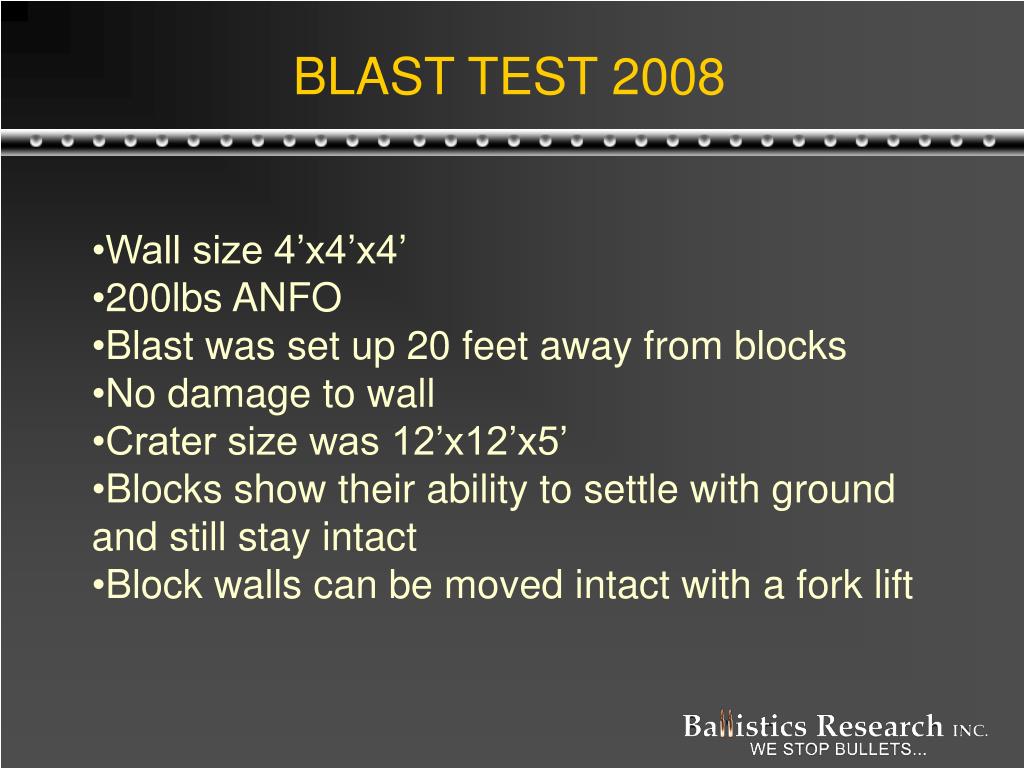

  16. BLAST TEST 2008 • Wall size 4’x4’x4’ • 200lbs ANFO • Blast was set up 20 feet away from blocks • No damage to wall • Crater size was 12’x12’x5’ • Blocks show their ability to settle with ground and still stay intact • Block walls can be moved intact with a fork lift

  17. View of wall from back Left photo - 3/4 complete Right Photo - complete

  18. 200LBS. ANFO20 feet away from wall

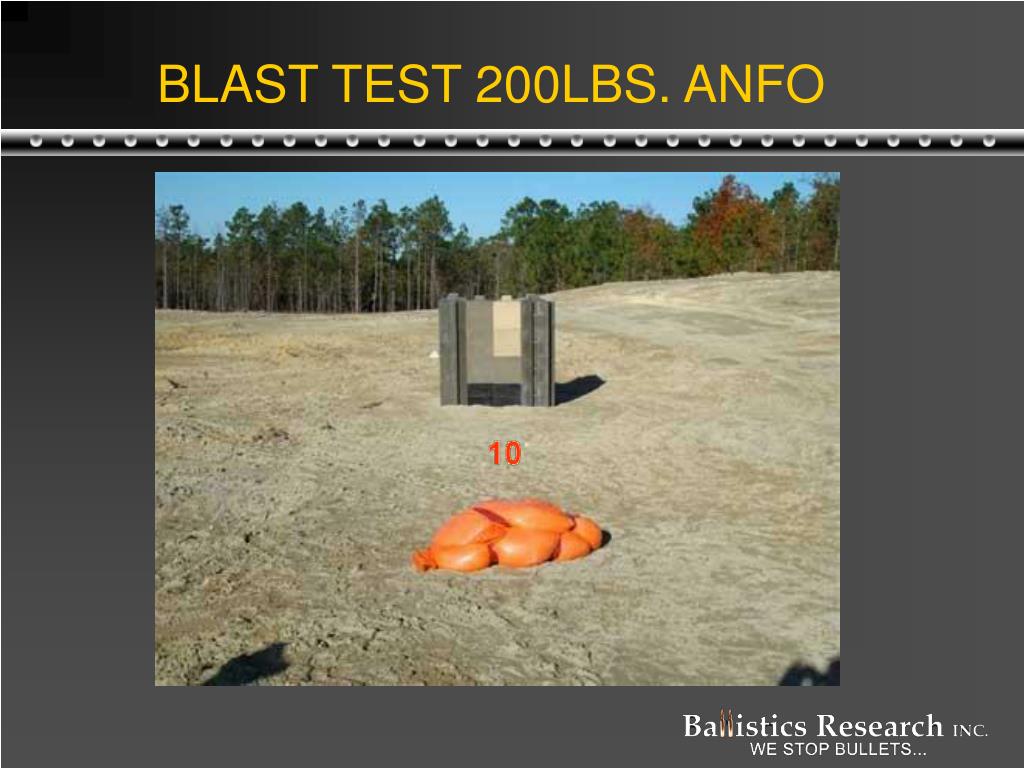

  19. BLAST TEST 200LBS. ANFO

  20. Frame 1 - 200 lbs ANFO

  21. Frame 2 - Explosion

  22. Frame 3 - Explosion

  23. Crater size 12’X12’X5’

  24. The blocks settled with the ground on one corner during the explosion, wall still intact no damage

  25. Front of wall after blast

  26. Wall being moved intact by lift after 200lbs blast test

  27. Summary In response to your needs Ballistics Research, Inc. offers the protective interlocking system. It’s unique properties, superior strength to weight ratios, ability to absorb blasts and become stronger provide a higher level of physical security for government, commercial and private facilities. The interlocking protective system is rapidly deployable. It gives you an unmatched advantage on the battlefield and in security applications.

  28. For more information or to view a video of our blast test, please visit:www.BallisticsResearch.com
