09c visual system which cranial nerves are involved chapter 12
09cVisual System:Which cranial nerves are involved?Chapter 12


09c visual system which cranial nerves are involved chapter 12

Vision, as used for communication involves sight + movement of eye!

Vision is an active process, not just passive.


Remind yourself of relationship between vision and communication as related to clinical practice
Remind yourself of relationship between vision and communication, as related to clinical practice.

  • How are eyes used in expressive communication?

  • How are eyes used in receptive communication?

  • Does receptive communication using eyes involve both sensory pathways to eye, motor pathways to eye, or both?


09c visual system which cranial nerves are involved chapter 12

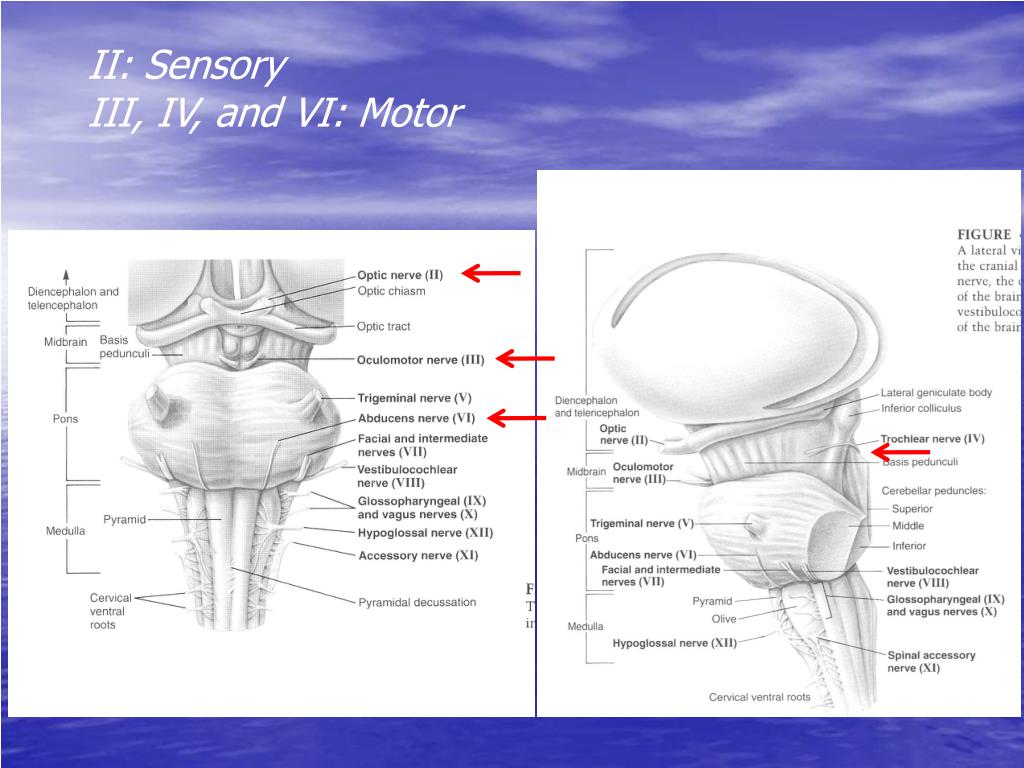

II: Sensory communication, as related to clinical practice.

III, IV, and VI: Motor


Visual sensory ii visual motor iii iv vi
Visual sensory: communication, as related to clinical practice.II Visual motor: III, IV, VI


Visual sensory ii optic nerve
Visual sensory: communication, as related to clinical practice.II (Optic nerve)


C n ii receptors dendrites and cell body in retina
C.N. II: Receptors, dendrites and cell body in retina communication, as related to clinical practice.

  • Bipolar cell

  • Bundles of retinal bipolar cell axons emerge from retina, and make up the two optic nerves (c.n. II)

    • One for each eye

    • Right and left optic nerves join at optic chiasm


09c visual system which cranial nerves are involved chapter 12

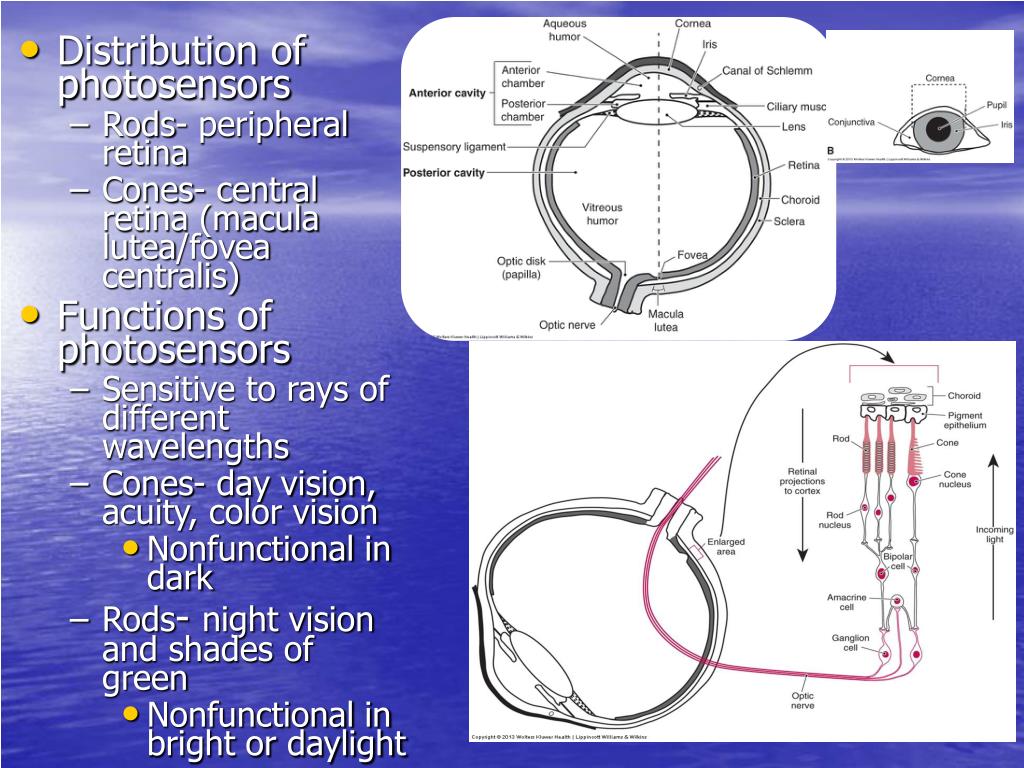

  • Distribution of communication, as related to clinical practice.photosensors

    • Rods- peripheral retina

    • Cones- central retina (macula lutea/fovea centralis)

  • Functions of photosensors

    • Sensitive to rays of different wavelengths

    • Cones- day vision, acuity, color vision

      • Nonfunctional in dark

    • Rods- night vision and shades of green

      • Nonfunctional in bright or daylight


09c visual system which cranial nerves are involved chapter 12

  • Transduction communication, as related to clinical practice.

    • Absorption of electromagnetic energy by visual pigments

    • Conversion into neural impulses


09c visual system which cranial nerves are involved chapter 12

  • Pupillary Aperture communication, as related to clinical practice.

    • Protective mechanism in intense light

    • Regulation of light amount entering eyes

    • Dilator & constrictor muscle fibers of iris

      • Bright light- parasympathetic constriction of pupil

        • Small amount of light in

      • Dim light- sympathetic dilation;

        • greater amount of light in


Pupillary light reflex
Pupillary light reflex communication, as related to clinical practice.

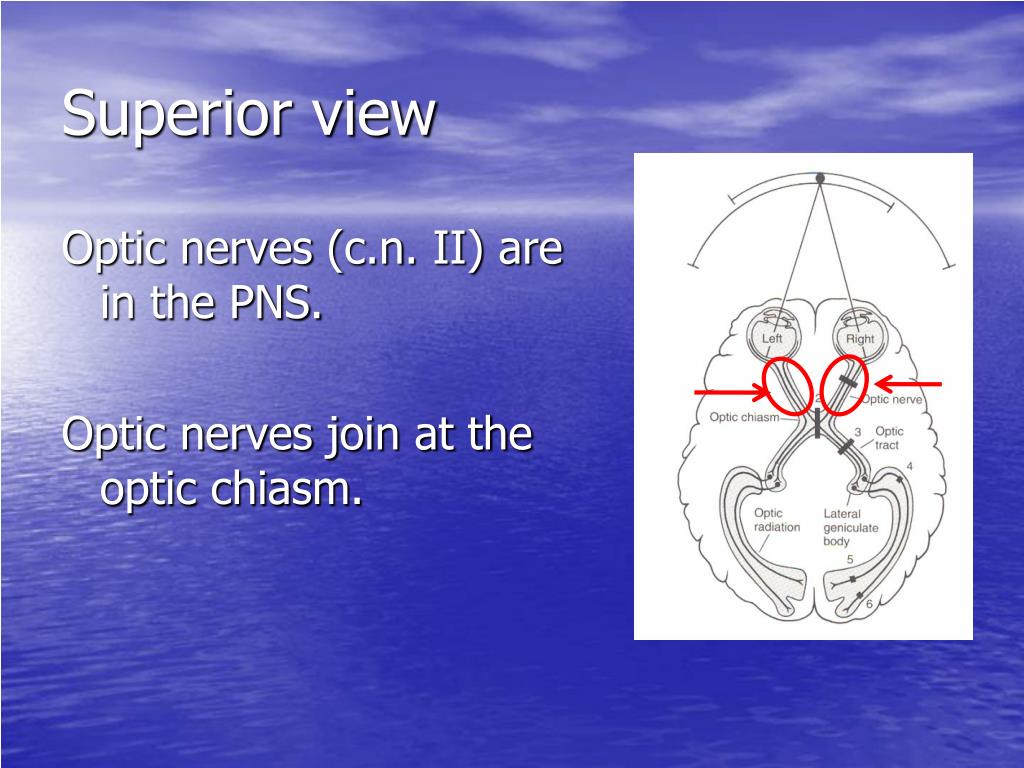

Superior view
Superior view communication, as related to clinical practice.

Optic nerves (c.n. II) are in the PNS.

Optic nerves join at the optic chiasm.


09c visual system which cranial nerves are involved chapter 12

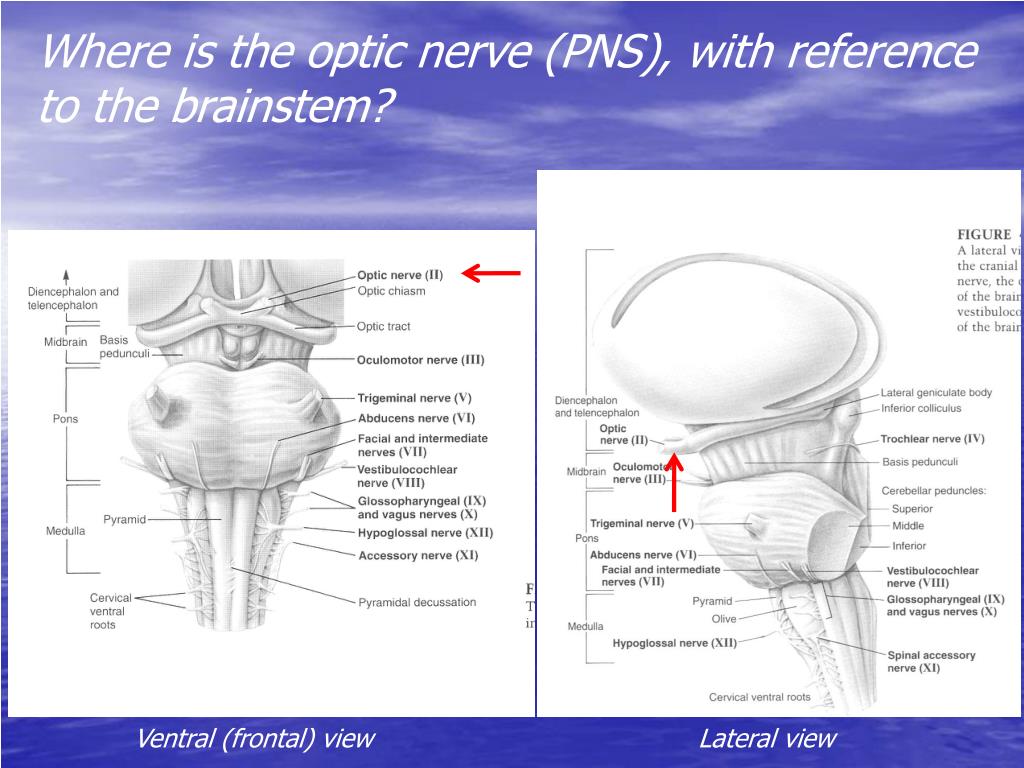

Where is the optic nerve (PNS), with reference to the brainstem?

Ventral (frontal) view

Lateral view


09c visual system which cranial nerves are involved chapter 12
Where does the visual pathway continue after optic nerve? (Trace 1st order and 2nd order visual sensory neurons: Superior view)

  • Crossing at optic chiasm

    • Some fibers cross, but not all

  • Optic tract (in CNS)

  • Synapse at lateral geniculate body (in thalamus)

  • Optic radiation

  • End in primary visual cortex (medial occipital lobe)

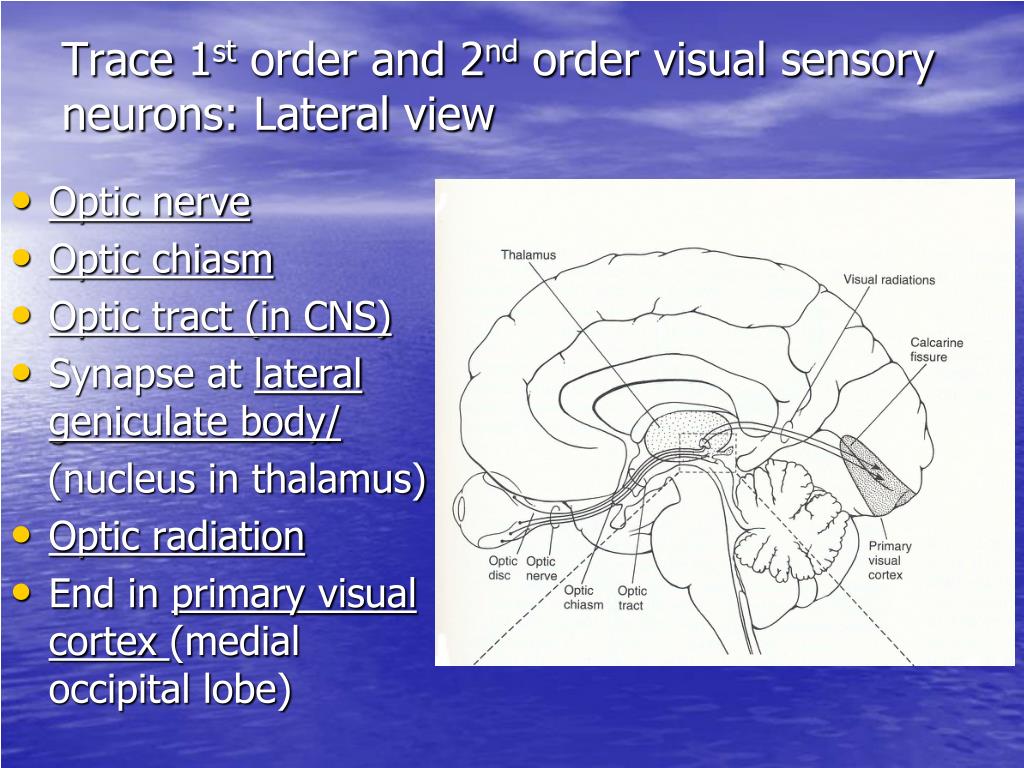

Trace 1 st order and 2 nd order visual sensory neurons lateral view
Trace 1 (Trace 1st order and 2nd order visual sensory neurons: Lateral view

  • Optic nerve

  • Optic chiasm

  • Optic tract (in CNS)

  • Synapse at lateral geniculate body/

    (nucleus in thalamus)

  • Optic radiation

  • End in primary visual cortex (medial occipital lobe)


09c visual system which cranial nerves are involved chapter 12

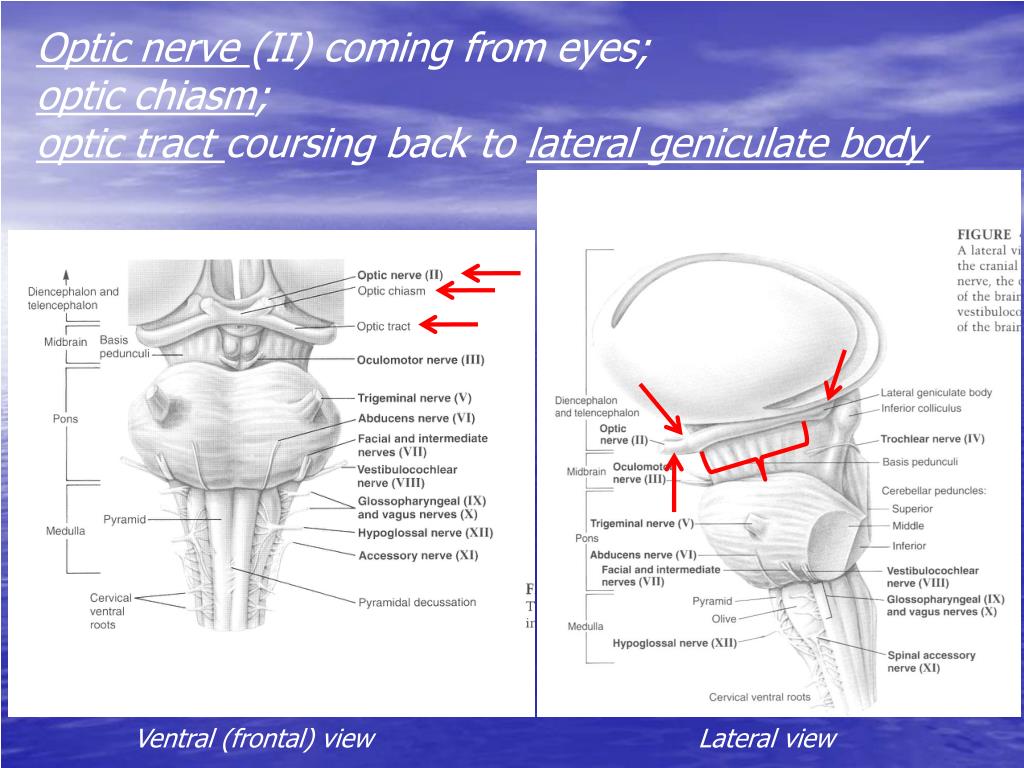

Optic nerve (Trace 1(II) coming from eyes;

optic chiasm;

optic tract coursing back to lateral geniculate body

Ventral (frontal) view

Lateral view


09c visual system which cranial nerves are involved chapter 12
Which side of the retina of each eye (Trace 1transduces light energy :…from left visual hemifield?…from right visual hemifield?

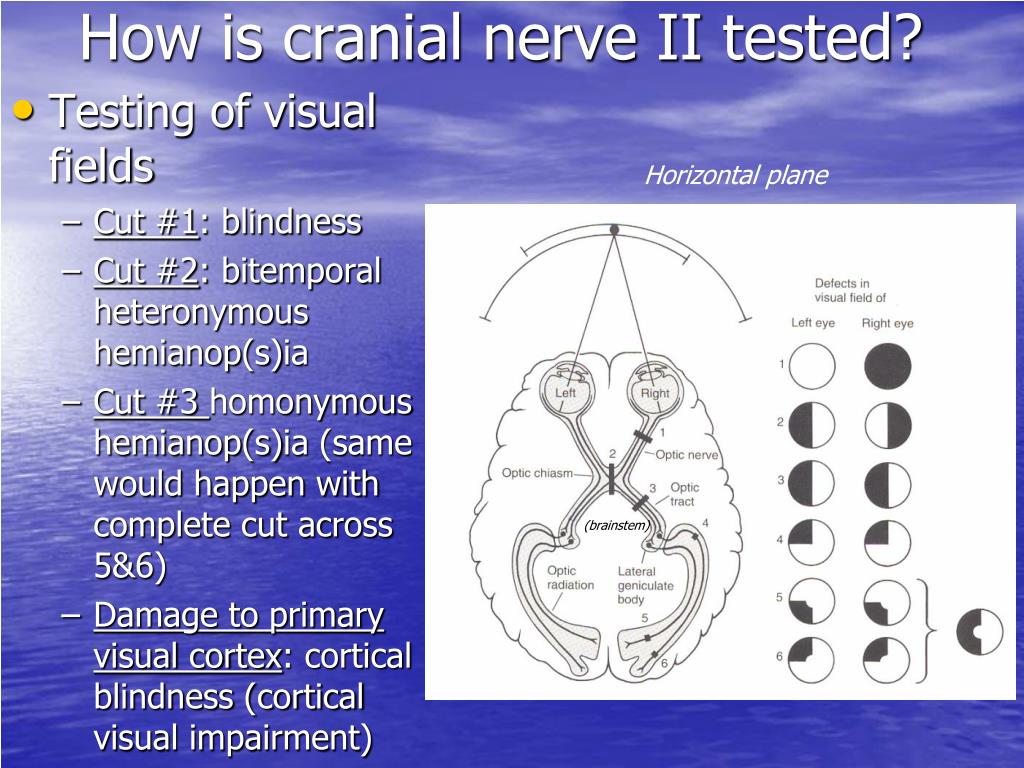

How is cranial nerve ii tested
How is cranial nerve II tested? (Trace 1

  • Testing of visual fields

    • Cut #1: blindness

    • Cut #2: bitemporal heteronymous hemianop(s)ia

    • Cut #3 homonymous hemianop(s)ia (same would happen with complete cut across 5&6)

    • Damage to primary visual cortex: cortical blindness (cortical visual impairment)

Horizontal plane

(brainstem)

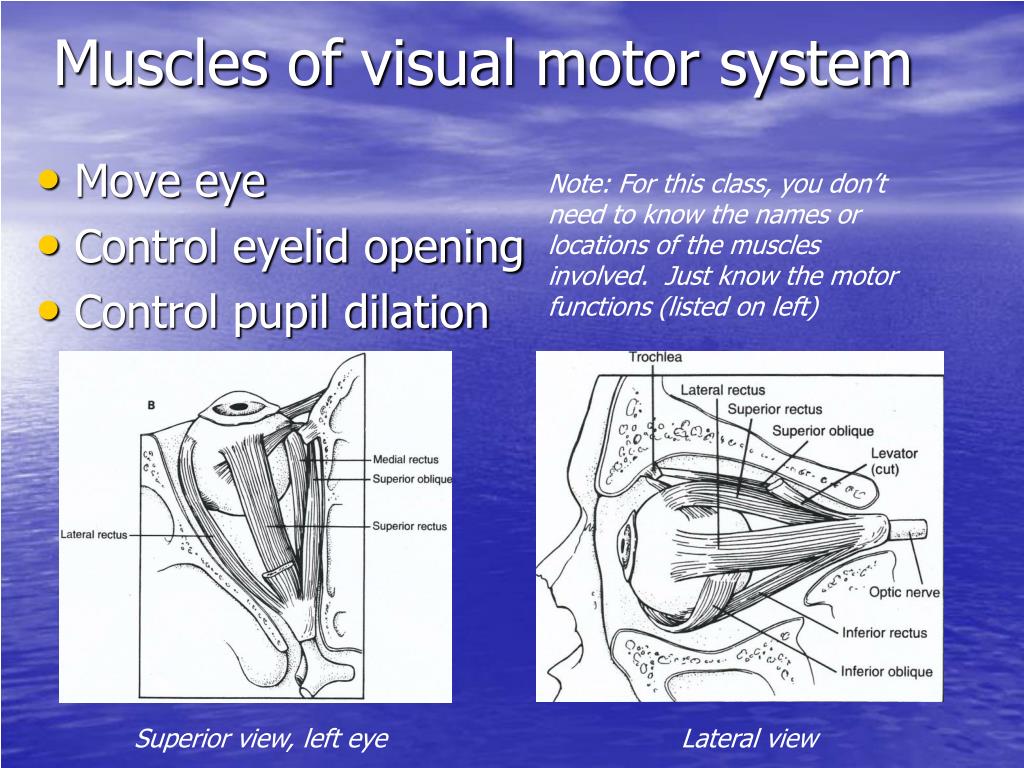

Muscles of visual motor system
Muscles of visual motor system motor function:

  • Move eye

  • Control eyelid opening

  • Control pupil dilation

Note: For this class, you don’t need to know the names or locations of the muscles involved. Just know the motor functions (listed on left)

Superior view, left eye

Lateral view


09c visual system which cranial nerves are involved chapter 12

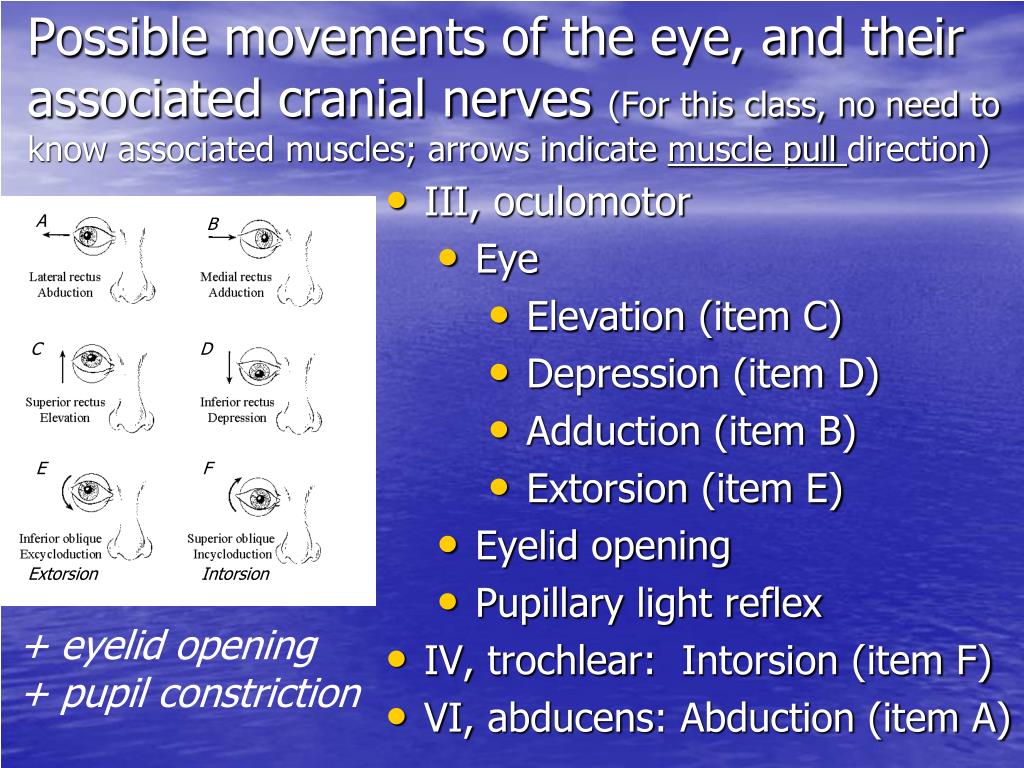

Possible movements of the eye, and their associated cranial nerves (For this class, no need to know associated muscles; arrows indicate muscle pull direction)

  • III, oculomotor

    • Eye

      • Elevation (item C)

      • Depression (item D)

      • Adduction (item B)

      • Extorsion (item E)

    • Eyelid opening

    • Pupillary light reflex

  • IV, trochlear: Intorsion (item F)

  • VI, abducens: Abduction (item A)

A

B

C

D

E

F

Extorsion

Intorsion

+ eyelid opening

+ pupil constriction


Pathology of iii iv vi p 153 of w a
Pathology of III, IV, VI nerves (p. 153 of W&A)

  • IV, trochlear

    • Sign: Hard to move eye “down and in”

    • Symptom: Diplopia

  • VI, abducens

    • Sign: Eye pulled medially

    • Symptom: Diplopia

  • III, oculomotor

    • Signs

      • Eye abducted and depresssed

      • Upper eyelid droops (ptosis)

      • Pupil dilated and non-reactive

    • Symptoms

      • Diplopia (double vision)


Sidebar for the curious
Sidebar for the curious…. nerves

  • Checking c.n. III after head injury (pupillary light reflex; autonomic)

  • Locked-in syndrome (maladie de l'emmuré vivant ‘walled-in alive disease’)

    • Complete loss of all voluntary muscles in the body except the eyes

    • (ventral part of the pons is damaged, e.g., from blockage of basilar artery)

    • Book and movie: The Diving Bell and the Butterfly

  • (locked-in syndrome,

    augmentative movie, NIH)
