Presentation Transcript
nonstop sql mx transactional queuing and publish subscriber services

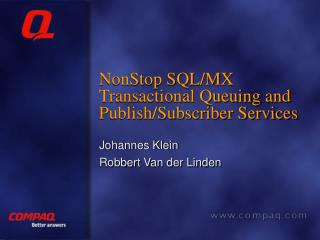

NonStop SQL/MXTransactional Queuing and Publish/Subscriber Services

Johannes Klein

Robbert Van der Linden

back office automation
Back Office Automation
  • E-commerce and globalization forces businesses to automate back office procedures to sustain rapid growth and react in real-time
  • Business processes often consist of up to 100 IT transaction
  • Current back-office infrastructures and messaging subsystem are not prepared for the dramatic increase in back-office transactions

Presentation name

the zero latency engine
The Zero Latency Engine

Appl

Appl

Appl

Appl

Adapters

Message

Transport

Service

Workflow

Engine

Appl

Appl

Appl

Appl

Distributed

Object

Manager

Transaction

Processing

Monitors

Appl

Appl

Appl

Appl

Adapters

Adapters

Database

Gateways

Operational Data Store

Adapters

Appl

Appl

Appl

Appl

Presentation name

delivering on zle
Delivering on ZLE

The Zero Latency Enterprise removes

knowledge and processing latencies.

At the heart of the Zero Latency Enterprise

is an active database with up-to-date data and

up-to-date information on scheduling business processes.

Presentation name

active relational database
Active relational database
  • High-performance relational queuing and publish/subscribe services
  • High-performance trigger services (second release)
  • Tightly integrated into NonStop SQL/MX database
  • High availability through process pair technology
  • Scalability via partitioning and load balancing
  • Common transaction management
  • Common audit trail and recovery management

Presentation name

publish subscribe

publish

subscribe

Publish/Subscribe

Producers

Channel

Consumers

insert into channel values(…);

select * from stream(channel);

Presentation name

queuing

enqueue

dequeue

Queuing

Producers

Queue

Consumers

select * from (

delete from stream(queue))

as queue;

insert into queue values(…);

Presentation name

scalable queuing services
Scalable Queuing Services
  • Partitioned transactional queues
    • data dependent routing
    • load balancing
    • online re-partitioning
  • Set-oriented queue access
    • mini-batch processing
    • hot spot avoidance
  • Integrated database and transaction support
    • pre-fetch of operational data
    • remove two-phase commit overhead

Presentation name

scalable queuing services9

Server class per partition

dequeues and processes requests

Dequeue, update of operational data, enqueue of reply is done in single local transaction

Enqueues routed by

range or hash

partitioning function

Scalable Queuing Services

Clients

Queue

Server Classes

Operational Data

Partition A

Partition B

Partition C

Presentation name

core concepts
Core Concepts
  • Stream access mode
    • stream access to subscribe and wait for qualifying tuples to appear in SQL table
  • Skip conflict access mode
    • skip conflict to skip tuples locked by concurrent transactions in conflicting mode
  • Embedded update and delete
    • embedded delete and update to read and at the same time delete or update tuples

Presentation name

sql mx queuing example
SQL/MX Queuing Example

------- create table to capture orders

create table orders (customerno int,

itemno int, … );

-- dequeue orders and retrieve associated customer records

select * from

(delete from stream(orders)) as orders

left join

customer

on orders.customerno = customer.customerno;

Presentation name

sql mx view example
SQL/MX View Example

--- define view for dequeuing

create view ready_tasks as

select * from (update stream(tasks)

set state = ‘closed’

where state = ‘open’) as tasks, workflow

where workflow.wfid = task.wfid;

--- dequeue entries

select * from ready_tasks for skip conflict access;

Presentation name

application interfaces
Application Interfaces
  • SQL/MX queuing and publish/subcribe services are accessible via embedded SQL and ODBC
  • Queuing and publish/subscribe services are accessible from NonStop DOM, NonStop Tuxedo, iTP WebServer and Pathway
  • XML support and HTTP integration

Presentation name

sql mx queuing features
SQL/MX Queuing Features
  • STREAMS
  • EMBEDDED DELETES AND UPDATES
  • SKIP CONFLICT
  • PARTITIONED TABLES
  • SET ON ROLLBACK
  • ROWSETS
  • HOLDABLE CURSORS
  • VIEW SUPPORT
  • ORDER BY / INDEXES

Presentation name

questions
Questions

Mailto:johannes.klein@compaq.com
