  1. HP Integrity NonStop NS2000 Server Family Customer Presentation 16 March, 2009

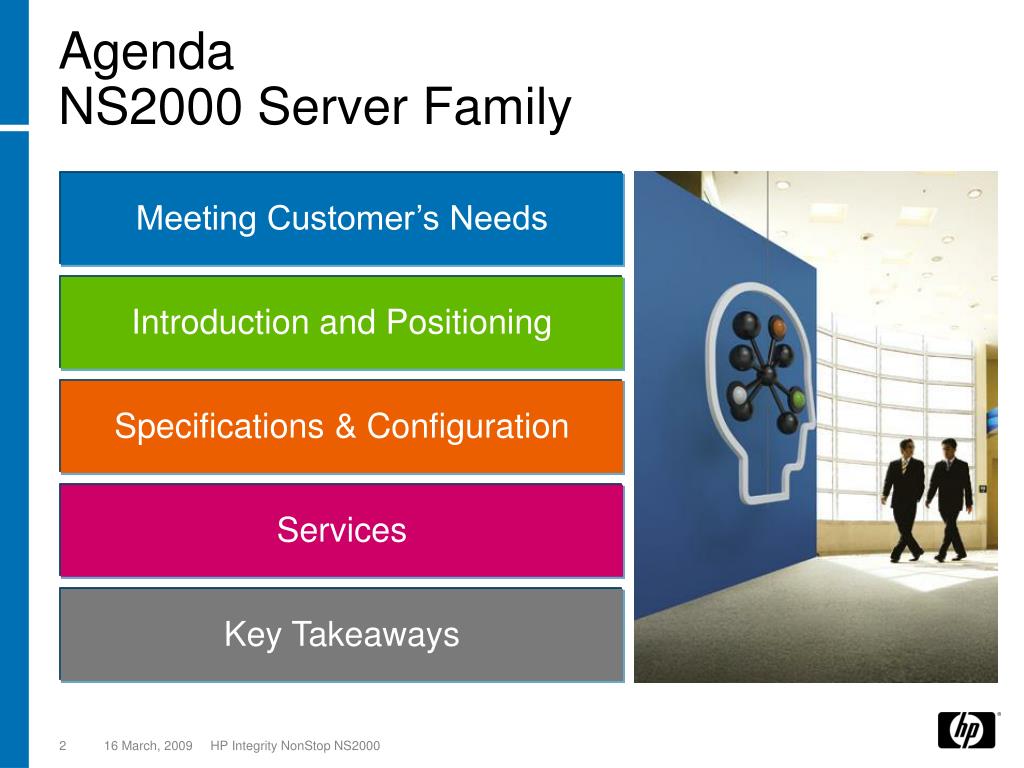

  2. AgendaNS2000 Server Family Meeting Customer’s Needs Introduction and Positioning Specifications & Configuration Services Services Key Takeaways

  3. Meeting Customer’s Needs

  4. Explosive growth – business applications, transaction volumes and supporting infrastructure Business Challenges Greater need for businesscritical computing Continuing per-transaction cost pressure, especially under the current economic climate OPTIONAL Business Challenges

  5. Deliver 24 x 7 availability Handle massive scalability • Minimize both planned and unplanned outages • Drive recovery time to near-zero • End-to-end availability • Instill a culture of 24 x 7 support • Handle the largest workloads • Scale without planned outage • Scalability of multiple dimensions—processors, database, and software Drive to standards-based computing Provide longevity of support • Lower cost hardware by leveraging “volume economics” • Modern software interfaces • Service Oriented Architectures • Provide product support and upgrade capability over decades • Maximize continuity and consistency NonStop Customer Requirements

  6. A Day in the Life of HP NonStop Servers 06:30 09:00 09:45 11:00 AOL ChicagoMercantileExchange Daimler-Chrysler MayoClinic Read the latest news on email Place a buy order Drive to work Prescription renewal 11:20 13:00 15:30 16:45 WellsFargo Sprint Visa Pulse Get lunch money from the ATM Call your mother Grocery shopping pay with credit card Pay bills on-line 18:40 21:00 23:00 02:30 Travelocity Loto-Québec BT Broadcast Services Swiss Federal Department of Justice and Police Book your flight to Las Vegas Play the lottery Watch the evening news Feel safe at night We don’t notice NonStop systems because they always work. 6

  7. Integrity NonStop NS2000 Introduction

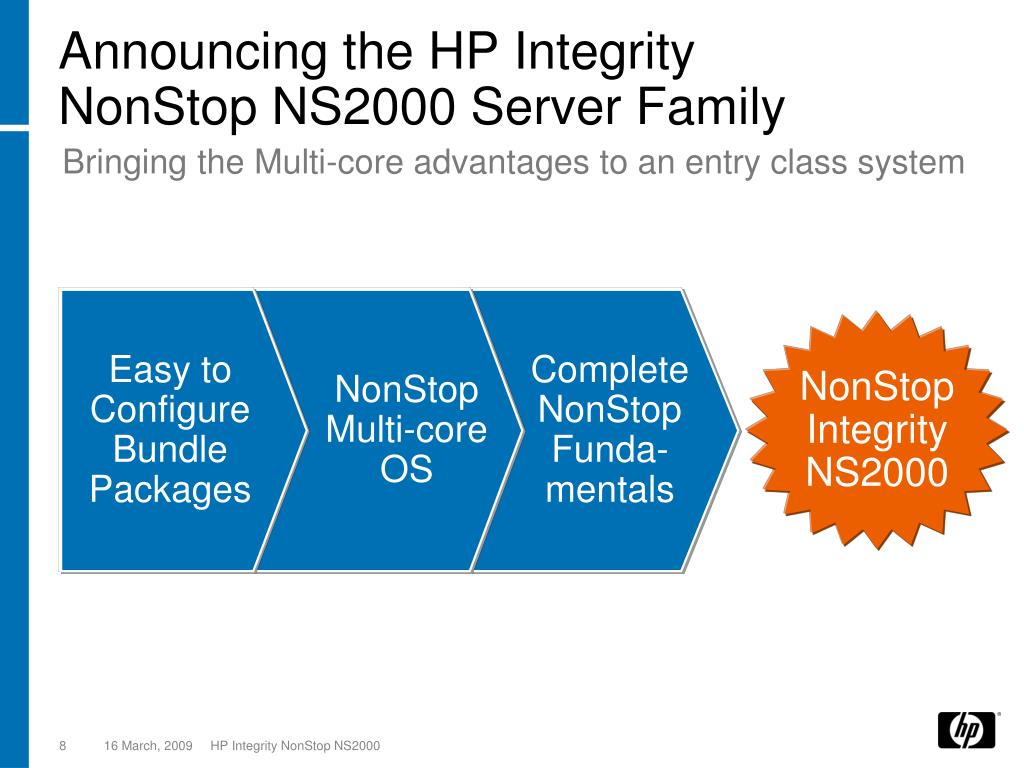

  8. Easy to Configure Bundle Packages Complete NonStop Funda-mentals NonStop Multi-core OS NonStop Integrity NS2000 Announcing the HP Integrity NonStop NS2000 Server Family Bringing the Multi-core advantages to an entry class system

  9. NonStop Multi-core Roadmap J-Series OS 2008 2009 2010 2011-2012 NB50000c BladeSystem 2-way 4-way and 2-way BladeSystem n-way and 4-way BladeSystem NS2000 Rack mount Entry-level Next gen Rack mount Entry-level Future product plans, dates, and functionality are subject to change without notice.

  10. NS2000 Server Family Overview Rack mounted entry-level servers Dual-core Intel® Itanium® Processor 9100 series 1.4 GHz Up to 4 processors / 8 cores Up to 16 GB memory NonStop multi-core OS Double the performance capacity NEW

  11. NS2000 NS2000 Positioning

  12. Expanding NonStop Technology to Emerging Markets and Smaller Businesses Financial Services Healthcare Telecommunication • Small/Medium Payment environments • Mobile payment • Internet banking • Specialty banking • Small to mid-size Hospitals • Electronic patient records • Integrated application stacks • Low cost platform for Tier 2 & 3 mobile operators • HLR and subscriber data management

  13. Ideal Development and Test System for NonStop BladeSystem Customers Lowest entry cost multi-core platform Common software infrastructure Common I/O infrastructure

  14. S-Series Customers Benefit from Upgrading Do more with less Lower monthly service costs Half the datacenter footprint Over 4x the performance leads to lower cost per-transaction Aligned for the future Standard modular components Fully modernized NonStop software Complete investment protection, running same applications as S-Series

  15. Specifications & Configuration

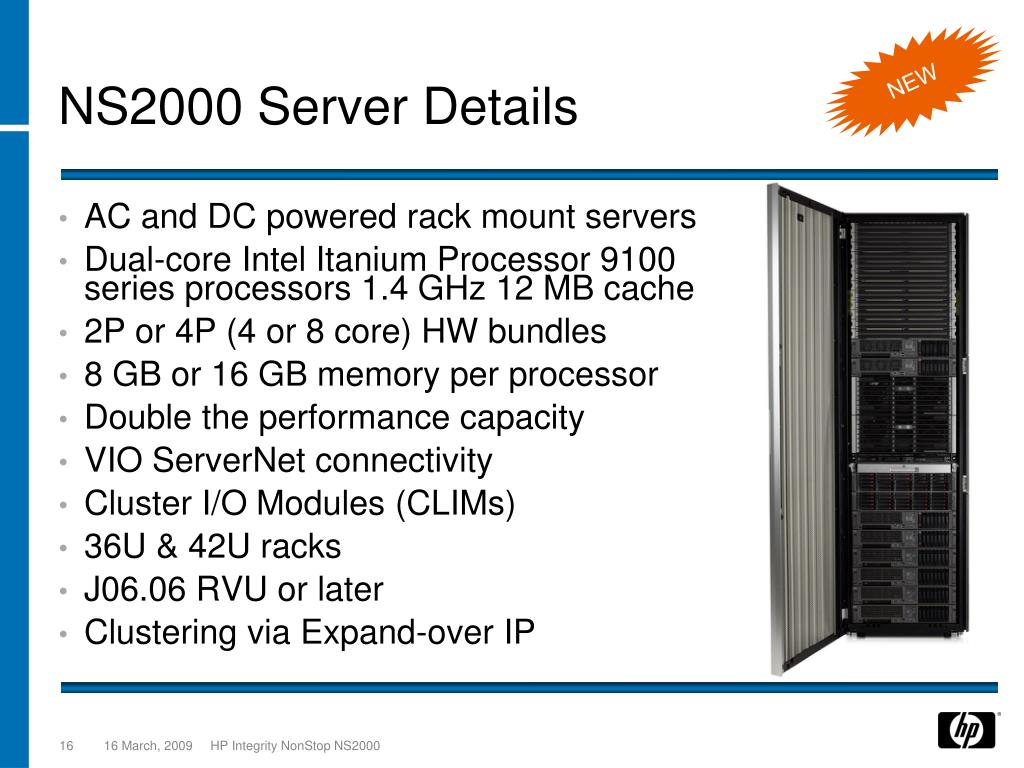

  16. NS2000 Server Details AC and DC powered rack mount servers Dual-core Intel Itanium Processor 9100 series processors 1.4 GHz 12 MB cache 2P or 4P (4 or 8 core) HW bundles 8 GB or 16 GB memory per processor Double the performance capacity VIO ServerNet connectivity Cluster I/O Modules (CLIMs) 36U & 42U racks J06.06 RVU or later Clustering via Expand-over IP NEW

  17. NS2000, NS2000T BundlesAC & DC Powered Commercial Racks

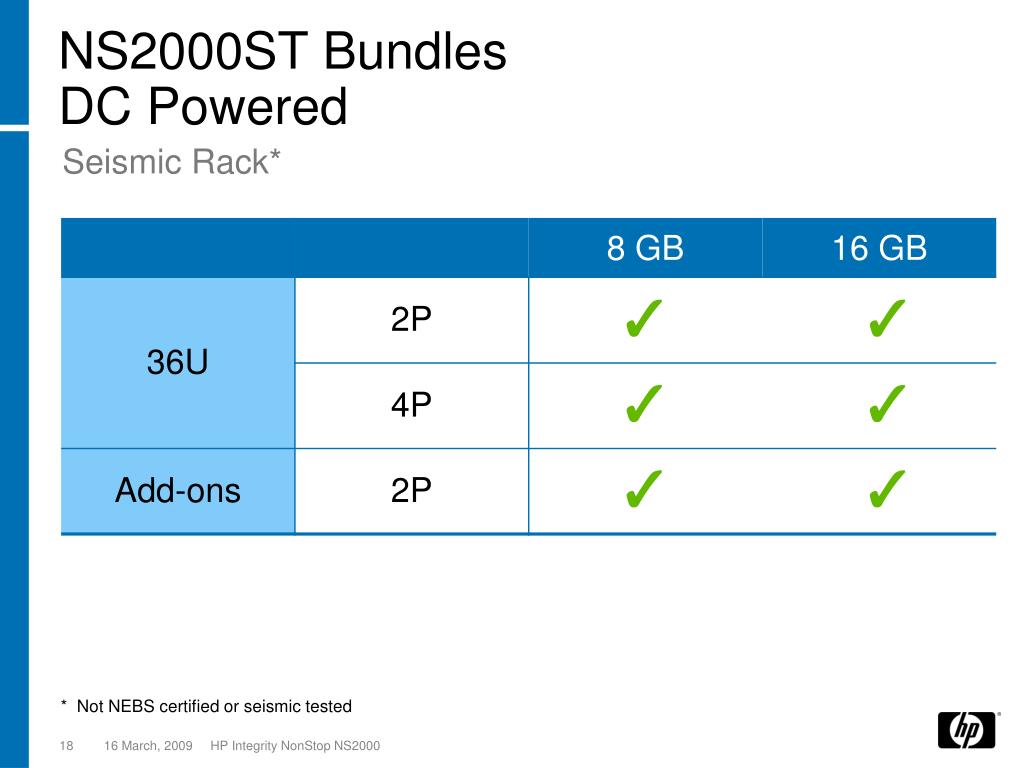

  18. NS2000ST BundlesDC Powered Seismic Rack* * Not NEBS certified or seismic tested

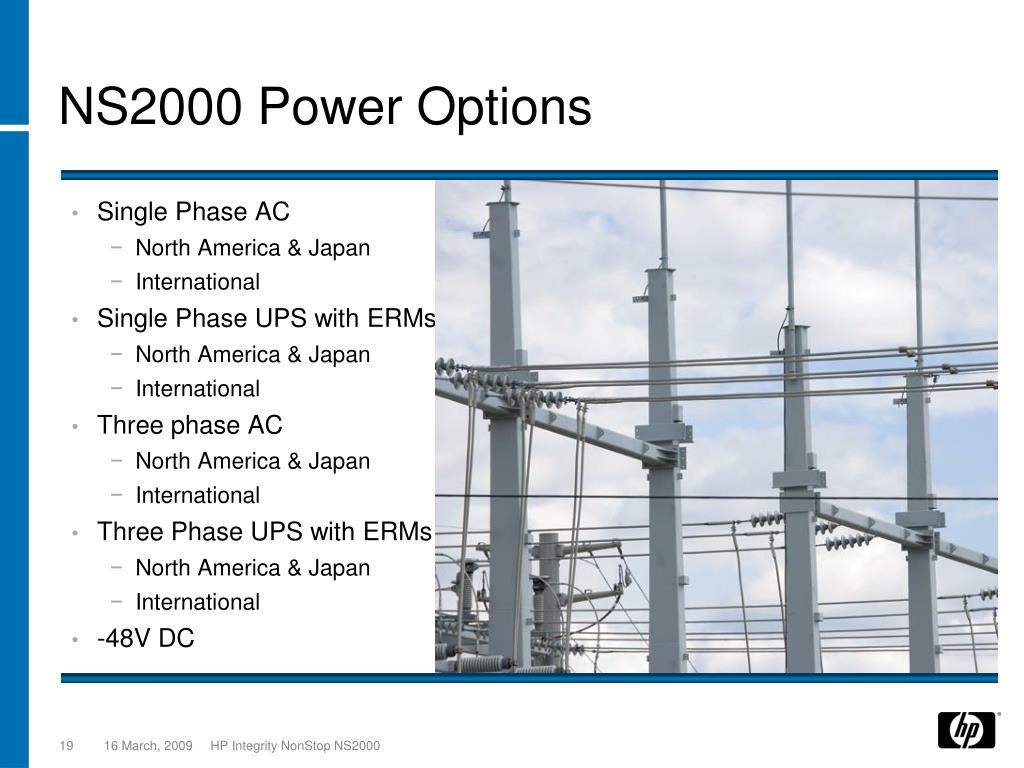

  19. NS2000 Power Options • Single Phase AC • North America & Japan • International • Single Phase UPS with ERMs • North America & Japan • International • Three phase AC • North America & Japan • International • Three Phase UPS with ERMs • North America & Japan • International • -48V DC

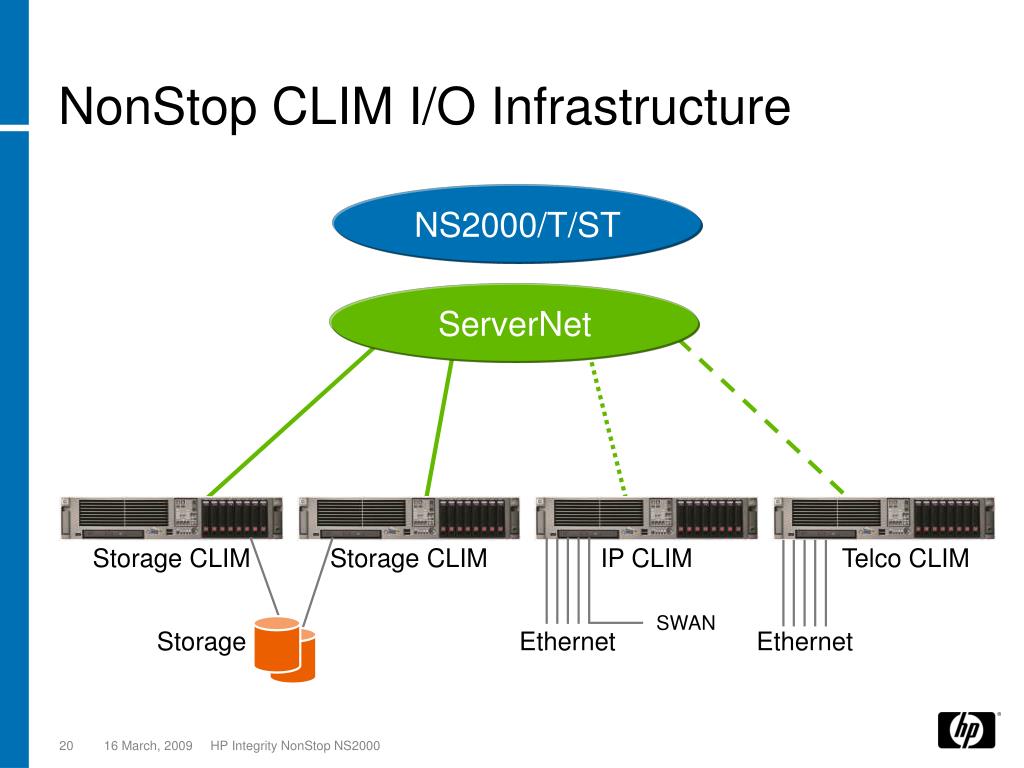

  20. NonStop CLIM I/O Infrastructure NS2000/T/ST ServerNet Storage CLIM Storage CLIM IP CLIM Telco CLIM SWAN Storage Ethernet Ethernet

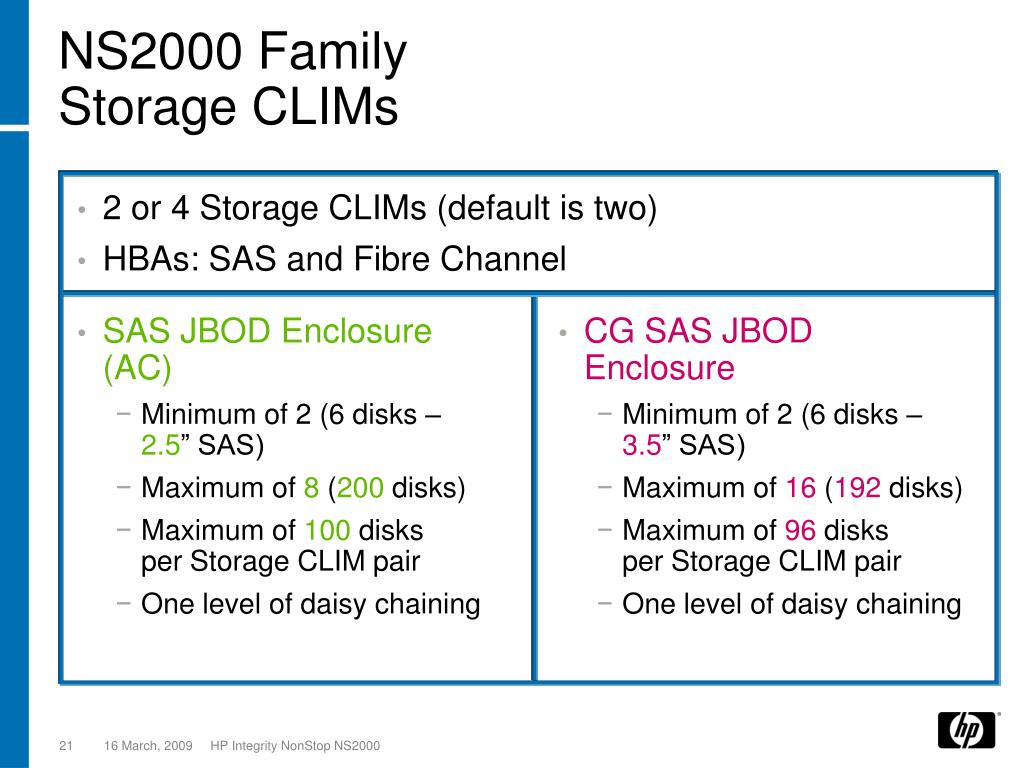

  21. NS2000 FamilyStorage CLIMs • 2 or 4 Storage CLIMs (default is two) • HBAs: SAS and Fibre Channel • SAS JBOD Enclosure (AC) • Minimum of 2 (6 disks – 2.5” SAS) • Maximum of 8 (200 disks) • Maximum of 100 disks per Storage CLIM pair • One level of daisy chaining • CG SAS JBOD Enclosure • Minimum of 2 (6 disks – 3.5” SAS) • Maximum of 16 (192 disks) • Maximum of 96 disks per Storage CLIM pair • One level of daisy chaining

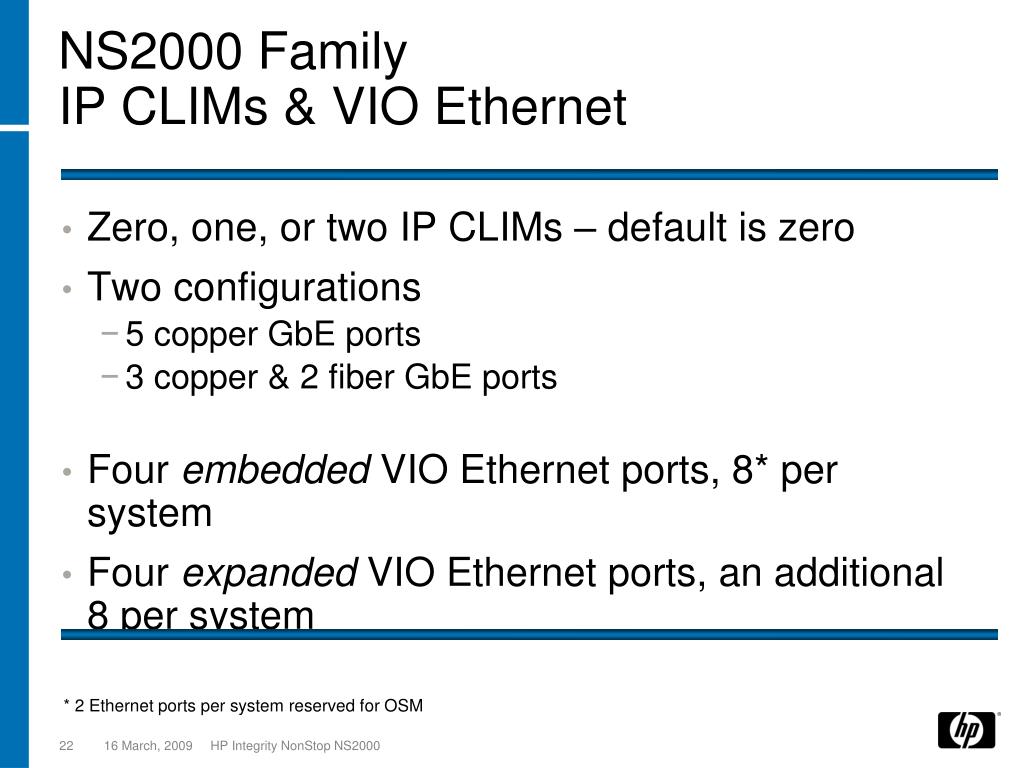

  22. NS2000 Family IP CLIMs & VIO Ethernet Zero, one, or two IP CLIMs – default is zero Two configurations 5 copper GbE ports 3 copper & 2 fiber GbE ports Four embedded VIO Ethernet ports, 8* per system Four expanded VIO Ethernet ports, an additional 8 per system * 2 Ethernet ports per system reserved for OSM

  23. NS2000 Family Telco CLIMs Zero, one, or two Telco CLIMs – default is zero* AC and DC powered versions M3UA protocol support * Maximum number of Telco CLIMs plus IP CLIMs is 2

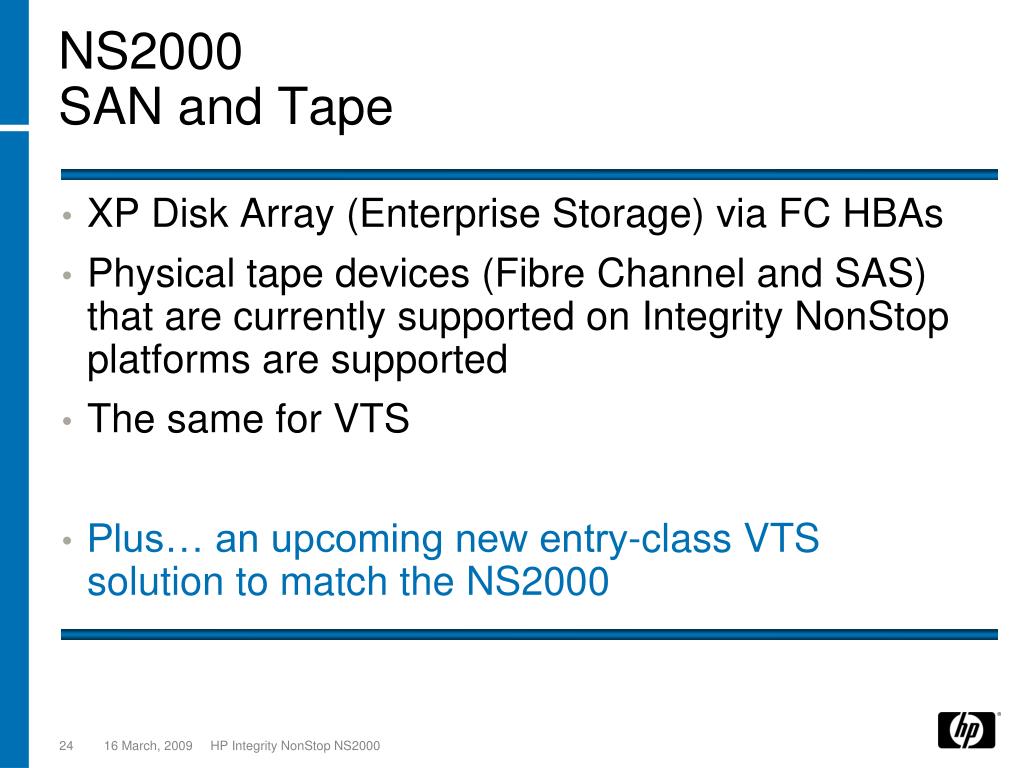

  24. NS2000SAN and Tape XP Disk Array (Enterprise Storage) via FC HBAs Physical tape devices (Fibre Channel and SAS) that are currently supported on Integrity NonStop platforms are supported The same for VTS Plus… an upcoming new entry-class VTS solution to match the NS2000

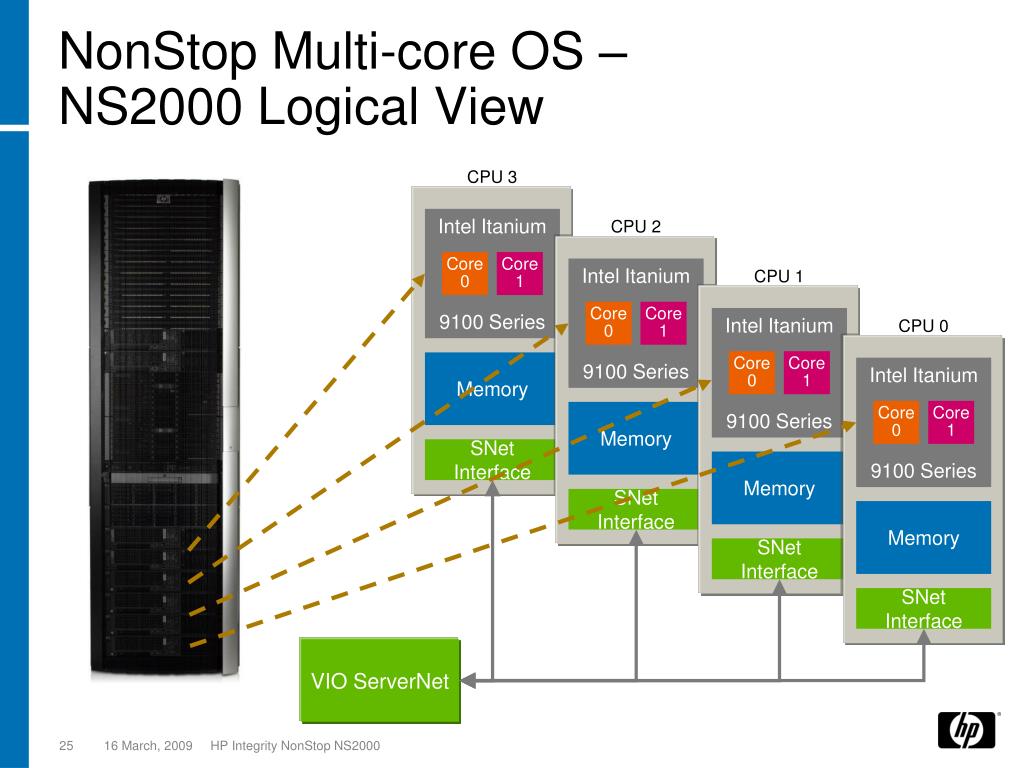

  25. Core 0 Core 0 Core 0 Core 1 Core 1 Core 1 Core 0 Core 1 NonStop Multi-core OS – NS2000 Logical View CPU 3 Intel Itanium 9100 Series CPU 2 Intel Itanium 9100 Series CPU 1 Intel Itanium 9100 Series CPU 0 Memory Intel Itanium 9100 Series Memory SNet Interface Memory SNet Interface Memory SNet Interface SNet Interface VIO ServerNet

  26. Services

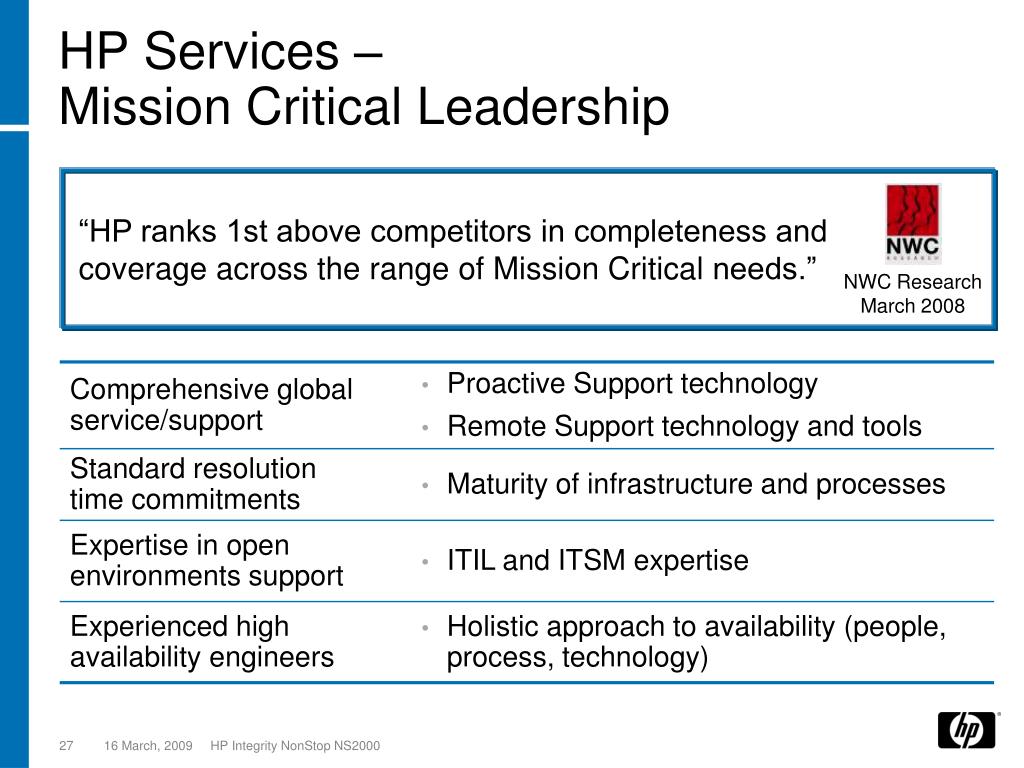

  27. HP Services – Mission Critical Leadership “HP ranks 1st above competitors in completeness and coverage across the range of Mission Critical needs.” NWC ResearchMarch 2008

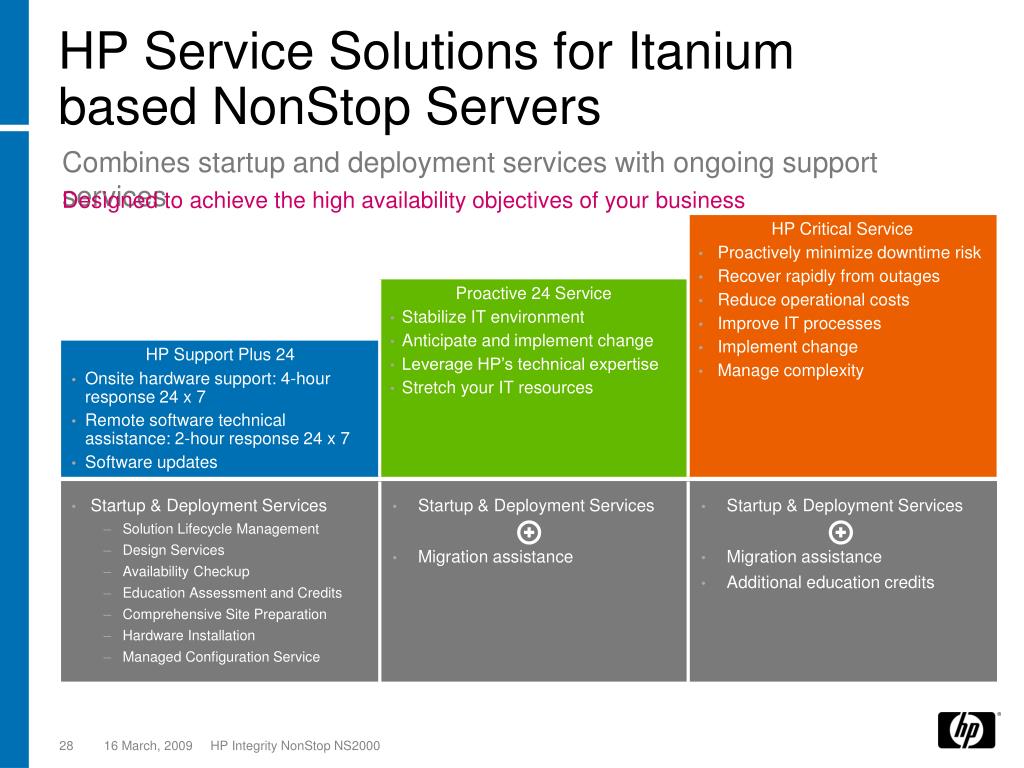

  28. HP Service Solutions for Itanium based NonStop Servers Combines startup and deployment services with ongoing support services Designed to achieve the high availability objectives of your business • Startup & Deployment Services • Solution Lifecycle Management • Design Services • Availability Checkup • Education Assessment and Credits • Comprehensive Site Preparation • Hardware Installation • Managed Configuration Service • Startup & Deployment Services • Migration assistance • Startup & Deployment Services • Migration assistance • Additional education credits

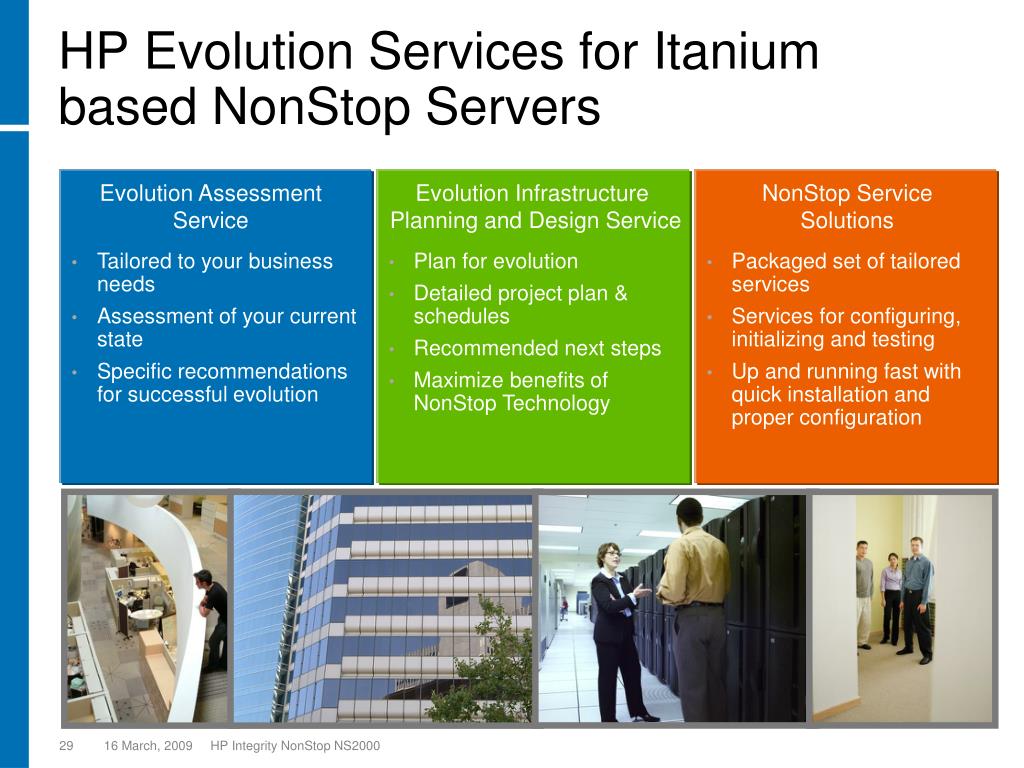

  29. HP Evolution Services for Itanium based NonStop Servers • Tailored to your business needs • Assessment of your current state • Specific recommendations for successful evolution • Plan for evolution • Detailed project plan & schedules • Recommended next steps • Maximize benefits of NonStop Technology • Packaged set of tailored services • Services for configuring, initializing and testing • Up and running fast with quick installation and proper configuration Evolution AssessmentService Evolution Infrastructure Planning and Design Service NonStop ServiceSolutions

  30. Wrap-up

  31. NS2000 Key Take Aways • Multi-core performance at an entry price • Complete investment protection, running the same applications as other NonStop servers from S-series on up to the NonStop BladeSystem • Complements the NonStop BladeSystem • 100% NonStop
