Wireless Module SIM7600EI - WI-369-D with its features

The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA /GSM/GPRS/EDGE etc. SIM7600EI supports maximum 10Mbps downlink rate and 5Mbps uplink rate. The SIM7600 series adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA modules), and SIM7600/SIM7600-H series(LTE modules) , which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs. https://www.campuscomponent.com/products/sim7600ei-wi-369-d/2208614000001839306

campuscomponent
Download Presentation

Wireless Module SIM7600EI - WI-369-D with its features

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

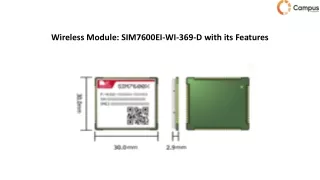

  1. Wireless Module: SIM7600EI-WI-369-D with its Features

  2. Product Details : The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. SIM7600EI supports maximum 10Mbps downlink rate and 5Mbps uplink rate. The SIM7600 series adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules) , which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs. The SIM7600 seriesintegrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

  3. SIM7600EI Features:- Power supply: Single supply voltage 3.4~4.2V, recommend 3.8V. Transmitting power: • GSM/GPRS power class: • --GSM850: 4 (2W) • --EGSM900: 4 (2W) • --DCS1800: 1 (1W) • --PCS1900: 1 (1W) EDGE power class:  • GSM850: E2 (0.5W) • EGSM900: E2 (0.5W) • DCS1800: E1 (0.4W) • PCS1900: E1 (0.4W)

  4. Antenna: • GSM/UMTS/LTE main antenna • UMTS/LTE auxiliary antenna • GNSS antenna GNSS: • GNSS engine (GPS, GLONASS and BD) • Protocol: NMEA SMS: • MT, MO, CB, Text and PDU mode • SMS storage: USIM card or ME (default)

  5. UART interface: • A full modem serial port by default • Baud rate: 300bps to 4Mbps (default: 115200bps) • Baud rate: 9600, 19200, 38400 ,57600 ,115200bps • Can be used as the AT commands or data stream channel • Support RTS/CTS hardware handshake • Multiplex ability according to GSM 07.10 Multiplexer Protocol

  6. Get the high-quality SIM7600EI Wireless Module at the best price in India. Website: https://www.campuscomponent.com/products/sim7600ei-wi-369-d/2208614000001839306 Address: Ackruti Chambers, Office No. 308, 3rd Floor, Near Laxminarayan Theater, Swargate, Pune 411037 Contact No: +919767444555 Email Id: sales@campuscomponent.com Social Links: Linkedin: https://www.linkedin.com/company/campus-component-pvt-ltd Facebook: https://www.facebook.com/campuscomponentpvtltd/ Instagram: https://instagram.com/campuscomponent?igshid=1j5nq20fqeclu

  7. Thank You
