Presentation Transcript
slide2

Hydroelectric power: How it works

So just how do we get electricity from water? Actually, hydroelectric and coal-fired power plants produce electricity in a similar way. In both cases a power source is used to turn a propeller-like piece called a turbine, which then turns a metal shaft in an electric generator, which is the motor that produces electricity. A coal-fired power plant uses steam to turn the turbine blades; whereas a hydroelectric plant uses falling water to turn the turbine. The results are the same.

The dam stores lots of water behind it in the reservoir. Near the bottom of the dam wall there is the water intake. Gravity causes it to fall through the penstock inside the dam. At the end of the penstock there is a turbine propeller, which is turned by the moving water. The shaft from the turbine goes up into the generator, which produces the power. Power lines are connected to the generator that carry electricity to your home and mine. The water continues past the propeller through the tailrace into the river past the dam. By the way, it is not a good idea to be playing in the water right below a dam when water is released!

slide3

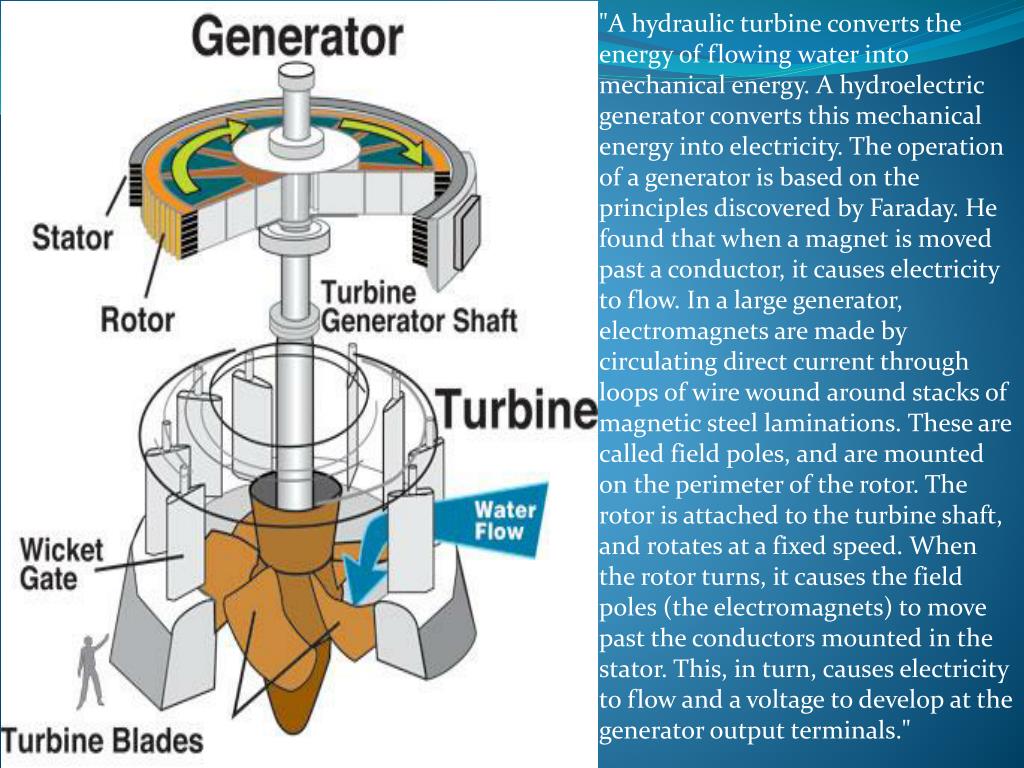

"A hydraulic turbine converts the energy of flowing water into mechanical energy. A hydroelectric generator converts this mechanical energy into electricity. The operation of a generator is based on the principles discovered by Faraday. He found that when a magnet is moved past a conductor, it causes electricity to flow. In a large generator, electromagnets are made by circulating direct current through loops of wire wound around stacks of magnetic steel laminations. These are called field poles, and are mounted on the perimeter of the rotor. The rotor is attached to the turbine shaft, and rotates at a fixed speed. When the rotor turns, it causes the field poles (the electromagnets) to move past the conductors mounted in the stator. This, in turn, causes electricity to flow and a voltage to develop at the generator output terminals."

slide4

Pumped storage: Reusing water for peak electricity demand

Demand for electricity is not "flat" and constant. Demand goes up and down during the day, and overnight there is less need for electricity in homes, businesses, and other facilities. For example, here in Atlanta, Georgia at 5:00 PM on a hot August weekend day, you can bet there is a huge demand for electricity to run millions of air conditioners! But, 12 hours later at 5:00 AM .... not so much. Hydroelectric plants are more efficient at providing for peak power demands during short periods than are fossil-fuel and nuclear power plants, and one way of doing that is by using "pumped storage", which reuses the same water more than once.

Pumped storage is a method of keeping water in reserve for peak period power demands by pumping water that has already flowed through the turbines back up a storage pool above the powerplant at a time when customer demand for energy is low, such as during the middle of the night. The water is then allowed to flow back through the turbine-generators at times when demand is high and a heavy load is placed on the system.

slide5

Electricity from Hydropower

Hydropower is considered a renewable energy resource because it uses the Earth's water cycle to generate electricity. Water evaporates from the Earth's surface, forms clouds, precipitates back to earth, and flows toward the ocean.The movement of water as it flows downstream creates kinetic energy that can be converted into electricity. A hydroelectric power plant converts this energy into electricity by forcing water, often held at a dam, through a hydraulic turbine that is connected to a generator. The water exits the turbine and is returned to a stream or riverbed below the dam.Hydropower is mostly dependent upon precipitation and elevation changes; high precipitation levels and large elevation changes are necessary to generate significant quantities of electricity. Therefore, an area such as the mountainous Pacific Northwest has more productive hydropower plants than an area such as the Gulf Coast, which might have large amounts of precipitation but is comparatively flat.

Water Discharges

Hydroelectric power plants release water back into rivers after it passes through turbines. This water is not polluted by the process of creating electricity.Solid Waste Generation

The use of water to create electricity does not produce a substantial amount of solid waste.

Air Emissions

Hydropower's air emissions are negligible because no fuels are burned. However, if a large amount of vegetation is growing along the riverbed when a dam is built, it can decay in the lake that is created, causing the buildup and release of methane, a potent greenhouse gas.

slide6

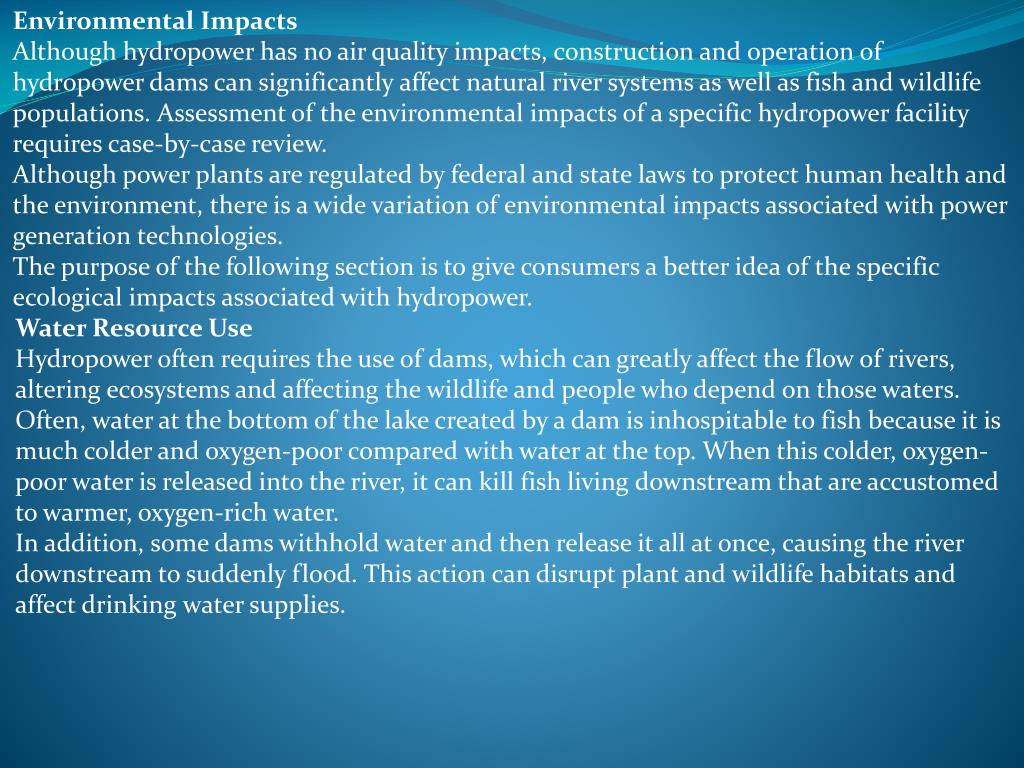

Environmental Impacts

Although hydropower has no air quality impacts, construction and operation of hydropower dams can significantly affect natural river systems as well as fish and wildlife populations. Assessment of the environmental impacts of a specific hydropower facility requires case-by-case review.Although power plants are regulated by federal and state laws to protect human health and the environment, there is a wide variation of environmental impacts associated with power generation technologies.The purpose of the following section is to give consumers a better idea of the specific ecological impacts associated with hydropower.

Water Resource Use

Hydropower often requires the use of dams, which can greatly affect the flow of rivers, altering ecosystems and affecting the wildlife and people who depend on those waters.Often, water at the bottom of the lake created by a dam is inhospitable to fish because it is much colder and oxygen-poor compared with water at the top. When this colder, oxygen-poor water is released into the river, it can kill fish living downstream that are accustomed to warmer, oxygen-rich water.In addition, some dams withhold water and then release it all at once, causing the river downstream to suddenly flood. This action can disrupt plant and wildlife habitats and affect drinking water supplies.

slide7

Although large hydroelectric plants can be operated economically, the cost of land acquisition and of dam and reservoir construction must be included in the total cost of power, since these outlays generally account for about half of the total initial cost. Most large plants serve multiple purposes: hydropower generation, flood control, storage of drinking water, and the impounding of water for irrigation. If the construction costs are properly prorated to the non-power-producing utility of the unit, electricity can be sold very cheaply.

About $10.5 million depending on the size of the plant. A large plant could be upwards of $50 million. Small geothermal plants can be anywhere from $3,000 to $5,000.
