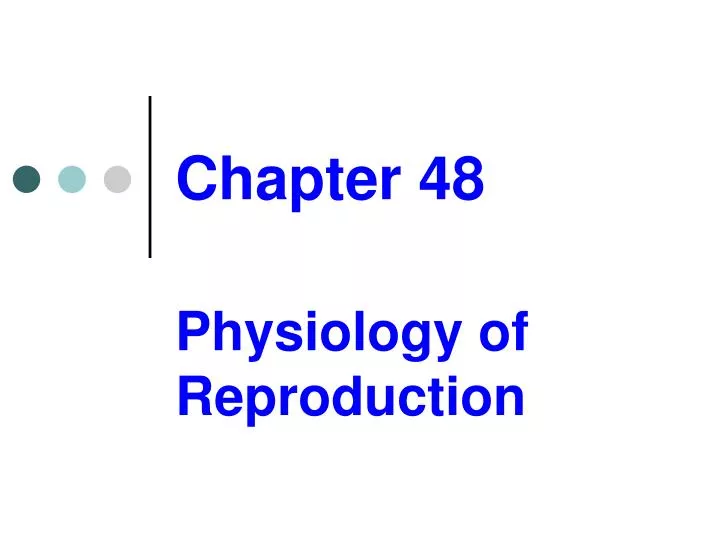

  1. Chapter 48 Physiology of Reproduction

  2. Meiosis • Gametes • Haploid complement (n) • Gametogenesis • Process of gamete formation with the reduction by half of the chromosome number • Homologous chromosome • Carries genes for the same traits

  3. Meiosis • Zygote • Fertilized egg • Diploid (2n) • Meiosis I • Prophase • 23 tetrads • Homologues chromosomes synapse • Chiasmata or crossover

  4. Meiosis • Metaphase • Anaphase • Homologues separates • Dyads stays together • Telophase • 2 cells with diploid number of chromosomes

  5. Meiosis • Meiosis II • Prophase • No chromosome replication • Cells are diploid • Metaphase

  6. Meiosis • Anaphase • Breaks of the centromeres will result each cell having one chromatid • 4 daughter cells • Crossover and the way in which the homologues align on the spindle equator during the first maturation division introduces a great variability in the resulting gametes

  7. Spermatogenesis • It is the male gamete formation • Starts at puberty and continues throughout life

  8. Spermatogenesis

  9. Spermatogenesis • Steps of sperm formation: • Spermatogonia (2n) • Stem cell • Found in the seminiferous tubules • It undergoes mitosis and forms one primary spermatocyte and one spermatogonium • Phase regulated by FSH

  10. Spermatogenesis • Primary spermatocyte (2n) • It undergoes to a growth phase • It undergoes to meiosis I after the growth phase and forms the secondary spermatocyte • Secondary spermatocyte (n) • It undergoes meiosis II and produces 4 spermatids

  11. Spermatogenesis • Spermatids (n) • Nonfunctional gametes • No motile • They undergo spermiogenesis and form the sperm

  12. Spermatogenesis • Sperm • Motile • Smaller than the spermatid • Head of the sperm • Contain the genetic material • Acrosome

  13. Spermiogenesis

  14. Spermatogenesis • Midpiece • Centriole that gives rise to the filaments that forms the tail • Mitochondria present • Tail • flagellum

  15. Spermatogenesis • Sertoli cells • Support cells responsible for sperm nourishment

  16. Microscopy of the testes • Seminiferous tubes • Spermatogonia • Pale-staining nuclei • Located at the base of the tubule • Spematocytes • Located in the middle of the tubule wall

  17. Spermatogenesis • Spermatid • Small cell • Round and dark nuclei • Located in the lumen of the tubule • Sperm cell • Seeing under oil immersion • Located in the lumen • Head with acrosome • Midpiece and tail

  18. Spermatogenesis • Interstitial cells • Located between the seminiferous tubules • Testosterone-producing cells

  19. Oogenesis and ovarian cycle • It is the female gamete formation • Steps of the oogenesis: • Before birth • Oogonia • Primitive stem cell • it undergoes mitosis many times • It grows in size and becomes a primary oocyte (arrested in prophase of meiosis I)

  20. Oogenesis and ovarian cycle • Primordial follicles • Capsule formed by a single layer of squamouslike cells that surround the primary oocyte • At birth • Oogonias no longer exists • All cells are oocytes encapsulated by a primordial follicle • No more oocytes will be produced

  21. Oogenesis and ovarian cycle • From birth to puberty • Primary oocytes are quiescent • From puberty and on • Increase of FSH levels cause: • Follicle • One or more primordial follicles to undergo maturation (every 28 days)

  22. Follicle

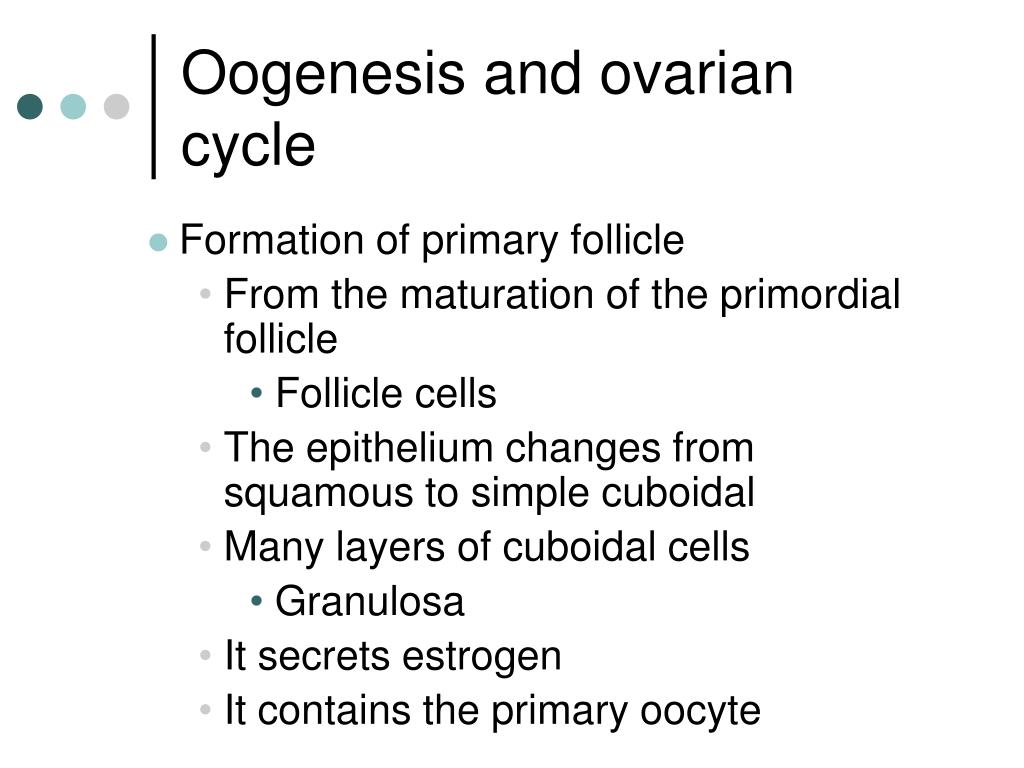

  23. Oogenesis and ovarian cycle • Formation of primary follicle • From the maturation of the primordial follicle • Follicle cells • The epithelium changes from squamous to simple cuboidal • Many layers of cuboidal cells • Granulosa • It secrets estrogen • It contains the primary oocyte

  24. Oogenesis and ovarian cycle • Secondary follicle • Follicle with several layers of granulosa cells • Presence of antrum • Tertiary follicle (Graafian) • Presence of granulosa cells • Corona radiata

  25. Oogenesis and ovarian cycle • It is a mature follicle that continues secreting increasing amounts of estrogen • It contains the secondary oocyte • It expels the secondary oocyte accompanied by the corona radiata at the middle of the 28-day cycle

  26. Oogenesis and ovarian cycle • Corpus luteum • It comes from the rupture Graafian follicle • It produces mainly progesterone • If pregnancy does not occur it will degenerate and will be replaced by scar tissue

  27. Oogenesis and ovarian cycle • Corpus albicans • Scar tissue resulted from the disintegration of the corpus luteum • Oocyte • Primary oocyte • Meiosis I is completed forming one secondary oocyte and one first polar body

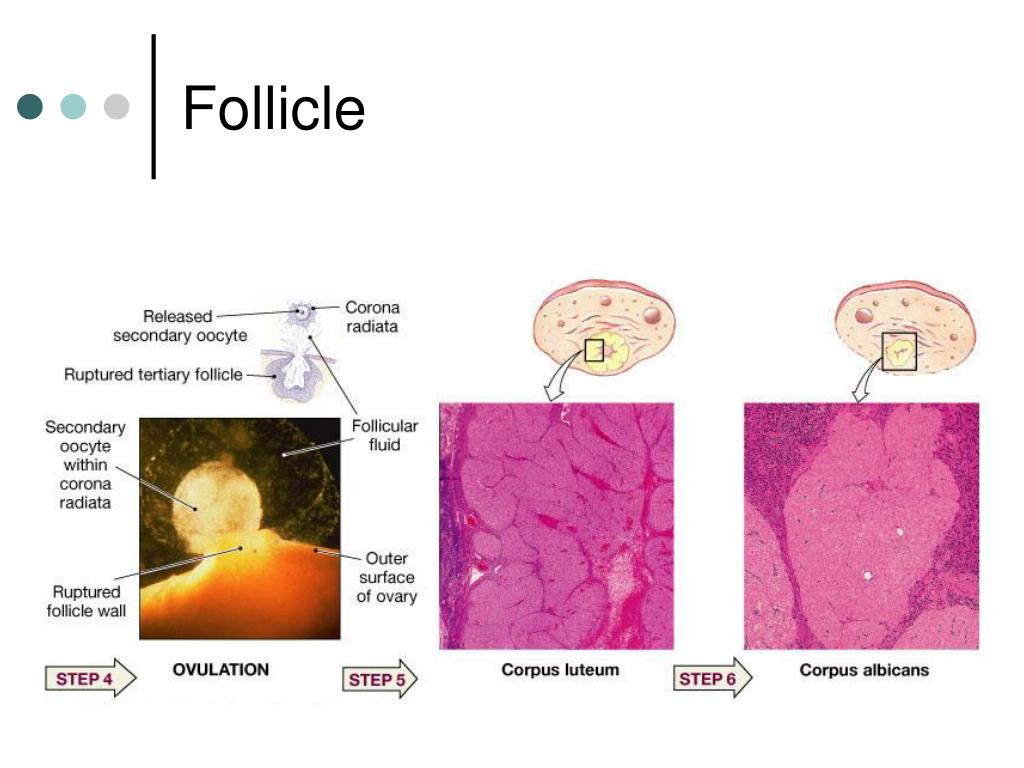

  28. Follicle

  29. Oogenesis

  30. Oogenesis and ovarian cycle • Secondary oocyte • Large cell (contains most of the cytoplasm of the primary oocyte) • Haploid • Arrested in metaphase of meiosis II • It is expelled by the Graafian follicle (ovulation) • It is captured by the uterine tube

  31. Oogenesis and ovarian cycle • If penetrated by the sperm, it will complete meiosis II and will produce a large ovum and one small secondary polar body • Ovum • Chromosomes of the ovum and sperm will combine to form a diploid cell

  32. Oogenesis and ovarian cycle • First polar body • Small cell (almost no cytoplasm) • Produced by the division of the primary oocyte • It will disintegrate • Secondary polar body • Produced by the division of the secondary oocyte • It will also disintegrate

  33. Oogenesis and ovarian cycle • Hormonal cycle • Beginning of the menstrual cycle • FSH is the dominant hormone • Low levels of LH • Low levels of estrogen and progesterone

  34. Oogenesis and ovarian cycle • Before ovulation • Estrogen levels increase • Progesterone level remain low • Ovulation • Caused mainly by a peak of LH • After ovulation • Estrogen levels decrease • Progesterone levels increase • FSH and LH levels decrease

  35. Menstrual cycle • Controlled by ovarian hormones • Menstrual phase • Lasts 1-5 days • Sloughing off of the functional layer of the endometrium with bleeding

  36. Oogenesis and ovarian cycle • Proliferative phase • From day 6-14 • Estrogen is the main hormone • Ovarian follicle grows • Endometrium thickens with proliferation of its glands and blood vessels • Ovulation occur at day 14

  37. Oogenesis and ovarian cycle • Secretory phase • From day 15-28 • Progesterone produced by the corpus luteum is the main hormone • Endometrium thickens even more with further proliferation and coiling of the glands • Uterus is getting ready for the embryo implantation

  38. Oogenesis and ovarian cycle • If no implantation occurs the corpus luteum will deteriorate causing lack of ovarian hormones that will cause deterioration of the functional layer of the endometrium

  39. Menstrual cycle
