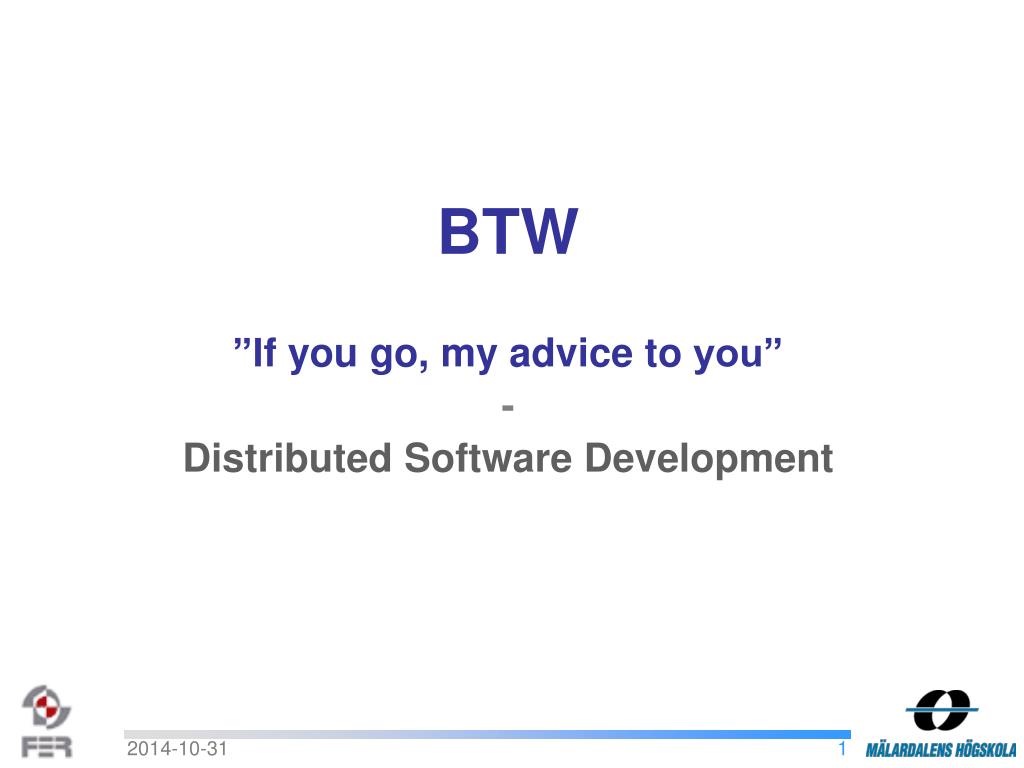

  1. BTW ”If you go, my advice to you”-Distributed Software Development

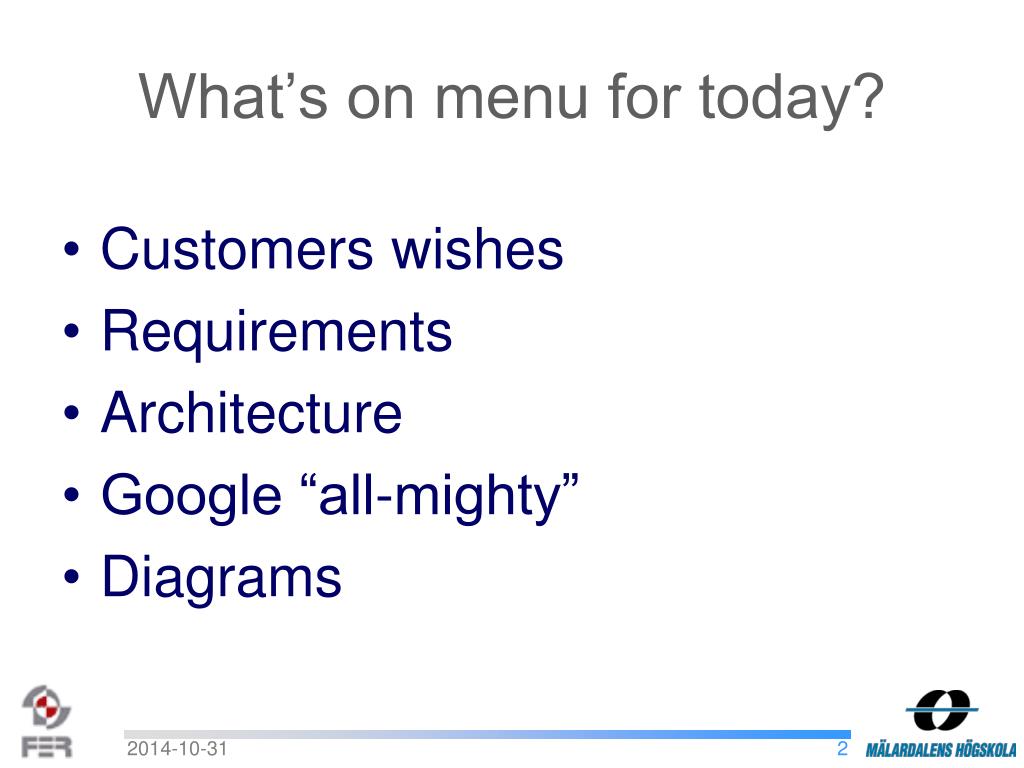

  2. What’s on menu for today? • Customers wishes • Requirements • Architecture • Google “all-mighty” • Diagrams

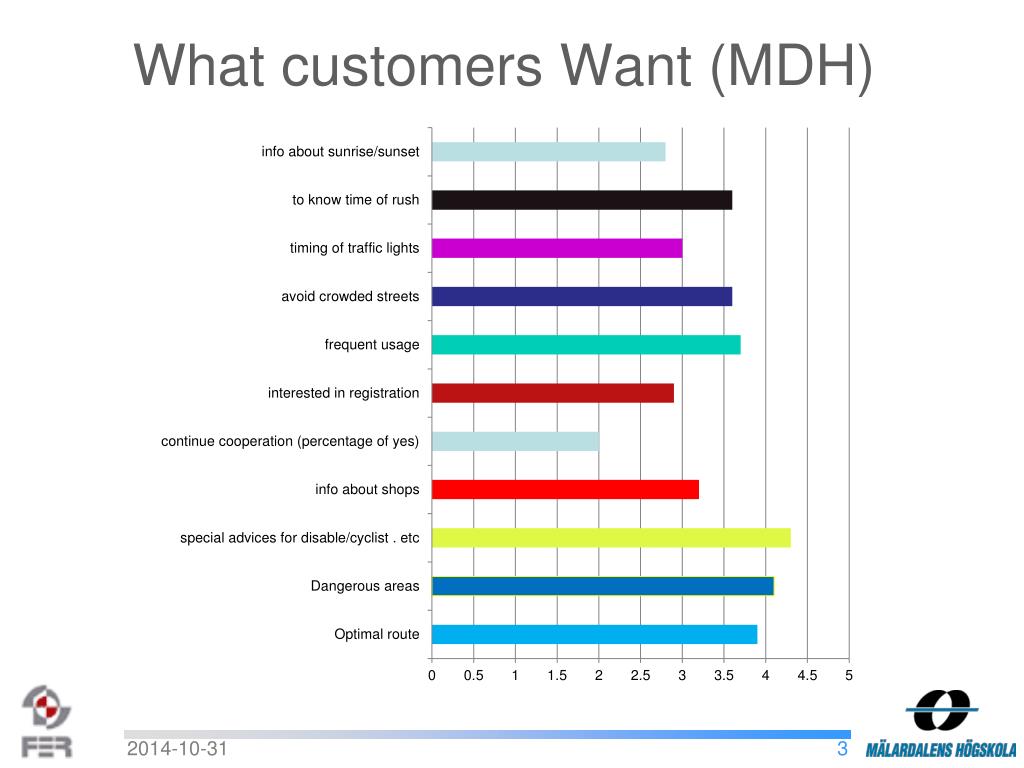

  3. What customers Want (MDH)

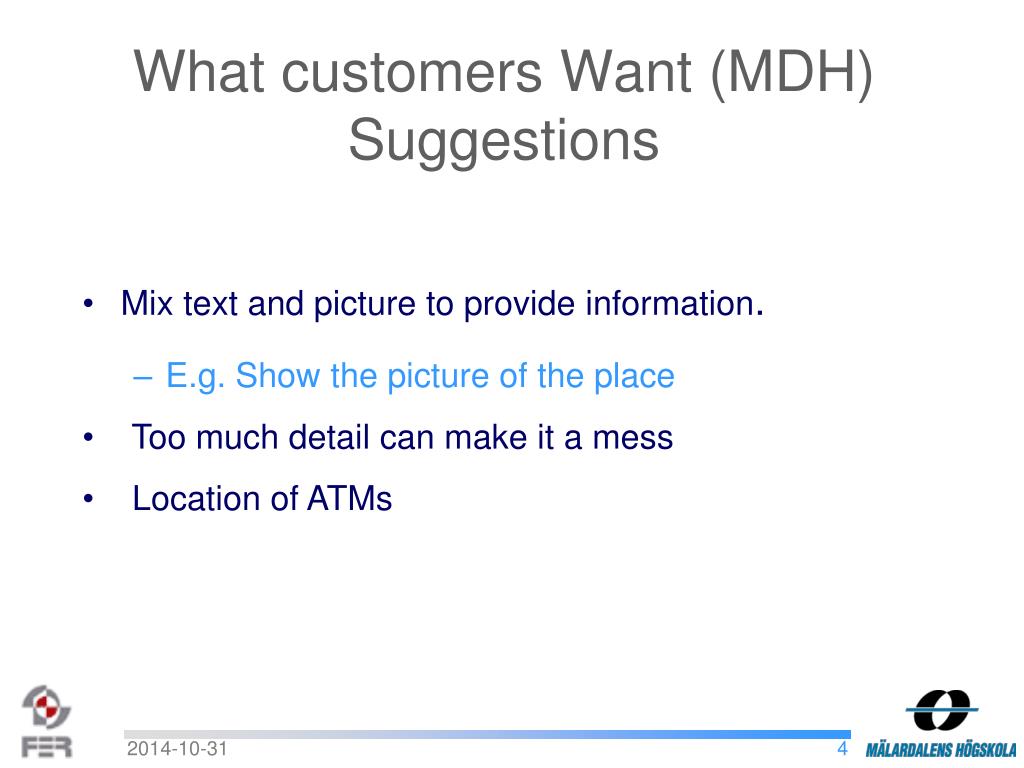

  4. What customers Want (MDH)Suggestions • Mix text and picture to provide information. • E.g. Show the picture of the place • Too much detail can make it a mess • Location of ATMs

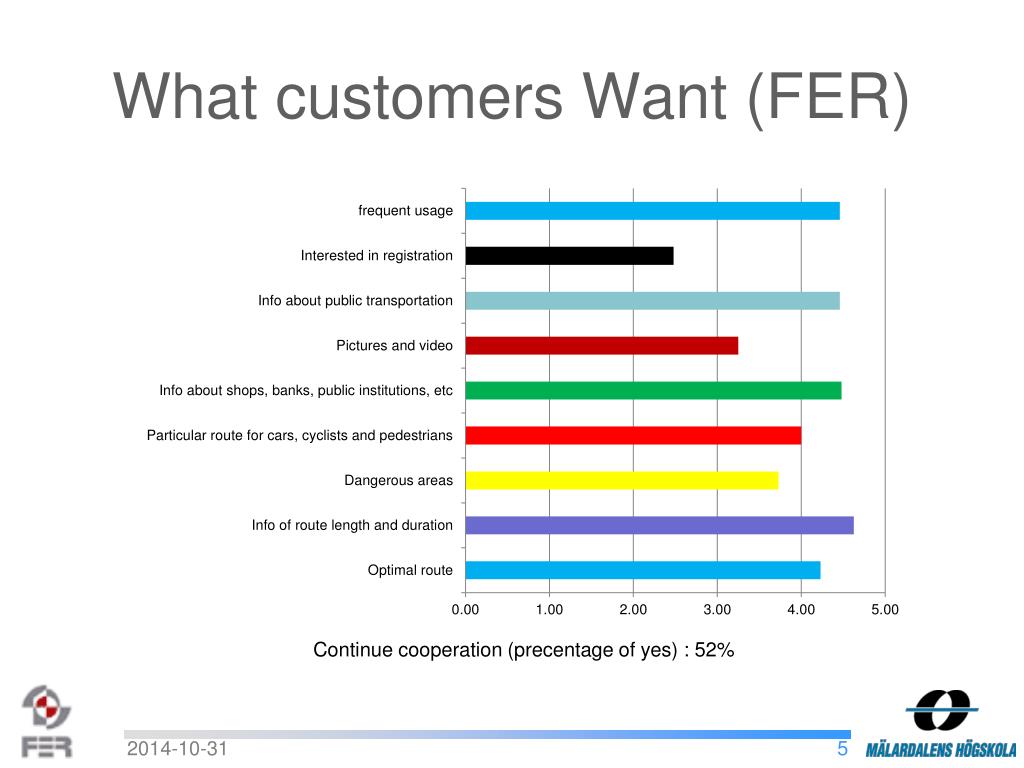

  5. What customers Want (FER) Continue cooperation (precentage of yes) : 52%

  6. What customers Want (FER)Suggestions • Pictures (video not so important) , small symbols. • Locations: • Banks • ATMs • Parking places • Playgrounds • Public institutions • Public transport (Tram, Taxi and Bus)

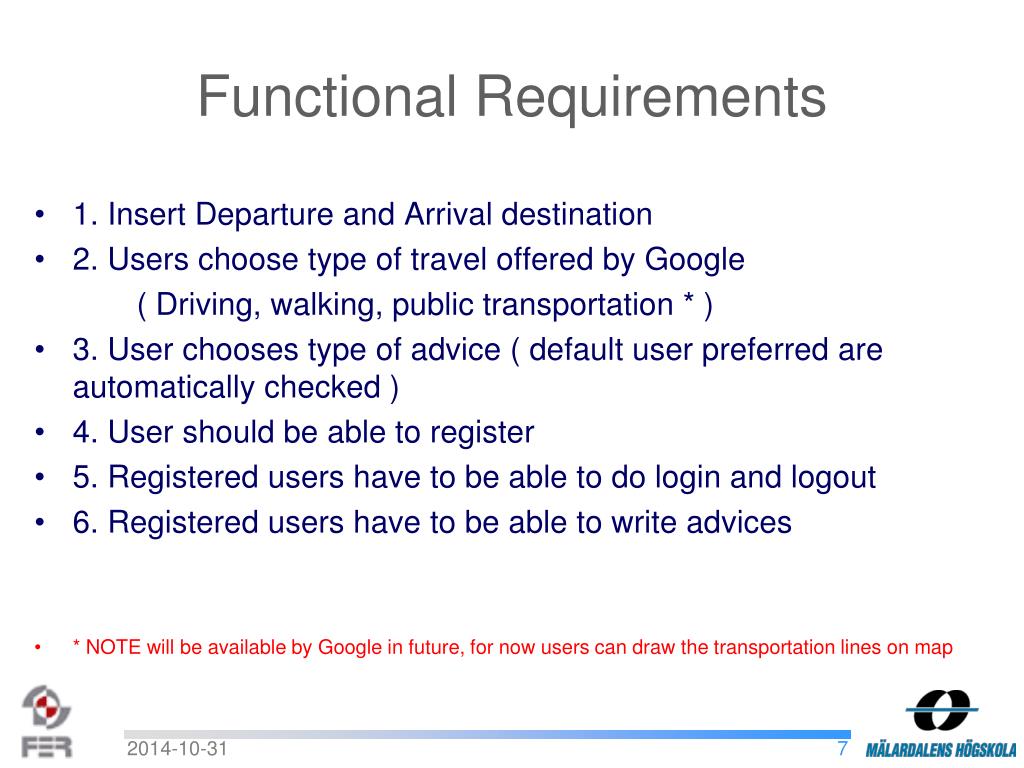

  7. Functional Requirements • 1. Insert Departure and Arrival destination • 2. Users choose type of travel offered by Google ( Driving, walking, public transportation * ) • 3. User chooses type of advice ( default user preferred are automatically checked ) • 4. User should be able to register • 5. Registered users have to be able to do login and logout • 6. Registered users have to be able to write advices • * NOTE will be available by Google in future, for now users can draw the transportation lines on map

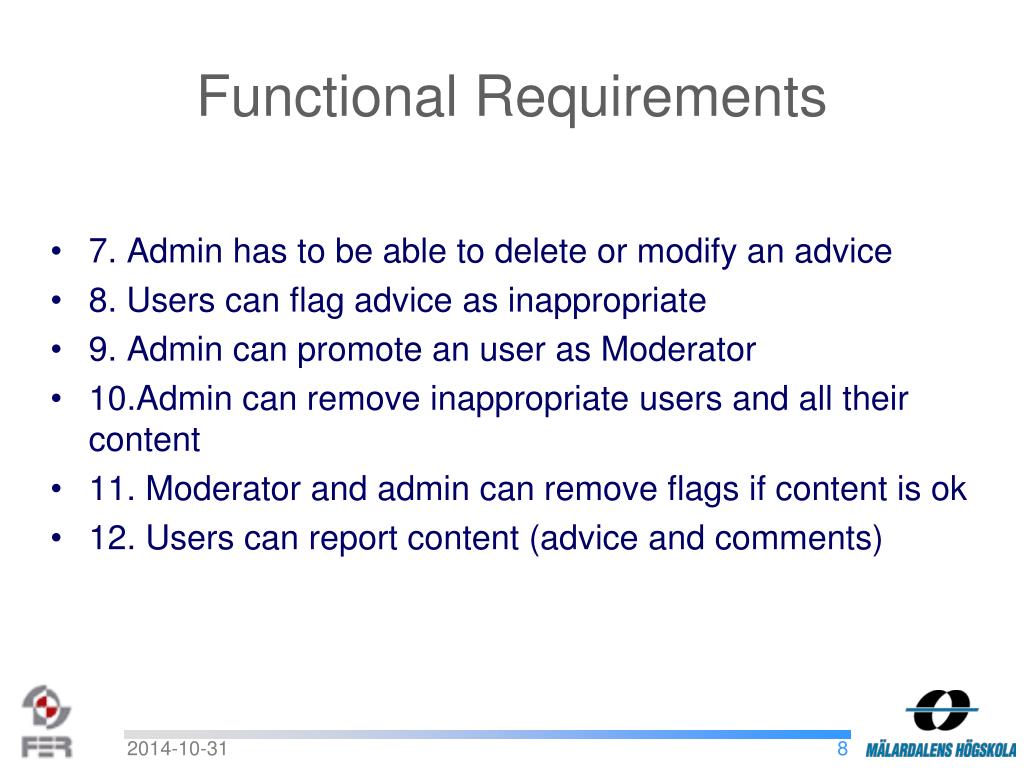

  8. Functional Requirements • 7. Admin has to be able to delete or modify an advice • 8. Users can flag advice as inappropriate • 9. Admin can promote an user as Moderator • 10.Admin can remove inappropriate users and all their content • 11. Moderator and admin can remove flags if content is ok • 12. Users can report content (advice and comments)

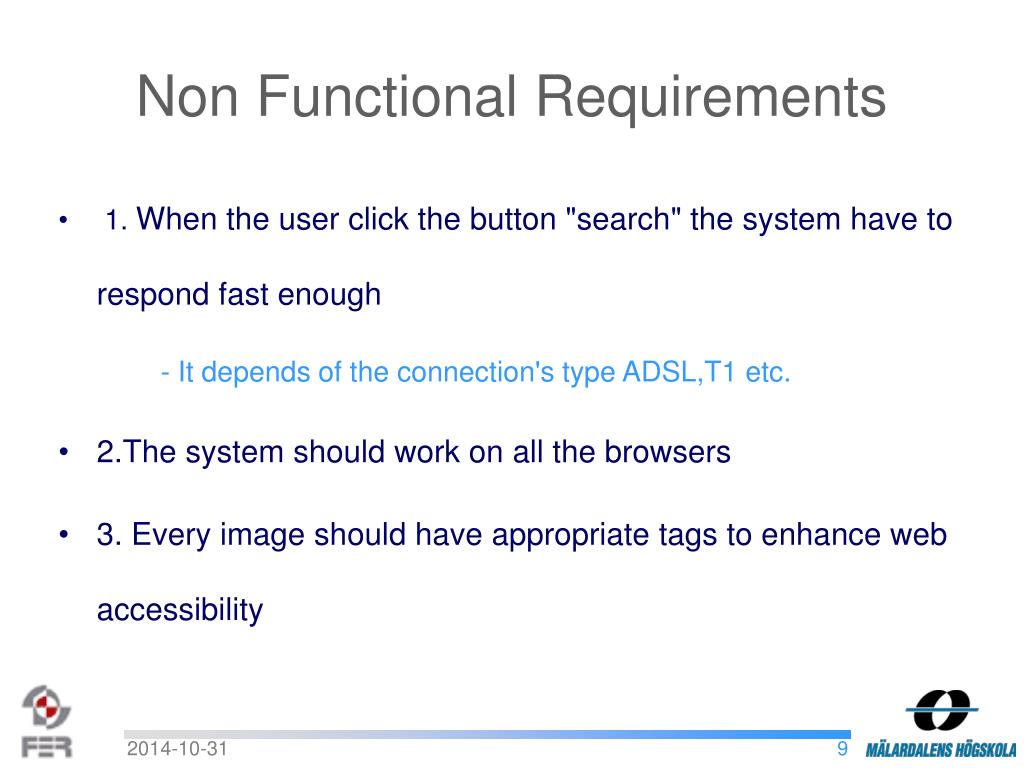

  9. Non Functional Requirements • 1. When the user click the button "search" the system have to respond fast enough - It depends of the connection's type ADSL,T1 etc. • 2.The system should work on all the browsers • 3. Every image should have appropriate tags to enhance web accessibility

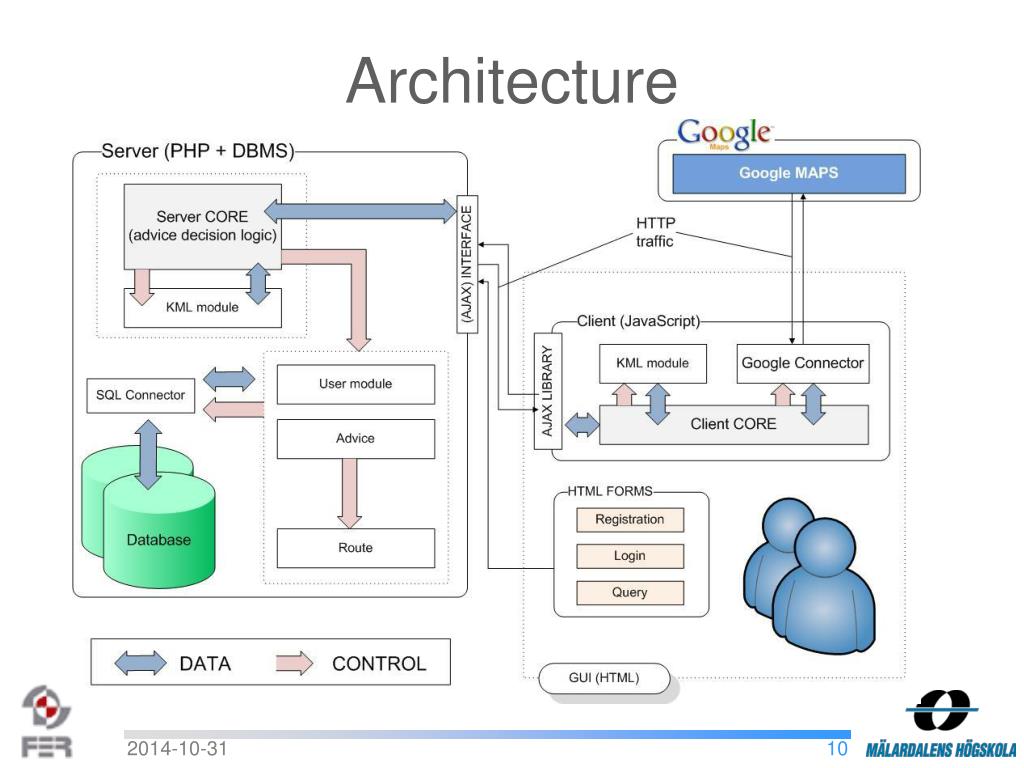

  10. Architecture

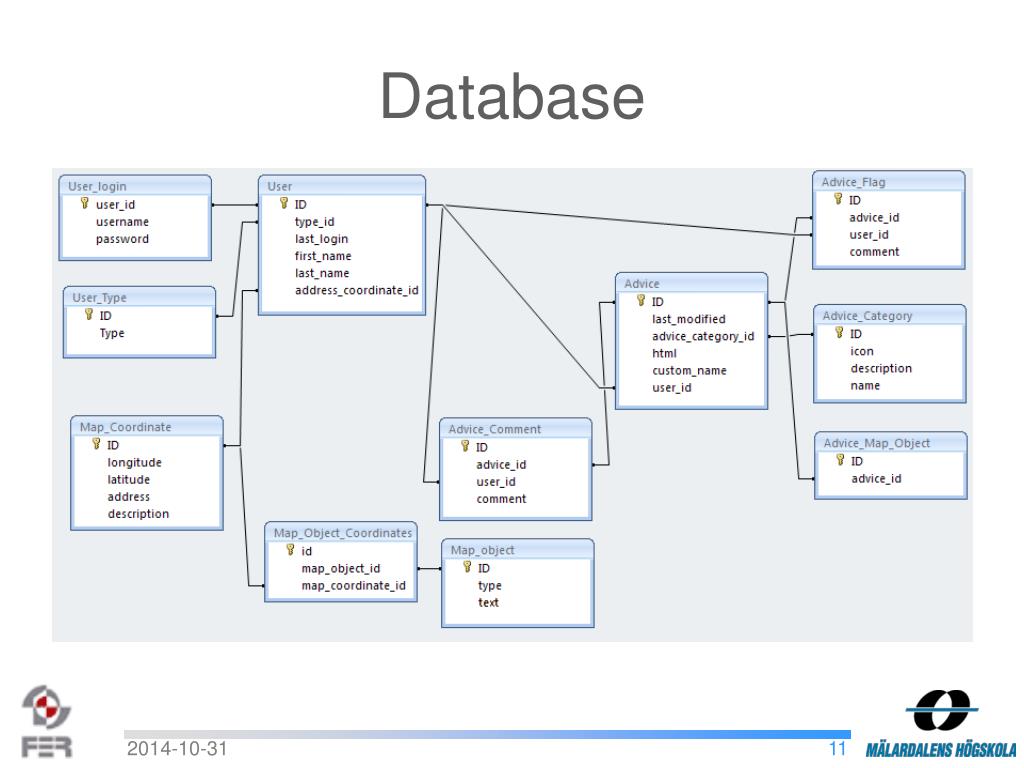

  11. Database

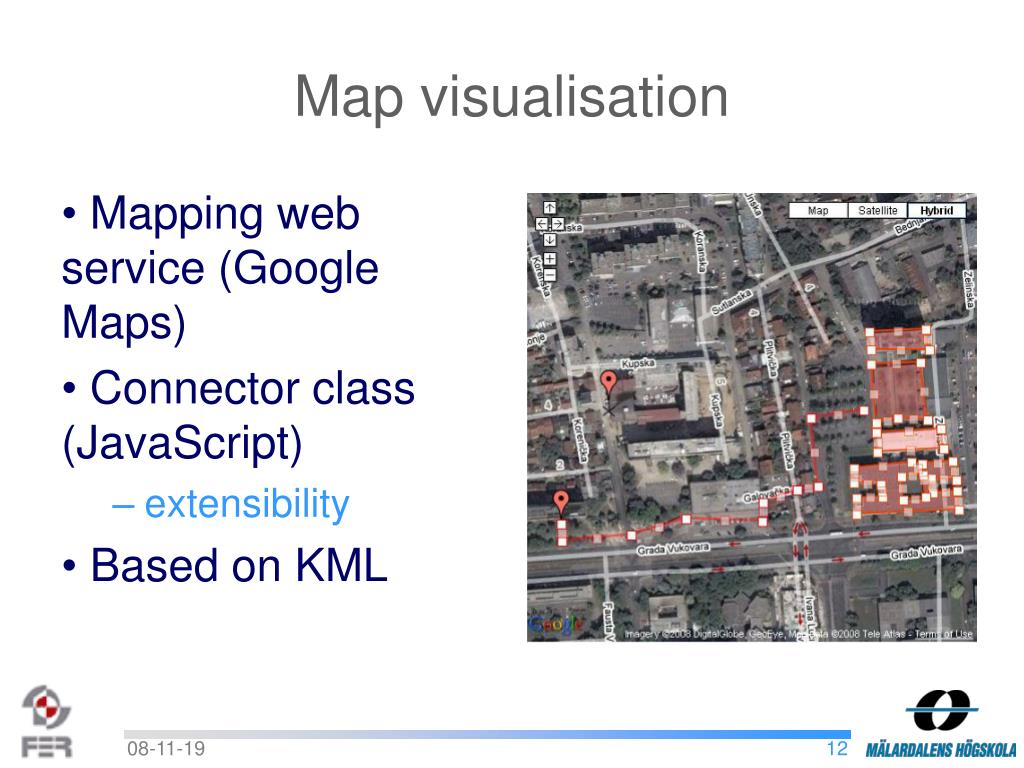

  12. Map visualisation • Mapping web service (Google Maps) • Connector class (JavaScript) • extensibility • Based on KML

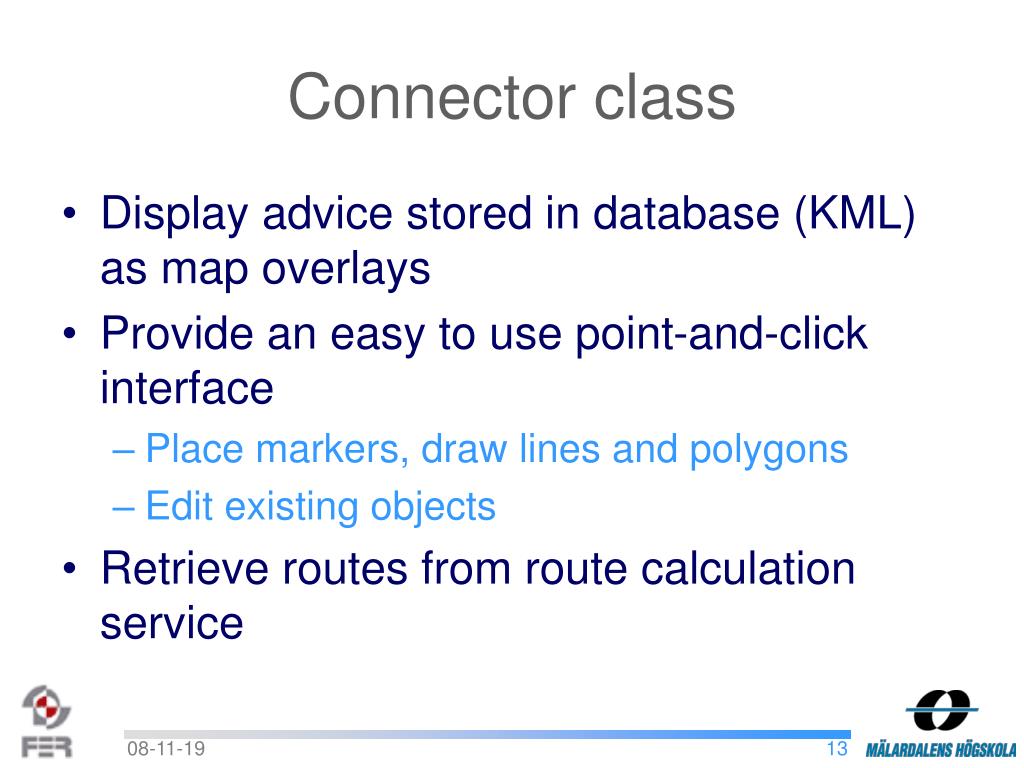

  13. Connector class • Display advice stored in database (KML) as map overlays • Provide an easy to use point-and-click interface • Place markers, draw lines and polygons • Edit existing objects • Retrieve routes from route calculation service

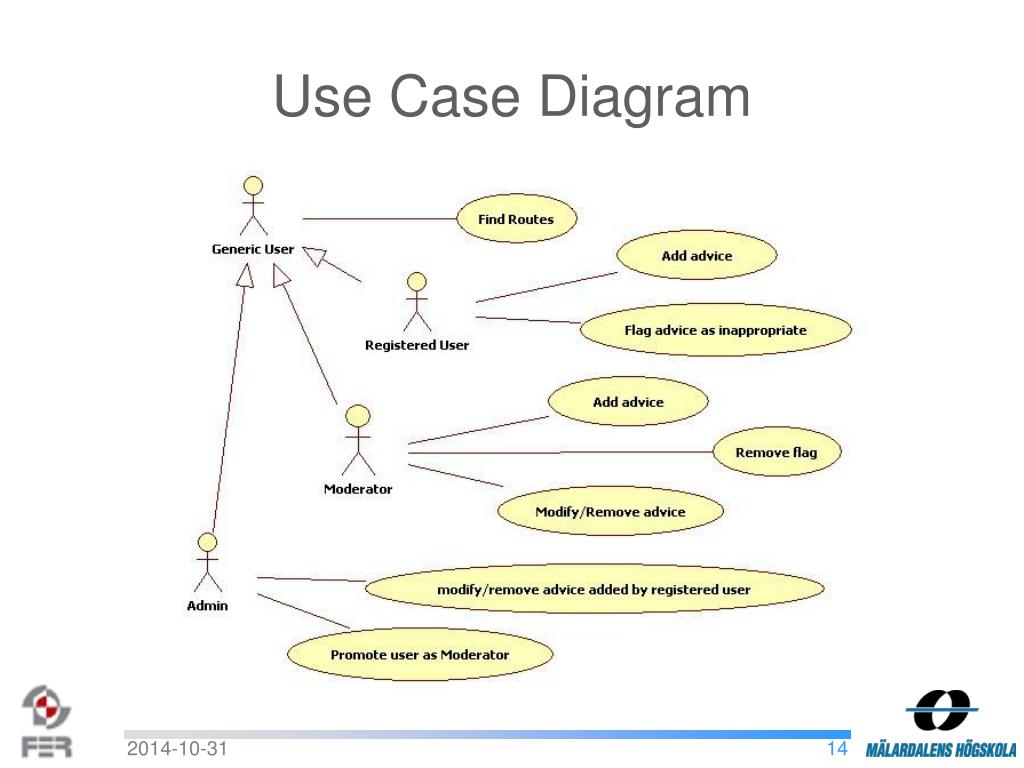

  14. Use Case Diagram

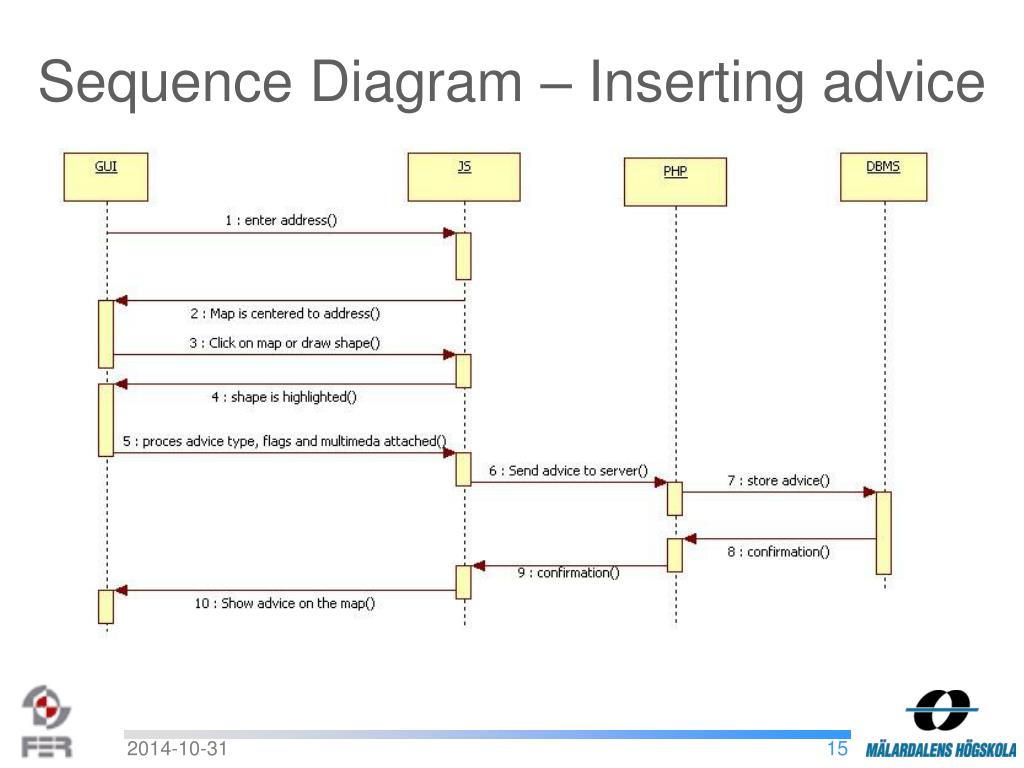

  15. Sequence Diagram – Insertingadvice

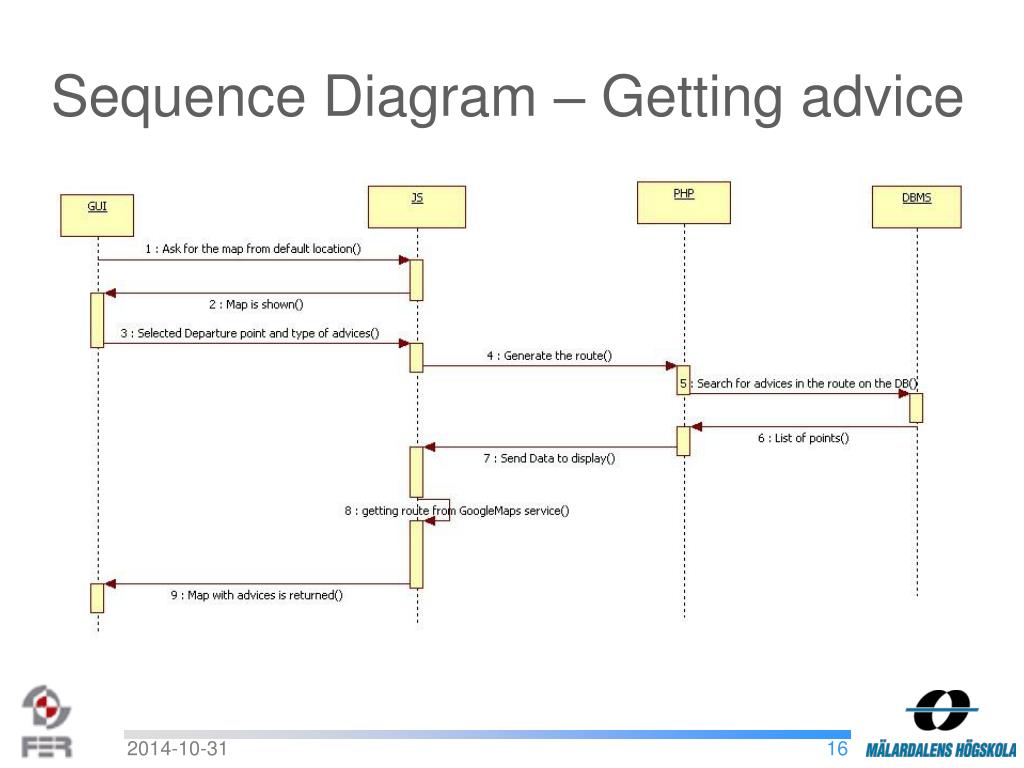

  16. Sequence Diagram – Getting advice

  17. Questions ?
