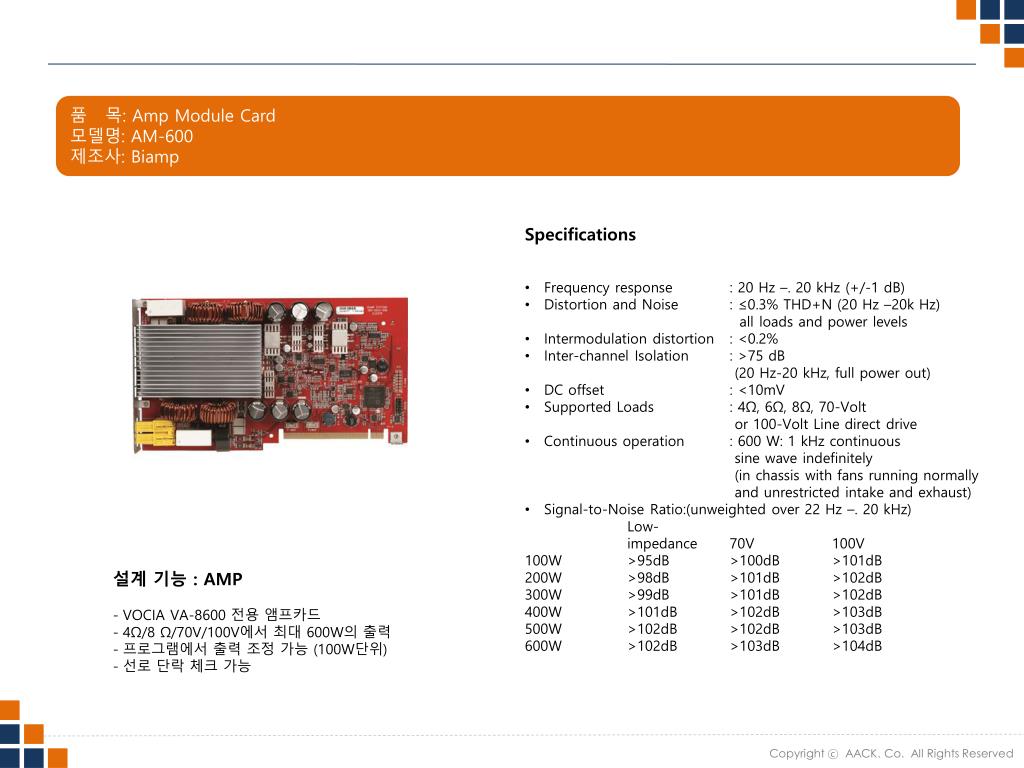

slide1

품 목: Amp Module Card

모델명: AM-600

제조사: Biamp

  • Specifications
  • Frequency response : 20 Hz –. 20 kHz (+/-1 dB)
  • Distortion and Noise : ≤0.3% THD+N (20 Hz –20k Hz)
    • all loads and power levels
  • Intermodulation distortion : <0.2%
  • Inter-channel Isolation : >75 dB
  • (20 Hz-20 kHz, full power out)
  • DC offset : <10mV
  • Supported Loads : 4Ω, 6Ω, 8Ω, 70-Volt
  • or 100-Volt Line direct drive
  • Continuous operation : 600 W: 1 kHz continuous
  • sine wave indefinitely
  • (in chassis with fans running normally
  • and unrestricted intake and exhaust)
  • Signal-to-Noise Ratio:(unweighted over 22 Hz –. 20 kHz)
  • Low-
  • impedance70V100V
  • 100W >95dB >100dB >101dB
  • 200W >98dB >101dB >102dB
  • 300W >99dB >101dB >102dB
  • 400W >101dB >102dB >103dB
  • 500W >102dB >102dB >103dB
  • 600W >102dB >103dB >104dB
  • 설계 기능 : AMP
  • VOCIA VA-8600 전용 앰프카드
  • 4Ω/8Ω/70V/100V에서 최대 600W의 출력
  • 프로그램에서 출력 조정 가능 (100W단위)
  • 선로 단락 체크 가능
