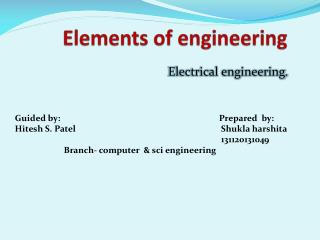

Elements of engineering. Electrical engineering. Guided by: Prepared by: Hitesh S. Patel Shukla harshita 131120131049 Branch- computer & sci engineering .

calla
Download Presentation

Elements of engineering

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Elements of engineering Electrical engineering. Guided by: Prepared by: Hitesh S. Patel Shuklaharshita 131120131049 Branch- computer & sci engineering

  2. Types of wire and cable

  3. Types of wires • For domestic wiring,the most extensively used conductor matirial is aluminium and copper which are properly insulated. • wires used for ordinary purpose are of single strand. • but for the power circuit such as mixer point,refrigeratorpoint,iornpoint,etc.where current may be more than 5Amp in such cases multistrand wires are used. • following are the different types of wires used in electrical installation work: • V.I.R. wires 4.lead alloy sheathed wires • C.T.S or T.R.S. wires 5. weather proof wires • P.V.S. wires 6. flexible wires

  4. V.I.R(vulcanisedindianruubber)wires • Tinning of conductor prevents the sticking of rubber to yhe conductor. • thickn A V.I.R wire mainly consist of a tinned conductor having rubber coating. • ess of rubber mainly depends on the opreting voltage to whichwire is designed. • a cotton bradding is done over the rubber insulation to protect the conductor against the moisture.

  5. now a days these wires are not used since a better quality wires are available at a cheaper rate. • finally the wire is finished with wax for cleanliness.

  6. C.T.S(cab type sheated)wires • This type of wire is modification of V.I.R wire. It consist of the ordinary rubber coated conductors with an additional seath of tough rubber. • this layer provides better protection againts moisture and wear and tear.also it provides an extra insulation. • these wires are genrally available in singal conductor , two conductors or three conductors.

  7. P.V.S.(poly vinyl cloride)wires • this is the most commonly used wire for wiring purpose. • conductor is insulated by P.V.S. • P.V.S. has following properties. • Moisture proof 2. tough • Durable 4. chemically inert

  8. Lead alloy sheathed wires • the ordinary wires can be used only at dry places but for damp places these wires are coverd with continuous lead sheaths. • the layer of lead covring is very thin like 0.12 cm thick. • these wires provides little mechanical protection to the wires.

  9. Weather proof wires • these types of wires are used outdoor providing a service connection from overhead line to building etc. • in this type of wire the conductor is not tinned and the conductor is coverd with three braids of fibrous yarn and saturated with water proof compound.

  10. Flexible wires • these wires consist of number of strands instead of a single conductor. • the conductor is insulated with P.V.C.matirial. • these wires are very useful for household portable appliances where flexibility of wire is more important.

  11. Cables Underground cables are genrally classified into two ways: according to the voltage level according to the insulating matirial used. Generally first method of classification is prefferred and it is further classiffied as: Low tention cables = upto 1000v high tention cables = upto 11000v super tention cables = from 22kv to 33 kv extra high tention cables = from 33 to 66 kv extra super voltage cables = beyound 132 kv.

  12. Low tention cables • these cables are genrally used for voltages up to 1000 v. these cables can be used for 6600 v. also as the electrostatic stress developed in the cables are very small. • fig shows the cross section of a single core low tention cable. • it consist of one circular core of tinned strand copper conductors insulated by layers of impregnated paper.

  13. High tention cables • fig shows the cross sectional view of 3 cope belted type high tention cable. • these cables are used upto 11000 v • it consist of three cores of strands copper. • these three cores are insulated from each other by layers of impregnated paper.

  14. three insulated cores are bunched together and wrapped with impregnated paper. • to have a circular cross sectional area the gaps between the insulated core are filled with fibrous insulating material. • lead sheath is wrapped around the paper belt which provids the protection against moisture. • cable is provided with armouring to protect the cable against the mechanical injury. • finally serving is provided over the armouring.

  15. Super tention cable • For voltage above 11000 v special construction of cable is required. • screened cables are used upto 33000 v in which leakage currents are diverted to earth through metalic sheath.
