  1. BIOL 204 - Topic 7

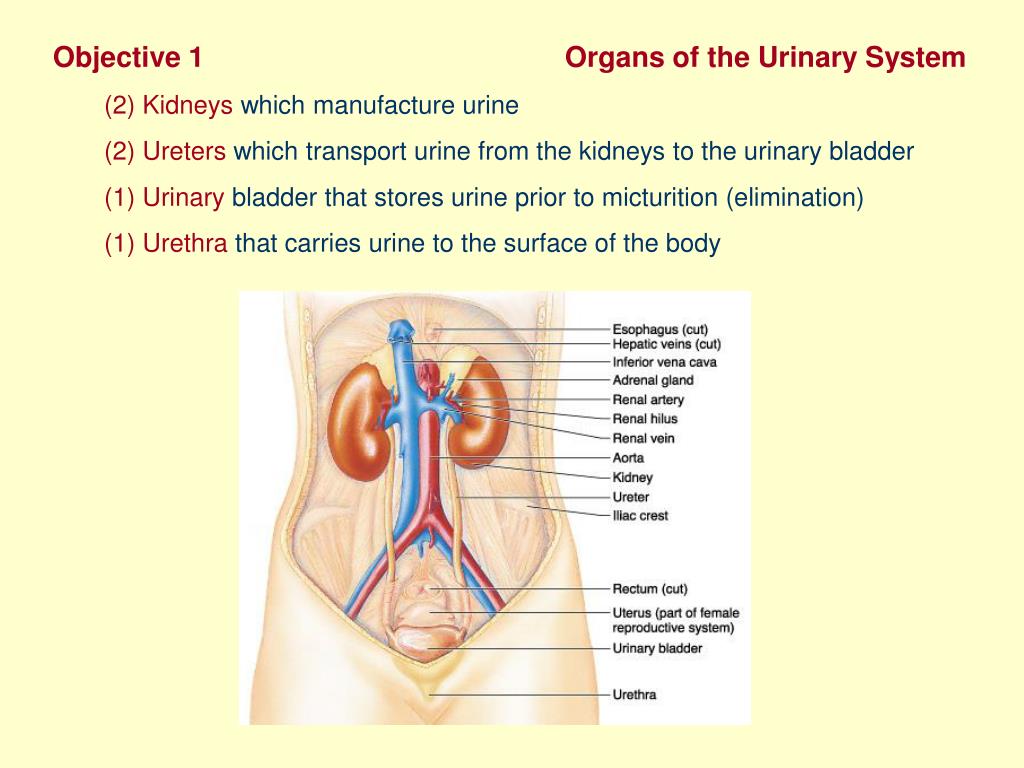

  2. Objective 1 Organs of the Urinary System (2) Kidneys which manufacture urine (2) Ureters which transport urine from the kidneys to the urinary bladder (1) Urinary bladder that stores urine prior to micturition (elimination) (1) Urethra that carries urine to the surface of the body

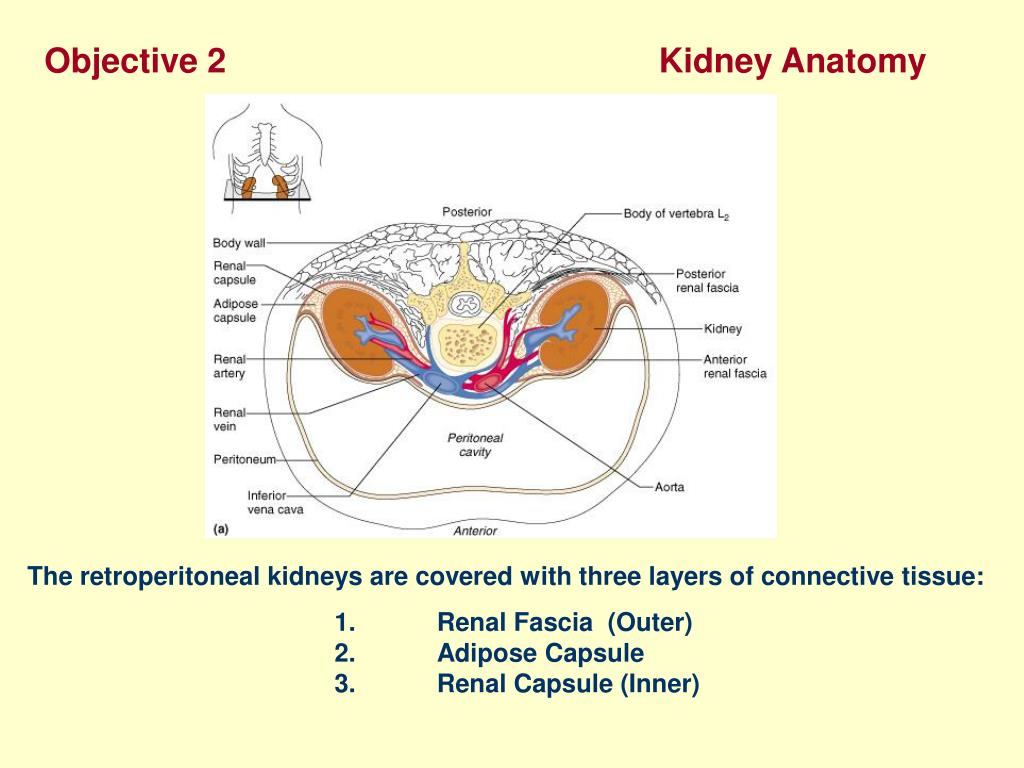

  3. Objective 2 Kidney Anatomy The retroperitoneal kidneys are covered with three layers of connective tissue: 1. Renal Fascia (Outer) 2. Adipose Capsule 3. Renal Capsule (Inner)

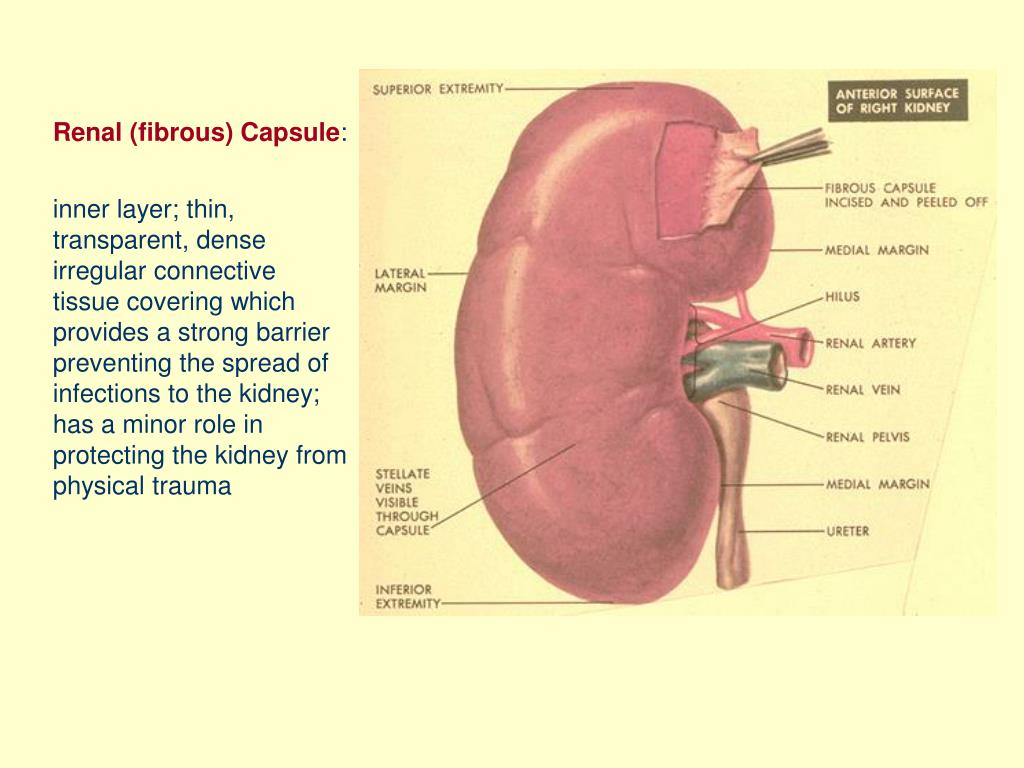

  4. Renal (fibrous) Capsule: inner layer; thin, transparent, dense irregular connective tissue covering which provides a strong barrier preventing the spread of infections to the kidney; has a minor role in protecting the kidney from physical trauma

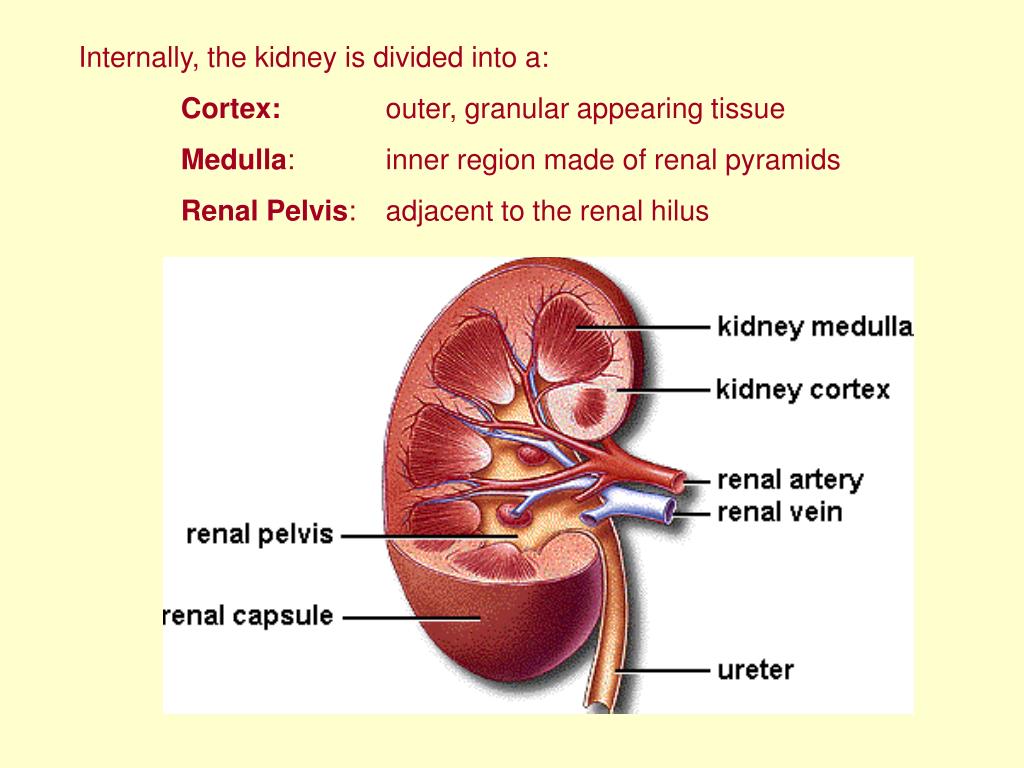

  5. Internally, the kidney is divided into a: Cortex: outer, granular appearing tissue Medulla: inner region made of renal pyramids Renal Pelvis: adjacent to the renal hilus

  6. The Renal Capsule of a Human Kidney

  7. Renal Columns: extensions of cortical tissue that lie between pyramids Renal papillae: tips of pyramids Major Calyx: portion of the urine collection system that drains several minor calyces Minor Calyx: portion of the urine collection system that drains one pyramid

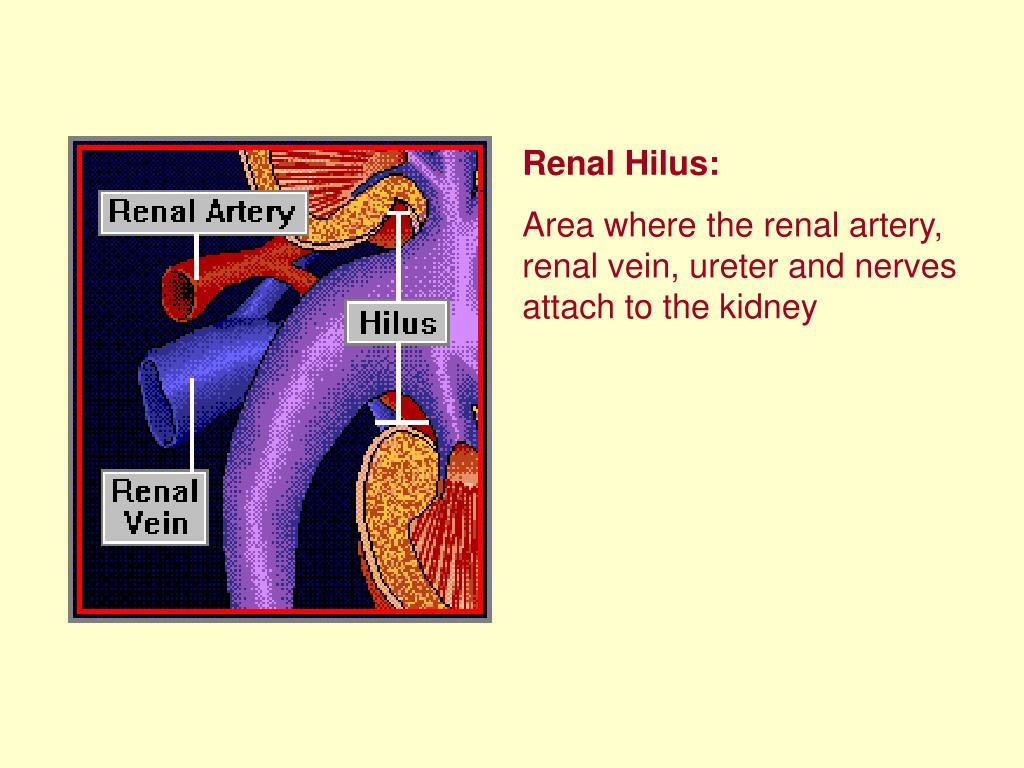

  8. Renal Hilus: Area where the renal artery, renal vein, ureter and nerves attach to the kidney

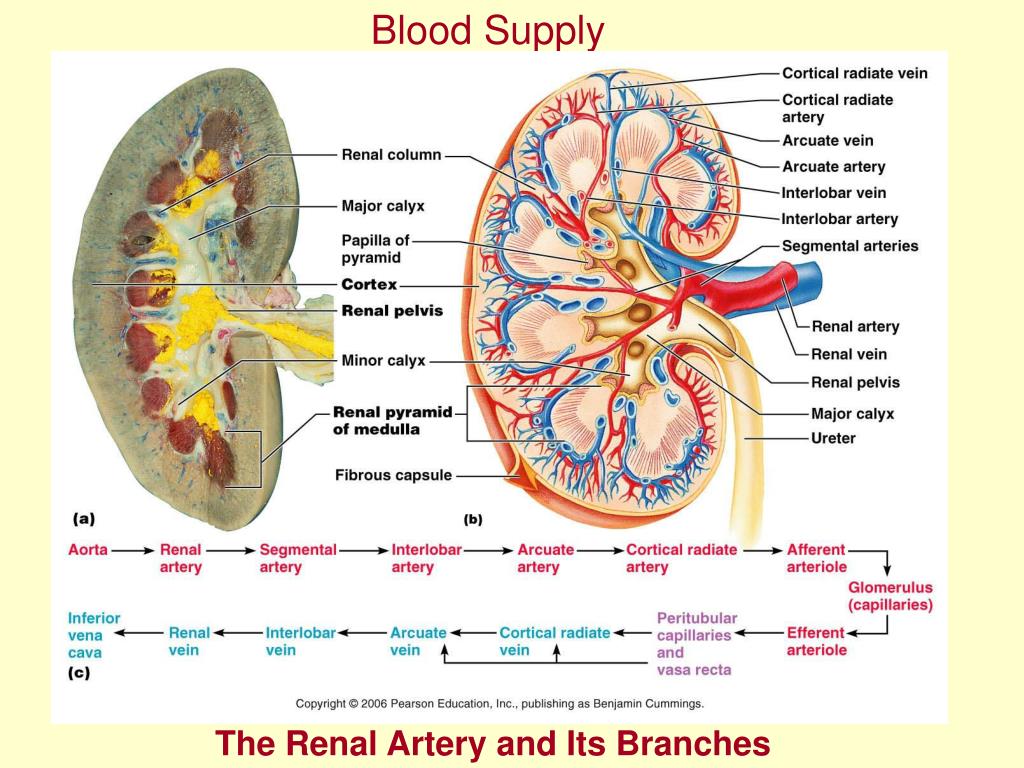

  9. Blood Supply The Renal Artery and Its Branches

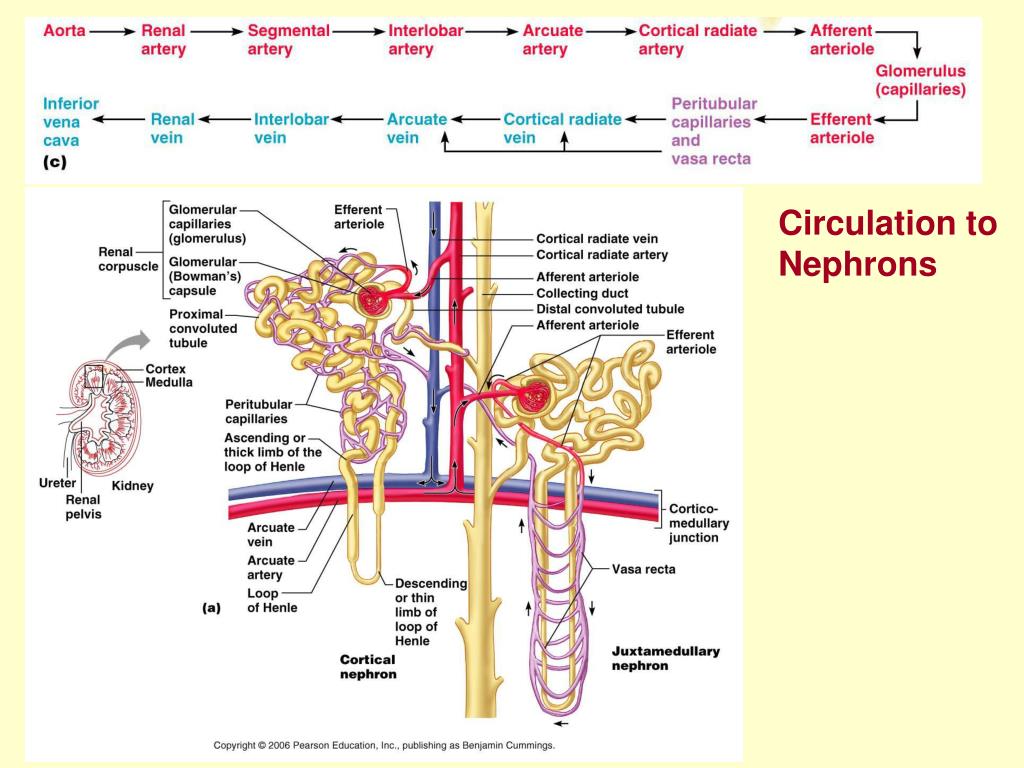

  10. Circulation to Nephrons

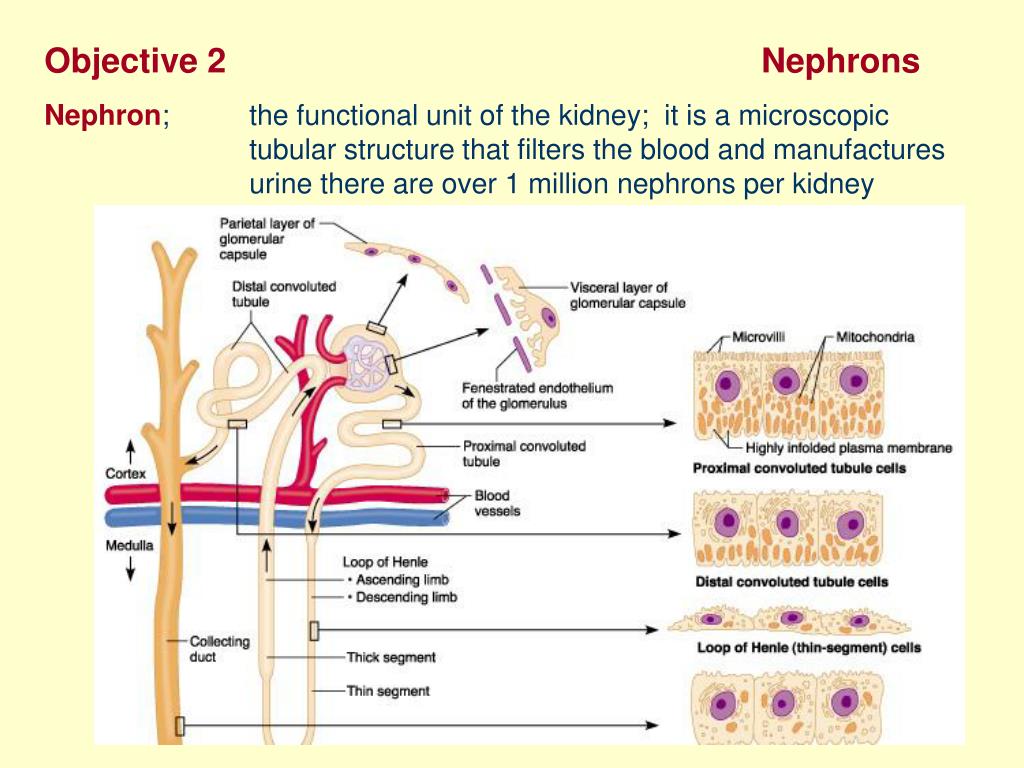

  11. Objective 2 Nephrons Nephron; the functional unit of the kidney; it is a microscopic tubular structure that filters the blood and manufactures urine there are over 1 million nephrons per kidney

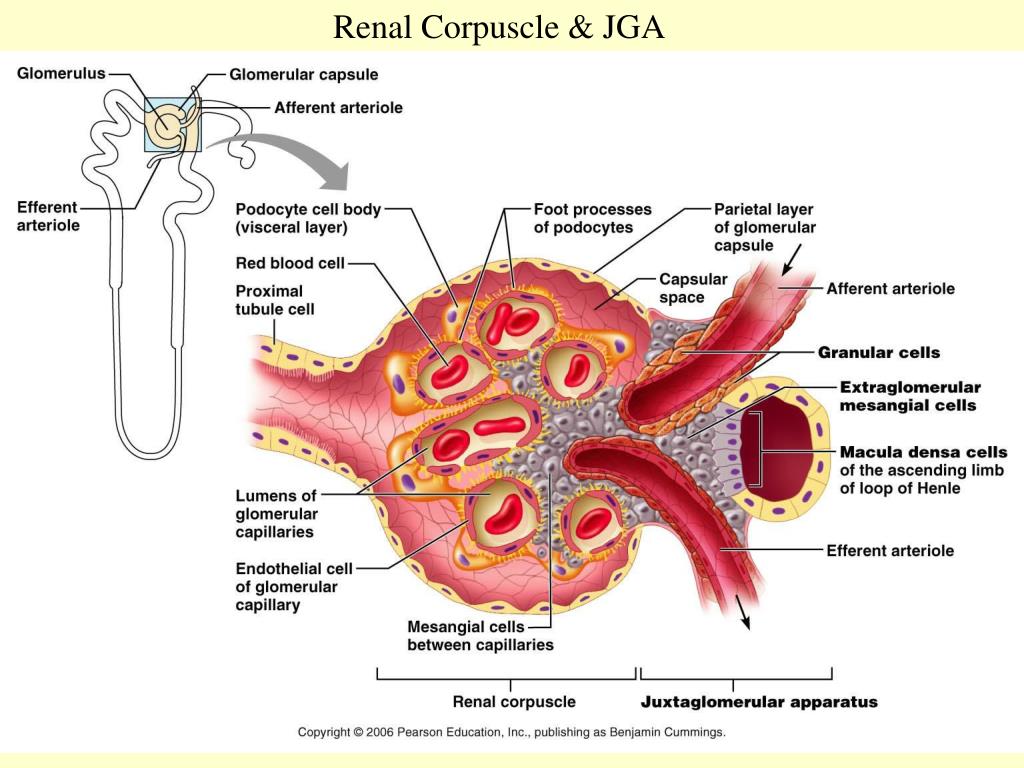

  12. Renal Corpuscle & JGA

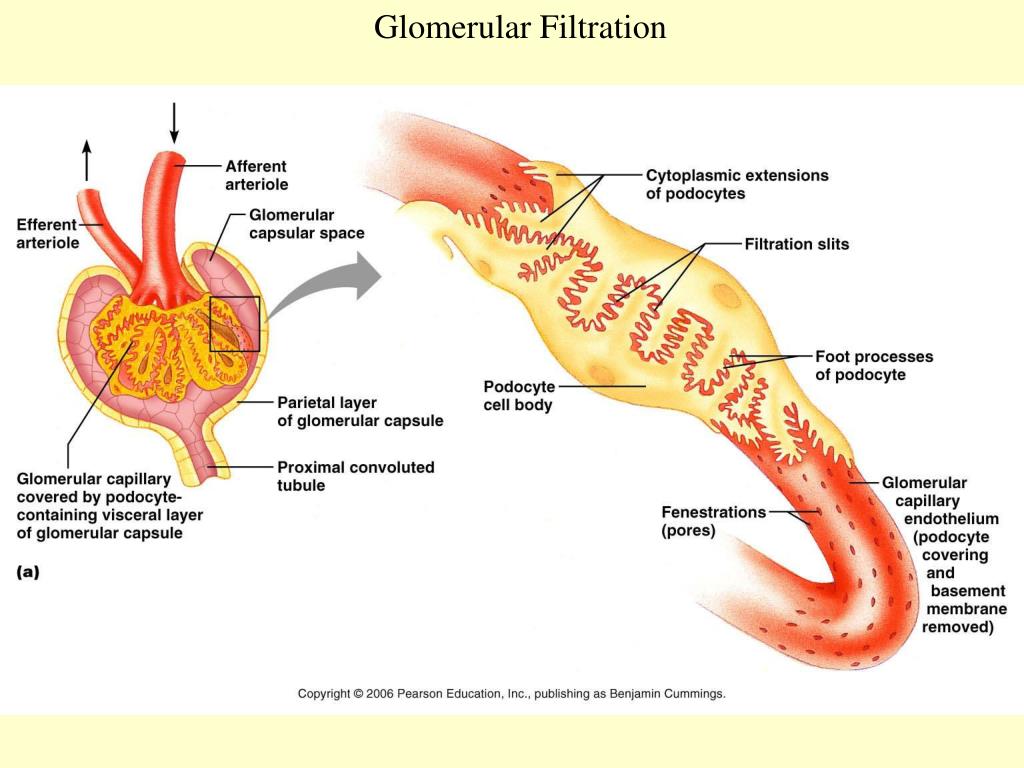

  13. Glomerular Filtration

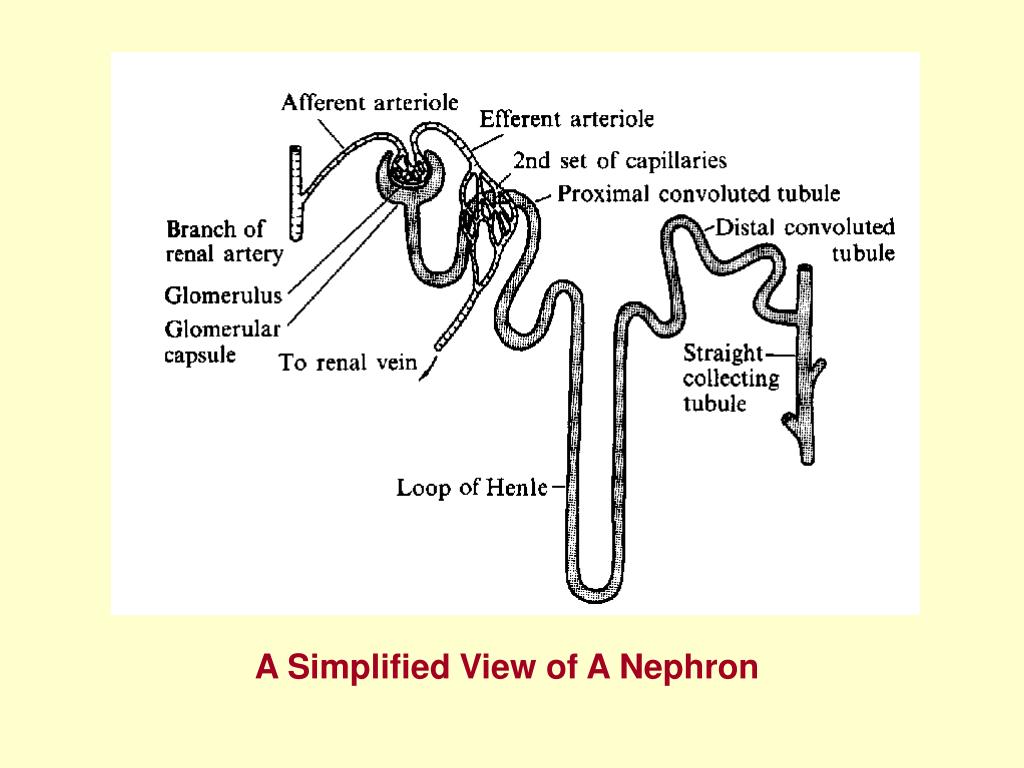

  14. A Simplified View of A Nephron

  15. Renal Corpuscle - Microscopic View

  16. Glomeruli and Collecting Ducts

  17. Collecting Duct and Brush Border

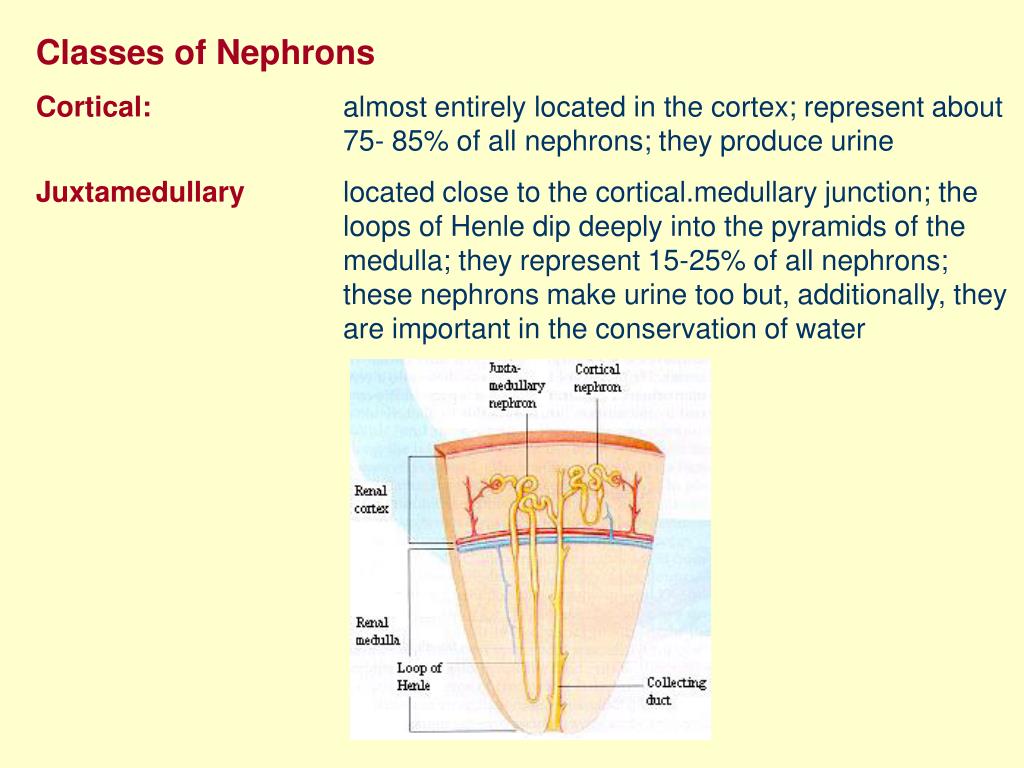

  18. Classes of Nephrons Cortical: almost entirely located in the cortex; represent about 75- 85% of all nephrons; they produce urine Juxtamedullary located close to the cortical.medullary junction; the loops of Henle dip deeply into the pyramids of the medulla; they represent 15-25% of all nephrons; these nephrons make urine too but, additionally, they are important in the conservation of water

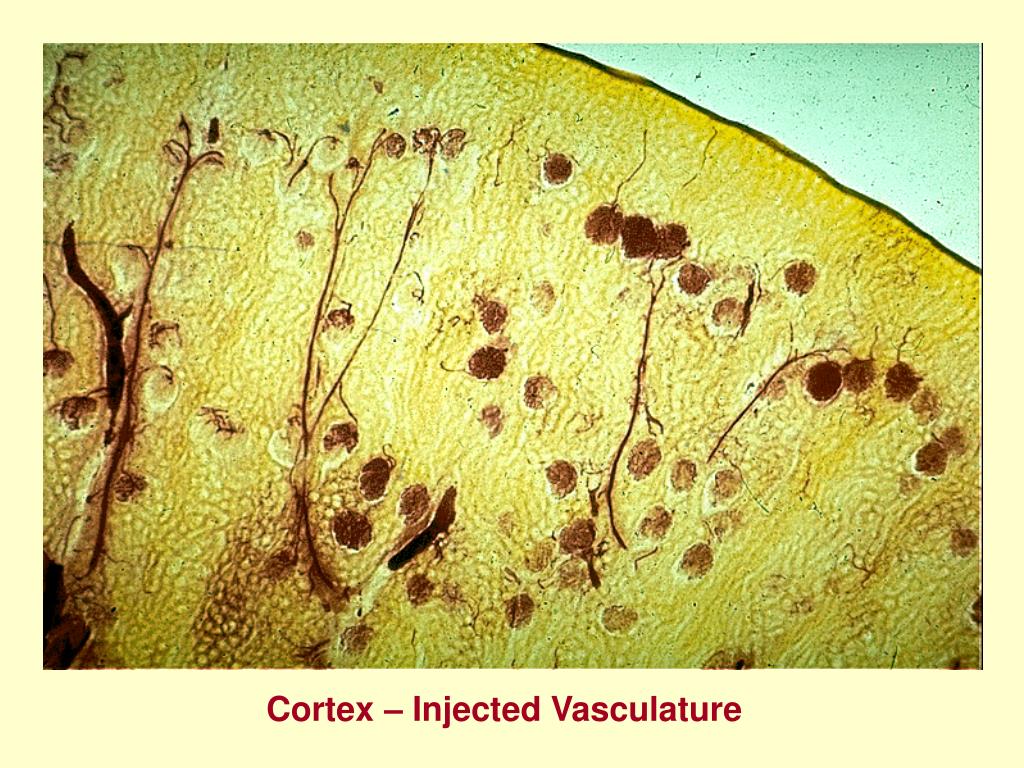

  19. Cortex – Injected Vasculature

  20. Arcuate Artery and Vein – Cross Section

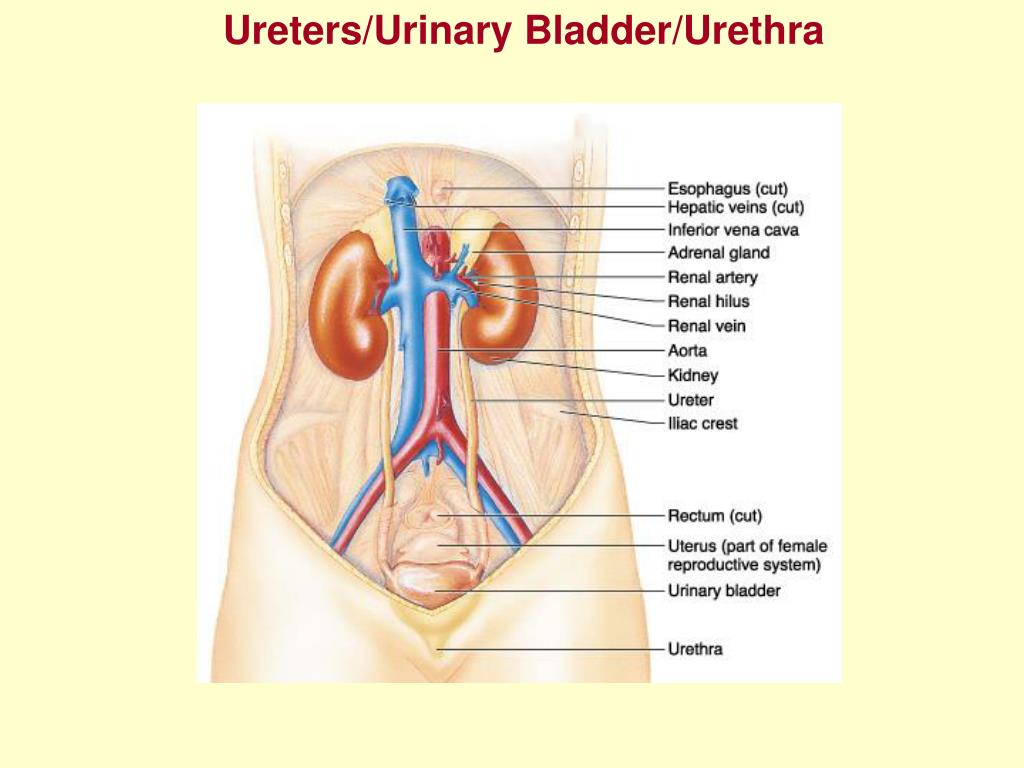

  21. Ureters/Urinary Bladder/Urethra

  22. Objective 4 Cat Anatomy Female

  23. Kidney, Ureter and Urinary Bladder

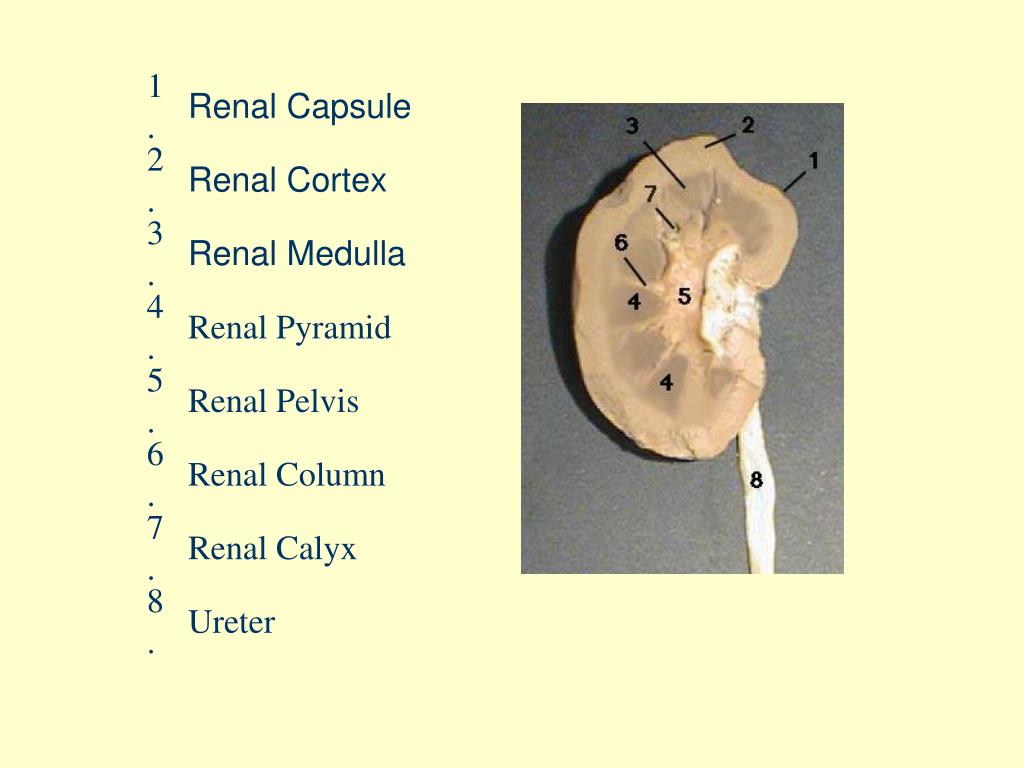

  24. 1. Renal Capsule 2. Renal Cortex 3. Renal Medulla 4. Renal Pyramid 5. Renal Pelvis 6. Renal Column 7. Renal Calyx 8. Ureter

  25. Kidney 4. Bladder • Renal Artery/Vein 5. Testes • Ureter 6. Penis

  26. Kidney 5. Ureter • Uterine Horns 6. Ovary • Body of the Uterus 7. Adrenal Glands • Urinary Bladder

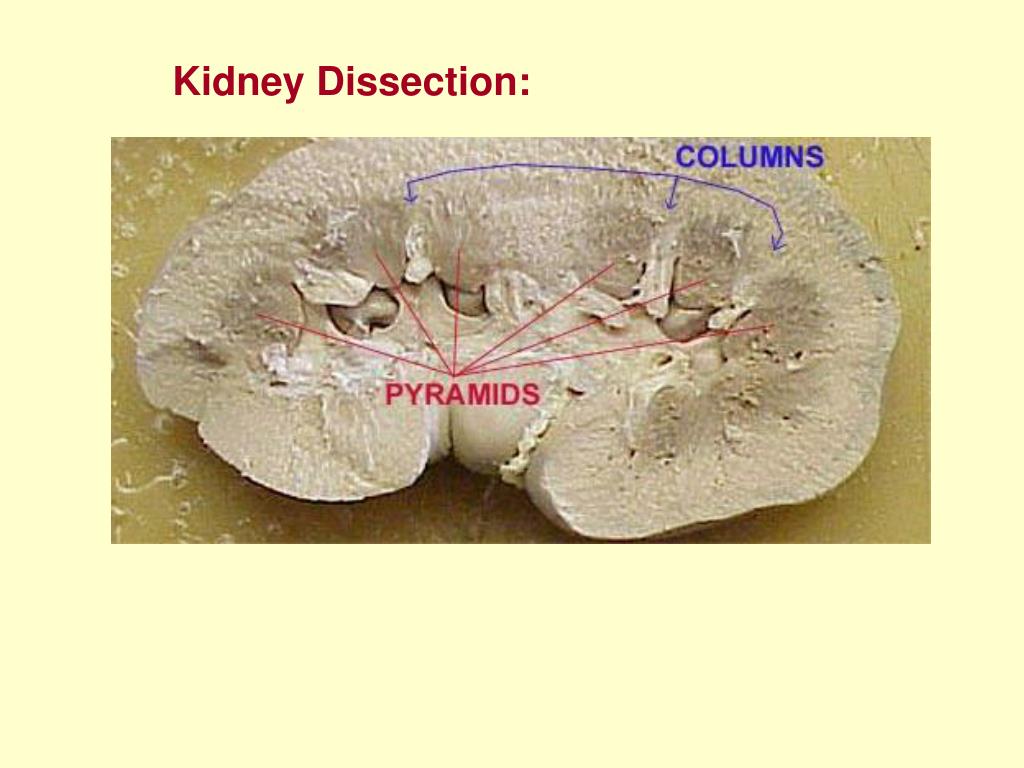

  27. Kidney Dissection:

  28. Renal Hilus Ureter

  29. Renal Cortex Kidney Injected With Latex -red (arteries), blue (veins), yellow (urine)

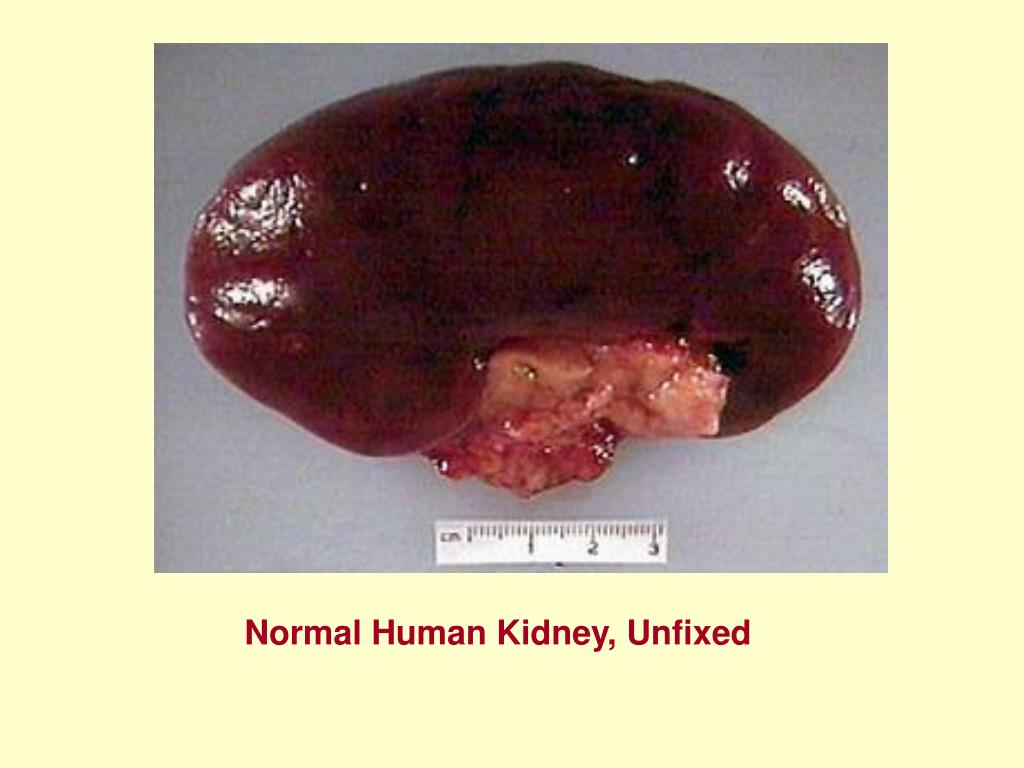

  30. Normal Human Kidney, Unfixed
