  1. Sistemas Distribuidos 10.- GraphAlgorithms Introduction Routing Algorithms Computation of Shortest Path Distance Vector Routing Link-State Routing Interval Routing Jorge Antonio Perez Espinoza Centro de Investigación y Estudios Avanzados del Instituto Politécnico Nacional

  2. Graph Graph G: G = (V, E) V = Set of nodes 0….N-1. E= Set of edges representing links: (A,B),(A,C) • Eachedge w(i, j) has a weight. B A 2 4 1 1 E C 5 3 D

  3. Graphs on DistributedSystem • The topology of a distributed system is represented by a graph where the nodes represent processes, and the links represent communication channels. • Static vs. Dynamic Topology. B A 2 4 1 1 E C 5 3 D

  4. ROUTING ALGORITHMS • Routing is a fundamental problem in networks. • Discover and maintain an acyclic path from the source of a message to its destination. • The routing table is updated when the topology changes. • A path can have many attributes: hops, delay.

  5. COMPUTATION OF SHORTEST PATH Given a graph G: G = (V, E) V = Set of nodes 0….N-1. E= Set of edges representing links. • Eachedge w(i, j) has a weight. The topology is static. B A 2 4 1 1 E C 1 3 D

  6. Chandy and Misra Algorithm N0 N4 • A refinement of the Bellman-Ford Algorithm. • Designed to work with a single initiator node 0. • D(i): Distance to node 0 • Each node knows the weights of all edges incident on it. Initially : D(0) = 0 ∀i : i > 0 : D(i) = ∞. 6 2 3 N2 N5 4 N1 1 5 N4 3

  7. For each node: N0 N4 • 1. D, the current shortest distance of node 0 to itself. Initially D(0) = 0, D(i: i > 0) = ∞ • 2. A node called parent: Initially parent (j) = j • 3. A variable deficit, representing the number of unacknowledged messages. Initially deficit=0. 6 2 3 N2 N5 4 N1 1 5 N4 3

  8. program shortest path {for process i >0}; define D, S : distance; {S denotes the shortest distance received through a message} parent : process deficit : integer; N: set of neighbors of process i; initially D= ∞, parent = i, deficit = 0 N0 N4 6 2 3 N2 N5 4 {for process 0} send (w(0,i), 0) to each neighbor i; deficit := |N(0)|; do ack -> deficit := deficit – 1 od; {deficit = 0 signals termination} {for process i > 0} do message = (S ,k) ^ S < D if parent ≠ k or i -> send ack to parent fi; parent := k; D := S; send (D + w(i,j), i) to each neighbor j ≠ parent; deficit := deficit + |N(i)| -1 message (S,k) ^ S ≥ D -> send ack to sender ack -> deficit := deficit – 1 deficit = 0 ^ parent ≠ i -> send ack to the parent od N1 1 5 N4 3

  9. Example

  10. Lemma : • When the algorithm terminates, let k = parent (i). If D(k) is the distance of the shortest path from k to 0, then D(i) = D(k) + w(k, i) is the distance of the shortest path from i to 0 and the shortest path includes k. • Proof: Suppose this is false : Theshortestpathfrom 0 toiisviaj , wherej ≠k. Message D(i)>D(j)+w(j,i). MessageD(i)>D(k)+w(k,i). 1 0 K 1 i 2 2 j

  11. DISTANCE VECTOR ROUTING Shortest path routing, but handles topology changes. D[i, j] = 0 when i = j, = 1 when j is a neighbor of i, and = ∞ when i = j and j is not a neighbor of i Each node j periodically broadcasts its distance vector to its immediate neighbors ∀k ≠ i :D[i,k]=minj(w[i,j]+D[j,k])

  12. DISTANCE VECTOR ROUTING Following this, the distance vectors are corrected, and routing table is eventually recomputed.

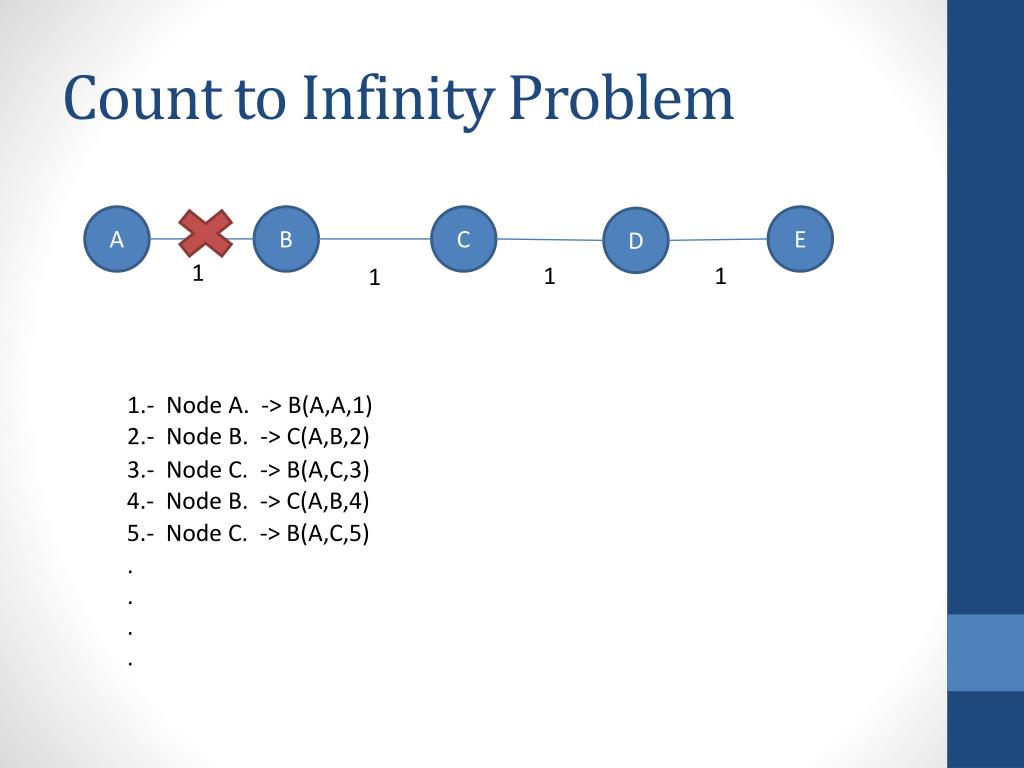

  13. Count to Infinity Problem A B C E D 1 1 1 1 1.- Node A. -> B(A,A,1) 2.- Node B. -> C(A,B,2) 3.- Node C. -> B(A,C,3) 4.- Node B. -> C(A,B,4) 5.- Node C. -> B(A,C,5) . . . .

  14. Split Horizont Method A B C E D 1 1 1 1

  15. LINK-STATE ROUTING • This is an alternative method of shortest path routing. • Converges faster. • Each node i periodically broadcasts the weights of all edges (i,j) incident on it (this is the link state) to all its neighbors

  16. Link State Protocol

  17. INTERVAL ROUTING • Consider a connected network of N nodes. • The conventional routing table used to route a message from one node to another has N − 1 entries, one for each destination node. 13 Entries

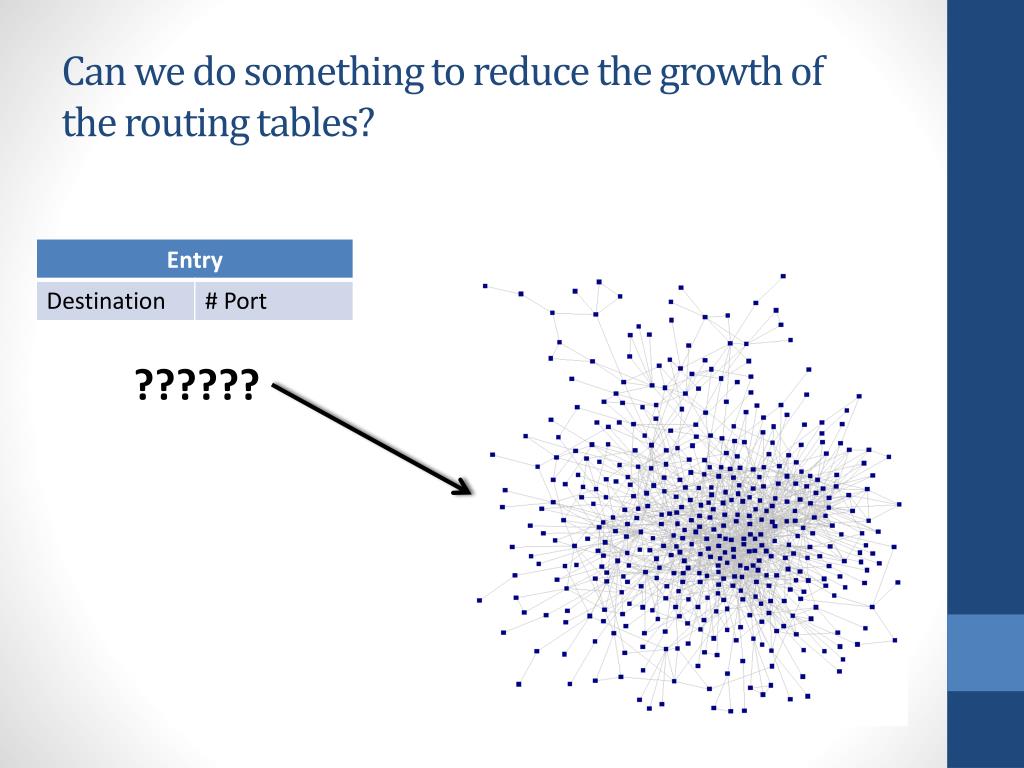

  18. Can we do something to reduce the growth ofthe routing tables? ??????

  19. Interval routing • Santoro and Khatib first proposed interval routing for tree topologies only. • Each node has two ports: • port 0 is connected to the node with a higher id. • port 1 is connected with the node of lower id

  20. Interval Routing • For a set of N nodes 0 ….N − 1, define the interval [p, q) between a pair of p and q as follows: • if p < q then [p,q) = p, p + 1, p + 2 , . . ., q − 2, q − 1 • if p ≥ q then [p, q) = p, p + 1, p + 2, . . .,N − 1, 0, 1, . . ., q − 2, q − 1 As an example, if N = 8, then [5, 5) = 5, 6, 7, 0, 1, 2, 3, 4.

  21. Routing for a tree Network Subtree under i: L(i),L(i)+T(i) + 1 mod N) Comp: [L(i)+T(i)+1 mod N,L(i)) • 1. Label the root as node 0. • 2. Do a preorder traversal of the tree, and label the successive nodes in ascending order starting from 1. • 3. For each node, label the port towards a child by the node number of the child. Then label • the port towards the parent by L(i) + T(i) + 1 mod N, where • • L(i) is the label of the node i • • T(i) is the number of nodes in the subtree under node i (excluding i)

  22. Adaptation to changes in the topology . • Every time a new node is added to a network, or an existing node is removed from the network, in general all node labels and port labels have to be recomputed.

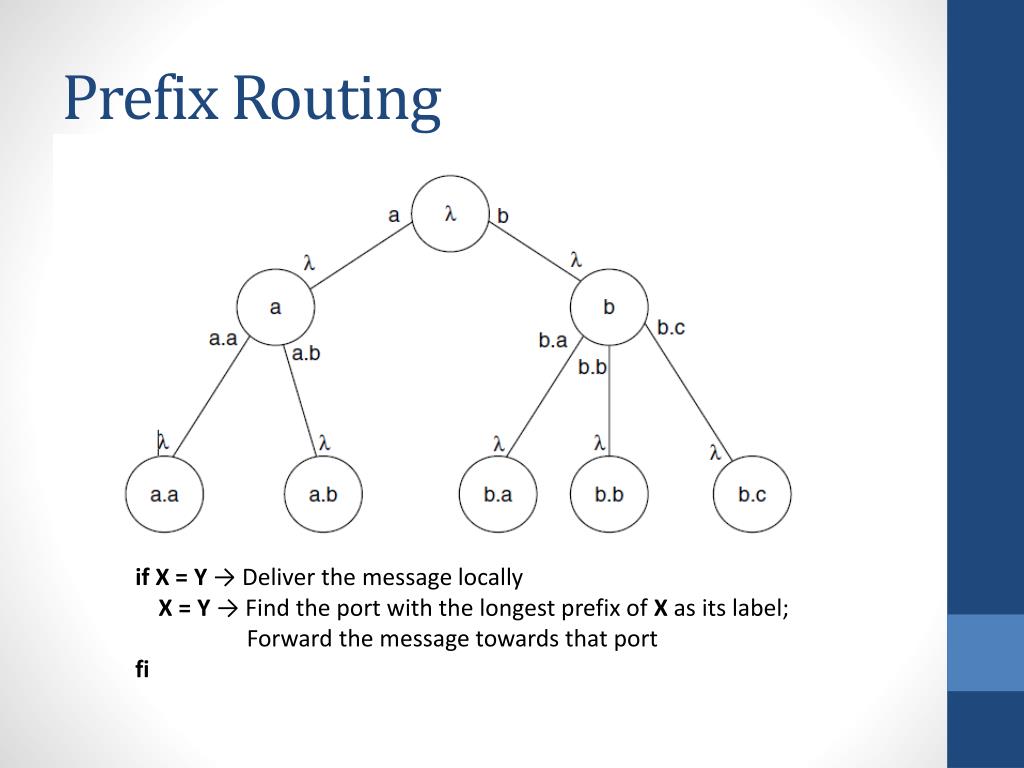

  23. Prefix Routing if X = Y → Deliver the message locally X = Y → Find the port with the longest prefix of X as its label; Forward the message towards that port fi
