Presentation Transcript

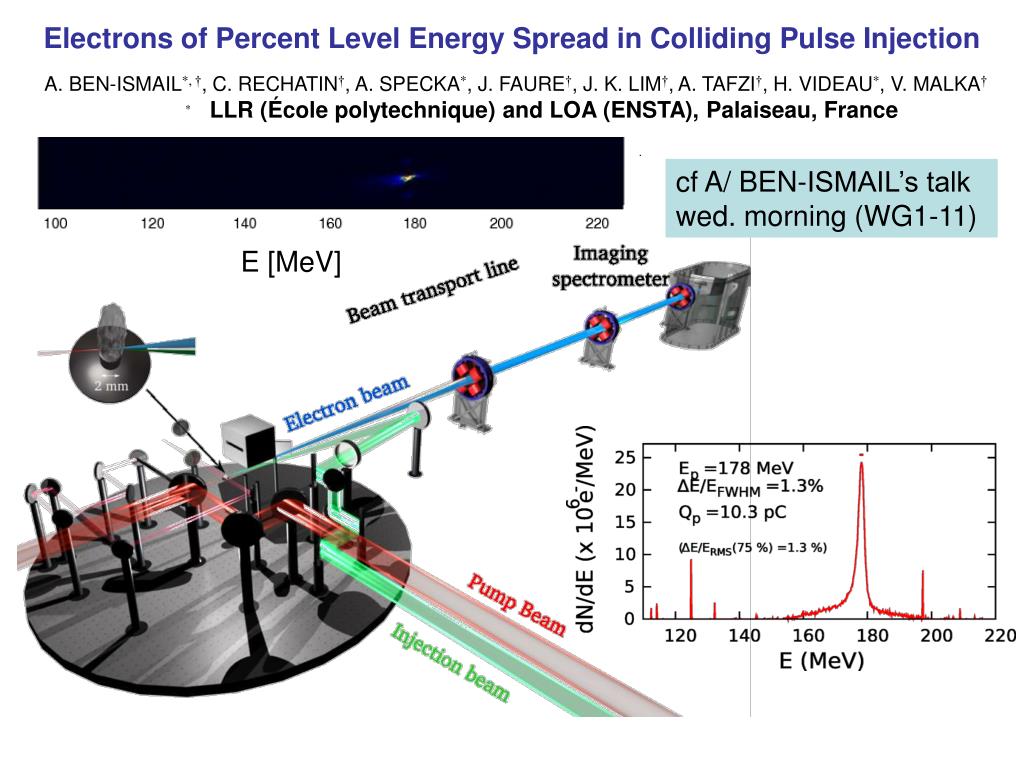

  1. 25 20 15 10 5 0 120 140 160 180 200 220 A. BEN-ISMAIL*, †, C. RECHATIN†, A. SPECKA*, J. FAURE†, J. K. LIM†, A. TAFZI†, H. VIDEAU*, V. MALKA†*LLR (École polytechnique) and LOA (ENSTA), Palaiseau, France Electrons of Percent Level Energy Spread in Colliding Pulse Injection cf A/ BEN-ISMAIL’s talk wed. morning (WG1-11) E [MeV]

  2. Comment Electron bunches created in colliding Pulse Injection at LOA have been analysed in energy using a high resolution imaging magnetic spectrometer. In CPI, bunches energy spread was routinely and reproducibly measured to be of the order of 1%. This demonstrates at the same time that the design energy resolution of better 1% over a broad range ha been achieved. Bunch mean energies ranges from 150 to 200 MeV. Bunch charges of the order of 10 pC were observed.
