Status report. 2010/10/5 Atsushi Nukariya. Revision of control manager (1). ・ The things which control manager controls are as follows. 1. Double buffer on FPGA and GEMFE2 ( FIFO selection ) 2. FIFOx3 on FPGA 3. Initialization of DAC 4. Clock 5. SiTCP

caine
Download Presentation

Status report

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Status report 2010/10/5 Atsushi Nukariya

  2. Revision of control manager (1) ・ The things which control manager controls are as follows. 1. Double buffer on FPGA and GEMFE2 ( FIFO selection ) 2. FIFOx3 on FPGA 3. Initialization of DAC 4. Clock 5. SiTCP ・ Control manager shouldn’t control too many things, so these function must be allocated on smaller parts. → Design became more complicated, so I decided to revise control manager.

  3. Revision of control manager (2) ・ At first, I noticed that code of VHDL had mixed variable and signal. → I rewrote all VHDL code by signal. → Double buffer didn’t work correctly in Test Bench. → I rewrote all VHDL code by variable. → The big change couldn’t be seen.

  4. Revision of control manager (3) ・ At the same time when double buffer enables writing, double buffer enables reading. ・ Case that data is sent from the second double buffer of GEMFE2-A is as follows. ・ FIFOx3 didn’t write 0x061222, on the other hand double buffer read 0x061222 correctly. (○) ・ Input data http://www.cns.s.u-tokyo.ac.jp/~nukariya/GEMFE2/20101001-2.txt

  5. Revision of control manager (4) ・ Case that data is sent from the first double buffer of GEMFE2-B is as follows. ・ FIFOx3 wrote 0x061222 correctly, but buffer read 0x000000. (○) ・ From this result, I notice that FIFOx3 spends 3 RCLK (150 ns) to read data from double buffer, and the first data of double buffer can’t be written.

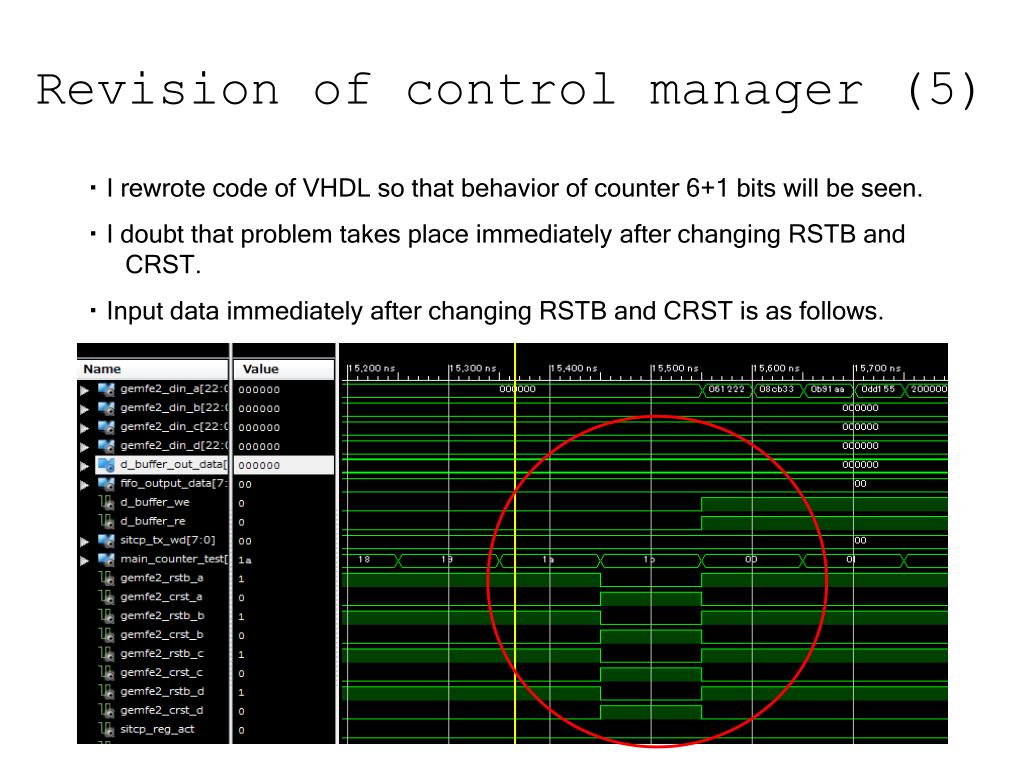

  6. Revision of control manager (5) ・ I rewrote code of VHDL so that behavior of counter 6+1 bits will be seen. ・ I doubt that problem takes place immediately after changing RSTB and CRST. ・ Input data immediately after changing RSTB and CRST is as follows.

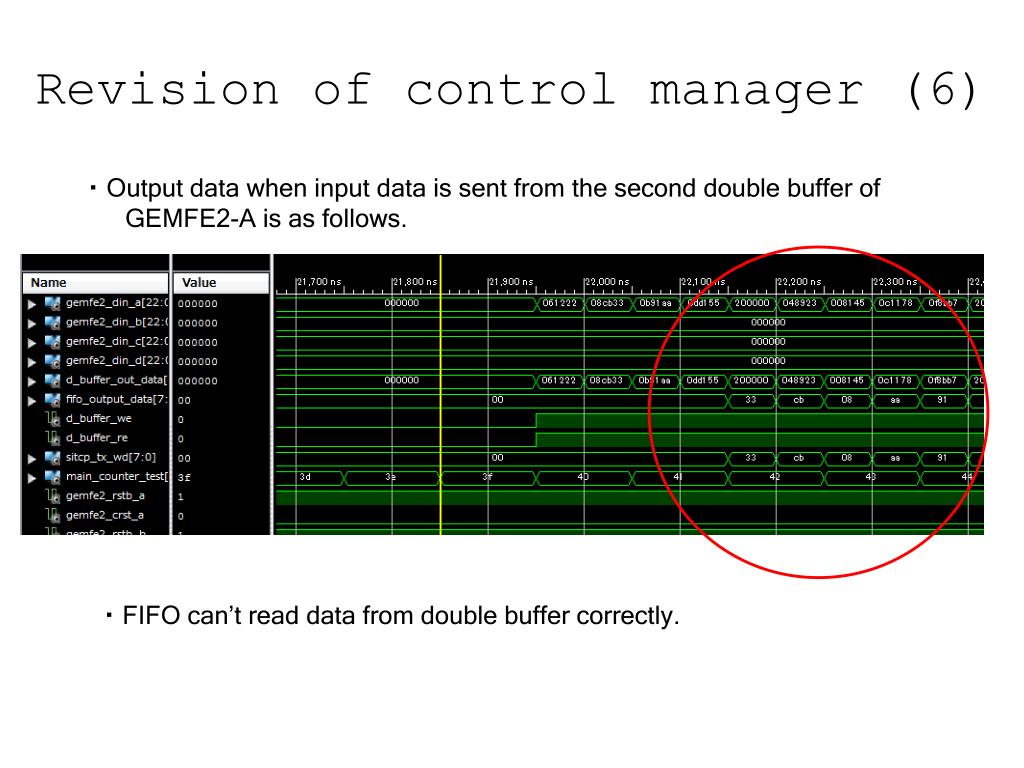

  7. Revision of control manager (6) ・ Output data when input data is sent from the second double buffer of GEMFE2-A is as follows. ・ FIFO can’t read data from double buffer correctly.

  8. Revision of control manager (7) ・ Output data when input data is sent from the first double buffer of GEMFE2-B is as follows. ・ FIFO can read data from double buffer correctly. ・ After this time, wave form is same to this.

  9. Revision of control manager (8) ・ I make state “STATE_WAIT” that make FPGA wait after changing RCLK and CRST. ・ State which Input data is sent from the first double buffer of GEMFE2-A is as follows.

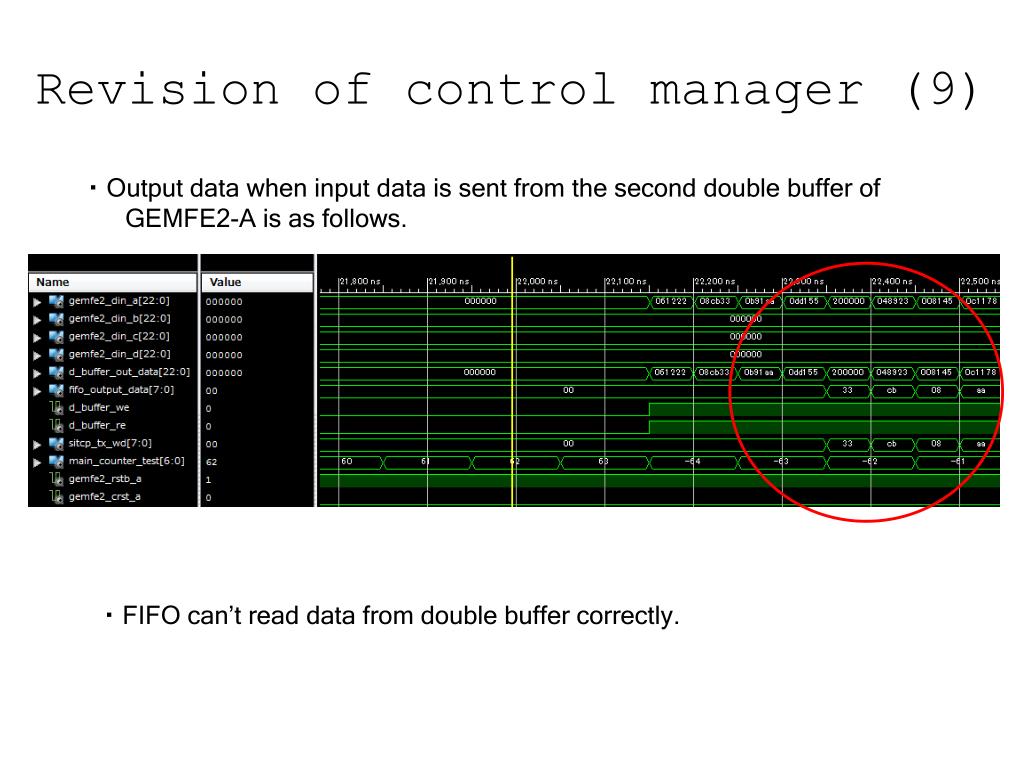

  10. Revision of control manager (9) ・ Output data when input data is sent from the second double buffer of GEMFE2-A is as follows. ・ FIFO can’t read data from double buffer correctly.

  11. Revision of control manager (10) ・ Output data when input data is sent from the first double buffer of GEMFE2-B is as follows. ・ FIFO can read data from double buffer correctly. ・ After this time, wave form is same to this. → RCLK and CRST aren’t important.

  12. Revision of control manager (11) ・ Until now, when signal of double buffer empty becomes 0, FIFOx3 enables writing. → Even if double buffer empty is 0, FIFOx3 doesn't enable writing while 1 clock after changing "double buffer empty" 1 into 0. → I revised code, and I found that data could be sent correctly.

  13. Changing input data (1) ・ Until now, number of input data is same. → Changing number of input data randomly. ・ An example of input data is as follows. ・ 0x200000 is inputted 8 times continuously. ・ Input data http://www.cns.s.u-tokyo.ac.jp/~nukariya/GEMFE2/20101001-1.txt

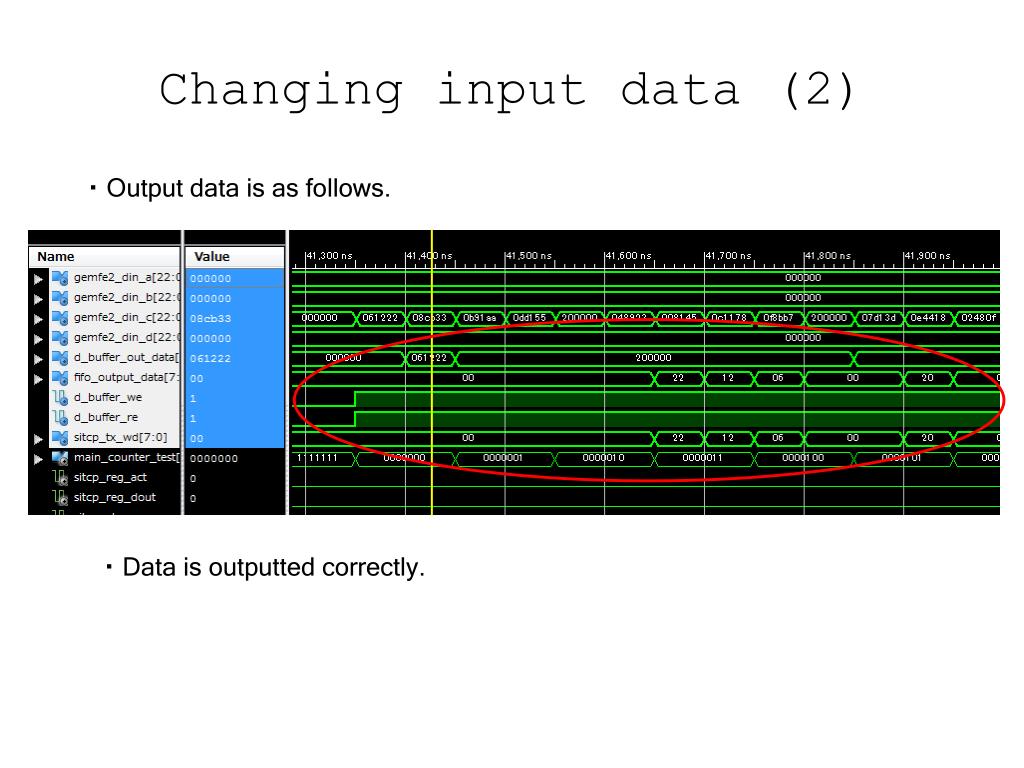

  14. Changing input data (2) ・ Output data is as follows. ・ Data is outputted correctly.

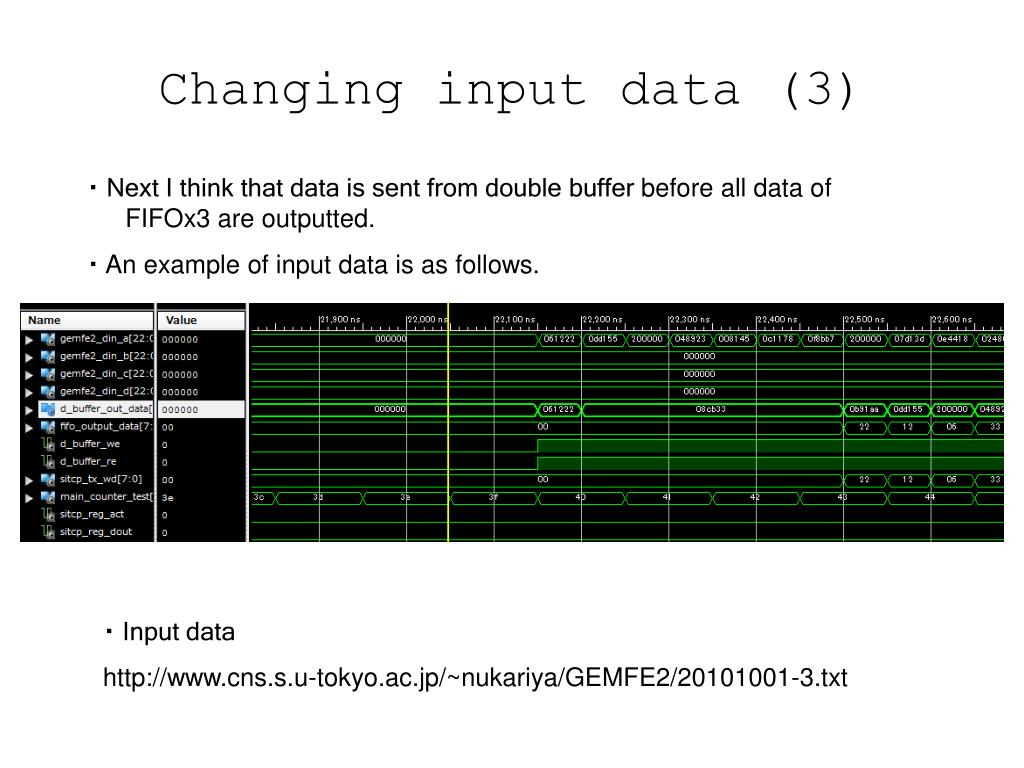

  15. Changing input data (3) ・ Next I think that data is sent from double buffer before all data of FIFOx3 are outputted. ・ An example of input data is as follows. ・ Input data http://www.cns.s.u-tokyo.ac.jp/~nukariya/GEMFE2/20101001-3.txt

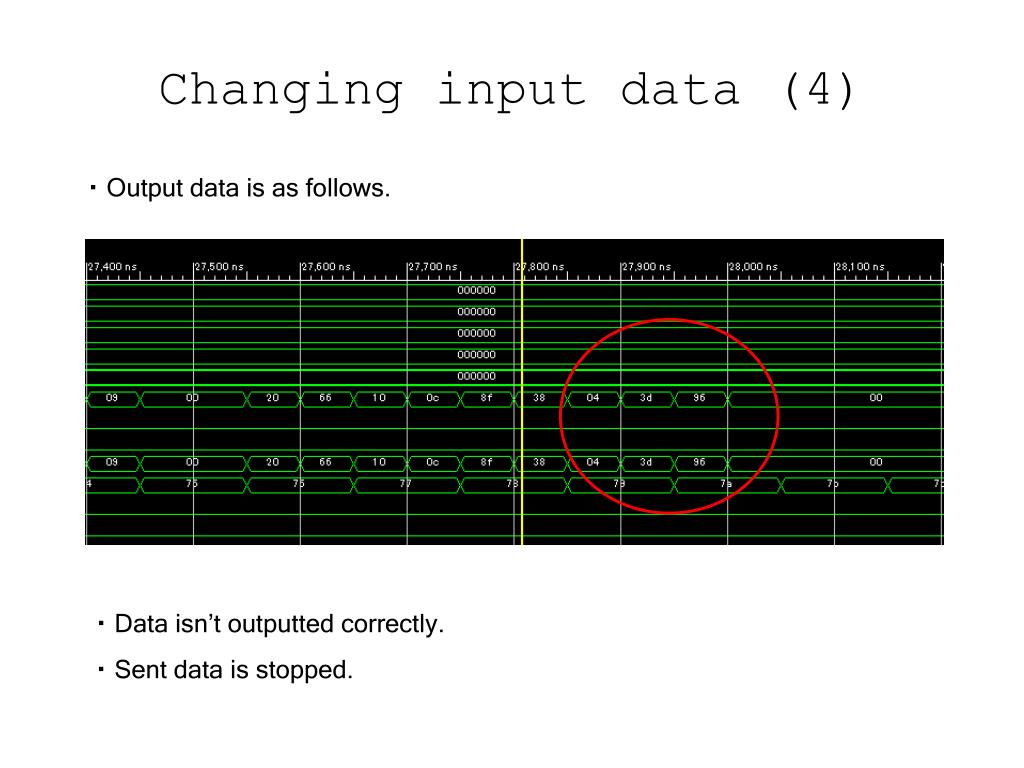

  16. Changing input data (4) ・ Output data is as follows. ・ Data isn’t outputted correctly. ・ Sent data is stopped.

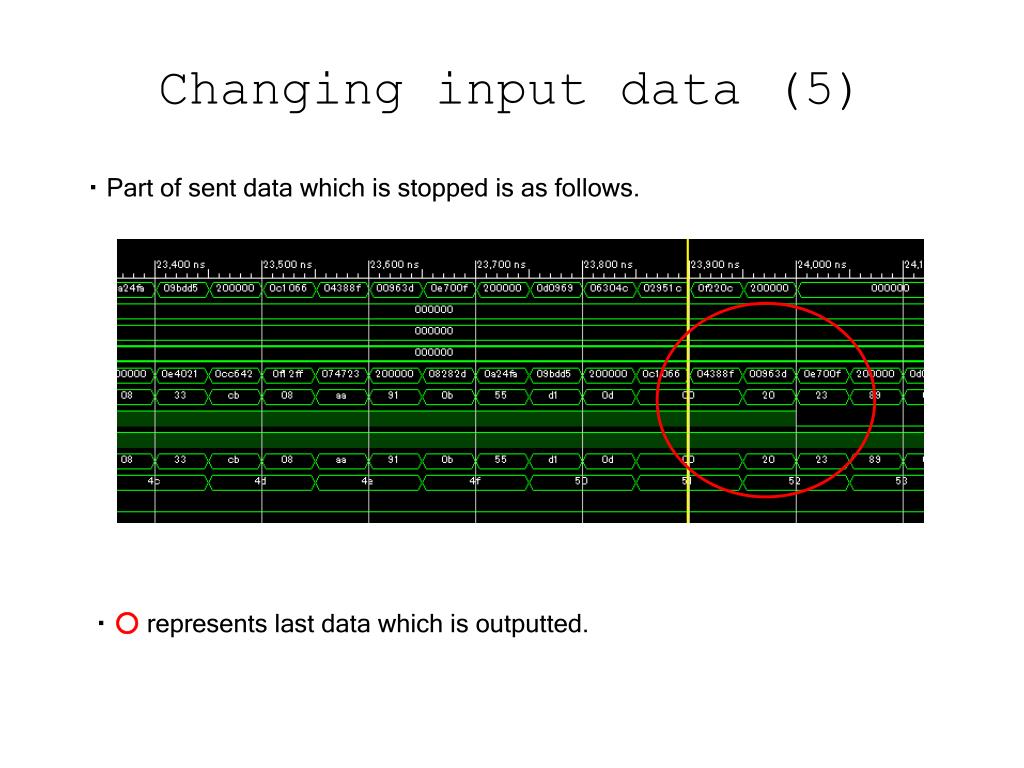

  17. Changing input data (5) ・ Part of sent data which is stopped is as follows. ・ ○represents last data which is outputted.

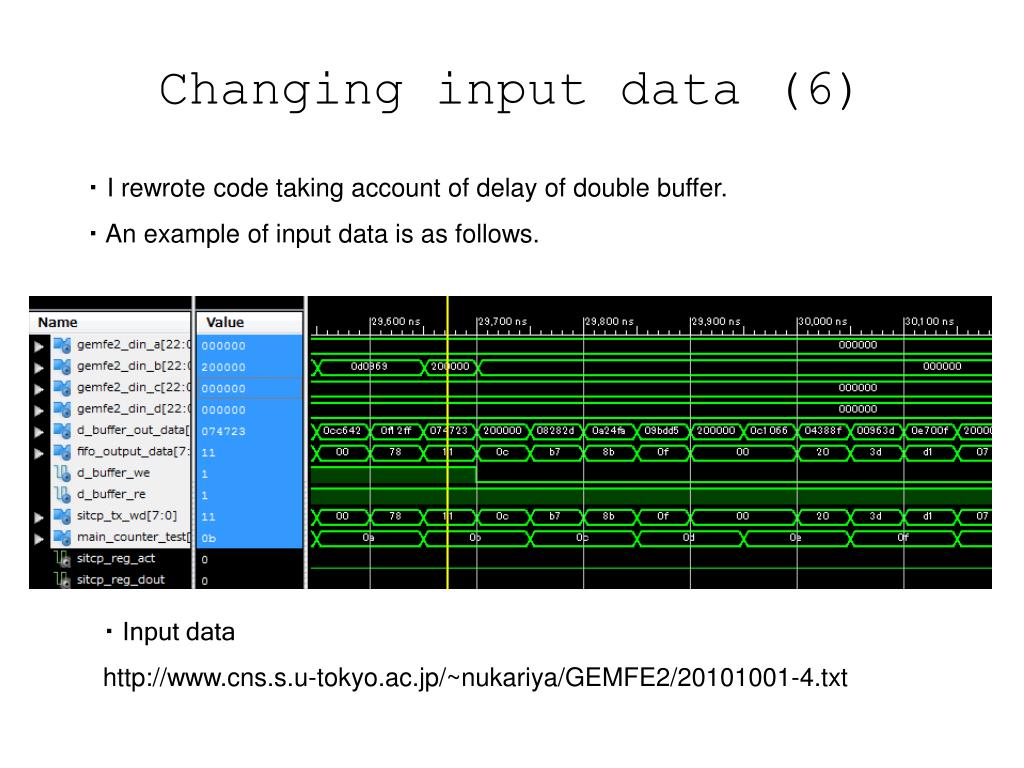

  18. Changing input data (6) ・ I rewrote code taking account of delay of double buffer. ・ An example of input data is as follows. ・ Input data http://www.cns.s.u-tokyo.ac.jp/~nukariya/GEMFE2/20101001-4.txt

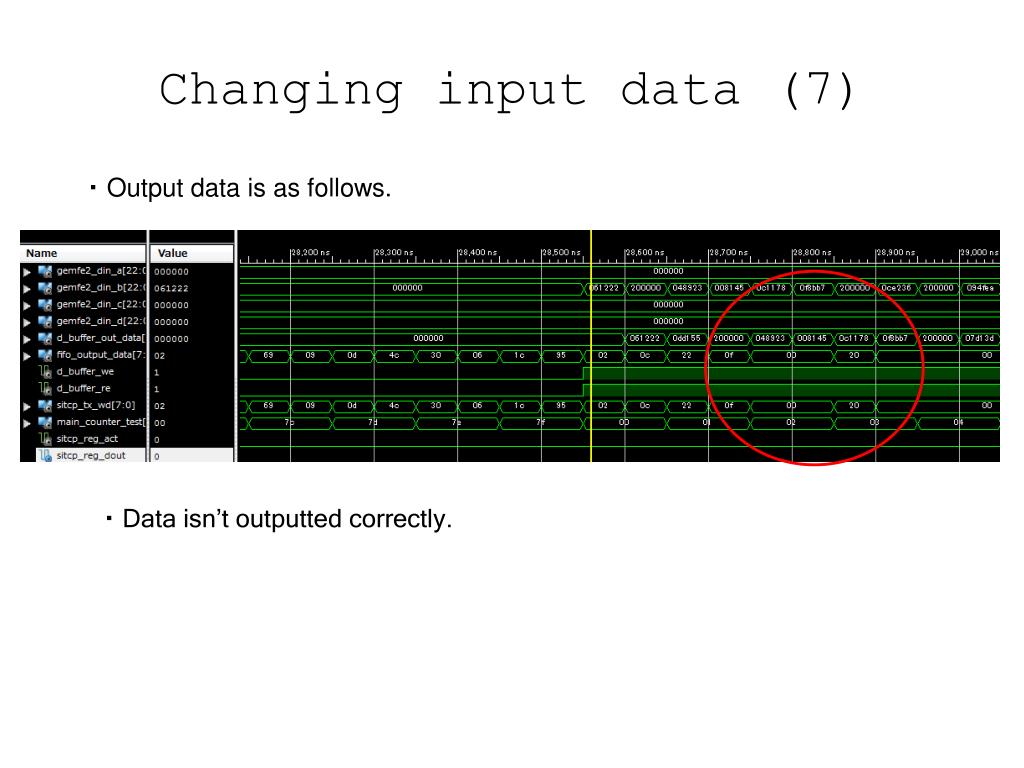

  19. Changing input data (7) ・ Output data is as follows. ・ Data isn’t outputted correctly.

  20. Implementation of Chip Full (1) ・ I implement status of Chip Full. ・ An example of Input data is as follows. ・ Input data http://www.cns.s.u-tokyo.ac.jp/~nukariya/GEMFE2/20101005-1.txt

  21. Implementation of Chip Full (2) ・ Output data which is changed by status of Chip Full. ・ Data has changed correctly. → Ex. 0x200000 + 0x800000 = 0xa00000

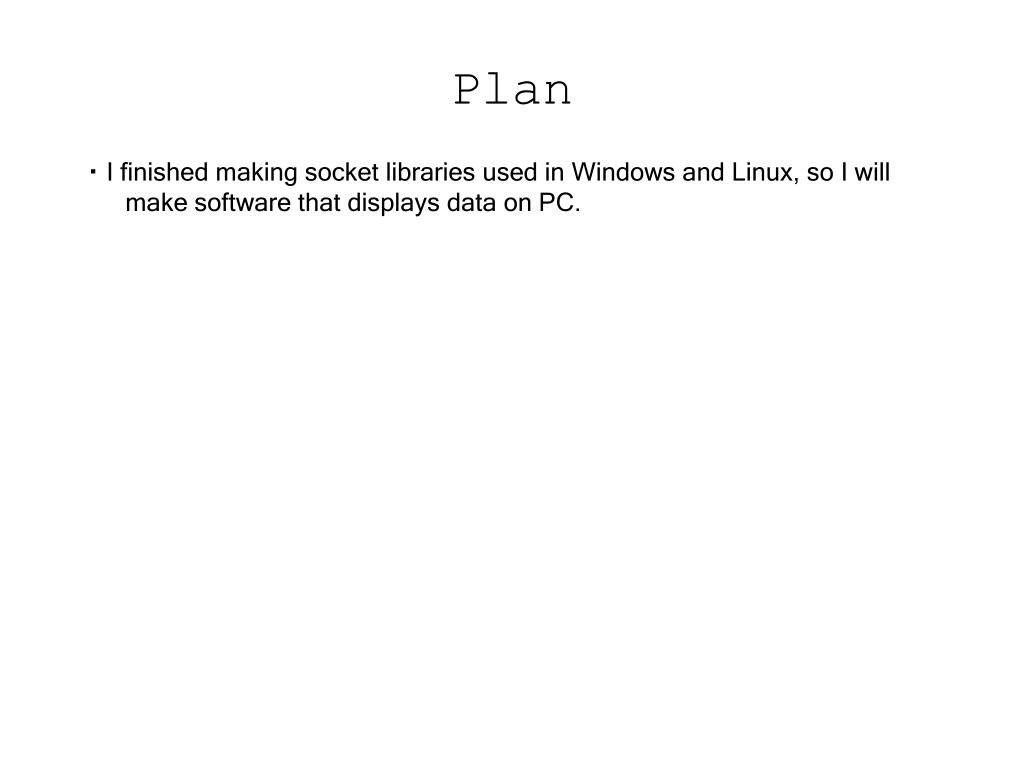

  22. Plan ・ I finished making socket libraries used in Windows and Linux, so I will make software that displays data on PC.
