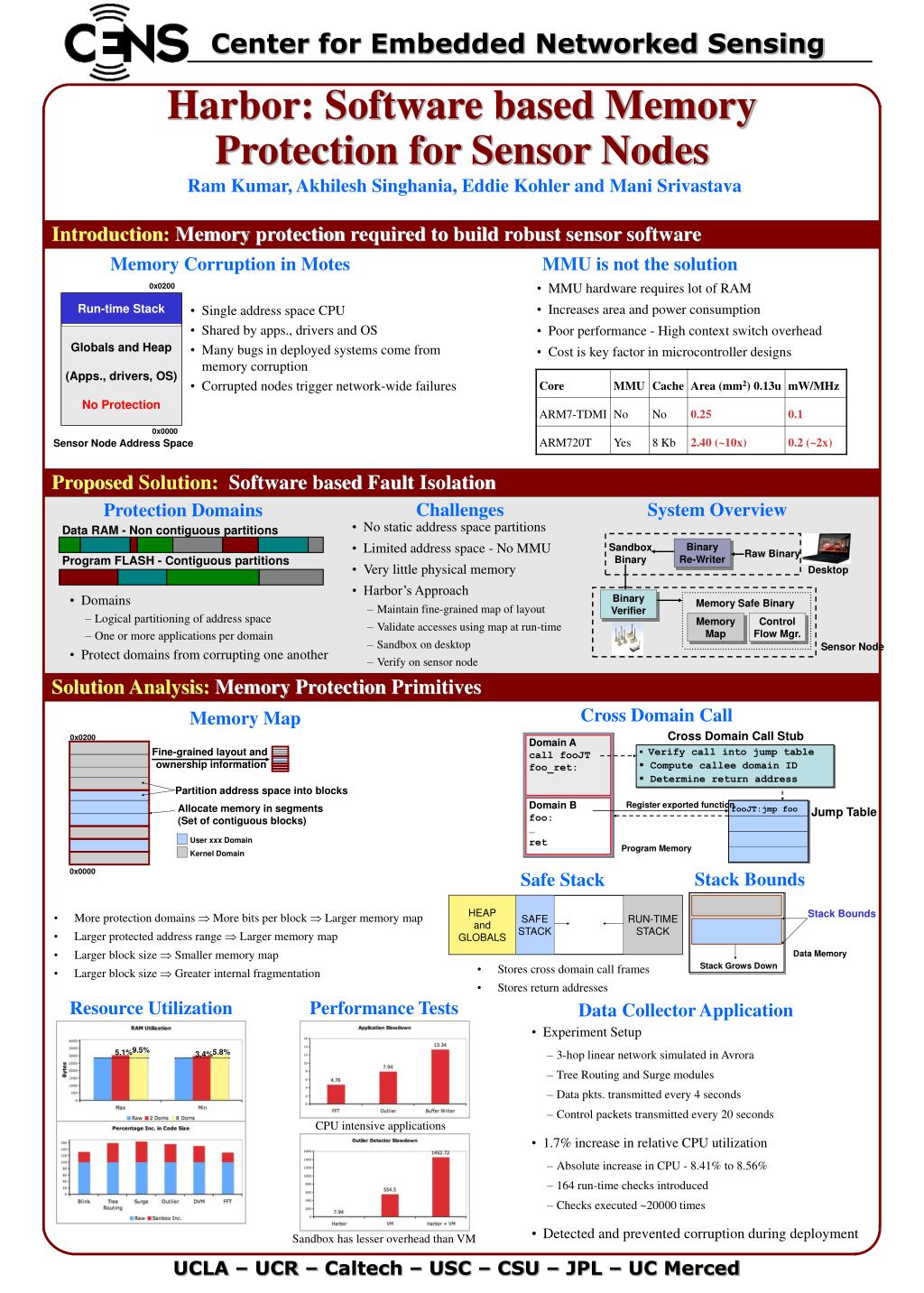

Harbor: Software based Memory Protection for Sensor Nodes

1. 9.5% 5.8% 5.1% Binary Re-Writer 3.4% Sandbox Binary Register exported function Memory Safe Binary Memory Map Control Flow Mgr. Introduction: Memory protection required to build robust sensor software 0x0200 Run-time Stack Globals and Heap (Apps., drivers, OS) No Protection 0x0000 Sensor Node Address Space Proposed Solution: Software based Fault Isolation Solution Analysis:Memory Protection Primitives Center for Embedded Networked Sensing Harbor: Software based Memory Protection for Sensor Nodes Ram Kumar, Akhilesh Singhania, Eddie Kohler and Mani Srivastava Memory Corruption in Motes MMU is not the solution • MMU hardware requires lot of RAM • Increases area and power consumption • Poor performance - High context switch overhead • Cost is key factor in microcontroller designs • Single address space CPU • Shared by apps., drivers and OS • Many bugs in deployed systems come from memory corruption • Corrupted nodes trigger network-wide failures Challenges System Overview Protection Domains • No static address space partitions • Limited address space - No MMU • Very little physical memory • Harbor’s Approach • Maintain fine-grained map of layout • Validate accesses using map at run-time • Sandbox on desktop • Verify on sensor node Data RAM - Non contiguous partitions Raw Binary Program FLASH - Contiguous partitions Desktop • Domains • Logical partitioning of address space • One or more applications per domain • Protect domains from corrupting one another Binary Verifier Sensor Node Cross Domain Call Memory Map Cross Domain Call Stub 0x0200 Domain A call fooJT foo_ret: Fine-grained layout and ownership information • Verify call into jump table • Compute callee domain ID • Determine return address Partition address space into blocks Domain B foo: … ret Allocate memory in segments (Set of contiguous blocks) fooJT:jmp foo Jump Table User xxx Domain Program Memory Kernel Domain 0x0000 Stack Bounds Safe Stack HEAP and GLOBALS SAFE STACK RUN-TIME STACK Stack Bounds • More protection domains  More bits per block  Larger memory map • Larger protected address range  Larger memory map • Larger block size  Smaller memory map • Larger block size  Greater internal fragmentation Data Memory Stack Grows Down • Stores cross domain call frames • Stores return addresses Resource Utilization Performance Tests Data Collector Application • Experiment Setup • 3-hop linear network simulated in Avrora • Tree Routing and Surge modules • Data pkts. transmitted every 4 seconds • Control packets transmitted every 20 seconds • 1.7% increase in relative CPU utilization • Absolute increase in CPU - 8.41% to 8.56% • 164 run-time checks introduced • Checks executed ~20000 times • Detected and prevented corruption during deployment CPU intensive applications Sandbox has lesser overhead than VM UCLA – UCR – Caltech – USC – CSU – JPL – UC Merced
