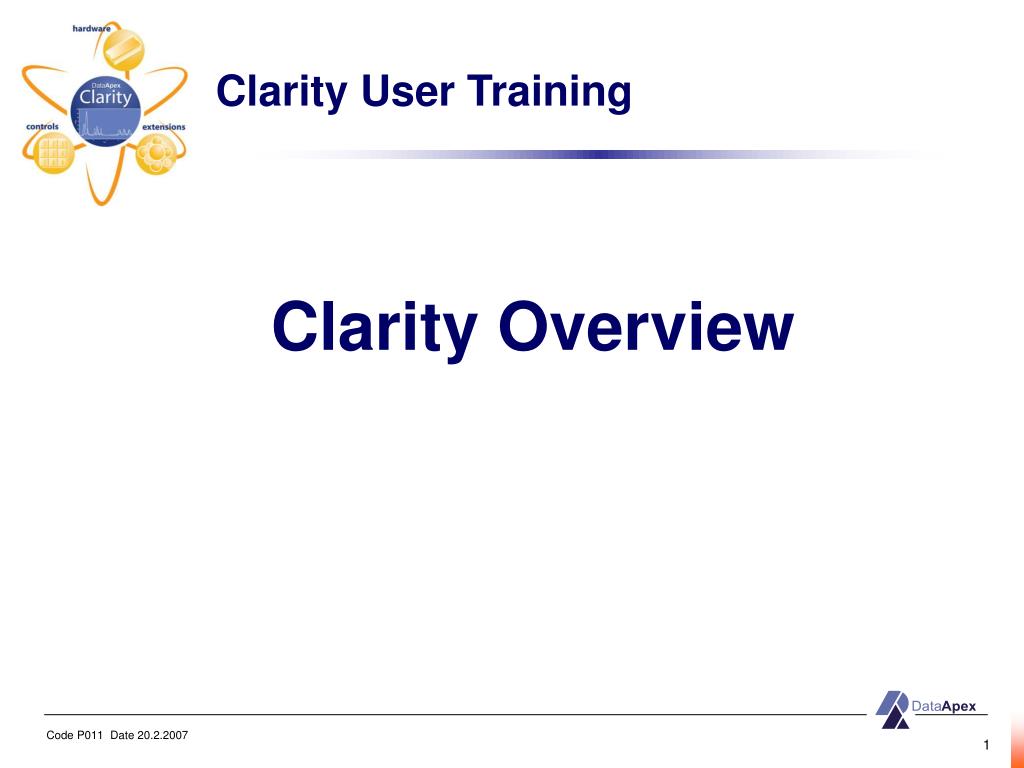

  1. Clarity Overview Clarity User Training

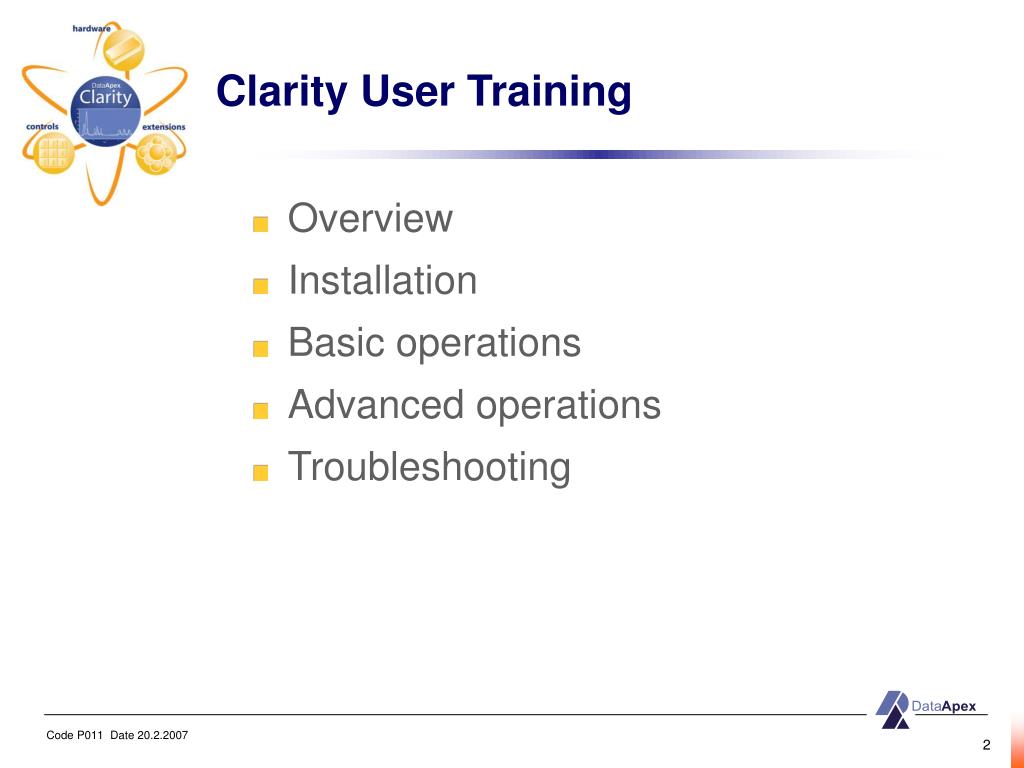

  2. Clarity User Training • Overview • Installation • Basic operations • Advanced operations • Troubleshooting

  3. Clarity Chromatography Station for Windows • 32 bit software • based on previous CSW32, CSW1.7, Apex • introduced in 2003, actual version 2.4.4.xxx • designed for Windows 2000, XP • INT7 PCI internalA/D board • U-PAD USB externalA/D board • Net-PAD LAN (ethernet) externalA/D board • support for multidetector systems • summary reports • support for GLP and CFR21 part 11 • on-line technical support

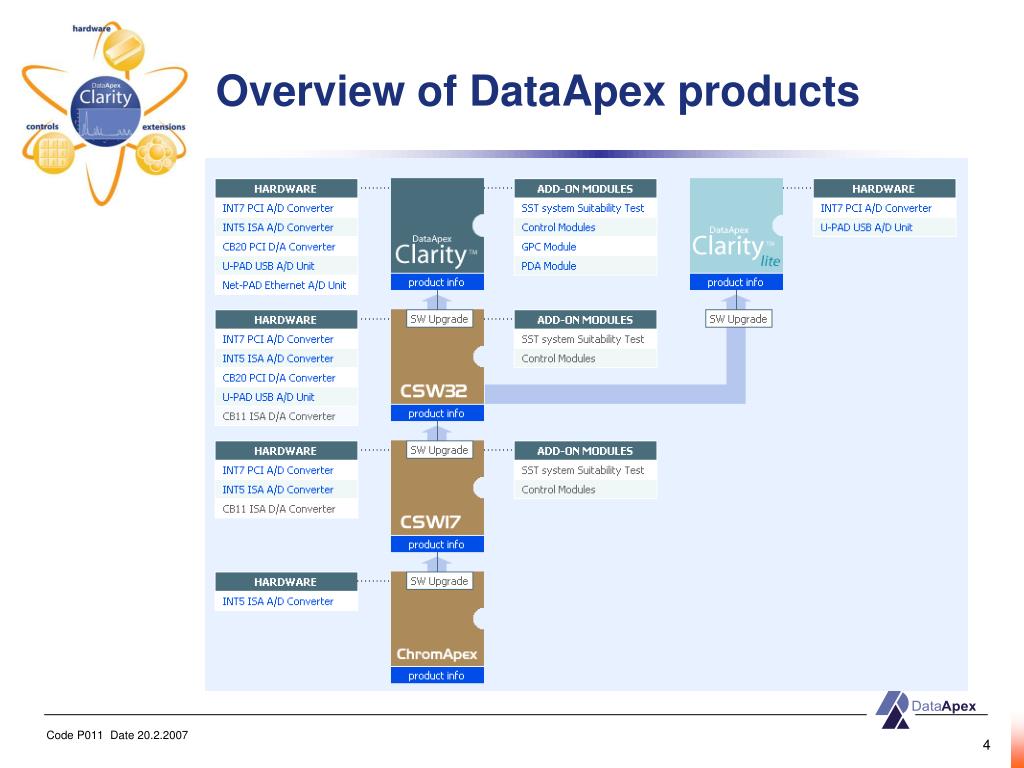

  4. Overview of DataApex products od 2003 od 2003 od 2001 od 1994 od 1991

  5. Clarity properties • Data acquisition simultaneously from up to 4 independent instruments, each with up to 12 detectorsignals • arbitrary combination of signal channels on A/D boards • evaluation of data and work with other programs possible during data acquisition • Input signal range 100 mV to 10 V • Acquisition frequency 10 - 100 Hz • External or internal A/D converter • INT7 – 1 to 4 channel PCI A/D converter • U-PAD – 2 channel USB A/D converter • Net-PAD - 2 channel LAN (TCP/IP) A/D converter

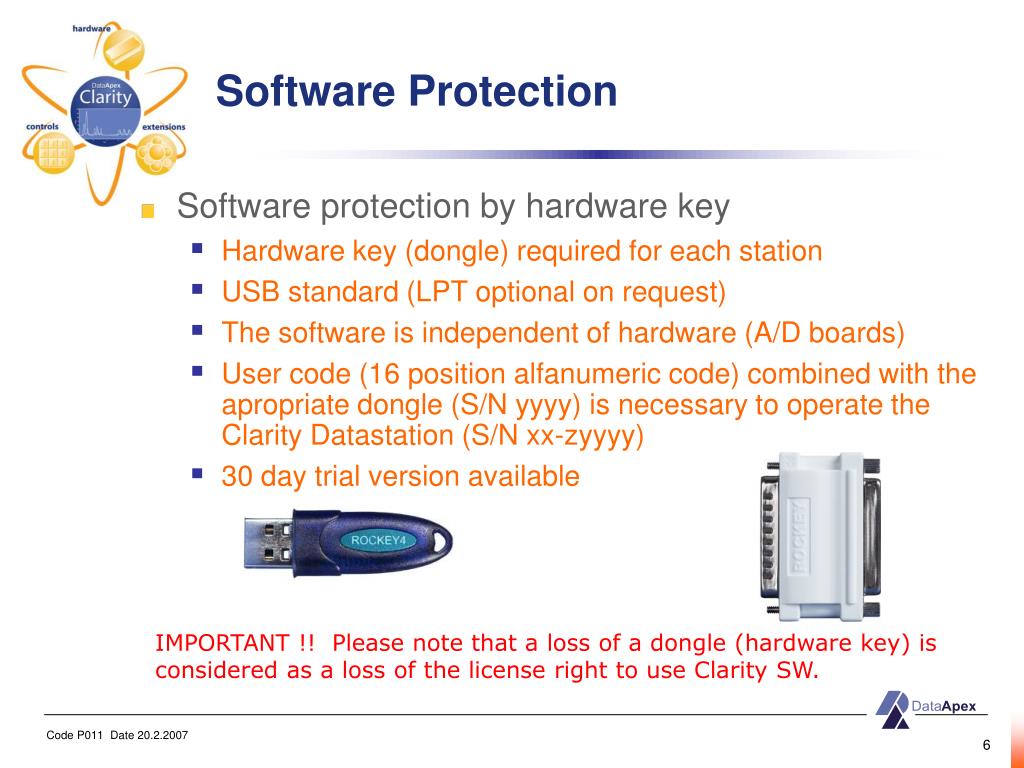

  6. Software Protection • Software protection by hardware key • Hardware key (dongle) required for each station • USB standard (LPT optional on request) • The software is independent of hardware (A/D boards) • User code (16 position alfanumeric code) combined with the apropriate dongle (S/N yyyy) is necessary to operate the Clarity Datastation (S/N xx-zyyyy) • 30 day trial version available IMPORTANT !! Please note that a loss of a dongle (hardware key) is considered as a loss of the license right to use Clarity SW.

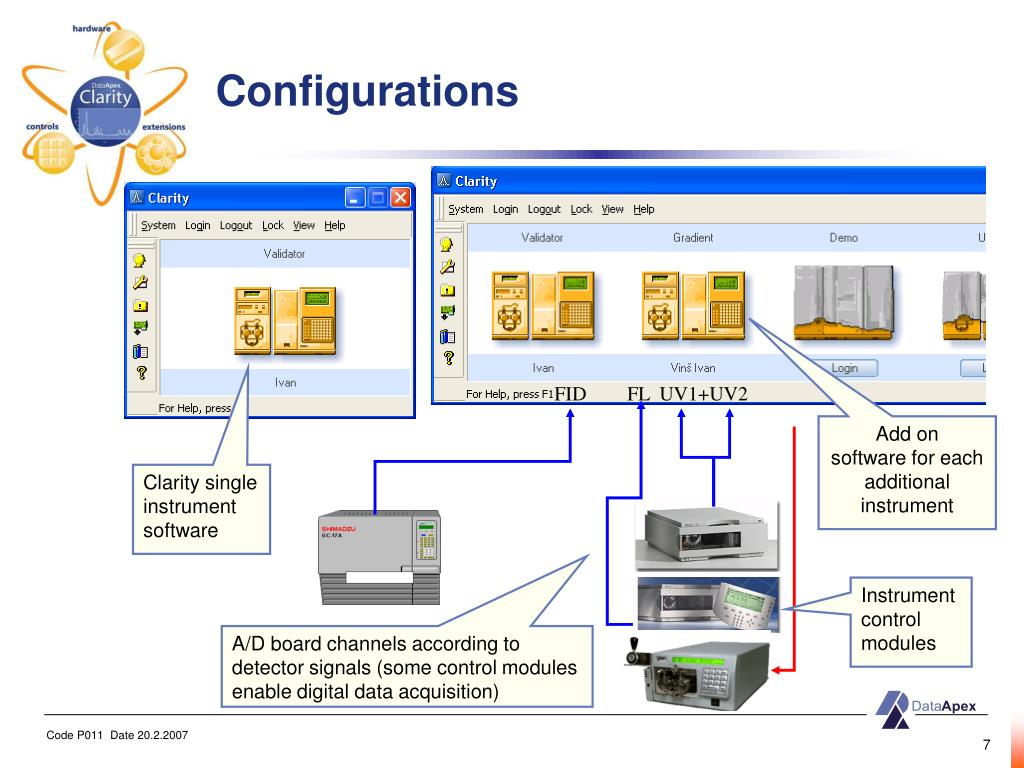

  7. Configurations FID FL UV1+UV2 Add onsoftware for each additional instrument Clarity single instrument software Instrument control modules A/D board channels according to detector signals (some control modules enable digital data acquisition)
